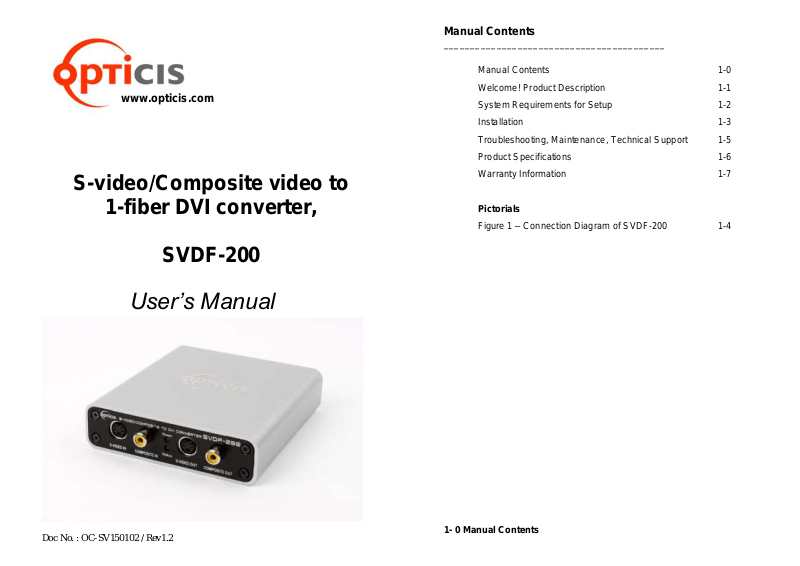

User’s Manual
Doc No. : OC-SV150102 / Rev1.2
S-video/Composite video to
1-fiber DVI converter,
SVDF-200
www.opticis.com
Manual Contents
__________________________________________
Manual Contents 1-0
Welcome! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting, Maintenance, Technical Support 1-5
Product Specifications 1-6
Warranty Information 1-7
Pictorials
Figure 1 – Connection Diagram of SVDF-200 1-4
1- 0 Manual Contents
Page 2
Welcome!
Congratulations on your purchase of the S-video/Composite video to 1-fiber
DVI converter, SVDF-200. This manual contains information that will assist
you in installing and operating the product.
Product Description
The SVDF-200, Component video to 1-fiber DVI converter receives SD
format S-video/Composite video and converts to SXGA (1280x1024), 60Hz
DVI optical signal and transmits up to 500 meters (1,640feet) over one (1) SC
multi-mode fibers. OPTICIS 1-fiber DVI receiver, DVFX-100-R is used as a
pair to recover 1 fiber DVI to electrical DVI.
Shipping Group
SVDF-200, Component video to 1-fiber DVI converter:
One (1) unit
AC/DC power adapter: One (1) unit of +5V, 3A (Locking type)
User’s Manual
Option Product: Mounting bracket
1-1 Welcome, Product Description
System Requirements for Setup
Hardware requirements
You have to have S-video/Composite video sources such as DVD
player or camcorder.
No special requirements for video sources
1-2 System Requirements for Setup
Page 3
Installation
Important: Please keep the installation procedure below. Improper or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2
Plug and fasten the 5V power adapters to the +5V DC jack on the rear side of
converter. Ensure the Power LED ON (Blue).
Step 3
Connect the S-video or Component video source to SVDF-200 over mini-DIN
or RCA cable. Please make sure the firm connections between video source
and input port of converter (S-VIDEO IN and COMPOSITE IN). If the
connected video source is active, status LED (Blue) will be turned on.
[Note 1] SVDF-200 is designed to accept the first incoming video inputs. If the user
connect Composite video output to SVDF-200 input port, it will work as composite video to
1-fiber DVI converter and vice versa.
Step 4
Connect the OPTICAL OUT to 1-fibe DVI receiver, DVFX-100-R over multimode SC-SC optical fiber.
Step 5
Plug DVFX-100-R to DVI input port of display.
Step 6
If you need on-site monitoring, connect S-VIDEO OUT or COMPOSITE OUT
on the front side of converter to dedicated local display over mini-DIN or RCA
cable.
[Note 2] As the same concept as Note 1, if f the user connect S-video output to SVDF-200
input port, it will work as S-video to 1-fiber DVI converter and only S-VIDEO OUT port
would be activated.
1-3 Installation
Note1: The maximum extension length by multi-mode fiber is 500 meters.
Note2: Be recommended NOT to use any intermediate cable or adapter in
between to avoid undesirable performance degradation.

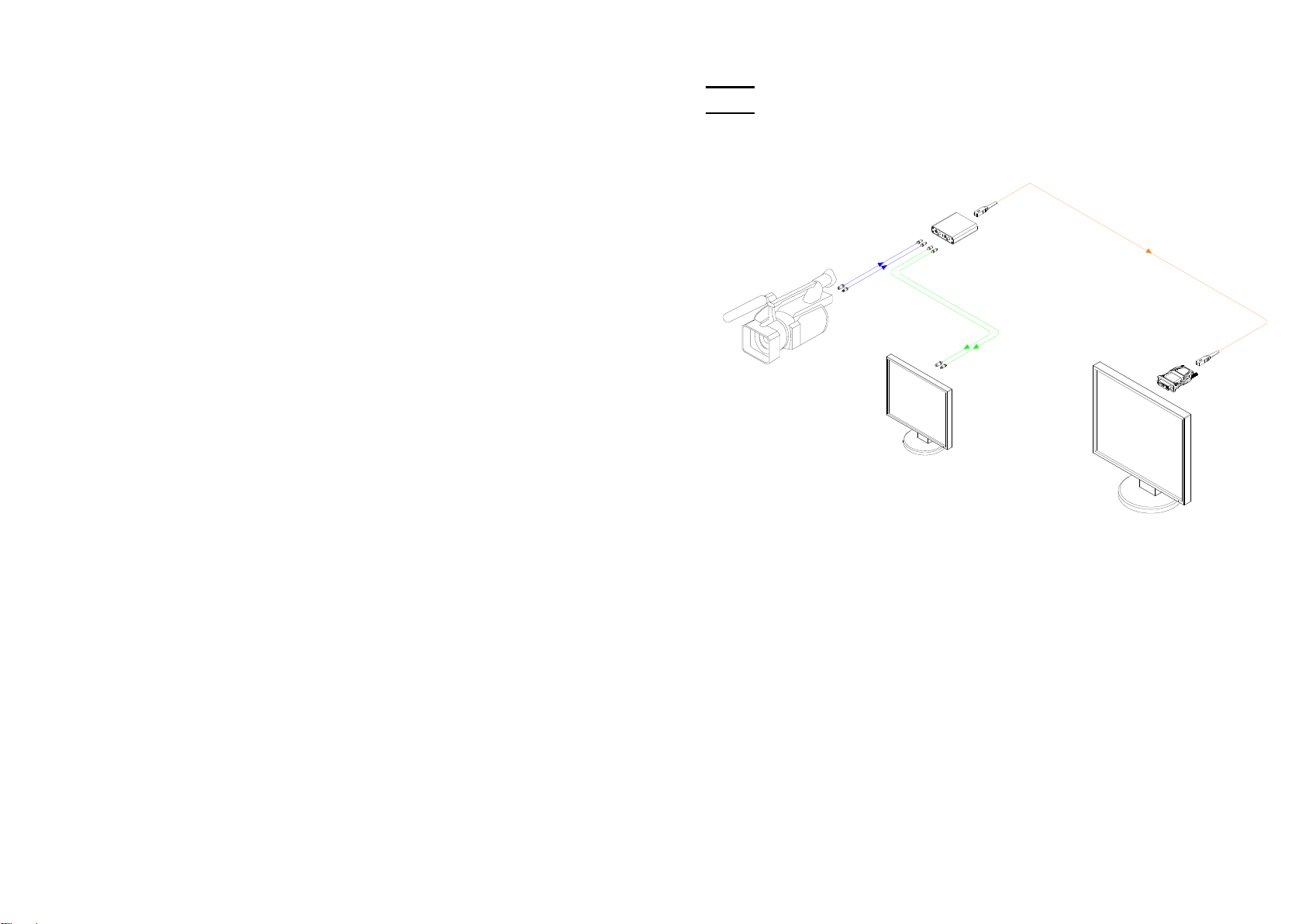

Figure 1 – Connection Diagram of SVDF-200
1-4 Installation
S-video / Composite video
Source
Local
S-video / Composite video
Display
One (1) Optical Fiber
DVFX-100
Rx
Remote
DVI Display
at SXGA
SVDF-200
Page 4
Troubleshooting
The display shows only black screen.
- Ensure that all plugs and jacks used by external power supplies (both
Opticis and others) are firmly connected. Ensure that the Power and status
LED ON.
- Ensure that the video ports are firmly plugged in to the source and display.
- Ensure that the converter and receiver modules plugged correctly to the
source and display, respectively.
- Check if the source and display are powered on and properly booted.
Screen is distorted or displays noises.
- Check if the graphic resolution is properly set. Go to the display properties of
Windows and tap the settings.
- Reset the system. Disconnect and reconnect the optical fiber or 5V power
adapters.
- Ensure that the input resolution is SD format (NTSC, PAL)
Maintenance
No special maintenance is required for the converter and power adapters.
Ensure that the converter and power adapters are stored or used in a benign
environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email [email protected] or visit its
website at www.opticis.com
1-5 Troubleshooting, Maintenance, Technical Support
Product Specifications
SVDF-200, Component video to 1-fiber DVI converter
Extension limit: 500 meters (1,640 feet) for SXGA (1280x1024),
60Hz refresh rate.
Graphic transmission bandwidth: Supports SXGA (1280x1024),
60Hz, or 1.085Gbps bandwidth per graphic channel.
Supporting resolution:
480i, 576i.
Fiber-optic connection: SVDF-200 has one (1) SC receptacles so
as to be connected with one (1) SC multi-mode fiber, having 62.5
(50) / 125m core.
Dimensions (WDH): 104 x 112 x 28mm
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: - 30°C to 70°C
Humidity: 10% to 85%
AC/DC Power Adapter
Power Input: AC 100-240V, 50/60Hz 0.1A
Power Output: +5 V, 3A SMPS DC-power Adapter
Cord DC Jack: Core is 5 V and outer is GND.
1-6 Product Specifications
Page 5
Warranty Information
1 (One) Year Warranty
Opticis warrants this SVDF-200 to be free from defects in workmanship and m
aterials, under normal use and service, for a period of
one (1) year from the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part, d
eliver to customer an equivalent product or part to replace the defective
item or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or me
mory data of customer contained in, stored on, or integrated with any product
s returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the
application for which said product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-7 Warranty Information
