Page 1
User’s Manual
DHFC-200D
Doc No. : OEC-H190104-M1 / Ver 1.0
Stretch DP-HDMI
TM
Page 2
Manual Contents
______________________________________________________
Manual Contents 1-0
Welcome! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting, Maintenance, Technical Support 1-4
Product Specifications 1-5
Warranty Information 1-6
Pictorials
Figure 1 – General connection diagram of DHFC-200D 1-1
1-0 Manual Contents
Welcome!
Congratulations on your purchase of the Stretch DisplayPort - HDMITM
DHFC-200D, DisplayPort 1.2 to HDMI 2.0 Converting Detachable Active
Optical Cable. This manual contains information that will assist you in
installing and operating the product.
Product Description
Shipping Group
DHFC-200D, DisplayPort 1.2 to HDMI 2.0 Converting Detachable
Active Optical Cable: One (1) unit, length as your inquire.
User’s Manual

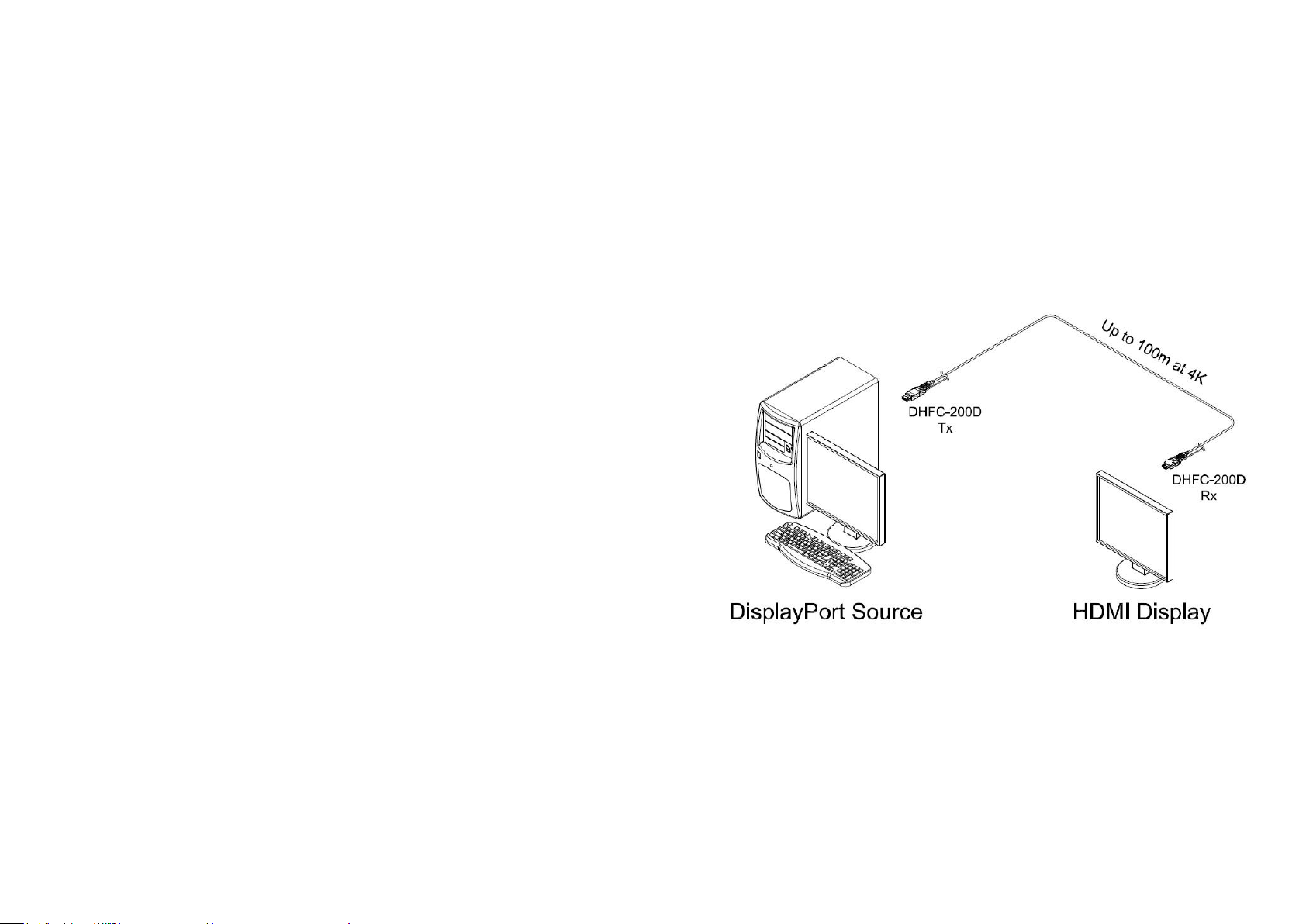

Figure 1 – General connection diagram of HDFC-200D
1-1 Welcome, Product Description
Page 3
System Requirements for Setup
Hardware requirements
You have to have a DisplayPort display source (Media player,
PC or laptop). It should support the maximum graphic resolution
feature of HDMI Display (TV, Monitor or Projector) to be
connected.
No special requirements memory size, CPU speed and
chipsets, if you’ve already properly installed your DisplayPort
and HDMI systems.
Software requirements
No special restrictions, if you’ve already properly installed your
HDMI systems.
AC/DC Power Adapter Technical Advisory
The DHFC-200D is designed to use USB power supply on both
Tx(display source) and Rx(display) side to power up.
Note that if either of Display source does not support DisplayPort
1.2 and/or Display does not support HDMI 2.0 standard, DHFC-200D
would not transmit its signal.
Just like copper cable, transmitting information will follow lower
resolution of the two.
(Example: 4K Display source – 2K Display → 2K resolution,
2K Display source – 4K Display → 2K resolution)
Warning
Do not connect micro HDMI connector, which is place on the end
part of core cable, directly to any micro HDMI receptacle other than
DHFC-200D body part. Using micro HDMI connector without DHFC200D connector will cause cable and/or DisplayPort source / HDMI
display devices damaged.
1-2 System Requirements for Setup
Installation
Important: Please use the installation procedure below. Improper or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Unpack the contents of the shipping group.
Step 2
Connect both connector and cable of DHFC-200D if they are not engaged with
each other.
Step 3
Plug USB connector of Rx side to USB port of a HDMI display and check the
blue LED of Rx is ON.
Step 4
Plug the HDMI plug of the RX side of DHFC-200D into the HDMI receptacle of
HDMI Display.
Step 5
Plug both DisplayPort plug and USB power of Tx side of DHFC-200D into the
DisplayPort receptacle of DisplayPort source (Media player, PC or laptop), and
check if LED of Tx side is ON
Step 6
If the system does not work properly, go to page 1-4, trouble shooting.
Note: Opticis does NOT recommend customer to use any intermediate cable
or adapter between them. It may deteriorate the signal transmission
performance.)
Note: If there is no display after Step 5, kindly unplug USB cable of DHFC200D-Rx and re-plug them back to HDMI display.
Note: DHFC-200D has to receive +5V power from USB port for both Tx/Rx
side to operate, however, it is mandatory to connect USB power of DPFC200D-Rx first.
1-3 Installation
Page 4
Troubleshooting
The display displays only black screen.
Ensure that the both DisplayPort and HDMI ports are firmly plugged in to the
DisplayPort source and HDMI display. Ensure that the TX and RX module
plugged correctly to the DisplayPort source and HDMI display respectively.
Ensure that blue power LEDs on TX and RX modules are on.
Check if the DisplayPort source and display are powered on and properly
booted.
Reset the system by de-plugging and re-plugging the TX DisplayPort port or
RX HDMI port.
Re-boot up the system while connecting the optical cable system.
Screen is distorted or displays noises.
Ensure connections of both plugs while disconnecting and reconnecting the
optical cable.
Maintenance
No special maintenance is required for the optical cable. Ensure that the
cables and power modules are stored or used in a benign environment free
from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email [email protected] or visit our
website at www.opticis.com
1-4 Troubleshooting, Maintenance, Technical Support
Product Specifications
DHFC-200D, DisplayPort 1.2 to HDMI 2.0 Converting Detachable Active
Optical Cable
Extends up to 4K (4096x2160) at 60Hz (RGB & YCbCr : 4:4:4)
Converts DisplayPort 1.2 signal to HDMI 2.0 signal and transmits
converted signal up to 100m (328feet) over hybrid cable
Adopts Plenum graded (or LSZH, Low Smoke Zero Halogen) hybrid
cable
Offers perfect flexibility during installation by separating DisplayPort
and HDMI connector from cable
Prevents accidental disconnection by using High-Retention HDMI
connector(Rx) and DisplayPort connector(Tx)
Supports 3D contents transmission
Supports CEC, EDID and HDCP 2.2
Tensile load: 150N
Short Term Load 300 N for 30min
Long Tern Load 150N for 10min
Minimum bending radius: 70mm(Under Load)
(usually safe in assuming a minimum long-term low-stress
radius not less than 15 times the cable diameter; EIA/TIA 568
For Fiber Optics
Outer diameter of cable: 3.9x2.7mm
Mechanical specifications of TX and RX module parts
Dimensions (L/W/H):
Tx : 63.0mm / 20.0mm / 11.5mm
Rx : 53.0mm / 20.0mm / 10.4mm
Environmental Specifications
Operating temperature: 0°C to 60°C
Storage temperature: - 20°C to 85°C
Humidity: 10% to 90%
1-5 Product Specifications
Page 5
© 2019 Opticis Co., Ltd. All Rights Reserved
Version 1.0_January 2019
Opticis Locations
Headquarters
Opticis Co., Ltd.
7F, 166, Jeongjail-ro
Bundang-gu,
Seongnam-si, Gyunggi-do, 13558
South Korea
Tel: +82 (31) 719-8033
Fax: +82 (31) 719-8032
www.opticis.com
For order support, please contact your Distributor or Reseller.
For technical support, check with the Opticis web site www.opticis.com or
contact [email protected]
Warranty Information
1 (One) Year Warranty
Opticis warrants this optical HDMI extension cable to be free from defects in
workmanship and materials, under normal use and service, for a period of
one (1) year from the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part,
deliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) days warranty or
the reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the Product in the
application for which said Product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-6 Warranty Information
