Miniature Fiber-Optic
3G-SDI Extension Module
User’s Manual
(SDIX-100, SDIX-100C)
Doc No. : OE-SD150102 / Rev1.3
Page 2
Manual Contents
______________________________________________________
Manual Contents 1-0
Welcome!, Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting, Maintenance, Technical Support 1-5
Product Specifications 1-6
Warranty Information 1-7
Regulatory Statements 1-8
Pictorials
Figure 1 – Fiber-Optic 3G-SDI Extension module, SDIX-100 1-1
Figure 2 – Tx Module of SDIX-100 1-2
Figure 3 – SDIX-100 with power adapter 1-3
Figure
4
– Rx Module of SDIX-100(C) 1-4
Figure 5 – Whole Connection of SDIX-100(C) 1-5
1- 0 Manual Contents
Welcome!
Congratulations on your purchase of the Miniature Fiber-Optic 3G-SDI
Extension module, SDIX-100, SDIX-100C. This manual contains information
that will assist you in installing and operating the product.
Product Description
Shipping Group
SDIX-100-Tx, Rx Module: One (1) set of unit, length as your request.
Option) SDIX-100-Tx/Rx, SDIX-100C-Tx/Rx (Including re-clocker)
DC 5V 1.5A power adapter : Two (2) units
User’s Manual
Figure 1 – Fiber-Optic 3G-SDI Extension module, SDIX-100
1-1 Welcome, Product Description
Page 3
System Requirements for Setup
Hardware requirements
You have to have a SDI multimedia systems (Camera, OB Van,
Broadcasting equipment using SDI signal, SDI Monitor etc.) or
it should support the maximum graphic resolution feature of
Monitors to be connected.
No special requirements of memory size, CPU speed and
chipsets, if you’ve already properly installed your SDI systems.
Software requirements
No special restrictions, if you’ve already properly installed your
SDI systems.
DC Power Adapter Technical Advisory
The SDIX-100(C) is designed to use only +5V external power.

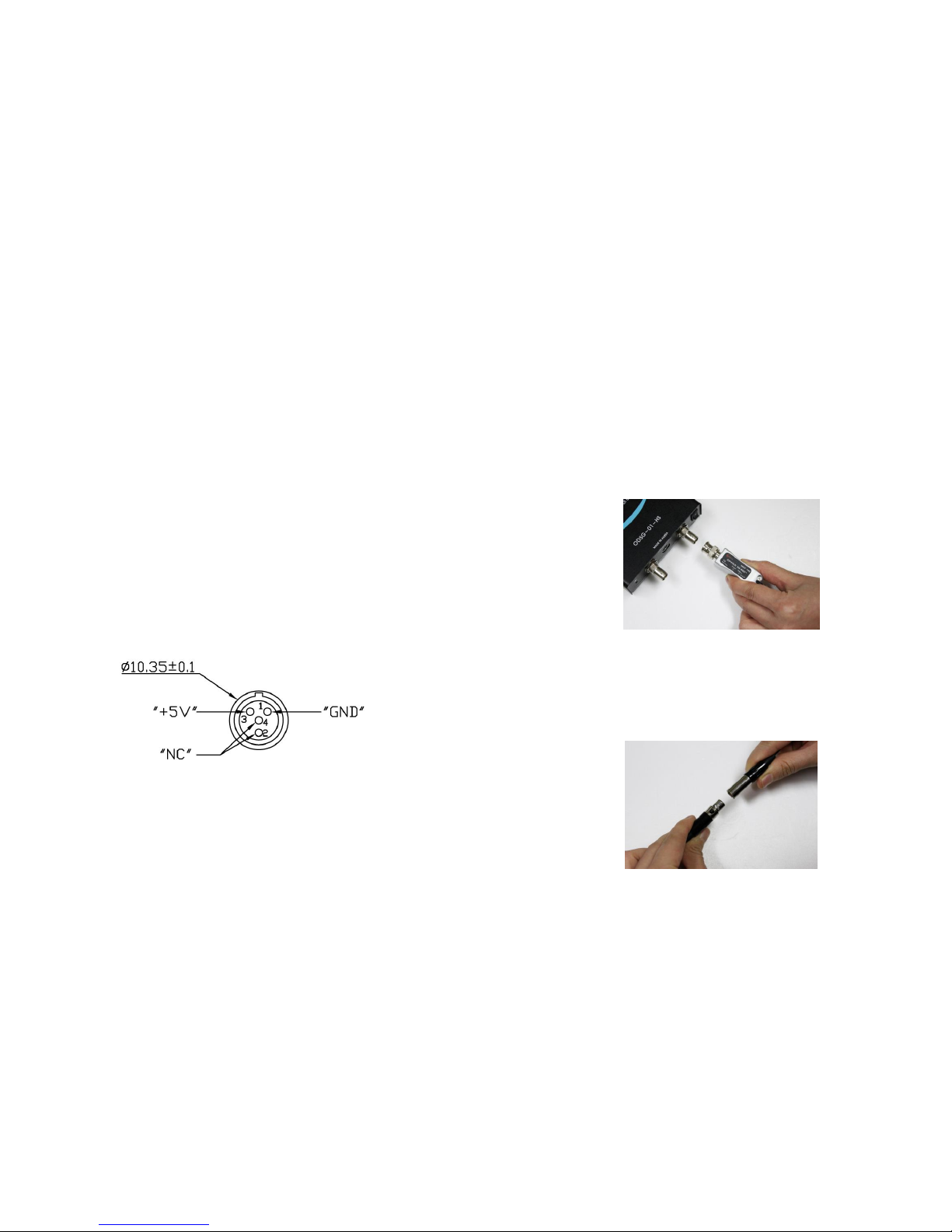

Pin description
1-2 System Requirements for Setup
Installation
Important: Please follow the installation procedure as below. Improper or
no operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2
Connect the plug of the Tx side of SDIX-100 to the receptacle of SDI source
(Camera, Broadcasting equipment etc.) directly. Do NOT recommend to use
any intermediate cable or adapter between them. It may deteriorate the signal
transmission performance.
Figure 2 – Tx module of SDIX-100
Step 3
As shown in Figure 3, plug the +5V power adaptor in the shipping group to the
Tx & Rx Module.
Connecting 5V power adaptor to SDIX-100 Cable is indispensable procedure
for working.
Figure 3 –SDIX-100 with power adapter
1-3 Installation
Page 4
Step 4
Connect the Rx side of SDIX-100(C) to the SDI receptacle of a Display
directly. Do NOT recommend to use any intermediate cable or adapter
between them. It may deteriorate the signal transmission performance.
Figure 4 – Rx module of SDIX-100(C)
Step 5
Power ON the SDI source and Display.
Note: Both of Tx and Rx modules of SDIX-100(C) must be connected by
+5V power adaptors.

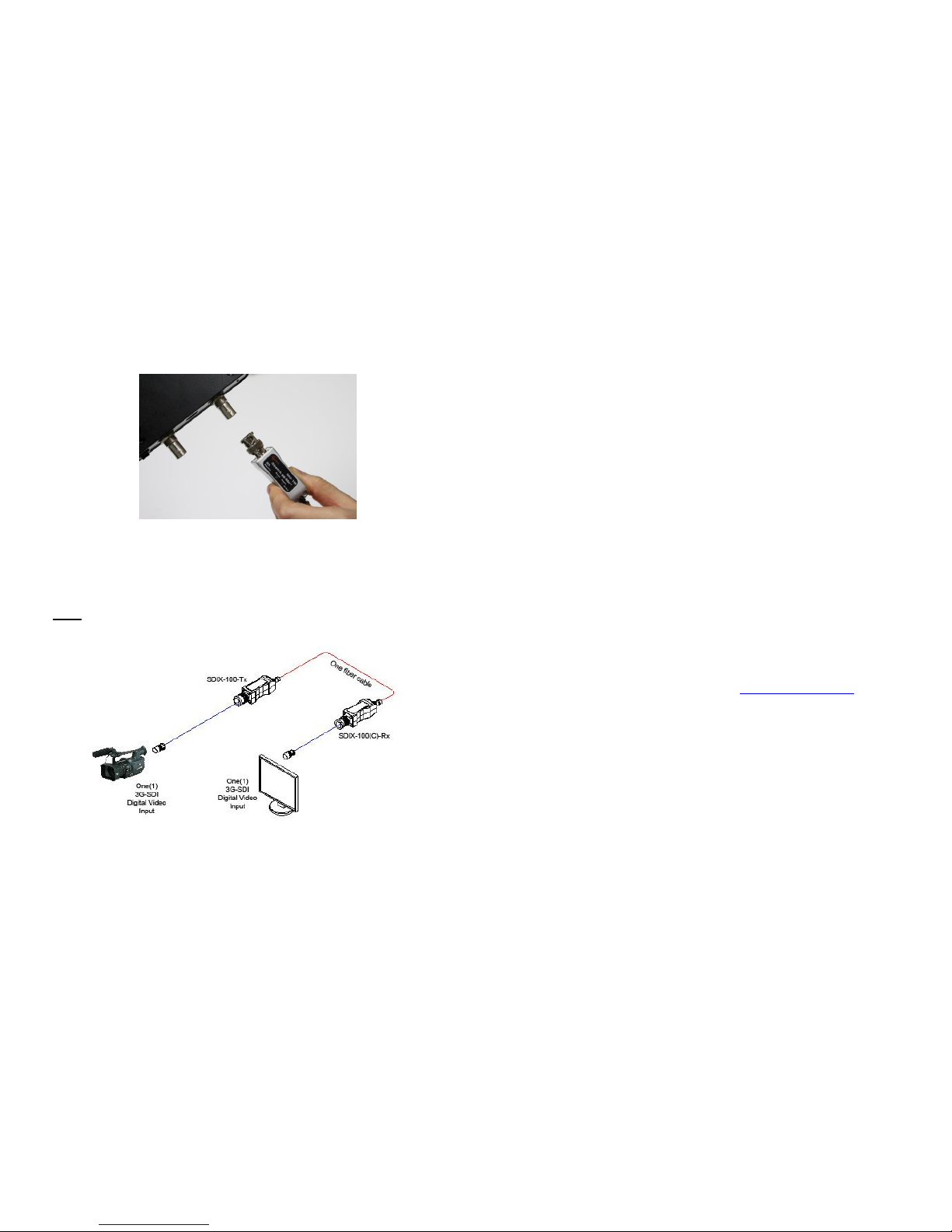

Figure 5 – Whole Connection of SDIX-100(C)
Step 7
If the system does not work properly, go to page 1-5, trouble shooting.
1-4 Installation (continued)
Troubleshooting
The display shows only black screen.
Ensure that all AC and DC plugs and jacks used by external power supplies
are firmly connected.
Ensure that the SDI connector is firmly plugged in to the SDI source and SDI
display. Ensure that the Tx and Rx module parts plug correctly to the SDI
source and SDI display, respectively.
Check if the SDI source and SDI display are powered on and properly booted.
Reset the system by de-plugging and re-plugging the Tx SDI module or Rx
SDI module. Re-boot up the system while connecting the SDIX-100(C).
Screen is distorted or displays noises.
Ensure the quality of SDI source and check the extension length of fiber.
SDIX-100 guarantees the length up to 30Km@3G
Maintenance
No special maintenance is required for the SDIX-100 and power supplies.
Ensure that the cables and power modules are stored or used in a benign
environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email [email protected] or visit its
website at www.opticis.com.
1-5 Troubleshooting, Maintenance, Technical Support
Page 5
Product Specifications
SDIX-100(C), Fiber-Optic 3G-SDI Extension module
Transmission of multi-rate SDI digital video over one (1) fiber:
It converts and transmit one (1) channel of SMPTE-424M (3G-SDI),
SMPTE-292M (HD-SDI) or SMPTE-259M (SDI).
Available both Single-mode and Multi-mode.
Supports embedded audio (such as embedded AES audio signal).
Offers clock recovery circuit included model, SDIX-100C as an
option.
Extension limit: 30km @3G, 1080p 3G-SDI format.
Recommended Fiber-optic Cable: Glass Single-mode fiber with
1310, 1550nm of bandwidth and ST terminated connector.
General electrical specification
Data Transfer Rate (Graphic Data) : Max. 3Gbps
Link Power Budget : Min.11dB
Optical Connector : ST Connector
Electric Connector Type from Modules : 75 Ohm BNC (Male)
Mechanical specifications of Tx and Rx module parts
Dimensions (WDH): 19.5 x 82.7 x 19.5mm
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: - 30°C to 70°C
Humidity: 10% to 85% RH
Certifications: CE / FCC
DC Power Adapter
Supply Power : DC 5V, 1.5A
Cord DC Jack : Core is 5V and outer is GND.
Warranty Information
1 (One) Year Warranty
Opticis warrants this fiber-optic 3G-SDI extension cable to be free from
defects in workmanship and materials, under normal use and service, for a
period of one (1) year from the date of purchase from Opticis or its authorized
resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part,
deliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the Product in the
application for which said Product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-7 Warranty Information
