Opticis SDISE-100-TR User guide

Page 1
Manual Contents
______________________________________________________ Manual Contents 1-0
Welcome!, Product Description 1-1 System Requirements for Setup 1-2 Installation 1-3 Troubleshooting, Maintenance, Technical Support 1-5 Product Specifications 1-6 Warranty Information 1-7 Regulatory Statements 1-8
Pictorials
Figure 1 – Fiber-Optic 3G-SDI Extension module 1-1 Figure 2 – Tx Module of SDISE-100 1-2 Figure 3 – SDISE-100 with power adapter 1-3 Figure
4
Figure 5 – Whole Connection of SDISE-100 1-5
1- 0 Manual Contents

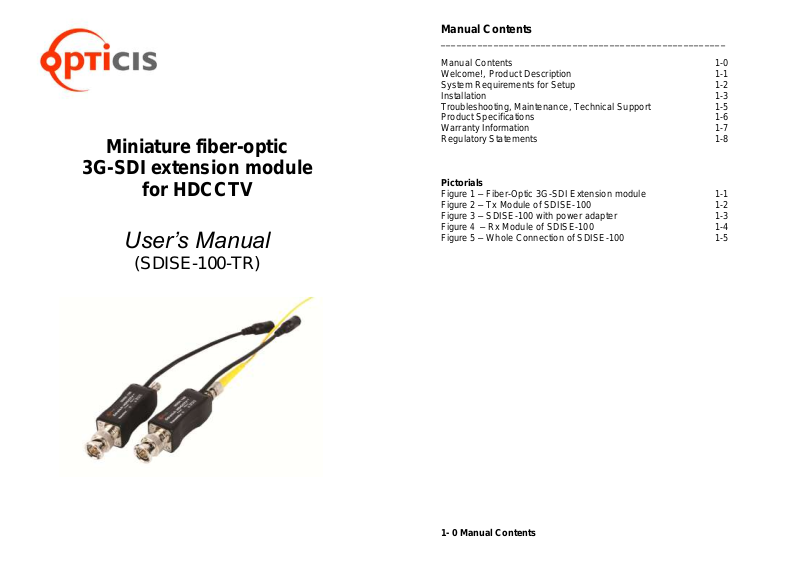

Miniature fiber-optic
3G-SDI extension module
for HDCCTV
User’s Manual
(SDISE-100-TR)
Page 2
System Requirements for Setup
Hardware requirements
You have to have HDCCTV or broadcast products and displays
supporting HD-SDI input / output.
No special requirements of memory size, CPU speed and
chipsets, if you’ve already properly installed your SDI systems.
Software requirements
No special restrictions, if you’ve already properly installed your
SDI systems.
DC Power Adapter Technical Advisory
The SDISE-100-TR is designed to use only +5V external
power.
1-2 System Requirements for Setup
Welcome!
Congratulations on your purchase of the Miniature Fiber-Optic 3G-SDI Extension module, SDISE-100-TR. This manual contains information that will
assist you in installing and operating the product.
Product Description
Shipping Group
SDISE-100-Tx, Rx Module: One (1) set of unit. DC 5V 1A power adapter : Two (2) units User’s Manual Option: One (1) ST optical cable (single-mode glass fiber)

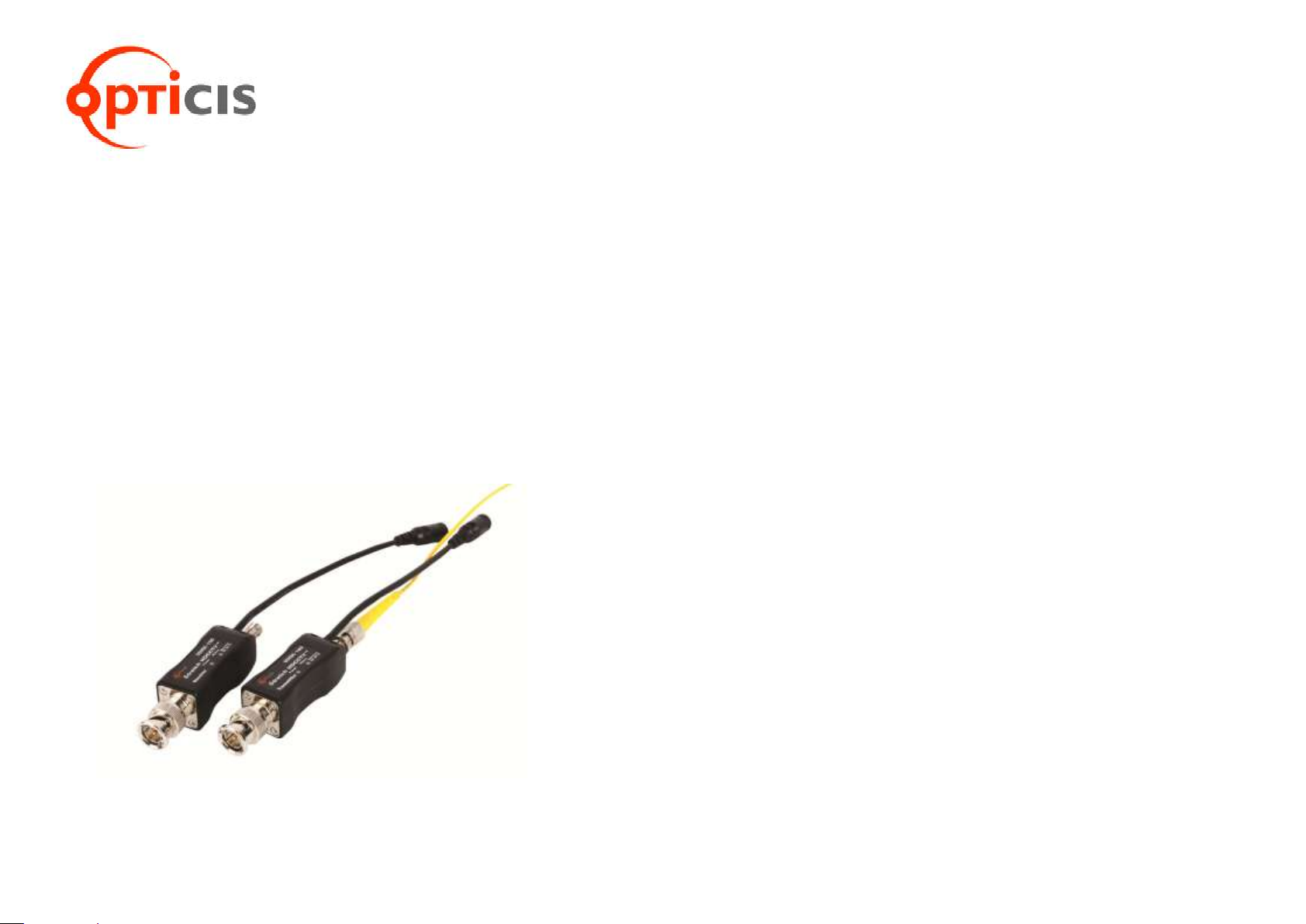

Figure 1 – Fiber-Optic 3G-SDI Extension module
1-1 Welcome, Product Description
SDI Source
SDISE-100-T
SDI Display
SDISE-100-R
Up to 2Km
One (1) Optical Fiber
Page 3
Step 4
Connect the Rx side of SDISE-100 to the SDI input port of display or broadcast products directly. Do NOT recommend to use any intermediate cable or adapter between them. It may deteriorate the signal transmission performance.
figure 4 – Rx module of SDISE-100
Step 5
Power ON the SDI source and Display. Note: Both Tx and Rx modules of SDISE-100 must be connected by 5V
power adaptors.

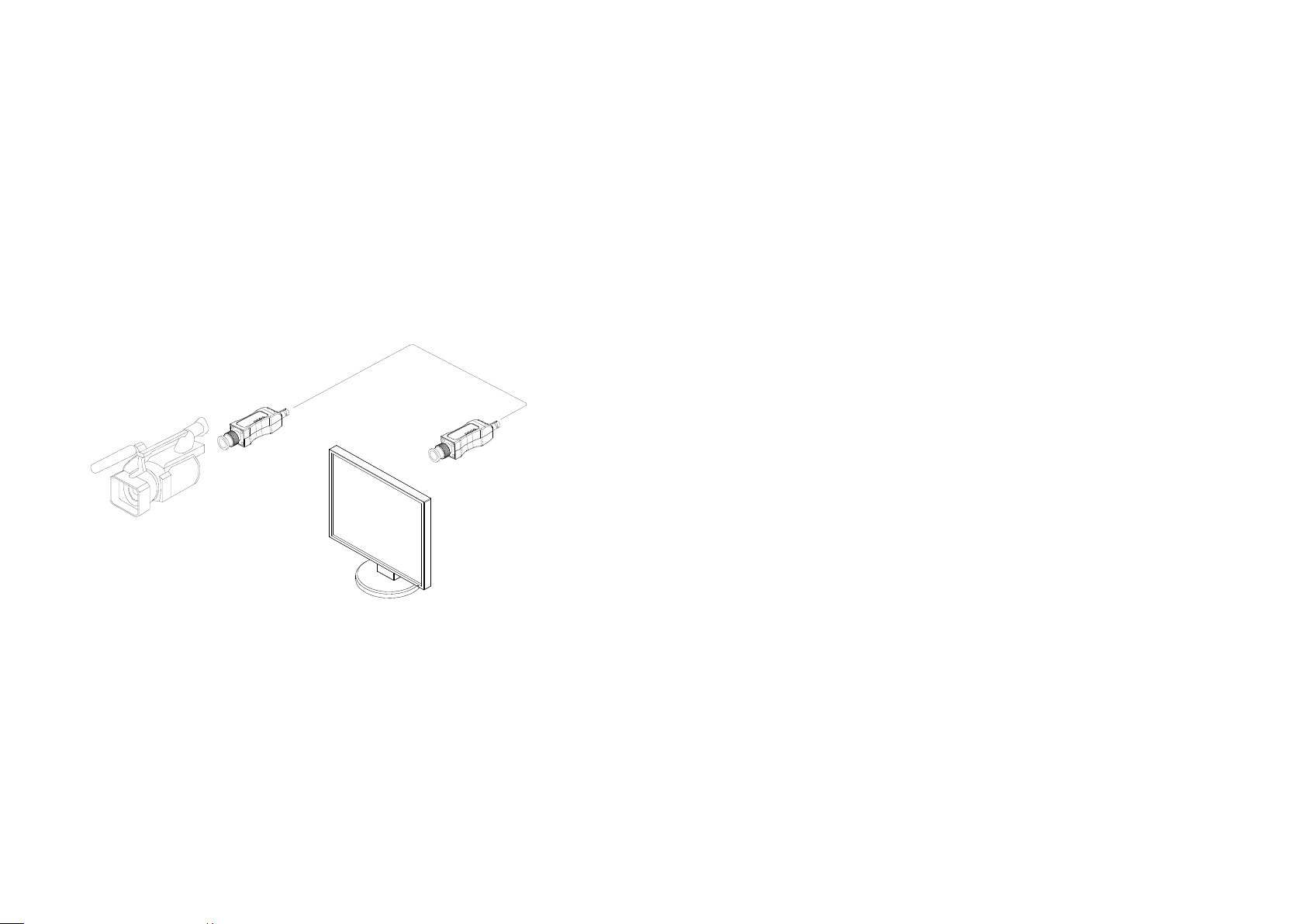

Figure 5 – Whole Connection of SDISE-100
Step 7
If the system does not work properly, go to page 1-5, trouble shooting.
1-4 Installation (continued)
SDI Source
SDISE-100-T
SDI Display
SDISE-100-R
Up to 2Km
One (1) Optical Fiber
Installation
Important: Please follow the installation procedure as below. Improper or no operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2

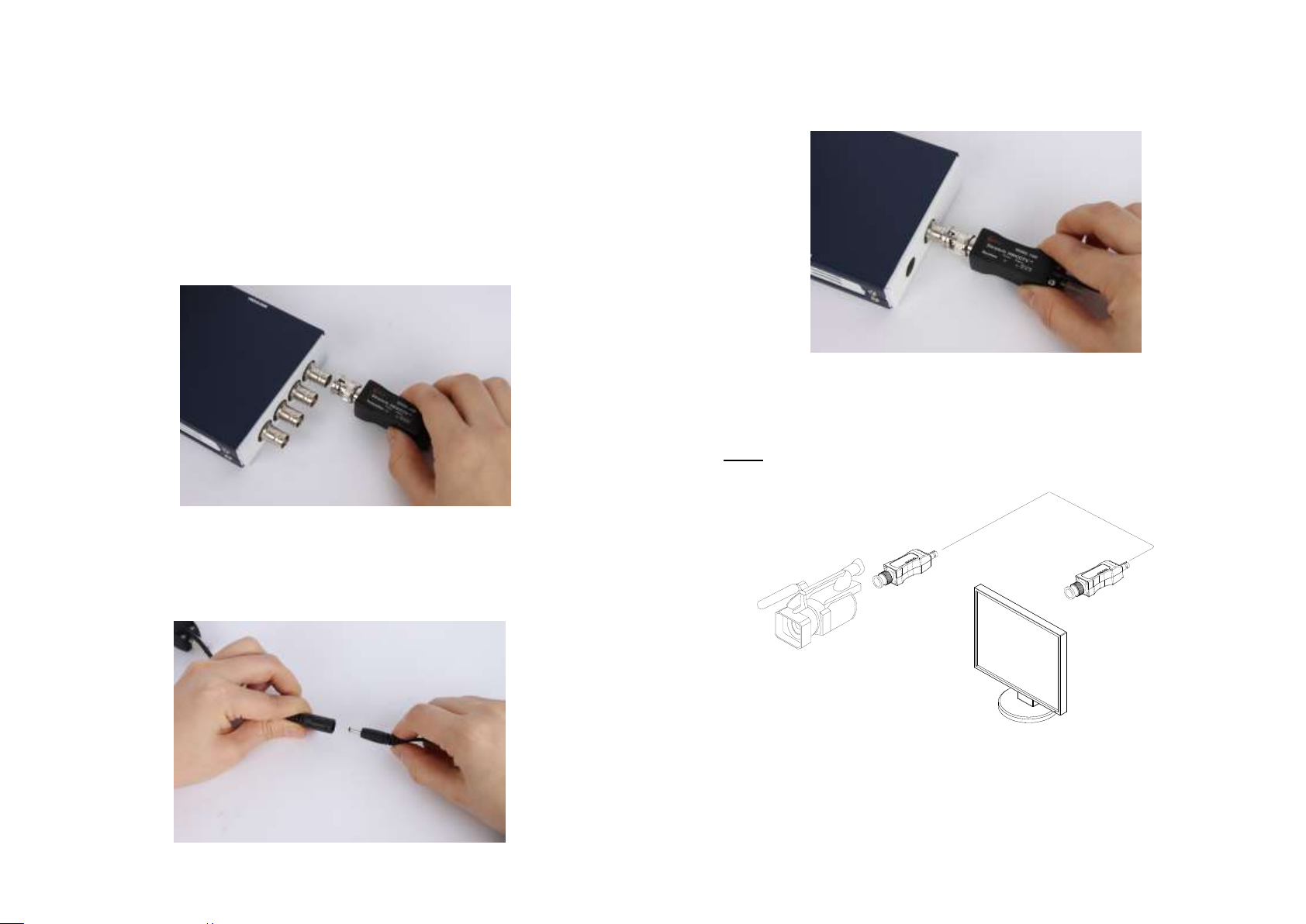

Connect the plug of the Tx side of SDISE-100 to the SDI output port of HDCCTV or broadcast products directly. Do NOT recommend to use any intermediate cable or adapter between them. It may deteriorate the signal transmission performance.
Figure 2 – Tx module of SDISE-100
Step 3
As shown in Fig. 3, plug the 5V power adaptor in the shipping group to the Tx & Rx Module. Connecting 5V power adaptor to SDISE-100-TR is indispensable procedure for working.
Figure 3 –SDISE-100 with power adapter
1-3 Installation
Page 4
Troubleshooting
The display shows only black screen.
Ensure that all DC plugs and jacks used by external power supplies are
firmly connected.
Ensure that the SDI connector is firmly plugged in to the SDI source and
SDI display. Ensure that the Tx and Rx module parts plug correctly to the SDI source and SDI display, respectively.
Check if the SDI source and SDI display are powered on and properly
booted.
Reset the system by de-plugging and re-plugging the Tx SDI module or Rx
SDI module. Re-boot up the system while connecting the SDISE-100.
Screen is distorted or displays noises.
Ensure the quality of SDI source and check the extension length of fiber.
SDISE-100-TR guarantees extension length of 2Km at 3G-SDI but it can be extended up to 30Km as an option.
Maintenance
No special maintenance is required for the SDISE-100 and power
supplies. Ensure that the cables and power modules are stored or used in a benign environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email [email protected] or visit its website at www.opticis.com.
1-5 Troubleshooting, Maintenance, Technical Support
Product Specifications
SDISE-100-TR, Fiber-Optic 3G-SDI Extension module
Transmission of Multi-rate HD-SDI Digital Video over one (1)
Fiber: It converts and transmits one (1) channel of 3G-SDI (SMPTE­424M), HD-SDI (SMPTE-292M) or SD-SDI (SMPTE-259M).
Extension limit:
2Km at 3Gbps, 1080p 3G-SDI format  30Km at 3Gbps, 1080p 3G-SDI format as an option.
Recommended Fiber-optic Cable: Glass Single-mode fiber with
1310, 1550nm of bandwidth and ST terminated connector.
General electrical specification
Data Transfer Rate (Graphic Data) : Max. 3Gbps
Link Power Budget : Min.8dB  Optical Connector : ST ConnectorElectric Connector Type from Modules : 75 Ohm BNC (Male)
Mechanical specifications of Tx and Rx module parts
Dimensions: 19.5mm / 19.5mm / 50.3mm (W/H/D)
Environmental Specifications
Operating temperature: -20°C to 70°C Storage temperature: - 30°C to 85°C Humidity: 0% to 85% RH
DC Power Adapter
Supply Power: DC 5V, 1.0A Cord DC Jack: Core is 5V and outer is GND.
1-6 Product Specifications
Page 5
Warranty Information
1 (One) Year Warranty
Opticis warrants this fiber-optic 3G-SDI extension cable to be free from defect s in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from Opticis or its authorized reseller s.
If a product does not work as warranted during the applicable warranty period, Opticis shall, at its option and expense, repair the defective product or part, d eliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis. Replacement products may be new or reconditioned. Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer. Opticis shall not be responsible for any software, firmware, information, or me
mory data of customer contained in, stored on, or integrated with any product s returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if the product has been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress, unauthorized modifications, tampering, alterations, or service other than by Opticis or its authorized agents, causes other than from ordinary use or failure to properly use the Product in the application for which said Product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
1-7 Warranty Information
FCC/CE Statement
This device complies with part 15 of FCC Rules and EN 55022/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 and 2 of FCC Rules and EN 55022/61000-3 for CE certification. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and. if not installed and used in accordance with the instruction guide, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Re-orient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order to comply with FCC/CE emission limits. Changes or modifications not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment.
UL Statement
This device has completed a UL Commercial Inspection and Testing Services for the multimode DVI cable complied with VW-1 under UL 758. It is validated by the UL file number SV2038 and project number 04CA05353.
1-8 Regulatory Statements
Page 6
© 2011 Opticis Co., Ltd. All Rights Reserved Revision 1.0 .Feb. 21, 2011.
Opticis Locations
Headquarters
Opticis Co., Ltd. #907, Byucksan Technopia, 434-6
Sangdaewon-Dong, Chungwon-Gu, Sungnam City, Kyungki-Do, 462-716 South Korea
Tel: +82 (31) 737-8033~8 Fax:+82 (31) 737-8079
www.opticis.com
For order support, please contact your Distributor or Reseller. For technical support, check with the Opticis web site www.opticis.com or
