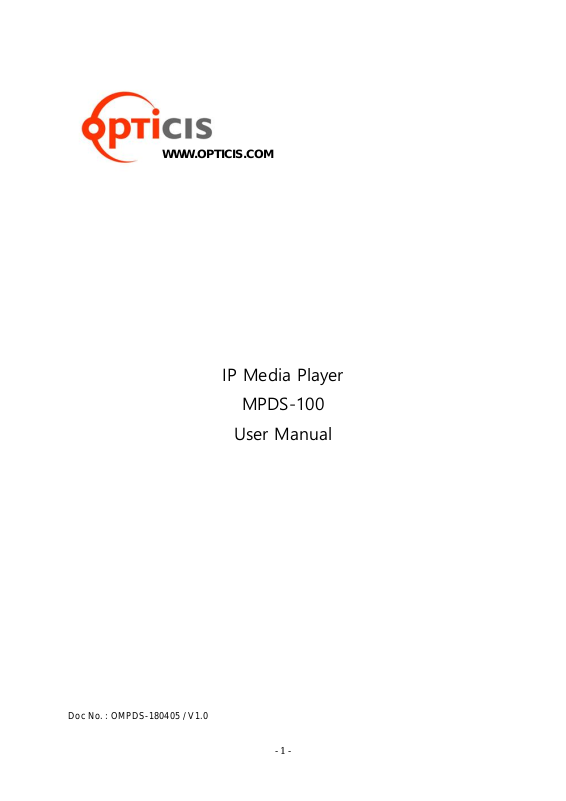

opticis MPDS-100 User Manual

WWW.OPTICIS.COM

IP Media Player

MPDS-100

User Manual

Doc No. : OMPDS-180405 / V1.0

- 1 -

Index

1. Product Description..........................................................................................................................3

1.1 Main Features

2. Shipping Group...................................................................................................................................4

3. System Requirement.........................................................................................................................4

4. Exterior Description...........................................................................................................................5

5. Installation.............................................................................................................................................6

5.1 Hardware Installation

5.2 Reset and Factory Reset

5.3 PC Program Installation

6. Start Using MPDS-100.....................................................................................................................7

6.1 Local GUI

6.2 Remote Control

7. Product Specification.....................................................................................................................16

8. Warranty..............................................................................................................................................17

- 2 -

1. Product Description

MPDS-100, Full HD(1080p) Media Player, is an intergraged playing device that plays video/audio

files, different types of documents as well as real time streaming of IP camera(encoder) based on

TCP/IP network. With control program, this device can play contents to designated place by

preset schedule and display caption on the screen. MPDS-100 can be used for adverstisement

using video, can be used for security or broadcasting using IP camera, as well as can be optimal

solution for remote lecture using video with PDF, MS office documents.

Figure 1. Connection

1.1 Main Features

 H.264 Codec Media Player supports Full HD(1080p) resolution based on TCP/IP.
 Provides HDMI output, Analog audio output, RS-232 port for external device control.
 Supports various sources such as Documents (PDF, MS Office and etc), Video files,

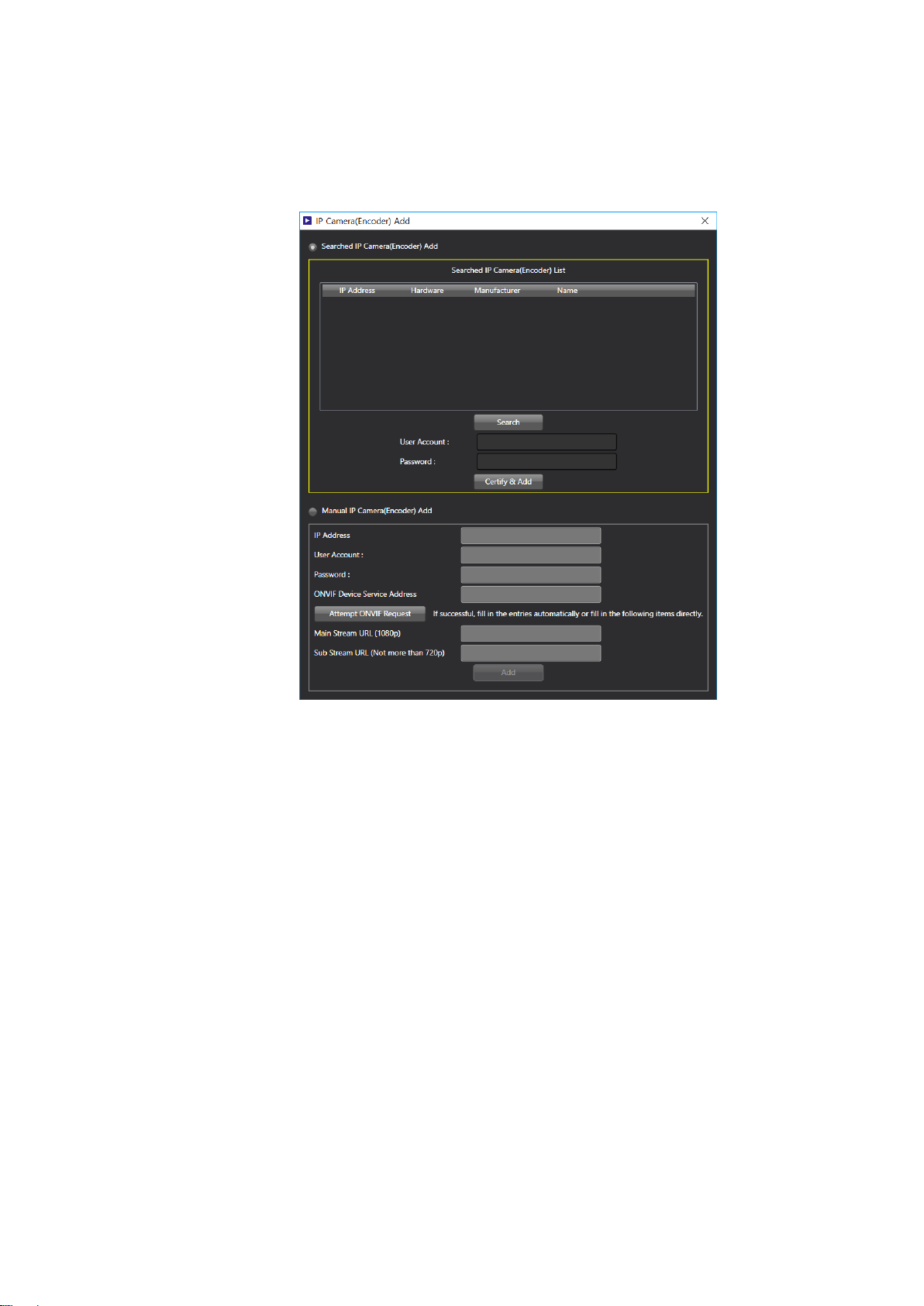

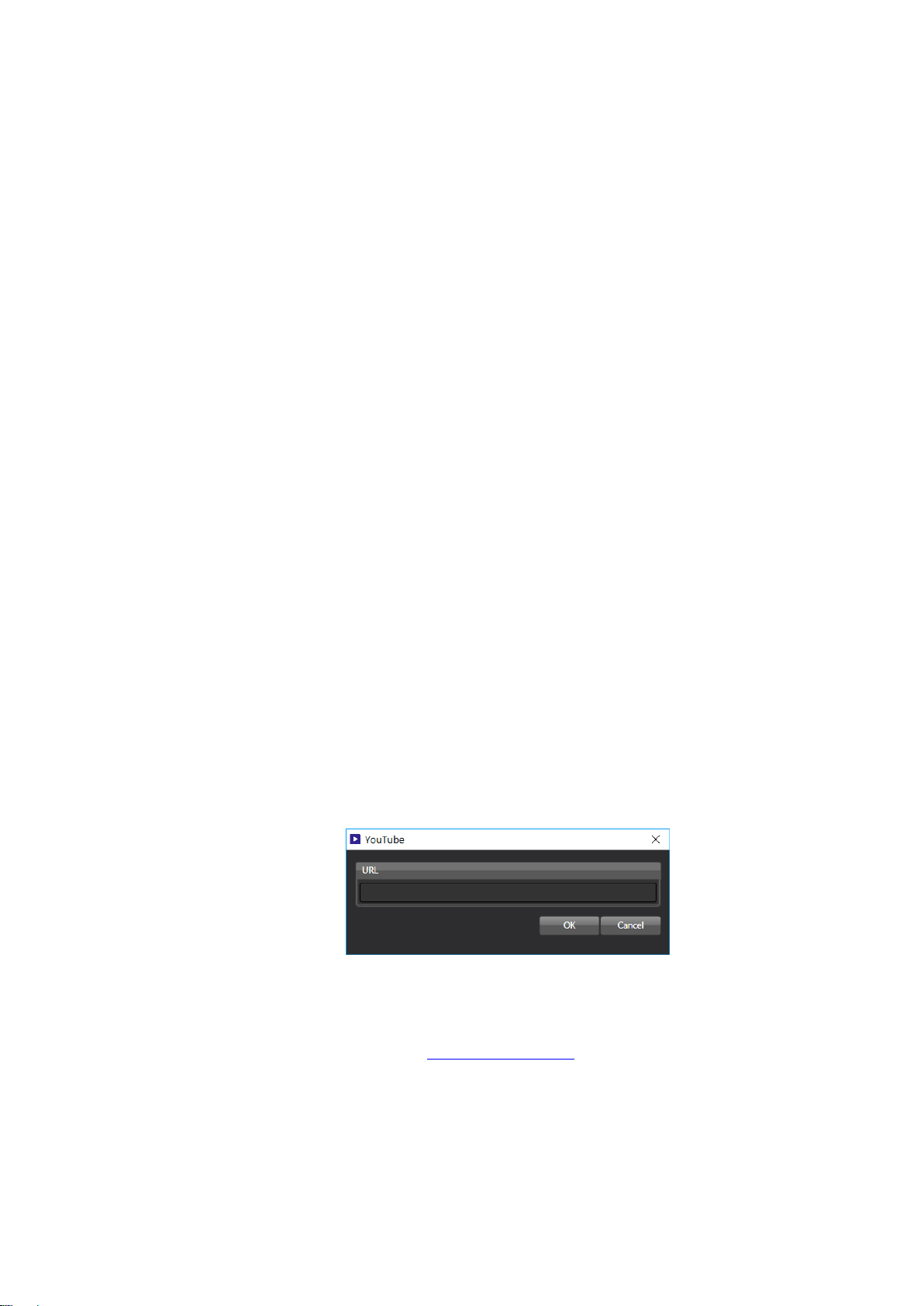

YouTube, IP Camera(encoder), Picture, Audio files.

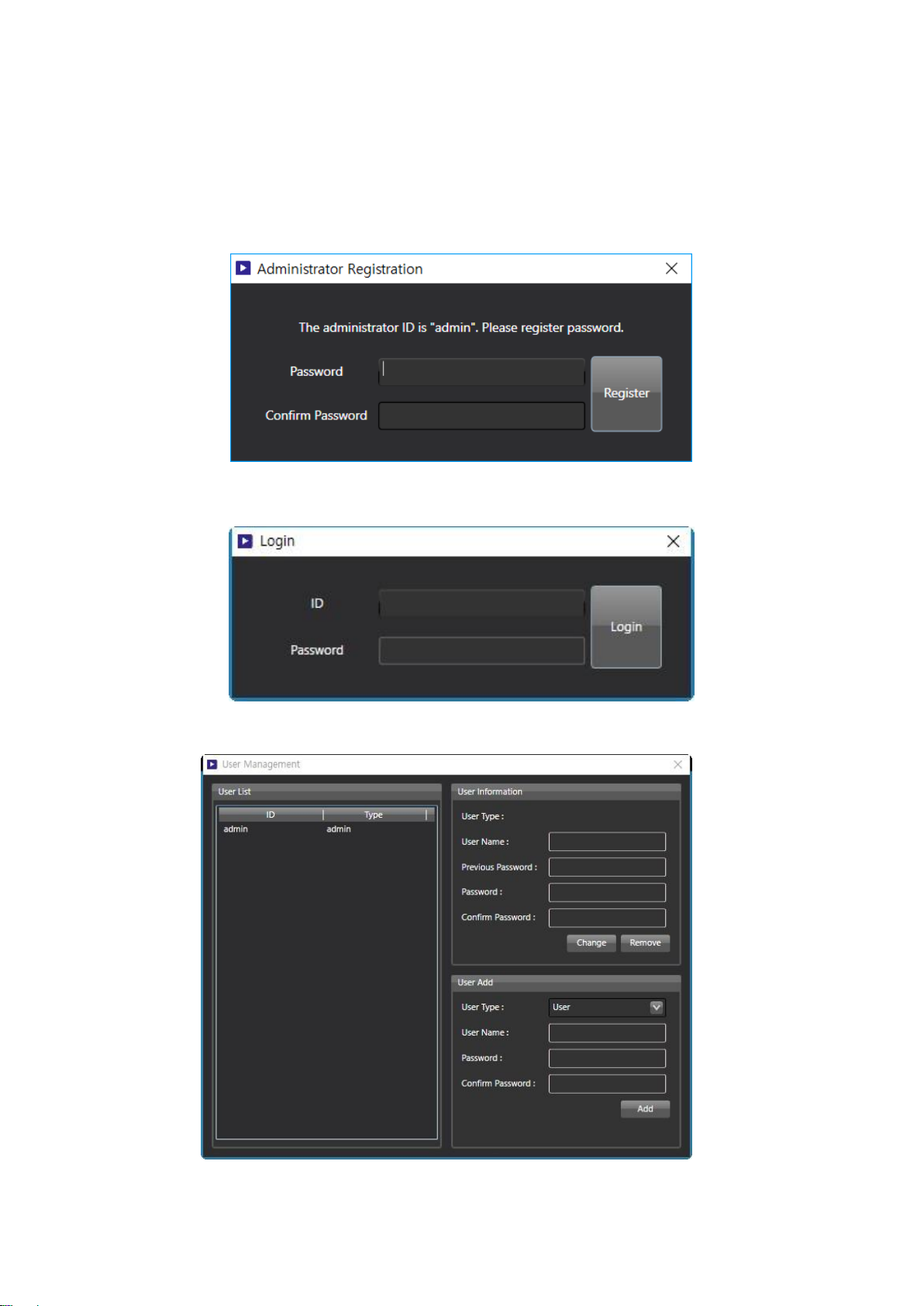

 Remote Control Program

- Up to 100 groups x 99 presets = 9,900 display configuration and preset file save/load

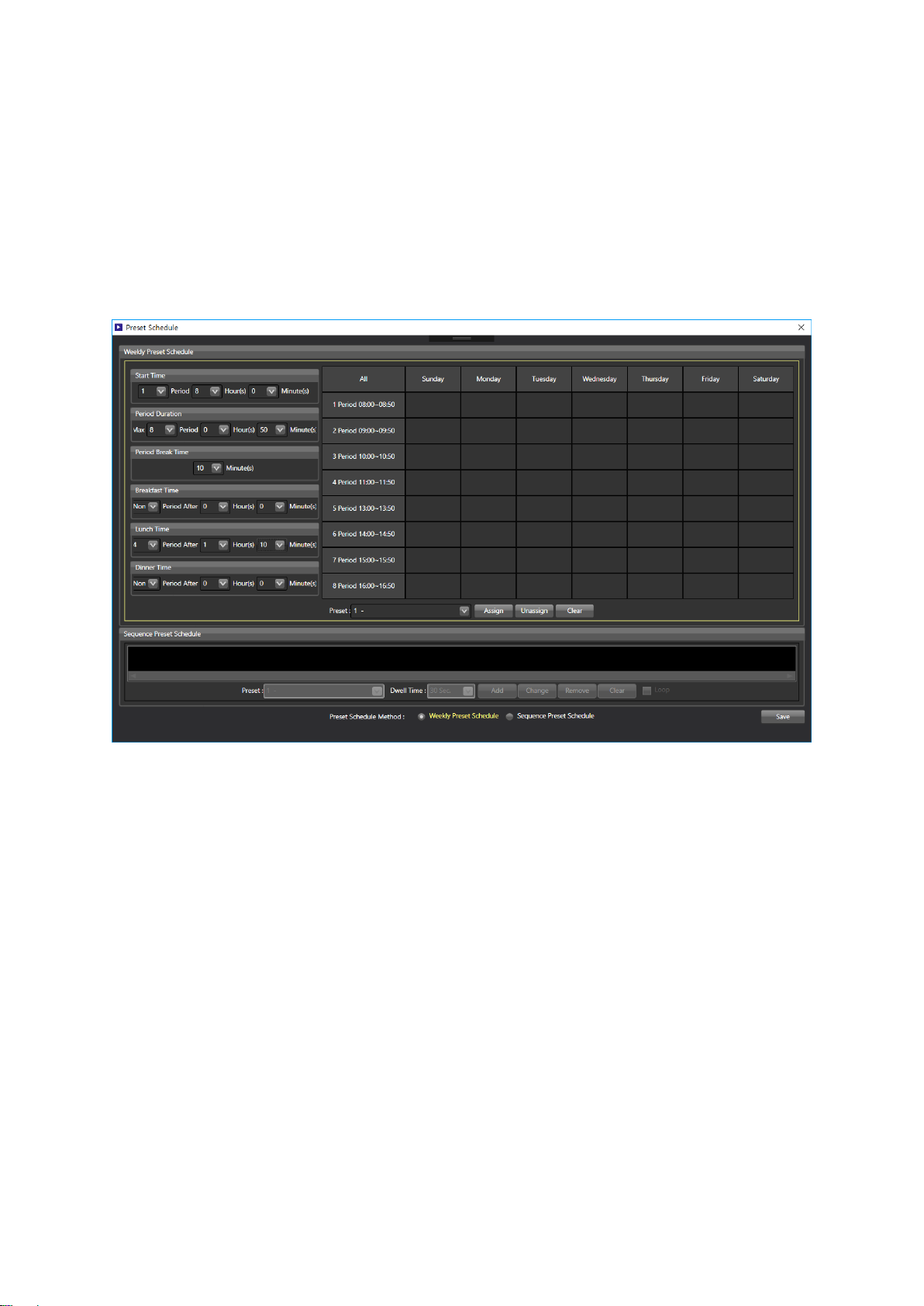

- Immediate play by group, scheduling (weekly/sequence)

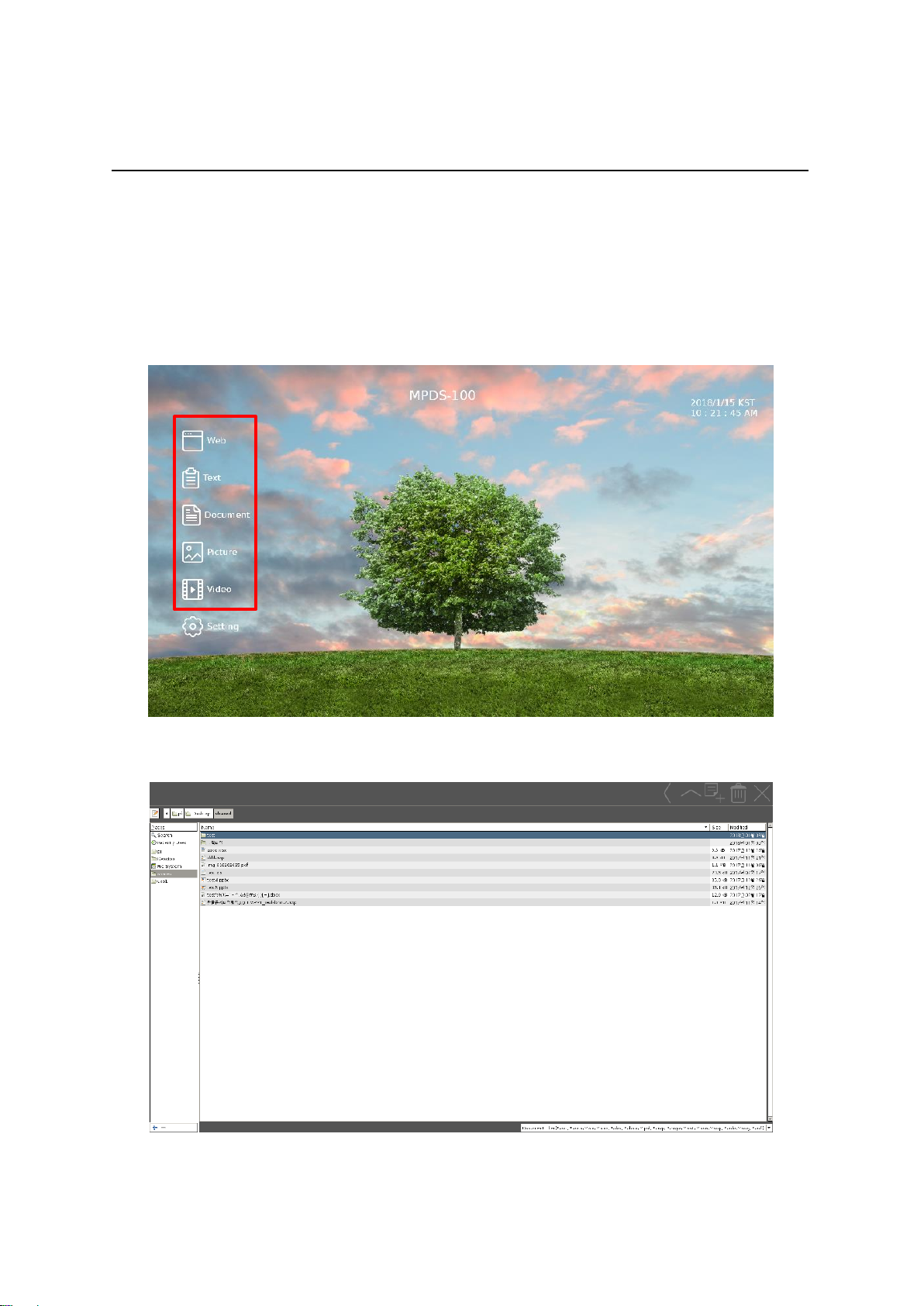

 Self-GUI

- Enables to use web browsing, file explorer, video player features.

- 3 -

2. Shipping Specification

□ MPDS-100 □ Power Adapter □ HDMI Cable 1.2m

2.1 General items

- MPDS-100

- AC / DC power adaptor: One (1) unit of 5V / 2.5A.

- One (1) HDMI male to male cable (1.2m).

2.2 Optional items

3. System Requirement

3.1 Hardware Requirement

- Device doesn’t support wireless feature, however, wireless feature can be used with

using Wifi/Bluetooth dongle.

- No special requirement for memory size, CPU speed or chipset.

3.2 Software Requirement

- No special requirement.

3.3 Control PC Requirement

- OS version check for MPDS-100 control PC application.

- Requirement: Windows 7 or higher.

3.4 AC / DC Power Adapter

- MPDS-100 is designed to use +5V AC/DC external power adapter

- 4 -

4. External Description

4.1 Input/Output port

Front Back

그림. 2 정면 그림. 4 후면

Side

LED : Power LED (RED) / Link LED (GREEN).

Figure 2. MPDS-100 Input/Output port

Reset : Reset button. (Factory reset when pushing 5 seconds.)

RS-232 : Optional.

RJ-45 (LAN): Connection with RJ-45 Network Cable

USB : USB2.0 4 Port

Power : 5V DC power input to the device

HDMI Output : HDMI video/audio output

LINE OUT : Analog audio output

4.2 LED Indication

MPDS-100 indicates its power and network condition with 2 LED light on the front.

- Power status LED (RED).

‘Flashing’ Booting, initializing status.
‘On’ Completion of booting, working status.

- Link LED (Green).

‘On’ Connection with network link.
‘Off’ Disconnection with network link.

- 5 -

5. Installation

5.1 Hardware Installation Procedure

Important: Please follow below procedure. If not installed properly, it could suffer

malfunction.

Step 1
Unpack the package.

Step 2
Turn on network storage (or PC), Display, Network Switch(L2/L3)

Step 3
Turn on the PC that has installed MPDS-100 PC application and connect LAN cable
(CAT5e/CAT6) to network switch.

Step 4
Connect MPDS-100 to network switch with using LAN cable (RJ-45)

Step 5

Connect MPDS-100 to monitor (HDMI OUT). If using external speaker, connect MPDS-100

to speaker (LINE OUT)

Step 6

If needed, connect Keyboard/Mouse for local UI control.

Step 7

Connect 5V power adapter.

5.2 Reset and Factory Reset

♦ Reset : Device will reboot when reset button is pressed shortly
♦ Factory Reset: Press and hold reset button for approximately 5 seconds, then LED of

device will turned OFF for factory reset after LED blinking.

- 6 -
