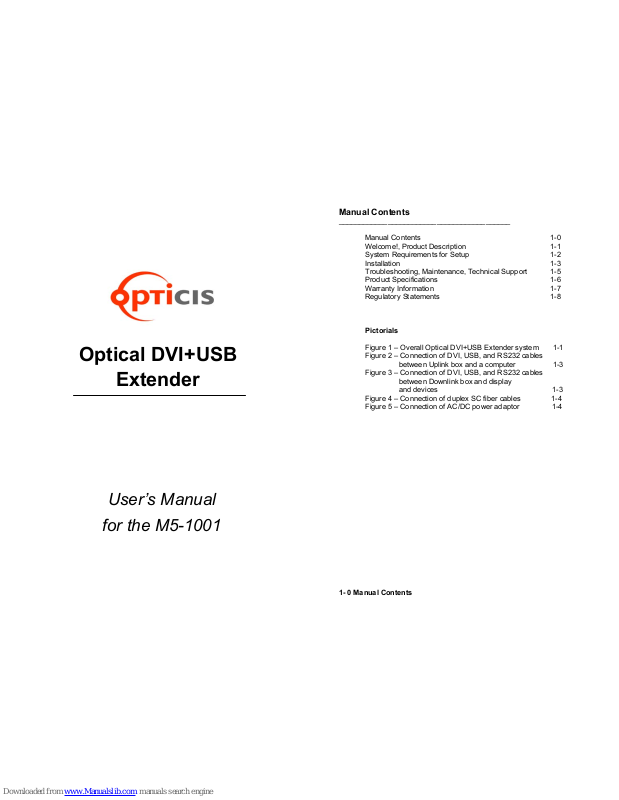

Page 1
User’s Manual
for the M5-1001
Optical DVI+USB
Extender
Manual Contents
__________________________________________
Manual Contents 1-0
Welcome!, Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting, Maintenance, Technical Support 1-5
Product Specifications 1-6
Warranty Information 1-7
Regulatory Statements 1-8
Pictorials
Figure 1 – Overall Optical DVI+USB Extender system 1-1
Figure 2 – Connection of DVI, USB, and RS232 cables
between Uplink box and a computer 1-3
Figure 3 – Connection of DVI, USB, and RS232 cables
between Downlink box and display
and devices 1-3
Figure 4 – Connection of duplex SC fiber cables 1-4
Figure 5 – Connection of AC/DC power adaptor 1-4
1- 0 Manual Contents
Page 2
Welcome!
Congratulations on your purchase of the M5-1001, Optical DVI+USB extender.
This manual contains information that will assist you in installing and operating
the product.
Product Description
The M5-1001 module offers up to 10 kilo-meters extension of DVI digital
graphic data and USB data and RS232C serial data over fiber, directly
connected between computers and displays or USB or RS232C devices. Two
boxes, located one in the computer and the other in the display or devices are
connected to each of them by a 1.0 m DVI copper cable or USB or RS232C
cables. Between two boxes, the SC patch cord fiber bundled cable enables to
transmit not only TMDS graphic data and USB data over it but also the Digital
Display Channel (DDC2B) interface and Hot-plug function are performed over
the same fiber cable.
Shipping Group of M5-1001 Optical DVI+USB extender
Tx and Rx boxes: One Uplink(Tx) Box & One Downlink(Rx) Box.
AC/DC power adapter: Two +12V/3A units (including AC cord).
User’s Manual
Option: Duplex SC Fiber Patch Cord bundled cable (Single mode
glass fiber).

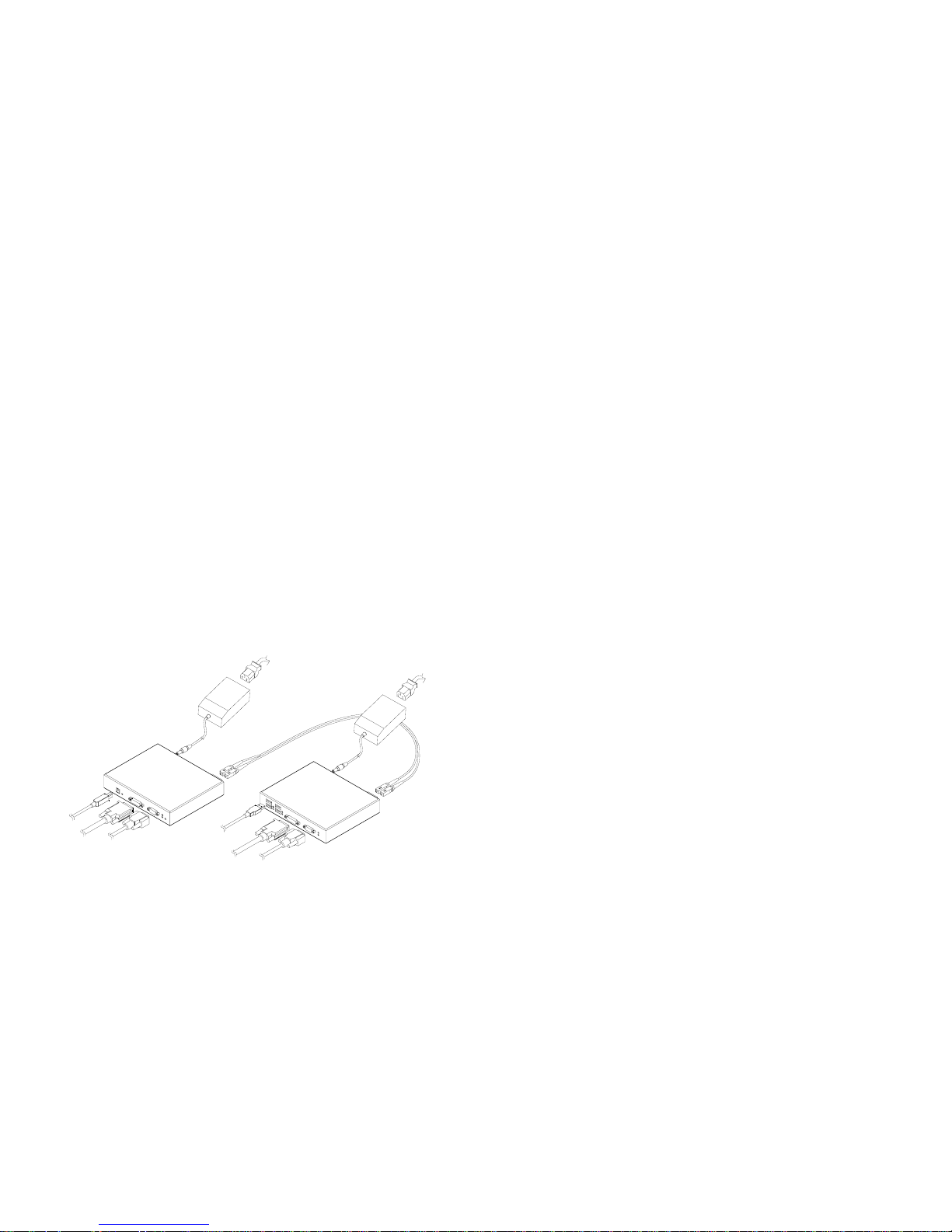

Figure 1 – Overall Optical DVI+USB Extender system
1-1 Welcome, Product Description
System Requirements for Setup
Hardware requirements
You have a graphic controller card with a DVI port in your
Windows/Mac (Mac is option), or SUN system. It should support
the maximum graphic resolution feature of the display to be
connected.
In case of using a computer, no special memory size, CPU
speed and chipsets are required.
The USB controller and devices should be compatible with
USB1.1.
Proper initial trial of the entire platform with its application using
a short length copper cable is recommended prior to install with
the optical link.
Software requirements
No special needs, if the DVI graphic controller and display
peripheral are operational with the platform’s OS and
application.
All OS, Windows/Mac, Unix, and SUN would recognize
automatically in the boot-up process the 4 port USB hubs.
AC/DC Power Adapter Technical Advisory
The power of M5-1001 is designed to supply to each module of Tx
and Rx by plugging to each of the power plugs.
1-2 System Requirements for Setup
Page 3
Installation
Important: Please use the installation procedure below. Improper, or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group. Before next step, ensure
that your graphic card is set at no higher than SXGA (1,280x1,024) 60Hz in
direct connection of copper DVI cables.
Step 2
With system power turned off
, connect the upstream Transmitter box to the
DVI and USB receptacle of a computer by a DVI and a USB copper cable,
respectively. Even without USB connection, this product works. If necessary,
the RS232 cable plugs to the D-sub 9-pin connector.

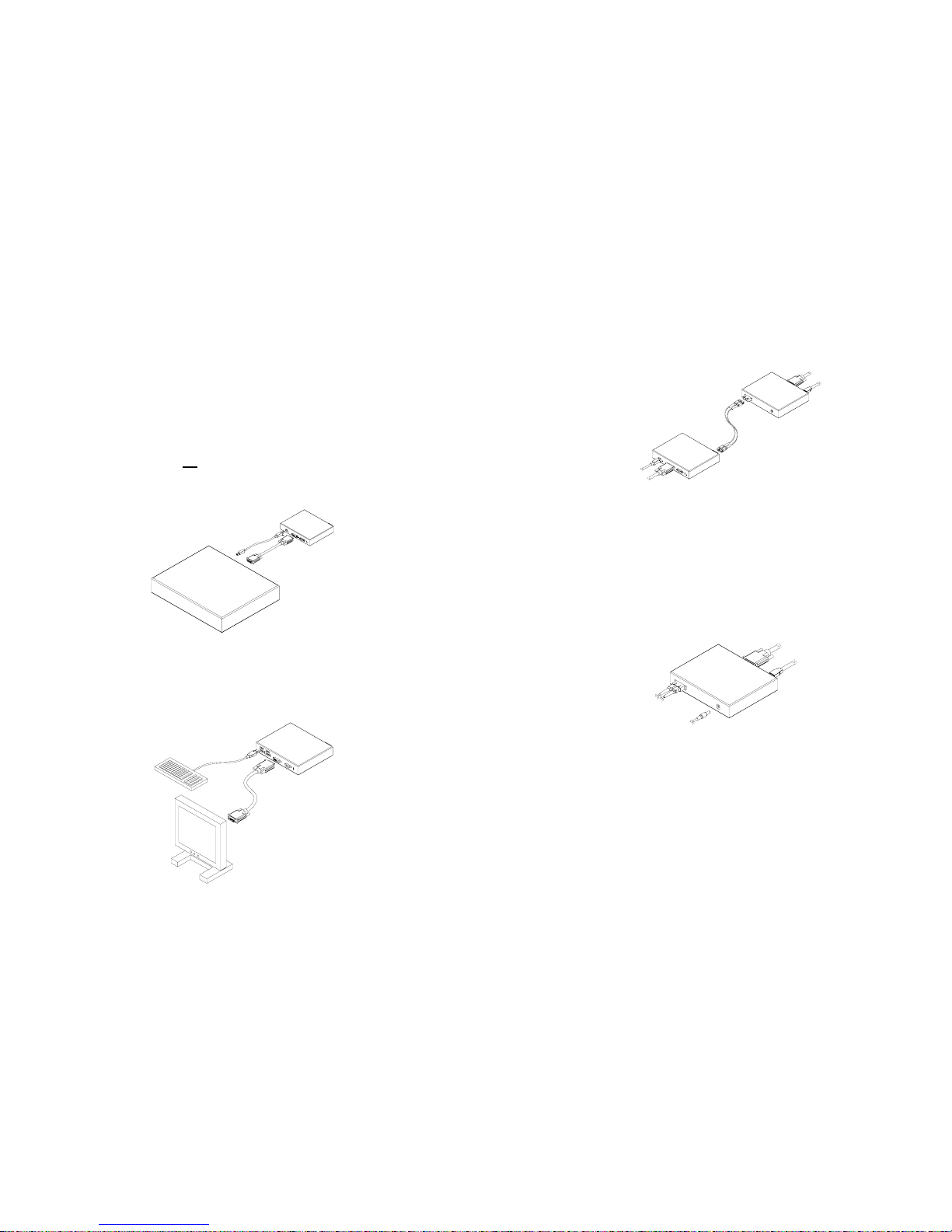

Figure 2 – Connection of DVI, USB, and RS232 cables between Transmitter box and a
computer
Step 3
In the same way as above, connect the Receiver box into the DVI receptacle
of the display, the USB devices and the RS232 device by the other DVI, USB,
and RS232 copper cables, respectively. The receiver offers a connection of 4
USB devices.
Figure 3 – Connection of DVI, USB, and RS232 cables between Receiver box and displa y
and devices
1-3 Installation
Step 4
Remove the module dust covers and connect a duplex SC fiber cable to SC
receptacles of the Transmitter and Receiver boxes, as shown in Fig. 4.
Carefully ensure the duplex connectors are fully engaged.
.
Figure 4 – Connection of duplex SC fiber cables
Notice: Please DO NOT look directly into the SC receptacles of both
Transmitter and Receiver boxes, while they are powered on, although they
are regulated strictly enough to operate under the Laser Class I, classified by
CDRH/FDA for eye safety.
Step 5
Connect an AC/DC power adapter to both of the Transmitter and Receiver
boxes as your availability of AC outlets. You can find power indicators lit on in
the both boxes.
Figure 5 – Connection of AC/DC power adaptor
Step 6
Power on the computer and display or connected devices. Ensure the link
indicators are light on, presenting secure connection of SC duplex fiber cables
and the DVI indicator in the Transmitter box light on, presenting secure
connection of the DVI cable. You can find USB indicators being connected to
your USB devices.
Tip 1: After initial installation as guided in the above, we recommend you to
power On and Off while all connections are set and the Tx/Rx boxes are
powered in.
Tip 2: Avoid “hot plugging” the Tx or Rx boxes as this is not recommended
practice with live digital voltages.
1-4 Installation (continued)
Page 4
Troubleshooting
The display displays only black screen.
• Check that all AC and DC plugs and jacks used by external power
supplies (both Opticis and others) are firmly connected.
• Ensure that power bars are live.
• Ensure that the Tx and Rx boxes plug correctly to the computer and
display, respectively.
• Check if the computer and display are powered on and properly
booted.
• Reset the M5-1001 using Reset button on Uplink and Downlink
• Ensure your graphic card is set at not higher than SXGA
(1,248x1,024) at 60Hz refresh ratio.
• Re-boot up the system after reconnecting the optical system cable.
Screen is distorted or displays noises.
• Check if the graphic resolution is properly set. Go to the display
properties and tap the settings. Ensure that the resolution sets less
than SXGA (1,248x1,024) at 60Hz refresh ratio.
• Reset the M5-1001 using Reset button on Uplink and Downlink
• Reset the system.
• Power down, disconnect and reconnect the optical system cable or
DC power adaptors, and power up.
Maintenance
No special maintenance is required for the optical system cables and power
supplies. Ensure that the cables and power modules are stored or used in a
benign environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis or its authorized distributor.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email [email protected]
or visit its
website at www.opticis.com.
1-5 Troubleshooting, Maintenance, Technical Support
Product Specifications
M5-1001 Optical DVI+USB Extender
Compliance with DVI standard: supports DVI 1.0 of DDWG, using
fiber-optic communication links and DDC2B.
Extension limit: 2km (6,560feet) for SXGA (1,248x1,024) 24bit
color at 60Hz refresh rate in ultimate operation. Distances up to
10km (32,800feet) using Virtual DDC-EEPROM.
USB and RS232C: complies with USB1.1 (12Mbps) with 4 port hub
and supports D-sub 9 Pin connectors for RS232C.
Fiber-optic Connection: The transmitter and receiver boxes of M5-
1001 have duplex SC receptacles connected to two 8/125µm or
Single Mode glass fibers cables.
Mechanical specifications of Uplink and Downlink boxes
Dimensions: 178mm / 146mm / 34mm (W/H/D)
Weight: 835.0 ± 3.0 gram for each of Uplink and Downlink.
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: - 20°C to 70°C
AC/DC Power Adapter
Power Input: Universal AC 85-264V, 50/60Hz, AC power cord with
power jack.
Power Output: +12 V, 3.0 A SMPS DC-power Adapter
Cord DC Jack & length: Core is 12 V and outer cylinder is GND.
Length is 18.5 cm
AC Cord length: 1.8m
Certification: PSE, UL, cUL, FCC, CE, TUV-GS
1-6 Product Specifications
Page 5
FCC/CE Statement for regulation of Electro-magnetic
emission
This device complies with part 15 of FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to part 15 and 2 of
FCC Rules, EN 55022/55024/61000-3 for CE certification. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and. if not installed
and used in accordance with the instruction guide, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult a service representative for help.
Properly shielded and grounded cables and connectors must be used in order
to comply with FCC/CE emission limits. Changes or modifications not expressly
approved by the party responsible for compliance could void the user s authority
to operate the equipment.
Certification for Safety
The extension system is certified pursuant to IEC60065 and its AC/DC power
adapter is certified by UL1310, 1950, 60950 for North America, cUL or CSA for
Canada, TUV-CE & GS for EU and PSE for Japan.
Certification of Eye Safety
This laser product is inside implemented by using 1310nm/1550nm Bi-di
Transceivers, manufactured by Opticis Co., Ltd., which are all certified by
CDRH/FDA referred in Accession Number 0210774 as classified in Laser
Class1.
1-8 Regulatory Statements
Warranty Information
1 (One) Year Warranty
Opticis warrants this optical DVI+USB Extender to be free from defects in
workmanship and materials, under normal use and service, for a period of
one (1) year from the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part,
deliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the
application for which said product is intended.
1-7 Warranty Information
Page 6
© 2006 Opticis. All Rights Reserved
Revision 1 1230
Opticis Locations
Opticis Co., Ltd. Opticis North America Ltd.
#501 Byucksan Technopia 330 Richmond street, Suite 100
434-6 Sangdaewon-Dong, Chungwon-Ku Chatham, Ontario
Sungnam City, Kyungki-Do Canada N7M 1P7
462-120, South Korea
Tel: +82 (31) 737-8033 Tel: (519) 355-0819
Fax: +82 (31) 737-8079 Fax: (519) 355-0520
For order support, please contact your Distributor or Reseller.
For technical support, check with the Opticis web site www.opticis.com
or
contact [email protected]
Loading...
