Stretch DisplayPort
TM
User’s Manual
(M1-5000)
Doc No. : OEC-DP150102 / Rev1.4
Page 2
Manual Contents
______________________________________________________
Manual Contents 1-0
Welcome!, Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting, Maintenance, Technical Support 1-5
Product Specifications 1-6
Warranty Information 1-7
Certifications 1-8
Pictorials
Figure 1 – Optical DisplayPort Extension Cable,M1-5000 1-1
Figure 2 – Tx Module of M1-5000 Cable 1-3
Figure 3 – Tx Module of M1-5000 Cable with adapter 1-3
Figure 4
– Rx Module of M1-5000 Cable 1-4
Frgure5 – Whole Connection of M1-5000 Cable 1-5
1- 0 Manual Contents
Welcome!
Congratulations on your purchase of the Stretch DisplayPortTM M1-5000
Optical DisplayPort Extension Cable. This manual contains information that
will assist you in installing and operating the product.
Product Description
Shipping Group
M1-5000 Optical DisplayPort Cable: One (1) unit, length as your
request.
DisplayPort Copper Cable: Two (2) units, 0.5M.
+5V AC/DC power adapter : One (1) unit
User’s Manual

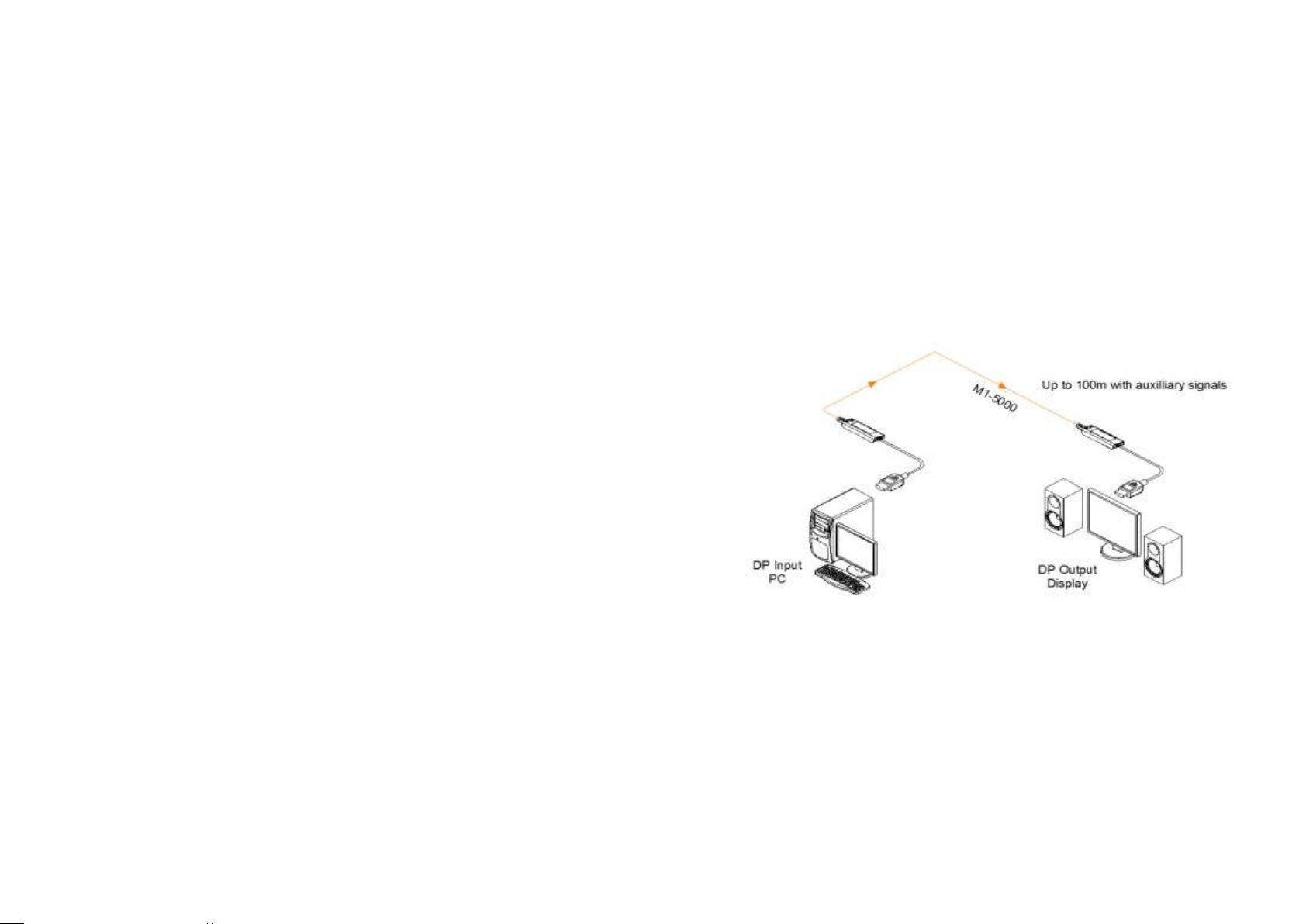

Figure 1 – Optical DP extension Cable, M1-5000
1-1 Welcome, Product Description
Page 3
System Requirements for Setup
Hardware requirements
You have to have a DisplayPort multimedia systems (PC, DVD,
AV Receiver, STB, Displaying Monitor etc.) or graphic cards. It
should support the maximum graphic resolution feature of
Monitors to be connected.
No special requirements of memory size, CPU speed and
chipsets, if you’ve already properly installed your DP systems or
DP graphic cards.
Software requirements
No special restrictions, if you’ve already properly installed your
DP systems.
AC/DC Power Adapter Technical Advisory
The M1-5000 is designed to use only +5V external power.
(#. To plug the power either Tx module or Rx module makes each
modules supplied over a copper wire of the hybrid cable.)
1-2 System Requirements for Setup
Installation
Important: Please use the installation procedure below. Improper, or no
operation may result if the start-up sequence is not correctly followed.
Step 1
Carefully unpack the contents of the shipping group.
Step 2
Plug directly the DP plug of the Tx side of M1-5000 into the DP receptacle of
DP source (PC or Graphic Source). Do NOT recommend to use any
intermediate cable or adapter between them. It may deteriorate the signal
transmission performance.

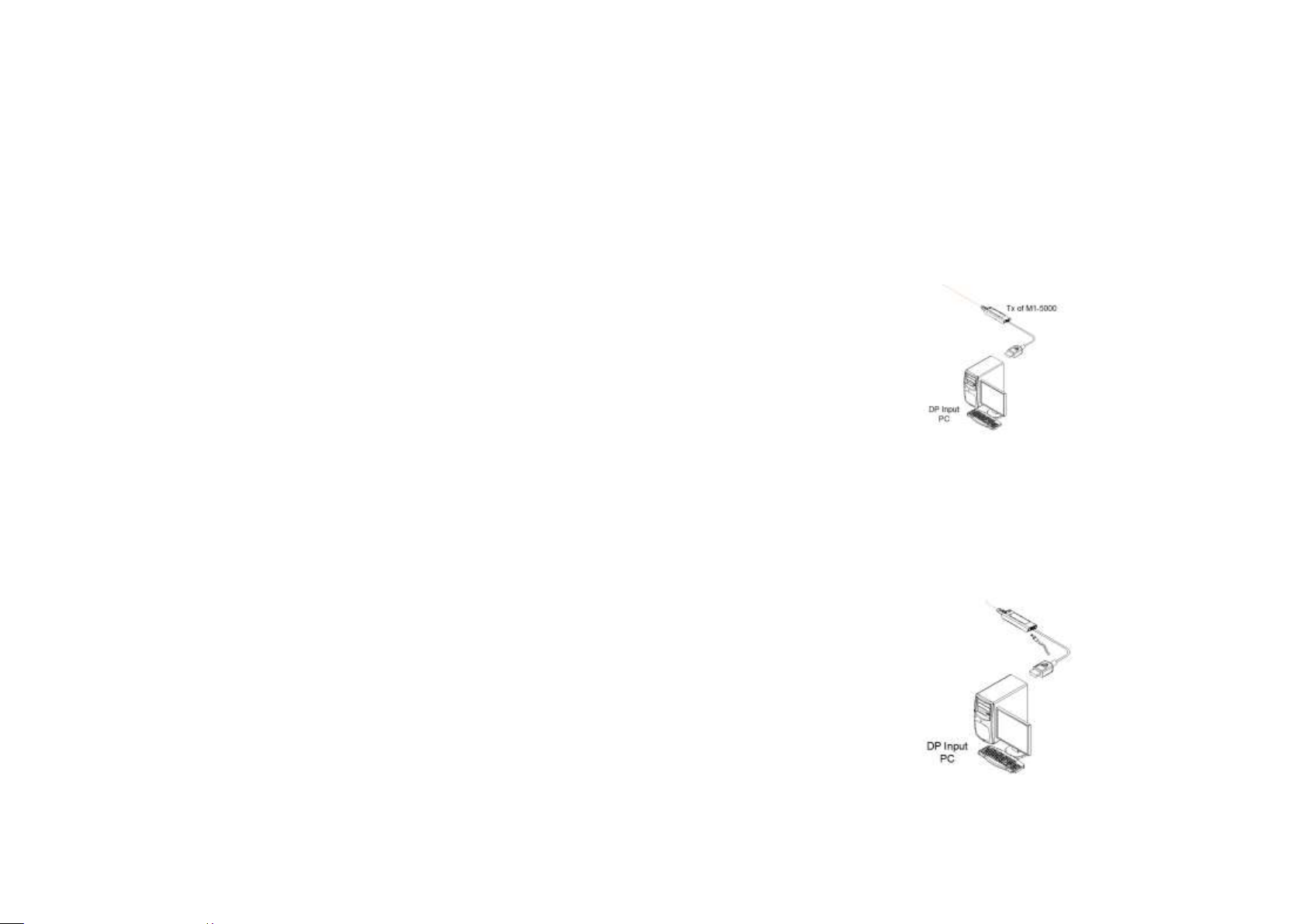

Figure 2 – Tx Module of M1-5000 Cable
Step 3
As shown in Figure 3, plug the +5V power adaptor in the shipping group to the
Tx module (or Rx Module).
Connecting 5V power adaptor to M1-5000 Cable is indispensable procedure
for working.
Figure 3 – Tx Module of M1-5000 Cable with power adapter
1-3 Installation
Page 4
Step 4
Plug the DP plug of the Rx side of M1-5000 into the DP receptacle of a
Display. Do NOT recommend to use any intermediate cable or adapter
between them. It may deteriorate the signal transmission performance.

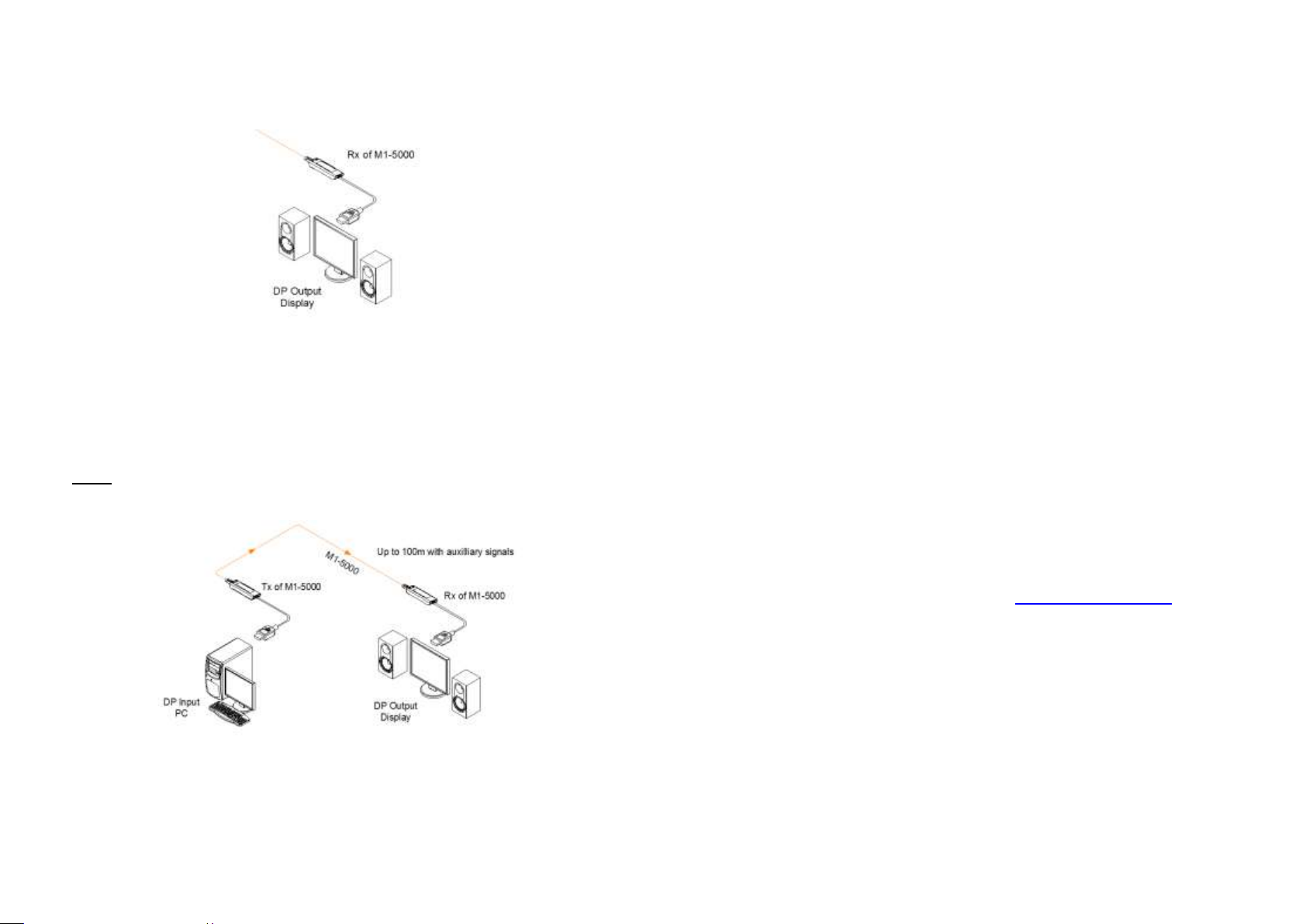

Figure 4 – Rx Module of M1-5000 Cable
Step 5
Power ON the device of a DP source and a Monitor.
Note: M1-5000 must be connected by +5V power adaptor. To plug it into Tx
module makes the Rx module supplied over a copper wire in the hybrid cable.
Figure 5 – Whole Connection of M1-5000 Cable
Step 7
If the system does not work properly, go to page 1-5, trouble shooting.
1-4 Installation (continued)
Troubleshooting
The display shows only black screen.
Ensure that all AC and DC plugs and jacks used by external power supplies
(both Opticis and others) are firmly connected. Ensure that power bars are
live.
Ensure that the DP ports are firmly plugged in to the DP source/PC and
Monitor/TV. Ensure that the Tx and Rx module parts plug correctly to the DP
source/PC and Monitor, respectively.
Check if the DP source/PC and Monitor are powered on and properly booted.
Reset the system by de-plugging and re-plugging the Tx DP port or Rx DP
port, or by de-plugging and re-plugging the power cord plugs of Tx module.
Re-boot up the system while connecting the optical DP cable system.
Screen is distorted or displays noises.
Ensure connections of both plugs while disconnecting and reconnecting the
optical DP cables or DC power adapters.
Maintenance
No special maintenance is required for the optical DP cables and power
supplies. Ensure that the cables and power modules are stored or used in a
benign environment free from liquid or dirt contamination.
There are no user serviceable parts. Refer all service and repair issues to
Opticis.
Technical Support and Service
For commercial or general product support, contact your reseller. For
technical service, contact Opticis by email [email protected] or visit its
website at www.opticis.com.
1-5 Troubleshooting, Maintenance, Technical Support
Page 5
Product Specifications
Compliance with DisplayPort standard: support DP 1.1a with 36-
bit color depth and DVI 1.0 (DDC2B), fully implemented by fiberoptic communication.
Extension limit: 100m (328feet) for WQXGA (2560x1600) at 60 Hz
refresh rate.
Graphic Transmission Bandwidth: Support 2.7Gbps per one lane.
Hybrid Fiber-optic Cable: Flame retardant PVC employing 4 fiber
strands and 5 shielded copper wires.
Tensile load: 180N
Minimum bend radius: 15.4cm
Outer diameter of cable: 7.2mm
Mechanical specifications of Tx and Rx module parts
Dimensions (WDH): 35 x 99.4 x 16mm
Clamping strength to cable: 14kgf
Environmental Specifications
Operating temperature: 0°C to 50°C
Storage temperature: - 30°C to 70°C
Humidity: 10% to 85%
AC/DC Power Adapter
Power Input: AC 100-240V, 50/60Hz 0.1A
Power Output: +5 V, 1.0A SMPS DC-power Adapter
Cord DC Jack: Core is 5V and outer is GND.
1-6 Product Specifications
Warranty Information
1 (One) Year Warranty
Opticis warrants this optical DP extension cable to be free from defects in
workmanship and materials, under normal use and service, for a period of
one (1) year from the date of purchase from Opticis or its authorized resellers.
If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part,
deliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.
All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the
reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to Opticis for repair under warranty or not.
Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the Product in the
application for which said Product is intended.
Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)
This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
1-7 Warranty Information
Page 6
© 2015 Opticis Co., Ltd. All Rights Reserved
Revision 1.4. 2, Jan, 2015
Opticis Locations
OPTICIS HQ
Opticis Co., Ltd.
# 16Fl, Kins Tower Jeongja 331,
8 Sungnam-daero, Bundang-gu
Sungnam-si, Gyunggi-do, 463-782
South Korea
Te l: +82 (31) 719-8033
Fax: +82 (31) 719-8032
www.opticis.com
For order support, please contact your Distributor or Reseller.
For technical support, check with the Opticis web site www.opticis.com or
contact [email protected]
Certifications
CE / FCC, Class 1 Laser Eye Safety
Certification of Eye Safety
This laser product is inside implemented by using 1310, 1550nm LD
Transceivers, manufactured by Opticis Co., Ltd., which are all certified by
CDRH/FDA referred as classified in Laser Class 1 (IEC60825-1).
Caution – Use of controls or adjustments or performances of procedures
other than those specified herein may result in hazardous radiation exposure.
1-8 Certifications
