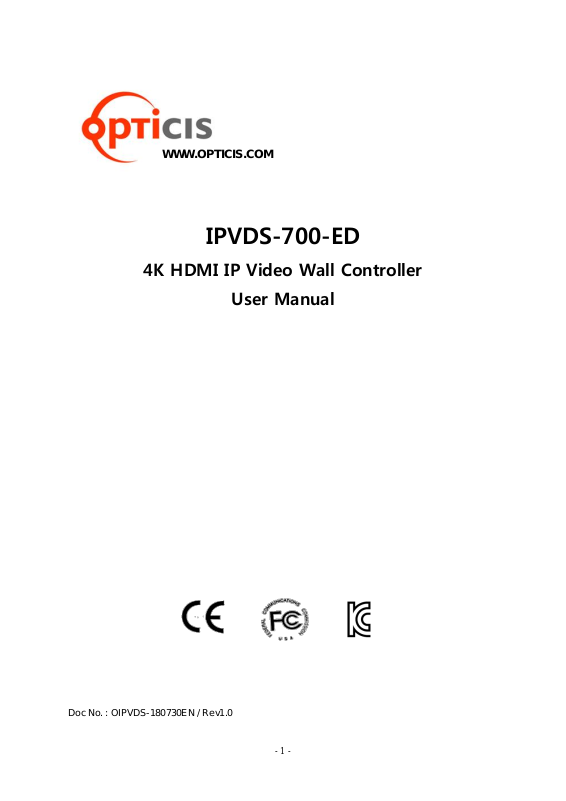

opticis IPVDS-700-ED User Manual
4K HDMI IP Video Wall Controller
WWW.OPTICIS.COM
IPVDS-700-ED
User Manual
Doc No. : OIPVDS-180730EN / Rev1.0
- 1 -
Contents
1. Product Description
1.1 Main features
1.2 IPVDS-700 Control PC Application
2. Shipping Group
3. System Requirement

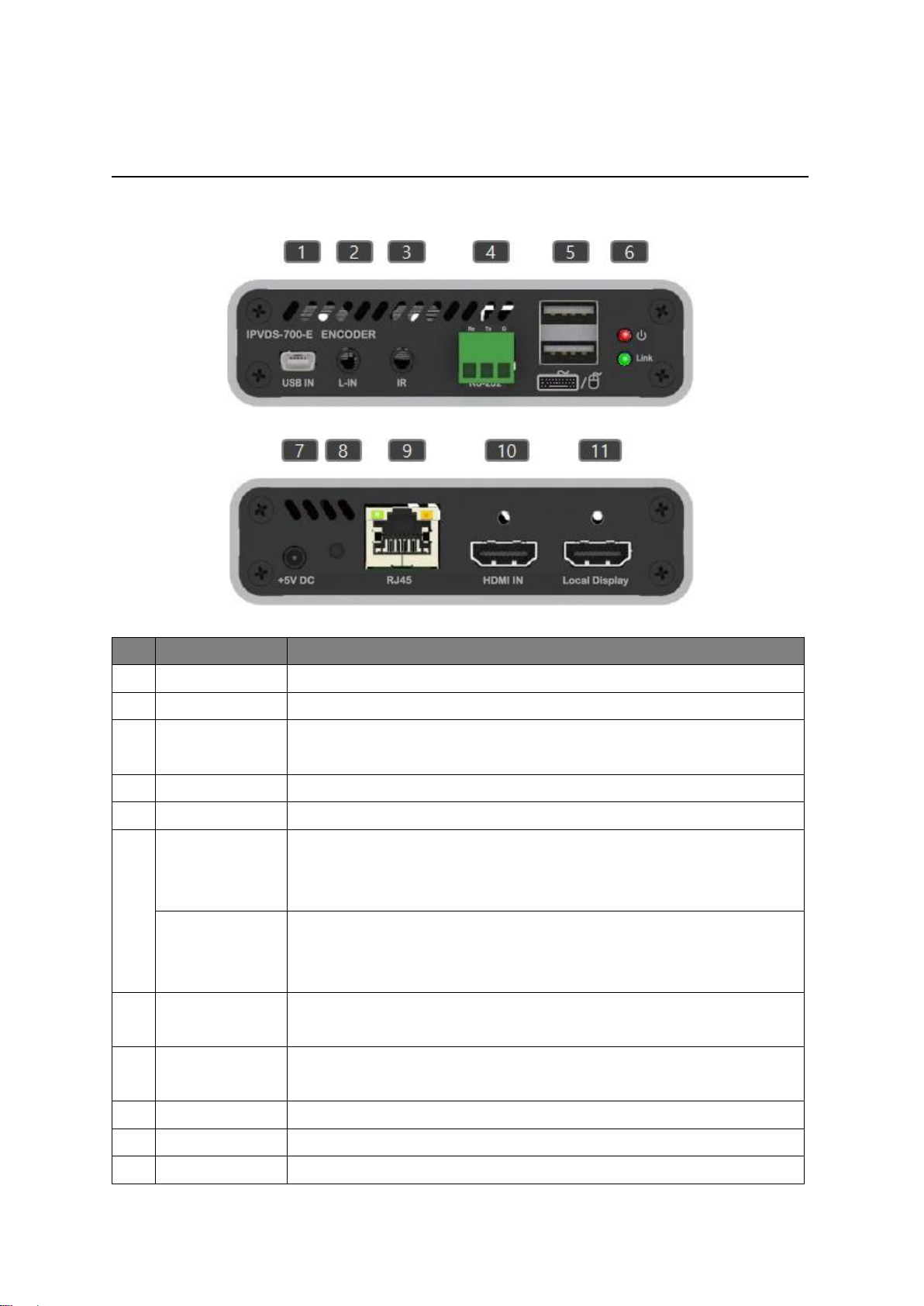

4. Exterior Description
5. Feature Description
5.1 Video over IP

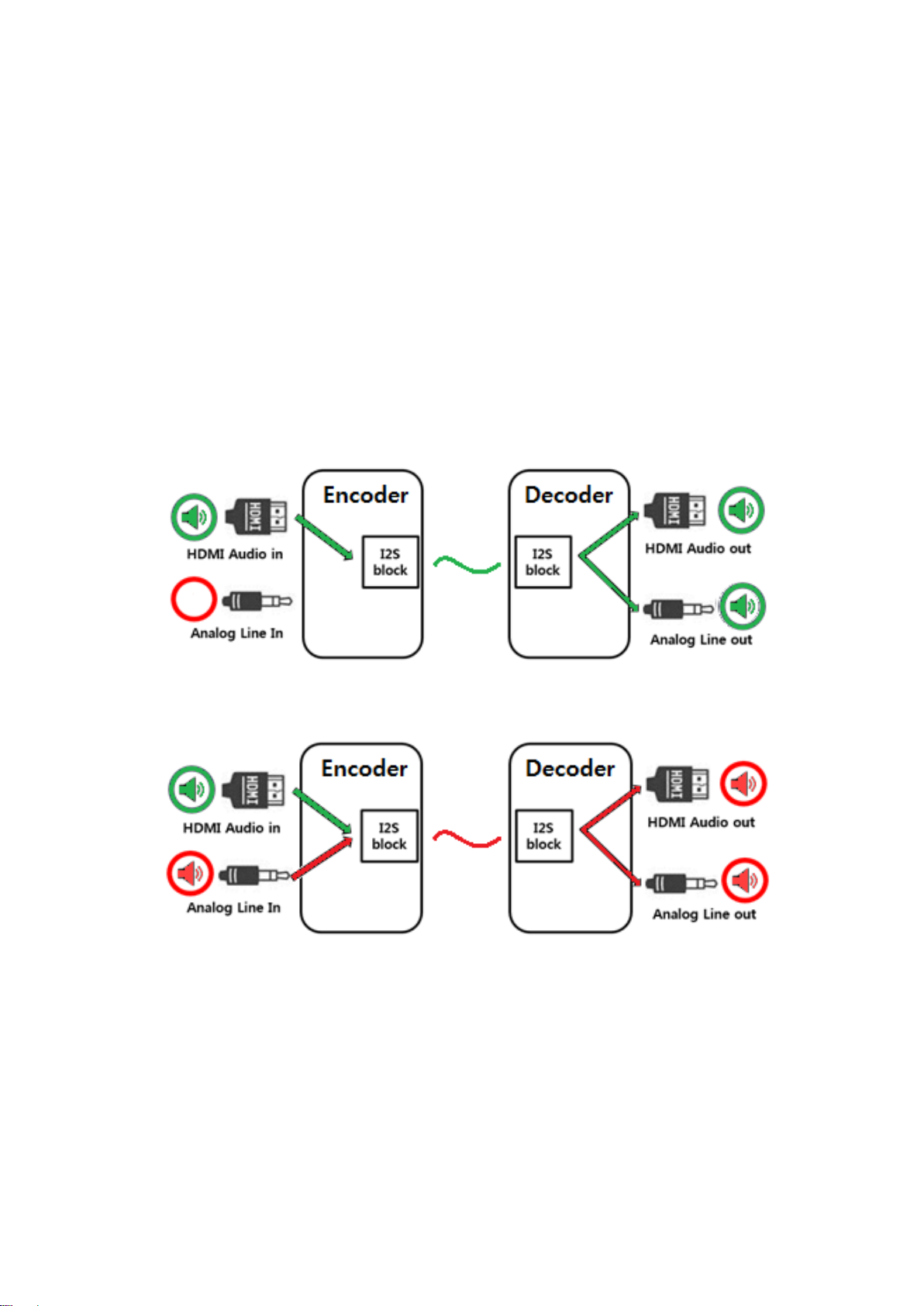

5.2 Audio over IP

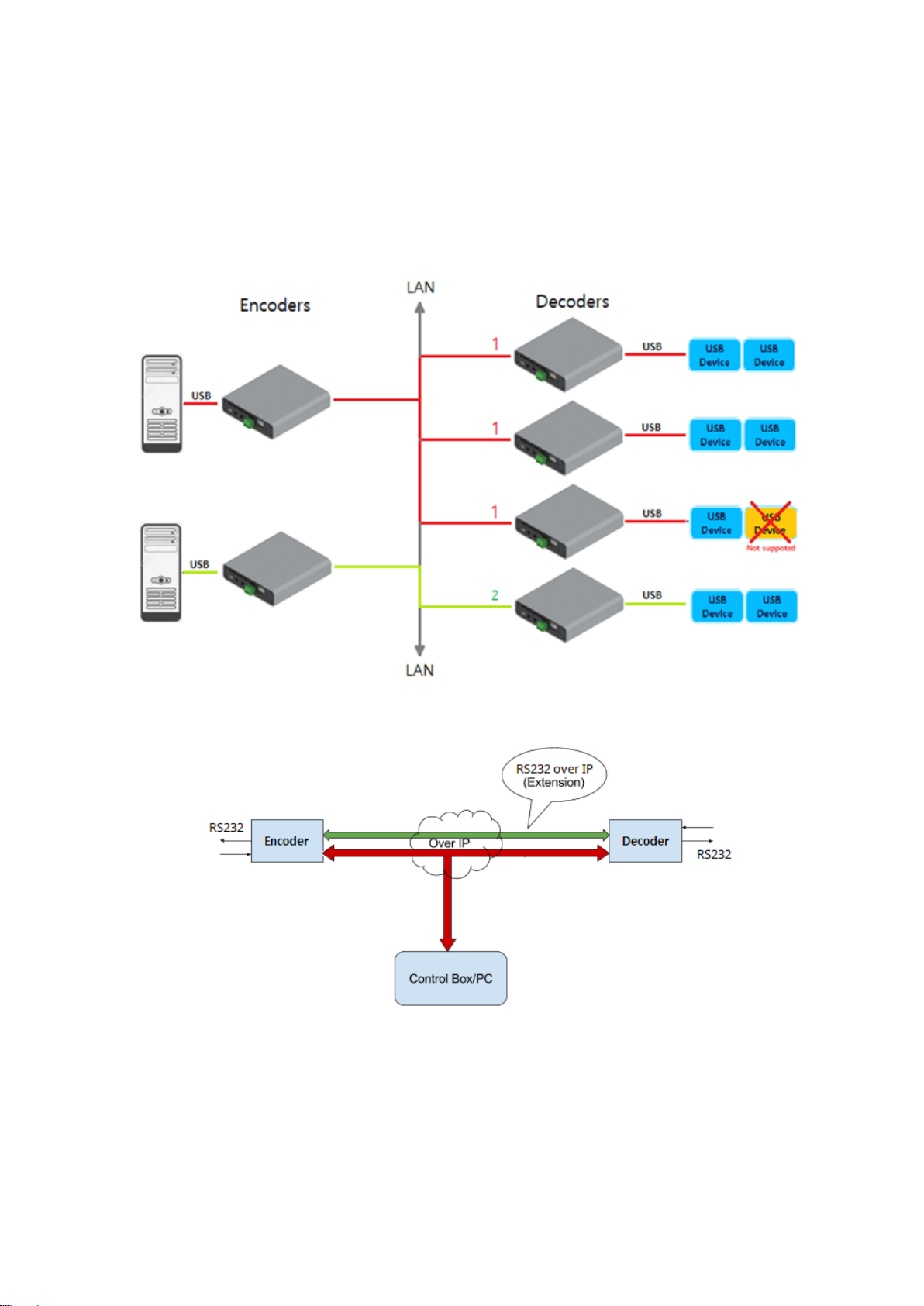

5.3 USB over IP
5.4 RS232 over IP
5.5 IR over IP (TBD)
5.6 Supporting Video Resolution
5.7 Supporting Audio Format
6. Installation
6.1 Hardware Installation Procedure
6.2 Reset and Factory Reset
7. Product Specification
8. Warranty
- 2 -
1. Product Description
IPVDS-700-ED, 4K HDMI IP Video Wall Controller, is an integrated control solution that enable to
play multi-source of audio/video (such as PC, Media Player, DVD and Blu-ray) on the video wall
system and multiple individual displays simutaneously.
This solution provides advanced audio/video matrix feature as well as control of video wall
system which divide high quality video source (4K 30Hz or 1080p 60Hz) into mutiple video walls
with using IPVDS-700-E (Encoder) and IPVDS-700-D (Decoder). It enables convinient system
configuration and control for AV System Integrator and Installer, and it also gives cost-efficiency
compared to complicated matrix system. For these reasons, IPVDS-700-ED provides optiaml
solution not only to large video wall system like control room, security, traffic control facility, but
also to general venues like conference room, classroom, presentation room, and worship facility.
Program provided for system control offers preview function of source video as well as various
display configurations like merging, overlaying, clearing, of displays with allocating audio/video
sources with simple drag and drop operation of mouse.

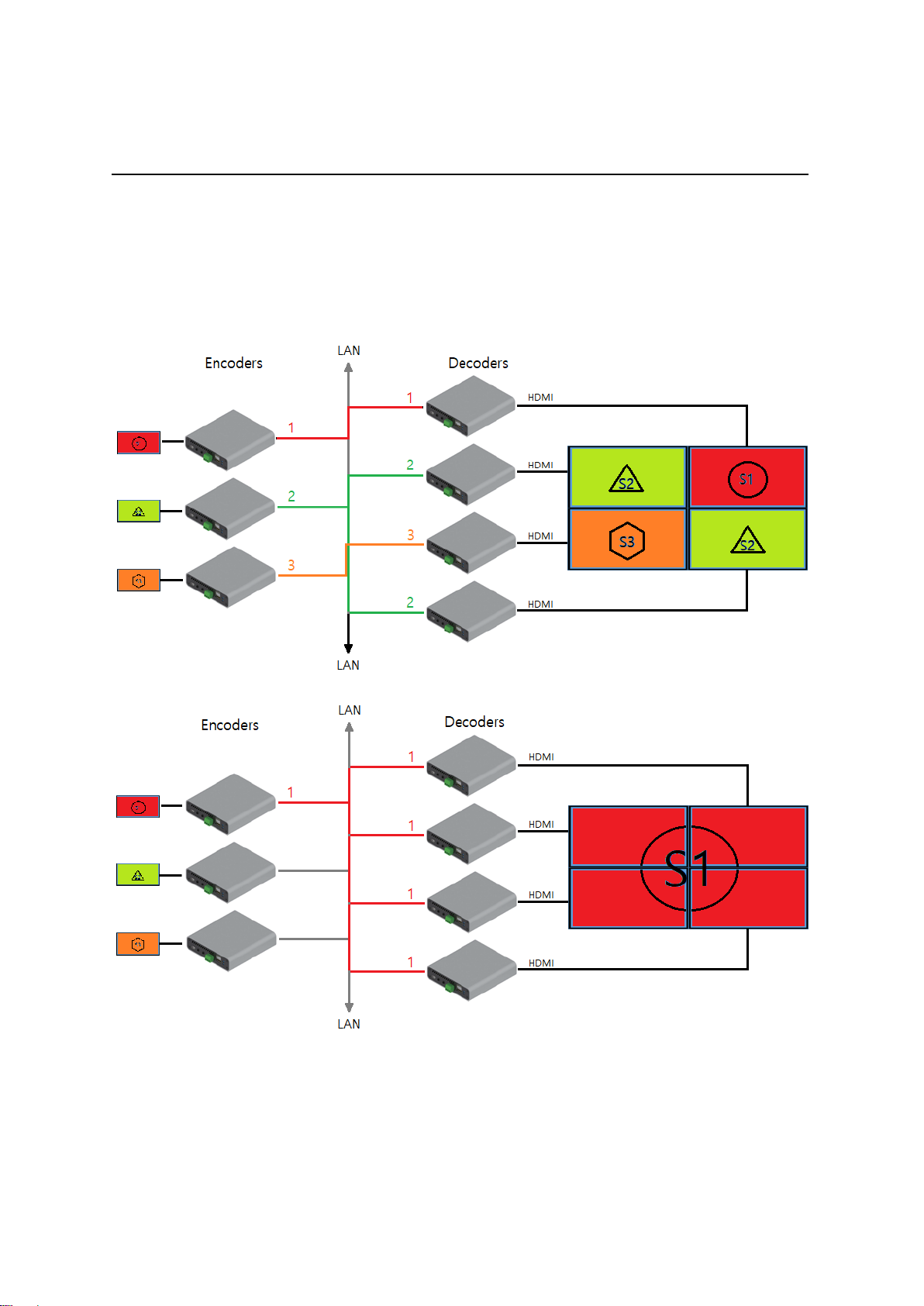

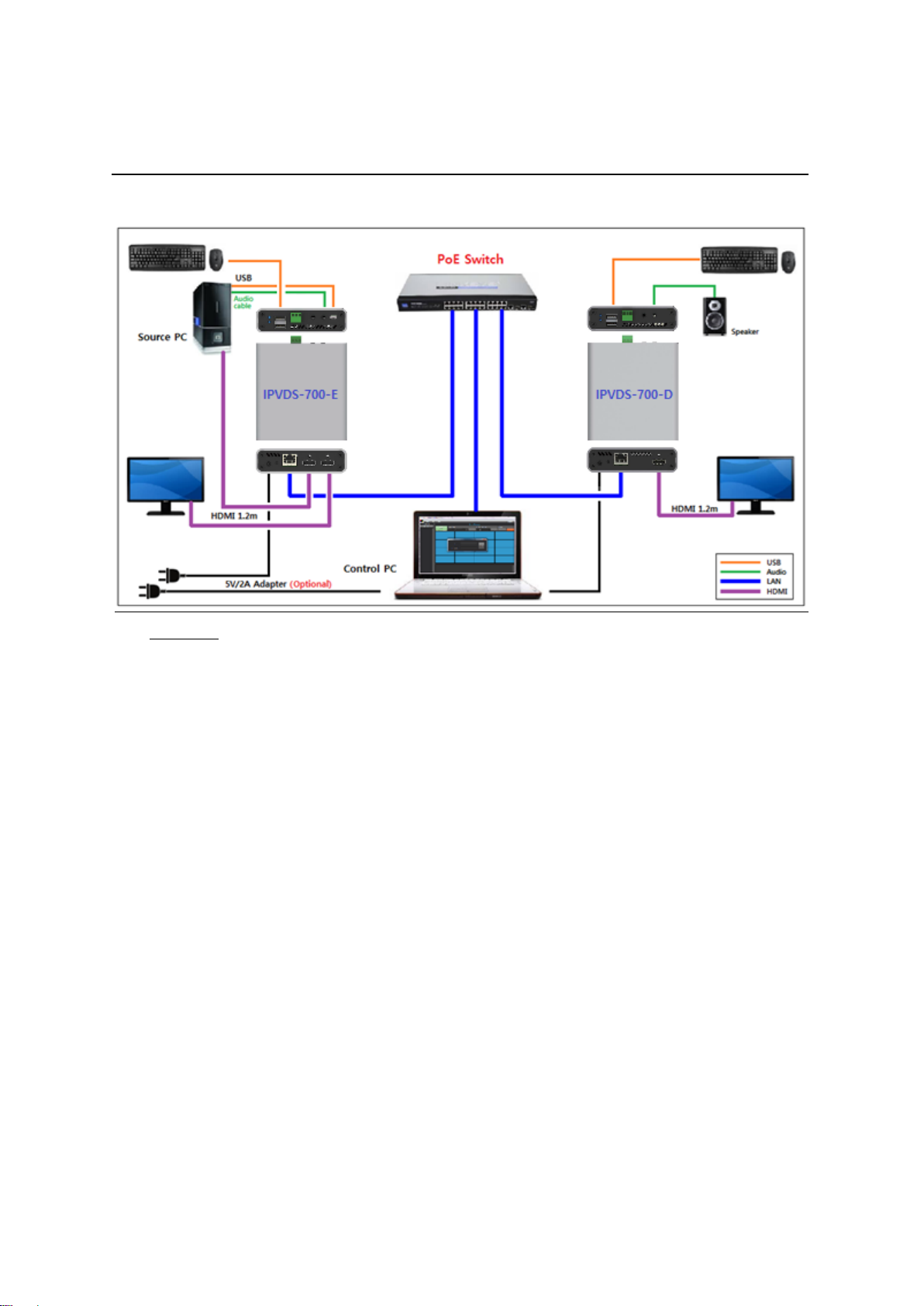

Figure 1. Connection Diagram
- 3 -
1.1 Main Features
- TCP/IP base IP network: Gigabit Ethernet
- Support up to 4K (3840x2160@30Hz 4:4:4 or 3840x2160@60Hz 4:2:0) input resolution
- Support up to 4K (3840x2160@30Hz 4:4:4) output resolution
- Supports Analog/HDMI audio input and output
- Fast switching time / low video latency
- Transmits HDMI/DVI video, audio, USB, RS-232, IR signal over IP network
- Provides HDMI loop-thru port for local display (Up to 4K 60Hz 4:2:0)
- Provides merge, overlay and split function on multiple video wall layout of PC program
- Supports up to 256 displays (16x16 - 4x64 - 1x256) video wall and multi-sources
- Supports M:N virtual matrix
- Supports 802.3af standard PoE (Power-over-Ethernet)
- Provides 5V/2A power adapter (Optional)
- Provides mounting bracket (model: OPSCB): VESA 75,100 standard (optional)
- Provides 1U rack (4 devices in 1 rack) & Power rack (PR5V-16: 16* 5V output) (optional)
1.2 IPVDS-700 Control PC Application
- PC application for controlling video wall and individual displays
- Provides drag and drop operation for host allocation
- Provides allocate, merge, split, overlay function on the layout management
- Provides preview screen before applying it to actual displays
- Provides up to 99 pre-sets for the user defined layout (save/load)
- Pre-set scheduling function: Sequential mode (dwell time based)
- Weekly mode (hourly/weekly based)
- Bezel compensation in 0.1mm
Figure 2. Software Main Screen
Note. Refer to IPVDS-Wall Controller manual for PC application manual
- 4 -
2. Shipping Group
□ IPVDS-700-ED □ HDMI cable 1.2m □ Mini-USB cable □ HDMI fixing screw
2.1 General Items
IPVDS-700-E Encoder
- One (1) HDMI male to male cable (1.2m).
- One (1) Mini-USB Cable for PC.
- HDMI cable fixing screw, 3-pin terminal block (male)
IPVDS-700-D Decoder
- One (1) HDMI male to male cable (1.2m).
- HDMI cable fixing screw, 3-pin terminal block(male)
2.2 Optional Items
- RS-232 cable: DB-9 male to 3-pin terminal block.
- AC / DC power adaptor: One (1) unit of 5V / 2A.
- Mounting bracket: OPSCB complying with VESA 75, 100 standard
- 1U rack (4 in 1 rack).
- power rack (PR5V-16, 16*5V output).
- 5 -
3. System Requirement
3.1 Hardware Requirement
- Video source with HDMI output
- Display with HDMI input
- USB 2.0 port to use HID and USB storage feature
- No other special requirement for memory size, CPU speed or chipset
3.2 Software Requirement
- No special requirement
3.3 Network Requirement
- L2/L3 Gigabit management Ethernet switch is required for video matrix application.
- To apply correct operation, below features are required for L2/L3 gigabit management
Ethernet switch.
1) Gigabit Ethernet
2) Jumbo frame (8K or more)
3) L3 : IGMP and multicasting protocol
4) L2 : IGMP snooping
Note: With satisfaction of above requirement, certain network switch might not transmit
audio/video signal due to their performance.
- For bandwidth design, network topology and selection/setup of L2/L3 network switch,
visit Opticis website (www.opticis.com) or contact techsupp@opticis.com .
3.4 Control PC Requirement
- OS version check for IPVDS-Wallcontroller program
- Requirement: Windows7 or higher
3.5 Power Requirement
- IPVDS-700-ED supports 802.3af standard PoE (Power-over-Ethernet) and requires
support of 802.3af/802.3at Type 1 of network switch.
- IPVDS-700-ED is designed to give priority to power adapter when connecting external
+5V AC/DC power adapter.
- 6 -
