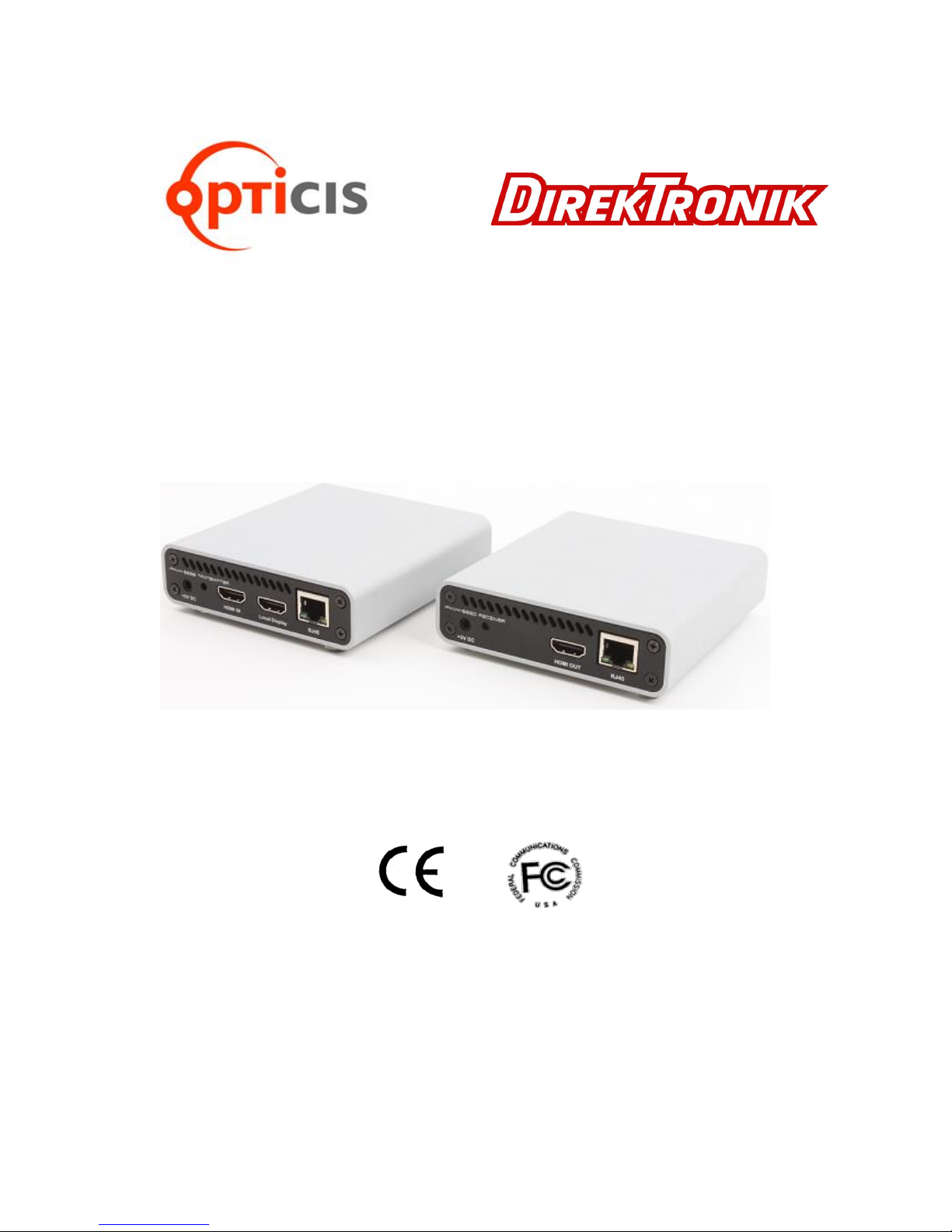

opticis IPKVM-500-ED User Manual

- 1 -

4K HDMI IPKVM Extender

25-0595/95 - IPKVM-500-ED

User’s Manual

Doc No. : OIPKVM-D161129 / Rev1.2

WWW.OPTICIS.COM

- 2 -

Index

1. Product Description .......................................................................................................................- 3 -

2. Main Features ...............................................................................................................................- 4 -

3. Supporting Video Resolutions for Input / Output ..........................................................................- 4 -

4. Shipping Group .............................................................................................................................- 4 -

5. Systems Requirements for Setup .................................................................................................- 5 -

6. Connector descriptions .................................................................................................................- 6 -

7. Setting Local / Remote Authority ..................................................................................................- 8 -

8. LED Indication ...............................................................................................................................- 8 -

9. SW & Factory Reset .....................................................................................................................- 9 -

10. Connection ................................................................................................................................- 9 -

11. Remote Manager (PC Program) ............................................................................................ - 10 -

1) Download the PC program .................................................................................... ………. - 10 -

2) PC Program Installation .................................................................................................... - 10 -

3) Access to menu of PC Program ........................................................................................ - 10 -

4) Device (Host /Client) setting: ............................................................................................ - 11 -

5) Advanced Setting: configuration of Bit rate, OSD display and Blocking ........................... - 12 -

6) EDID read/write ................................................................................................................. - 13 -

7) Update Firmware ............................................................................................................... - 15 -

12. IPKVM-500ED Connection & Operation ................................................................................ - 17 -

1) GUI .................................................................................................................................... - 17 -

2) Connection & Operation .................................................................................................... - 17 -

3) Operation with Audio Port ................................................................................................. - 18 -

4) Multicast streaming and Blocking function ........................................................................ - 19 -

5) OSD display ...................................................................................................................... - 19 -

13. Product Specifications ............................................................................................................ - 20 -

14. External Local/Remote Authority Setting (Option) ................................................................. - 21 -

15. Power Rack (PR5V-16) General Specification ..................................................................... - 23 -

16. Trouble shooting ..................................................................................................................... - 25 -

17. Warranty Information .................................................................................................................- 3 -

- 3 -

1. Product Description

The OPTICIS 4K HDMI IPKVM Extender, IPKVM-500-ED is designed to distribute, control and

access video with data (USB, RS-232, DIO and audio) anywhere over the standard IP Network.

The transmitter, IPKVM-500-E (Encoder) connected to a HDMI source, encodes the video with data
and transmits it over Ethernet. The receiver, IPKVM-500-D (Decoder) connected to a display,
receives the encoded signal over network and decodes it to regenerates the video and data for users.

The provided PC program makes the transmitters and receivers units in the network can be
automatically or manually detected and configured to individual IP address and helps the any of
receivers can be connected simultaneously to any transmitter within the network to create a virtual
crosspoint matrix system of KVM as well as audio and video only system widely used in Pro-AV
installation.

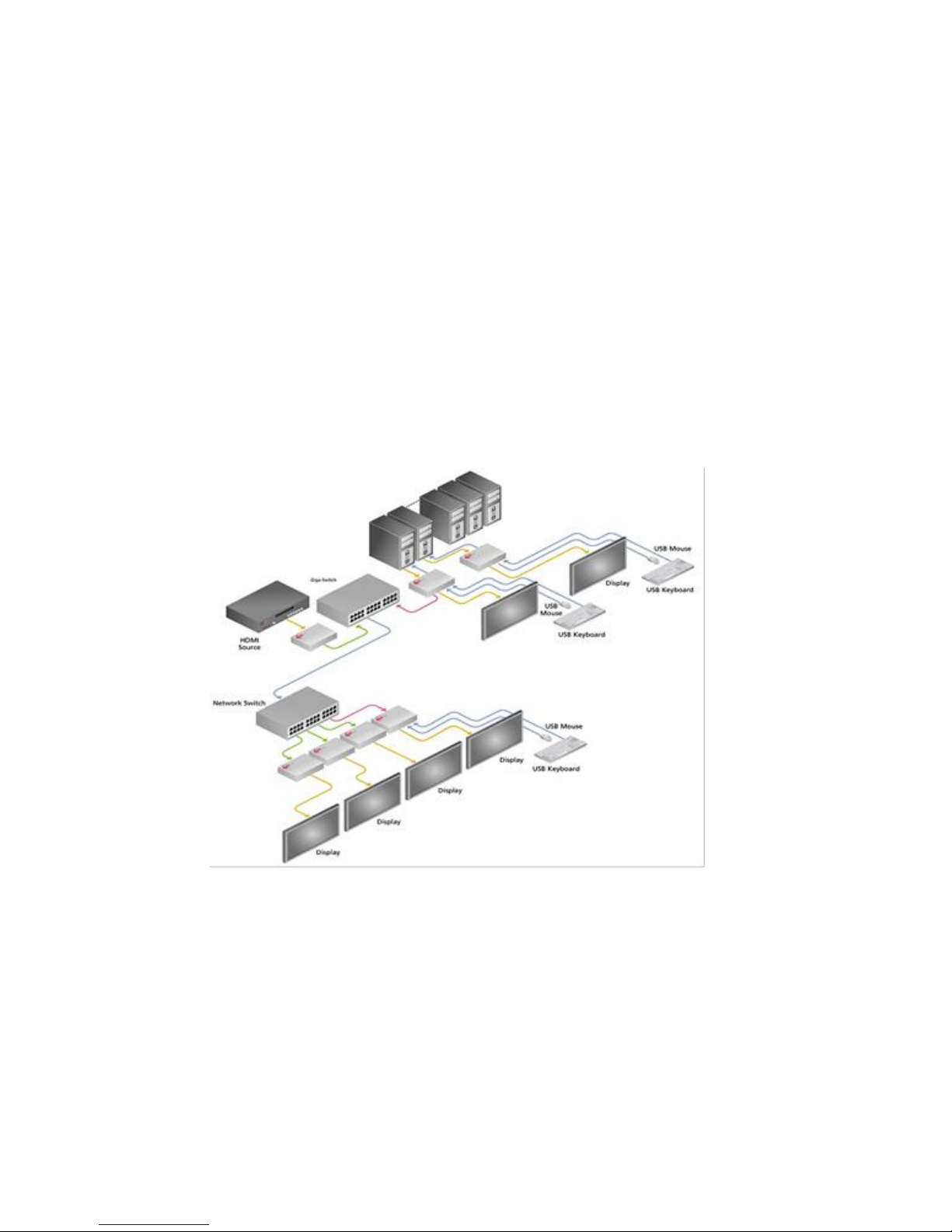

[Connection diagram]

- 4 -

2. Main Features

 Extends HDMI/DVI, USB, RS-232, Audio, DIO over network
 Supports resolution up to 4K (3840x2160 at 30Hz) or full HD 1080p at 60Hz
 Any of transmitters in the network can be accessed by any receiver via provided PC program
 Supports Multi-cast 1 x N (up to 200 receivers)
 HDMI Loop out port on transmitter for local display
 Offers EDID read and write function
 Local, remote and console control switch on transmitter
 Fast switching time and Low video latency
 1 x USB ports for local Keyboard / Mouse (transmitter) and 2 x USB ports for remote

Keyboard / Mouse (Receiver)

 Easy to use OSD GUI program and PC program
 1U rack (OPSCR-1U) mountable (a quarter width of 19”)
 Mounting bracket (OPSCB) complying with VESA 75, 100

♦ Application

 KVM / RCS / ROS / Video control room

3. Supporting Video Resolutions for Input / Output

1) HDMI 1.4 3840x2160p/24/25/30Hz

2) HDMI 1.4/HDTV up to 1920x1280p60Hz

3) VESA Digital up to 1920x1200p60Hz

Note: Some PC resolutions may not work properly.

4. Shipping Group

 IPKVM-500-E: TX (Encoder) or IPKVM-500-D: RX (Decoder)
 AC / DC power adaptor: One (1) unit of 5V / 2A
 One (1) HDMI male to male cable (1.2m)
 One (1) Mini-USB Cable for PC
 User’s manual

As an option,

 RS-232 cable: DB-9 male to 3Pin terminal block
 Switch (TX): Console Switch & RJ11 male to 3Pin terminal block

 Indicator (RX): Console Indicator & RJ11 male to 3Pin terminal block
 Mounting bracket (OPSCB) complying with VESA 75, 100.
 1U Rack (OPSCR-1U)
 Power Rack (PR5V-16): Supply 5v DC power to Receiver (RX, Decoder). Refer to p.22.

- 5 -

5. Systems Requirements for Setup

♦ Hardware requirements

▶ You must have a HDMI graphic controller or card having a HDMI or DVI port in your PC

or any other equipment being used.

▶ It should support the maximum graphic resolution of displays to be connected.

▶ No special requirements for memory size, CPU speed and chipsets, if you’ve already

properly installed your HDMI graphic controllers or cards.

♦ Software requirements

▶ You need to check OS version of your PC or any other equipment being used. [TBD]

♦ Network requirements

▶ You may need Ethernet switch as a switching hub or router for connecting multiple

IPKVM -500-EDs on Local LAN or Intranet. Because IP Video Wall Controller, IPKVM-

500-ED is based on multicast protocol for A/V streaming, the network switch has to

support Gigabit Ethernet, Jumbo frame, and IGMP snooping with L2 Switch and Gigabit

Ethernet, Jumbo frame, IGMP and multicasting protocol with L3 Switch.

Note: In some network switches, there may be a problem with video streaming because of

capacity performance, even though they support these functions.

* Opticis tested and confirmed the performance of L2 & L3 switches as below. So, opticis

recommends user to use the switches for easy set-up.

▶ List of L2 switches

NO

Product Model

Description

Netgear

1

GS724T

10/100/1000 24Port + SFP 2Port, VLAN, jumbo frame, IGMP snooping

2

GS7224

10/100/1000 24Port + SFP 4Port, VLAN, jumbo frame, IGMP snooping,

3

GS7248

10/100/1000 48Port + SFP 4Port, Jumbo frame, IGMP snooping,

HP (3com)

1

HP 1620-8G

10/100/1000 8PORT (no SFP port), Jumbo frame, IGMP snooping, web management

2

HP 1620-24G

10/100/1000 24Port (no SFP port), Jumbo frame, IGMP snooping, web management

3

HP 1620-48G

10/100/1000 48Port (no SFP port), Jumbo frame, IGMP snooping, web management

4

HP 1910-48G

10/100/1000 48Port +2 SFP port, Jumbo frame, IGMP snooping, web management

Cisco SB

1

SG300-10

8-port 10/100/1000 Gigabit Switch + 2 COMBO Mini-GBIC / SFP port

IGMP snooping, Jumbo frame ( Bandwidth - 20G / throughput - 14.88M )

2

SG220-26

26-Port Gigabit Smart Plus Switch ( ACL , CLI )+ 2 COMBO Mini-GBIC / SFP port

jumbo frame, IGMP snooping, ( Bandwidth - 52G / throughput - 38.69 M )

3

SG220-50

50-Port Gigabit Smart Plus Switch ( ACL , CLI 지원) + 2 COMBO Mini-GBIC / SFP port

jumbo frame, IGMP snooping,, ( Bandwidth - 100G / throughput - 74.4 M )

- 6 -

▶ List of L3 Switches

(1) Cisco WS-C3560X-24(48)

(2) Alcatel-Lucent OS6850-24(/48)

(3) Huawei S5720-28(24/48)p

(4) 3com (HP) 3CR17254-91 (HP5500G-24(/48)G)

▶ For more technical support including bandwidth design, network topology, and selection &

setup with Network Switch (L2/L3), visit Opticis web site, www.opticis.com, or contact

[email protected]

▶ But, point-to-point connection between one pair of IPKVM-500-ED can be directly

connected (with CAT5e or CAT6) without network switch.

♦ Control PC requirements

▶ Provided PC program to manage user accounts, network information and connection of

IPKVM-500-EDs.

▶ Requirements: Windows XP and Window7 (and its higher versions).

♦ AC / DC Power Adapter Technical Advisory

▶ The IPKVM-500-ED is designed to use mainly external +5V AC / DC power adaptor. The

internal power supplied through a HDMI pin (#18) from the graphic source is used to
identify normal connection between a source and TX, IPKVM-500-E.

♦ Connector descriptions

▶ 5V AC / DC Power (TX & RX):

Connect the 5V AC / DC Power Adaptor to the connector of each device. When the 5V
AC/DC Power Adaptor is connected to the device, the power LED is turned on. For more

information on LEDs, see “LED indication”

▶ HDMI IN (TX):

Connect a video source (such as a PC) to HDMI IN receptacle over HDMI cable.

▶ HDMI OUT (RX):

Connect a digital display to HDMI OUT receptacle over HDMI cable.

▶ Local Display (TX):

Connect a digital display to Local Display receptacle over HDMI cable.

▶ RJ-45 (TX & RX):

Connect a RJ-45 network cable (CAT5e / CAT6) to this connector.

▶ mini USB port (TX):

Connect a USB port in PC to this connector for HID mouse or Keyboard.

▶ USB A Type (TX):

Connect a local mouse and/or a keyboard with 2 port USB hub.

- 7 -

▶ Dual USB A Type (RX):

Connect a mouse and/or a keyboard to these connectors.

▶ RS-232 (TX & RX):

Optional - Connect a RS-232 cable to this terminal block for knob or controller (for control
an instrument or receiving data from an instrument).

▶ DIO (TX & RX):

Optional - Connect a DIO cable to this terminal block for knob or console switch / console
indicator (set and display Local / Remote Authority).

Note1: If you change a video source to another one, you have to reset the power of all TXs

and RXs by re-plugging of the +5V power adaptor.

Note2: If you want to use the function of RS-232 & DIO, please contact [email protected].

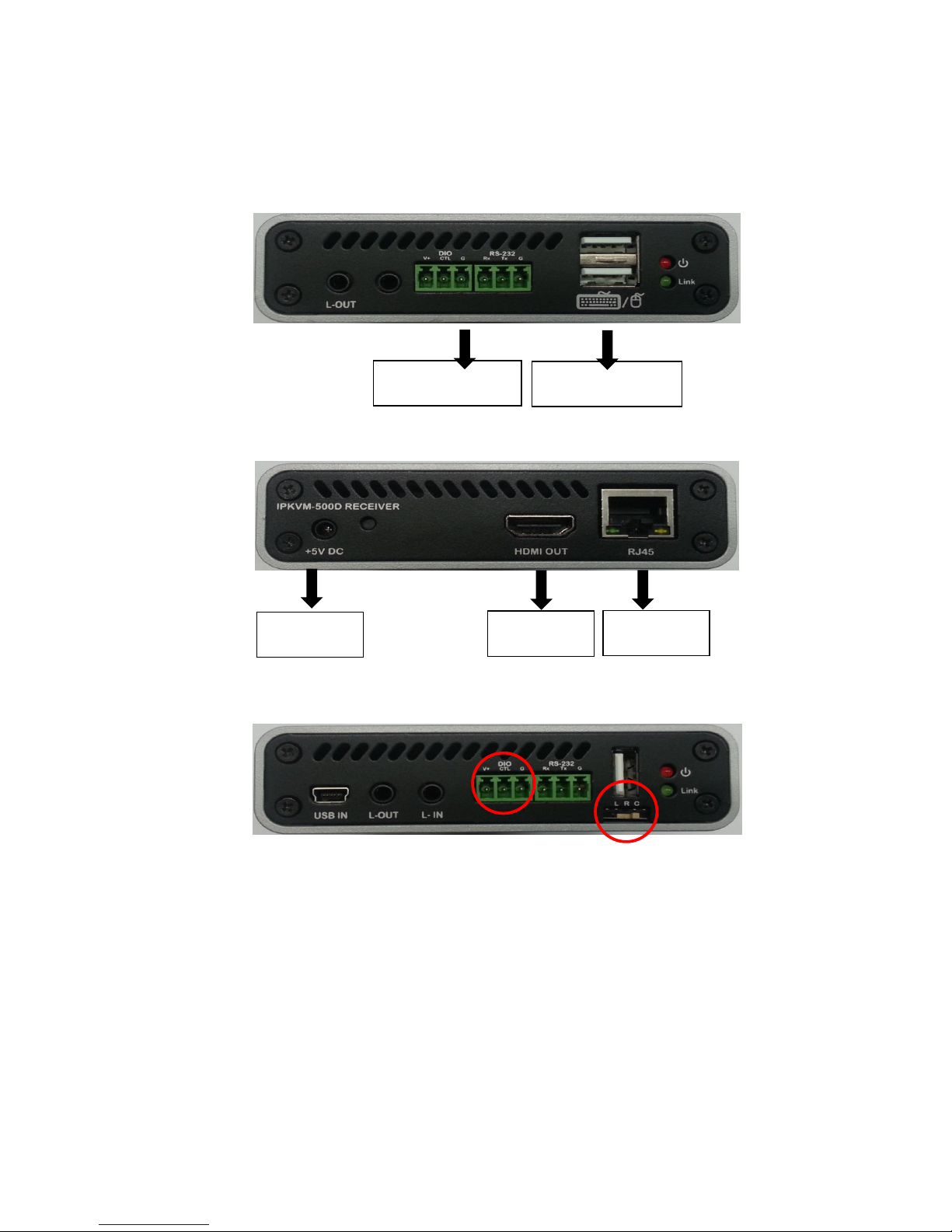

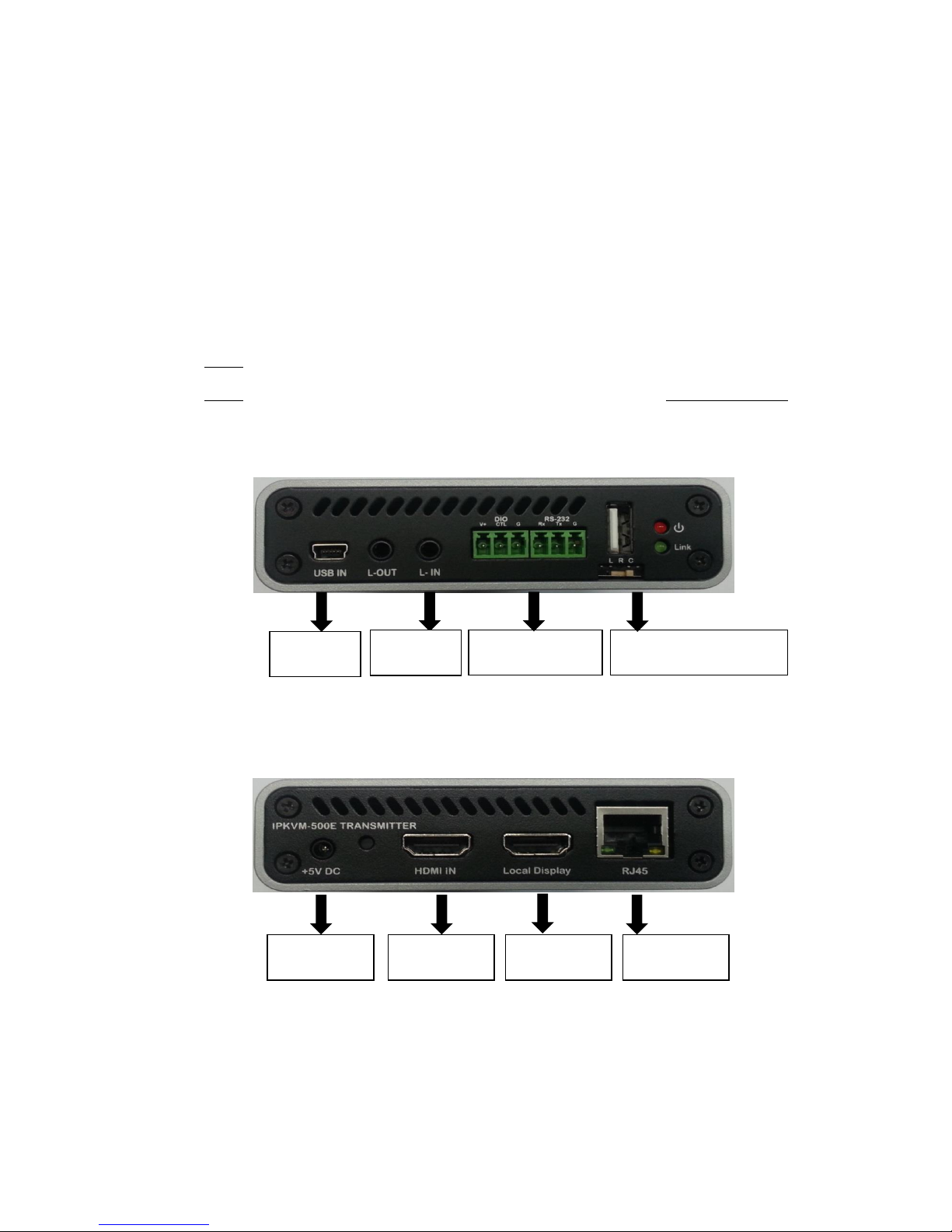

♦ IPKVM-500-E, TX Back

♦ IPKVM-500-E, TX Front

Mini USB

from PC

USB A for

Mouse / Keyboard

DIO / RS-232

(Terminal Block)

Power Jack

(5V, 3.5mm)

HDIM IN
(Source)

HDIM OUT

(Monitor)

RJ-45 Port

(LAN)

Line in

from PC

- 8 -

♦ IPKVM-500-D, RX Back

♦ IPKVM-500-D, RX Front

7. Setting Local / Remote Authority on TX module

♦ 3-state Slide Switch

You can set user’s authority of keyboard and mouse to Local, Remote, or Console site
(L/R/C) by 3-state Slide Switch as above. “L” means Local state, “R” means Remote state,
and “C” means Console state. Console State can be selected to Local or Remote state by

external console switch. Refer to Page 21, “External Local/Remote Authority Setting”.

8. LED Indication

IPKVM-500-ED has two (2) LEDs for Power and Authority status located on the front panels.
♦ Power status LED (Red)

The red LED will be turned on when 5V power applied.

USB A for

Mouse / Keyboard

DIO / RS-232

(Terminal Block)

Power Jack

(5V, 3.5mm)

HDIM OUT

(Monitor)

RJ-45 Port

(LAN)

- 9 -

♦ Link LED (Green)

If the green LED turns on at TX and RX, it is ready to operate as IPKVM Extenders.

9. SW & Factory Reset

♦ SW Reset: Press the Reset switch on the back of devices shortly to reset
♦ Factory Reset: To recover the Factory setting, press and hold the Reset switch on the back of

devices until the LED is turned off after blinking (approx.5sec).

▶ DHCP IP mode

▶ default values on device setup & system configuration

▶ default values on HDMI EDID

10. Connection

Important: Please keep the installation procedure below. Improper or no operation may result if the
start-up sequence is not followed correctly.

Step 1

Carefully unpack the contents of the shipping group.

Step 2

Turn on the PC, display, and network server

Step 3

Connect HDMI IN port in IPKVM-500-E (TX) to the PC by supplied HDMI cable.

Step 4

Connect mini USB port in IPKVM-500-E (TX) to USB port in PC with supplied USB cable.

Step 5

Connect Local Display port in IPKVM-500-E (TX) to local HDMI display by HDMI cable.
Then, connect the local Keyboard and Mouse to two (2) USB ports using USB hub. You may
skip Step 5 if you don’t need local control.

Step 6

Connect LAN port (RJ-45) in IPKVM-500-E (TX) to LAN port in Network server with LAN cable.

Step 7

Connect HDMI OUT port in IPKVM-500-D (RX) to remote HDMI display by supplied HDMI
cable. Then, attach keyboard and mouse for remote control.

Step 8

Connect LAN port (RJ-45) in IPKVM-500-D (RX) to LAN port in Network server with LAN cable.

Step 9

Plug the +5V power adaptors to both IPKVM-500-E (TX) and IPKVM-500-D (RX).

Note: If you change an input source to another source, you have to reset the power of all TXs

and RXs by re-plugging of the +5V power adaptor.

- 10 -

11. Remote Manager (PC Program)

Note: IPKVM-500-ED supports static fixed IP address, auto IP address and DHCP IP (Dynamic

Host Configuration Protocol: default) in IP network. Users can change auto IP to static IP

with host & client device setup of PC Program if there is no DHCP server.

Important: Without DHCP IP, Static IP ‘Class’ of Control PC should be the same as IP ‘Class’ of

network switch or devices (TX or RX).

1) Download the PC program

(1) Visit our website, www.opticis.com
(2) Click the PRODUCTS bar at the top of the page.
(3) Click IPKVM and IPKVM-500-ED step by step.
(4) Click and download the PC program file.
(5) To download it, please enter the password number: 0315.

2) PC Program Installation

Important: If you use IPKVM-500-EDs in intranet between routers, you need to check the IP

addresses, Gateway and Subnet Mask of the PC.

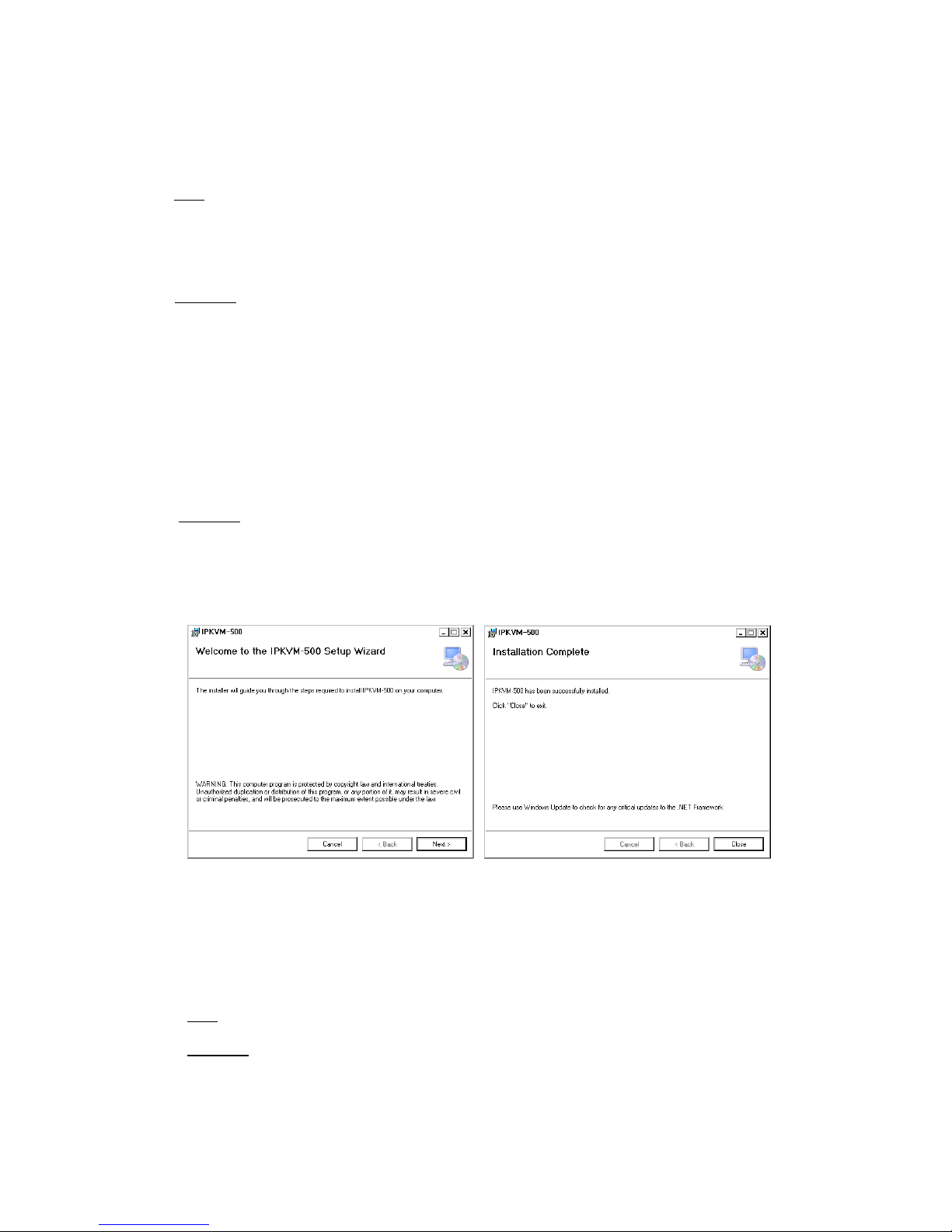

(1) Run the setup.exe in the Window Operating System.
(2) Follow on-screen instructions.

* To re-install or upgrade the PC Program, please delete the previous PC program on the

Control Panel of Window OS.

3) Access to menu of PC Program

(1) Run the PC program (Remote Manager)
(2) Four (4) menus: Device Setting, Advanced Setting, EDID read/write & Update Firmware.

Note: User can check the version of PC Program through the top of the menu bar. (Help 

About)

Important: Before connecting all TXs and RXs in the network that have default IP addresses,

please modify information of each TXs and RXs one by one by connecting it directly PC
with Remote Manager.

- 11 -

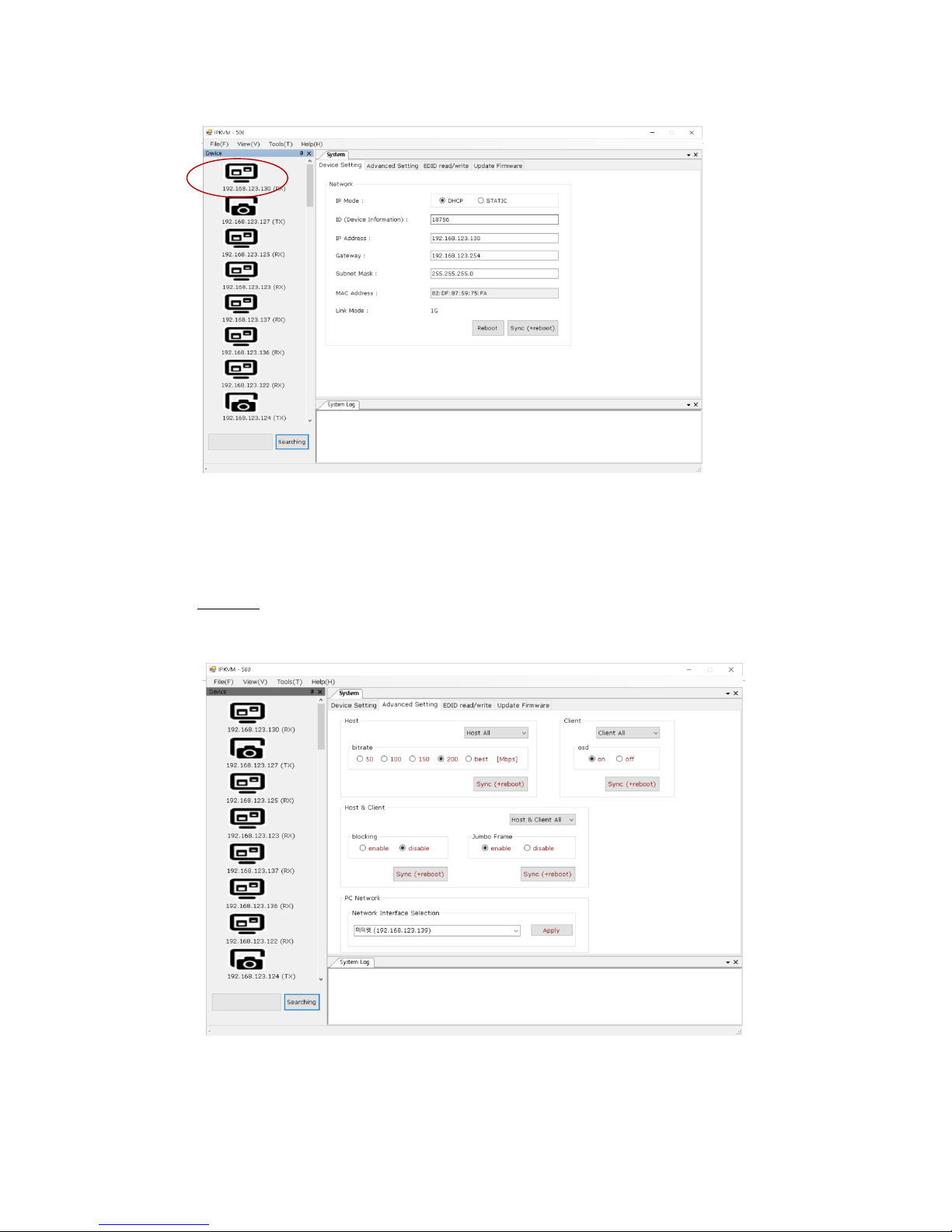

4) Device (Host /Client) setting:

It helps to find all TXs and RXs in the network and register automatically. But please remind
that all TXs and RXs in the network should have different IP address. If you connect TXs and
RXs in the network for the first time, please do modify network information of each TXs and
RXs as below.

♦ Modify IP address and device information on the network

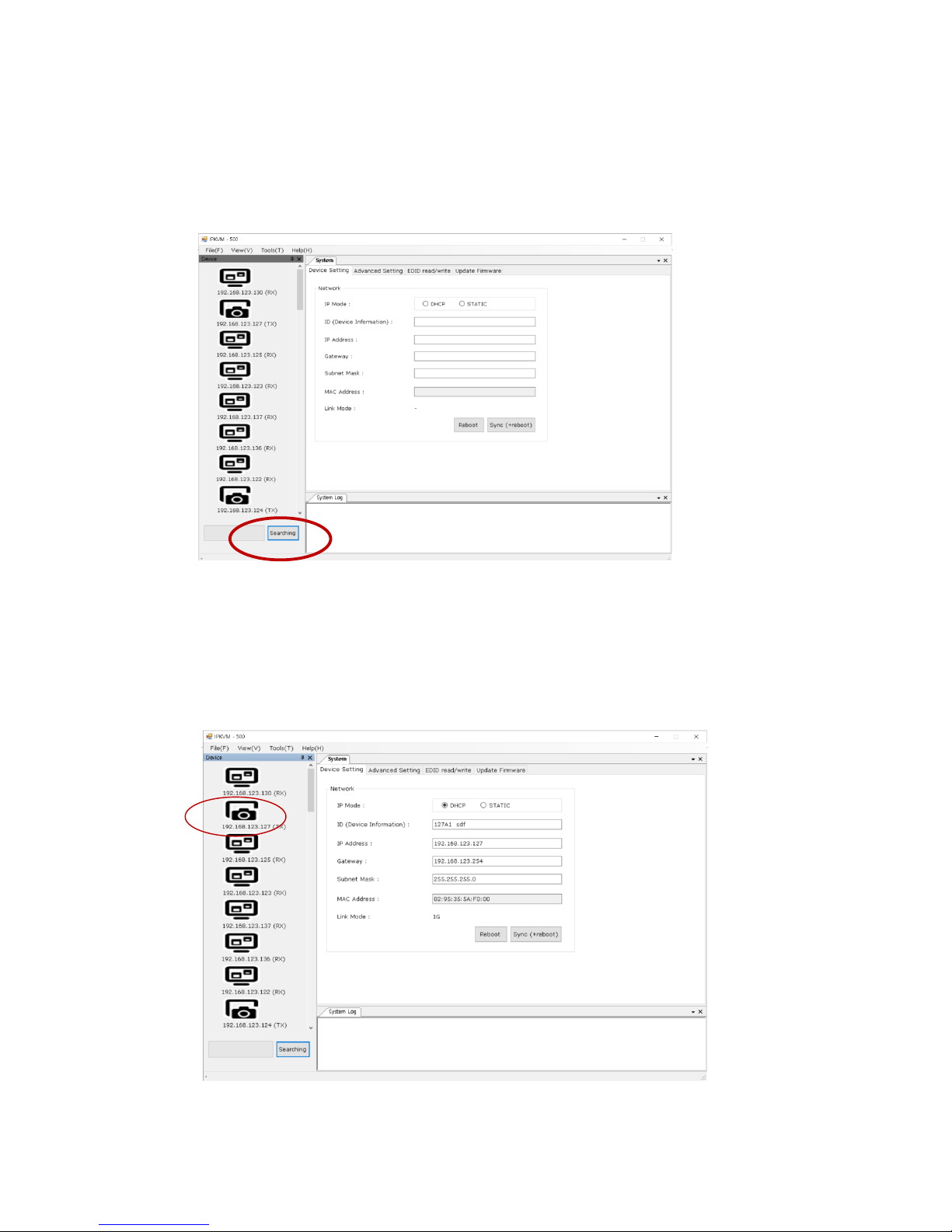

(1) Click ‘Searching’ button.

Then, Remote Manager detects connected devices and shows on left list window.

(2) To modify connected devices, select one of listed devices on the left list window. User

can modify IP address, gateway, and subnet mask of the devices on the right window.

(3) Add device name on the right window.

It supports up to 32 characters including numbers and English alphabets.

(4) Click ‘Sync’ button to save and use TX or RX information.

- 12 -

♦ ‘Reboot’ button: Re-boot selected device on the network if it needs.

5) Advanced Setting: configuration of Bit rate, OSD display and Blocking

Default values are: Bit rate: 200(Mbps) / OSD: on / Blocking: disable/Jumbo frame enable

Important: It recommends that these advanced settings are applied to all hosts or clients

because all devices need to have same configuration for fast switching with bit rate
and blocking and EDID data.

♦ Bit rate setup

It is able to choose bit rate between 50~200Mbps or Best, according to required image

quality and bandwidth limitation of the network (If best bit rate, IPVDS-500-EDs are in

‘Visually lossless compression’).

- 13 -

(1) Select one between 50MHz~Best

(2) Click ‘Save & Reboot’ to save and apply to TXs (All hosts is recommended).

♦ ODS on/off

(1) Select on or off.
(2) Click ‘Sync’ to save and apply to RXs. (Client All or selected client)
* For details, please refer to Page 19 to figure out OSD mode.

♦ Blocking

(1) Select enable or disable.
(2) Click ‘Sync’ to save and apply to RXs. (Host & Client All is recommended)

* Blocking function is to give user an authority on a host which you already occupied on a
client and then, other user cannot access the host. If user set blocking ‘enabled’ mode, only
one client can access to one host and control a source of the host (1:1 unicast mode).
If user set blocking ‘disabled’ (default) mode, one audio/video source of a host can be
transmitted to display monitors of many clients and controlled with keyboard and mouse on
the network (1:N multicast mode, default).
For details, please refer to Page 18, Multicast streaming and blocking function.

- Available: These TXs are ready to connect with this receiver.

- Currently connected: The RX is already connected to TX.

- Not available, in use (Red color): these TXs are already connected to other RXs. This
status message will be shown with blocking function ‘disabled’ only.

♦ Jumbo frame

Please set ‘Disable’, if L2/L3 network switch does not operate well with Jumbo frame ‘Enable’.

♦ Network Interface Selection

Please set Ethernet or WiFi, if there are some problems with device searching.

6) EDID read/write

♦ EDID read from a client (RX)

(1)Select one of a client (RX) on the list. Connect a display to HDMI OUT receptacle of the

selected RX over HDMI cable.

(2) Click ‘EDID Read’ button. Then, you can see the saved EDID data as below.

* If the RX isn’t connected with display monitor, you can see ‘Fail’ message.

- 14 -

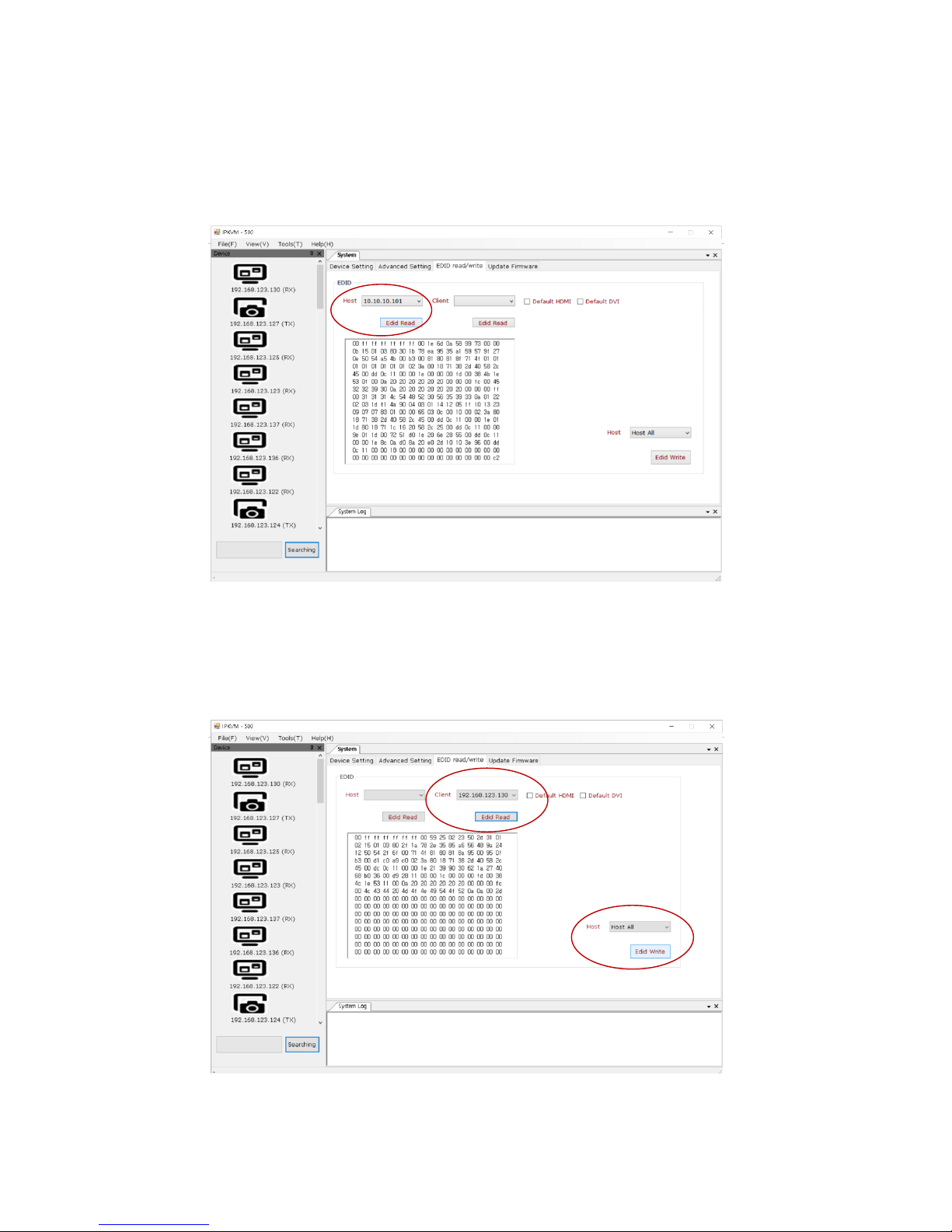

♦ EDID read from a host (TX).

(1) Select one of a host (TX) on the list. Connect a display to HDMI OUT receptacle of the

selected TX over HDMI cable.

(2) Click ‘Read EDID’ button. Then, you can see the saved EDID data as below.

* The TX isn’t connected with display monitor, you can see ‘Fail’ message.

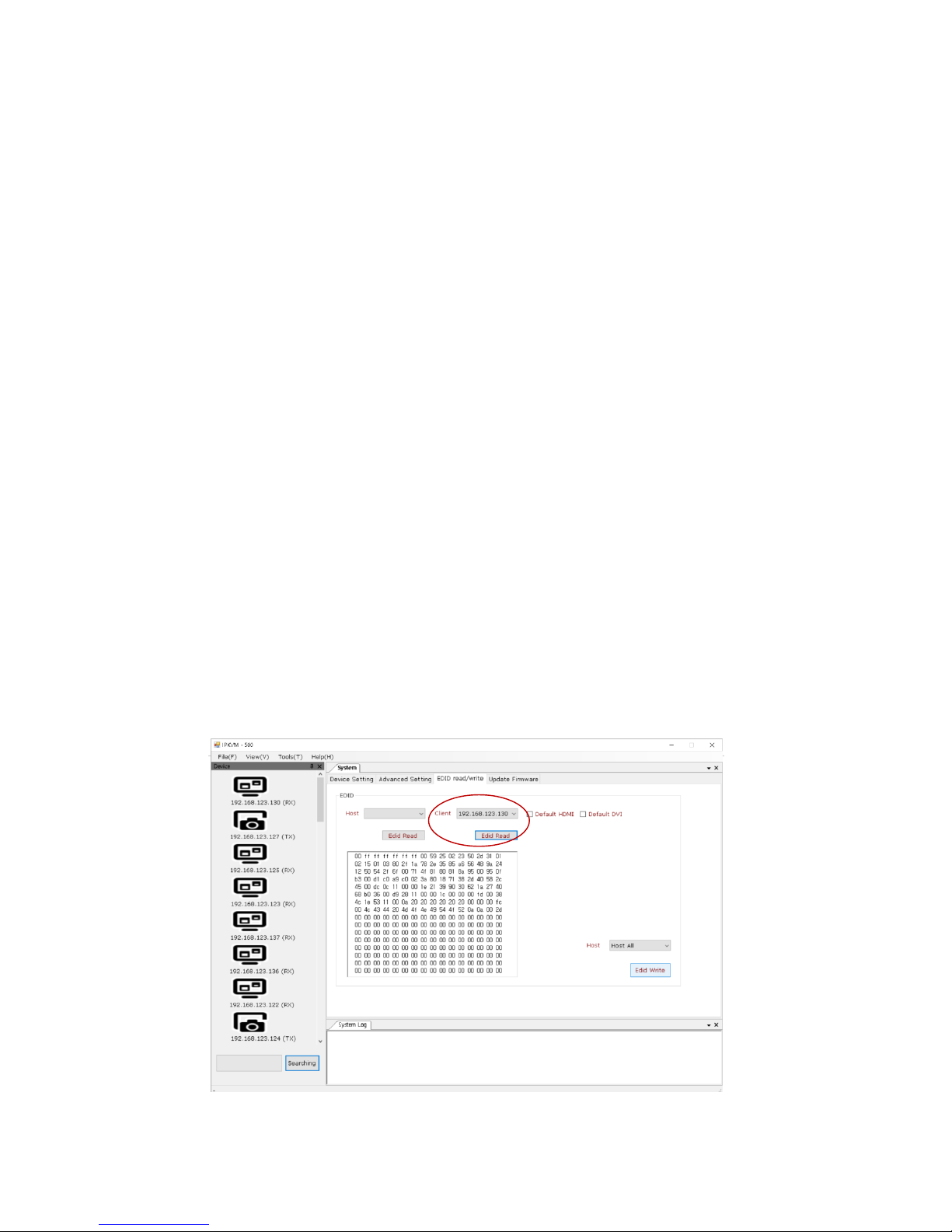

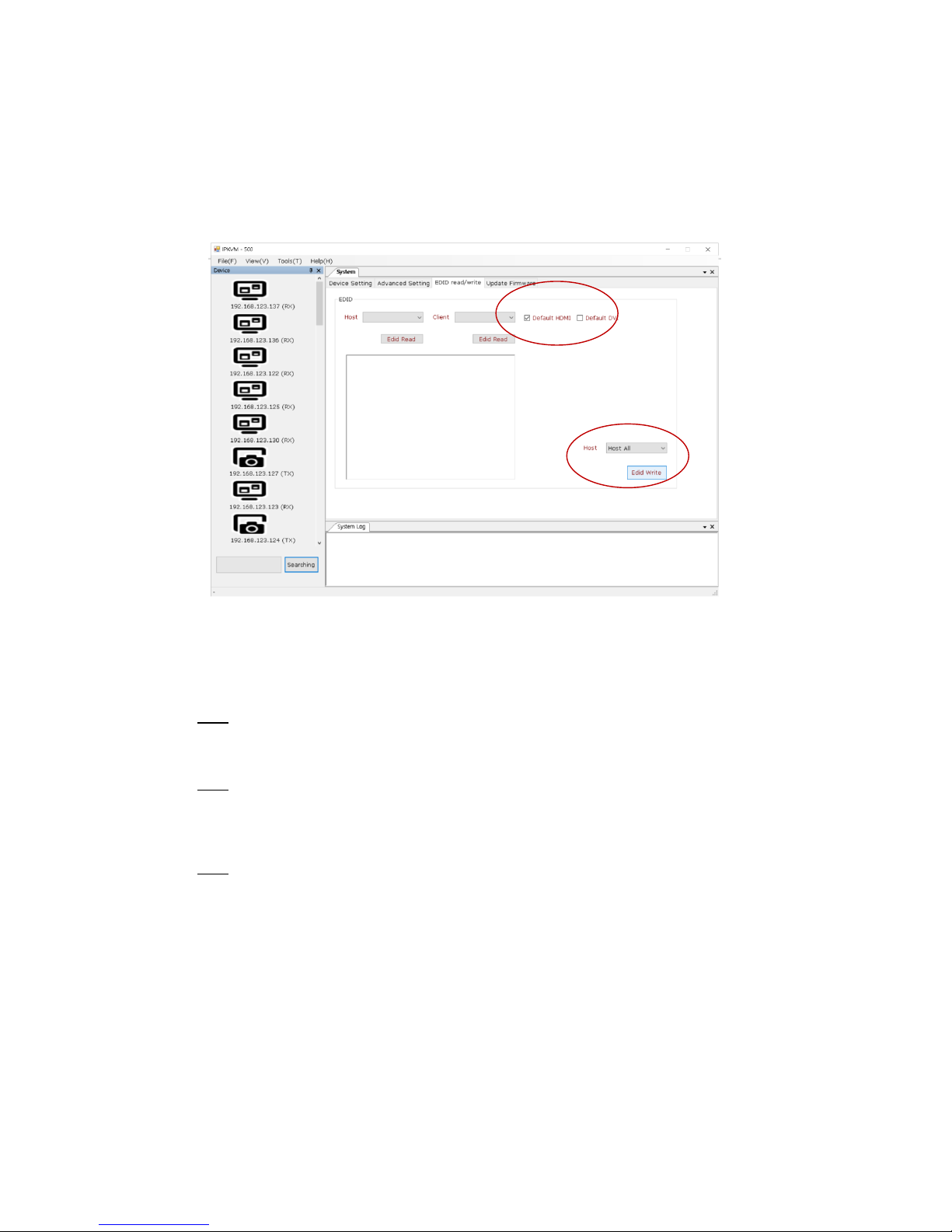

♦ EDID write from a host or a client to all hosts (recommended)

After you read EDID data from a client or host, you can write the saved EDID data on the
clipboard to all TXs or selected one.

(1) Select all TXs ( all hosts recommended)
(2) Click ‘EDID write’ button.

- 15 -

♦ EDID write from default EDID data to all hosts (recommended)

After you check the default EDID data between HDMI and DVI on the top right, you can write
the default EDID data to all TXs or selected one.
Default EDID value is HDMI on the product.

(1) Select Default HDMI or Default DVI.
(2) Click ‘EDID write’ button (all hosts recommended).

7) Update Firmware

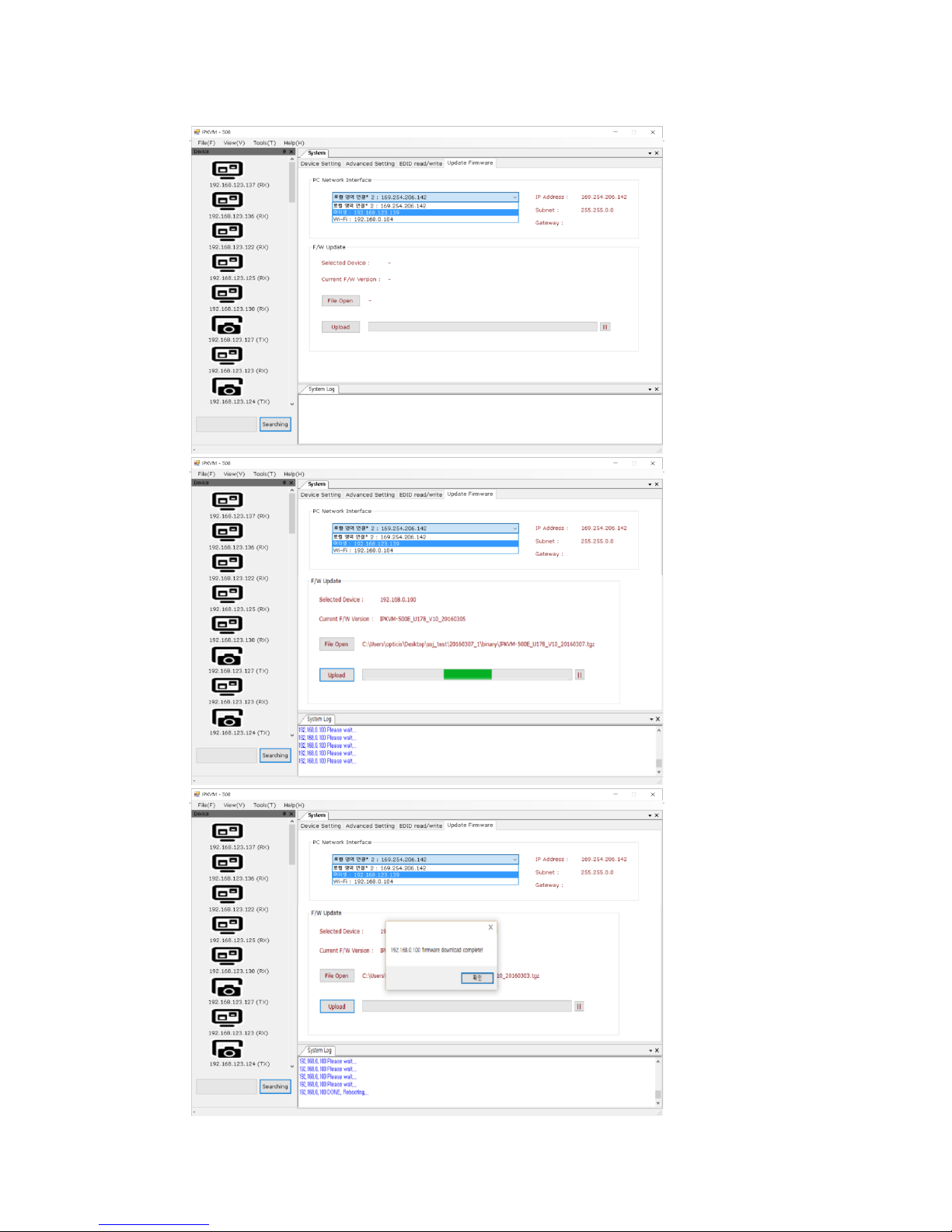

♦ Update Firmware by PC Program (Remote Manager)
(1) Click ‘Search’ button to find devices to upgrade on the network or directly with PC
(2) Select a device to upgrade on the left list window.

Note: User can see the present Firmware version of the selected device on the right side

window.

(3) Please check the IP address and Gateway of the PC. It must have same IP class with the all

of TXs and RXs.

Note: If IP address class and Gateway of PC is different from the selected device, change IP

address and Gateway of PC on the control panel.
(4) Click ‘File Open’ button. Search and select a firmware file.
(5) Click ‘Upload’ button.
(6) Please wait until LED blinking stops and then the device will be rebooted.

Note: You can see a pop up message when it completes. It takes about 3 minutes for TX and

5 minutes for RX.

- 16 -

- 17 -

♦ Update Firmware by USB

Note: Please keep this guide carefully to update the firmware without fail. Unplugging of DC

power during the uploading process will result failure of boot loader in TX and RX.
(1) Copy “IPKVM-500.bin” to an USB memory stick.
(2) Insert the USB memory stick to any USB A ports on the selected TX or RX.
(3) Unplug and plug the DC power to the power jack of selected device. (IPKVM-500-E or D)
(4) Please wait until LED blinking stops and the device is rebooted. It takes about 3 minutes for

TX and 5 minutes for RX. (Do not unplug DC power until it finished)

(5) Remove the USB memory stick from the device (IPKVM-350-E or D)

12. IPKVM-500-ED Connection & Operation

1) GUI

Connection can be managed on a GUI of each client (RX)
When TXs and RXs are in the TCP/IP network, you can see all hosts (TXs) with each IP
addresses and device information on the GUI of a client (RX).

▶Press a hotkey to enter into the GUI menu on the connected keyboard

- Ctrl + Alt + Shift + Backspace

- Ctrl (right) + Enter

- Ctrl (right) + ESC

▶ Press a hotkey to exit from the GUI on the connected keyboard

- ESC key

♦ IP Address/Device Information and status will be shown as below.

Note: You can select and connect to an available TX, but please remind that with blocking

function ‘disabled’ in multicast mode(1:N), many client may access to a host with a

keyboard and mouse at local and remote site. For details, please refer to Page 18,

multicast streaming and blocking function.

2) Connection & Operation

♦ Connection

(1) Press ‘hotkey’ to enter into a GUI of a client on the keyboard.
(2) Select an IP of available TX.
(3) Press [Enter] button on the keyboard or click [Connect] button on the GUI.

♦ Switching to another host (TX)

(1) Press ‘hotkey’ to enter into GUI menu if you want to connect another host.
(2) Select one of available hosts.
(3) Press [Enter] on the keyboard or click [Connect] button on the GUI.
(4) Press [ESC] key on the keyboard if you want to return to current image screen without

switching action.

♦ Dis-connection

(1) Press ‘hotkey’ to enter into a GUI of a client on the keyboard.
(2) Click [Disconnect] button on the GUI.

- 18 -

♦ Operation with HID KVM

IPKVM-500-ED provides HID with a keyboard and a mouse. If you first connect mini-USB port
of the host (TX) to USB port of PC source with USB cable, you are ready to use a keyboard
and mouse in HID mode on remote or local site.

▶ HID KVM mode on remote site

After connecting between a host and a client over IP, you can use a keyboard and a mouse
in the HID KVM mode at the remote site.

▶ HID KVM mode at the local site

You can also use a keyboard and a mouse in the HID KVM mode at the local site which
can be connected to USB interface of the host with 2-port USB hub.

(1) Connect USB hub for a keyboard and a mouse to USB A port of TX to use KVM on the

local site.

Important: You can select and connect to an available TX, but please remind that you

first check blocking function ‘enabled’ if you use HID KVM in unicast mode (1:1) in
application such as ROS. For details, please refer to Page 18, multicast streaming
and blocking function.

(2) Set ‘Local or Remote’ with the Console Switch.

3) Operation with Audio Port

Note: Select one of audio port available (Analog audio Line-in port or HDMI audio) to connect

to TX. But, regardless of port selection, user can get audio output at both of HDMI audio
and Analog Line-out at the RX (Dual output).

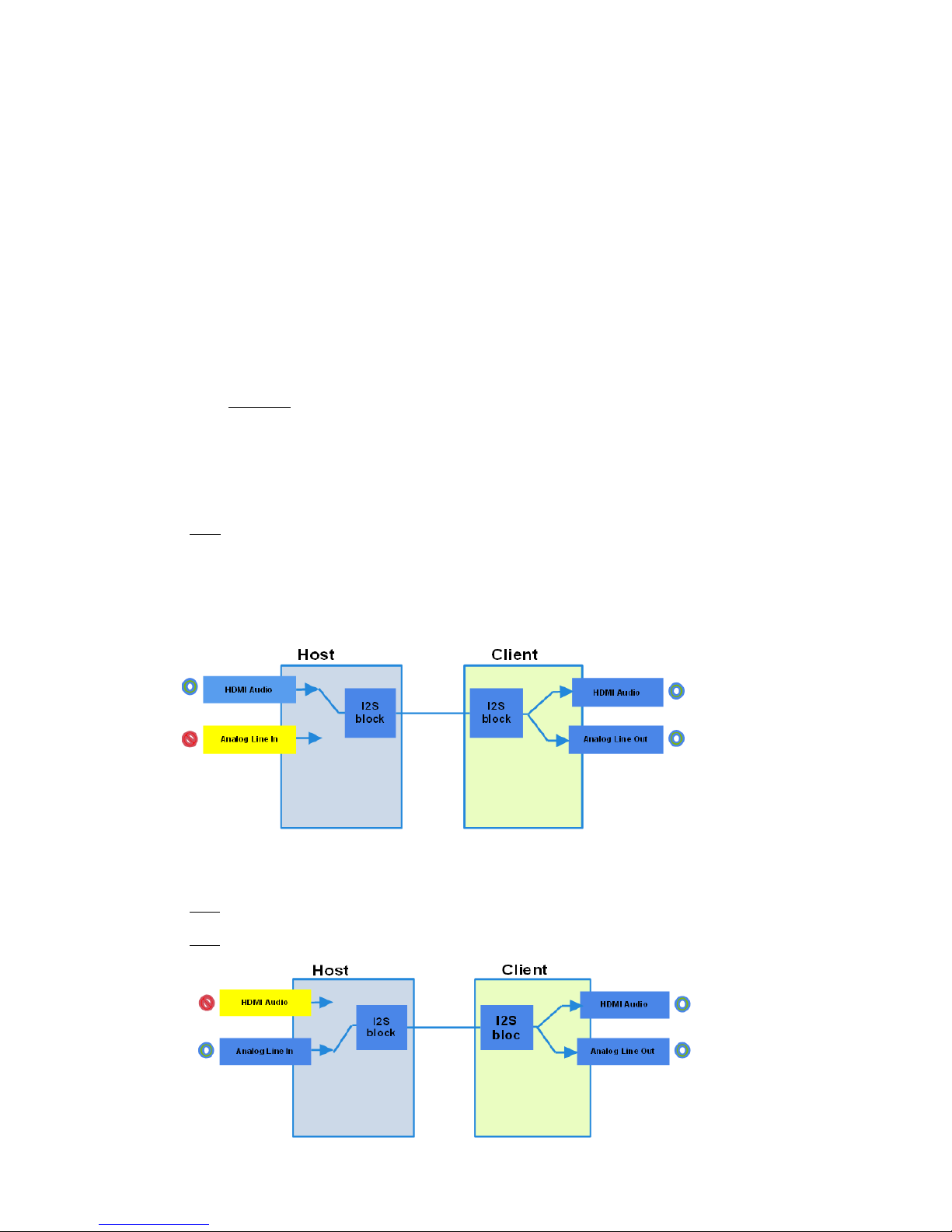

♦ HDMI audio input port selected with HDMI interface

When user connect HDMI audio source to TX over HDMI cable, both HDMI audio output port
and Analog Line-out port operate at RX. And also, HDMI audio output operates at TX.

♦ Audio input port Selected with DVI/Analog Line-in interface

When audio input port is connected by DVI/Analog line in to TX, both HDMI Audio port and
Analog Line-out port operate at RX.

Note: Some PC with HDMI audio and analog audio Line-in are connected simultaneously,

audio output port may not operate properly at the client (RX).

Note: If input port by DVI is connected, audio output port may not operate at TX.

- 19 -

4) Multicast streaming and Blocking function

♦ Multicast streaming (1: N) with blocking function ‘disabled’

Please set blocking function ‘disabled’ on PC Program (Remote Manager), and then you may
see status of hosts (TXs) on the GUI of a client (RX).

- Available: Hosts (T Xs) are ready to connect with the client. (TX)

- Currently connected: this client (RX) is already connected to the host (TX).

Note: When IPKVM-500-ED works as multicast mode, many client users may connect to a host.

But first user who uses keyboard and mouse at first has priority. If the user does not use
the keyboard and mouse for three (3) seconds, priority can be changed to another user.

♦ Unicast streaming (1:1) with blocking function ‘enabled’

Please set blocking function ‘enabled’ on PC Program (Remote Manager). You may see
status of hosts (TXs) on the GUI of a client (RX) as below.

- Available: The hosts (TXs) are ready to connect with the client.

- Currently connected: The client (RX) is already connected to the host.

- Not available, in use (Red color): These hosts are already connected to other clients (RXs)
individually, user cannot access to these hosts.

5) OSD display

Device information of TX and RX will be shown on the monitors for users or operators. You can
inserts up to 32 characters including numbers and English alphabets.

Note: If you don’t want to show it on display, please don’t insert information at the ‘Device

Setting’ menu, or set ‘OSD’ to off at the ‘Advanced Setting’ menu.

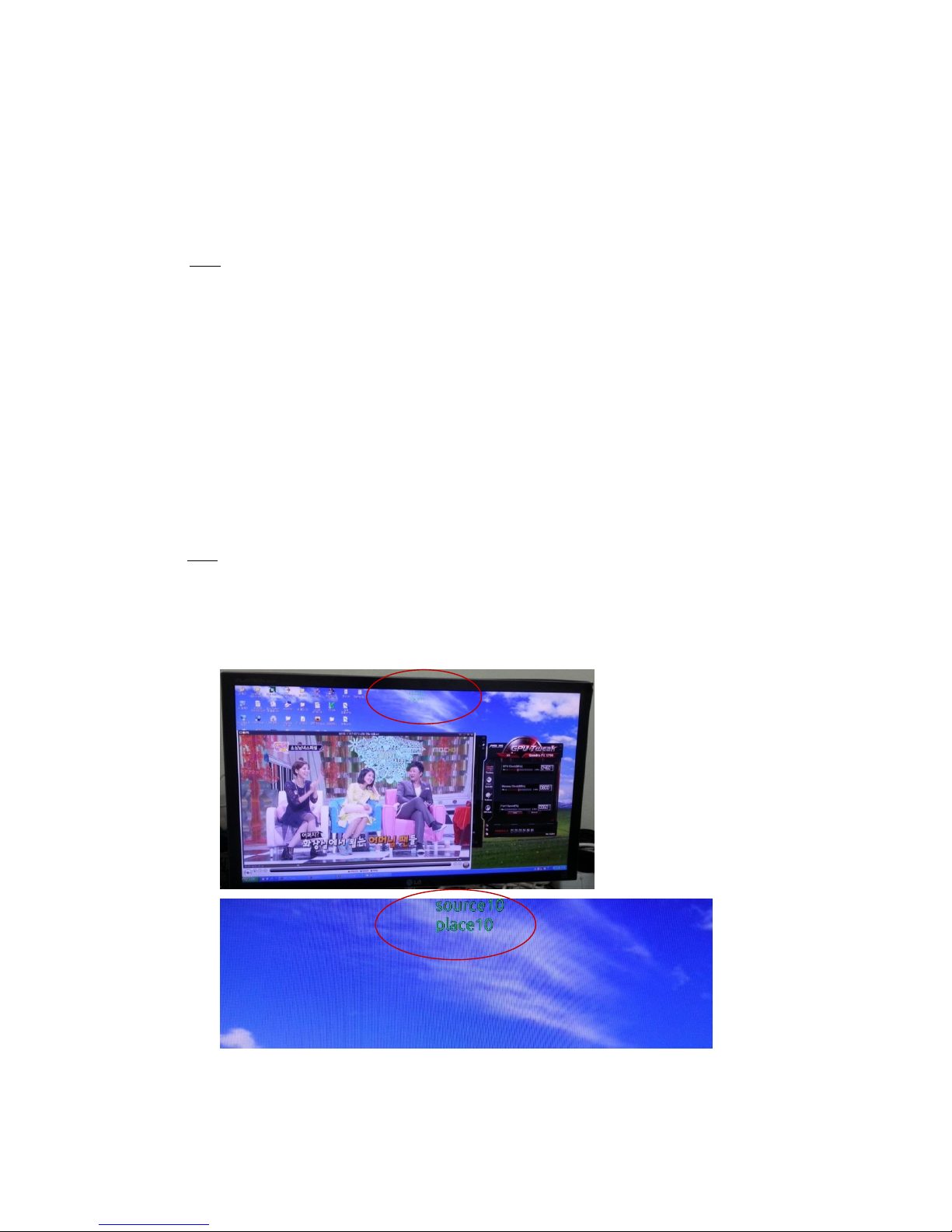

You can see OSD messages on the display of the client (RX) as below.

▶ Device information of the host (TX): Source10

▶ Device information of the client (RX): Place10

- 20 -

13. Product Specifications

Item

Description

Network

100/1000 Base-T Ethernet: TCP/IP based wired network with CAT5e/ CAT6 Cables

Resolution

Up to 3840x2160@30Hz or 1080p@60Hz

Video Interface Standard

HDMI 1.4 and DVI1.0

HDCP

HDCP 1.4 and 2.2

Multicast streaming

1 to N (up to 200 RXs)

Video latency

< 1 frame

TX Video Interface

Input: 1 HDMI/DVI Input
Output: 1 HDMI/DVI Output (Loop-Through)

RX Video Interface

Output: 1 HDMI/DVI Output

Keyboard/Mouse (TX)

1 x mini USB B type to PC

1 x USB A type (for Local HID Keyboard/Mouse)

Keyboard /Mouse (RX)

2 x USB A type ( for Remote HID Keyboard/Mouse)

LAN Port

RJ-45 (TX/RX 1 port)

Audio Input (TX)

HDMI Audio, Analog Line-in & Line-out

Audio Output (RX)

HDMI Audio, Analog Line-Out (Dual output)

RS- 232 Port (optional)

3 Pin Terminal Block for Knob & alarm interface

3 Stage Slide Switch(TX)

Local/Remote/Console for Control Authority

Digital I/O Port (optional)

3 Pin Terminal block for Control Authority (Externally)

External Console Switch
(TX, Optional)

Terminal Block for Console Switch or Console Indicator
Reset Switch

SW reset & Factory reset

Configuration access

OSD GUI via Mouse/Keyboard for Connection & Status monitoring
PC Program (Remote Manager) for device setting, mode setting & etc

EDID

Built-in EDID & EDID Read/Write

Dimension

TX: 112 x 28 x 104mm (WHD), RX: 112 x 28 x 104mm (WHD)

Power
100-240VAC, 50-60Hz

5V/2A Adaptor

Power Consumption (TBD)

TX < 5W

RX < 5W

Operating Temperature

0 ~ 50°C

Storage Temperature

-20 ~ 60°C

Certification

FCC, CE

- 21 -

14. External Local/Remote Authority Setting (Option)

♦ Console Switch & Console Indicator

▶ Console Switch (TX)

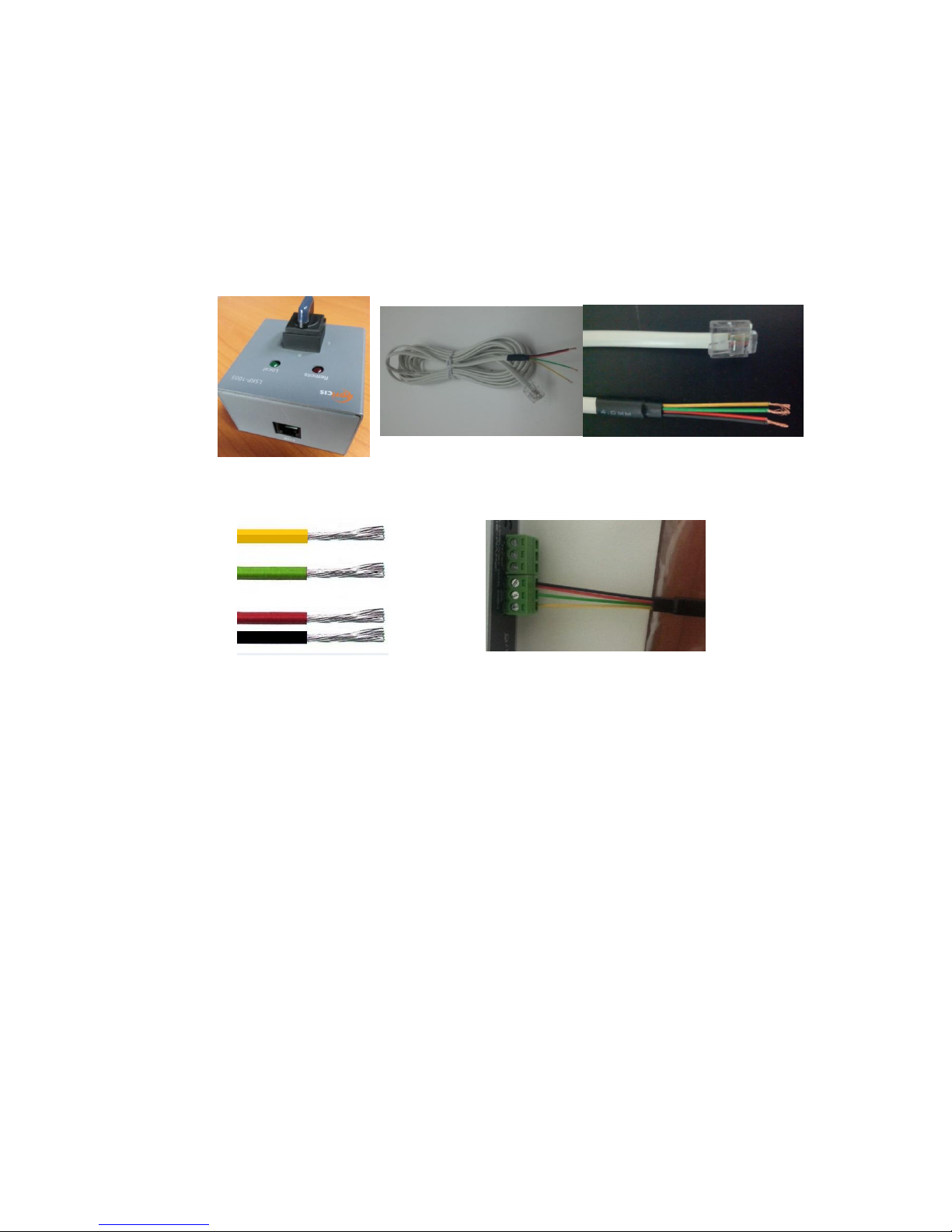

The Console switch is to set Local or Remote control authority at an external switch for
user’s convenience. Connect the console switch (left image) to DIO terminal block of the TX
device by using a cable (right image). You can set a Local or Remote control authority by
rotating the switch and see the state through LED indication.

Refer to figures below to see the method and order 3pin terminal block

+3.3V

CTL1

GND

- 22 -

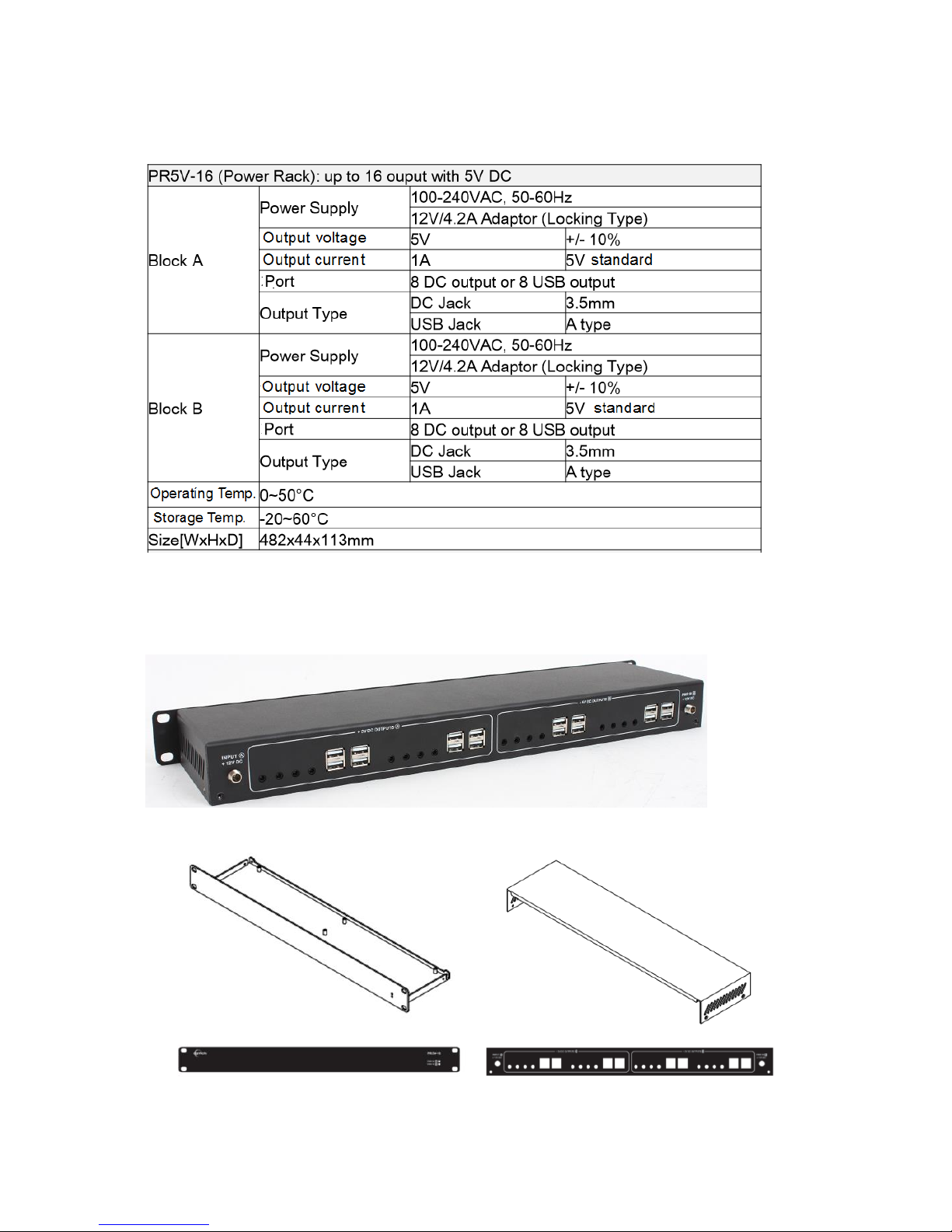

15. Power Rack (PR5V-16) General Specification

*Image
[Rear side]

[Front] [Rear]

- 23 -

16. Trouble shooting

Problem

Remedy

Causes

No video on the display
(General case)

- Wait several seconds for the system booting. After the
power is applied, Power status LED will turn on (Red).

- Check the connection of all cables.

- Check the connection of the LAN cable to RJ-45
connector.

- Check if the graphic resolution of Source PCs is

properly set. Go to the display properties and tap the
settings.

Cables are
connected
incorrectly.

Video quality:

- Freezing or collapse

- Mosaic pattern

- Jitter

(General case)

- Check network connectivity.

- Reset the power of all TXs and RXs again by re-

plugging the power adaptor or by reboot on the PC
program.

- Go to advanced configuration of PC Program, and

change jumbo frame to another value.

Network connectivity
issues

In case of Device

Searching’ on PC Program,

you cannot find host devices
(TXs) or see preview on
host device section

- Check LAN cables

- Check host devices (TXs)

- Check Network setting of a control PC (IP ‘class’).

 go to control panel & properties (IP address)

- wait several minutes when the control PC is connected

last to IP network.

 Run the control PC Program again.

 Press ‘Searching’ button in PC program again.

 reboot the control PC
 Check Advanced Configuration
 Check L2/L3 Network Switch Setup

Network connectivity
issue

Slow in switching time

(more than 5 seconds)

- different FW version

- different resolutions between host devices (TXs)

- different frame rates between host devices (TXs)

- different video types between host devices (TXs

(HDMI/DVI)

- different scan types (Interlace/Progressive), 2D/3D

Same video
condition

Keyboard or Mouse

doesn’t work properly.

(General case)

- Ensure the USB cables are connected properly

between Source PC and USB port of a TX.

- check if 1 USB cable is connected to a Source PC

with dual-port HDMI/DVI for dual display

- Reset the power of all TXs and RXs again by re-

plugging the power adaptor or by reboot on the PC
program.

- Change USB cable, if it doesn’t work properly after
reconnecting the cable and reset.

Cables are
connected
incorrectly.

No video on the local
display

- Remove graphic card driver in PC source

- Use as DVI mode (setting DVI EDID to TX)

- It is available to support up to 1920x1200 at 60Hz

in local display

- For technical support, visit Opticis web site,

www.opticis.com or contact [email protected]

Incompatible issue
in TV monitor &
graphic

Abnormal operation occurs
in playing audio/video or
USB Keyboard/Mouse

- When IPKVM-500-ED is first connected, it may need

some more time (2~3 minutes) for recognizing USB
driver on PC.

- When two or more user access to a host(TX), it is given

USB priority to first user (about 3 seconds) in non­blocking mode.

Abnormal case

- 24 -

Abnormal operation occurs
in KVM when a RX is trying
to access to a TX.
(in blocking mode enabled)

- When two or more users simultaneously try to access

an available host (TX), simultaneous connection happen
in specific time (4.5sec)

Abnormal case

During KVM operation on

remote site, it doesn’t

operate suddenly.

- Check another user on local site.

in case of blocking function enabled in application of
ROS (1:1 unicast mode)

- You can see OSD message on the monitor of the client

(RX) and so, know if or not to change an authority of
Local/Remote on the local site.
OSD message: Keyboard/Mouse in use on the Local site

When a user
change an authority
of Local/Remote on
the local site

When 4K source is

connected with 2K monitor,

there is no display.

- change video resolution of PC source to 1080p60

- connect PC with the host or client through network

switch or directly and run PC Program. And then,

read/write EDID from connected monitor on the local or

remote display.

Advanced setup

with graphic card of

the PC source.

After changing input source,
the video clip does not play.

- Execute window media player again.

- Reset the power of all TXs and RXs again by re-

plugging the power adaptor.

In PC

There is no audio when you
mark check box of an audio
in display placement and
apply

- check the display monitor external speakers

- go to control panel>hardware and sound check default

setting

- After apply action, check audio ack in ‘Log’ window

Setup In Source PC

The video clip does not

play, after changing input
source.

- Execute window media player again.

- Reset the power of all TXs and RXs again by re-

plugging the power adaptor.

In PC

- 25 -

17. Warranty Information

1 (One) Year Warranty
Opticis warrants this IPKVM-500-ED HDMI extender to be free from defects in workmanship and
materials, under normal use and service, for a period of one (1) year from the date of purchase from
Opticis or its authorized resellers.

If a product does not work as warranted during the applicable warranty period, Opticis shall, at its
option and expense, repair the defective product or part, deliver to customer an equivalent product or
part to replace the defective itemor refund to customer the purchase price paid for the defective
product.

All products that are replaced will become the property of Opticis. Replacement products may be new
or reconditioned.

Any replaced or repaired product or part has a ninety (90) day warranty or thereminder of the initial
warranty period, whichever is longer.

Opticis shall not be responsible for any software, firmware, information, or memory data of customer
contained in, stored on, or integrated with any products returned to Opticis for repair under warranty
or not.

Warranty Limitation and Exclusion
Opticis shall have no further obligation under the foregoing limited warranty if the product has been
damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress, unauthorized
modifications, tampering, alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the application for which said
product is intended.

Dispose of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate systems)

This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about
recycling of this product, please contact your local city office, your household waste disposal service
or the shop where you purchased the product.

- 26 -

For order support, please contact your Distributor

Direktronik AB
Konsul Johnsons väg 15
SE-149 45 Nynäshamn
[phone]
[email protected]
www.direktronik.se

For technical support, visit Opticis web site, www.opticis.com or contact [email protected]

or [email protected]

Opticis Locations
HQ

16Fl. Kins Tower, 8 Seongnam-daero, 331 beon-gil,
Bundang-gu,
Seongnam-si, Gyeonggi-o, 463-844

Rep. of KOREA
Tel: [phone]
Fax: [phone]

Factory

#501 Byoksan Technopia, 560,
Dunchon-daero,
Jungwon-gu,
Seongnam-si,Gyeonggi-do, 462-716
Rep. of KOREA
Tel: [phone]

Fax: [phone]
