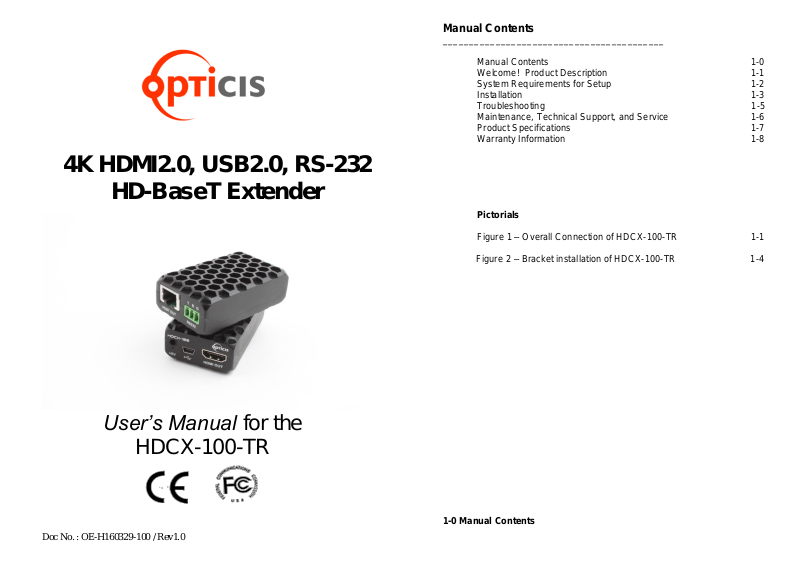

Opticis HDCX-100-TR User guide

ㅕ

Manual Contents

__________________________________________

Manual Contents 1-0
Welcome! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting 1-5
Maintenance, Technical Support, and Service 1-6
Product Specifications 1-7
Warranty Information 1-8

Pictorials

Figure 1 – Overall Connection of HDCX-100-TR 1-1

Figure 2 – Bracket installation of HDCX-100-TR 1-4

1-0 Manual Contents

User’s Manual for the

HDCX-100-TR

Doc No. : OE-H160329-100 / Rev1.0

4K HDMI2.0, USB2.0, RS-232

HD-BaseT Extender

Welcome!

Congratulations on your purchase of the 4K HD-BaseT extender, HDCX-100­TR. This manual contains information that will assist you in installing and
operating the product.

Product Description

New HD-BaseT 4K HDMI2.0 extender, HDCX-100-TR is designed compact
enough to be fitted into various installation environments, and enables to
transmit 4K UHD (3840x2160) @ 60Hz 4:2:0 (or 30Hz 4:4:4), USB2.0 and RS­232 signal up to 100m (330feet) over one (1) CAT5e or CAT6 cable.

USB2.0 could access to printers, scanners, touch panels and external storages
as well as HID and VCP. Its max speed is 280Mbit /sec.

RS-232 serial interface offers device-to-device and device-to-controller
connections to build up control system for A/V integration.

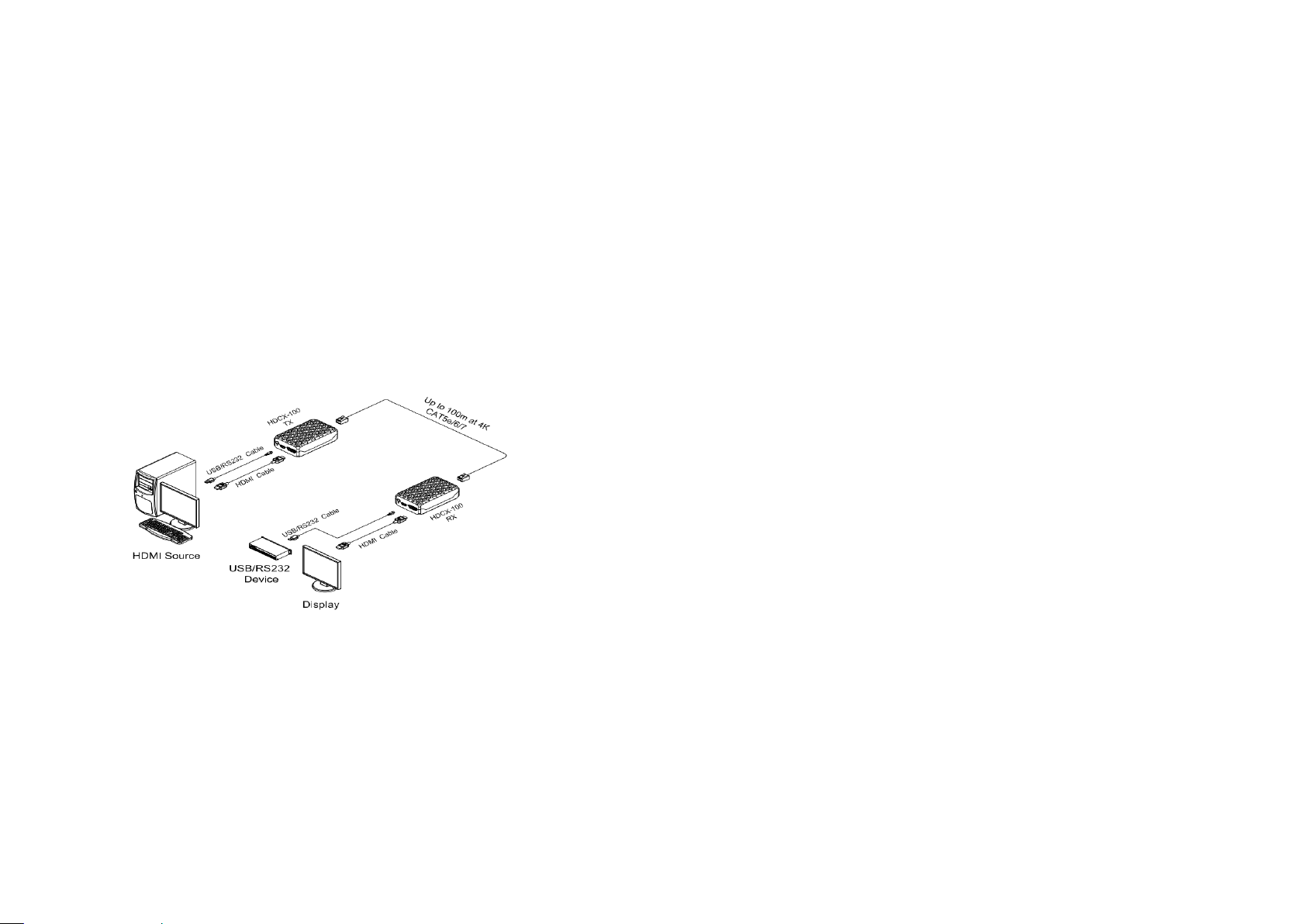

Figure 1 – Overall Connection of HDCX-100-TR

The Shipping Group of HDCX-100-TR;

 One (1) Transmitter (Tx) and One (1) Receiver (Rx)
 Two (2) DC +5V,2A power adapter
 One (1) 3pin connector for RS-232
 User’s Manual
 Optional Product: Mounting Bracket for HDCX-100

1-1 Welcome, Product Description

System Requirements for Setup

□ Hardware requirements

▪ DVD, Blu-Ray or media receiver with standard HDMI ports.
▪ PC with HDMI port regardless of OS version.
▪ Any HDMI TVs, monitors and Projectors are applicable.
▪ Proper initial trial of the entire platform with its application using

a short length copper cable is recommended prior to install with
the product.

□ Software requirements

▪ No special needs, but make sure that media contents protected

by HDCP should be played with HDCP certified players and
TVs.

□ Connection Advisory

▪ It is highly recommend that HDMI media source is directly

connected into HDMI display output via HDCX-100-TR without
connection to incompatible distributor, switcher and selector.

1-2 System Requirements for Setup

Installation

Important: Please keep the installation procedure below. Improper or no
operation may result if the start-up sequence is not correctly followed.

Step 1

Carefully unpack the contents in the shipping group.

Step 2

Connect one (1) CAT5e or CAT6 cable between the transmitter and the
receiver.

Step 3

Connect the transmitter to the HDMI receptacle of PC or other HDMI video
source equipment by HDMI cable
If necessary, connect the RS-232 cable between 3pin terminal of HDCX-100
and D-sub 9pin of PC and the USB cable between receptacle USB of HDCX­100 and receptacle USB of PC.

Step 4

Connect the Connect the receiver to the HDMI display over HDMI copper
cable.
If necessary, connect the RS-232 cable and USB cable to RS-232 device
and USB device.

Step 5

Power on the HDMI source and display. Power on both transmitter and
receiver by using supplied power supply.

Note 1. Indicator information of HDCX-100

HDCX-100 LED Indicator

Enable

Disable

Blue LED(POWER)

ON

OFF

Green LED(LINK)

ON

OFF

Yellow LED(HDCP)

ON

OFF

1-3 Installation

Note 2: Be recommended NOT to use any other intermediate cables or

adapters between source and transmitter and display and receiver except the
supplied cable to avoid undesirable performance degradation.

Note 3: Be recommended to use the SFTP cable between transmitter and
receiver to prevent a signal interference problem.

In case of UTP cable, please use the straight type cable.
(Be recommended to NOT to use the rolled cable type to avoid undesirable

performance degradation.)

Step 7

If the system does not work properly, go to the page 1-5 trouble shooting.

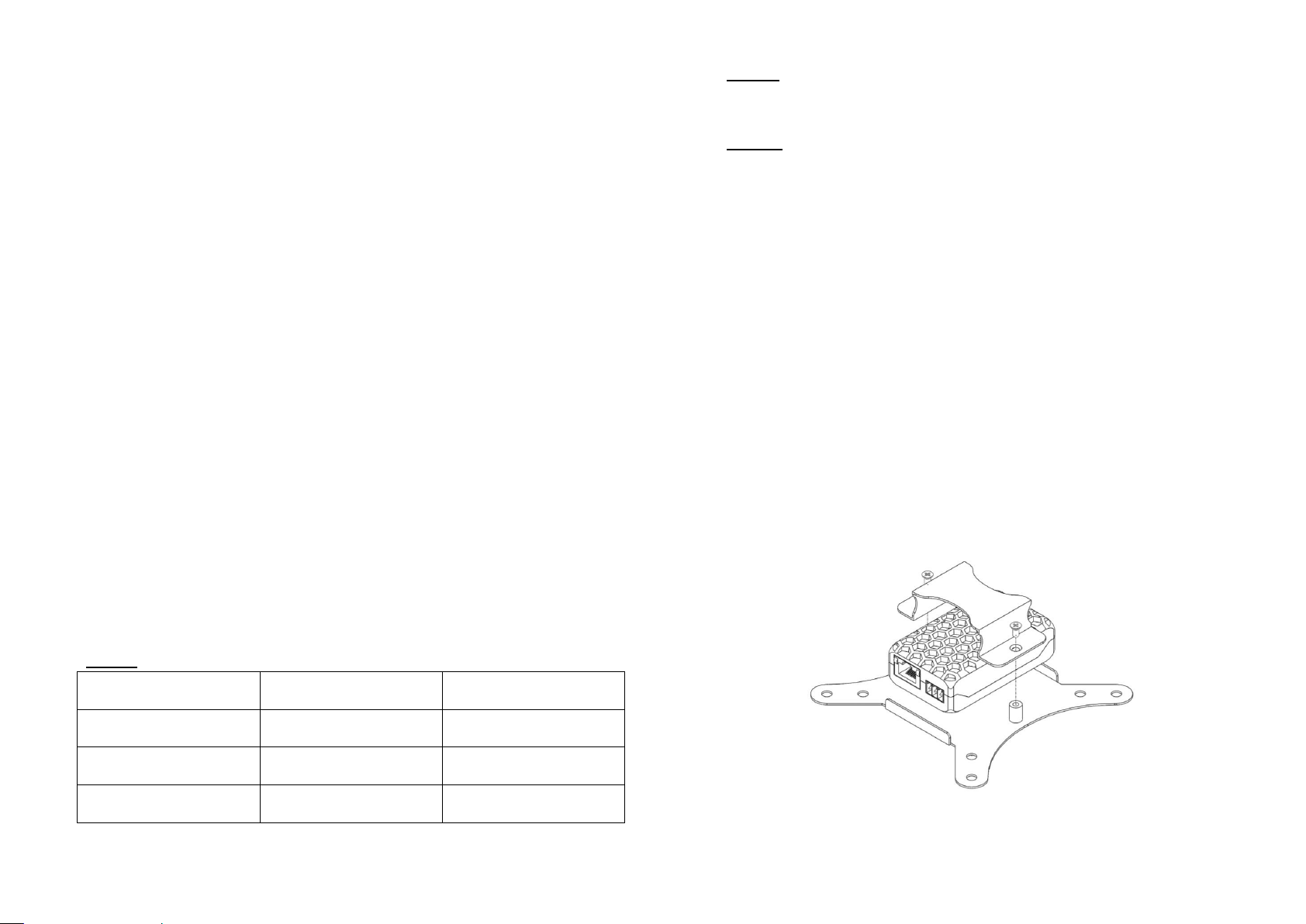

▪ Bracket installation guide (Mounting Bracket is optional)

The following image provides instruction for installing the transmitter and/or
receiver unit(s) in the bracket of HDCX-100-TR

Step 1. Put on the HDCX-100 unit on bottom bracket.
Step 2. Line up holes between top bracket and bottom bracket.
Step 3. Install countersink screws.
Step 4. Ensure the unit is installed securely

Figure 2 – Bracket installation of HDCX-100-TR

1-4 Installation

Troubleshooting

The display shows only black screen.

- Ensure that all plugs and jacks used by supplied power supplies are firmly
connected. Ensure that the LED ON.

- Ensure that the HDMI ports are firmly plugged in to the source and display.

- Ensure that the transmitter and receiver modules plugged correctly to the source
and display respectively.

- Check if the HDMI source and display are powered on and properly booted.

- Reset the system by de-plugging and re-plugging the transmitter HDMI port or
receiver HDMI port, or by de-plugging and re-plugging the USB to DC plug cables
that are plugged to transmitter and receiver module.

- Re-boot up the system while connecting the module.

Screen is distorted or displays noises.

- Check if the graphic resolution is properly set. Go to the display properties and tap

the settings. Ensure that the resolution sets less than 4K UHD (3840x2160) at
60Hz (YCbCr 4:2:0) refresh ratio.

- Reset the system.

- Power down, disconnect and reconnect the CAT5e/CAT6 cable or DC power

adaptors, and power up.

1-5 Troubleshooting

Maintenance

No special maintenance is required for the HD-BaseT system cables and power
supplies. Ensure that the cables and power modules are stored or used in a
benign environment free from liquid or dirt contamination.

There are no user serviceable parts. Refer all service and repair issues to Opticis
or its authorized local distributor.

Technical Support and Service

For commercial or general product support, contact your reseller. For technical
service, contact Opticis by email [email protected] or visit its website at

www.opticis.com.

1-6 Maintenance, Technical Support, and Service

Product Specifications

Video Bandwidth

3.4GHz

Transmitter

Input Port

1 X HDMI, 1 X RS232, 1 X USB2.0

Output Port

1 X CAT5e or CAT6

Receiver

Input Port

1 X CAT5e or CAT6

Output Port

1 X HDMI, 1 X RS232, 1 X USB2.0

LED Indicator

Power(Blue), Link(Green), HDCP(Yellow)

HDMI Cable length

1m

RS232 Baud Rate

115200bps

Power supply

5V/2A DC Power

ESD Protection

Yes

Dimensions

44 * 73 * 25mm (WDH)

Chassis Material

AL

Silkscreen Color

Black

Operating Temperature

0°C~50°C

Storage Temperature

-20°C~75°C

Relative Humidity

40°C / 95%RH

Power Consumption

<10W

CAT5e/6/7 Cable specification

Cable
Type

Range

Pixel Clock
Rate

Video Data
Rate

Supported Video

CAT5e
100m

<=225MHz

<=5.3Gbps
(HD Video)

Up to 1080p@60Hz 36bpp
(Data rates lower than

5.3Gbps or below 225MHz
TMDS clock)

90m

>225MHz

>5.3Gbps
(UHD Video)

1080p@60Hz,48bpp,
1080p@60Hz 3D,
4K2K/30Hz/4:4:4and
4K2K/60Hz/4:2:0
video format

CAT6/CAT
6a/CAT7

100m

1-7 Product Specifications

Warranty Information

1 (One) Year Warranty

Opticis warrants this optical HDMI module to be free from defects in workman
ship and materials, under normal use and service, for a period of one (1) year
from the date of purchase from Opticis or its authorized resellers.

If a product does not work as warranted during the applicable warranty period,
Opticis shall, at its option and expense, repair the defective product or part, d
eliver to customer an equivalent product or part to replace the defective item,
or refund to customer the purchase price paid for the defective product.

All products that are replaced will become the property of Opticis.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the

reminder of the initial warranty period, whichever is longer.
Opticis shall not be responsible for any software, firmware, information, or me

mory data of customer contained in, stored on, or integrated with any product
s returned to Opticis for repair under warranty or not.

Warranty Limitation and Exclusion

Opticis shall have no further obligation under the foregoing limited warranty if
the product has been damaged due to abuse, misuse, neglect, accident,
unusual physical or electrical stress, unauthorized modifications, tampering,
alterations, or service other than by Opticis or its authorized agents, causes
other than from ordinary use or failure to properly use the product in the
application for which said product is intended.

Dispose of Old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate systems)

This symbol on the product or on its packaging indicates that this
product shall not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed
information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.

1-8 Warranty Information

© 2016 Opticis Co., Ltd. All Rights Reserved
Revision 1.0 31-Mar-2016

Opticis Locations

OPTICIS HQ

Opticis Co., Ltd.
# 16Fl, Kins Tower,
8 Seongnam-daero, 331 beon-gil,
Bundang-gu ,
Sungnam-si, Gyunggi-do, 463-782
Rep. of Korea
Te l: [phone]
Fax: [phone]

www.opticis.com

For order support, please contact our Distributor or Reseller.
For technical support, check with the Opticis web site www.opticis.com or

contact [email protected]
