1-0 Manual Contents

User’s Manual for the

DPFX-300-TR

Doc No. : OE-DP190902 / V1.0

One (1) Fiber DisplayPort 1.2

Optical Detachable Extender

Welcome!

Congratulations on your purchase of the one (1) fiber DisplayPort extender,
DPFX-300-TR. This manual contains information that will assist you in
installing and operating the product.

Product Description

DisplayPort 1.2 one(1) fiber optical detachable extender, DPFX-300, extends
DisplayPort 1.2 signal up to 200m (656feet) and transmits 4K UHD
(4096x2160) at 60Hz over one(1) LC multi-mode fiber. Leading-edge
technology of Opticis allows long distance transmission of 4K signal without
any video/audio degradation.

DPFX-300-TR is designed compact enough to be fitted into various installation
environments. It gives slim, light, easy installation with perfect electrical
isolation, but without electrical hazard and interference.

Between Transmitter (DPFX-300-Tx) and receiver (DPFX-300-Rx), pure fiber
connection by single LC fiber connector gives clean, secure and easy
installation.

DPFX-300-TR can be operated by USB power without external DC power
adapter with plugging micro USB(DPFX-300 module side) – USB
(source/display devices side) cable which is supplied in shipping group.

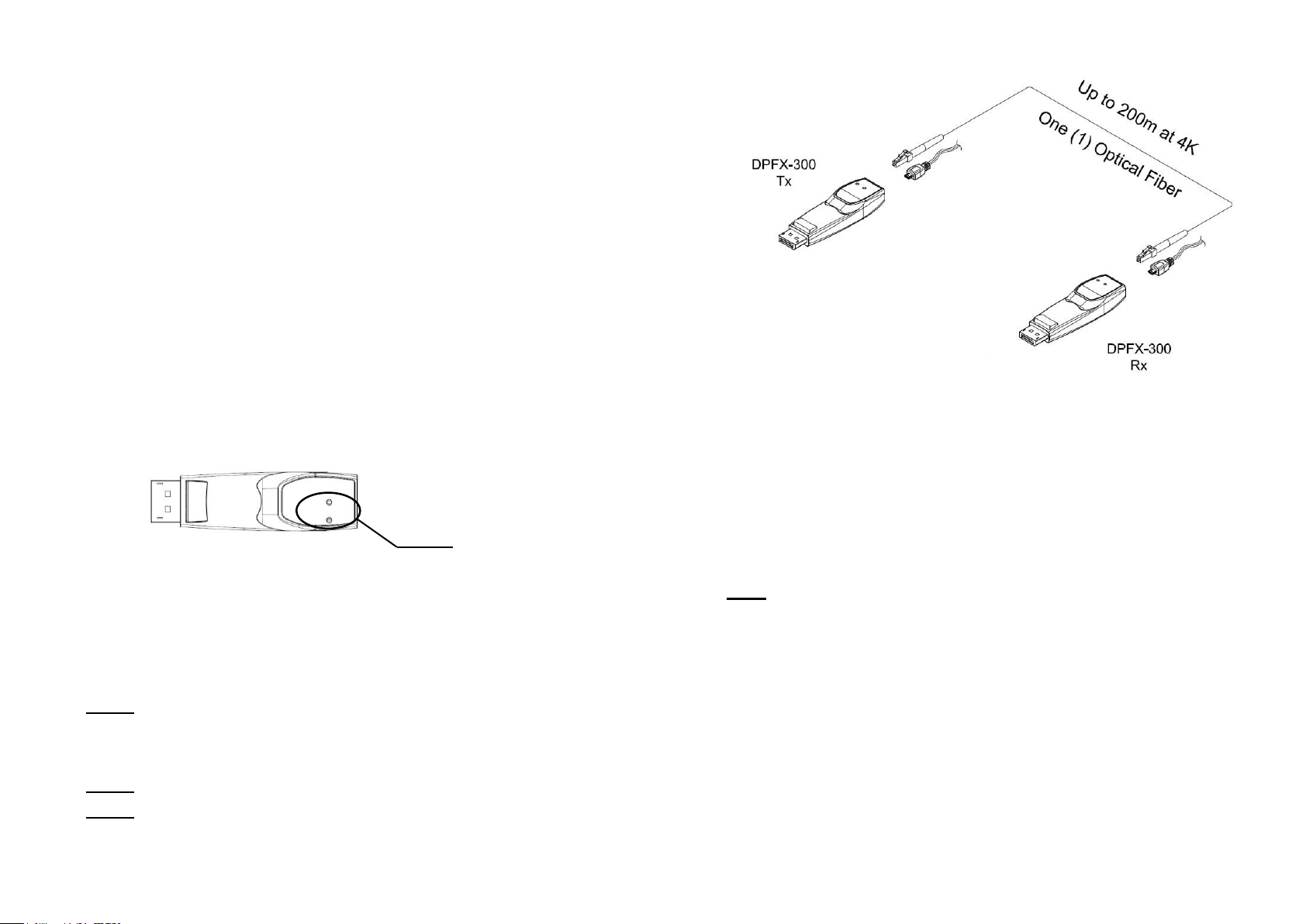

Figure 1 – Overall Connection of DPFX-300-TR

1-1 Welcome, Product Description

System Requirements for Setup

□ Hardware requirements

▪ You have to have a DisplayPort source and display. It should

support the maximum graphic resolution feature of displays to
be connected.

▪ No special requirements of memory size, CPU speed and

chipsets, if you’ve already properly installed your DisplayPort
systems or graphic cards.

▪ Proper initial trial of the entire platform with its application using

a short length copper cable is recommended prior to installation
with the optical link.

□ Software requirements

▪ No special restrictions, if you’ve already properly installed your

DisplayPort systems.

□ Power Technical Advisory

▪ Enclosed Power Adaptors and USB cables supply power to both

Transmitter and Receiver.

□ Connection Advisory

▪ It is highly recommend that DisplayPort source is directly

connected into DisplayPort display output via DPFX-300-TR
without connection to incompatible distributor, switcher
and selector.

The Shipping Group of DPFX-300-TR;

 One (1) Transmitter (Tx) and One (1) Receiver (Rx)
 One (1) 0.2m Male to Female DisplayPort copper cable
 Two (2) Micro USB to USB cables
 Two (2) 5V 1A power adapter
 User’s Manual

※ Default connection is direct connection to both source (Tx side) and
display (RX side)
※ If direct connection is impracticable, 0.2m DisplayPort copper cable
is strongly recommended to use on Tx(Display Source) side only

1-2 System Requirements for Setup
