1 TECHNICAL SUMMARY
1.1 BRIEF DESCRIPTION
1.1.1 OVERVIEW
The OSD2145P is designed to convert between 10/100/1000Base-T copper cabling and 100/1000Base
fiber cabling. It has four fixed 10/100/1000Base-T PoE+ RJ45 copper ports, and two 100/1000Base
SFP ports. The four PoE+ RJ45 ports can provide up to 30W output power per PoE+ port for powered
devices.
A major benefit of the OSD2145P is its reliable and consistent performance over the -40°C to +75°C
temperature range. The unit comes in a robust IP30 housing which has been extensively tested to meet
Industrial EMI and EMC standards as well as meeting freefall, shock and vibration stability test
requirements.
1.1.2 APPLICATIONS
▲
Any network utilising a mix of copper
and fiber
▲
Industrial IP communications
▲
Gigabit backbone networks
▲
Networks using Power over Ethernet
devices such as cameras, intercoms,
access control, telephones, etc
1.1.3 FEATURES AND BENEFITS
▲
Complies with IEEE802.3i/802.3u/
802.3ab 10/100/1000Base-T,
IEEE802.3z 1000Base-Lx/Sx
standards.
▲
Has a total of six ports: four fixed
copper ports for 10/100/1000Base-T
and two 100/1000Base- SFP ports for
the fiber connections.
▲
MDI/MDIX Crossover: no need for
crossover cables.
▲
Can be used with either singlemode
or multimode fiber over a variety of
link budgets
▲
Available for operation over 1 or 2
fibers
▲
Supports IEEE802.at/af Alternative A
cable wiring
▲
Complies with IEEE 802.3at standard
including compliant powered device
(PD) signature detection and
classification.
▲
Provides up to 30W to each RJ45
port.
▲
Powered by non-critical 12 to 57VDC
supplies
▲
Operates over the temperature range
of -40°C to +75°C
▲
SFP module sold separately
▲
Dual Power Supply Inputs
OPTICAL SYSTEMS DESIGN
DOC ID: 10112403
OSD2145P QUICK INSTALLATION GUIDE
PAGE 5

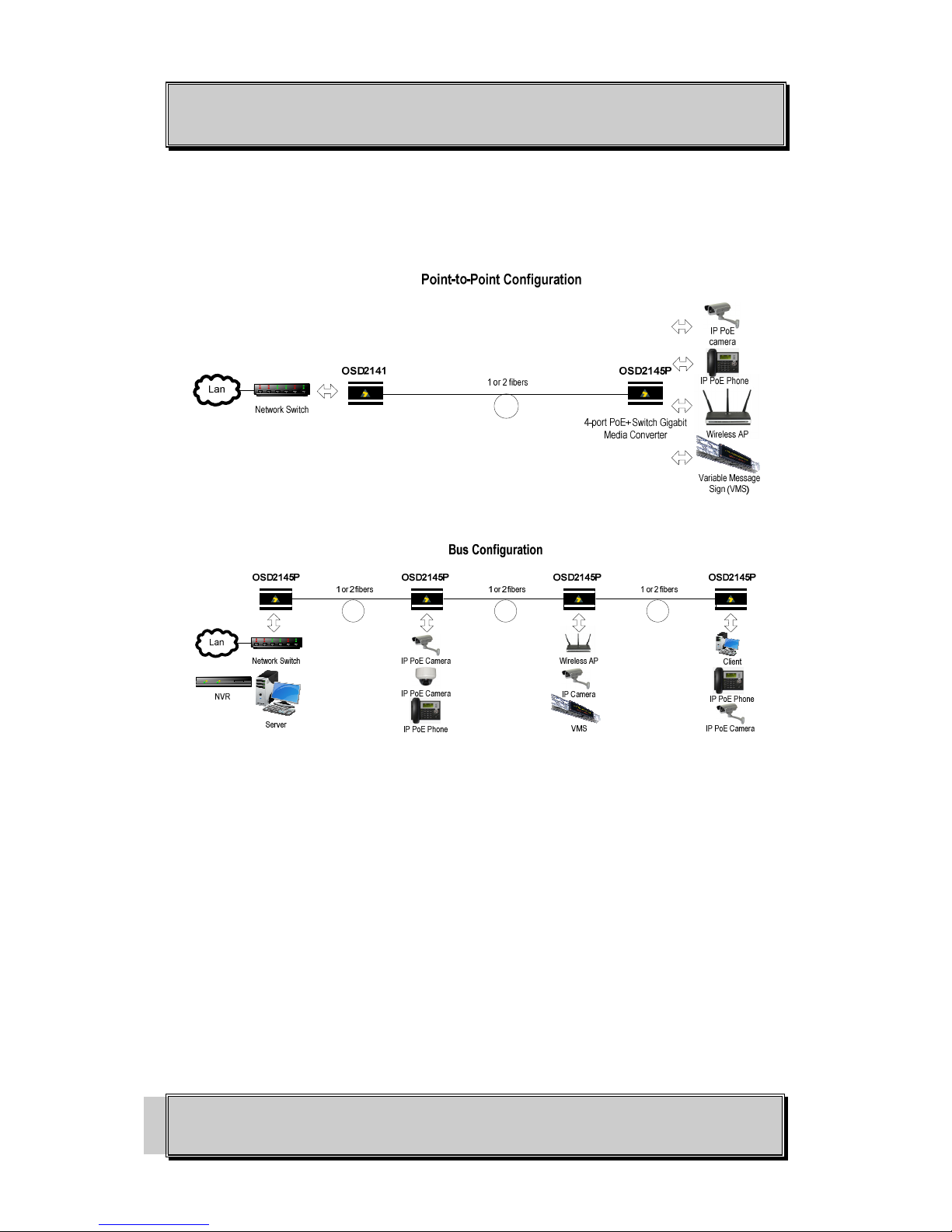

1.2 TYPICAL CONFIGURATION
Figure 1 below indicates possible set-ups for an OSD2145P system.
FIGURE 1: OSD2145P TYPICAL CONFIGURATIONS
OPTICAL SYSTEMS DESIGN
DOC ID: 10112403
OSD2145P QUICK INSTALLATION GUIDE
PAGE 6
1.3 TECHNICAL SPECIFICATIONS
TABLE 1: TECHNICAL SPECIFICATIONS
SPECIFICATION PERFORMANCE
Electrical Data Interface
IEEE802.3i/802.3u/8023ab, 10/100/1000Base-T Ethernet
Data Rates
10, 100, 1000Mbps with energy detect, auto negotiate, auto MDIX
Optical Data Interface
IEEE802.3z 1000Base-Lx/Sx or IEEE802.3u 100Base-Fx
Optical Data Rate 100Mbps or 1000Mbps user selectable
Operating Mode
Half or full duplex for 10/100
Full duplex for 1000
Pause frames for 1000Mbps flow control
Electrical Data Connectors RJ45
PoE+ 46 to 56V @ 30W maximum per RJ45
Operating Mode Alternate A (Pins 1/2 and 3/6)
Optical Port Connectors
SFP
SFP Options
Short haul, long haul, single fiber operation, etc.
Please consult OSD datasheet #102100002 or contact OSD
Indicators
2x Power (1&2)
1x Power Fail
4x Link/Activity on 4 x RJ45s
4x Copper Speed on 4x RJ45s
4x PoE+ Operation
2x SFP Speed/Activity/Link
2x SFP detect
Dimensions (mm) 43W x 142D x 105H
Weight 0.7kg
Power Requirements 12 to 56VDC @ 1.5A maximum (attached powered device dependant)
Operating Temperature
-40°C to +75°C
Relative Humidity
5 to 95% non-condensing
1022145P01
OPTICAL SYSTEMS DESIGN
DOC ID: 10112403
OSD2145P QUICK INSTALLATION GUIDE
PAGE 7
2 INSTALLATION AND OPERATION
2.1 INTRODUCTION
This section outlines the methods required to install and operate the OSD2145P successfully. It should
be studied carefully if damage to the equipment or poor results are to be avoided.
This equipment has been fully tested prior to dispatch and is ready for immediate operation. However it
is advisable to check for external transportation damage before operation. If damage is evident, return
the unit with the packaging to your supplier immediately.
2.2 INSTALLATION
2.2.1 WARNING AND PRECAUTIONS
▲
ELECTROMAGNETIC COMPATIBILITY
WARNING: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
▲
OPTICAL OUTPUT OPERATION
WARNING: Laser Safety: Class 1 Laser Product per IEC/EN 60825-1:20011 standard.
Class 1
The OSD2145P is a Class 1 laser product.
PRECAUTIONS
▲
All service personnel should be provided training as to the hazards of direct viewing of laser
radiation and of the precautionary measures during servicing of equipment
▲
Areas where laser products are installed should be restricted in access to trained service
personnel only and appropriate warning signs posted in the work area.
▲
All laser apertures should be covered by protective covers when not connected to optical
fibers. Never leave outputs uncovered.
▲
Laser equipment should be positioned above or below eye level where possible. Apertures
should be positioned away from personnel.
▲
Protective eyewear should be worn in the vicinity of laser equipment.
OPTICAL SYSTEMS DESIGN
DOC ID: 10112403
OSD2145P QUICK INSTALLATION GUIDE
PAGE 8

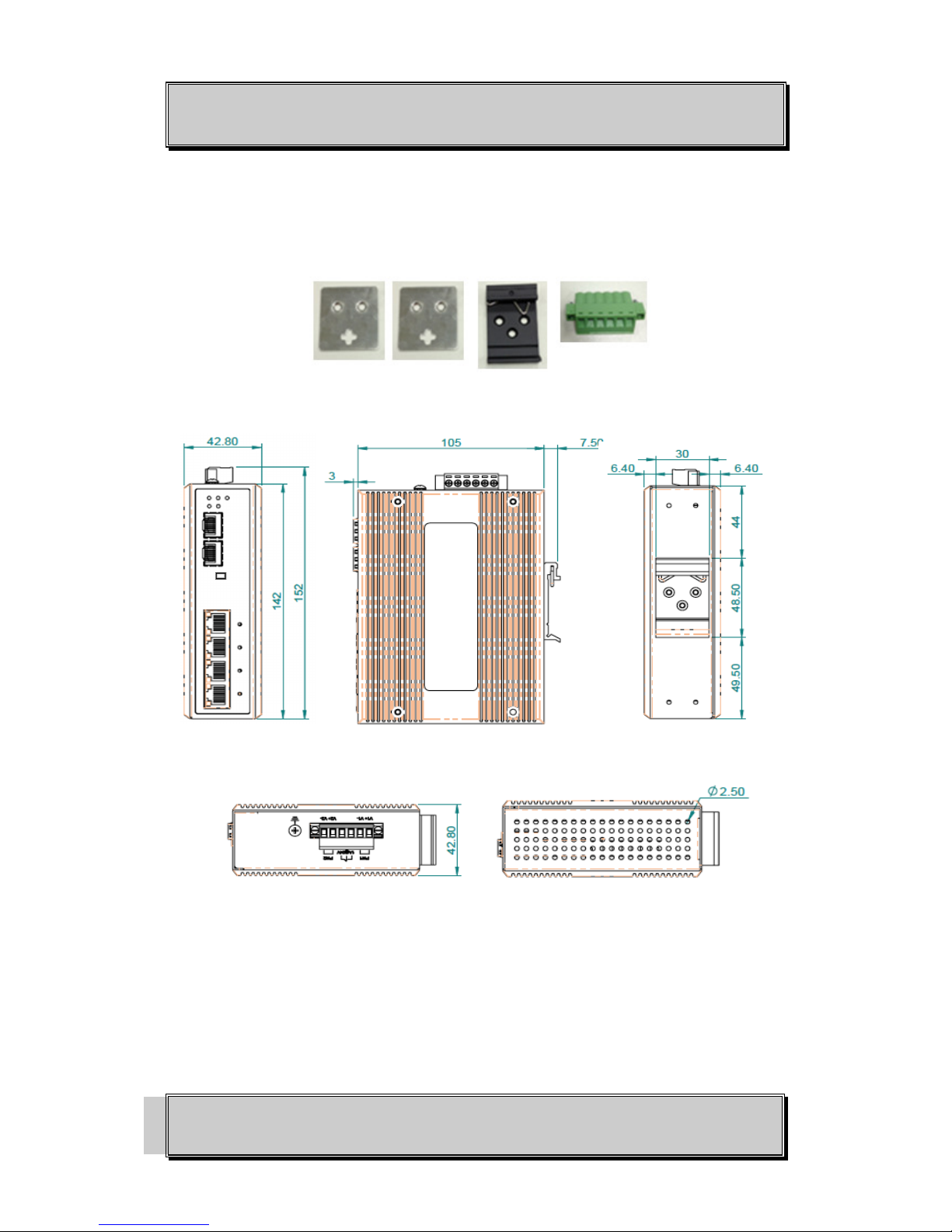

2.2.2 OSD2145P DRAWINGS AND DIMENSIONS
The OSD2145P is designed to be DIN-rail mounted or wall mounted. Both DIN-rail and wall mounting
brackets are included. Power connector is also included.
FIGURE 2: INCLUDED ACCESSORIES (WALL MOUNTING, DIN-RAIL, POWER)
FIGURE 3: OSD2145P DIMENSIONS
OPTICAL SYSTEMS DESIGN
DOC ID: 10112403
OSD2145P QUICK INSTALLATION GUIDE
PAGE 9

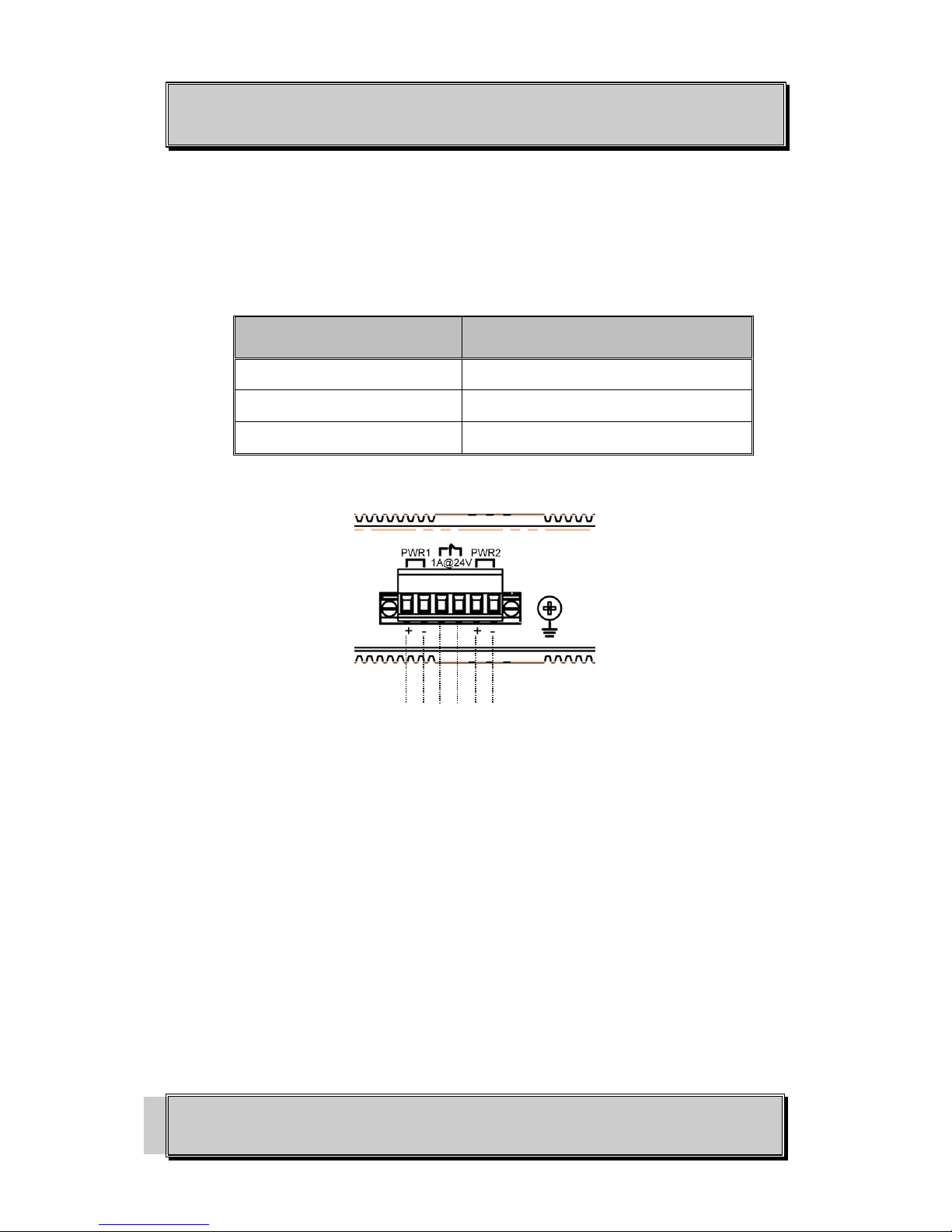

2.2.3 POWER SUPPLY CONNECTIONS
The OSD2145P requires external 12 to 56VDC @ 1.5A. The OSD2145P features a second input voltage
channel for redundant power operation. Power should be connected to the power socket located at the
top of the case as indicated in Table 2.
TABLE 2: DC POWER CONNECTION
External Power Pin Specification
Pin 1 and/or 5 12 to 56VDC @ 1.5A
Pin 2 and/or 6 0V
Pin 3 & 4 Alarm
FIGURE 4: 2145P POWER SUPPLY CONNECTIONS
1 2 3 4 5 6
OPTICAL SYSTEMS DESIGN
DOC ID: 10112403
OSD2145P QUICK INSTALLATION GUIDE
PAGE 10

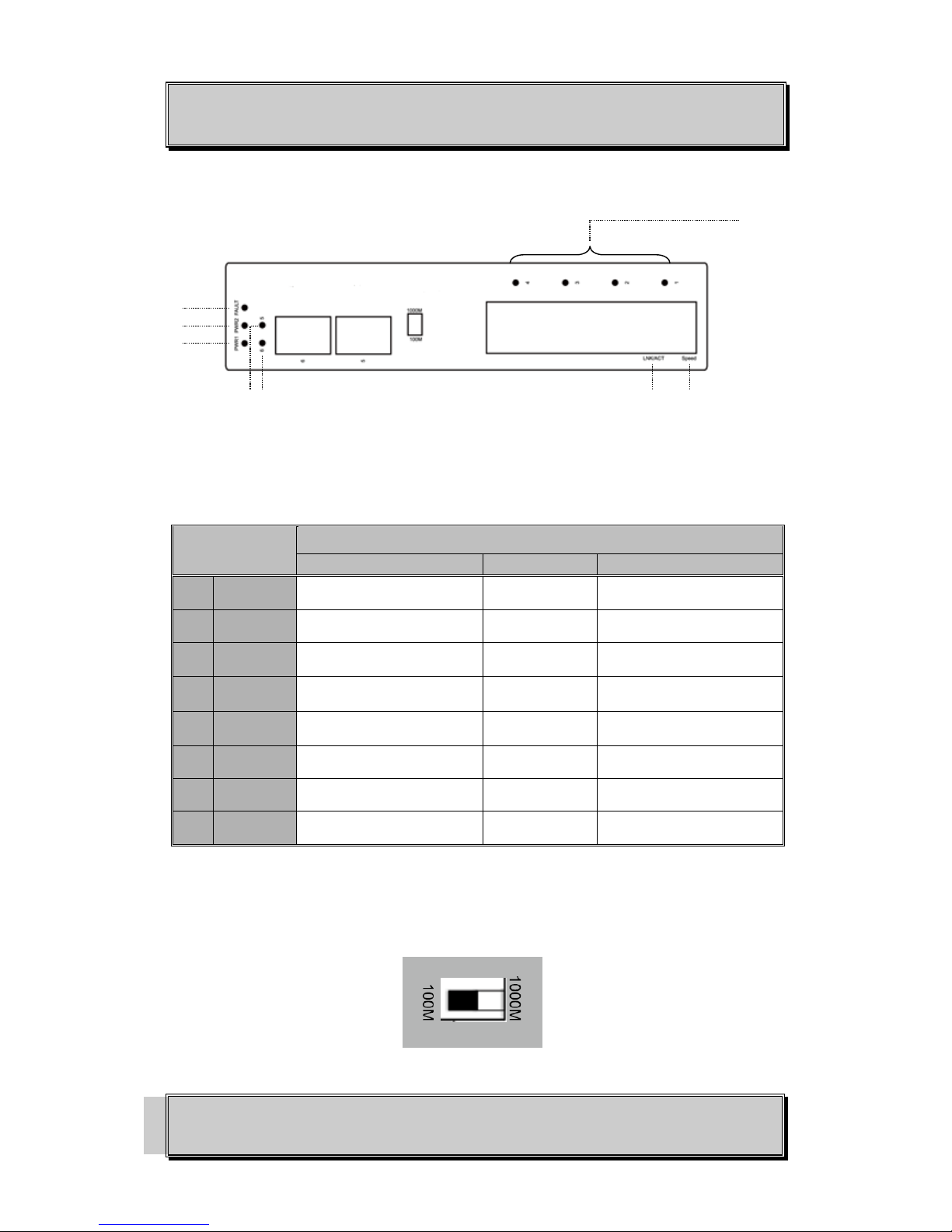

2.2.4 LED INDICATORS
FIGURE 5: LED FUNCTION
TABLE 3: LED FUNCTION
No
Function
On Blink Off
Pwr1 When V1 connected - No Power
Pwr2 When V2 connected - No Power
FAULT
When only Pwr1 or Pwr2
connected
-
Both Pwr1 and Pwr2
connected
5 Port 5 SFP detected
Port 5 SFP
Activity
Port 5 SFP not detected
6 Port 6 SFP detected
Port 6 SFP
Activity
Port 6 SFP not detected
LNK/ACT Tx link detected Tx port Activity Tx port not detected
Speed 1000Mbps - 10/100Mbps
1,2,3,4 PD detected on channel - No PD detected on channel
2.2.5 CONTROLS
The SFP speed can be selected by switching the DIP switch (100Mbps or 1000Mbps)
FIGURE 6: CONTROL SWITCH
OPTICAL SYSTEMS DESIGN
DOC ID: 10112403
OSD2145P QUICK INSTALLATION GUIDE
PAGE 11
3 WARRANTY
Thank you for purchasing equipment designed, manufactured and serviced by Optical Systems Design
(OSD). OSD warrants that at the time of shipment, its products are free from defects in material and
workmanship and conforms to specifications. Our Warranty conditions are outlined below:
3.1 WARRANTY PERIOD
For warranty period, please contact your local OSD distributor.
3.2 REPAIRS
Optical Systems Design reserves the right to repair or replace faulty modules/units. Please obtain a
“Return Material Authorisation” (RMA) form and number before returning goods.
Goods must be returned in adequate packing material to Optical Systems Design, Warriewood or its
nominated authorised representative, for all repairs.
3.2.1 WARRANTY REPAIRS
Return shipments to OSD shall be at customer's expense and freight back to the customer will be at
OSD expense.
3.2.2 OUT-OF-WARRANTY REPAIRS
OSD reserves the right to repair or replace any faulty goods. Freight costs and insurance for both
journeys are met by the user. All equipment repaired by OSD will have a 3-Month Warranty from the
date of dispatch.
3.2.3 SITE REPAIRS
By agreement site repairs may be undertaken for which out of pocket, hotel and travel expenses will be
charged.
3.2.4 EXCLUSIONS
This warranty does not apply to defects caused by unauthorized modifications, misuse, abuse or
transport damage to the equipment. All modifications to OSD’s standard product will need written
authorization and will be charged at normal repair rates. All modifications are to be carried out by OSD
Technicians. Warranty is void if unauthorized removal and/or tampering with serial number and/or
repair labels is evident.
