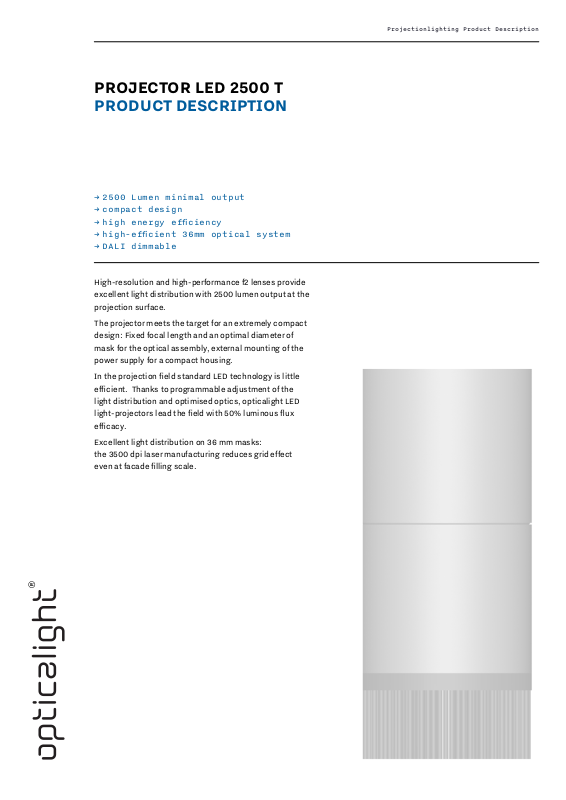

PROJECTOR LED 2500 T

PRODUCT DESCRIPTION

→ 2500 Lumen minimal output

→ compact design

→ high energy efficiency

→ high-efficient 36mm optical system

→ DALI dimmable

High-resolution and high-performance f2 lenses provide
excellent light distribution with 2500 lumen output at the
projection surface.

The projector meets the target for an extremely compact
design: Fixed focal length and an optimal diameter of
mask for the optical assembly, external mounting of the
power supply for a compact housing.

In the projection field standard LED technology is little
efficient. Thanks to programmable adjustment of the
light distribution and optimised optics, opticalight LED
light-projectors lead the field with 50% luminous flux
efficacy.

Excellent light distribution on 36 mm masks:
the 3500 dpi laser manufacturing reduces grid effect
even at facade filling scale.

→ opticalight gmbh → Haldenbachstrasse 10 → CH-8006 Zürich

TECHNICAL SPECIFICATIONS

Projector 2500 lumen, 43W max.

CE, IP 65, IK 08, class III,

-20 C° until +35C°

Light source 1 x CREE CXB 1520 36V

44’000h (L90/B10) TA25°C
3’000 K° , CRI 90°
2’200 K° - 6’500 K° on preorder

Housing PA6, Al, CrN, standardcolour DB 703

custom colour on preorder

Optical lenses 15° / 20° / 25° / 40 / 60°

3D focus and keystone correction

Adjustability tilt +/- 60°

pan 360°

Measures 25° - 60° optic: ø 100mm / l 235mm

15° + 20° optic: ø 100mm / l 289mm

Load straight/angular: 6kg / 0,047m2

external: 3kg / 0.023m2 + 3kg

Masks ø 36 mm Al - Borosilicate

life time > 10 years

Power supply Meanwell ELG-75-36DA-3Y

IP67, Class I, DALI
100V - 277V / 50Hz/60Hz

MOUNTING

LED 2500 projectors can be mounted in every position.
The optical assembly unit and LED module must remain
accessible at all times.

MAINTENANCE

Opticalight installations are designed to be maintained
by the operating company. Readjustment is not
necessary if the projector is correctly mounted and
operated. Annual external cleaning is recommended.
Excluding incidents the masks are maintenance-free. The
power supply is either external, or integrated in the
luminaire ‘s mount. The LED module can be replaced like
a conventional light source and can be ordered in
exchange for a defective module.

PHOTOMETRIC DATA

Maximal range of illumination is determined through lens
selection (15°/20°/25°/40°/60°). Regular light distribution
is achieved at full output. This distribution can be
simulated with photometric data.

INDUSTRY STANDARD COB

The LED 2500 T may be equipped with standard 9mm LES
COB. The Cree CXB 1520 used is available from 2200K° up
to 6500K° at a CRI of 80 - 98. The extremely high density
of up to 72 lm / mm2 is key to the highly optical efficiency.
