1 | OCCFIBER.COM

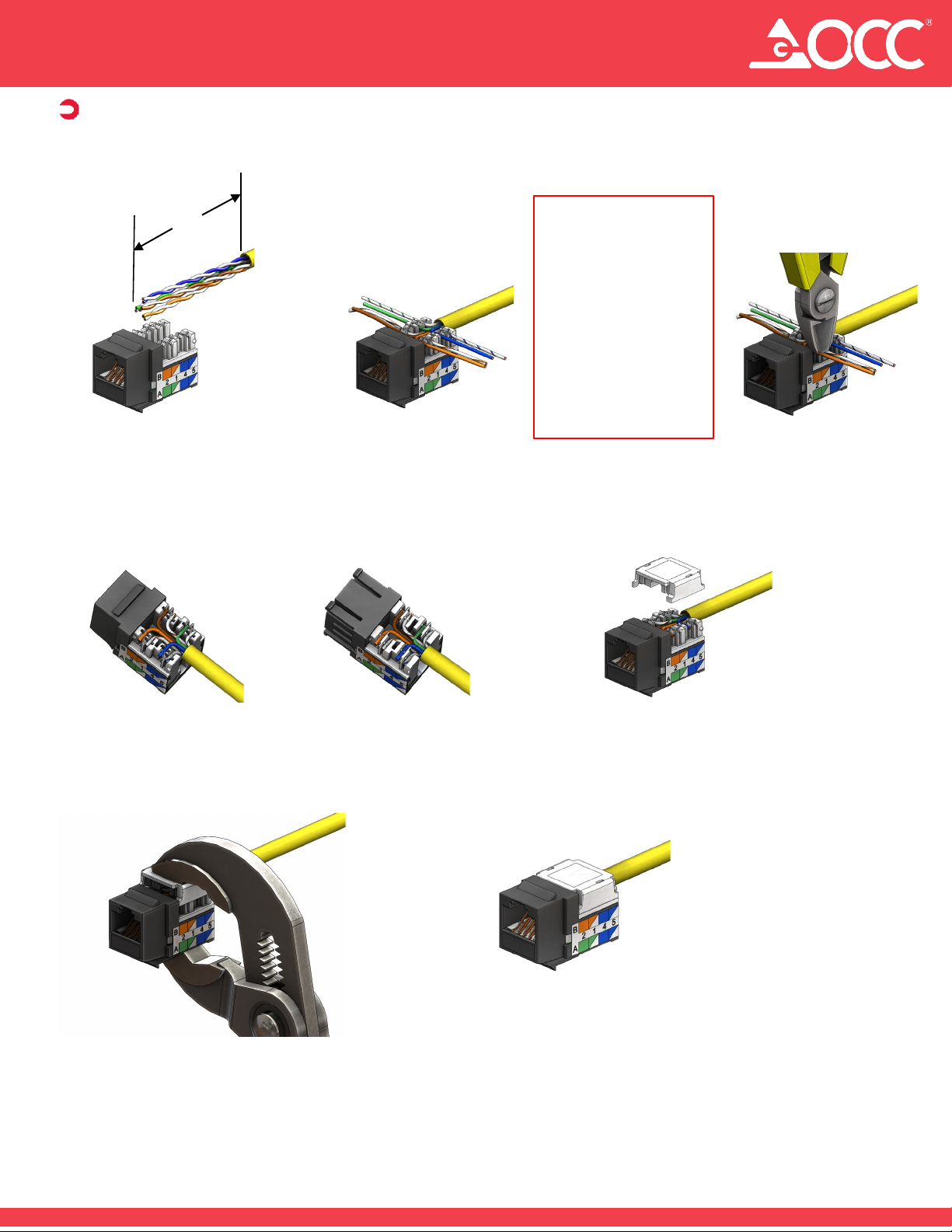

Step 1: Strip cable jacket
NOTE: 110 impact tool
Step 2: Lace conductors in IDC
Step 3: Cut excess
Conductors shown in T568B wiring configuration.
Step 4: Place stuffer cap on top of jack
The following termination procedures are applicable to both KMJ and UMJ style modular jacks.
KMJ Jack
UMJ Jack
Step 5: Squeeze jack with pliers to fully
Completed termination. Jack is now
P/N 10550301 REV D
2”
KMJ/UMJ MODULAR JACK
TERMINATION PROCEDURES
(Ex. Fluke D814) may
also be used to
terminate conductors
into IDC slots. If using
110 tool, punch down
each of the eight
conductors and then
perform step 4, skip
steps 3 and 5.
approximately 2-inches
block per T568A or T568B wiring
method.
conductors flush with 110
block using diagonal cutters.
and push down with fingers.
seat stuffer cap and to ensure proper
ready for Insertion into faceplate or
modular patch panel.
termination
5290 CONCOURSE DRIVE | ROANOKE, VA 24019 | TOLL FREE: 800-622-7711 | DIRECT: 540-265-0690
Page 2
2 | OCCFIBER.COM

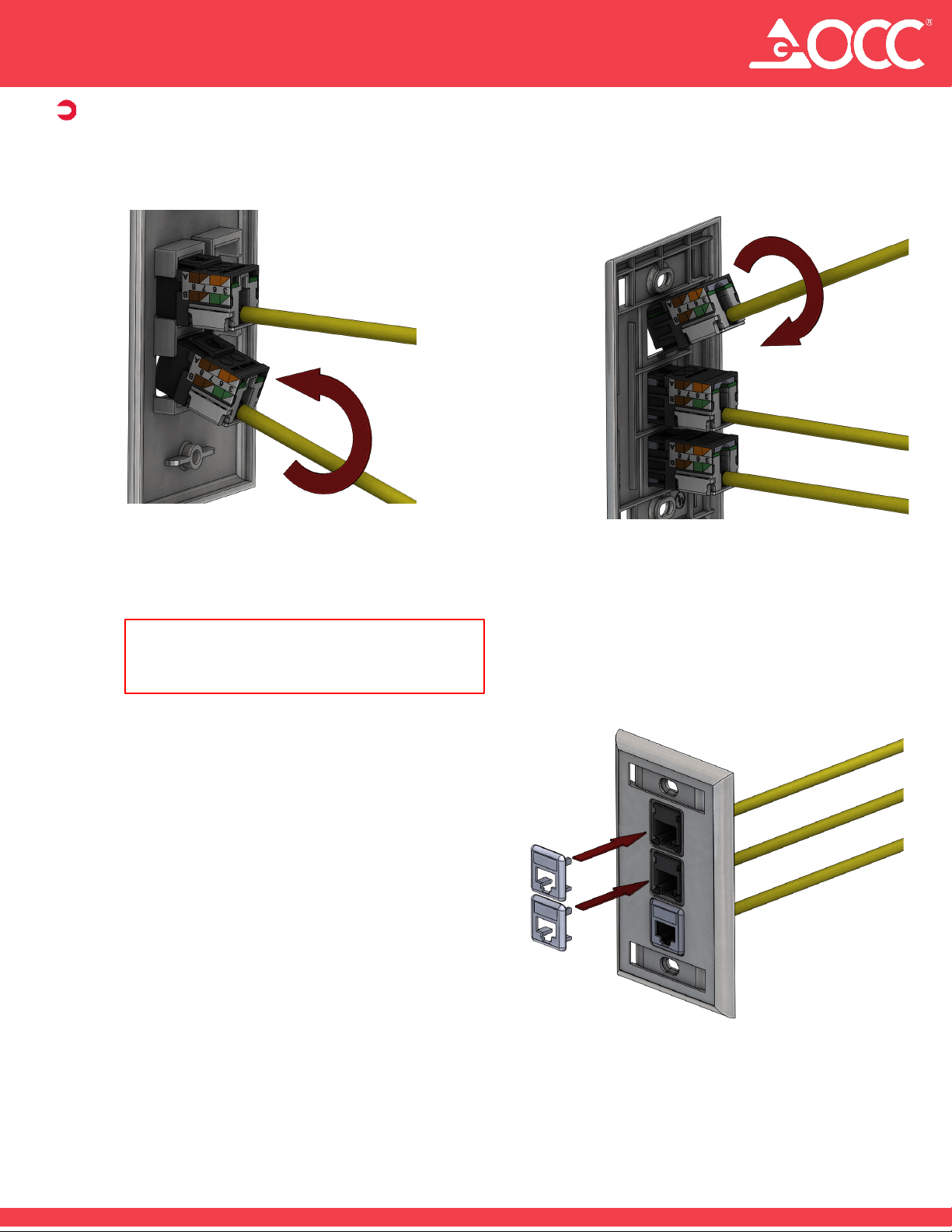

KMJ Jack/Faceplate
Insert bottom of KMJ jack into
UMJ Jack/Faceplate
Insert top of UMJ jack into faceplate
snaps into position.
UMJ Bezel Installation
Push bezel into slots until flush with faceplate.
bezels. Bezels also sold separately.
NOTE: KMJ and UMJ jacks are not interchangeable.
P/N 10550301 REV D
KMJ/UMJ MODULAR JACK
TERMINATION PROCEDURES
faceplate and rotate upward until
jack snaps into position.
The corresponding mounting hardware
(faceplate/panel) must be utilized for each.
and rotate downward until jack
5290 CONCOURSE DRIVE | ROANOKE, VA 24019 | TOLL FREE: 800-622-7711 | DIRECT: 540-265-0690
Note: UMJ jacks may be purchased with or without
