Page 1
KURZANLEITUNG TT LINIE
QUICK REFERENCE GUIDE TT LINE
Frequenz-Messbereich
f: 1-600 Hz
Frequency measuring range
f: 1–600 Hz
TT
TT DATA
TT RFID
V 1.3 AW
Page 2
SICHERHEITSHINWEISE
SAFETY INSTRUCTIONS
Vor Beginn der Wartungs- und Einrichtarbeiten ist zu gewährleisten,
dass sich alle Maschinenkomponenten in einer Sicherheitsposition benden
und diese während der Wartungs- und Einrichtarbeiten nicht verändert werden kann.
DIE SICHERHEITSEMPFEHLUNGEN
DES MASCHINENHERSTELLERS SIND ZU BEACHTEN!
Before beginning of any maintenance- and setting-up work, make sure
that all machine components are in a safety position
and that they cannot be changed during maintenance- and setting-up work.
THE SAFETY INSTRUCTIONS
OF THE MACHINE MANUFACTURER MUST BE OBSERVED!
© ARNTZ OPTI BELT GROUP, GERMANY www.optibelt.com
2 | 8
Page 3
SICHERHEITSHINWEISE
SAFETY INSTRUCTIONS
© ARNTZ OPTI BELT GROUP, GERMANY www.optibelt.com
3 | 8
Page 4
INHALT
CONTENT
Kurzanleitung
Quick Reference Guide
Abnahmeprüfzeugnis
Inspection Certicate
1x
1x
1x
1x
1x
1x
1x
1x
optibelt TT DATA,
optibelt TT RFID
Bedienungsanleitung siehe: www.optibelt.com
Reference Guide see: www.optibelt.com
© ARNTZ OPTI BELT GROUP, GERMANY www.optibelt.com
4 | 8
Page 5

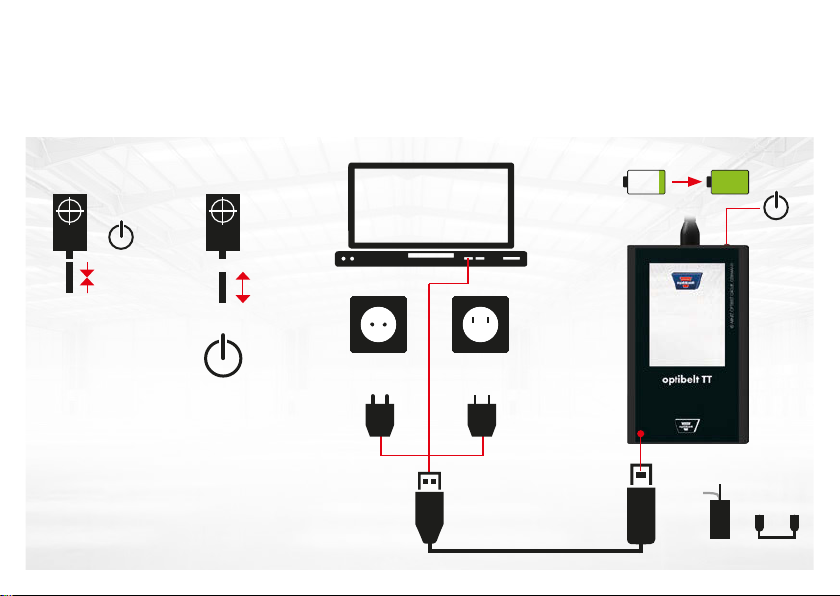

EIN- / AUSSCHALTEN & LADEN
SWITCH ON / OFF & CHARGING
1. 2.
ON
OFF
USB 5 V
3 h
*
*
ON: 1 s
OFF: 3 s
DISPLAY RESET: 0.1 s
AUTO STANDBY: 30 s
RESTART: SHAKE TT
DISPLAY RESET
AUTO OFF: 5 min
© ARNTZ OPTI BELT GROUP, GERMANY www.optibelt.com
*
22 0/23 0 V 11 0 V
*
USB
5 | 8
*
Page 6
BILDSCHIRME & MESSMETHODEN, AC / EM
DISPLAYS & MEASUREMENT METHODS, AC / EM
AC: 1–16 Hz EM: 6– 600 Hz
Belt
AC, f: 1–16 Hz
Ready
EM, f: 6–600 Hz
Belt
Rapid Move EM 0
49.9 Hz
Belt
49.7 Hz
Ready AC 1
Ready EM 1
50.1 Hz
50.0 Hz
49.8 Hz
Measuring AC 2
© ARNTZ OPTI BELT GROUP, GERMANY www.optibelt.com
6 | 8
Belt
Measuring EM 2
Belt
Belt
Page 7

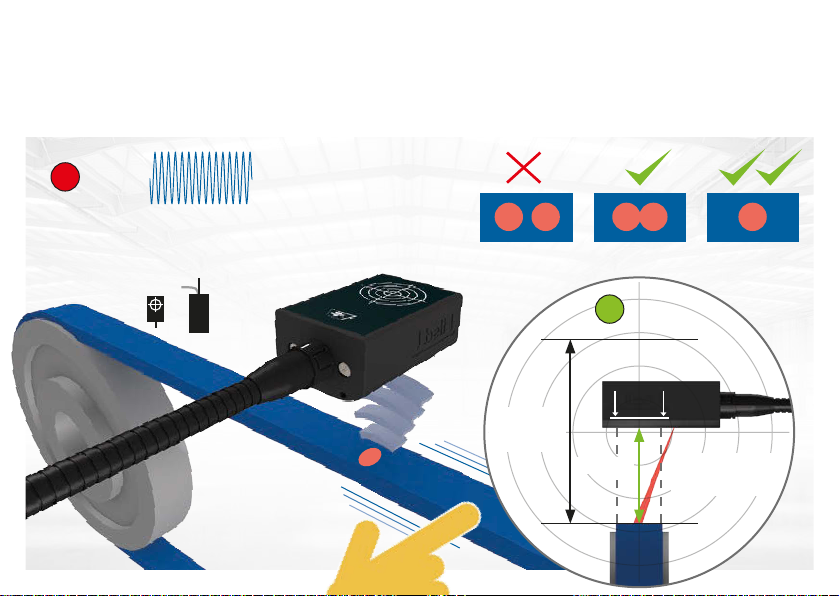

EM-MESSUNG, f: 6–600 Hz, ELEKTROMAGNETISCH, NICHT SICHTBAR
EM MEASUREMENT, f: 6–600 Hz, ELECTROMAGNETICAL, NOT VISIBLE
EM 2
Messfehler: ≤ ±1 %
Measuring fault: ≤ ±1 %
EM 1
10 –
belt
100 mm
50 mm
f [Hz]
© ARNTZ OPTI BELT GROUP, GERMANY www.optibelt.com
7 | 8
AUSRICHT- LED
ALIGN LED
Page 8

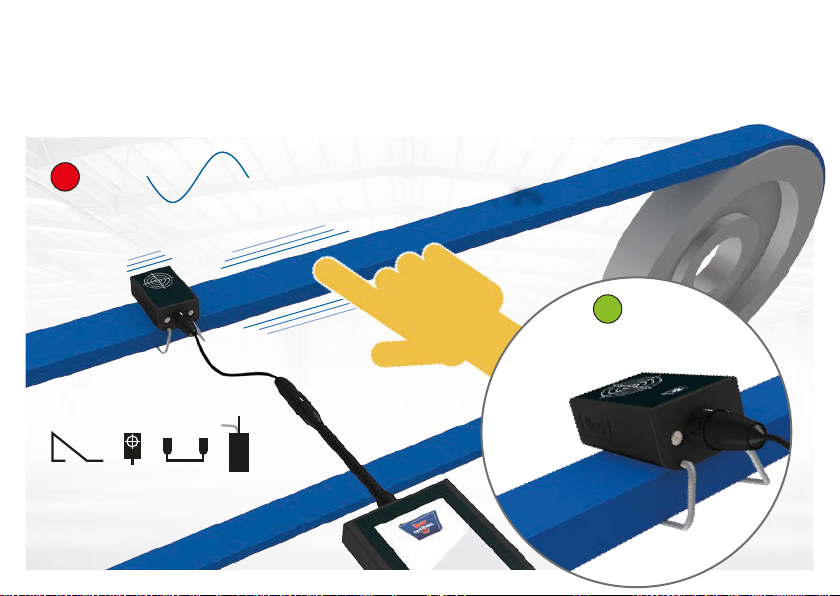

AC-MESSUNG, f: 1–16 Hz, BESCHLEUNIGUNG
AC MEASUREMENT, f: 1–16 Hz, ACCELERATION
AC 2
Messfehler: ≤ +1%, -2%
Measuring fault:
≤ +
1%, -2%
, -2%
AC 1
f [Hz]
© ARNTZ OPTI BELT GROUP, GERMANY www.optibelt.com
8 | 8
