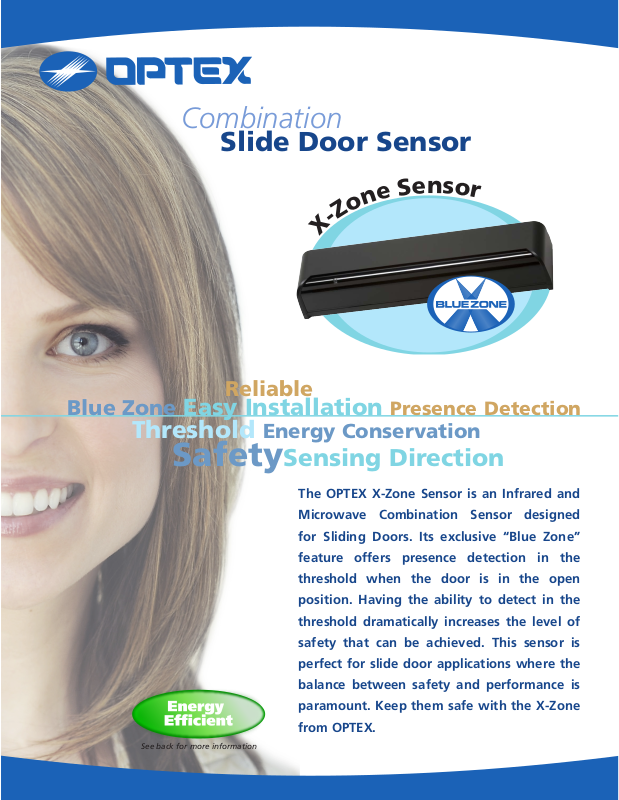

Optex X-ZONE Specsheet
Combination
Slide Door Sensor
n
s
e
S
e
n
o
Z
-
X
Reliable
Blue Zone Easy Installation Presence Detection
o
r
Threshold Energy Conservation
SafetySensing Direction
The OPTEX X-Zone Sensor is an Infrared and
Microwave Combination Sensor designed
for Sliding Doors. Its exclusive “Blue Zone”
feature offers presence detection in the
threshold when the door is in the open
position. Having the ability to detect in the
threshold dramatically increases the level of
safety that can be achieved. This sensor is
perfect for slide door applications where the
balance between safety and performance is
paramount. Keep them safe with the X-Zone
See back for more information
from OPTEX.
Blue Zone Technology
How it Works: When the approach area detects a person or object, the sensor will activate the door and
turn on the “Blue Zone” which detects through the
threshold. As long as someone is in the detection area,
the sensor will keep the door
in the open position. Once
the area is cleared, the “Blue
Zone” will ignore the door
panels and allow the door to
safely close.
Inner Cover Design
The X-Zone Sensor is designed with an inner cover that
completely protects all sensitive PC Boards and Optical
Systems. This reduces the chance of damage during installation and dramatically increases
the longevity of
the sensor.
I.N.C. Logic for Stable Operation
The X-Zone sensor remains stable in all environments
thanks to our innovative I.N.C. Logic (Intelligent Noise
Cancelling). This feature allows the X-Zone to reliably
detect people near the door while ignoring interference from Rain, Snow, Vibration, Insects and Ambient
Light Sources.
VibrationPerson
Rain
Snow Light
Insects
Electric
noise
Intelligent Noise Cancel Logic
I.N.C.
Logic
Person
Selectable Detection Function
The X-Zone can be adjusted to ignore traffic moving
away from the sensor and reset more quickly. This will
allow the door to close more quickly which reduces
airflow between environmentally-controlled areas
and the outdoors. This feature will save your customer money over the life of the sensor. Reduce power
consumption and protect the environment with the X-
Zone from OPTEX.
Combination Door Sensor
Model
Cover color
Mounting height
Detection method
Specifications
Detection angle adjustments
Power supply
Power consumption
Activation output
Safety output
Output hold time
Response time
Operating humidity
Operating temperature
IP rate
Weight
Accessories
X-Zone
Black
6’6” to 11’6”
Active infrared reflection*
Microwave doppler effect
AIR area -6° / +6º
Microwave area +25º / +45°
12-24V AC±10% (50/60Hz)
12-30V DC±10%
<2.5 W / 4VA at AC
Form C Relay
50V 0.3A max. (resistance load)
Form C Relay
50V 0.3A max. (resistance load)
<0.5s
<0.3s
<80%
-31°F – +131°F
IP54
320g (11.2 oz.)
1 operation manual
9’ 10” connection cable
2 mounting screws
1 mounting template
1 area adjustment tool
Narrow lens
AIR
Mt. Ht.: 7'2"
A
Blue Zone (1st Row)
2nd row
3rd row
Detection Area Chart
3'3"
6'6"
Mounting Height A 7’ 2” 8’ 2” 8’ 10” 9’ 10”
Area Depth B
Area Depth C
H
6’ 6”
GG
I
2” 3” 3” 3” 4”2”
3” 4” 4” 4” 5”3”
Angle adjustment +6º
Sensitivity: M
: Emitting spots
: Emitting spots
(Can be elminated)
: Detection area
B
C
D
E
F
Microwave
Verticle adjustment +35º
Sensitivity: H
Speed of detection object: 2.2"/sec.
: Detection area (Wide)
: Detection area (Narrow)
Area Depth D 10” 11” 1’ 0” 1’1” 1’ 4”9”
Area Depth E 1’ 3” 1’ 5” 1’ 7” 1’ 9” 2’ 0”1’ 2”
Area Depth F
AIR Emitting Area
Area Width G
Area Width H
Area Width I
The actual detection may differ according to the size/material/entry speed of the object and the installation
environment. This chart shows the values at a depth angle of +6º.
2’ 2” 2’ 5” 2’ 8” 2’ 11” 3’ 5”1’ 11”
4’ 4” 4’ 11” 5’ 4” 5’ 11” 6’ 11”4’ 0”
6’ 9” 7’ 7” 8’ 3” 9’ 2” 10’ 8”6’ 1”
9’ 1” 10’ 4” 11’ 2” 12’ 5” 14’ 6”8’ 3”
11’ 6”
