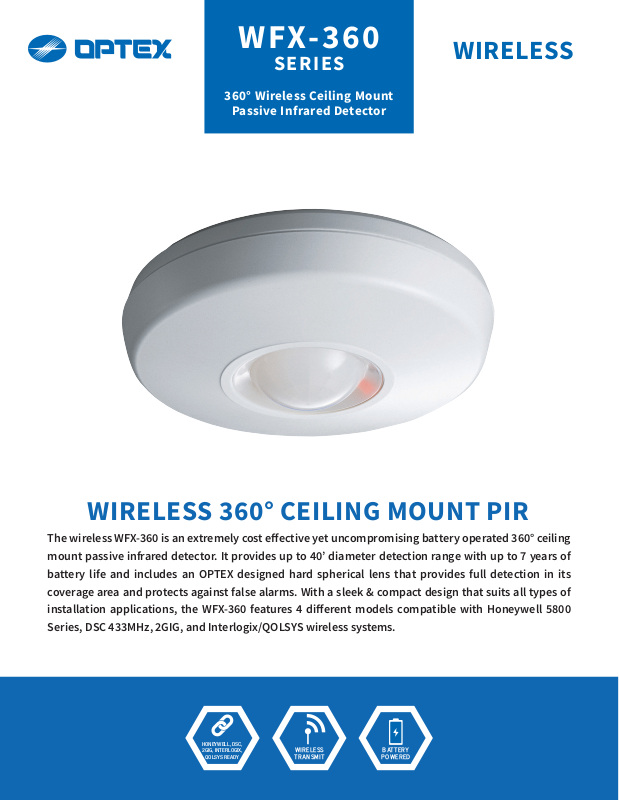

Optex WFX-360IX, WFX-360DS, WFX-360HW, WFX-3602G Specsheet
WFX-360
SERIES
360° Wireless Ceiling Mount
Passive Infrared Detector
WIRELESS
WIRELESS 360° CEILING MOUNT PIR
The wireless WFX-360 is an extremely cost eective yet uncompromising battery operated 360° ceiling
mount passive infrared detector. It provides up to 40’ diameter detection range with up to 7 years of
battery life and includes an OPTEX designed hard spherical lens that provides full detection in its
coverage area and protects against false alarms. With a sleek & compact design that suits all types of
installation applications, the WFX-360 features 4 dierent models compatible with Honeywell 5800
Series, DSC 433MHz, 2GIG, and Interlogix/QOLSYS wireless systems.
HONEYWELL, DSC,
2GIG, INTERLOGIX,
QOLSYS READY
wireless
transmit
battery
powered
WFX-360 SERIES
FEATURES
360° Wireless Ceiling
Mount Passive Infrared
Detector
WFX-360HW
Works with Honeywell® 5800 Wireless Systems
WFX-360DS
Works with DSC® 433MHz Wireless Systems
WFX-3602G
Works with 2GIG® Wireless Systems
WFX-360IX
Works with Interlogix® & QOLSYS® Wireless Systems
HONEYWELL, DSC,
2GIG, INTERLOGIX,
QOLSYS READY
*Product is not produced by, endorsed by, nor is ocially associated with
Honeywell, DSC, 2GIG, Interlogix, or QOLSYS.
TOP VIEW
wireless
transmit
battery
powered
Installation
OPTEX Designed Hard Spherical Lens
The WFX-360’s hard spherical lens is designed with
precision - an original feature that enables this
detector to provide reliable detection throughout its
360° area.
False Alarm Protection
The WFX-360 prevents false alarms caused by
environmental changes or insensitivity to high
temperatures.
RFI Protection
No alarm at 20V/m from 100MHz. to 1GHZ
Temperature Compensation
Noise Reduction Circuit
Selectable Pulse Count for Sensitivity Adjustments
DETECTION PATTERNS
Maximum
Detection AREA
Detection
Height
(m)
Area
(Diameter)
(m)
Advanced Quality Control
Computerized S.M.D. Technology using
robotics to mount miniaturized chip
components ensures a smooth and uniform
production level of high quality.
Quality control test on every circuit board. All
circuit boards sustain a “burn-in” test for many
hours.
Battery life
3 years (720 events per day) to 7 years (240
events per day)
Other Features
LED On/Off Switch
Includes Built In Transmitter for
Honeywell 5800, DSC 433 MHz, 2GIG,
Interlogix, and QOLSYS Wireless Systems
8 (2.4) 25 (8)
10 (3) 32 (10)
SIDE VIEW
12 (3.6) 40 (12)
SPECIFICATIONS DIMENSIONS
MODEL
DETECTION METHOD
COVERAGE
DETECTION ZONES
SENSITIVITY
DETECTABLE SPEED
LED INDICATOR
TAMPER SWITCH
PULSE COUNT
BATTERY
BATTERY LIFE
OPERATING TEMPERATURE
ENVIRONMENT HUMIDITY
*Specifications & design are subject to change without prior notice.
Note: This unit is designed to detect movement & activate an alarm control panel. Being only a part of a
complete system, we cannot assume responsibility for the or damages should they occur.
WFX-360HW
Passive infrared
25ft - 40ft / (8m - 12m)
Height 8ft - 12ft / (2.4m - 3.6m)
62 zones
3°F (1.6°C) at 2 / sec (0.6m/sec)
1 - 5/sec (0.3 - 1.5m/sec)
Switch-able ON/OFF
Form C (micro switch)
Approx. 20 sec | 2 or 4
1 x CR123A Lithium battery
3 years (720 events per day)
7 years (240 events per day)
– 4°F - +122°F (–20°C - +50°C)
85% Max
WFX-360DS WFX-3602G WFX-360IX
1.57
(40)
ø4.72
(ø120)
inches (mm)
