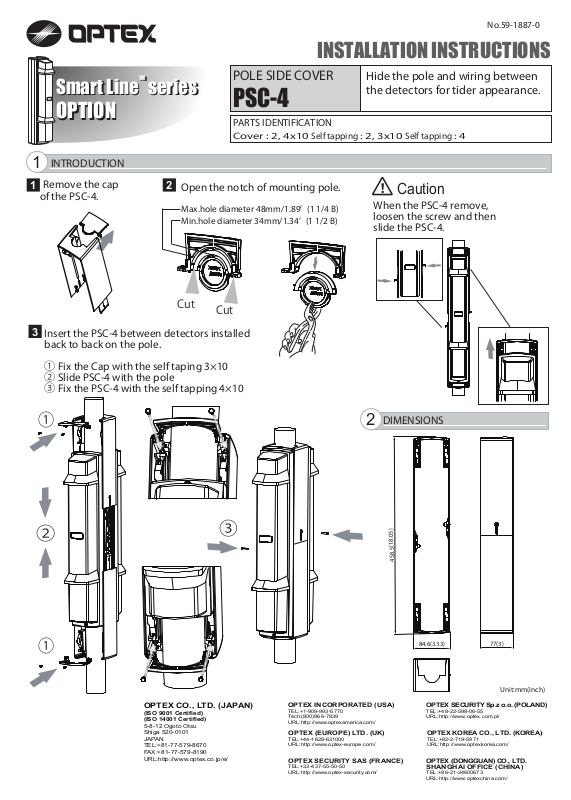

Optex PSC-4 User Manual
No.59-1887-0
INSTALLATION INSTRUCTIONS
TM
TM
Smart Line
Smart Line
OPTION
OPTION
INTRODUCTION
1
Remove the cap
1 2
series
series
Open the notch of mounting pole.
of the PSC-4.
Max.hole diameter 48mm/1.89’ (1 1/4 B)
Min.hole diameter 34mm/1.34’ (1 1/2 B)
Cut
3
Insert the PSC-4 between detectors installed
back to back on the pole.
POLE SIDE COVER
PSC-4
PARTS IDENTIFICATION
Cover : 2, 4x10
Cut
Self tapping
Hide the pole and wiring between
the detectors for tider appearance.
: 2, 3x10
Self tapping
: 4
Caution
When the PSC-4 remove,
loosen the screw and then
slide the PSC-4.
Fix the Cap with the self taping 3×10
①
Slide PSC-4 with the pole
②
Fix the PSC-4 with the self tapping 4×10
③
①
②
③
DIMENSIONS
2
458.5(18.05)
①
OPTEX CO., LTD. (JAPAN)
(ISO 9001 Certified)
(ISO 14001 Certified)
5-8-12 Ogoto Otsu
Shiga 520-0101
JAPAN
TEL:+81-77-579-8670
FAX:+81-77-579-8190
URL:http://www.optex.co.jp/e/
OPTEX INCORPORATED (USA)
TEL:+1-909-993-5770
Tech:(800)966-7839
URL:http://www.optexamerica.com/
OPTEX (EUROPE) LTD. (UK)
TEL:+44-1628-631000
URL:http://www.optex-europe.com/
OPTEX SECURITY SAS (FRANCE)
TEL:+33-437-55-50-50
URL:http://www.optex-security.com/
84.6
(3.33)
OPTEX SECURITYSp.z o.o. (POLAND)
TEL:+48-22-598-06-55
URL:http://www.optex.com.pl/
OPTEX KOREA CO., LTD. (KOREA)
TEL:+82-2-719-5971
URL:http://www.optexkorea.com/
OPTEX (DONGGUAN)CO., LTD.
SHANGHAI OFFICE (CHINA)
TEL:+86-21-34600673
URL:http://www.optexchina.com/
77(3)
Unit:mm(inch)
