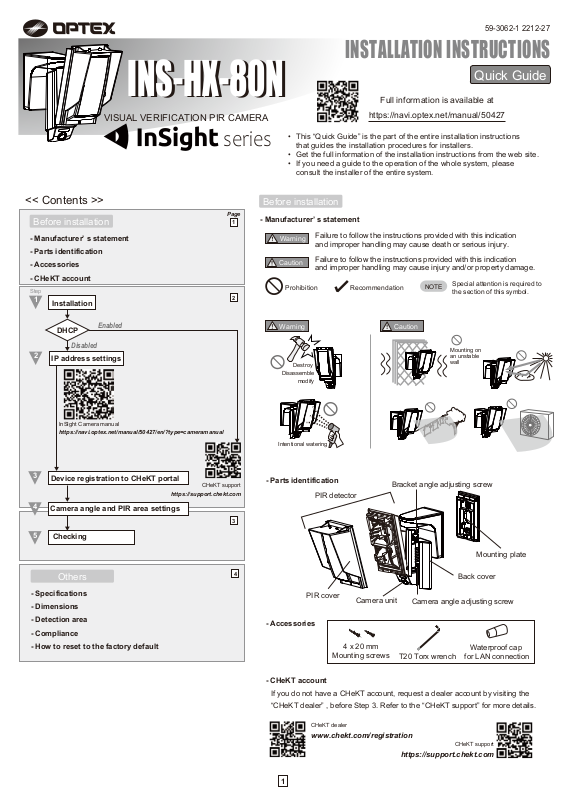

Page 1
INS-HX-80N
INS-HX-80N
VISUAL VERIFICATION PIR CAMERA
59-3062-1 2212-27
INSTALLATION INSTRUCTIONS
Quick Guide
Full information is available at
https://navi.optex.net/manual/50427
<< Contents >>
Before installation
- Manufacturer’ s statement
- Parts identification
- Accessories
- CHeKT account
Step
1
Installation
DHCP
2
IP address settings
Enabled
Disabled
series
Before installation
Page
- Manufacturer’ s statement
1
2
• This “Quick Guide” is the part of the entire installation instructions
that guides the installation procedures for installers.
•
Get the full information of the installation instructions from the web site.
•
If you need a guide to the operation of the whole system, please
consult the installer of the entire system.
Warning
Caution
Prohibition Recommendation
Warning
Disassemble
Failure to follow the instructions provided with this indication
and improper handling may cause death or serious injury.
Failure to follow the instructions provided with this indication
and improper handling may cause injury and/or property damage.
Special attention is required to
NOTE
the section of this symbol.
Caution
Mounting on
an unstable
Destroy
modify
wall
InSIght Camera manual
https://navi.optex.net/manual/50427/en/?type=cameramanual
3
Device registration to CHeKT portal
4
Camera angle and PIR area settings
5
Checking
Others
- Specifications
- Dimensions
- Detection area
- Compliance
- How to reset to the factory default
https://support.chekt.com
CHeKT support
3
Intentional watering
- Parts identification
PIR detector
4
PIR cover
- Accessories
- CHeKT account
If you do not have a CHeKT account, request a dealer account by visiting the
“CHeKT dealer” , before Step 3. Refer to the “CHeKT support” for more details.
Camera unit
4 x 20 mm
Mounting screws
Bracket angle adjusting screw
Mounting plate
Back cover
Camera angle adjusting screw
T20 Torx wrench
Waterproof cap
for LAN connection
CHeKT dealer
www.chekt.com/registration
https://support.chekt.com
1
CHeKT support
Page 2
Step
1
Installation
1-1. Remove the mounting plate
1
2
1-3. Connect cables to device.
NOTE
Only the connector can be fixed
inside the body with double-sided
tape. The LAN connector must be
stored in the wall.
DC power cable
12 V DC power for camera and PIR
3
8-pin I/O cable
Pink
Orange
Yellow
Brown
Green
Purple
Black
Red
1-2. Install the mounting plate using 2 screws
PoE LAN
cable
NOTE
To pass cables through the wall, drill a 25 mm (1") or larger hole in the wall.
Use a single gang box for exposed wiring.
Tamper
Alarm
Do not connect to the N/A terminal.
SP N/A COM AL TP TP
It can be also used as a back up
-
Power
+
for POE
Waterproof cap
for LAN connection
Refer to the Web manual how to use the cap.
Caution
Caution
Hook the fall prevention wire.
1-4. Secure the main body
1 2
Put the main body back on the mounting plate.
Caution
Do not pinch the cables during assembly.
The default network type of InSight is dynamic.
If you have a DHCP server, it will automatically set the InSight.
Jump to Step 3
Step
2
IP address settings
If you do not have a DHCP server, it will set as follows after one minute.
Initial address: Refer to the label on the InSight
User name: root
Default password: OPTEX
Change your password as appropriate.
Download IP installer;
https://navi.optex.net/firmware/50427
Refer to the “InSight IP camera install manual” for more details;
https://navi.optex.net/manual/50427/en/?type=cameramanual
InSight Camera manual
Step
4
Camera angle and PIR area settings
Changing for each item in this step is optional.
Check the default settings and if no changes are required, proceed to the next item.
Further information, refer to the “INS-HX-80N Full manual” on the Web.
Step
3
Device registration to CHeKT portal
Setup your CHeKT Dealer Portal:
1. Go to http://dealer.chekt.com/ to log in.
2. Select the Customer on the left side of the dashboard.
3. Select the Site Devices tab.
4. Select the bridge device to be associated with the sensor camera.
5. Access the bridge settings using the gear icon to its right.
6. Select the appropriate tab to register the PIR camera.
Refer to the site for more details.
CHeKT suppor
https://support.chekt.com
4-1. Horizontal adjustings
1
Remove the Back cover. Adjust horizontal angle.
2
https://navi.optex.net/manual/50427/en/?type=installationinstructions
INS-HX-80N Full manual
2
Pull back
Horizontal: ±95°
1
Raise up
NOTE
Only one side needs to be loosened.
2
Page 3
4-2. Vertical adjustings
PIR area adjustment
1
Vertical: 0° to -20°
Caution
Do not use the vertical angle adjustment of the main unit other than adjusting
the detection area surface to be parallel to the ground inclination.
Adjust the detection range
2
Camera angle adjustment
Loosen the screw to adjust camera angle
Angle can be adjusted with either left or right screw.
20°min.
Default
30°
Parallel
4-3. PIR/VCA settings
Refer to the InSight VCA manual for details on Camera angle and
PIR area settings.
InSight VCA manual
https://navi.optex.net/manual/50426/en/?type=VCAmanual
4-4. Detection range limit
The default settings are 18 m (60') at 2.5 m (8'2") mounting height.
If no changes are required, proceed to the next item.
35°max.
NOTE
It is recommended that use the Camera angle at 25° to 35°
since camera images may appear white and blurred in dark scenes.
Caution
If the vertical angle of the camera is to be adjusted, adjustment of this
sections must be matched to ensure the best performance of the sensor.
4-5. Switch settings
1
Change DIP switch settings as needed
OFF ON
OFF
Standard
AND OR
ON
Immunity
LED
Immunity
Future use
PIR Logic
ON
1 2 3 4
INS-HX-80N Full manual
https://navi.optex.net/manual/50427/en/?type=installationinstructions
4-6. Put on the back cover
Step
5
1
2
Default
2
Change PIR sensitivity setting as needed
H
High
Middle
M
Low
L
Default
Checking
Walk test: Check the detection area by walking around the area.
System check: Check the image at the time of detection on the monitoring portal.
3
Page 4
Others
- Specifications
Model
Detection method
PIR coverage
PIR zones
PIR distance
Detectable speed
Sensitivity
Power input
Alarm period
Warm-up period
Alarm output
Tamper output
LED indicator
Image sensor
Viewing angle
Minimum illumination
IR illumination
Night vision
Image compression
Resolution/ frame rate
Network protocol
Security
Operation temperature
Environment humidity
International protection
Mounting
Mounting height
Weight
Accessories
• Specifications and designs are subject to change without prior notice.
• These un its are de signed t o detect a n intruder and ac tivate an alarm c ontro l panel.
Being on ly a part of a c omplete system, we cannot accept responsibilit y for any
damages or other consequences resulting fr om an intr usion.
6.5 m (22’), 10 m (33’), 13 m (43’),
Terminal 9.5 to 18 V DC/ 35 mA max. at 12 V DC
N.C./N.O. switchable, 28 V DC 0.1 A max.
Day & Night Automatic/Manual switching
1080/ 30 fps, D1 (704 x 480 or 704 x 576)
IPv4: TCP/IP, UDP, RTP(UDP/TCP), RTSP, NTP, HTTP,
HTTPS, SSL, DHCP, SNMPv1/v2/v3(MIB-2), ONVIF
HTTPS(SSL), IP filtering, 802.1x, Digest authentication (ID/PW)
[1] Mounting screw (4 x 20 mm) x 2
[2] T20 Torx wrench x 1
[3] Waterproof cap for LAN connector x 1
INS-HX-80N
Passive infrared
24 m x 2.0 m (80' x 6’7”) narrow
Mini-jack 12 V DC 420 mA max.
Open when the cover is opened
-30℃ to +50℃(-22°F to +122°F)
Wall (Outdoor, Indoor)/Gang box
20 zones
0.3 to 1.5 m/s (1' to 5'/s)
2.0℃ ( 3.6°F) at 0.6 m/s
PoE (IEEE 802.3af compliant)
Approx. 60 s (LED blinks)
N.C. 28 V DC 0.1 A max.
[1] Warm-up [2] Alarm
Color: 0.02 lux. 0 lux. with IR
Visible up to 12 m
H.264, H.265, MJPEG
2.5 to 3.0 m (8' 2" to 10')
Default: 18 m (60’), 24 m (80’)
2.0 ± 1 s
1/2.8” CMOS
H: 114° V: 61°
95% max.
IP 55
1.2 kg (42.3 oz)
- Detection area
Top View
3.0
0
3.0
Side View
3.0 m (10 ft.)
10
8.0
6.0
4.0
2.0
Default mounting height:
2.5 m (8.2 ft.)
(ft.)
8.0
6.0
4.0
2.0
(m)(ft.)
1.0
1.0
(m)
10 20 30 40 50 60 70 80
4.0 8.0 12 16 20 24(m)
0
(m)(ft.)
3.0
2.0
1.0
2.5
1.5
0.5
PIR
10 20 30 40 50 60 70 80
10 20 30 40 50 60 70 80
Camera
4.0 8.0 12 16 20 24 (m)
4.0 8.0 12 16 20 24(m)
= Default PIR distance limit: 18 m (60')
*
*
*
(ft.)
(ft.)
(ft.)
- Dimensions
92 (3.62)
255 (10.04)
353 (13.90) 84 (3.31)
83.5 (3.29)
140 (5.51)
Unit: mm (inch)
- Compliance
Personal Information
This product is equipped with the function to produce moving image of the designated area and
its surrounding, but not equipped with the function to store or register such image.
Prior to the installation of this product, the compliance to local laws and regulations needs to be
confirmed by the user of this product for the lawful installation and use of this product, and
signage and notification when using this product. User of this product is deemed to be
responsible for the compliance of any laws and regulations relating to personal information,
privacy protection and rights of portrait upon use of this product. Image taken by this product is
required to be treated appropriately under the responsibility of the user of this product.
Installation of this product, producing image, monitoring, recording with camera and handling of
personal information or data shall all be performed under discretion and responsibility of user of
this product, and OPTEX shall not be held liable for any dispute between a user and a third party.
FCC notification
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
About distribution of source code for open source software
This product includes open source software（” OSS”） distributed under OSS License. In
compliance with the OSS Licenses such as GPL (GNU GENERAL PUBLIC LICENSE), LGPL
(GNU LESSERGENERAL PUBLIC LICENSE), and/or others included, we are making the source
code of the OSS available, at the actual cost, to our customer upon his/her request. The source
code corresponding to OSS included in this product will be provided in a prescribed manner for
at least than three(3) years after the date of purchase. Please note that the OSS is provided
without warranty of any kind.
- How to reset to the factory default
Follow the steps below to perform a factory reset (for example, forget the password).
The IP address, ID, password and camera settings are initialized.
1
3
Cable
Factory reset switch
Press for 5 seconds to reset.
Caution
Do not pinch the cables during assembly.
2
EU/UK contact information
https://navi.optex.net/cert/contact/
OPTEX CO., LTD. (JAPAN)
www.optex.net
OPTEX IN C./AMERICAS HQ (U.S.)
www.optexamerica.com
OPTEX (EURO PE) LTD./EMEA HQ (U.K.)
www.optex-europe.com
OPTEX SECURITY B.V.
(The Neth erlands)
www.optex-europe.com/nl
OPTEX SECUR ITY SAS (France)
www.optex-europe.com/fr
OPTEX SECUR ITY Sp. z o.o. (Poland)
www.optex-europe.com/pl
OPTEX PIN NACLE INDIA ,
PVT., LTD. (India)
www.optexpinnacle.com
OPTEX KOREA CO., LTD. (Korea)
www.optexkorea.com
OPTEX (DO NGGUAN) CO.,LTD.
SHANGHA I OFFICE (China)
www.optexchina.com
OPTEX (T hailand) CO., LTD. (Thailand)
www.optex.co.th
Copyrig ht (C) 2021-2022 OPTEX CO.,LTD.
4
Loading...
