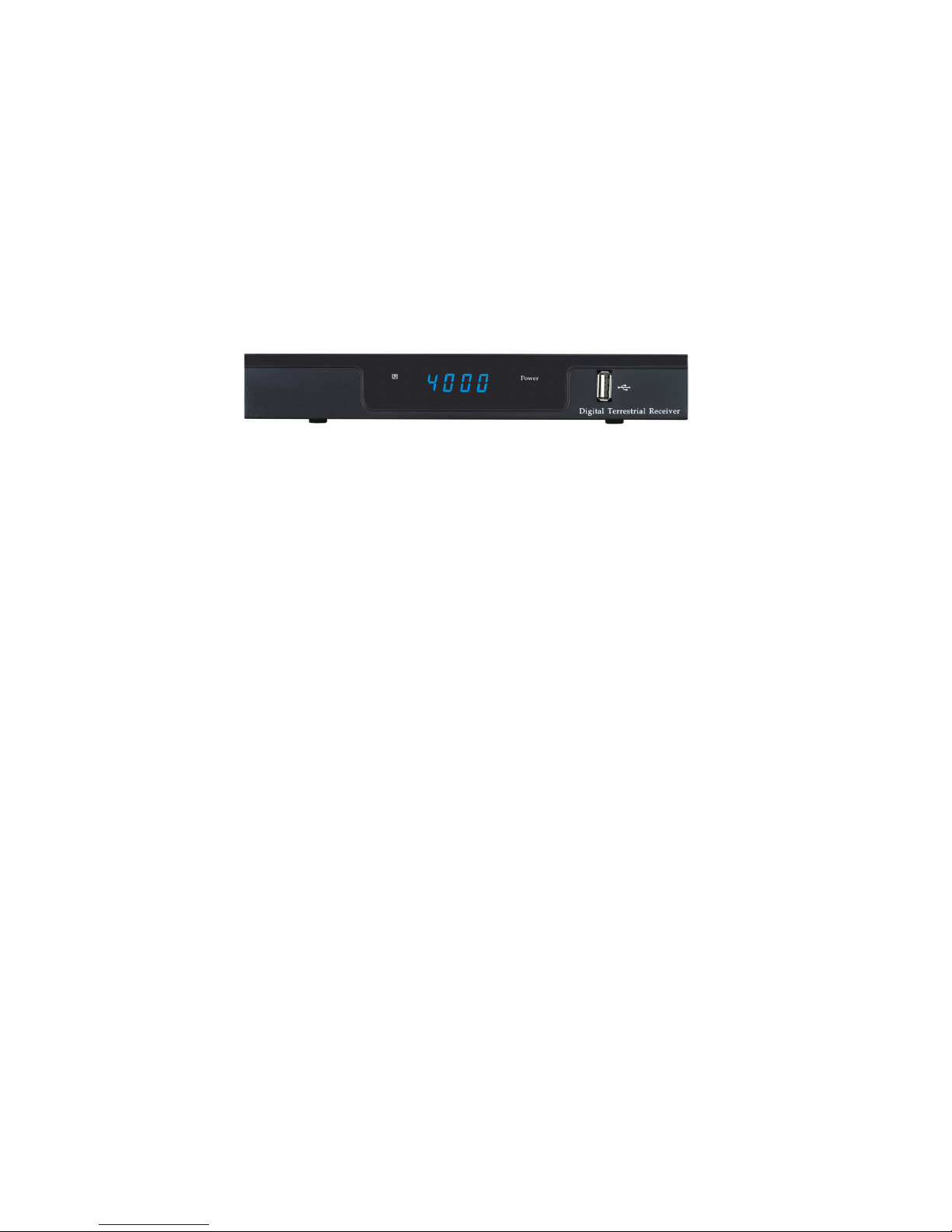

1
BTR-5030
Digital Terrestrial Receiver
User Manual
2
Table of contents
Safety Instructions.……………………………………………………………………3
General Introduction…………………………………………………………….……
5
Front Panel / Rear Panel………………………………………………………….....7
Remote Control Unit………………………………………………………….….……
8
S.T.B Connection………………………………………………………………........11
Main Menu…………………………………………………………………………....13
Digital TV Part................................................................................13
1. Installation………………………………………………………………….…......13
2. Channel Manager...……………………………………...……………………....15
3. Configuration…..………………………………………………….………….…..17
4. Software Upgrading……………………………………….……………………..20
5. Factory default………………………………………………………….….……..21
6. Version……………………………………………………………………………..21
USB PVR………………………………………………………………..22
PVR Instruction………………………………………………………………………23
USB Media Play Part……..……………..……………………………………..24
1. Movie………..……………………………………………………………………..24
2. Music…………..…………………………………………….………………….....24
3. Photo…..………………………..………………………………….……....……..25
Game…………….………………………………………………………………….26
Trouble Shooting…………………………………………………………………….26
Specification………………………………………………………..………………...27
3
Safety Instructions
This STB has been manufactured to satisfy the international safety standards.
Please read the following safety precautions carefully.
MAIN SUPPLY
AC 100/240V, 50/60Hz, 15W.
OVERLOADING
Do not overload a wall outlet, extension cord or adapter as this may result
in fire or electric shock.
Ensure that the power source (socket) is easily accessible.
LIQUIDS
This STB shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the STB.
CLEANING
Disconnect the STB from the main supply before cleaning. Do not use any
kind of solvents to clean the STB, only use a soft-dry cloth.
VENTILATION
The slots on top of the STB must be left uncovered to allow proper airflow to
the unit.
Ensure a minimum distance of 5cm around the apparatus for sufficient
ventilation.
Ensure that the ventilation is not impeded by covering the ventilation
openings with items such as newspapers, table-cloths, curtains, etc.
Do not stand the STB on soft furnishings or carpets.
Do not expose the STB to direct sunlight or do not place it near a heater.
Do not stack electronic equipments on top of the STB.
Do not place naked flame sources, such as lighted candles on the
apparatus.
ATTA CHM ENT S
Do not use any unrecompensed attachments as these may cause hazard
or damage to the STB.
4
Safety Instructions
CONNECTION TO THE CABLE
Disconnect the STB from the main supply before connecting or
disconnecting the cable.
FAILURE TO DO SO CAN DAMAGE THE BOX.
CONNECTION TO THE TV
Disconnect the STB from the main supply before connecting or
disconnecting the cable from TV.
FAILURE TO DO SO CAN DAMAGE THE TV.
LOCATION
Place the STB indoor in order not to expose to lightening , rain or Sunlight.
Use the apparatus only in moderate climates (not in tropical climates).
Battery handling
Batteries may contain toxic agents that are hazardous to the environment.
Therefore, dispose of the batteries immediately according to the prevailing
statutory regulations. Never throw the batteries in normal household waste.
5
General Introduction
INTRODUCTION
This manual will help you learn basic functions such as installation, selecting
channels and many other functions of the STB. All functions can be operated by
the remote control. You can easily install it by selecting ”Installation” function
and upgrade its software through communication cable.
The remote control is designed for easy access to all the functions at once and
for comfortable grab for your hand. It is programmed to control all functions and
to easily watch TV and Radio programs via the STB.
WARNING
Any problems can be caused by the use of unofficial software. The use of
software versions other than dealers or distributors official software will void the
manufacturer’s warranty. It is advised that only the formal software released
from dealers or distributors should be used.
6
General Introduction

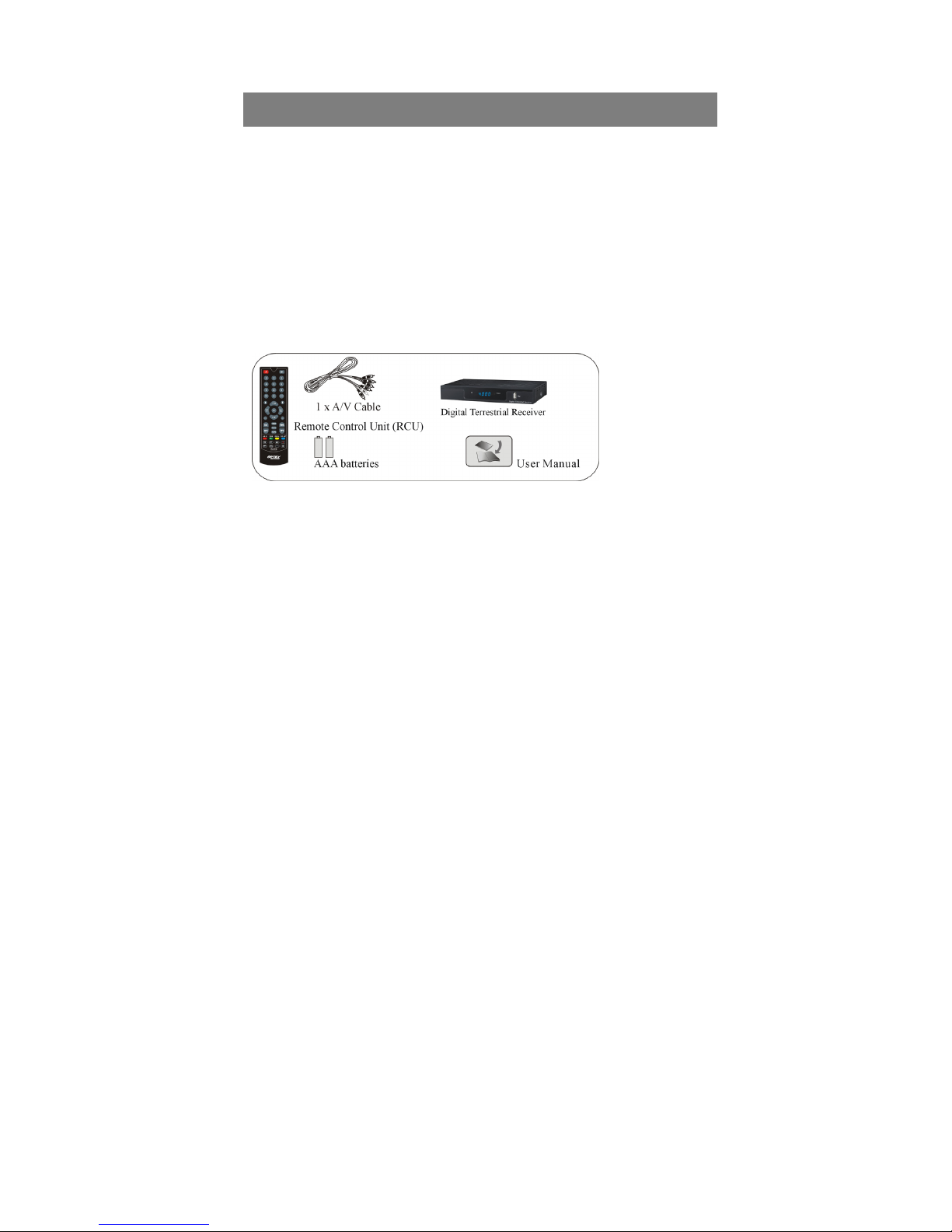

UNPACKING
Unpack the unit and check to make sure that all of the following
Items are included in the packaging.
1 x Remote Control Unit (RCU)
1 x User Manual
2 x AAA batteries
1 x Digital Terrestrial Receiver
We hope you enjoy using your digital Terrestrial receiver!
7

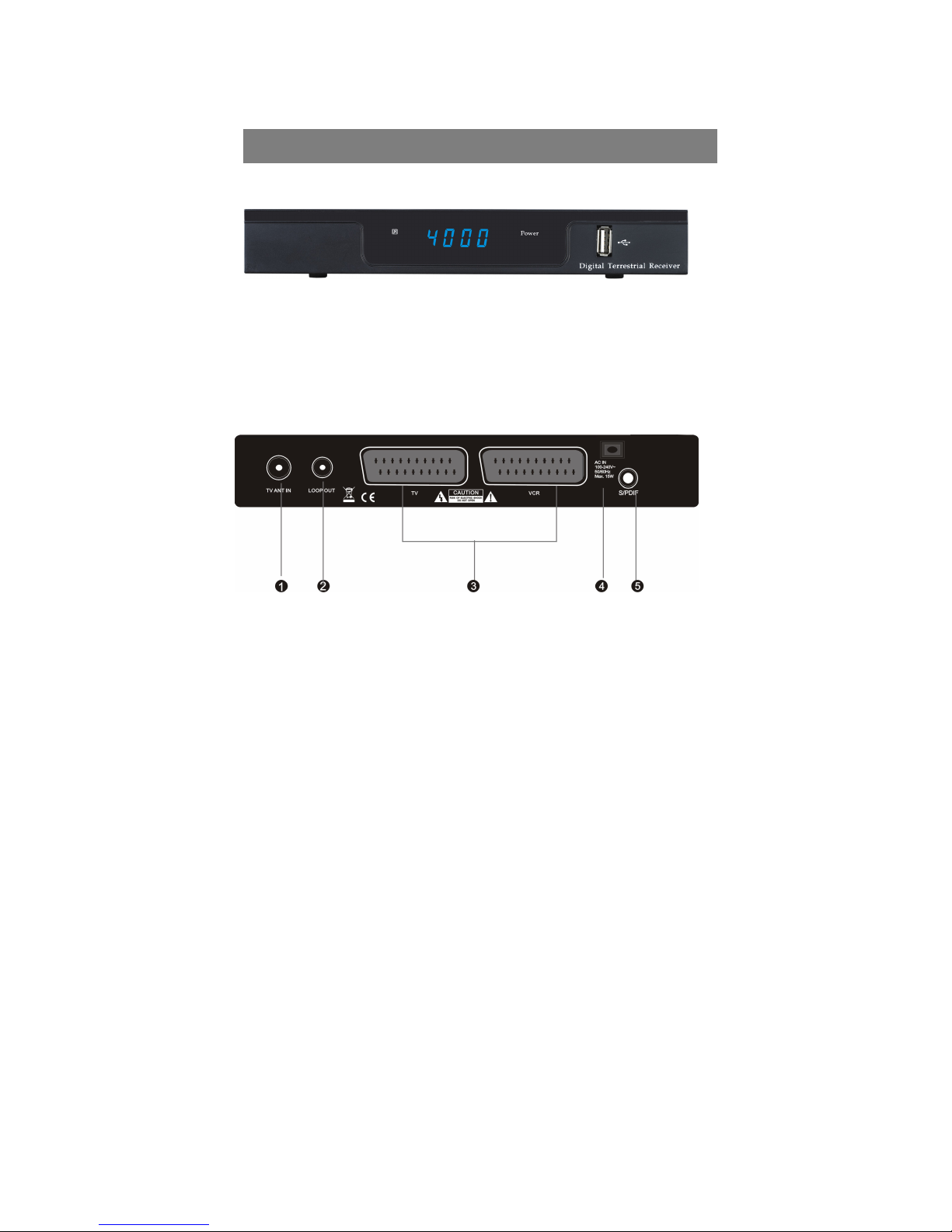

Front Panel/ Rear Panel
Front Panel
1. USB slot available both in front panel and rear panel!
Dimension:220 x 125x 32 (W x D x H )
Rear Panel
(1) TV ANT IN: Use to connect an antenna.
(2) LOOP OUT: Use it when connecting to another STB.
(3) TV/VCR SCART: For the Video/Audio input of the TV and VCR.
(4) Power Core: AC In
(5) SPDIF: SPDIF audio format output system.
8
Remote Control Unit
9
Remote Control Unit
1. STANDBY:
Switch between Operation and Standby mode
2. NUMBERIC BUTTONS：
Changes channels or selects the menu options.
3. FAV：
Enter into favorite list
4. PAGE UP
Press to jump one page up or ZOOM up while zoom is enabled
5. VOL (◄/►)
Turn up/down volume; Change the page of channel list.
6. OK:
Enter into the menu you choose or select the current option
7. MENU:
Turn to the main menu or return to upper menu.
8. CH (▲/▼):
Change channels or items from top to bottom on the menu.
9. TXT:
View the Teletext information of the current channel.
10. EPG:
Electronic Program Guide button displays the TV/Radio program guide
broadcasting by the TV provider.
11. TV/AV:
Press to switch between TV and AV mode.
12. AUDIO:
Change audio mode to left right and stereo.
13. BACKWARD:
Speed back while USB Media playing
14. ZOOM:
Press to Zoom-in and Zoom-out picture
15. FORMER:
Turn to the former file while USB Media playing
16. FORWARD:
Speed up while USB Media playing.
17. NEXT
Turn to next file while USB Media playing
18. MUTE:
Turn off volume
19. PAUSE:
Pause to freeze the screen while watching TV
20. PAGE DOWN:
Press to jump next page or ZOOM down while zoom is enabled
21. EXIT:
Return to upper menu
10
Remote Control Unit
22. TIMER:
Enter into Wake-up timer menu
23. SUBTL
To display the Subtitle information
24. INFO:
Display information of programs; show help information of Buttons in
current menu.
25. TV/RADIO
Switch between TV and Radio mode.
26. PVR LIST:
Press to show recorded file list
27. RECALL:
Press to jump to previous channel.
28. REC:
Start recording
29. STOP:
Press to stop file playing, and back to menu
30. PLAY:
Press to play USB Media, such as Movie; Music; Photo
31. SLOW
Slower movie playing speed while playing USB movie
11
S.T.B Connection
Various equipment and TV/VCR can be connected to STB.
This manual will explain common ways to connect to the equipment.
If you experience any problem, please contact your sales agency.
1. How to connect the STB to a TV set
(1) Connect one end of the SCART cable to the TV SCART socket on the back
of the STB and the other end to the SCART input socket on your TV.
(2) Connect the Antenna cable to TV ANT IN collector of the STB.
12
S.T.B Connection
2. How to connect the Audio system
Connect the AUDIO R/L socket of the STB to the Audio System like HI-FI,
Amplifier, etc.
Audio System must capable of stereo audio ability.
③If Digital Audio or S/PDIF Optical output are available on STB, you can get
better stereo experience.
13
Main Menu
Plug in the STB, the Main Menu screen, the beginning of the OSD screen,
will appear as shown in the following picture. The Main Menu displays various
functions of the STB or you can select with “CH” buttons and the numeric
buttons on the remote control. To proceed to the next stage, press the “OK”
button on the remote control.
DIGITAL TV
Plug in the STB, and power on, there are foreign languages for your choice,
choose the one you prefer. Then, press “Menu” on the remote control to get
started.
To get start the STB, please go to
installation menu by pressing “Menu”
button on the remote control (default lock
code: 0000). The installation menu allows
you to set and various functions, and
customizes service. Use the ”CH” buttons
on the remote control to select an option
and press the ”OK” button to proceed to
enter. To move backwards to the previous
stage, press the ”Exit” or ”Menu” button.
1. Installation
Your STB can be easily installed by using “Installation” Menu.
Selecting the mode you like from Area search; Manual search; Auto search
1.1 Area Search
Area search is a kind of intelligent
and convenient mode of programs
searching which covers programs of all
frequent points of target countries or
regions.
At present, this system covers many
targets countries and regions including:
Germany/England/Italy/France/Spain/Holl
and/Taiwan/China/Norway/Swead/Finlan
d etc.
14
Main Menu
1.2 Manual Search
If you are familiar about digital TV and know the frequency of the program
or if you want to scan the program at any frequency required, you can select
manual scanning, which can save your much time.
1) You can move the cursor to “area search” via press “UP/DOWN” key under
“installation menu”, then press “enter” to enter into area searching page.
2) Prior manual scanning, you need to
configure relevant parameters
including:
1. Freq (KHz): the default
frequency is 474000KHz,you
can input relevant digitals to
modify it.;
2. Bandwidth: the default value of
bandwidth is 64MHz.while you
can set it to 6MHz, 7MHz, and
8MHz;
3. Press “ENTER” key after configuration of parameters to start manual
scan.
3) If any program is detected and the scanning process is finished, system
will exit the scanning page and save the program.
1.3 Auto Search
You can search the programs of any
channel.
1) You can move the cursor to “area
search” via press “UP/DOWN” key
under “installation menu”, then
press “enter” to enter into area
searching page
2) Prior to auto searching, you need to
configure relevant parameters
including:
1. Start Freq (KHz): the default frequency is 474000KHz. You can input
relevant details to modify it;
2. End Frequency (KHz): the default frequency is 474000KHz. You can
input relevant details to modify it;
3) Press “ENTER” key after configuration of parameters to start manual scan.
15
Main Menu
4) If any program is detected and the scanning process is finished, system
will exit the scanning page and save the program.

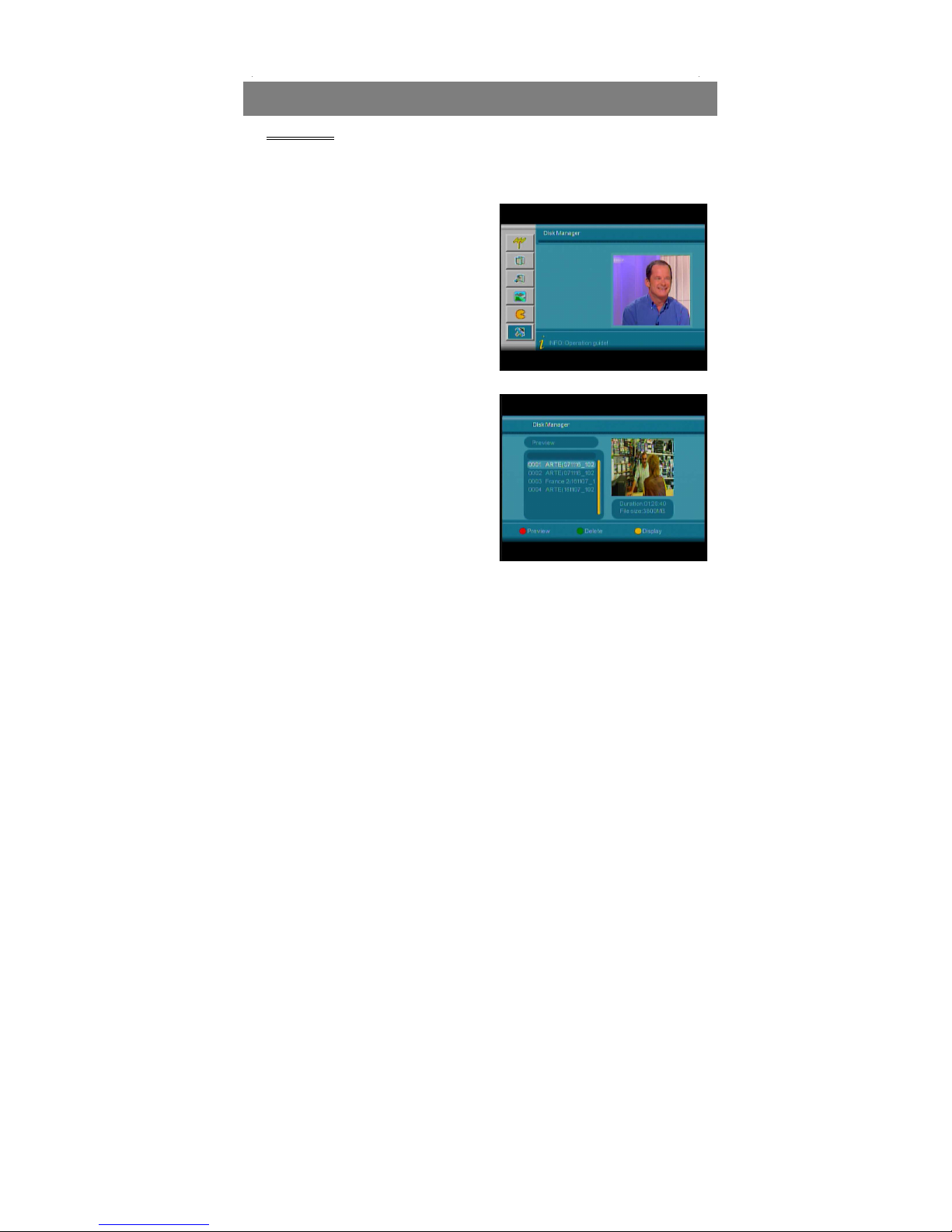

2. Channel Manager
System offers an efficient function of
channel management such as channel
deleting, marking, moving, locking,
sorting and grouping.
2.1 Channel Organize
Channel organizer page includes favorite
channels, channel deleting, moving, locking and rename.
.
1) Channel Organizer menu includes:
Favorite Channel; Delete Channel;
Skip Channel; Lock Channel,
Rename Channel
1. Press INFO button to show
function guide to related button
of RCU
2. Press RED button to set and
cancel Favorite Channel
3. Press GREEN button to set or
cancel Delete Channel,
4. Press YELLOW button to set or
cancel Skip Channel,
5. Press BLUE button to set or cancel Lock Channel (Default Password:
0000)
6. Press RIGHT button to rename channel.
2.2 Channel Sorting
Channel Sorting enable the channels
be listed according to certain sequence
so that the user can easily find them.
1) Before sorting, the type of sorting
shall be set, including the following
items:
1. First Option: choose the
16
Main Menu
programs to be sorted via the selection area;
2. Second Option: Press FTA (free of charge), Scramble (encrypted),
ALL Free and Encrypted Channels;
3. Third Option: According to alphabetic order A-Z, or Z-A;

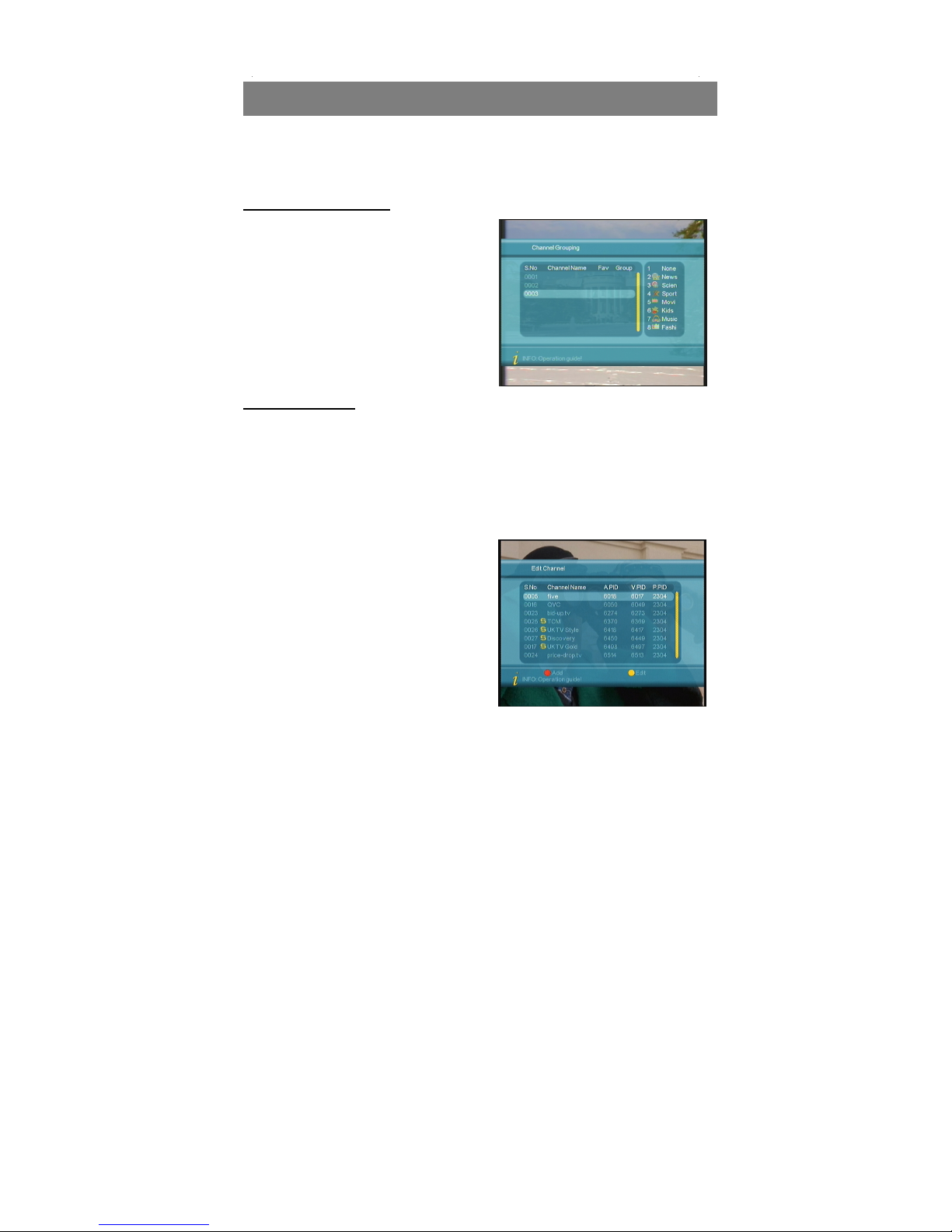

2.3 Channel Grouping
Channel Grouping enable you to set
the different channels into different
category like Movies, Sport, Music, Kids,
and Fashion etc.
1) Press UP/DOWN key to choose the
line where the channel to be
grouped is in, then press the number
keys 1-8 on the remote controller to
set different channel grouping.
2.4 Edit Channel
This function enables you to do such operations as Add, Delete and
Rename to channels.
1) Press the RED button to enter Add Channel menu.
2) Under Add Channel menu, there are 6 parameters for adding one channel
as follows:
1. Area Name: For Area Name,
press the RIGHT button to
enter the Area Name list on the
right, then press UP/DOWN
button to choose area name,
ENTER button to confirm.
2. Carrier: Press LEFT/RIGHT
button to choose;
3. Channel Name: Press
LEFT/RIGHT button to enter
Rename Channel menu.;
4. Audio PID, Video PID, PCR
PID, Press 0-9 number key to revise values;
5. Press ENTER key to confirm the adding, the system will hint with
“Update succeeds” and return to Edit Channel menu;
6. Press RETURN key to return to Edit Channel page.
17
Main Menu
3) Press the YELLOW button to enter Edit Channel menu. The operation for
this menu is as same as for Add Channel function
2.5 Delete All
If you do not like all of the TV or Radio channels, you can enter Delete All
menu to choose to delete all TV, RADIO, and Carriers.
1) To delete all TV channels, press
UP/DOWN button to move the
cursor to ALL TV Channels option,
press ENTER key to delete.
2) To delete all RADIO channel, press
UP/DOWN button move the cursor
to ALL Radio Channels option, press
ENTER key, to delete.

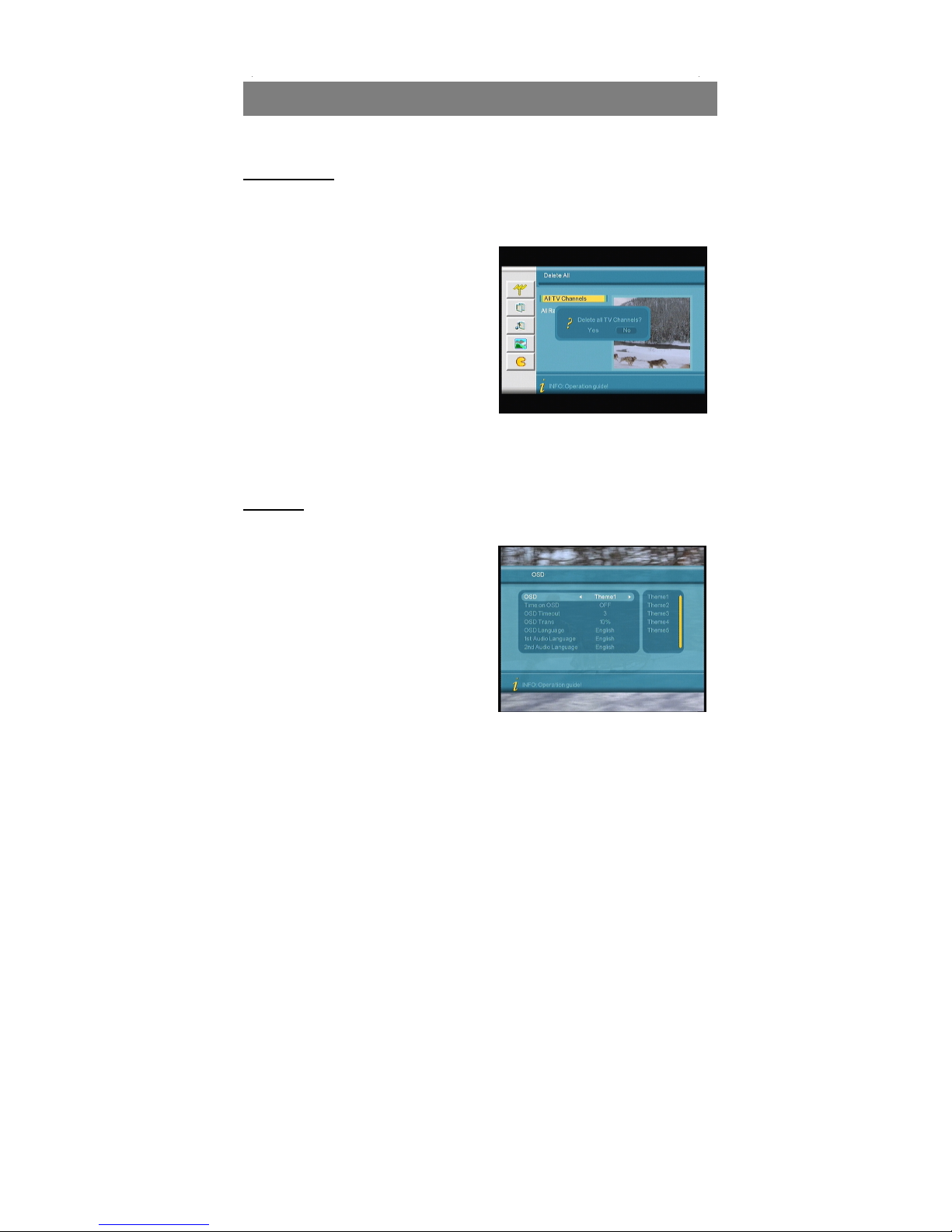

3. Configuration
Configuration provides individualized system setup function; you can
configure the system according to your own hobby and demand.
3.1 OSD
Via OSD menu, you can set the user interface display mode according to your
own demand
1) All options are listed on the left of
the OSD menu.
1. OSD: Select different theme
style of OSD looking.
2. Time: Select whether to display
system time.
3. OSD Timeout: Select
information hint dialogue box
and displays showing time
period.
4. OSD Trans: Select menu
transparency between 0%-60%.
5. OSD languages: Select different languages for different user.
18
Main Menu
6. 1
st
; 2nd Audio Language: Select the desired audio languages (This
function is valid only when the broadcasting program contains the
multi audio service)
3.2 TV
TV menu provides convenient TV input mode in variety.
1) All options are listed on the left of the TV menu
1. Display Mode
TV mode can change the mode of the output video, you can adjust TV
mode according to the actual situation of you receiving equipment.
2. Aspect Ratio
Video output mode can change
the mode of video output, you
can adjust TV mode according
to the actual situation of you
receiving equipment.
3. Video Output
Video Output mode can change
the mode of video output,
CVBS, RGB, YUV, S-Video you
can adjust TV mode according
to the actual situation of you
receiving equipment.
4. Brightness
If the Brightness is not proper during watching, you can adjust the
current brightness to be a proper one.
5. Contrast
If the Contrast is not proper during watching, you can adjust the
current contrast to be a proper one.
6. HUE
If the HUE is not proper during watching, you can adjust the current
HUE to be a proper one.
7. Saturation
Adjust system saturation.
3.3 System Setup
System Setup menu provide different
useful functions for your to use.
1. EQ setting: To select different
Sound Effect, Standard, Classic,
Rock, Jazz, POP;
19
Main Menu
default: Standard
2. Surround: To set Stage Effect OFF, Concert, Church, Passive, Live;
Default: OFF
3. Active Antenna: To set 5V voltage output to Terrestrial Antenna
4. JPEG Effect: To set different fading in effect for viewing Photo over
USB device
5. LCN: To set LCN function on (Logical Channel Number)
6. Area: To set the country for LCN function

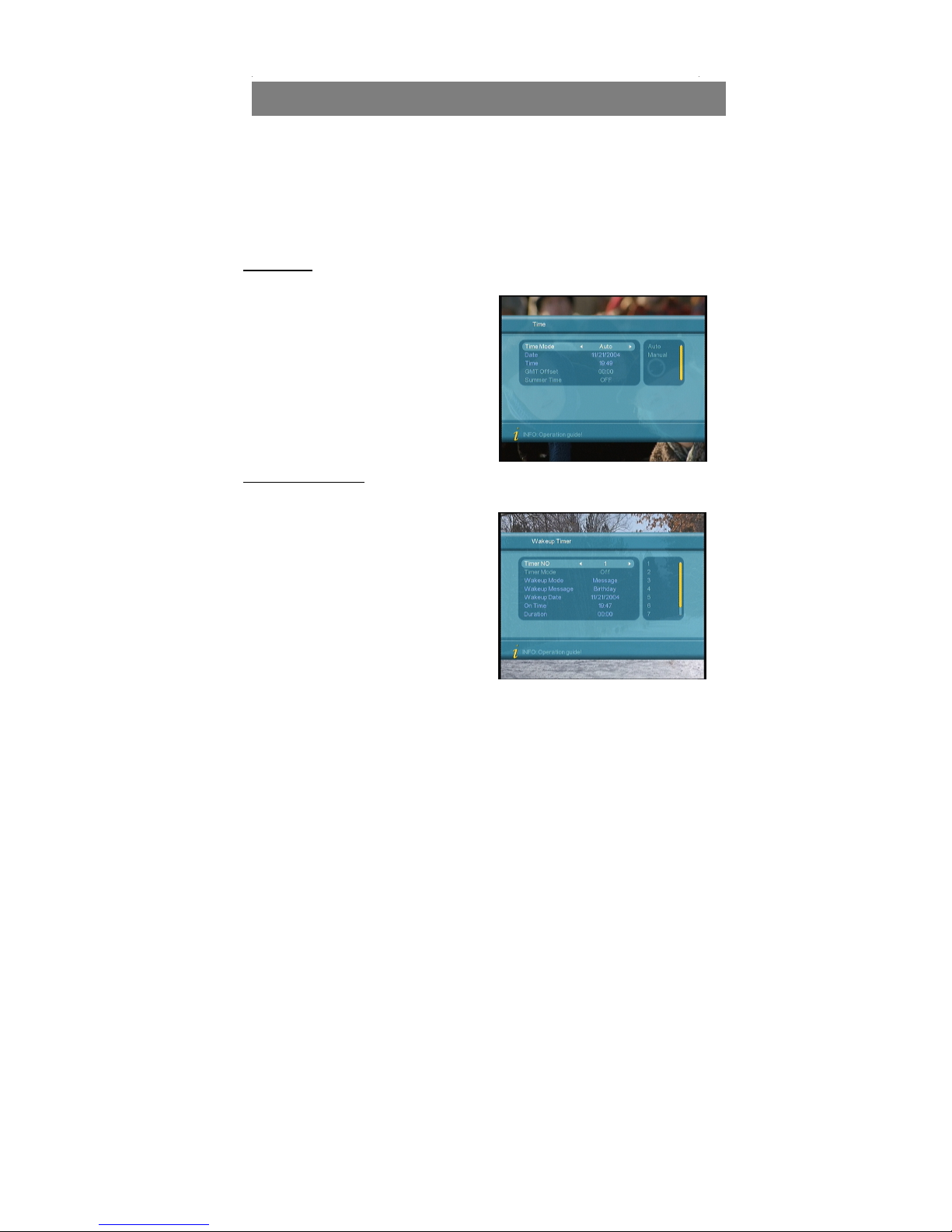

3.4 Time
Set the Time mode and GMT time etc.
in this menu
1. Time Mode: To Select AUTO or
MANUAL setting of time
2. Date: To set the calendar date
3. Time: To set the correct time
4. GMT Offset: To set the GMT
time zone
5. Summer Time: To select ON or
OFF for Summer time
3.5 Wakeup Timer
If you want to set channel playing at
certain time or giving some hint
information such as Birthday. You can set
via Wakeup Timer menu.
1. Timer Number: To select the
number of each timer, there are
total 8 event timer available.
2. Timer Mode: To set the timer in
different mode, such as OFF;
Once; Daily; Weekly; Yearly.
3. Wakeup Mode: To set Wakeup
Mode option as: OFF; Message; Channel and ON.
4. Wakeup Message: To set Wakeup message as: Birthday, Anniversary,
General. A greeting message will appear on Screen.
5. Wakeup Date: To set the Wakeup date.
6. On Time: To set the Wakeup time.
7. Duration: To set the duration time of selected channel you want to
watch.
20
Main Menu

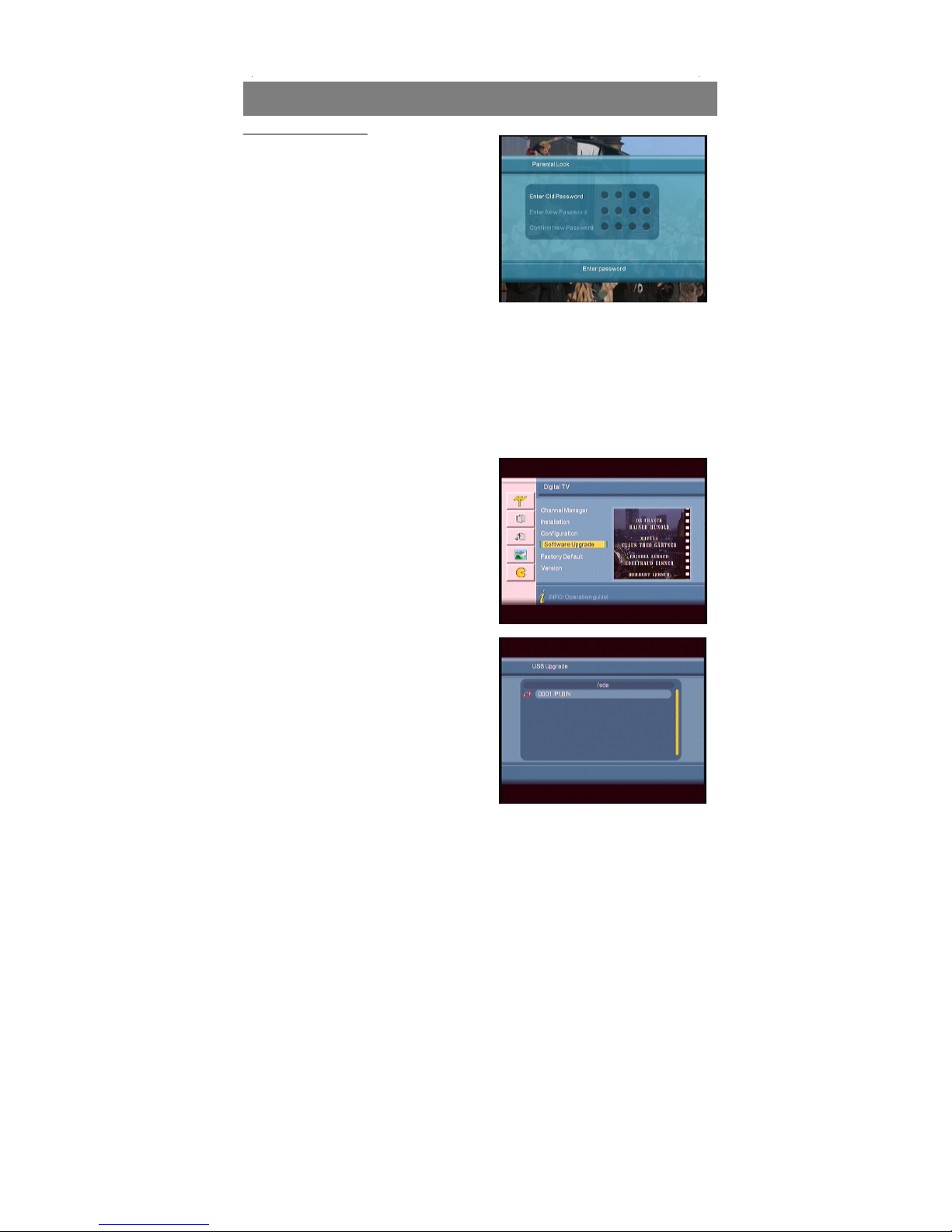

3.6 Parental Lock
To prevent the unauthorized
Accessing of your STB, you can set the
Parental control password to you receiver.
(Default password: 0000)
1. Press the number key 0-9 on
the RCU to input Old password.
2. If the password is input correctly,
the cursor can move onto Input
New password option, press number key 0-9 to input new 4-digit
password;
3. The cursor move Confirm New Password option, press number key
0-9 again to confirm the new password
4. Software Upgrade
This STB provide you an easy way
for updating the STB software through
USB stick.
Contact your dealer if there is new
software for your STB available, then you
can update it easily with your USB stick
through the USB input of this STB.
1. Copy the bin code file (such as
p1.bin) from PC to your USB
device, such as USB stick.
2. Power on the STB, plug in the
USB disk properly.
3. Enter the main menu and select
the Software Upgrade item.
4. Select Download from USB
item, Select the USB device,

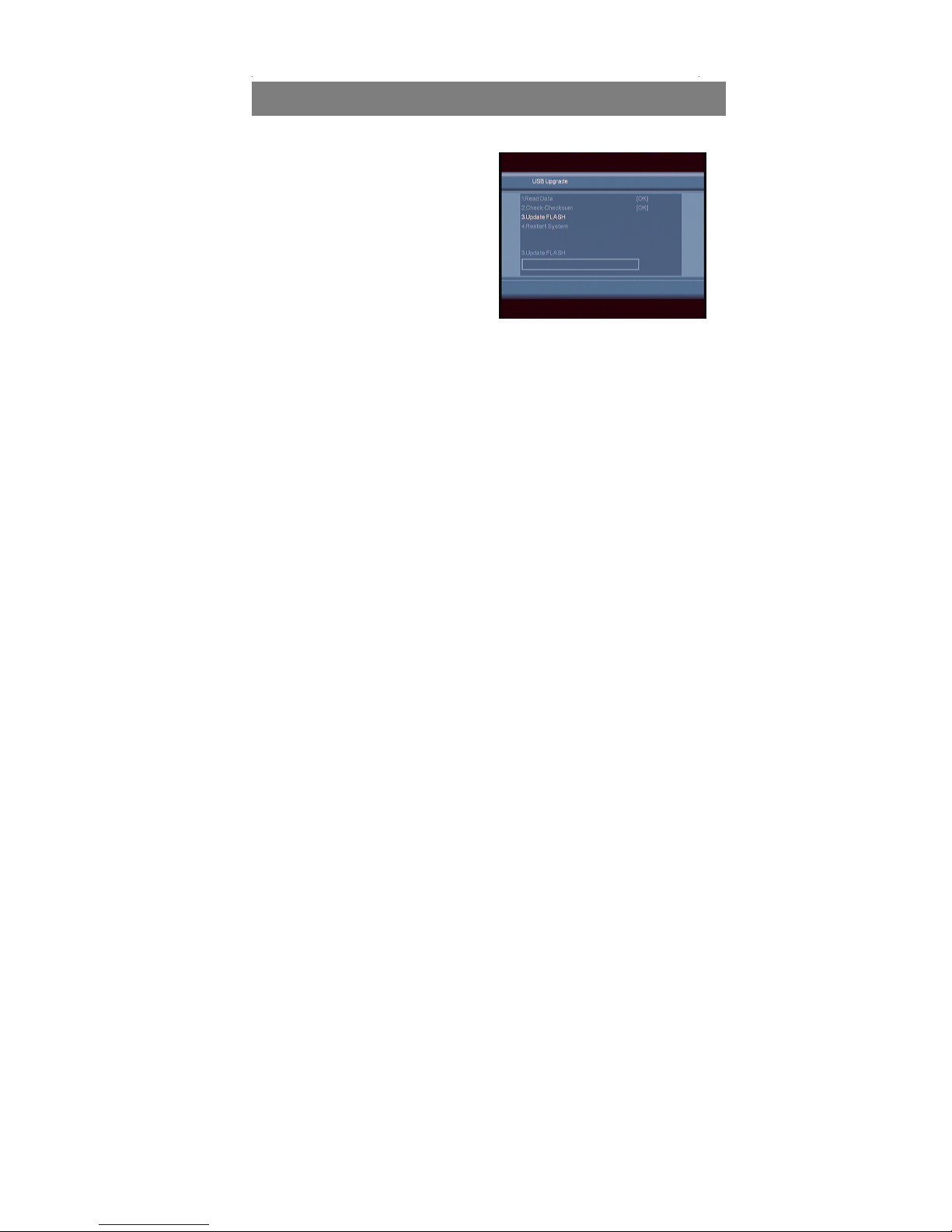

21
Main Menu
such as 0001 /sda.
5. Select the bin code file, which
you want to be upgraded, such
as p1.bin.
6. STB will upgrade by itself, but
remember that, do not power
off.
7. After being upgraded, system
will restart itself, you will see the
new software interface.
5. Factory Default
The factory default enable you re-set your STB as factory settings mode.
WARNING: You will loss all the settings and channels which you have already
tuned.
6. Version
The version information provides you current hardware and software
information of your STB.
22
Main Menu
USB PVR
This STB provide you a powerful RECORDING function, which enable you
to record the favorite TV program to your portable HDD (Hard Drive Disk)
1. Recording
Plug you HDD to STB, and press REC
button on RCU, the recording will begin,
press STOP button to stop at anytime you
like.
2. Disk Preview
In this menu, you will see all the recorded
files in a list, and preview it before you
would like to watch in full screen, also it
enables you to delete these video you do
not like.
3. Recorded Video Playback
Go to MOVIE menu and a PVR folder will
automatically created, and in side this
folder, you will have all recorded video,
and press OK button to play.
ATTENTION: Due to PVR function are more technical required, so pls
read the following PVR instruction carefully to make sure you have correct
operation of RECORDING !!!!
23
Main Menu
PVR INSTRUCTION
Supported Device:
1) Most of popular USB2.0 Hard Drive Disk can be supported by our STB,
however due to there are too many types of HDD available in the market, if
you find one particular HDD can not work with our STB, please kindly
provide it to us, and we will be happy to solve it for you in shortest time.
2) System required: FAT32
3) Speed required: 5400rpm
Instructions to TV program
1) Any SD TV program (Standard Definition) with a bit rate lower then 6Mbps
can be recorded by this STB.
2) During recording, EPG; TXT; Multi AUDIO functions can not be operated.
3) Recorded TV program will not support EPG: TXT: Multi AUDIO.
Recording Capacity
1) Our STB can support up to 4 partition of one HDD, and theoretically each
partition can allow up to 2TByte (2,000Gb), however, we suggest to use
one HDD with each partition not bigger than 120Gb
2) Each recorded video file will not bigger than 3.8Gb (Approx 4 hours), the
STB will automatically create new video file to continue recording your TV
program if the recorded video file is bigger than 3.8Gb.
How to choose and set different partition from my HDD ?
Usually there are several partition available in HDD, and our STB can
allow you to choose different partition for recording purpose, press
PREV/NEXT button on RCU, a hidden menu of Device List will pop-up, it
lists all partitions your HDD has, choose the one you want, and press OK
button to save. Then the recorded video file will be stored into this
partition.
WARNING
USB1.1 or USB2.0 Key or Stick (Including MP3 player)
1) We strongly suggest not to record any TV program by USB Key or Stick,
because a huge of different USB Key or Stick are indeed available in the
market with different quality level, we do not guarantee any damage of your
USB Key or Stick from the attempting recording.
2) Do not remove your USB device from STB while it is in use of
any USB multimedia function.
24
Main Menu
USB MEDIA PLAY
This STB integrates powerful function
to support USB features and you can
connect USB equipments via the USB
input to play movies, MP3, and viewing
pictures, At present, system can support
usual USB media players.
Video supporting format: dat / mpg / vob /
avi
Audio supporting format: LPCM/PCM /
WAV / MP3
Picture supporting format; JPEG/JPG
1. Copy media documents to USB device.
2. Plug in USB device;
3. Enter device in main menu.

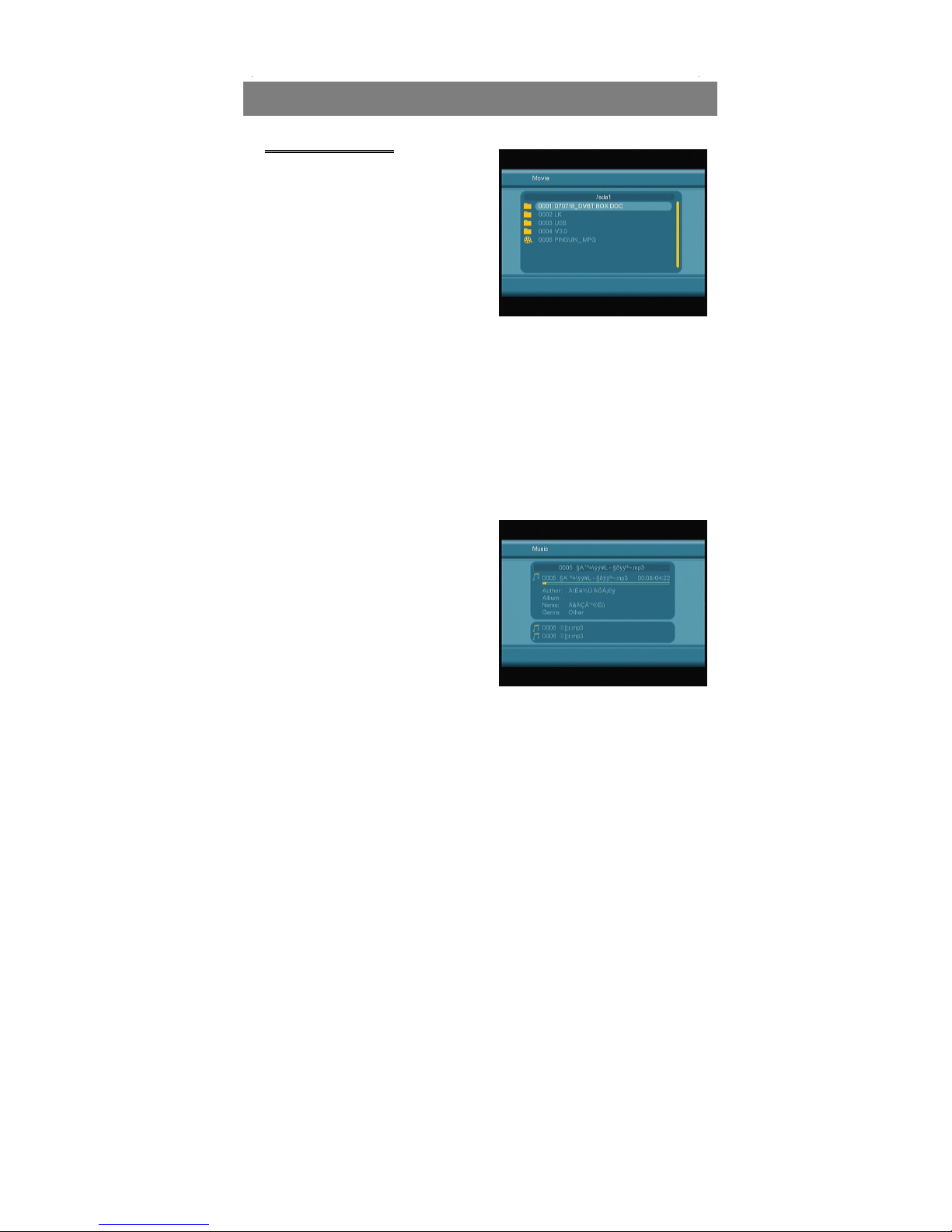

1. Movie
1 In main menu, press UP/DOWN to choose Movie option, Press
ENTER key to confirm.
1. Press ENTER key to enter next
directory, every directory
displays only movie file and
folders only
2. Press PLAY button to start to
play the movie
2. Music
1. In main menu, press UP/DOWN
to choose Music option, to choose ENTER key to confirm
2. Press ENTER key to enter next directory, every directory can show
music file and folder name only:
3. Press PLAY button to start to play the mp3 music.

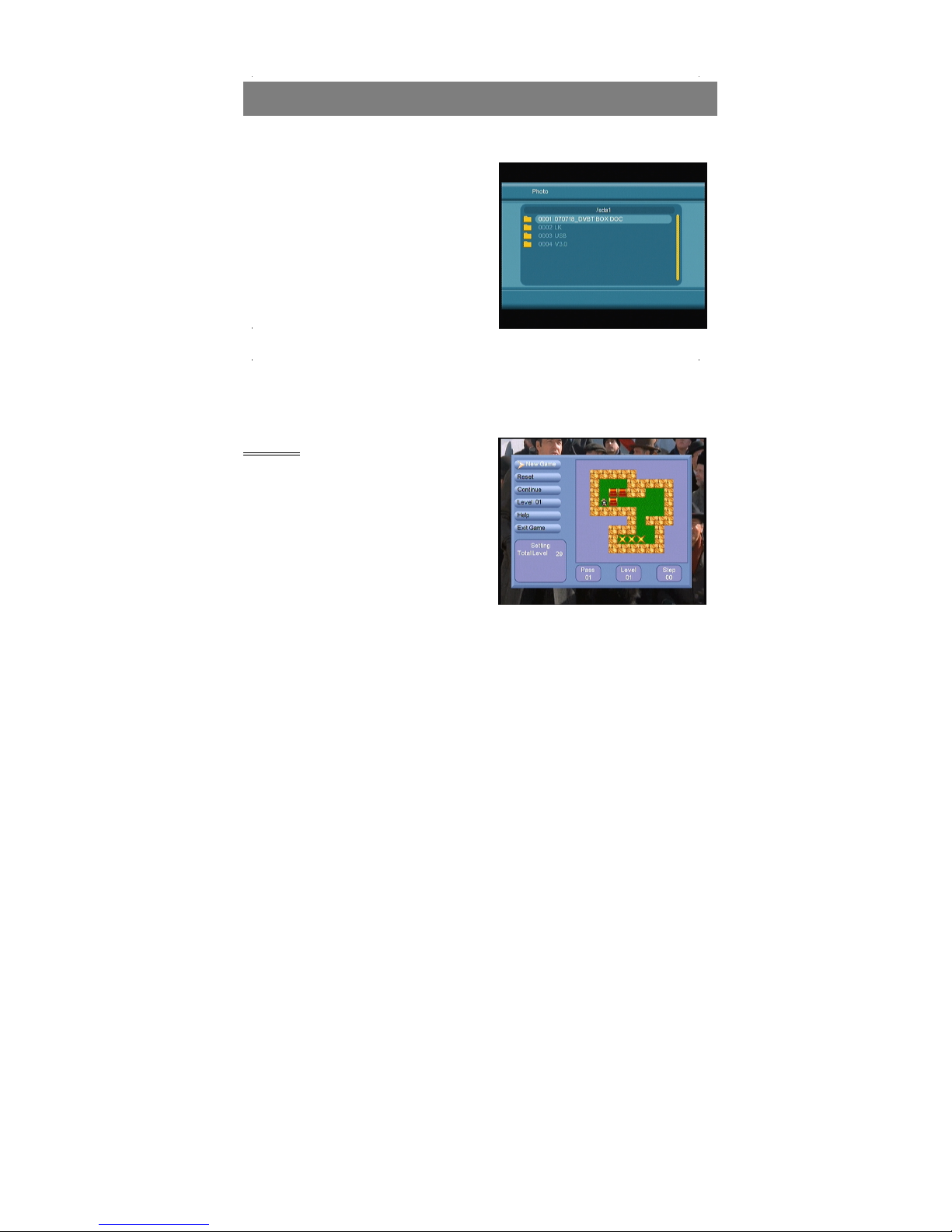

3. Photo
25
Main Menu
1. In main menu, press UP/DOWN to choose Photo option, press
ENTER key to confirm.
2. Press ENTER key to enter next
directory, every directory can
show photo file and folder
name
3 Press ENTER key to play Photo
file;
4 Press PREV key to play
previous Photo, NEXT key to
play next Photo.
5 In full-screen play state:
(1). Press Left, Right key to rotate the photo
clockwise/counterclockwise by 90 degrees;
(2). Press UP key to view lens photo vertically;
(3). Press DOWN key to view lend photo horizontally.
GAMES
If you want to have a rest or to relieve
yourself after hard working, you can play
some games attached in the system.
1 Box Man
Use your brain and push the
box into the right place
2. Tetris
The classic game of all time, Tetris is one of most highly playable
game.
3. Hit Rat
A new funny game for your play
26
Troubleshooting
When you found some problems about this STB, please check the table in
below. Because these may not be any serious problems:
Fault Phenomenon Probably reasons Resolve
Power on, but no
display on screen
Please carefully check the
power plug, to see it is in
socket of wall or not? Is
power interrupted?
Put firmly the
power plug to the
socket on
the wall.
Power on this STB,
then that screen
displays
”No signal”
Is the aerial install correct? Reinstall the aerial
and calibrate it
Antenna cable input is not
connect
Connect the
antenna cable
input
The transmit station turns
off
Attempt until the
signal coming
again
The sky wave disturbs the
device
Attempt again later
The program setups are
incorrect
Set the proper
parameters of
received program
in the system
settings menu
STB plays a
strange sound
Due to the channel contain
more audio tracks or audio
languages
User can use the
“Audio” button on
the RCU to select
the correct audio
track or audio
languages
Tips: If you refer to this troubleshooting, but no resolve that problem you
encountered. Please contact the local dealer or technical support instantly,
do not open the machine, because that is very dangerous to you or to the
machine in that cases.
27
Specification
1. Tuner Demodulator
Input Frequency Range 51MHz ~ 858 MHz
Input Level 32dBm
Input socket IEC 169-24 Female XI
Output socket IEC 169-24, 5V75mA Max
2. Demodulator
Coding COFDM
Mode 2K or 8K
Code rate 1/2,2/3,3/4,5/6,7/8
Guard 1/4,1/8,1/6,1/32
3. Video decoder
Profile Lever MPEG-2 MP@ML
Bit rate Max 15Mbps
Aspect Ratio 4:3, 16:9, Auto
Output PAL/NTSC
Video Resolution 720 x 576(PAL), 720 x 480
(NTSC)
4. Audio decoder
Decoding MPEG-2&1 Layer 2&1
Mode Mono, Dual, Stereo, Joint stereo
Bit rate Max 384kbps
5. USB 2.0
Supported Video
dat/mpg/vob/avi
Supported Audio LPCM/PCM/WAV/MP3/MPEG1/2
LAYER1/2/3
Supported Pictures JPEG/JPG
6. General
Input Voltage 100-240V~, 50/60Hz.
Power Consumption Max.15W
Operating Temperature 0℃ - 40℃
Storage Temperature -40℃- 65℃
Loading...
