Optex AX-130TN, AX-70TN Specsheet

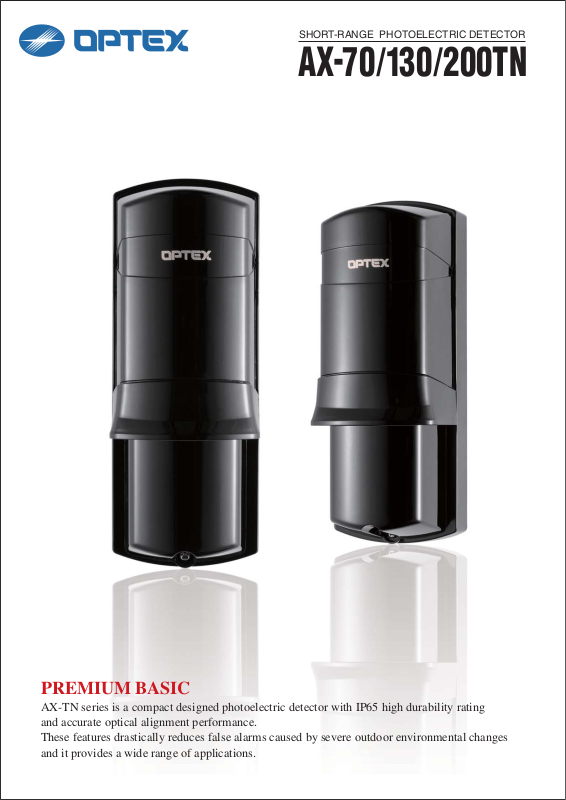

SHORT-RANGE PHOTOELECTRIC DETECTOR
AX-70/130/200TN
PREMIUM BASIC
AX-TN series is a compact designed photoelectric detector with IP65 high durability rating
and accurate optical alignment performance.
These features drastically reduces false alarms caused by severe outdoor environmental changes
and it provides a wide range of applications.
FEATURES
□ IP65 structure with high sealing rubber packing
Rubber packing is used for all conceivable points where water or dust may penetrate,
such as wiring holes, wire ports and the outer chassis. Prevention from dust, bugs and
water delivers performance with higher reliability against false alarms and breakdowns.
IP65
Waterproof.
Rubber packing
Wiring hole
Protected against water jets from
any direction
Dust-tight.
No ingress of dust.
International Protection Code.
It shows the degress of protection
provided by enclosures.
□ Lightning protection
An improved Electro-Magnetic Interference surge absorber and high surge resistive relay
has been installed to protect from lightning surges and maintain stable operation.
Conventional
Detector
Will remain stable against over
14kV of lightning surge.
□ Anti-frost hood cover
A hood is installed to prevent frost forming on lower
beams. It also makes the maintenance easy because the
surface of cover is flat.
□ Easy angle adjustment
It allows the installer to finely adjust the beam easily.
□ High grade spherical lens
The high grade spherical lens creates more sharply
defined and precise infrared beams compared to ordinary
fresnel lenses.
□ 99% beam blocking stability
Enables stable operation with as much as 99% loss of beam
energy caused by heavy rain, dust storms, fog or snow.
□ A.G.C. (Automatic Gain Control) Circuit
A.G.C. circuit continually monitors for gradual changes in
the signal's strength caused by changing weather
conditions. It adjusts the sensitivity accordingly to
maintain the proper signal level for the current
environmental conditions.
AX Series
2 4 6 8 10 12 140
Lightning Surge Voltage Level
(kV)
□ Adjustable beam interruption period
The beam interruption time can be adjusted to fit any
application. For example, when protecting a wall or fence,
a longer interruption time will catch intruders.
SPECIFICATIONS
Model
Maximum detection range
Maximum arrival distance
Detection method
Interruption period
Power supply
Current consumption
(
Transmitter+ Receiver
)
Alarm period
Alarm output
Tamper switch
Operating temperature
Environment humidity
Alignment angle
Location of installation
(
Transmitter+ Receiver
Weight
*Specifications and design are subject to change without prior notice.
NOTE: These units are designed to detect an intruder and activate an alarm control panel. Being only a part of a complete system, we cannot accept responsibility for any damages or
other consequences resulting from an intrusion. These products conform to the EMC Directive 89/336 ECC.
)
AX-70TN AX-130TN AX-200TN
20m (70ft
200m (700ft
)
)
40m (130ft
400m (1300ft
)
)
60m (200ft
600m (2000ft
Infrared beam interruption detection
Selectable between 50, 100, 250, 500msec (four steps
10.5
-
28V DC
)
38mA max. 41mA max. 45mA max.
2sec (±1) Nominal
N.C. 28V DC, 0.2A max.
N.C.; open when cover is removed 28V DC, 0.2A max.
-35°C
-
+60°C (-31°F - +140°F
)
95% max.
± 90° Horizontal, ± 5° Vertical
Indoor / Outdoor : Wall / Pole Mounting
650g (22.9oz)
)
)
DIMENSIONS OPTIONS
(
min.∅32
∅1.3
)
- max.∅48
)
1.4
(
36
(
)
∅1.9
■ HU-3 : Heating Unit
Heating unit for severe low
temperature conditions
24V DC/AC, 420mA max.
■ BC-3 : Back Cover
)
6.7
(
170
)
3.3
(
83.5
Back cover to conceal the pole.
■ PSC-3 : Pole Side Cover
Cover for installing
2 units to 1 pole.
65 (2.6
)
69.5 (2.7
)
mm (inches
)
OPTEX CO., LTD.
(
ISO 9001 Certified by LRQA / ISO14001 Certified by JET
5-8-12 Ogoto, Otsu, Shiga, 520-0101 Japan
TEL +81(0)77 579 8670 FAX +81(0)77 579 8190
OPTEX INCORPORATED (USA
OPTEX (EUROPE) LTD. (UK
(
ISO9001 Certified by NQA
OPTEX SECURITY SAS (FRANCE
OPTEX KOREA CO., LTD. (KOREA
OPTEX SECURITY Sp. z o.o. (POLAND
“Take Care of the Environment” This catalogue uses recycled paper
)
)
)
)
http://www.optex.co.jp
http://www.optexamerica.com
http://www.optexeurope.com
)
http://www.optex-security.com
)
http://www.optexkorea.com
)
No. 75105-00-14931-0608
