Ops-Core FAST SF Operating Manual
For FAST® SF Ballistic and Non-Ballistic Helmet Systems
This product is covered by one or more patents.
For more information visit www.gentexcorp.com/patents
© OPS-CORE 2017 UM-1034 REV. A
SF
HELMET SYSTEMS
OPERATOR’S MANUAL
TABLE OF CONTENTS
Introduction
Helmet System Components
Sizing Guide

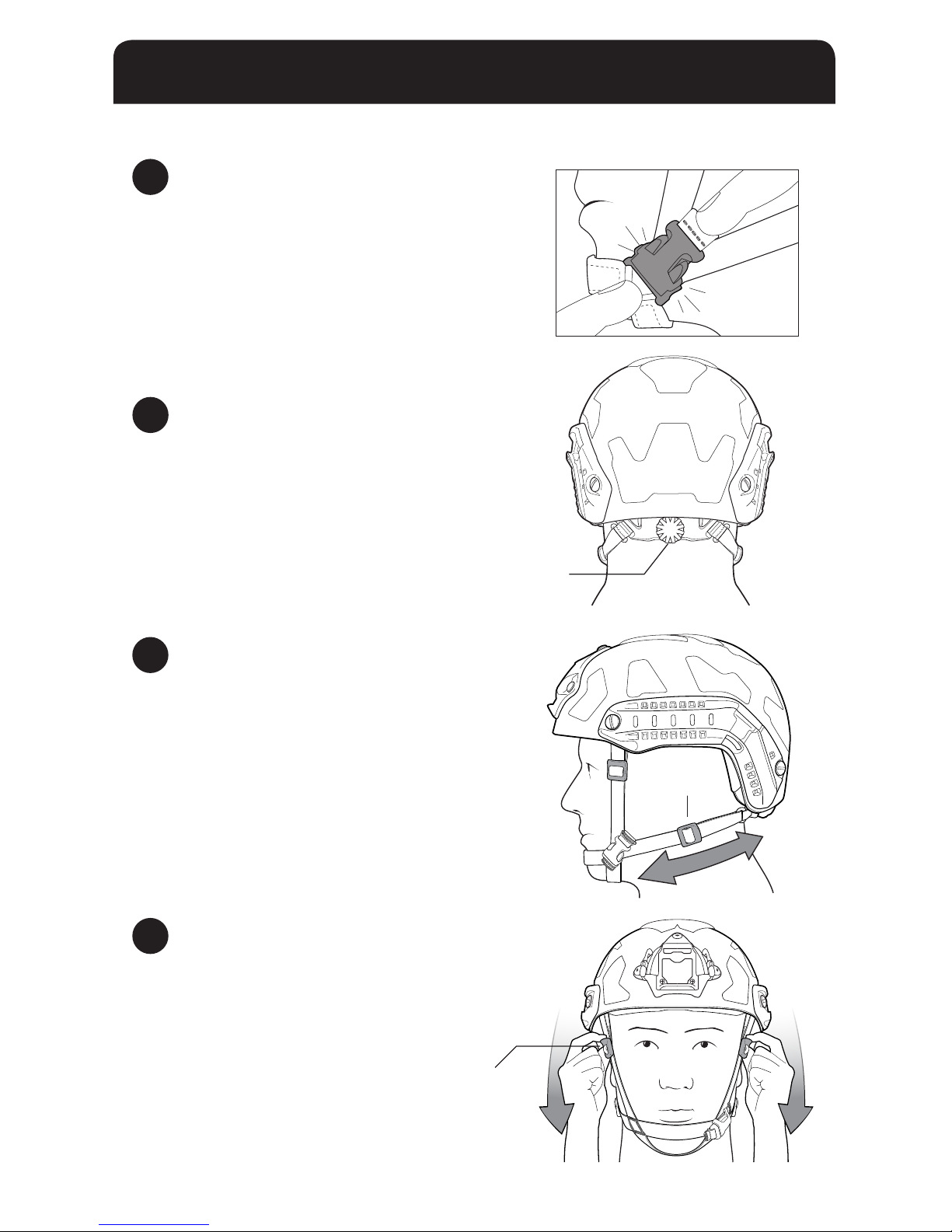

Retention System Operation
Comfort Pad Kit
Universal Nape Pad
Accessory Integration
Modular Bungee Shroud
Skeleton
™
Accessory Rail Connectors (ARCs)
ARC Shim
Exterior Loop
Comms Headsets
Maintenance Schedule
Replacement Parts
Operator Notes
Warning & Warranty
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
3
INTRODUCTION
ABOUT YOUR OPS-CORE FAST SF HELMET
The FAST SF Ballistic and Non-Ballistic helmet systems are the newest and lightest weight helmet systems from
Ops-Core. These helmet systems introduce the latest innovations in materials, alongside new and improved
system components, to provide a lightweight, modular, and scalable design. All components used in the SF
helmet systems are compatible with legacy FAST platforms.
HELMET VERSIONS:
ACCESSORY KIT (INCLUDED):
FAST SF Ballistic FAST SF Non-Ballistic
1/4”
Comfort Pads
1/2”
Comfort Pads
Standard Nape Pad
Cable Ties x10
Picatinny
Adapter
Wing-Loc
Adapter
3/4”
Comfort Pads
Split Rings x6
4
HELMET SYSTEM COMPONENTS
Modular
Bungee Shroud Exterior Loop
Shroud Bungee
Low-Profile
Head-Loc
™
Chinstrap
Skeleton ARC
ARC Shim
Universal
Nape Pad
Universal
Nape Pad
Front Brow
Comfort Pad
Adjustable
Comfort Pads
Vented
Lux Liner
Adjustable
Comfort Pads
Universal
Fitband
Occ-Dial
™
Adjustment Knob
5
HELMET SIZING GUIDE
X-LARGE
FAST HELMET SIZE CHINSTRAP SIZE (in)
M
MEDIUM
L
XL
LARGE
XXL
XX-LARGE
29-32.3
27.5-30.5
26-29
24.5-27.5
CHINSTRAP SIZING GUIDE
S
ince people have different shaped heads, helmet size (the size of
the top of your head) is not always proportional
to the chinstrap size
(the size of your face).
12
13
14
15
16
17
18
19
20
FAST HELMET SIZE
Head Circumference (cm)
Head Circumference (in)
Head Size (US)
53 - 56
20⁄ - 22
M
up to 7
56 - 59
22 - 23¼
L
up to 7⁄
59 - 62
23¼ - 24⁄
XL
up to 7⁄
62 - 64.5
24⁄- 25⁄
XXL
up to 8⁄
13
14
15
16
17
18
19
20
2
1
RUN MEASURING
TAPE ALONG FRONT
EDGE OF EAR
FAST helmets have been designed from the ground up to t the largest group of users in helmet sizes that most
closely match their heads. However, there is still a small percentage of users that will not t our standard sizing
congurations. Please use the sizing guide below to determine your helmet size and your chinstrap size.
SIZING GUIDE
6
