ML-BSW300
User Manual
Please read this user manual before using this product.
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
INDEX
STATEMENT 3
ACCESSORIES 3
SAFETY INSTRUCTION 3
GENERAL GUIDELINES 4
INSTALLATION 6
TECHNICAL SPECIFICATION 8
GOBO AND LAMP 11
CONTROL SYSTEM 12
CONTROL PANEL 13
HOW TO SET THE UNIT 14
CHANNEL DESCRIPTION: 22
TROUBELSHOOTING 25
CLEANING AND MAINTENANCE 26
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
STATEMENT
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also cannot be responsible for any malfunction & problem owing to
ignore the manual.
ACCESSORIES
These items are packed together with the product:
Name
Quantity
Unit
Remark
USER MANUAL
1
PCS
DMX CABLE
1
PCS
OMEGA
2
PCS
CLAMP
2
PCS
SATETY ROPE
1
PCS

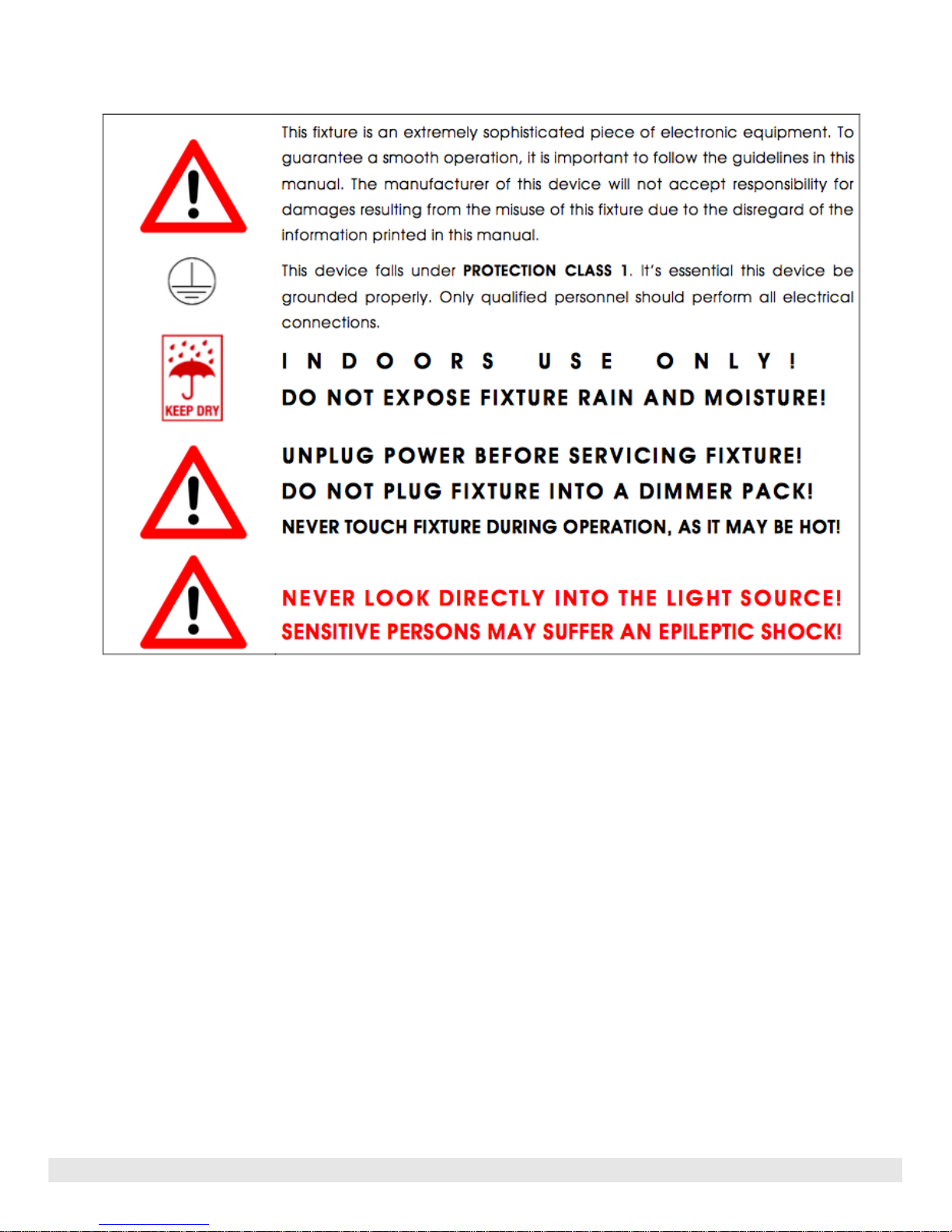

SAFETY INSTRUCTION
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
GENERAL GUIDELINES
NEVER OPEN THIS FIXTURE WHILE IN USE!
During the initial operation of this fixture, a light smoke or smell may emit
from the interior of the fixture. This is a normal process and is caused by
excess paint in the interior of the casing burning off from the heat
associated with the lamp and will decrease gradually over time.
This fixture is a professional lighting effect designed for INDOOR / DRY
LOCATIONS ONLY on stage, in nightclubs, theatres, etc.
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual

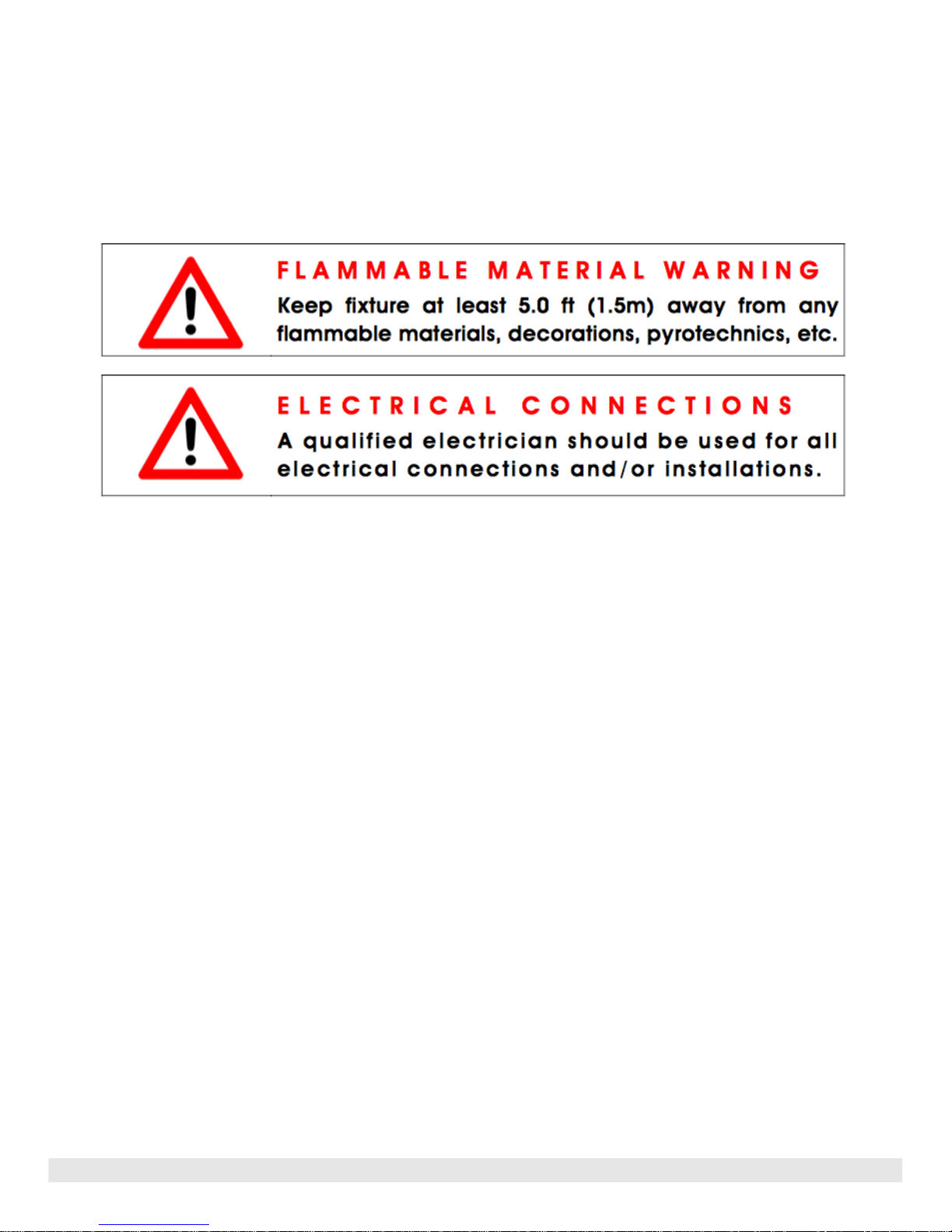

Please make sure there are NO FLAMMABLE MATERIALS close to the
fixture while operating, to prevent any fire hazard.
The fixture must be installed in a location with adequate ventilation, at least
1.5 feet (.5m) from adjacent surfaces. Be sure no air ventilation slots are
blocked.
DO NOT attempt installation and/or operation without knowledge how to
do so.
DO NOT permit operation by persons who are not qualified to operate this
type of fixture. Most damages are the result of operations by
nonprofessionals. Consistent operational breaks may ensure the fixture will
function properly for many years to come.
DO NOT shake fixture, avoid brute force when installing and/or operating
fixture.
Always install the fixture with an appropriate safety cable. When installing
the fixture in a suspended environment, always use mounting hardware
that is no less than M10 x 25 mm, also be sure the hardware is insert in the
pre-arranged screw holes in the bracket of the fixture.
Use the original packaging and materials to transport the fixture in for
service.
DO NOT TOUCH the housing bare-hand during its operation. Turn OFF
the power and allow approximately 15 minutes for the fixture to cool down
before replacing or serving.
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
INSTALLATION
C A U T I O N S
For added protection, mount the fixture in areas outside walking paths,
seating areas, or in areas were unauthorized personnel might reach the
fixture.
Ambient operating temperature range for this fixture is 5° to 113°F. (-15°
to 45°C) Do not use the fixture under or above this temperature.
Before mounting the fixture to any surface, make sure the installation area
can hold a minimum point load of 10 times the weight of the fixture.
Fixture installation must always be secured with a secondary safety
attachment, such as an appropriate safety cable.
Never stand directly below the device when mounting, removing or
servicing.
The unit should be mounted via its screw holes on the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. And
make sure that the structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight. Also always use a
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.

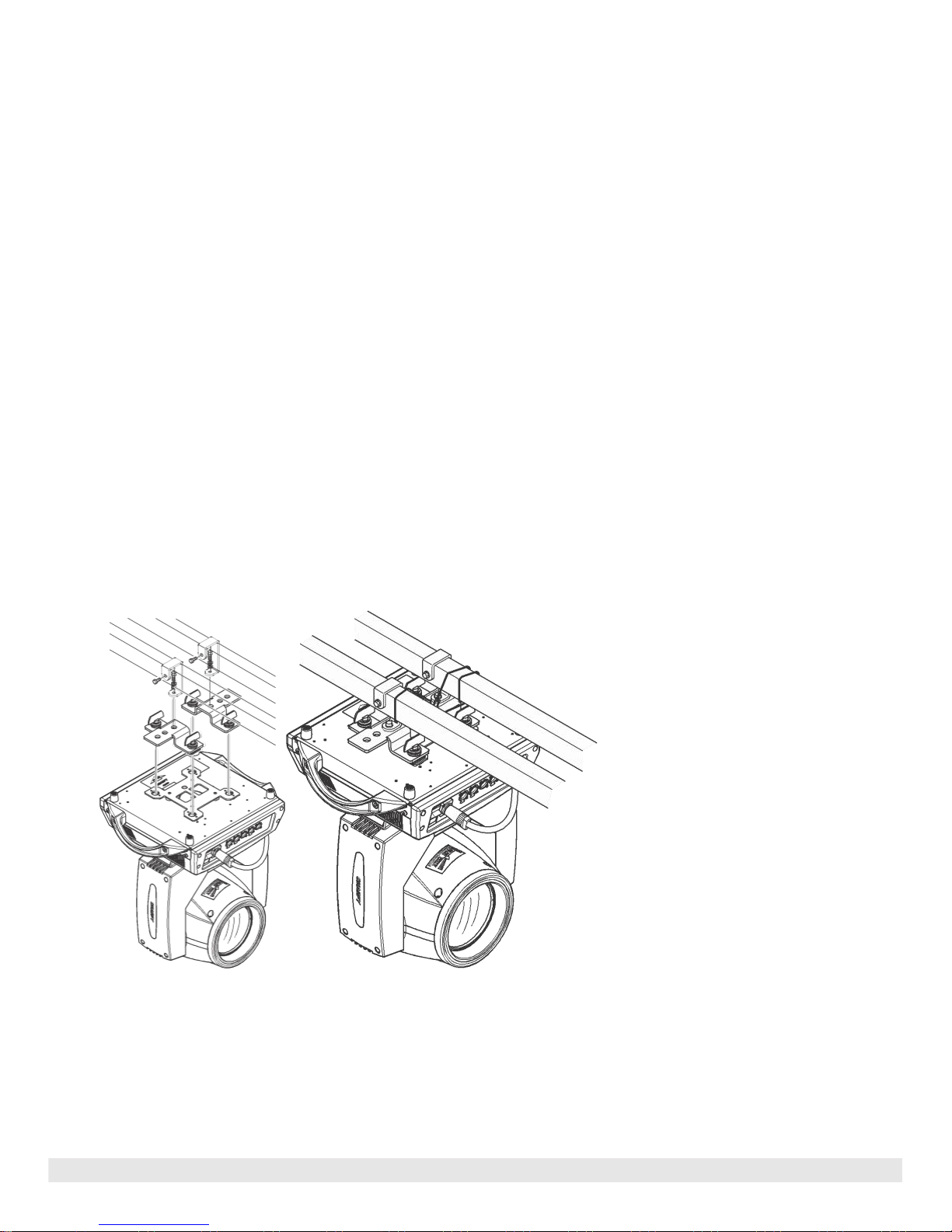

Clamp mounting
The moving head provides a unique mounting bracket assembly that
integrates the bottom of the base, the included ‘Omega Bracket’ and the
Safety Cable rigging point in one unit (see the illustration below).When
mounting this fixture to truss be sure to sere to secure an appropriately rated
clamp to the included Omega Bracket using a M10 screw fitted through the
center hole of the ‘omega bracket’. As an added safety measure be sure to
attached at least one properly rated Safety Cable to the fixture using one of
the safety cable rigging point integrated in the base assembly.

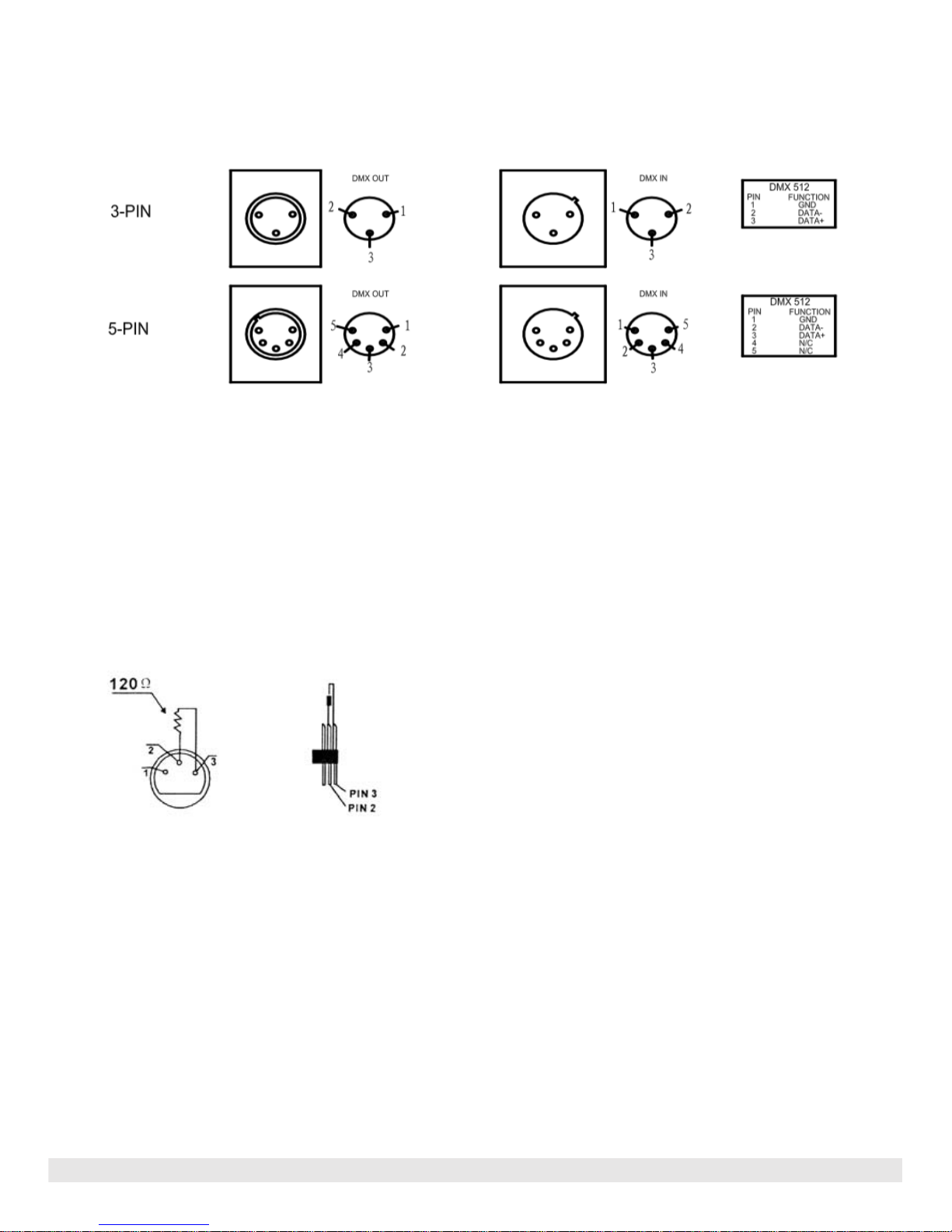

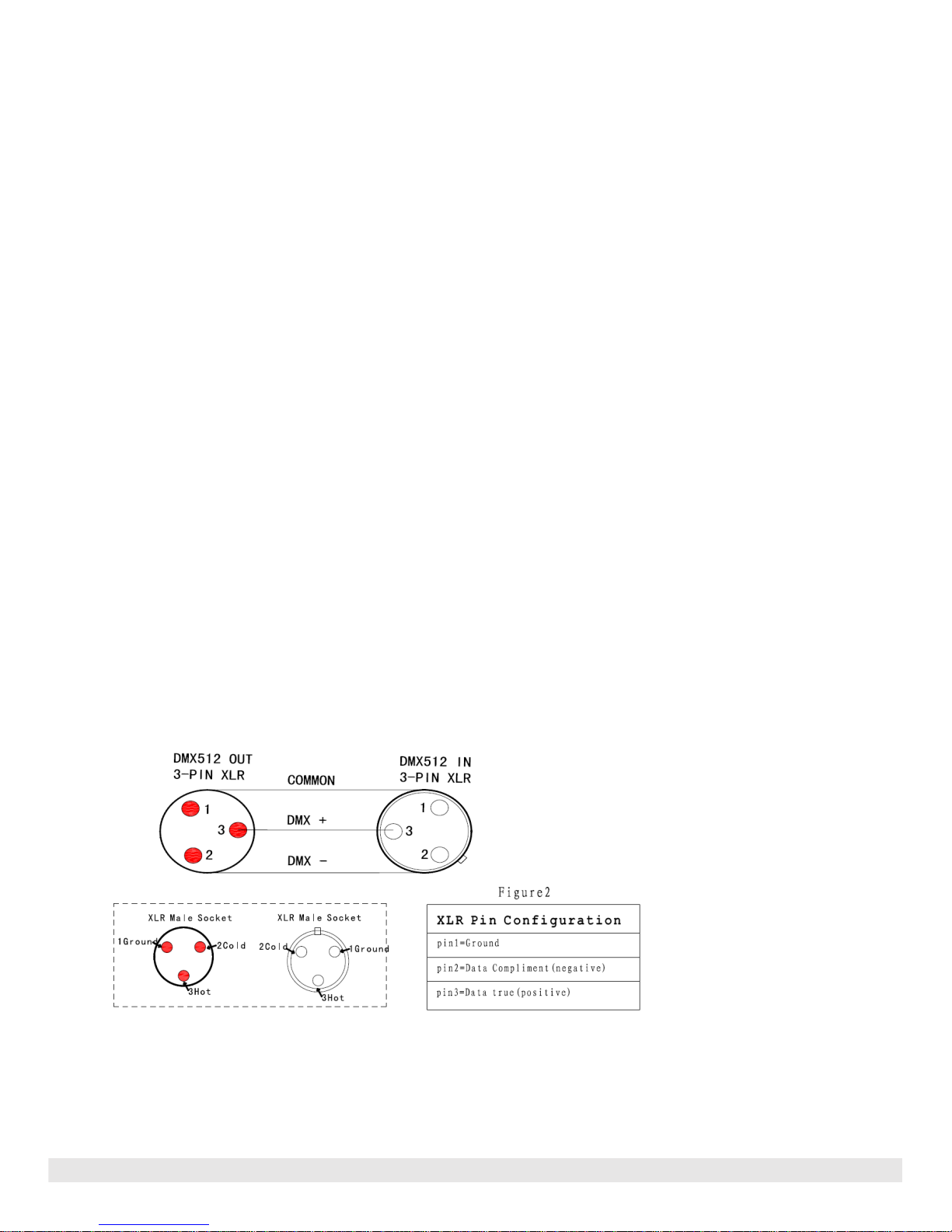

DMX-512 control connection:
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving
head together through serial linking. The cable needed should be two core, screened cable
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
with XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator:
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,which
is then plugged into the output XLR socket of the last fixture in the chain. Please see
illustrations below.
TECHNICAL SPECIFICATION
Power supply
- AC 100~240V 50/60Hz
Power Consumption - 430W
Fuse- T 6.3A
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Light Source
- 300W White LED
Optical system
- High efficiency optical system, delivering extremely powerful output
- High quality dichroic lenses
Movement
- Pan: 540°
- Tilt: 270°
- Pan/Tilt moving speed adjustable.
- Automatic Pan/Tilt correction.
- Easy calibration and maintenance by magnetic home positioning.
- Pan/Tilt position lock for transporting protection.
Dimmer/Shutter
- Blackout, 0~100% smooth dimming, independent shutter and
various strobe effect.
Color wheel
- Color wheel: 10 fixed colors plus white
- Rainbow effect in both directions.
Gobo wheel
- Gobo Wheel : 1 Static gobo wheel with 11 gobos plus open
1 Rotating gobo wheel with 7 gobos plus open
- Easy calibration and maintenance by magnetic home positioning.
- Module design for easy assembly and service.
Prism
- Prism: 3 facet prism rotating in both directions
Frost
- Variable, separate effect.
Focus
- Independent frost effect
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Zoom
- Motorized linear zoom for smooth adjustment of beam size and
beam sharpness.
Cool
- Fan cooled
Protocols
- DMX 512
- Date input/output: 3/5 Pin XLR socket
Weight
- 21Kg
Dimension
- 408× 293×655mm

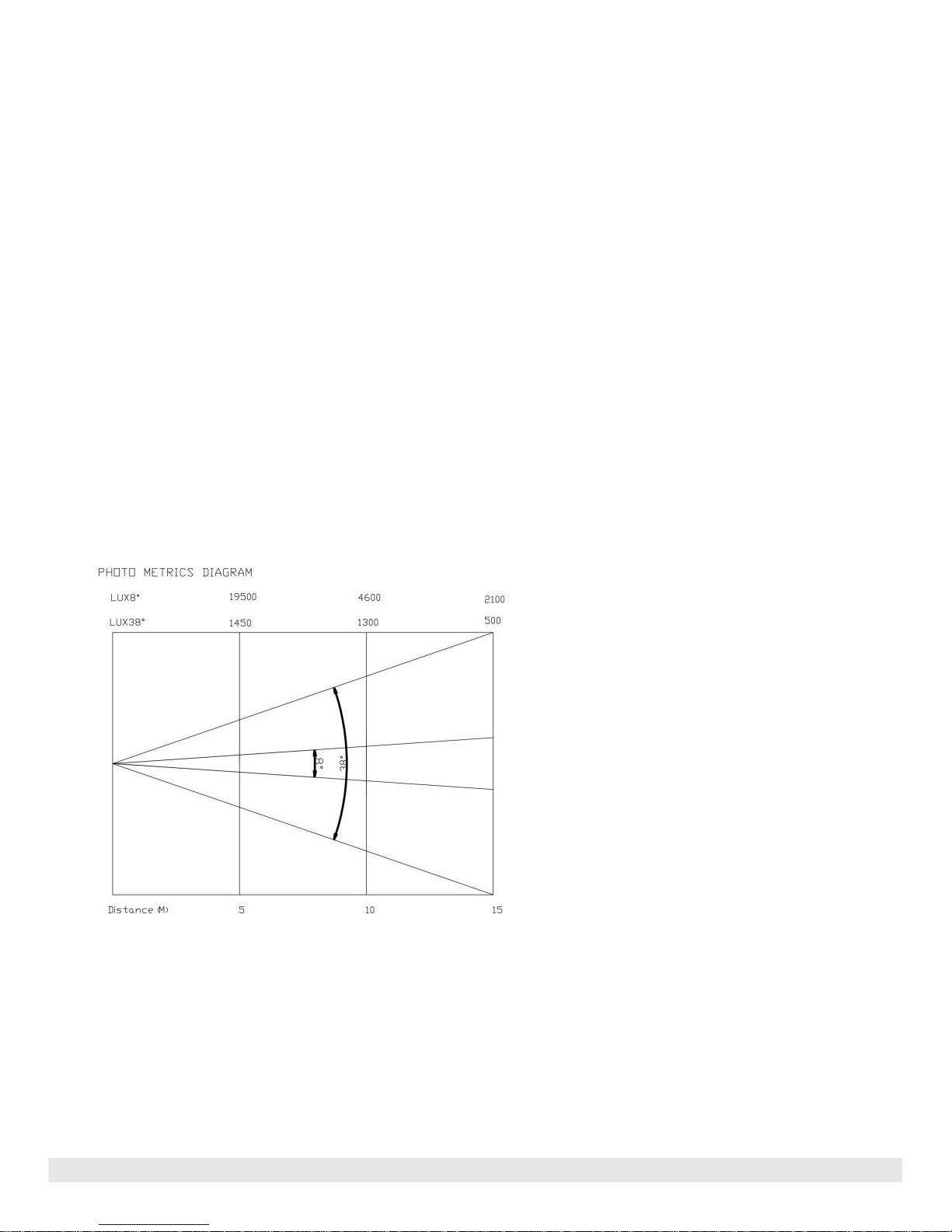

Photometric Diagram:
Please Note: Specifications and improvements in the design of this unit and this manual are subject
to change without any prior written notice.
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
GOBO AND LAMP

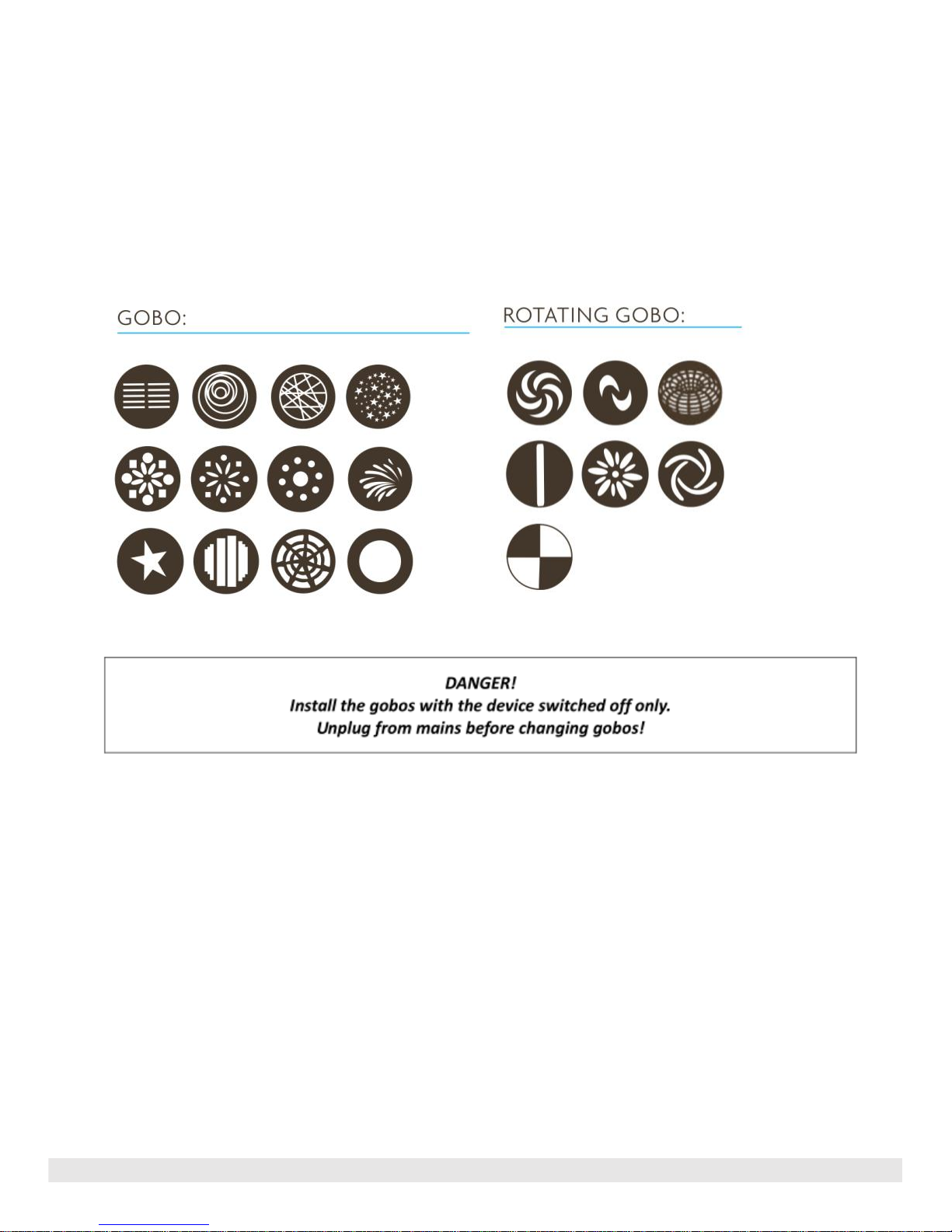

1.Gobos
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing
will otherwise be opened!
2. 300W White LED
Because of its high internal pressure, there might be a risk that the Discharge
lamp would explode during operation. The lamp emits intense UV radiation which
is harmful to the eyes and skin. The high luminance of the arc can cause severe
damage to the retina if you take a close look at the lamp.
⚫ To protect the lamp, always turn off the lamp first (via control panel or DMX
controller) and let the unit run at least five minutes to cool down before
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
switching off the mains supply. Never handle the lamp or luminary when it is
hot.
⚫ Do not touch the bulb with bare hands. If this happens, clean the lamp with
denatured alcohol and wipe it with a lint free cloth before installation.
⚫ The lamp generates UV radiation. Never operate the lamp without appropriate
shielding.
⚫ When lighting up, the lamp operates at high pressure and there is a slight risk
of arc tube rupture. The risk increases with age, temperature and improper
handling of the lamp. Do not use the lamp longer than its lifespan.
⚫ Make sure the lamp is located in the center of the reflector for the best
projection.
CONTROL SYSTEM
The DMX512 is widely used
in intellig
ent
lighting control, with a DMX 512
controller. Connect several lights together dmx in and dmx out,
3
pin
XLR
connectors:
Pin
1: GND,
Pin
2:
Nega
tive s
ignal (-), Pin
3: Positive si
gnal
(+)
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual

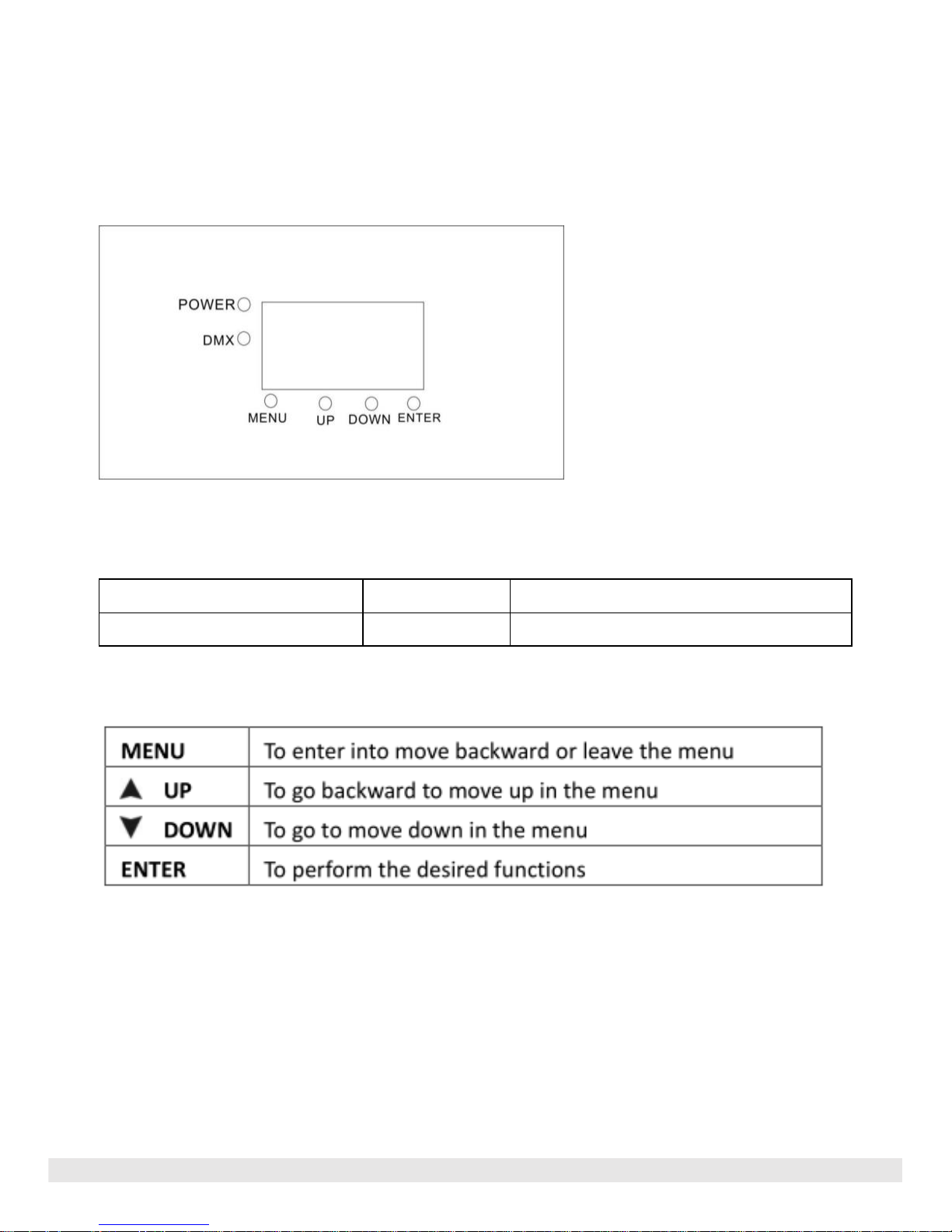

CONTROL PANEL
1. Monitor (Batter Back-up display):
2. LED:
POWER
ON
Power on
DMX
ON
DMX input present
3. Button:
4. DMX input/output:
For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together.
5. Power Cable:
To connect to the mains supply
6. Fuse (T 6.3A):
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Protect the unit from damage of over current.
7. Power Switch: Turns On/Off the power.
HOW TO SET THE UNIT
Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN
button until the required function is shown on the monitor. Select the function by the
ENTER button. Use the UP/DOWN button to choose the submenu, press the
ENTER button to store and automatically return to the last menu. Press the MENU
button or let the unit idle one minute to exit menu mode.
In the event of disconnecting with mains power, press the UP button for one minute
to enter into menu mode. Press MENU button or let the unit idle one minute to exit.
First level
Secondary level
Third level
Fourth level
DMX address
DMX address=xxx
Reset
Are You Sure
Display Options
DMX Mode
Display on Always
Display off After Delay
Display Invert
Display Invert off
Display Invert on
Display Dimming
Disp Dim Level Min
Disp Dim Level Min 1
Disp Dim Level Min 2
Disp Dim Level Min 3
Disp Dim Level Min 4
Disp Dim Level Min 5
Disp Dim Level Min 6
Disp Dim Level Min 7
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Disp Dim Level Min 8
Disp Dim Level Min 9
Display Contrast
Display Contrast xx(1-21)
System options
Loss of DMX
When DMX is Lost
Normal time out
When DMX is Lost
Hold Last Value
Factory Settings
Press button DOWN/
UP/ENTER at the
Same time to enter
This menu)
Pass Code
Option Settings
Pan DMX Invert
Pan DMX Invert off
Pan DMX Invert on
Tilt Invert
Tilt DMX Invert off
Tilt DMX Invert on
Pan Tilt Swap
Pan Tilt Swap off
Pan Tilt Swap on
Dimmer Invert
Dimmer Invert
OFF
Dimmer Invert
ON
Zoom Invert
Zoom Invert
OFF
Zoom Invert
ON
Defaults
OFF
Restore Defaults
Information
Lamp Hours
Lamp Hours =xx
Reset Lamp Hours
Are You Sure(UP/DOWN)
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Total Hours
Total Hours =xx
Temperature
Display Board
Display Board
System=xxx℃
Boot=xxx℃
Driver Board 1
Display Board 1
System=xx℃
Boot=xx℃
Driver Board 2
Display Board 2
System=xx℃
Boot=xx℃
Driver Board 3
Display Board 3
System=xx℃
Boot=xx℃
Pan and Tilt
Pan and Tilt
System=xx℃
Boot=xx℃
LED Driver
Led=℃
View DMX Values
DMX Channel
1=xxx
Electronic SN
Electronic SN=
*****************
RDM Device label
RDM Device Label
ANSI E1.20 RDM
Version X.X
Pan Encoder
Wiring Normal
Pan Err 0
Count 50880
Tilt Encoder
Wiring Normal
Tilt Err 0
Count 28080
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Driver Faults
X Over Temp 0
Y Over Temp 0
X Fault 0
Y Fault 0
Test Modes
Factory Setup
Factory Setup OFF
Factory Setup ON
Self Test
Self Test OFF
Self Test ON
Stand Alone
Operation Mode=
DMX Operation
User Memory 1
User Memory 2
Operation Mode=
Master Mode
User Memory 1
User Memory 2
Operation Mode=
Slave Mode
Operation Mode
Static Scene
First level
Secondary
level
Third
level
Fourth level
Five
level
Six level
User
Memories
Edit User
Memory
User
memory
1
Scene xx
(1-200scenes)
Shutter
Shutter
Xxx
Dimmer
Dimmer
Xxx
Dimmer
low
Dimmer
Low xxx
Color
Wheel
Color Wheel
xxx
Fixed
Fixed Gobo
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Gobo
xxx
R Gobo
Wheel
R Gobo
Wheel XXX
R Gobo
Rotate
R Gobo
Rotate XXX
R Prism
Rotate
R Prism
Rotation XXX
R Prism2
In Out
R Prism 2 In out XXX
Zoom
ZOOM XXX
Focus
Focus XXX
Frost
Frost XXX
Diffuser
Diffuser XXX
Pan
Coarse
Pan xxx
Pan Fine
Pan Fine xxx
Tilt
Coarse
Tilt xxx
Tilt Fine
Tilt Fine xx
M Speed
M-Speed XXX
Delay
（0.25s100min）
Link To
Step
XXX(1-200)
User
memory2
Scene XX
(1-200Scenes)
Shutter
Shutter XXX
Dimmer
Dimmer XXX
Slow
Dimmer
Slow Dimmer
xxx
Color
Wheel
Color Wheel
xxx
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Fixed
Gobo
Fixed Gobo
xxx
R Gobo
Wheel
R Gobo
Wheel
XXX
R Gobo
Rotate
R Gobo
Rotate XXX
R Prism
Rotate
R Prism
Rotation XXX
R Prism2
In Out
R Prism 2
In out XXX
Zoom
ZOOM XXX
User
Memories
Edit User
Memory
User
memory2
Scene XX
(1-200Scenes)
Focus
Focus XXX
Frost
Frost XXX
Diffuser
Diffuser XXX
Pan
Coarse
Pan xxx
Pan Fine
Pan Fine
xxx
Tilt
Coarse
Tilt xxx
Tilt Fine
Tilt Fine xx
M Speed
M-Speed XXX
Delay
Delay xx s
(0.25s-100min)
Link To
Step
XXX(1-200)
Static
Scene
Shutter
Shutter
XXX
Dimmer
Dimmer
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
XXX
Dimmer LOW
Dimmer
Low xxx
Color Wheel
Color
Wheel
XXX
Fixed Gobo
Fixed
Gobo
XXX
R Gobo
Wheel
R Gobo
wheel
XXX
R Gobo
Rotate
R Gobo
Rotate
XXX
R Prism
Rotate
R Prism
Rotation
XXX
R Prism2
In Out
R Prism
2
In out
XXX
Zoom
ZOOM
XXX
Focus
Focus
XXX
Frost
Frost
XXX
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
Diffuser
Diffuser
XXX
Pan
Pan xxx
Pan Fine
Pan Fine
xxx
Tilt
Tilt Xxx
Tilt Fine
Tilt Fine
Xxx
M-Speed
M-
Speed
xxx(000-
255)
Init User
memory
Reset
User
memory1
Reset User1 Unlock2,3,4(Press
buttons2,3,4,iebuttonsUP/DOWN/ENTER
to execute the function)
1 User
memory
1 has
been
reset
Reset
User
memory2
Reset User2 Unlock2,3,4(Press
buttons2,3,4,iebuttonsUP/DOWN/ENTER
to execute the function)
User
memory
2 has
been
reset
Reset
Static
Scene
Reset Static Scene2,3,4(Press
buttons2,3,4,iebuttonsUP/DOWN/ENTER
to execute the function)
Static
Scene
has been
reset
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
CHANNEL DESCRIPTION:
24H
VALUE
FUNCTION
CH1 Strobe
000-003
Open
004-103
Strobe Slow -Fast
104-107
Open
108-207
Slow Open, Slow Close
208-212
Open
213-251
Macros strobe
252-255
Open
CH2 Dimmer
000-255
Linear Dimming(0-100%)
CH3 Pan
000-255
Pan (0-540)
CH4 Pan Fine
000-255
Pan Fine
CH5 Tilt
000-255
Tilt (0-270)
CH6 Tilt Fine
000-255
Tilt Fine
CH7 Pan/Tilt Speed
000-255
Fastest -Slowest
CH8 Cyan
000-255
Linear adjustment from light to dark for Cyan
CH9 Magenta
000-255
Linear adjustment from light to dark for Magenta
CH10 Yellow
000-255
Linear adjustment from light to dark for Yellow
CH11 CTO
000-255
Linear adjustment from light to dark for CTO
CH12 CMY Macros
000-255
Macros
CH13 Color
000-255
Color
CH14 IRIS
000-255
Big to small
CH15 Fix Gobo
000-010
Open
011-020
GOBO 1
021-030
GOBO 2
031-040
GOBO 3
041-050
GOBO 4
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
051-060
GOBO 5
061-070
GOBO 6
071-080
GOBO 7
081-090
GOBO 8
091-100
GOBO 9
101-110
GOBO 10
111-128
GOBO 11
129-164
Rotate Forward Fast to Slow
165-200
Rotate Forward Slow to Fast
201-205
GOBO1 Shake
206-210
GOBO2 Shake
211-215
GOBO3 Shake
216-220
GOBO4 Shake
221-225
GOBO5 Shake
226-230
GOBO6 Shake
231-235
GOBO7 Shake
236-240
GOBO8 Shake
241-245
GOBO9 Shake
246-250
GOBO10 Shake
251-255
GOBO11 Shake
CH 16R Gobo Wheel
00-008
Open
009-016
Slot 1
017-024
Slot 2
025-032
Slot 3
033-040
Slot 4
041-048
Slot 5
049-056
Slot 6
057-064
Slot 7
065-072
Slot 1 Shake
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
073-080
Slot 2 Shake
081-088
Slot 3 Shake
089-096
Slot 4 Shake
097-104
Slot 5 Shake
105-112
Slot 6 Shake
113-127
Slot 7 Shake
128-189
Rotate Forward Fast to Slow
190-193
Stop
194-255
Rotate Forward Slow to Fast
CH 17 R GOBO Rotate
000-127
Will do some static position for now
128-189
Rotate Forward Fast to Slow
190-193
Stop
194-255
Rotate Forward Slow to Fast
CH 18
000-255
Nothing
CH 19 Prism
000-007
OUT
008-255
IN
CH 20 Prism Rotate
000-128
Will do some static position for now
129-190
Rotate Forward Fast to Slow
191-193
Stop
194-255
Rotate Forward Slow to Fast
CH 21 Zoom
000-255
0%--100%
CH 22 Focus
000-255
0%--100%
CH 23 Frost
000-255
Frost
CH 24 Control
000-039
Nothing
040-069
Reset All
070-079
Nothing
080-089
Set Blackout while Pan/Tilt moving
090-099
Cancel Black out while Pan/Tilt moving
100-109
Set Blackout while Gobo changing
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
110-11 9
Cancel Black out while Gobo changing
120-255
Nothing
TROUBELSHOOTING
Following are a few common problems that may occur during operation. Here
are some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connect power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED to see if it can be light up or not.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if
they are linked properly.
2. If the DMX LED is on and no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on
connectors or on PCB of the unit or the previous one.
4. Try to use another DMX controller.
5. Check to see if the DMX cables run near or run alongside to high voltage
cables that may cause damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB
is broken.
2. The motor’s drive IC on the PCB might be out of condition.
D. The lamp is cutting out intermittently
1. The lamp is not working well. Check the mains voltage either too high or
too low.
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
2. Internal temperature may be too high. Check if replacement of fan is
needed on the head.
E. If The pan belt is broken
1. Turn off the mains power.
2. Loosen the screws (A)，open the cover.
3. Loosen the screws (B).
4. Unplug all the connect wires over the belt.
5. Change a new belt (C), put the belt around the axis gear and motor gear.
6. Plug all the connect wires back upon the belt.
7. Tighten all the screws.
F. If The tilt belt is broken
1. Turn off the mains power.
2. Loosen all the screws (A) and open the right arm cover (B).
3. Loosen the screws (C) that fix the bridge.
4. Change a new belt (D). Please adjust the tension of the belt properly.
Note: do not fix the belt too
tight as it is can easily rupture.
5. Reverse the procedures from step 3 to 2.
CLEANING AND MAINTENANCE
F
ollowing are a few common problems
that may
occur d
uring opera
tion. Here are
some suggestions for
easy troubleshooting
:
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual

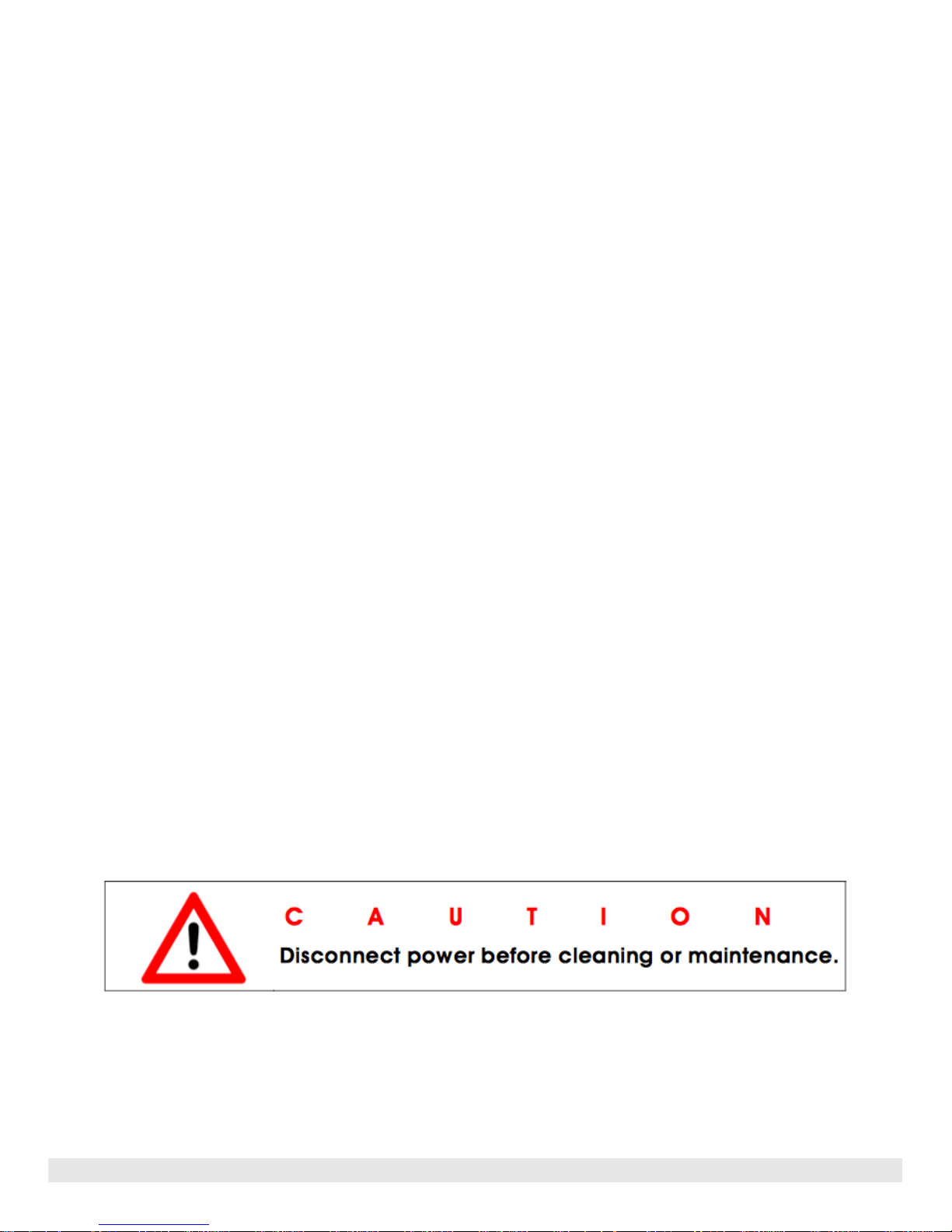

CLEANING
Frequent cleaning is recommended to insure proper function, optimized light
output, and an extended life. The frequency of cleaning depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
environments can cause greater accumulation of dirt on the fixture’s optics.
• Clean the external lens surface at least every 20 days with a soft cloth
to avoid dirt/debris accumulation.
• Never use alcohol, solvents, or ammonia based cleaners.
MAINTENANCE
Regular inspections are recommended to insure proper function and extended
life. There are no user serviceable parts inside this fixture, please refer all
other service issues to an authorized service technician. Should you need any
spare parts, please order genuine parts from your local dealer.
Please refer to the following points during routine inspections:
• A detailed electric check by an approved electrical engineer every
three months, to make sure the circuit contacts are in good condition
and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times.
Lose screws may fall out during normal operation resulting in damage
or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging
hardware and rigging points (ceiling, suspension, trussing).
Deformations in the housing could allow for dust to enter into the
fixture. Damaged rigging points or unsecured rigging could cause the
fixture to fall and seriously injure a person(s).
www.oppray-light.com ML-BSW300 300W LED Moving Head User Manual
• Electric power supply cables must not show any damage, material
fatigue or sediments. Never remove the ground prong from the power
cable.
Loading...
