OPODEE E30W Instruction Manual

Robotic vacuum cleaner

Instruction Manual

For FAQs and more information please visit :

www.opodee.com

Important Safety Instructions

To reduce the risk of injury or damage, read these safety instructions carefully and

keep them at hand when setting up, using, and maintaining this device.

WARNING SYMBOLS USED

This is the safety alert symbol. This symbol alerts you to

potential hazards that could result in property damage and/or

serious bodily harm or death.

• This device can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of this

device in a safe way and understand the hazards involved.

• Children should be supervised to ensure they do not play with this device.

• Cleaning and maintenance shall not be performed by children without adult

supervision.

• This device is only to be used with the power supply unit provided.

• For the purposes of recharging the battery, only use the detachable power supply

unit provided with this device.

• The battery must be removed from this device before this device is disposed of. To

remove the battery from this device, first remove the screws on the bottom, then

remove the battery by disconnecting the quick connector.

• The used battery should be placed in a sealed plastic bag and disposed of safely

according to local environmental regulations.

• The external flexible cable or cord of the power supply unit cannot be replaced; if the

cord is damaged, the power supply unit shall be disposed of.

• This device is for indoor use only.

• This device is not a toy. Do not sit or stand on this device. Small children and pets

should be supervised when this device is operating.

• Store and operate this device in room temperature environments only.

• Clean with a cloth dampened with water only.

• Do not use this device to pick up anything that is burning or smoking.

• Do not use this device to pick up spills of bleach, paint, chemicals, or anything wet.

1

• Before using this device, pick up objects like clothing and loose paper. Lift up cords

for blinds or curtains, and move power cords and fragile objects out of the way. If

this device passes over a power cord and drags it, an object could be pulled off a

table or shelf.

• If the room to be cleaned has a balcony, a physical barrier should be used to prevent

access to the balcony and to ensure safe operation.

• Do not place anything on top of this device.

• Be aware that this device moves around on its own. Take care when walking in the

area where this device is operating to avoid stepping on it.

• Do not operate this device in areas with exposed electrical outlets on the floor.

• Do not expose the electronics of this device, its battery, or the integrated Charging

Base. There are no user-serviceable parts inside.

• Do not use this device on an unfinished, unsealed, waxed or rough floor. It may

result in damage to the floor and this device. Use only on hard floor surfaces or low-

pile carpet.

• This device has been designed to be used on floors without scratching them. We

still recommend that you test this device on a small area of the room to be cleaned

to ensure no scratches are made before cleaning the whole room.

Notice

This symbol on the device or its packaging indicates: Do not dispose of

electrical appliances as unsorted municipal waste; use separate collection

facilities. Contact your local authority for information regarding the collection

systems available. If electrical appliances are disposed of in landfills or

dumps, hazardous substances can leak into the groundwater and get into

the food chain, damaging your health and well-being. When replacing old

appliances with new ones, the retailer is legally obliged to take back your old

appliance for disposal at least free of charge.

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may

cause undesired operation.

Contents

Product C om po sition / Package Contents

Product C om po sition / Part N am e

Product U sage / Preparation

Product U se/ Charge Robot

Product Use / Turn On / Turn Off

Product Use / Start Pause, Wake up

Product U sage / Select a Cleaning Mode

Component Use the Boundary Strip

Component Time Scheduling Setting

Component Cleaning and Maintenance

Troubleshooting

Product Parameter

3

4

6

7

8

8

9

11

11

12

16

17

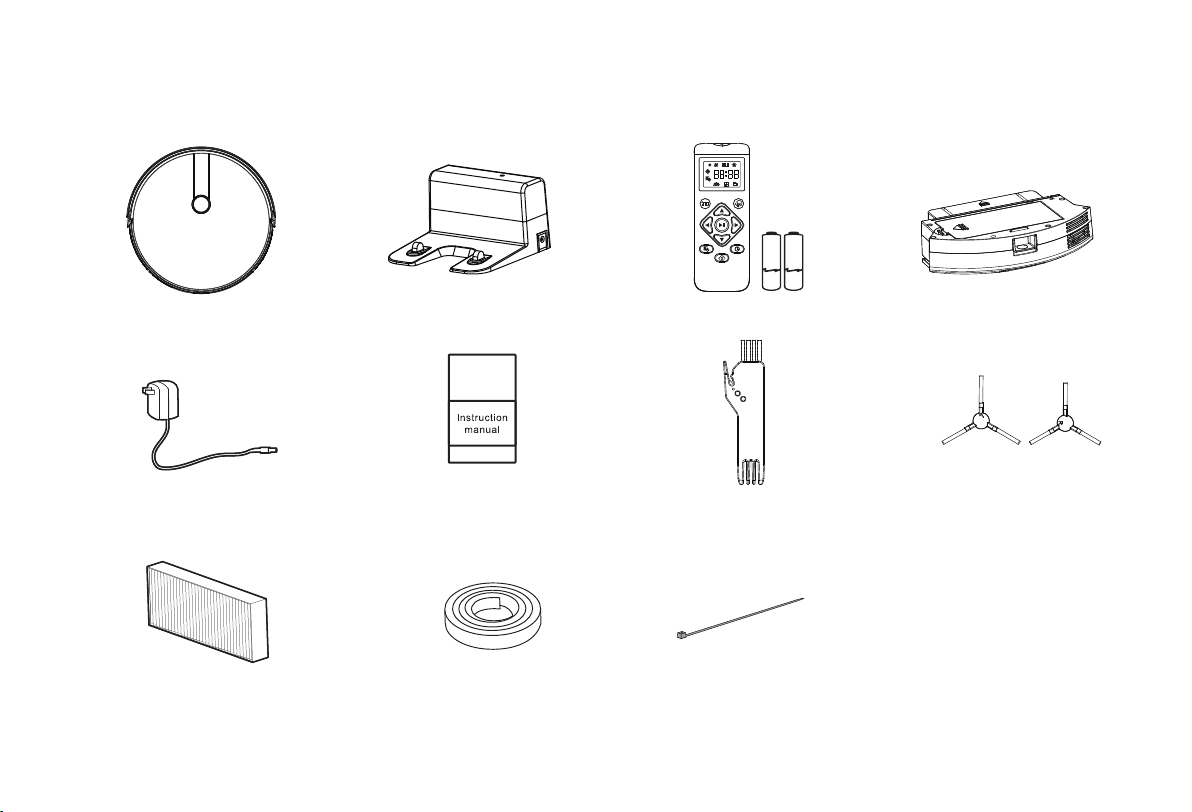

Product Composition / Package Contents

Power Adapter

3

Robot

HEPA Filter x2

Charging Base

Instruction Manual

Boundary Strips

3.3 ft/1 m length

Remote Control (with battery x2)

Cleaning Brush

Cable Ties x5

Dust Box

Side Brush x4

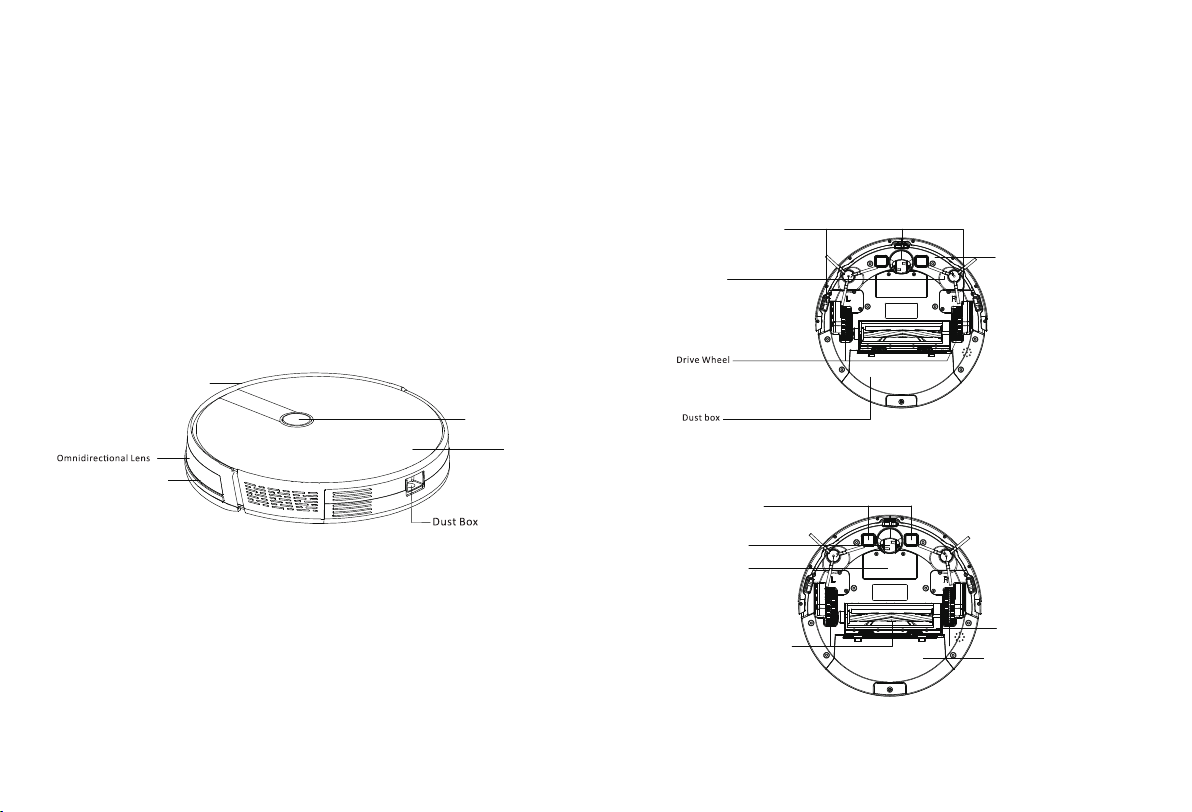

Product Composition / Part Name

Front Robot Back Robot

Drop Sensor

Side Brush

Bumper

Power ON/OFF Button
Auto Cleaning Start/Stop Button

Surface Cover

Infrared sensor

Charging Contact Pins

Swivel Wheel

Battery Compartment

Hall Sensor

Rolling Brush

Brush Guard

Dust Collector

4

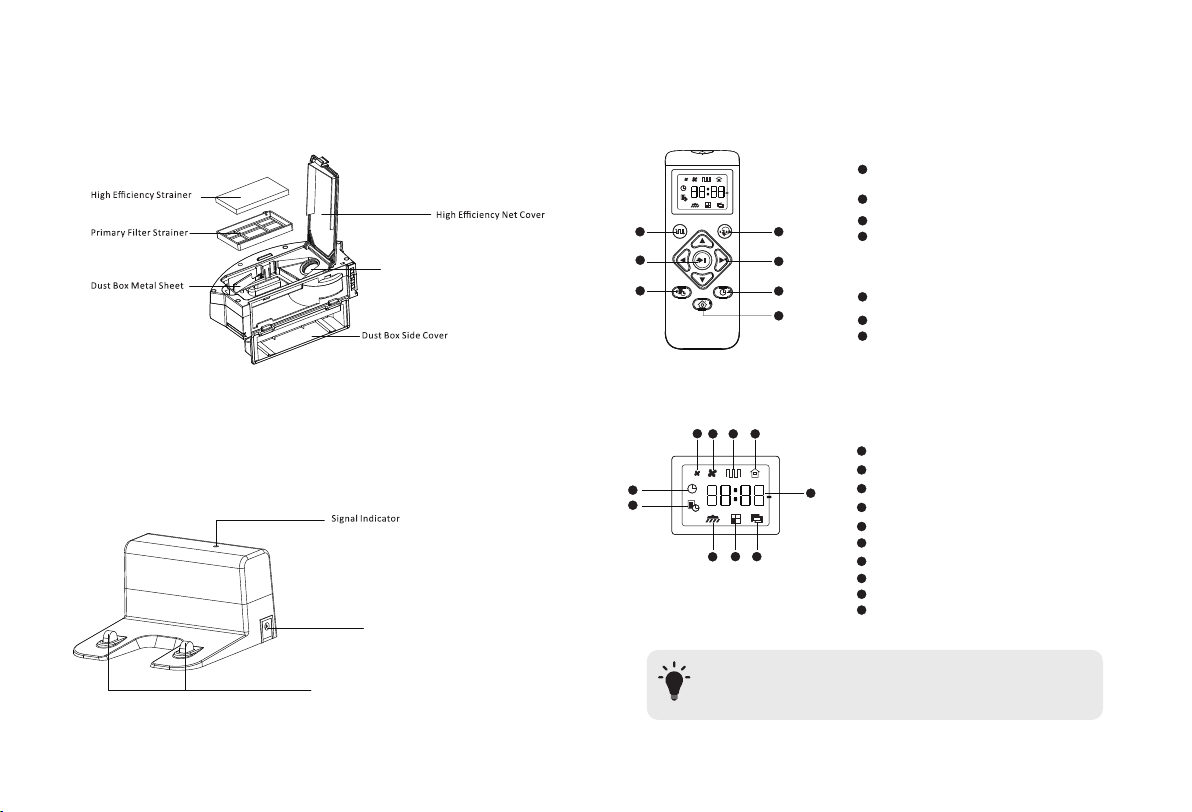

Dust Box

Charging Base

DC Socket

Charging Base Pins

Vent

Remote Control

1

2

3

4

5

6

7

Remote Control Display

4

3

65

1

2

10

9

Install 2 AAA batteries before using the remote control for the first time. Make sure

T

The positive and negative ends are facing the correct polarity direction as marked in

The battery compartment.

7

8

Start Auto Cleaning

1

Adjust suction power level in Auto Cleaning Mode

Start Auto Cleaning

2

Stop Cleaning

3

Schedule Auto Cleaning start time

Mode Switching:

4

Spot Cleaning Mode

Single Room Cleaning Mode

Edge Cleaning Mode

Control cleaning direction manually

5

Adjust the hour and minute

6

Adjust time

Return to Charging Base

7

Time Setting

1

Schedule cleaning time

2

3

Standard suction power

Strong suction power

4

Auto Cleaning Mode

5

Returning to Charging Base

6

7

Clock

Edge Cleaning Mode

8

9

Single Room cleaning Mode

Spot Cleaning Mode

10

5

Product Usage / Preparation

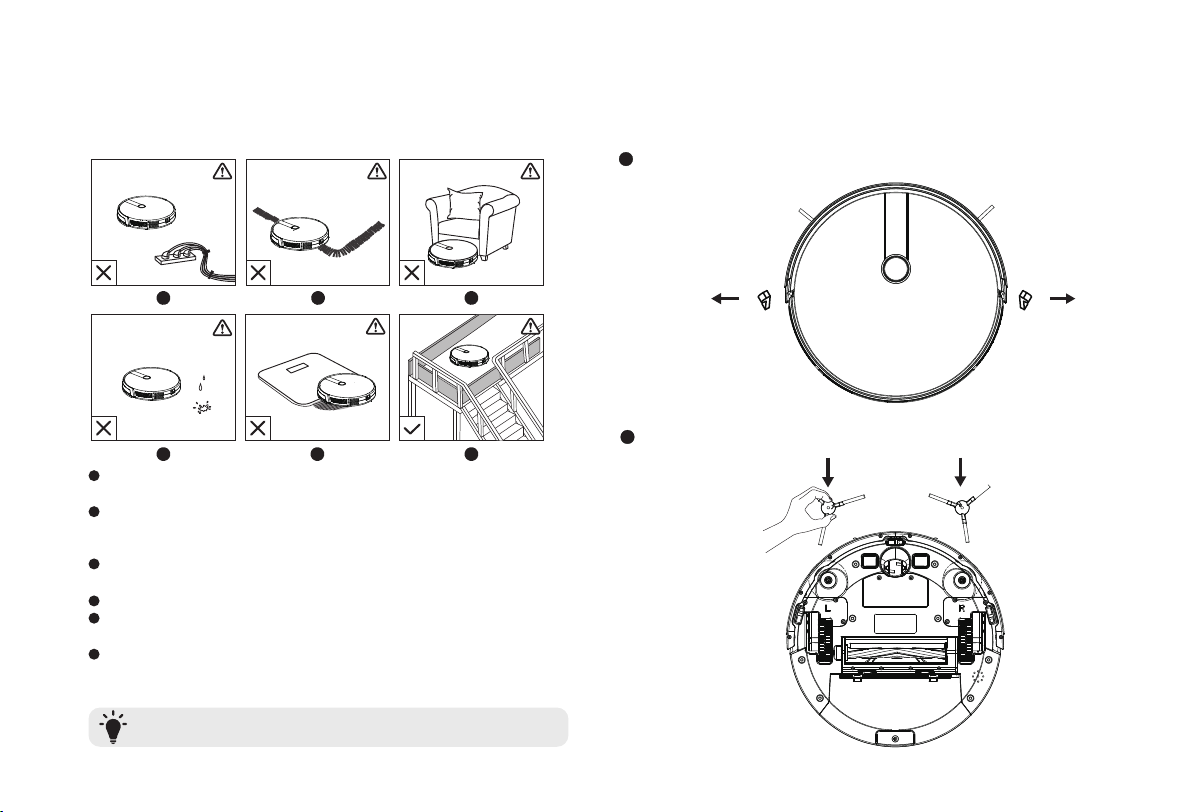

Important Tips Before Use

Before using the Robot, remove the protective strip
on the Robot.

1

Remove Protection

a

d

a

Remove power cords and small objects from the floor that may entangle Robot. You

can use the supplied cable ties to organize your wires and power cords.

Fold tasseled edges of area rugs underneath to prevent tangling Robot. Avoid

b

cleaning very dark-colored high-pile rugs or rugs thicker than 1.02 in/26 mm as they

may cause Robot to malfunction.

c

Keep Robot away from spaces lower than 2.87 in/73 mm to prevent Robot from

getting stuck. If necessary, place a physical barrier to block off the problem areas.

Keep Robot away from wet areas.

d
e

Robot may climb on top of objects less than 0.63 in/16 mm in height. Remove these

objects if possible.

Anti-drop sensors prevent Robot from tumbling down stairs and steep drops. They

f

may work less effectively if dirty or used on reflective/very dark-colored floors. It is

recommended to apply the Boundary Strip(s) to block off areas where Robot may fall.

Place physical barriers or Boundary Strips in front of fireplaces and areas that

T

may cause damage to Robot if entered.

b

e

c

f

2

Install the side brushes before use.

6

3

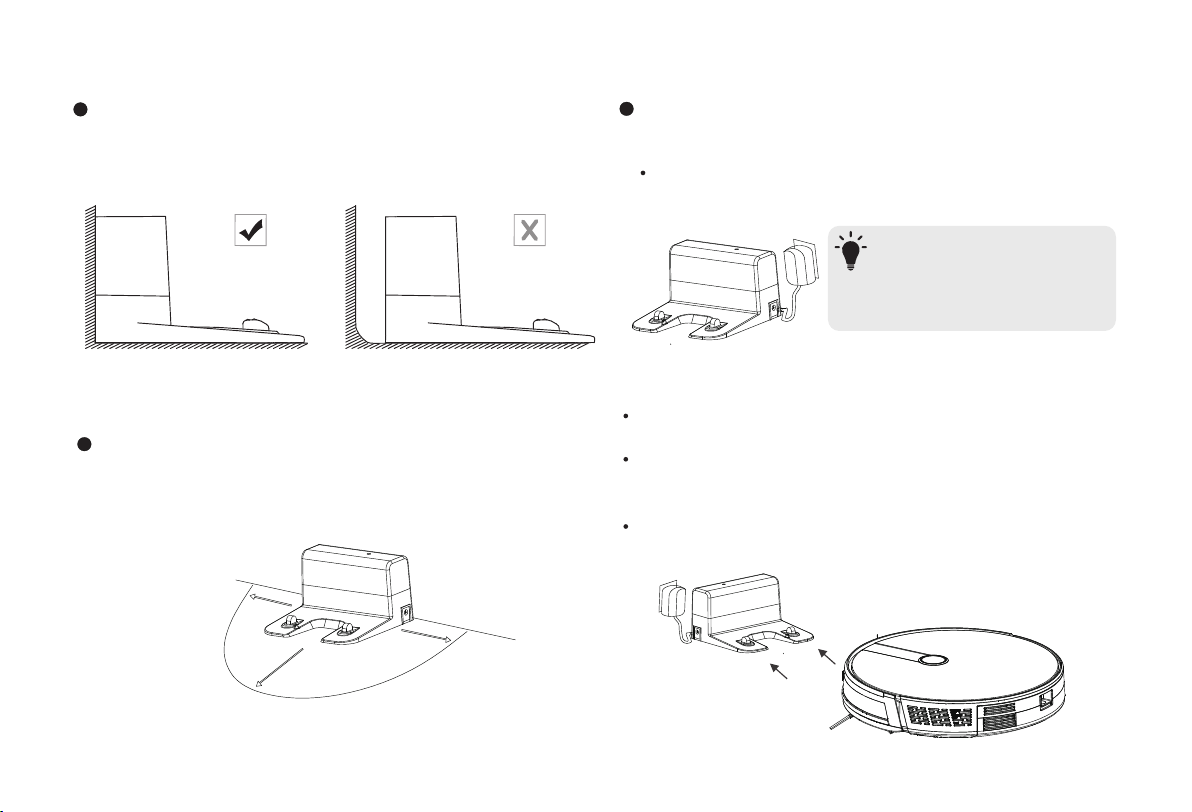

Place the Charging Base on a hard, level surface and
against a wall.

4

Remove objects within 3 ft/1 m on both sides and
within 6 ft/2 m in front of the charging base.

3ft/1m

3ft/1m

6ft/2m

5 Plug the adapter into the a wall outlet and pulg the DC jack

into the DC socket of the Charging Base.

When the Charging Base connects to AC power, the LED
indicator on the Charging Base is SOLID GREEN

Install the Charging Base in a location that Robot
can easily access. It is recommended to place the

T

Charging Base against a wall, and on a hard-level
surface rather than on rugs or carpets.

- Always keep the Charging Base plugged in,
otherwise Robot will not automatically return to it.

Charge Your Robot

Robot has a pre-installed rechargeable battery that has to
be fully charged before use.

Robot returns to the Charging Base at the end of a cleaning
cycle or when its battery is running low

Method 1

Attach Robot to the Charging Base by aligning its charging
pins with the charging pins on the base.

7

Method 2

Press on the remote control to return Robot to the
Charging Base

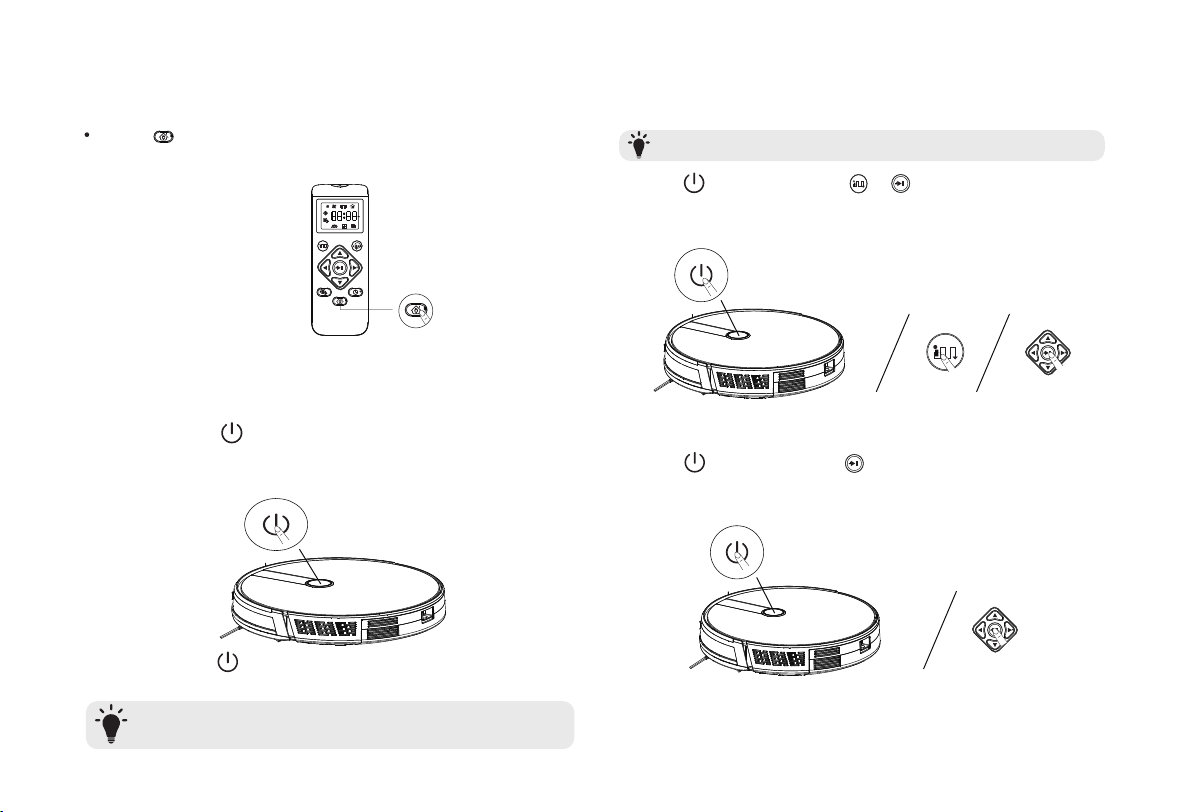

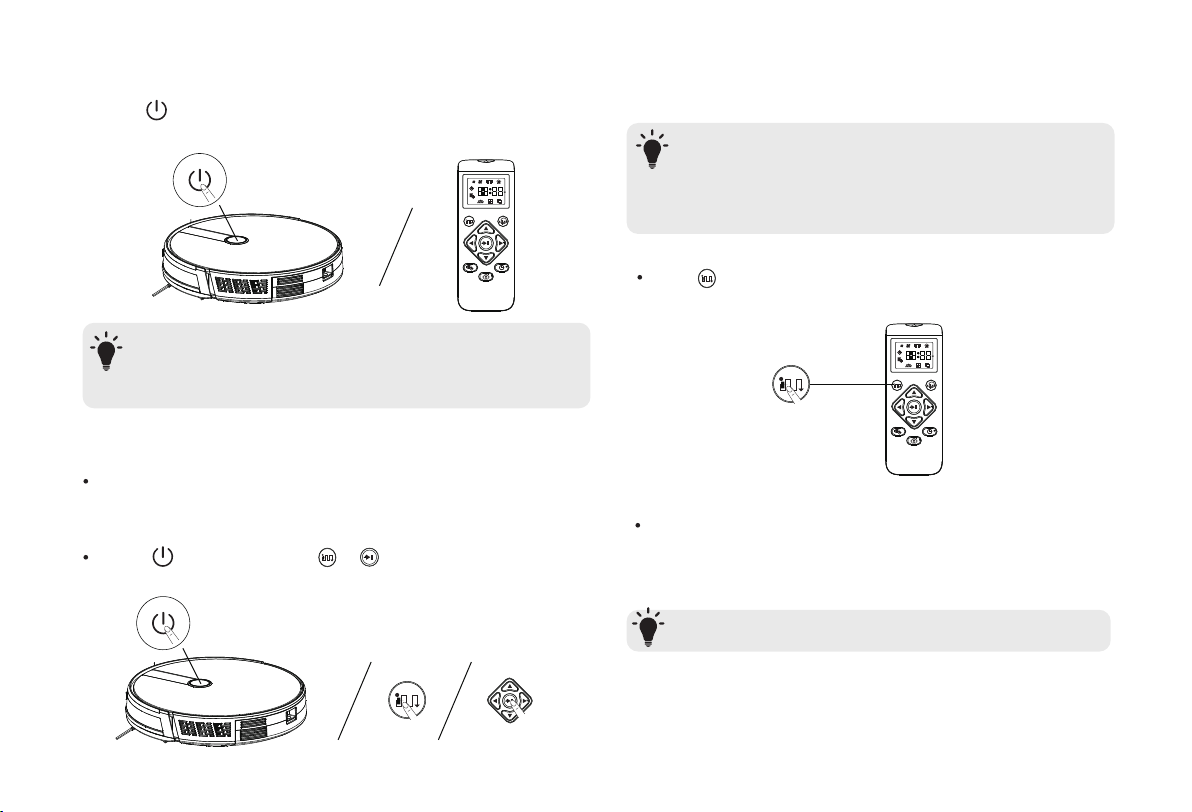

Turn On and Turn Off

:

Turn On

Press on the Robot until the indicator light on
the Robot turns on and the “welcome to use sweeping
robot” Prompt Tone

Start / Stop / Wake up

T

Make sure the Robot is turned on before use.

1. Press on the Robot or / on the remote control to
start cleaning in Auto Mode

2. Press on the Robot or on the remote control to stop
cleaning

Turn Off

T

:

Press on the Robot until the indicator light on
the Robot turns off.

Turn off the Robot if it will not be used for a long period of time. To preserve
the battery’s lifespan,recharge at least once every 6 months.

8

3. Press on the Robot or any key on the remote control to
wake up

If the Robot stops working for more than ten minutes, it will

T

automatically enters the sleep mode ( all the lights on the robot

will turn off)

Select a Cleaning Mode

1. Auto Cleaning

Robot optimizes its cleaning path by selecting different
cleaning modes automatically until cleaning is complete.
This is the most commonly used cleaning mode.

Press on the Robot or / on the remote control to
start cleaning in Auto Mode

- Robot will return to the Charging Base automatically

T

when the battery level becomes low or when Robot finishes

cleaning.

- By default, Robot starts in Auto Cleaning mode when it is
turned on.

Press on the remote control repeatedly to adjust the
suction power level.

Adjust the suction power to ensure the best clean.
It is ideal for cleaning thicker carpets and hard-to-sweep messes,
which will reduce the total cleaning time, but increase the noise
level.

T

-This feature only works in Auto cleaning modes.

9

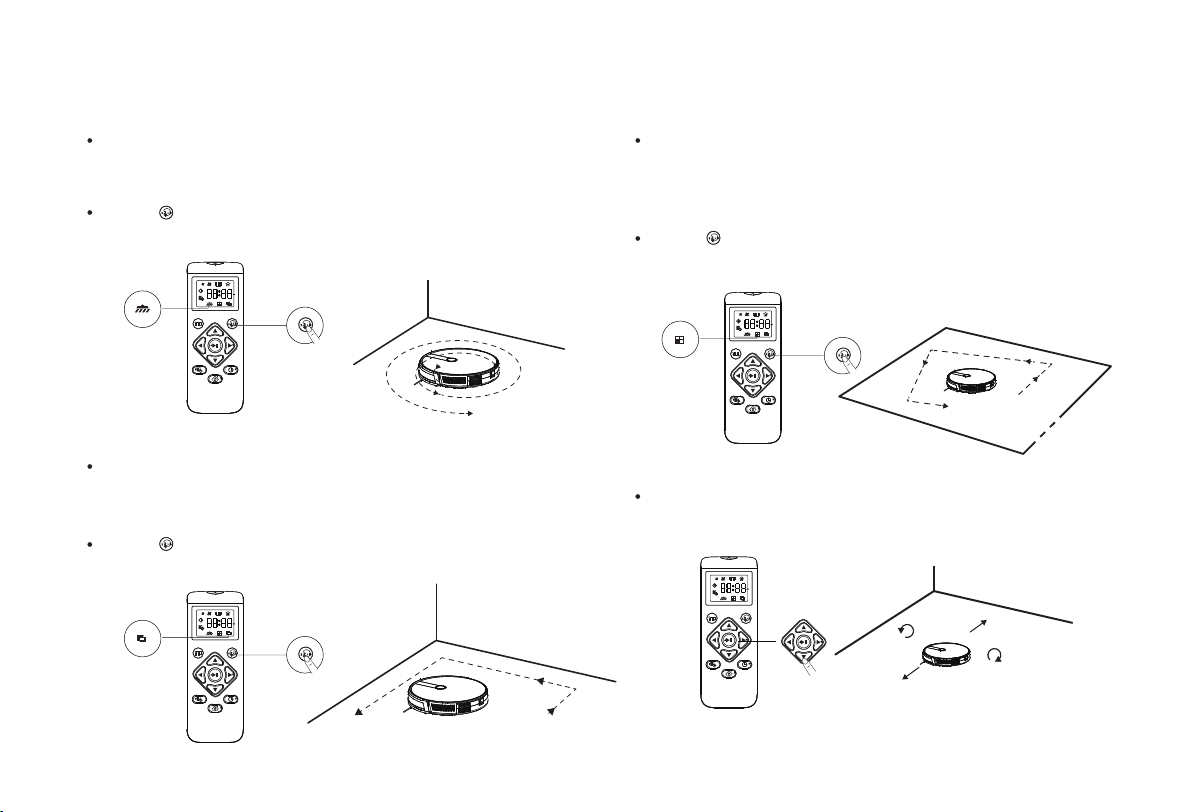

2. Spot Cleaning

Robot intensively cleans a specific area in a spiral pattern
within the 5 ft radius,useful if there is a concentrated area of
dust or debris.

Press on the remote control repeatedly,until the icon of
Spot Cleaning Mode is displayed on the screen

3. Edge Cleaning

Robot reduces the moving speed when detects a wall and
then followsthe wall to ensure the edge is cleaned thoroughly.
Robot will return to the Charging Base when finish.

Press on the remote control repeatedly,until the icon of
Edge Cleaning Mode is displayed on the screen

4. Single Room Cleaning

Select this mode only when one specific room needs to
be cleaned. Make sure to confine Robot to the room by
closing the door. Robot will also clean the edges before
finish.

Press on the remote control repeatedly,until the icon of
Single Room Cleaning Mode is displayed on the screen

5. Manual Cleaning

You can direct Robot to clean a particular area by using
the directional buttons on the remote control.

Turn left

Move backward

Move forward

Turn right

10

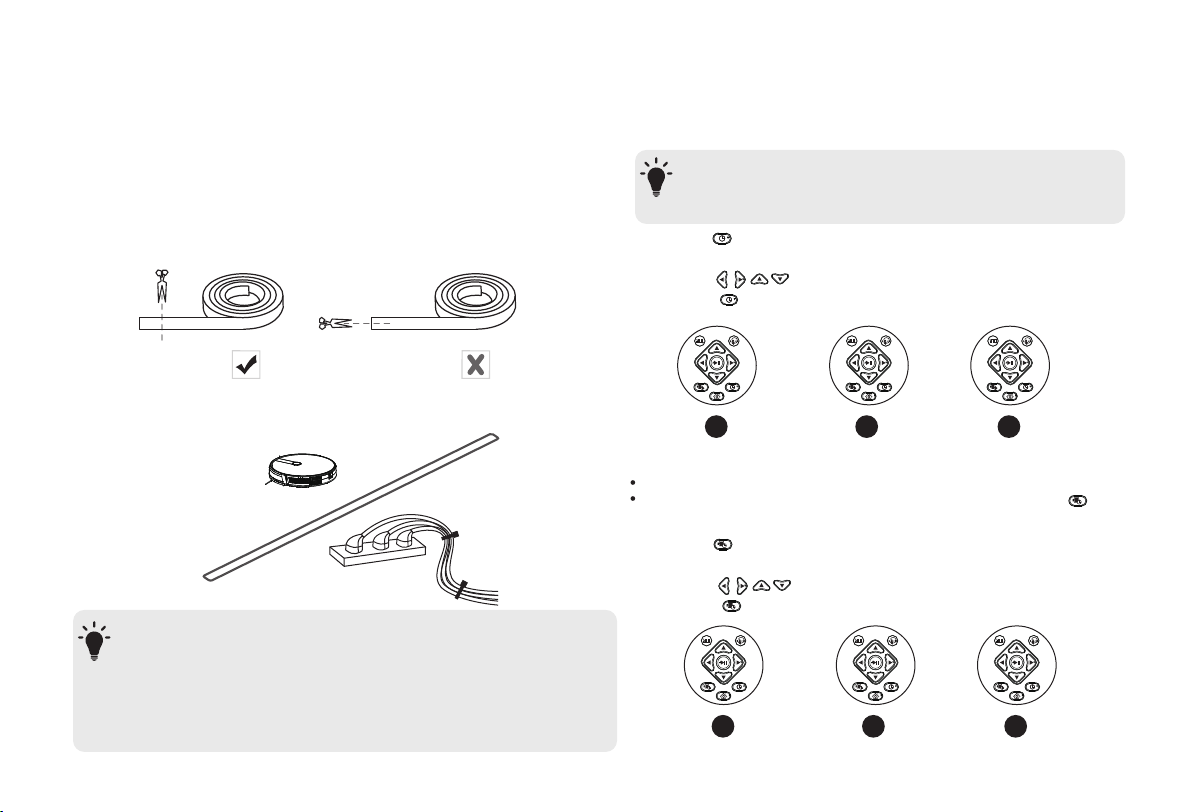

Use the Boundary Strip Set Time and Scheduled Cleaning

With the Boundary Strip, you can keep Robot away from any
area or item you do not want Robot to clean. Robot will recognize
the Boundary Strip and will not cross into the blocked-off area.

1. Identify the area or item you do not want Robot to get close to.

2. If necessary, use scissors to cut the Boundary Strip to a shorter
length. Be sure to correctly measure the length before cutting.

3. Apply adhesive tape to lay the Boundary Strip flat on the floor.
Make sure the strip is placed FLAT on the floor or under an area
rug.

- If the Boundary Strip is rolled up, remove and then re-apply on the floor

T

with adhesive tape. Otherwise the Boundary Strip may not work well.

- Make sure the Boundary Strip is placed on the same surface plane
Robot is used on.

- Be careful not to damage the floor when using adhesive tape. It is not
recommended for use on carpets.

- Keep the Boundary Strip away from objects that emit excessive heat.

11

Set Time

-Make sure the time is set correctly to your local time before

T

setting a scheduled cleaning.

-Make sure the Robot is turned on

1. Press on the remote control. The time will blink on the
display

2. Press to set the “hour” and “minute”

3. Press to save the setting.

1 2 3

Set a Scheduled Cleaning

You can schedule Robot to start cleaning at a specified time.
To cancel a previously scheduled cleaning, press and hold for
3 seconds

1. Press on the remote control. The time will blink on the
display

2. Press to set the “hour” and “minute”

3. Press to save the setting.

1 2 3

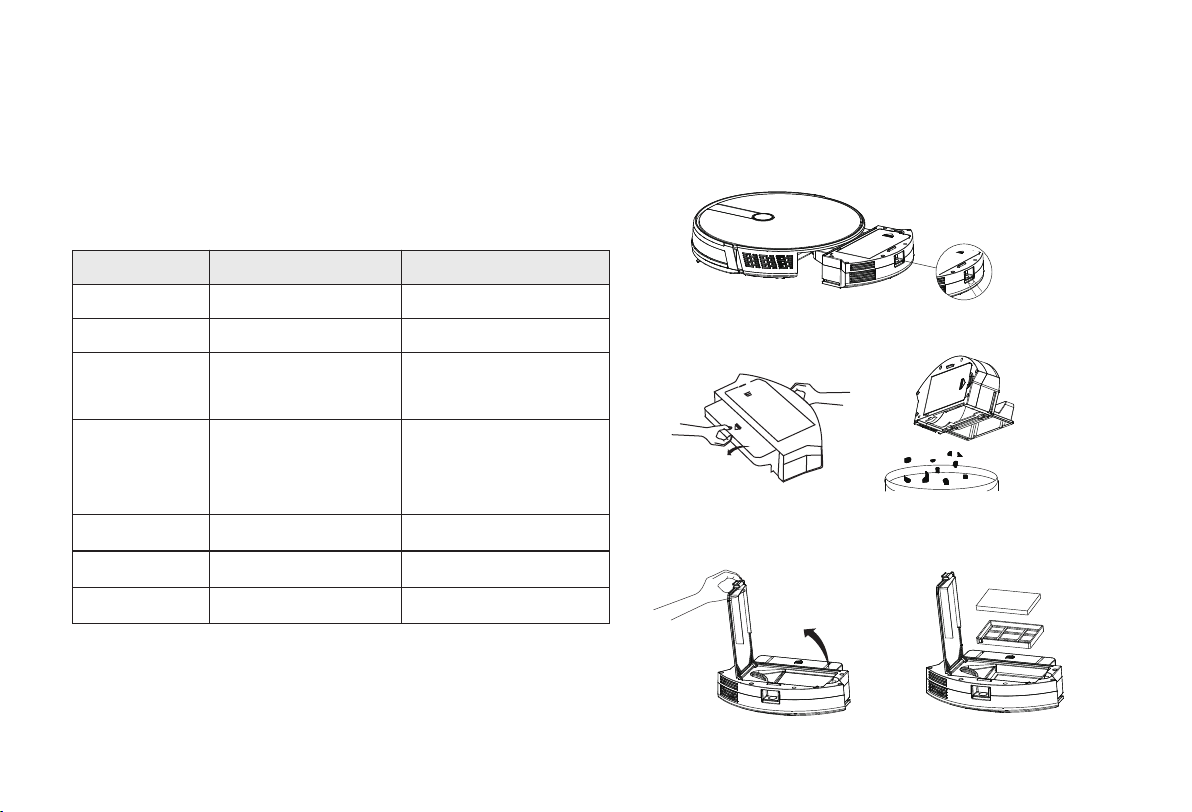

Cleaning and Maintenance

For optimal performance, follow the instructions below to clean
and maintain Robot regularly. The cleaning/replacement frequency
will depend on your usage habits of Robot.

Recommended cleaning/replacement frequency:

Clean the Dust Collector and Filters

1. Press the dust collector release button to pull the dust
collector out

Robot Part

Filters Once every week Every 2 months

Rolling Brush

Side Brushes

Brush Guard

Sensors

Charging Pins

Swivel Wheel

Cleaning Frequency Replacement Frequency

Once every week

Once every month

Once every month

Once every month

Once every month

Once every month

Every 6-12 months

Every 3-6 months
(or when visibly worn)

Every 3-6 months
(or when the silicone
rubber strip on the
brush guard becomes
visibly worn)

2. Open and empty the dust collector

3. Take out the foam filter and high-performance filter

12

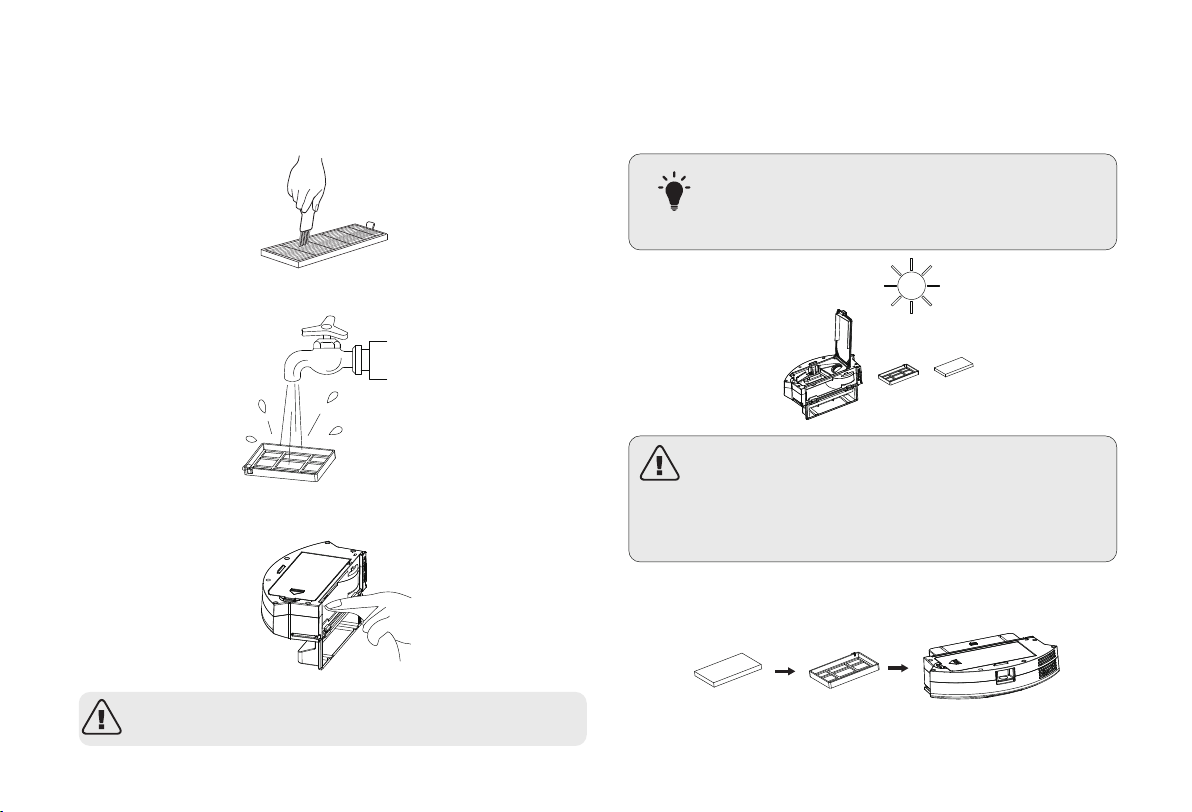

4. Clean the dust collector and filters with a vacuum cleaner
or a cleaning brush.

5. Use water to rinse the primary filter screen

6. The dust box can be scrubbed clean with dishcloth.

7. Dry the dust box and filter assembly, and keep the
robot dry to ensure its service life.

-It is recommended to clean the primary strainer with water

T

every 15 - 30 days after been used. The use life of the high

efficiency filter screen is 3 months.

1. Before installing the filter screen, please ensure that the

high efficiency filter screen and the primary filter screen

are dry.

2. Do not expose the high efficiency strainer and primary

strainer into the sun.

8. Put the filters and pre-filter back together in the dust collector.

Do not allow water into the fan port during
cleaning the dust box

13

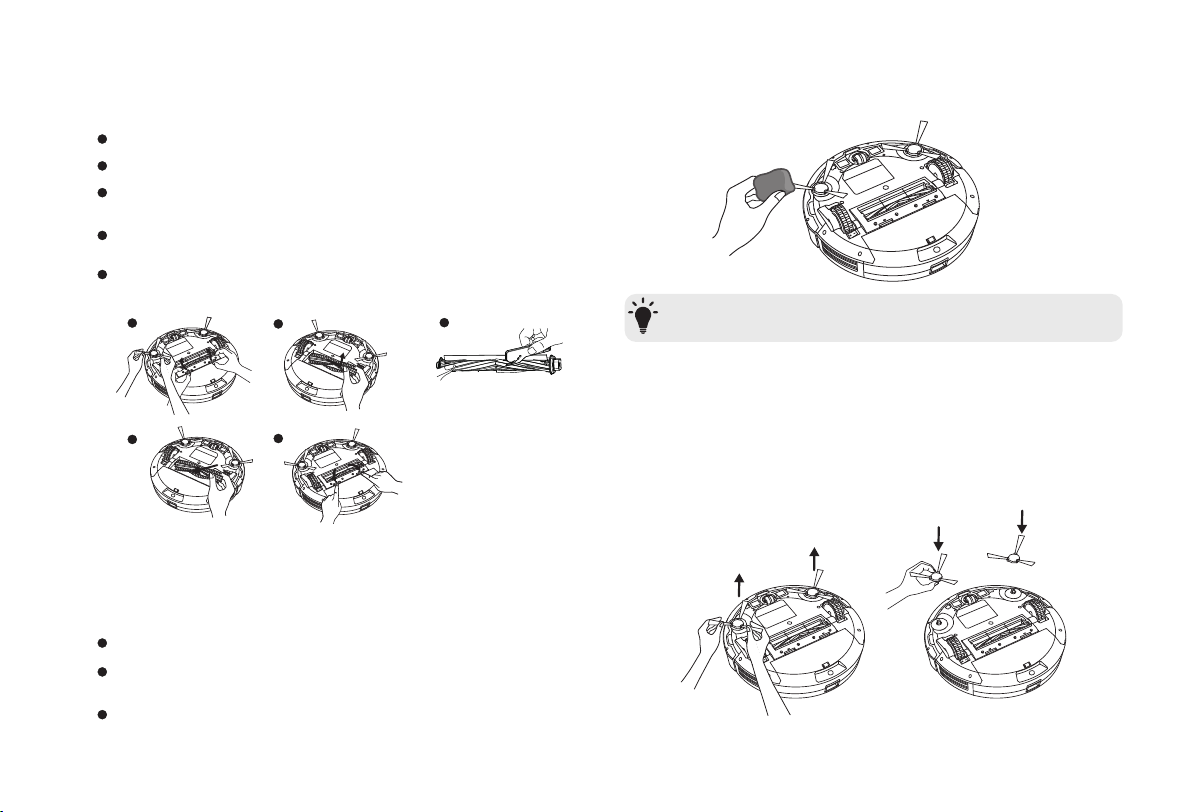

Clean the Rolling Brush

1

Pull on the release tabs to unlock the brush guard as shown.

2

Lift the rolling brush to remove.

3

Clean the rolling brush with the provided cleaning tool or a
vacuum cleaner.

4

Reinstall the rolling brush by inserting the fixed protruding
end first and then clicking into place.

5

Press down to snap the brush guard into place

1

4

2

5

3

Clean the Side Brushes

Foreign substances, such as hair, can easily get tangled in the
side brushes, and dirt may adhere to them. Be sure to clean
them regularly

1

Remove the side brushes

2

Carefully unwind and pull off any hair or string that is
wrapped between the main unit and the side brushes

3

Use a cloth dampened with warm water to remove dust
from the brushes or to gently reshape them.

T

Only use the side brushes when completely dried.

Replace the Side Brushes

The side brushes may become bent or damaged after being
used for a period of time. Follow the instructions below to
replace them

Pull off the old side brushes and snap the new ones into place

14

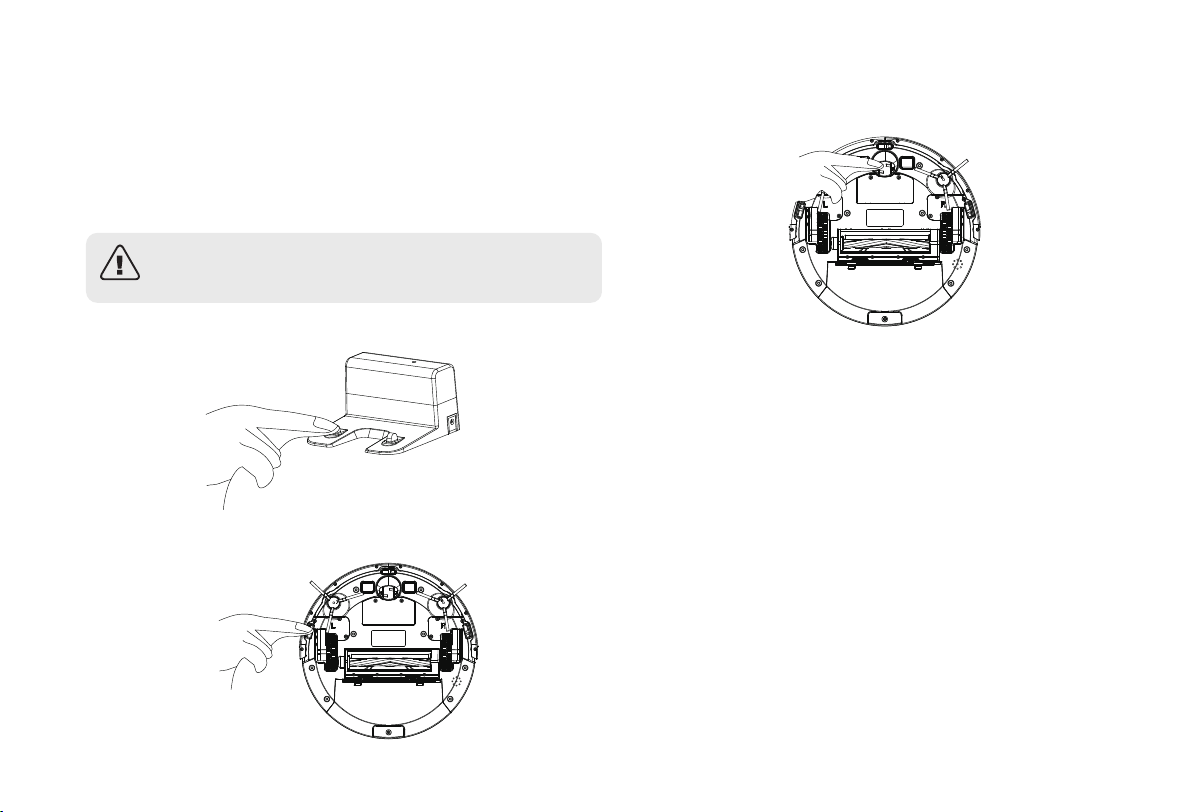

Clean the Sensors and Charging Pins

To maintain the best performance, clean the drop sensors and
charging pins regularly.

Dust off the drop sensors and charging contact pins using a cloth
or cleaning brush.

please use dry dishcloth for cleaning, and do not use

wet dishcloth to prevent damage caused by water.

Clean up charging dock pins

Clean the down-view sensor

Clean drive wheels and swivel wheel

15

Troubleshooting

No. Prom pt Tone Cause of Fai lure Soluti on

1

Wheels off the ground Robot suspended

2

Dust box not installed Dust box removed and not installed

3

Battery failure Abnormal battery charging Contact our cutomer service department to test battery.

4

Please check if the wheel is stuck Wheel jammed

Please check if the front collision

5

is stuck

The battery is low, please charge

6

the machine

Please check whether the side

7

brush is tangled or jammed

Please move the machine to the

8

open area.

Front impact bracket stuck Check whether the front collision can rebound normally

Battery power less than 20 % The machine automatically enters the recharge mode

Abnormal edge brushing

The machine failed to get out
of trouble.

Please put the Robot back to the ground and press the
cleaning key again.

Return the dust box to the Robot and press the cleaning
key again.

Check whether the wheel is entangled with foreign objects
and clean up the entangled

Check whether the side brush is wound by wire and
clean up the wound

Please move the Robot to an empty place and press the
cleaning key a

gain.

objects.

16

Product Parameter

Classi fication Pro jects Para me ter

Structural class

Battery

parameter

Robot

Diameter 330 mm / 1.08 ft

Height 76mm / 0.25 ft

Net weight 3.0 kg / 6.61 lbs

Voltage 14.4 volts

Battery 2500 mAh rechargeable lithium battery pack

Dust box capacity 600 ml

Charging type Automatic charging / Manual charging

Cleaning mode Auto / Single Room / Edge / Spot

Primary charging time About 5 hours

Working time

Rated power (w) 28w

Operating voltage ( v ) 14.4v

About 100 minutes

SHENZHEN ZAPADOS TECHNOLOGY CO.,LTD

Email:[email protected]
Hotline: [phone]

17

* Due to the continuous improvement of the product, this information product is subject to the physical object, and our company reserves the right to update the product.
