Opiz D2 Installation Manual

Door Phone System D2

INSTALLATION MANUAL

TWO WIRE SYSTEM

Shenzhen headquarters

Address: Yuhong Industry Zone, Xingye West Road, Shajing, Bao'an District, Shenzhen, Guangdong, China.
Post code: 518104
Phone: [phone]
Fax：[phone]

E-mail：[email protected]

2012-03-25

VIDEO SWITCH & DECODER D2FD

DECODER PART WIRING

Wiring

① Tens digit: At tens digit area, the short-circuit number is effective numbers; address is the summation of the

effective numbers.

② Units digit: At units digit area, the short-circuit number is effective numbers; address is the summation of the

effective numbers. Address of decoder is consisted with the units digit and tens digit.

③ Connect indoor phone: If audio system two cores are non-polarity. If video system L+ and L- corresponding the

video phones.

④ Connect with main wire “V” “T” “G” to corresponding on door station.

Example: A staircase with seven (7) storey’s and five (5) apartments per floor; connection of flat four (4) on the

floor seven (7). The apartment number is zero-thirty-eight (037).

① Jumpering = 1 + 2 = 3

②Jumpering = 1+2+4 = 7

Parameters

• Temperature: -40℃~70℃

• Ambient humidity: 45%~95%

• Atmospheric pressure: 86Kpa~108Kpa

• Fire endurance rating: IP33

• Working voltage: DC15V (supply by door station or video& audio switch)

• Static current: 150mA

• Static power consumption: 0.075mW

• Surface dimension: 85*85*45mm

2

2012-03-25

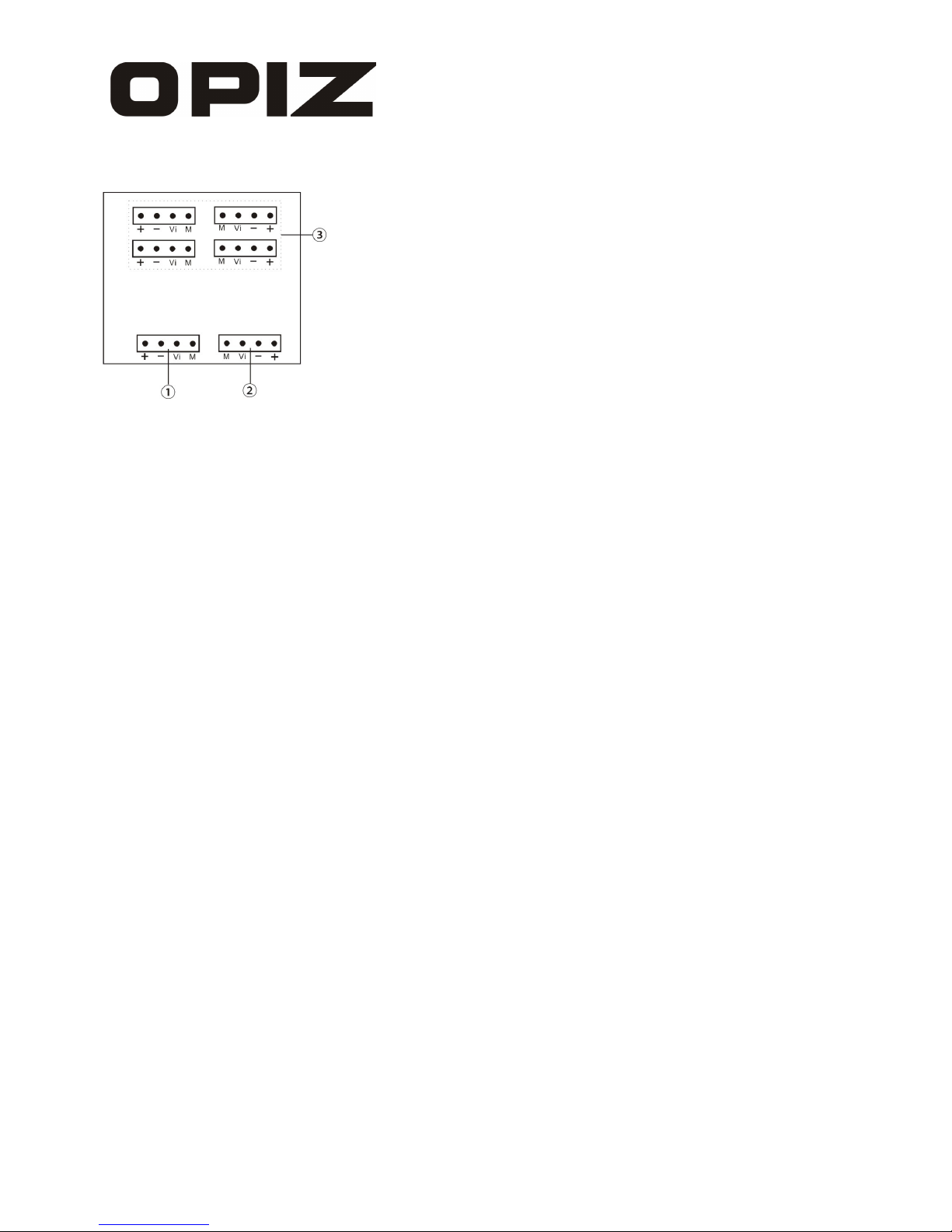

VIDEO SWITCH PART WIRING

Wiring

① Main line inputs (connects with last video switch or door station by “+” ,“–”, “Vi”, “M”)
② Main line outputs (connect nest video switch, if have no next video switch do not connect.)
③ Indoor phone video control terminal connect with indoor phone “V+”, “G”, “Vi”, “M” to video switch “+”,

“– “, “Vi”, “M”

Technical specifications

• Temperature: -40℃~70℃

• Ambient humidity: 45%~95%

• Atmospheric pressure: 86Kpa~108Kpa

• Fire endurance rating: IP33

• Working voltage: DC18V (supply by door station or 18V power supply)

• Static current: 30A

• Static power dissipation: 0.054W

• Surface dimension: 85*85*45mm

3

2012-03-25

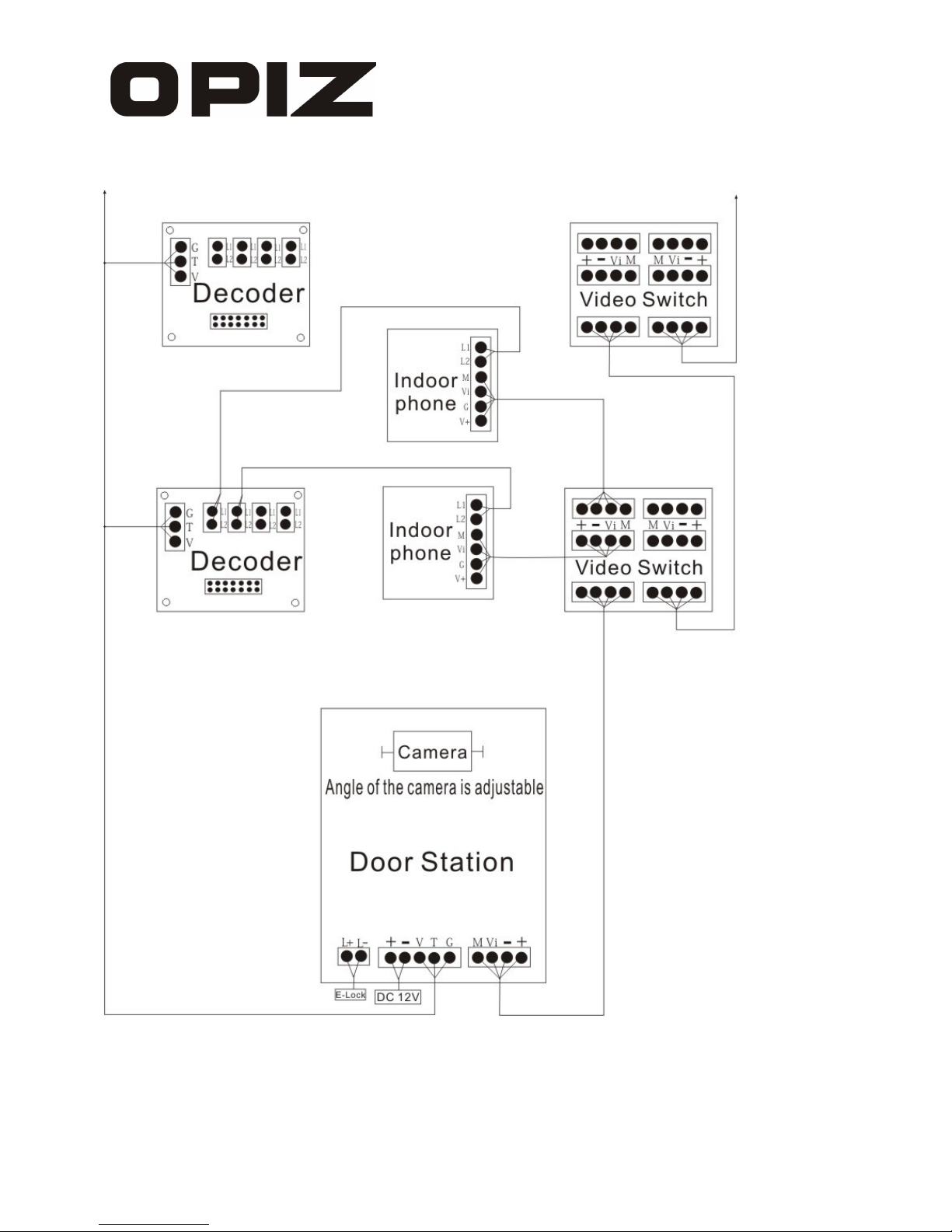

DIAGRAM (NON-NETWORK)

* Diagram of audio system is similar with the diagram of video system, video system has the video part, audio

system has not.

4

2012-03-25

Specification of the cables used for the system.

Cable Name Length Cross section area

≥30m 0.3 mm2

Audio& video switch to decoder RVV3

Decoder to indoor phone RVV2

Point controller to point controller RVV2

Door station to management center RVV2

Video cable Coaxial

30≤ ≥50m 0.5 mm2

50≤ ≥75m 0.75 mm2

75≤ ≥100m 1.00 mm2

≥20m 0.3 mm2

20≤ ≥50m 0.5 mm2

≥500m 0.3 mm2

500≤ ≥1000m 0.5 mm2

1000≤ ≥1500m 0.75 mm2

1500≤ ≥2000m 1.00 mm2

≥500m 0.15 mm2

500≤ ≥1000m 0.3 mm2

1000≤ ≥1500m 0.5 mm2

1500≤ ≥2000m 0.75 mm2

≥500m 75-3 coax

500≤ ≥1000m 75-5 coax

1000≤ ≥2000m 75-7 coax

5
