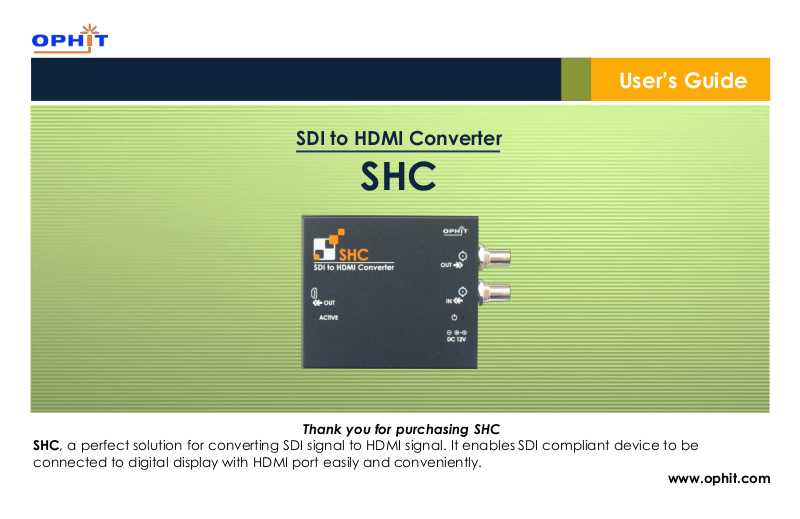

SDI to HDMI Converter
SHC
User’s Guide
SHC, a perfect solution for converting SDI signal to HDMI signal. It enables SDI compliant device to be
connected to digital display with HDMI port easily and conveniently.
Thank you for purchasing SHC
www.ophit.com
Page 2
User’s Guide
Check your package
Check the package and make sure you have everything:
Contents
(1) SHC – SDI to HDMI Converter
(2) +12V DC Power supply x 1pc
(3) User’s Guide
If any of these items are missing in your package, contact OPHIT or
your supplier for support.
NOTE: Package content may differ if you have placed a special
order or placed order from anywhere other than OPHIT CO., LTD.
OPHIT CO., LTD. reserves the right to make changes without
further notice to a product described herein to improve reliability,
design, packaging or function.
이 기기는 업무용(A급)으로 전자파 적합등록 한 기기이오니 판매자 또는
사용자는 이 점을 주의하시기 바라며 가정 외의 지역에서 사용하는 것을
목적으로 합니다.
Installation
Installation Steps:
1. Connect the included +12V DC power supply to SHC and check
power LED indicator become active.
2. Connect the source device to SDI input port.
3. Connect the display device to HDMI output port.
4. Connect the monitoring display device to SDI output port.(Optional)
SDI
SDI
Output
Input
DC +12V
Power
HDMI
Output
Page 3
User’s Guide
Installation
5. Active LED indicator will glow orange color.
Power LED indicator
Active
LED indicator
Solid orange LED light on the Active indicator means all devices have
been connected to Input/output port and converter identified input
signal.
Blinking orange LED light on the Active indicator means Input and/or
output devices isn’t connected well or Input signal is not going into the
converter properly. Please check all connections and input resolution.
Application
Page 4
Warranty
We, OPHIT hereby warrant the final purchase of our product as follows.
In the case of troubles on our products, please contact the shop purchased.
One year limited warranty
Our customers have right to be served with free of charge when there is trouble in this product during 1(one) year from the day purchased.
Out of warranty services
When you request services (in the case of non manufacturing defects but the troubles by misusage), may served with charge as follows.
- Defects of products caused by accident, disaster.
- Damages of products caused by the customer’s carelessness or mistaken application.
- Damages of products caused by the application of the parts or products not supplied or sold by our company.
- Damages of products and related defects caused by not our staff or the men or group not nominated by us for services.
The interchanged parts and products for maintenance services shall be replaced as new parts and products operating
normally, and the inter-changed parts and products shall be subjected to our company.
www.ophit.com
