Page 1
USER’S manual
Optical DisplayPort
Cable
DPM
Page 2
Table of Contents
1. Introduction ……………….....................................…2
2. Features ….…………………….............………………....2
3. Model name …………...............………………….………2
4. Panel Descriptions …..............………………….………3
5. Package contents .……….............…………….……….3
6. Installation .………………............……………………….4
7. Specification ………………………..............……………..4
8. Precaution .……………………………..............………….5
9. Warranty .……………………………...…............……….6
www.ophit.com
1
Page 3
Introduction
OPHIT DPM with fiber optic cable system lets you extend digital plat panel
signal up to 65meters(215ft) at WQXGA(2560X1600) resolution away from
host based on DisplayPort standard.
Features
• High speed and long distance transmission by optical system
• Compatible with DisplayPort standard V1.1a
• HBR(High Bit Rate) cable assembly (up to 2.7Gbps date rate)
• Supports up to WQXGA(2560X1600) resolution
• No need to external power
• AUX and Hotplug channels are transmitted by copper line
Model Name
DPM– A0XX
Length of cable
Model Name
www.ophit.com2
10 = 10 meters
20 = 20 meters
65 = 65 meters
:
Page 4
<Top view>
Panel Descriptions
DisplayPort
Copper
cable
DisplayPort
Connector
<Side view>
Package contents
Transmitter
Optic fiber
cable
Receiver
Before you start installing the cable, please check the package contents.
•Optical DispalyPort cable
•30cm(1feet) DisplayPort copper cable 1pc
•User’s Manual
www.ophit.com
3
Page 5

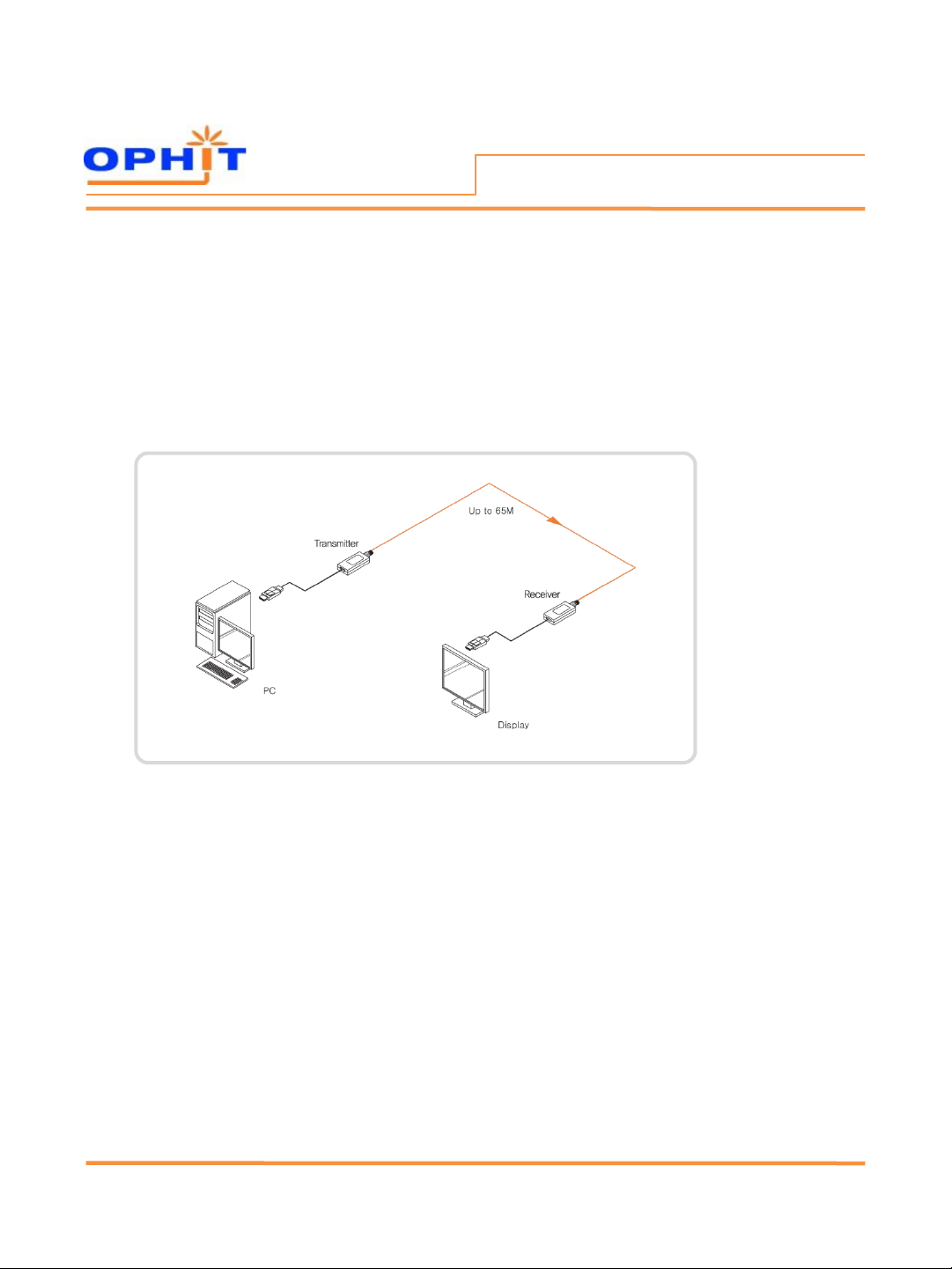

Installation
1. Connect the ‘Transmitter’ side of connector to source device.
2. Connect the ‘Receiver’ side of connector to display device.
(Before connect to display, enclosed 30cm(1feet) DisplayPort
copper cable should be connected to the end of connector)
Installation
Specifications
Connector : Transmitter - 20 pin DisplayPort Plug (Male)
Receiver - 20 pin DisplayPort Plug (Female)
Video Bandwidth : 10 bit Deep color / 60Hz
Supporting Resolution : Up to WQXGA(2560X1600)
Supporting distance : Up to 65M (215Ft)
Compliant : Standard DispalyPort V1.1a
• Power consumption : Tx-0.4W, Rx-0.7W
Bending Radius : 70mm
Environment
- Operating Temperature Range : 0 to 50°C
- Storage Temperature Range : -20 to 70°C
4
www.ophit.com
Page 6
Precaution
WARNING
• Do not dismantle the housing or modify the product.
Dismantling the housing or modifying the product m ay result in electrical
shock or burn.
• Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing
housing may expose you to dangerous voltage or other hazards.
• Keep the product away from liquids.
Spilling into the housing may result in fire, electrical shock, or equipment
damage. If an object or liqu id falls/ spill s into the housing, unplug the
product immediately .
Have the product checked by a qualified service engineer before using it
again.
• Do not touch t he Prod uct with wet hands.
Touching the housing and plug with wet hands is dangerous and can
cause electrical shock.
• Do not twist or pull by force the both ends of the optical cable.
It can cause malfunction
(Minimum bending diameter : 75mm)
www.ophit.com
5
Page 7
Warranty
We, OPHIT hereby warrant the final purchase of our product as follows.
In the case of troubles on our products, please contact the shop purchased.
One(1) year limited warranty
Our customers have right to be served with free charge when there is trouble
in this product during one(1) year from the day purchased.
Out of warranty services
When you request services (in the case of non m anufac turing defect but the
troubles by m isusage), may served with charge
of follows.
• Defects of products caused by acci dent , disaster.
• Damages of products caused by the customer’s carelessness or
mistaken application.
• Damages of products caused by the application of parts or
products not supplied or sold by our company.
• Damages of products and related defec ts caused by not our staff
or the man or group not nominated by us for services.
www.ophit.com6
Page 8
MEMO
www.ophit.com
7
Page 9
MEMO
8
www.ophit.com
Page 10
MEMO
www.ophit.com
9
Page 11
Copyright ⓒ 2011 OPH IT All right reserved
Re v. 1.1
