Thank you for purchasing DPHS

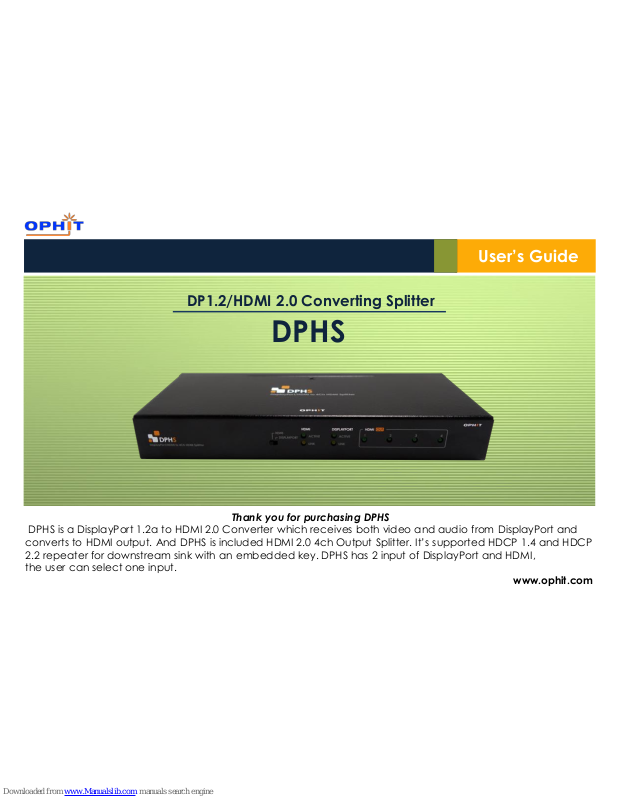

DPHS is a DisplayPort 1.2a to HDMI 2.0 Converter which receives both video and audio from DisplayPort and
converts to HDMI output. And DPHS is included HDMI 2.0 4ch Output Splitter. It’s supported HDCP 1.4 and HDCP
2.2 repeater for downstream sink with an embedded key. DPHS has 2 input of DisplayPort and HDMI,
the user can select one input.
www.ophit.com
User’s Guide
DP1.2/HDMI 2.0 Converting Splitter
DPHS
Page 2
NOTE: Package content may differ if you have placed a special
order or placed order from anywhere other than OPHIT CO., LTD.
OPHIT CO., LTD. reserves the right to make changes without
further notice to a product described herein to improve reliability,
design, packaging or function.
User’s Guide
Check the package and make sure you have everything:
Contents
(1) DPHS Splitter
(2) +12V DC Power supply x 1pc
(3) AC 220V Power cord x 1pc
(4) User’s Guide
If any of these items are missing in your package, contact OPHIT or
your supplier for support.
Check your package
Installation
Installation Steps:
1. Connect a source device to DPHS input port.
2. Connect sink devices to DPHS output port.
3. Slide the switch to select the input port.
4. Connect the included +12V DC power supply into the DPHS.
5. LED indicators will be light up after all connections are completed.
DC +12V
Power Jack
Input Selection
Switch
Page 3
We, OPHIT hereby warrant the final purchase of our product as follows.
In the case of troubles on our products, please contact the shop purchased.
One year limited warranty
Our customers have right to be served with free of charge when there is trouble in this product during 1(one) year from the day purchased.
Out of warranty services
When you request services (in the case of non manufacturing defects but the troubles by misusage), may served with charge as follows.
- Defects of products caused by accident, disaster.
- Damages of products caused by the customer’s carelessness or mistaken application.
- Damages of products caused by the application of the parts or products not supplied or sold by our company.
- Damages of products and related defects caused by not our staff or the men or group not nominated by us for services.
The interchanged parts and products for maintenance services shall be replaced as new parts and products operating
normally, and the inter-changed parts and products shall be subjected to our company.
Warranty
www.ophit.com
