Page 1

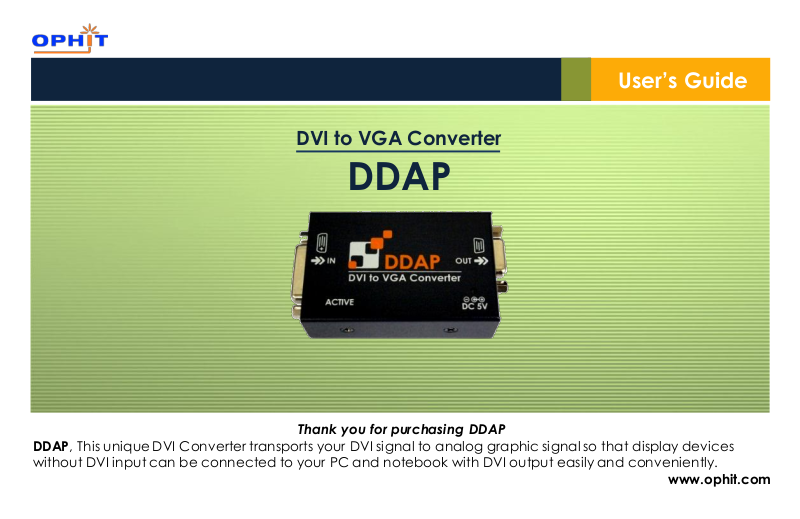

DVI to VGA Converter
DDAP
User’s Guide
DDAP, This unique DVI Converter transports your DVI signal to analog graphic signal so that display devices
without DVI input can be connected to your PC and notebook with DVI output easily and conveniently.
Thank you for purchasing DDAP
www.ophit.com
Page 2
User’s Guide
Check your package
Check the package and make sure you have everything:
Contents
(1) DDAP – DVI to VGA Converter
(2) +5V DC Power supply x 1pc
(3) User’s Guide
If any of these items are missing in your package, contact OPHIT or
your supplier for support.
NOTE: Package content may differ if you have placed a special
order or placed order from anywhere other than OPHIT CO., LTD.
OPHIT CO., LTD. reserves the right to make changes without
further notice to a product described herein to improve reliability,
design, packaging or function.
Installation
Installation Steps:
1. Connect the VGA Video display to DDAP output port.
2. Connect the included +5V DC power supply to DDAP
DC +5V Power
3. Connect the DVI Video source to DDAP input port.
DVI Input
VGA Output
Page 3
User’s Guide

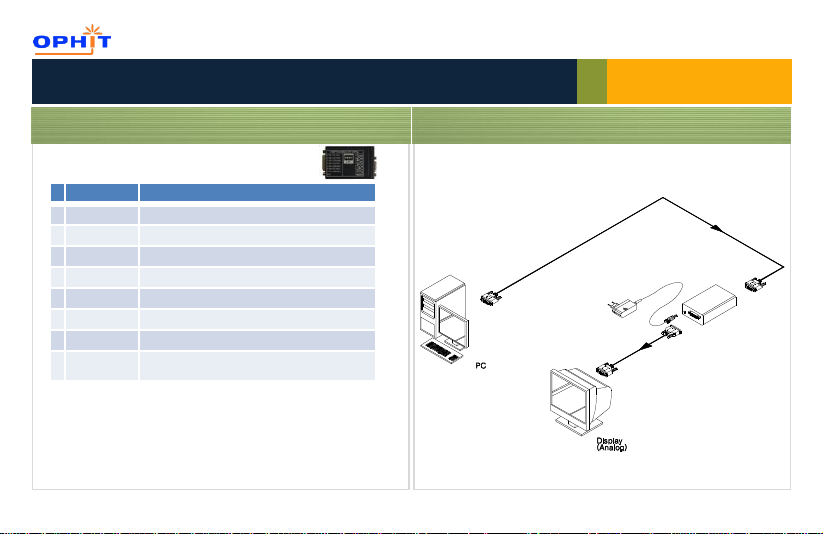

EDID Switch Setting
EDID Setting: Mode is set on ETC when shipping
Resolution Description
1 XGA Internal EDID Set to 1024 x 768 @ 60Hz Mode.
2 SXGA Internal EDID Set to 1280 x 1024 @ 60Hz Mode.
3 SXGA+ Internal EDID Set to 1400 x 1050 @ 60Hz Mode.
4 WSXGA+ Internal EDID Set to 1680 x 1050 @ 60Hz Mode.
5 UXGA Internal EDID Set to 1600 x 1200 @ 60Hz Mode.
6 720P(HD) Internal EDID Set to 1280 x 720 @ 60Hz Mode.
7 1080P(FULL HD) Internal EDID Set to 1920 x 1080 @ 60Hz Mode.
8 ETC
Use setting switch to set resolutions after trying DDAP on ETC mode, if DDAP
operates normally on ETC mode you don’t have to change EDID setting.
1. Disconnect power adapter and cables from DDAP before setting EDID switch.
2. Set EDID switch as shown on back of DDAP.
3. When EDID setting is ready connect power adapter and cables.
4. On ETC mode there can be compatibility issues, in this case setting one
of No.1~No.7 is recommended.
Mode that reads Analog EDID from monitor that’s connected to
VGA port and transfers to Digital EDID.
Application
Page 4
Warranty
We, OPHIT hereby warrant the final purchase of our product as follows.
In the case of troubles on our products, please contact the shop purchased.
One year limited warranty
Our customers have right to be served with free of charge when there is trouble in this product during 1(one) year from the day purchased.
Out of warranty services
When you request services (in the case of non manufacturing defects but the troubles by misusage), may served with charge as follows.
- Defects of products caused by accident, disaster.
- Damages of products caused by the customer’s carelessness or mistaken application.
- Damages of products caused by the application of the parts or products not supplied or sold by our company.
- Damages of products and related defects caused by not our staff or the men or group not nominated by us for services.
The interchanged parts and products for maintenance services shall be replaced as new parts and products operating
normally, and the inter-changed parts and products shall be subjected to our company.
www.ophit.com
Page 5
RMA Request Form
Customer Name: Return Date:
Company Name: Phone:
Model Name: E-Mail:
Serial No: Place of Purchase:
Address: (For RMA Return)
RMA details: (Please describe RMA status, application used and failure symptom)
www.ophit.com
RMA No.:
Page 6
USA
Foreseeson Custom Display
2210E, Winston Road Anaheim,
CA 92806 USA
Tel: +1-714-300-0540
Fax : +1-714-300-0546
E-mail: [email protected]
© 2012 OPHIT CO., LTD. All rights reserved.
Printed and designed in Korea
Technical and Sales Support
KOREA HQ
3F Suntechnovil, 5-27 Mangpo-Dong, Youngtong-Gu, Suwon-City,
OPHIT CO., LTD.
Kyunggi-Do, Korea (443-400 )
Tel: + 82 (0)31 695 5543
Fax: + 82 (0)31 695 5545
E-mail:
Regional Office
UK
Foreseeson UK Ltd
Unit 2Kingsmill Business Park, Chapel Mill Rd.
Kingston Upon Thames, Surrey; KT1 3GZ; UK
Tel : +44 (0)208 546 1047
Fax : +44(0) 208 546 3931
E-mail: [email protected]
www.ophit.com
Europe
Foreseeson GmbH
Benzstr. 9, 61352 Bad
Homburg Germany
Tel.: +49 (0)6172 185310 20
Fax: +49 (0)6172 185310 11
E-mail: [email protected]
REV. 1.0
