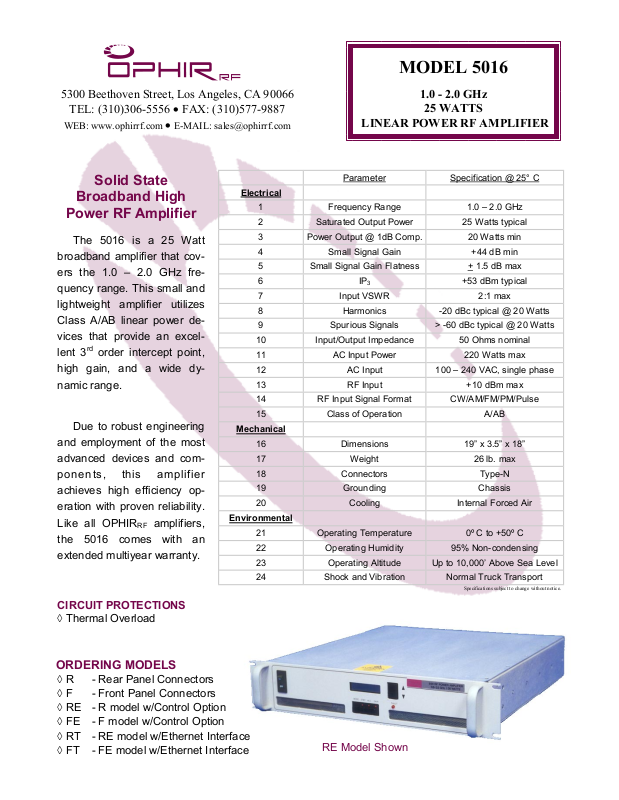

MODEL 5016
1.0 - 2.0 GHz
25 WATTS
LINEAR POWER RF AMPLIFIER
Solid State
Broadband High
Power RF Amplifier
The 5016 is a 25 Watt
broadband amplifier that covers the 1.0 – 2.0 GHz frequency range. This small and
lightweight amplifier utilizes
Class A/AB linear power devices that provide an excel-
rd
lent 3
high gain, and a wide dynamic range.
Due to robust engineering
and employment of the most
advanced devices and components, this amplifier
achieves high efficiency operation with proven reliability.
Like all OPHIR
the 5016 comes with an
extended multiyear warranty.
order intercept point,
amplifiers,
RF
Parameter Specification @ 25° C
Electrical
1 Frequency Range 1.0 – 2.0 GHz
2 Saturated Output Power 25 Watts typical
3 Power Output @ 1dB Comp. 20 Watts min
4 Small Signal Gain +44 dB min
5 Small Signal Gain Flatness +
6 IP
7 Input VSWR 2:1 max
8 Harmonics -20 dBc typical @ 20 Watts
9 Spurious Signals > -60 dBc typical @ 20 Watts
10 Input/Output Impedance 50 Ohms nominal
11 AC Input Power 220 Watts max
12 AC Input 100 – 240 VAC, single phase
13 RF Input +10 dBm max
14 RF Input Signal Format CW/AM/FM/PM/Pulse
15 Class of Operation A/AB
Mechanical
Environmental
16 Dimensions 19” x 3.5” x 18”
17 Weight 26 lb. max
18 Connectors Type-N
19 Grounding Chassis
20 Cooling Internal Forced Air
21 Operating Temperature 0º C to +50º C
22 Operating Humidity 95% Non-condensing
23 Operating Altitude Up to 10,000’ Above Sea Level
24 Shock and Vibration Normal Truck Transport
1.5 dB max
+53 dBm typical
3
Specification s subject to change with out notice.
CIRCUIT PROTECTIONS
◊ Thermal Overload
ORDERING MODELS
◊ R - Rear Panel Connectors
◊ F - Front Panel Connectors
◊ RE - R model w/Control Option
◊ FE - F model w/Control Option
◊ RT - RE model w/Ethernet Interface
◊ FT - FE model w/Ethernet Interface
RE Model Shown
