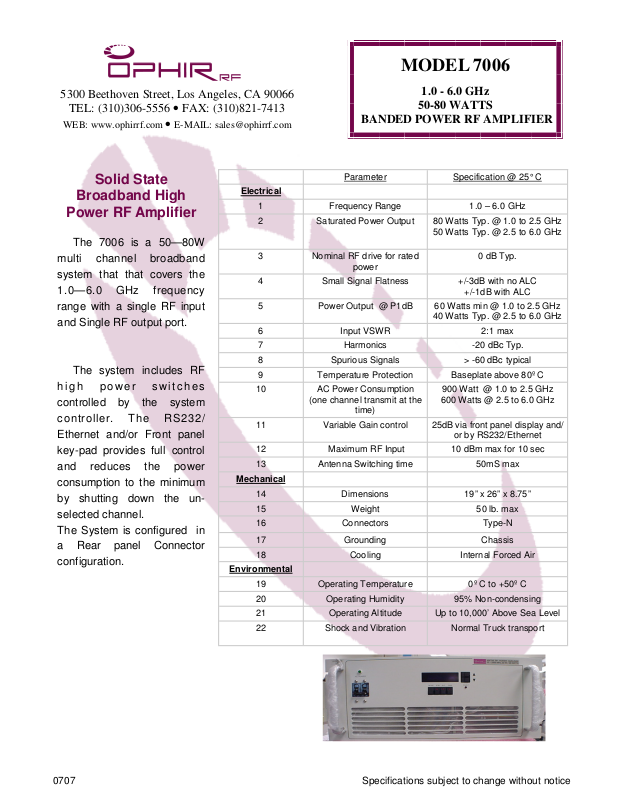

Ophir 7006 Data Sheet

5300 Beethoven Street, Los Angeles, CA 90066

TEL: [phone] • FAX: [phone]

WEB: www.ophirrf.com • E-MAIL: [e-mail]

MODEL 7006

1.0 - 6.0 GHz

50-80 WATTS

BANDED POWER RF AMPLIFIER

Solid State

Broadband High

Power RF Amplifier

The 7006 is a 50—80W
multi channel broadband
system that that covers the

1.0—6.0 GHz frequency
range with a single RF input
and Single RF output port.

The system includes RF
h i g h p o we r s wi tc he s
controlled by the system
controller. The RS232/
Ethernet and/or Front panel
key-pad provides full control
and reduces the power
consumption to the minimum
by shutting down the un­selected channel.
The System is configured in
a Rear panel Connector
configuration.

Parameter Specification @ 25° C

Electrical

1 Frequency Range 1.0 – 6.0 GHz

2 Saturated Power Output 80 Watts Typ. @ 1.0 to 2.5 GHz

3 Nominal RF drive for rated

4 Small Signal Flatness +/-3dB with no ALC

5 Power Output @ P1dB 60 Watts min @ 1.0 to 2.5 GHz

6 Input VSWR 2:1 max

7 Harmonics -20 dBc Typ.

8 Spurious Signals > -60 dBc typical

9 Temperature Protection Baseplate above 80º C

10 AC Power Consumption

(one channel transmit at the

11 Variable Gain control 25dB via front panel display and/

12 Maximum RF Input 10 dBm max for 10 sec

13 Antenna Switching time 50mS max

Mechanical

14 Dimensions 19” x 26” x 8.75”

15 Weight 50 lb. max

16 Connectors Type-N

17 Grounding Chassis

18 Cooling Internal Forced Air

Environmental

19 Operating Temperature 0º C to +50º C

20 Operating Humidity 95% Non-condensing

21 Operating Altitude Up to 10,000’ Above Sea Level

22 Shock and Vibration Normal Truck transport

50 Watts Typ. @ 2.5 to 6.0 GHz

power

+/-1dB with ALC

40 Watts Typ. @ 2.5 to 6.0 GHz

900 Watt @ 1.0 to 2.5 GHz

600 Watts @ 2.5 to 6.0 GHz

time)

or by RS232/Ethernet

0 dB Typ.

Specifications subject to change without notice 0707

5300 Beethoven Street, Los Angeles, CA 90066

TEL: [phone] • FAX: [phone]

WEB: www.ophirrf.com • E-MAIL: [e-mail]

MODEL 7006

1.0 - 6.0 GHz

50-80 WATTS

BANDED POWER RF AMPLIFIER

CONTROL & INDICATIONS

◊ AC Circuit Breaker

◊ Band Select
◊ Forward power of selected channel
◊ Reflected Power of selected channel
◊ VSWR Fault Reset

CIRCUIT PROTECTIONS

◊ Protection against VSWR of > 2:1
latched with Reset

◊ Thermal Overload
◊ Over Current
◊ Over Voltage
