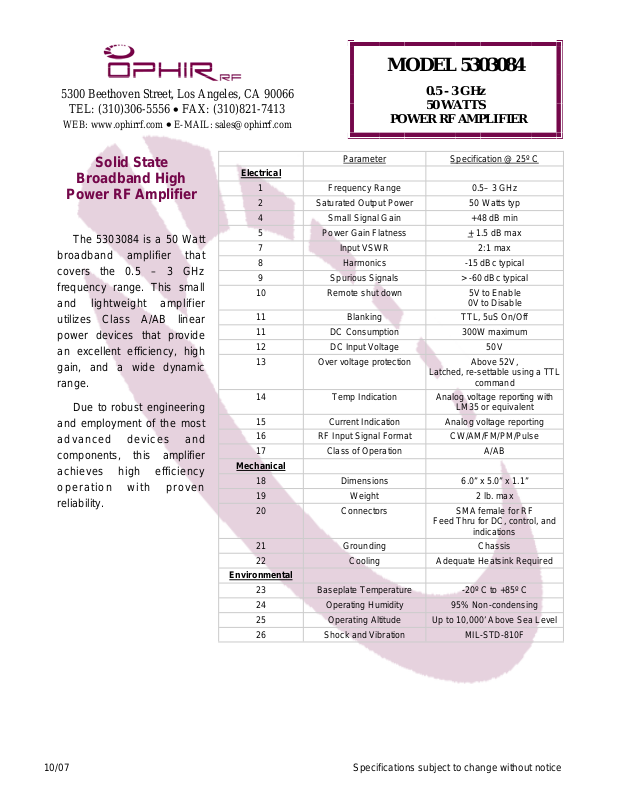

MODEL 5303084
0.5 - 3 GHz
50 WATTS
POWER RF AMPLIFIER
Solid State
Broadband High
Power RF Amplifier
The 5303084 is a 50 Watt
broadband amplifier that
covers the 0.5 – 3 GHz
frequency range. This small
and lightweight amplifier
utilizes Class A/AB linear
power devices that provide
an excellent efficiency, high
gain, and a wide dynamic
range.
Due to robust engineering
and employment of the most
advanced devices and
components, this amplifier
achieves high efficiency
operation with proven
reliability.
Parameter Specification @ 25º C
Electrical
Mechanical
Environmental
1 Frequency Range 0.5– 3 GHz
2 Saturated Output Power 50 Watts typ
4 Small Signal Gain +48 dB min
5 Power Gain Flatness +
7 Input VSWR 2:1 max
8 Harmonics -15 dBc typical
9 Spurious Signals > -60 dBc typical
10 Remote shut down 5V to Enable
11 Blanking TTL, 5uS On/Off
11 DC Consumption 300W maximum
12 DC Input Voltage 50V
13 Over voltage protection Above 52V,
14 Temp Indication Analog voltage reporting with
15 Current Indication Analog voltage reporting
16 RF Input Signal Format CW/AM/FM/PM/Pulse
17 Class of Operation A/AB
18 Dimensions 6.0” x 5.0” x 1.1”
19 Weight 2 lb. max
20 Connectors SMA female for RF
21 Grounding Chassis
22 Cooling Adequate Heatsink Required
23 Baseplate Temperature -20º C to +85º C
24 Operating Humidity 95% Non-condensing
25 Operating Altitude Up to 10,000’ Above Sea Level
26 Shock and Vibration MIL-STD-810F
1.5 dB max
0V to Disable
Latched, re-settable using a TTL
command
LM35 or equivalent
Feed Thru for DC, control, and
indications
Specifications subject to change without notice 10/07
