5300 Beethoven Street, Los Angeles, CA 90066
TEL: (310)306-5556 • FAX: (310)821-7413
WEB: www.ophirrf.com • E-MAIL: [email protected]

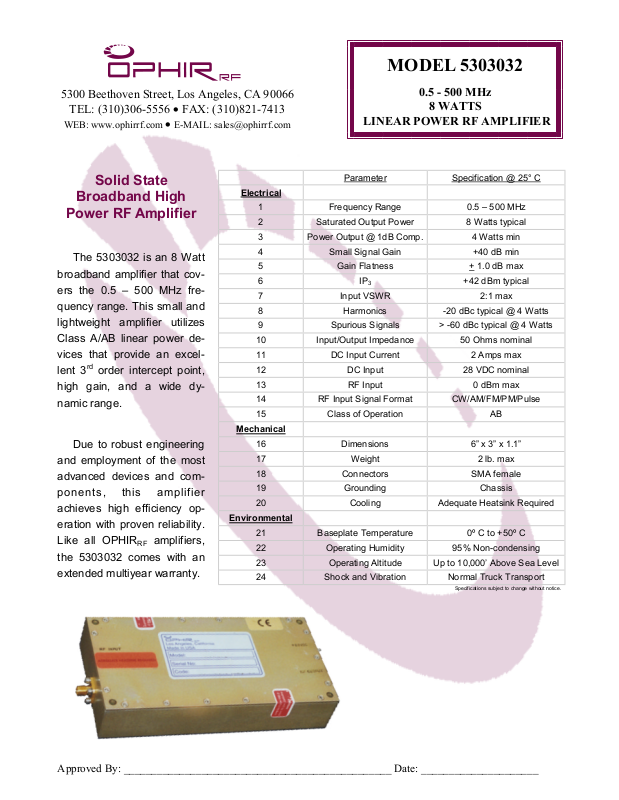

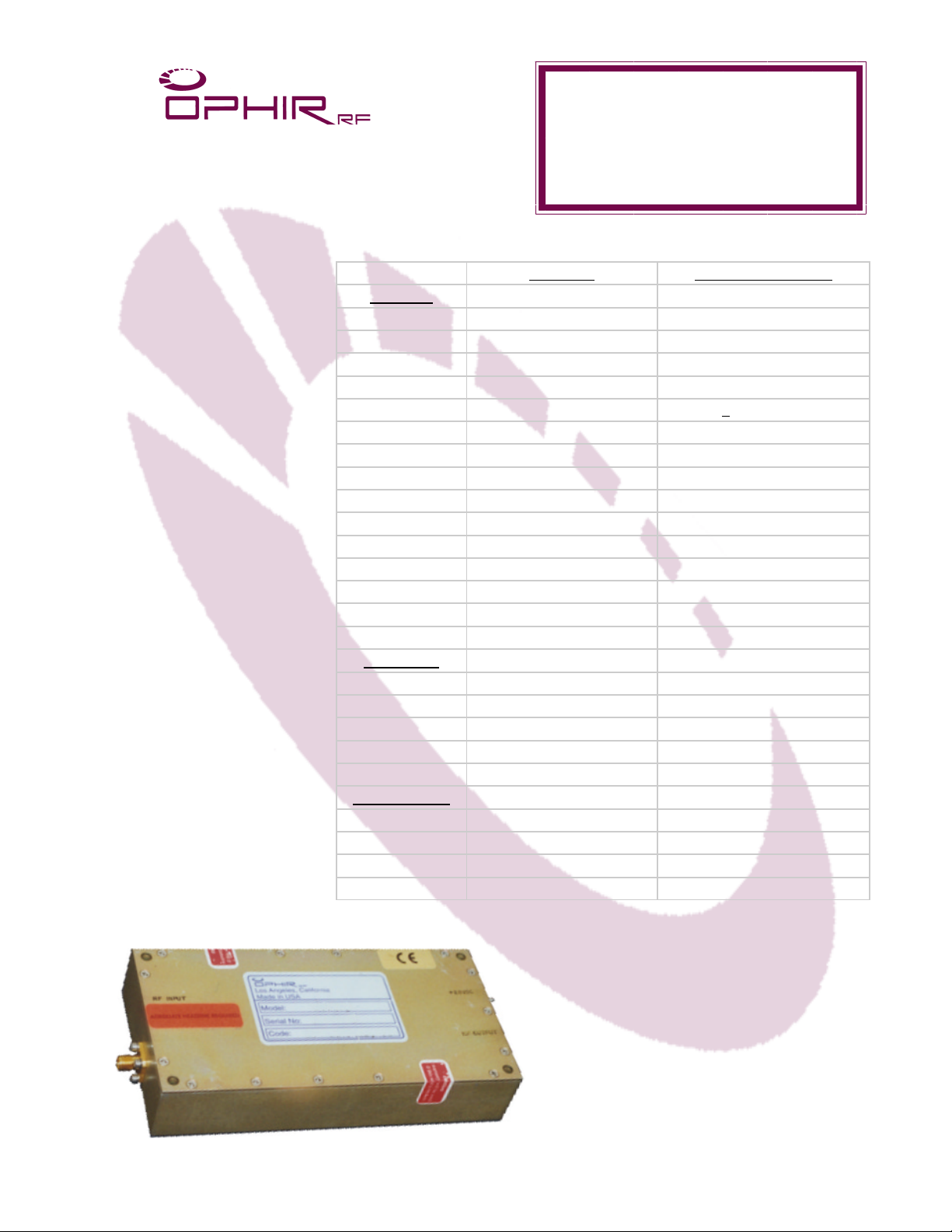

MODEL 5303032
0.5 - 500 MHz
8 WATTS
LINEAR POWER RF AMPLIFIER
Solid State
Broadband High
Power RF Amplifier
The 5303032 is an 8 Watt
broadband amplifier that covers the 0.5 – 500 MHz frequency range. This small and
lightweight amplifier utilizes
Class A/AB linear power devices that provide an excel-
rd
lent 3
high gain, and a wide dynamic range.
Due to robust engineering
and employment of the most
advanced devices and components, this amplifier
achieves high efficiency operation with proven reliability.
Like all OPHIR
the 5303032 comes with an
extended multiyear warranty.
order intercept point,
amplifiers,
RF
Parameter Specification @ 25° C
Electrical
1 Frequency Range 0.5 – 500 MHz
2 Saturated Output Power 8 Watts typical
3 Power Output @ 1dB Comp. 4 Watts min
4 Small Signal Gain +40 dB min
5 Gain Flatness +
6 IP
7 Input VSWR 2:1 max
8 Harmonics -20 dBc typical @ 4 Watts
9 Spurious Signals > -60 dBc typical @ 4 Watts
10 Input/Output Impedance 50 Ohms nominal
11 DC Input Current 2 Amps max
12 DC Input 28 VDC nominal
13 RF Input 0 dBm max
14 RF Input Signal Format CW/AM/FM/PM/Pulse
15 Class of Operation AB
Mechanical
Environmental
16 Dimensions 6” x 3” x 1.1”
17 Weight 2 lb. max
18 Connectors SMA female
19 Grounding Chassis
20 Cooling Adequate Heatsink Required
21 Baseplate Temperature 0º C to +50º C
22 Operating Humidity 95% Non-condensing
23 Operating Altitude Up to 10,000’ Above Sea Level
24 Shock and Vibration Normal Truck Transport
1.0 dB max
+42 dBm typical
3
Specificati ons subject to change without notic e.
Approved By: ________________________________________________ Date: _____________________
