5300 Beethoven Street, Los Angeles, CA 90066
TEL: (310)306-5556 • FAX: (310)821-7413
WEB: www.ophirrf.com • E-MAIL: sales@ophirrf.com

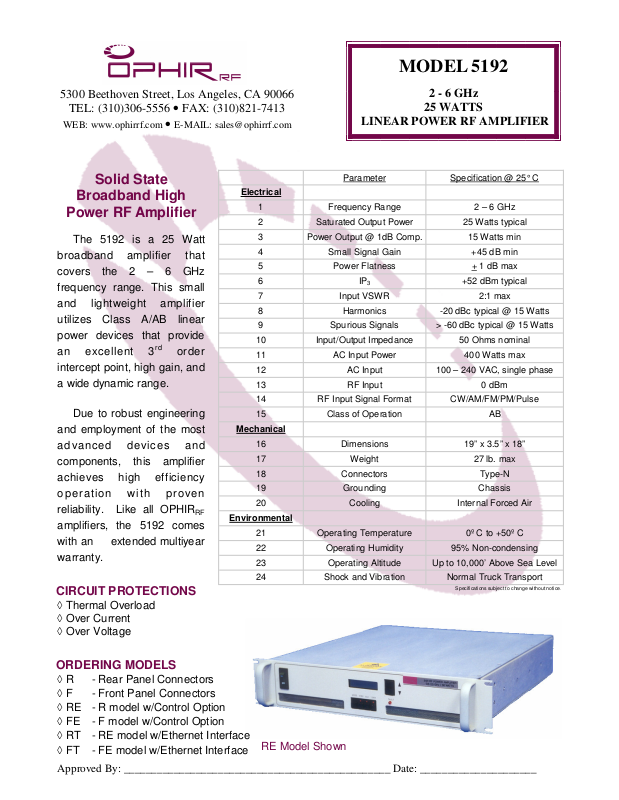

MODEL 5192
2 - 6 GHz
25 WATTS
LINEAR POWER RF AMPLIFIER
Solid State
Broadband High
Power RF Amplifier
The 5192 is a 25 Watt
broadband amplifier that
covers the 2 – 6 GHz
frequency range. This small
and lightweight amplifier
utilizes Class A/AB linear
power devices that provide
an excellent 3rd order
intercept point, high gain, and
a wide dynamic range.
Due to robust engineering
and employment of the most
advanced devices and
components, this amplifier
achieves high efficiency
operation with proven
reliability. Like all OPHIRRF
amplifiers, the 5192 comes
with an extended multiyear
warranty.
CIRCUIT PROTECTIONS
Thermal Overload
Over Current
Over Voltage
Parameter Specification @ 25° C
Electrical
1 Frequency Range 2 – 6 GHz
2 Saturated Output Power 25 Watts typical
3 Power Output @ 1dB Comp. 15 Watts min
4 Small Signal Gain +45 dB min
5 Power Flatness + 1 dB max
6 IP3 +52 dBm typical
7 Input VSWR 2:1 max
8 Harmonics -20 dBc typical @ 15 Watts
9 Spurious Signals > -60 dBc typical @ 15 Watts
10 Input/Output Impedance 50 Ohms nominal
11 AC Input Power 400 Watts max
12 AC Input 100 – 240 VAC, single phase
13 RF Input 0 dBm
14 RF Input Signal Format CW/AM/FM/PM/Pulse
15 Class of Operation AB
Mechanical
16 Dimensions 19” x 3.5” x 18”
17 Weight 27 lb. max
18 Connectors Type-N
19 Grounding Chassis
20 Cooling Internal Forced Air
Environmental
21 Operating Temperature 0º C to +50º C
22 Operating Humidity 95% Non-condensing
23 Operating Altitude Up to 10,000’ Above Sea Level
24 Shock and Vibration Normal Truck Transport
Specifications subject to change without notice.
ORDERING MODELS
R - Rear Panel Connectors
F - Front Panel Connectors
RE - R model w/Control Option
FE - F model w/Control Option
RT - RE model w/Ethernet Interface
FT - FE model w/Ethernet Interface
Approved By: ________________________________________________ Date: _____________________
RE Model Shown
