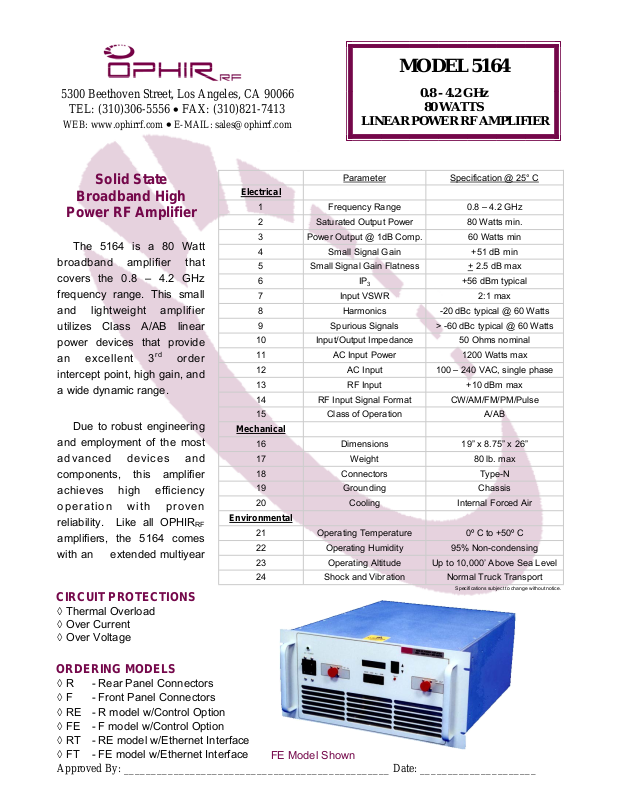

Ophir 5164 Data Sheet

5300 Beethoven Street, Los Angeles, CA 90066

TEL: [phone] • FAX: [phone]

WEB: www.ophirrf.com • E-MAIL: [e-mail]

MODEL 5164

0.8 - 4.2 GHz
80 WATTS

LINEAR POWER RF AMPLIFIER

Solid State

Broadband High

Power RF Amplifier

The 5164 is a 80 Watt
broadband amplifier that
covers the 0.8 – 4.2 GHz
frequency range. This small
and lightweight amplifier
utilizes Class A/AB linear
power devices that provide

rd

an excellent 3
intercept point, high gain, and
a wide dynamic range.

Due to robust engineering
and employment of the most
advanced devices and
components, this amplifier
achieves high efficiency
operation with proven
reliability. Like all OPHIR
amplifiers, the 5164 comes
with an extended multiyear

CIRCUIT PROTECTIONS

◊ Thermal Overload
◊ Over Current
◊ Over Voltage

order

RF

Parameter Specification @ 25° C

Electrical

Mechanical

Environmental

1 Frequency Range 0.8 – 4.2 GHz

2 Saturated Output Power 80 Watts min.

3 Power Output @ 1dB Comp. 60 Watts min

4 Small Signal Gain +51 dB min

5 Small Signal Gain Flatness +

6 IP

7 Input VSWR 2:1 max

8 Harmonics -20 dBc typical @ 60 Watts

9 Spurious Signals > -60 dBc typical @ 60 Watts

10 Input/Output Impedance 50 Ohms nominal

11 AC Input Power 1200 Watts max

12 AC Input 100 – 240 VAC, single phase

13 RF Input +10 dBm max

14 RF Input Signal Format CW/AM/FM/PM/Pulse

15 Class of Operation A/AB

16 Dimensions 19” x 8.75” x 26”

17 Weight 80 lb. max

18 Connectors Type-N

19 Grounding Chassis

20 Cooling Internal Forced Air

21 Operating Temperature 0º C to +50º C

22 Operating Humidity 95% Non-condensing

23 Operating Altitude Up to 10,000’ Above Sea Level

24 Shock and Vibration Normal Truck Transport

2.5 dB max

+56 dBm typical

3

Specifications subject to change without notice.

ORDERING MODELS

◊ R - Rear Panel Connectors
◊ F - Front Panel Connectors
◊ RE - R model w/Control Option
◊ FE - F model w/Control Option
◊ RT - RE model w/Ethernet Interface
◊ FT - FE model w/Ethernet Interface

Approved By: ________________________________________________ Date: _____________________

FE Model Shown
