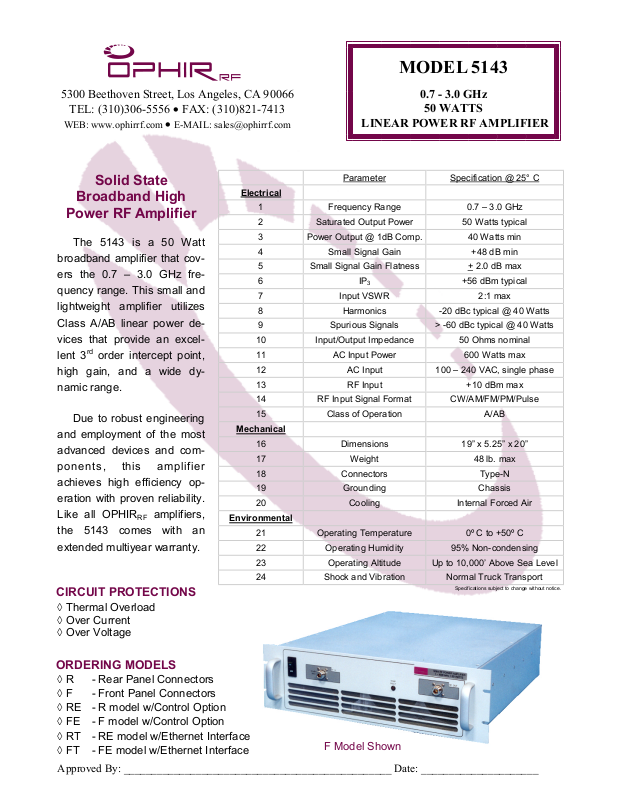

Ophir 5143 Data Sheet

5300 Beethoven Street, Los Angeles, CA 90066

TEL: [phone] • FAX: [phone]

WEB: www.ophirrf.com • E-MAIL: [e-mail]

MODEL 5143

0.7 - 3.0 GHz
50 WATTS

LINEAR POWER RF AMPLIFIER

Solid State

Broadband High

Power RF Amplifier

The 5143 is a 50 Watt
broadband amplifier that cov­ers the 0.7 – 3.0 GHz fre­quency range. This small and
lightweight amplifier utilizes
Class A/AB linear power de­vices that provide an excel-

rd

lent 3
high gain, and a wide dy­namic range.

Due to robust engineering
and employment of the most
advanced devices and com­ponents, this amplifier
achieves high efficiency op­eration with proven reliability.
Like all OPHIR
the 5143 comes with an
extended multiyear warranty.

CIRCUIT PROTECTIONS

◊ Thermal Overload
◊ Over Current
◊ Over Voltage

order intercept point,

amplifiers,

RF

Parameter Specification @ 25° C

Electrical

1 Frequency Range 0.7 – 3.0 GHz

2 Saturated Output Power 50 Watts typical

3 Power Output @ 1dB Comp. 40 Watts min

4 Small Signal Gain +48 dB min

5 Small Signal Gain Flatness +

6 IP

7 Input VSWR 2:1 max

8 Harmonics -20 dBc typical @ 40 Watts

9 Spurious Signals > -60 dBc typical @ 40 Watts

10 Input/Output Impedance 50 Ohms nominal

11 AC Input Power 600 Watts max

12 AC Input 100 – 240 VAC, single phase

13 RF Input +10 dBm max

14 RF Input Signal Format CW/AM/FM/PM/Pulse

15 Class of Operation A/AB

Mechanical

Environmental

16 Dimensions 19” x 5.25” x 20”

17 Weight 48 lb. max

18 Connectors Type-N

19 Grounding Chassis

20 Cooling Internal Forced Air

21 Operating Temperature 0º C to +50º C

22 Operating Humidity 95% Non-condensing

23 Operating Altitude Up to 10,000’ Above Sea Level

24 Shock and Vibration Normal Truck Transport

2.0 dB max

+56 dBm typical

3

Specificati ons subject to change without notice.

ORDERING MODELS

◊ R - Rear Panel Connectors
◊ F - Front Panel Connectors
◊ RE - R model w/Control Option
◊ FE - F model w/Control Option
◊ RT - RE model w/Ethernet Interface
◊ FT - FE model w/Ethernet Interface

Approved By: ________________________________________________ Date: _____________________

F Model Shown
