5300 Beethoven Street, Los Angeles, CA 90066
TEL: (310)306-5556 • FAX: (310)577-9887
WEB: www.ophirrf.com • E-MAIL: sales@ophirrf.com

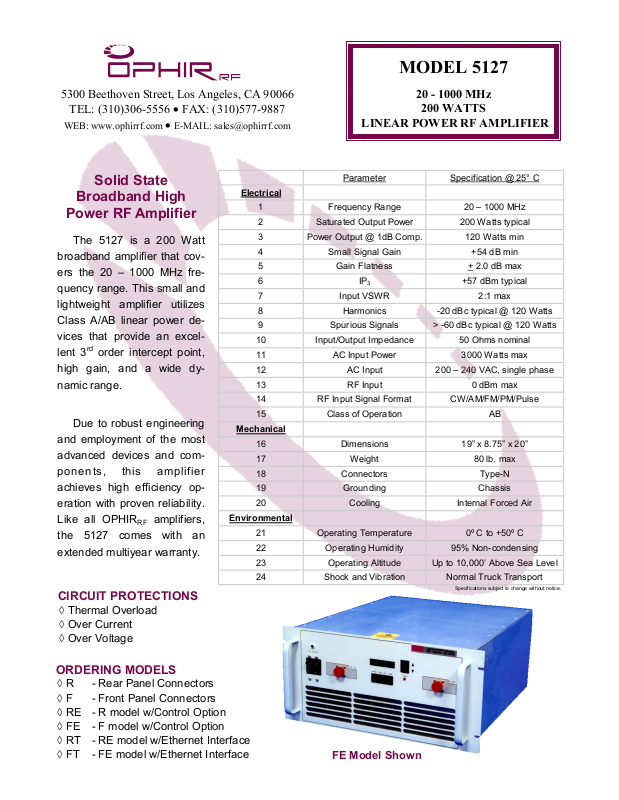

MODEL 5127
20 - 1000 MHz
200 WATTS
LINEAR POWER RF AMPLIFIER
Solid State
Broadband High
Power RF Amplifier
The 5127 is a 200 Watt
broadband amplifier that covers the 20 – 1000 MHz frequency range. This small and
lightweight amplifier utilizes
Class A/AB linear power devices that provide an excel-
rd
lent 3
high gain, and a wide dynamic range.
Due to robust engineering
and employment of the most
advanced devices and components, this amplifier
achieves high efficiency operation with proven reliability.
Like all OPHIR
the 5127 comes with an
extended multiyear warranty.
CIRCUIT PROTECTIONS
◊ Thermal Overload
◊ Over Current
◊ Over Voltage
order intercept point,
amplifiers,
RF
Parameter Specification @ 25° C
Electrical
1 Frequency Range 20 – 1000 MHz
2 Saturated Output Power 200 Watts typical
3 Power Output @ 1dB Comp. 120 Watts min
4 Small Signal Gain +54 dB min
5 Gain Flatness +
6 IP
7 Input VSWR 2:1 max
8 Harmonics -20 dBc typical @ 120 Watts
9 Spurious Signals > -60 dBc typical @ 120 Watts
10 Input/Output Impedance 50 Ohms nominal
11 AC Input Power 3000 Watts max
12 AC Input 200 – 240 VAC, single phase
13 RF Input 0 dBm max
14 RF Input Signal Format CW/AM/FM/PM/Pulse
15 Class of Operation AB
Mechanical
Environmental
16 Dimensions 19” x 8.75” x 20”
17 Weight 80 lb. max
18 Connectors Type-N
19 Grounding Chassis
20 Cooling Internal Forced Air
21 Operating Temperature 0º C to +50º C
22 Operating Humidity 95% Non-condensing
23 Operating Altitude Up to 10,000’ Above Sea Level
24 Shock and Vibration Normal Truck Transport
2.0 dB max
+57 dBm typical
3
Specificati ons subject to change without notice.
ORDERING MODELS
◊ R - Rear Panel Connectors
◊ F - Front Panel Connectors
◊ RE - R model w/Control Option
◊ FE - F model w/Control Option
◊ RT - RE model w/Ethernet Interface
◊ FT - FE model w/Ethernet Interface
FE Model Shown
