Opex Falcon User Manual

March 14, 2016

Falcon User Manual

Remittance Processing

Document Revision 16-01

All rights reserved. This document is provided by OPEX for use by their customers, partners and dealers. No portion of these materials may be reproduced, published, or stored in a database or retrieval system, other than for its intended use without the express, written permission of OPEX Corporation.

Document History

Doc Rev

14-01 July 2014 Initial Release (based on year).

14-02 Sept 2014

15-01 Apr 2015

15-02 Nov 10, 2015

16-01 Mar 14, 2016

Date Changes (click blue text to go to that page)

Updated rescanning content, edited IDAssist info, edited monitor calibration procedures, added finger installation

Page 19 - Edit to optional image capture device

description

Page 45 - additional throttle information based on

ECO15-1013.

Page 2 - Added new Document History table and rev

number on page 1

Cover Page - updated copyright disclaimer. Page 10 - updated document specifications Page 102 - Added “Reduced TMD accuracy has been

detected” jam

If you find errors, inaccuracies, or any other issues or concerns with this document, please contact the OPEX Technical Writers via email at:

GroupTechwriters@opex.com

Opex part no. 5077010

Falcon User Manual - Remittance Processing - OPEX Corporation

Document History ................................................................................................ 2

Table of Contents ................................................................................................ 3

Chapter 1

Introduction

About this Manual ................................................................................................ 8

Overview .............................................................................................................. 9

Falcon Specifications .................................................................................... 10

How the Falcon works ....................................................................................... 12

Software ........................................................................................................ 12

Jobs .............................................................................................................. 13

Page types .................................................................................................... 13

Chapter 2

Operation

Overview ............................................................................................................ 16

Safety precautions ........................................................................................ 16

Ergonomics ................................................................................................... 17

Main Controls and System components ............................................................ 18

Getting Started .................................................................................................. 21

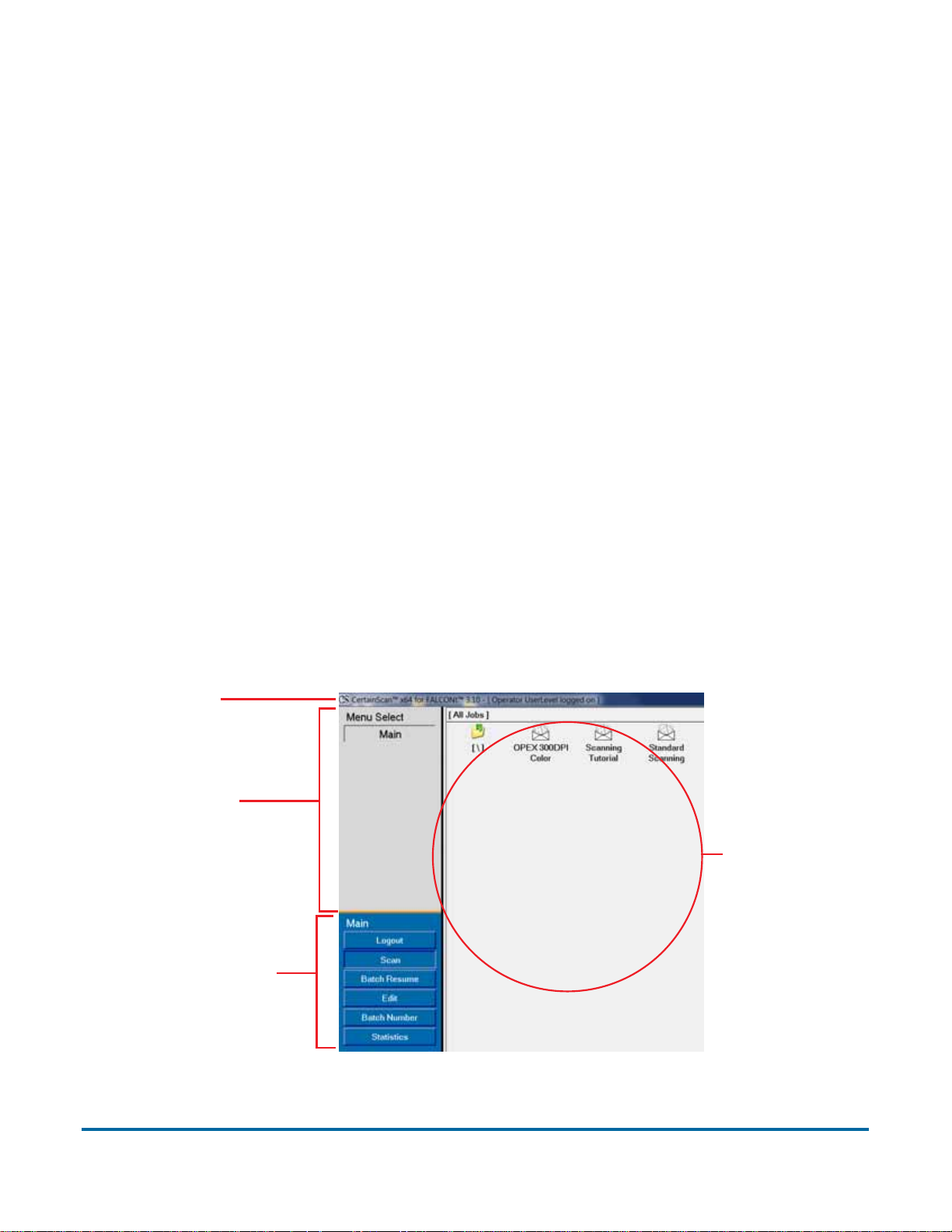

Navigating the Falcon CertainScan software .................................................... 23

Running Jobs ..................................................................................................... 24

Using the Run Screen ....................................................................................... 26

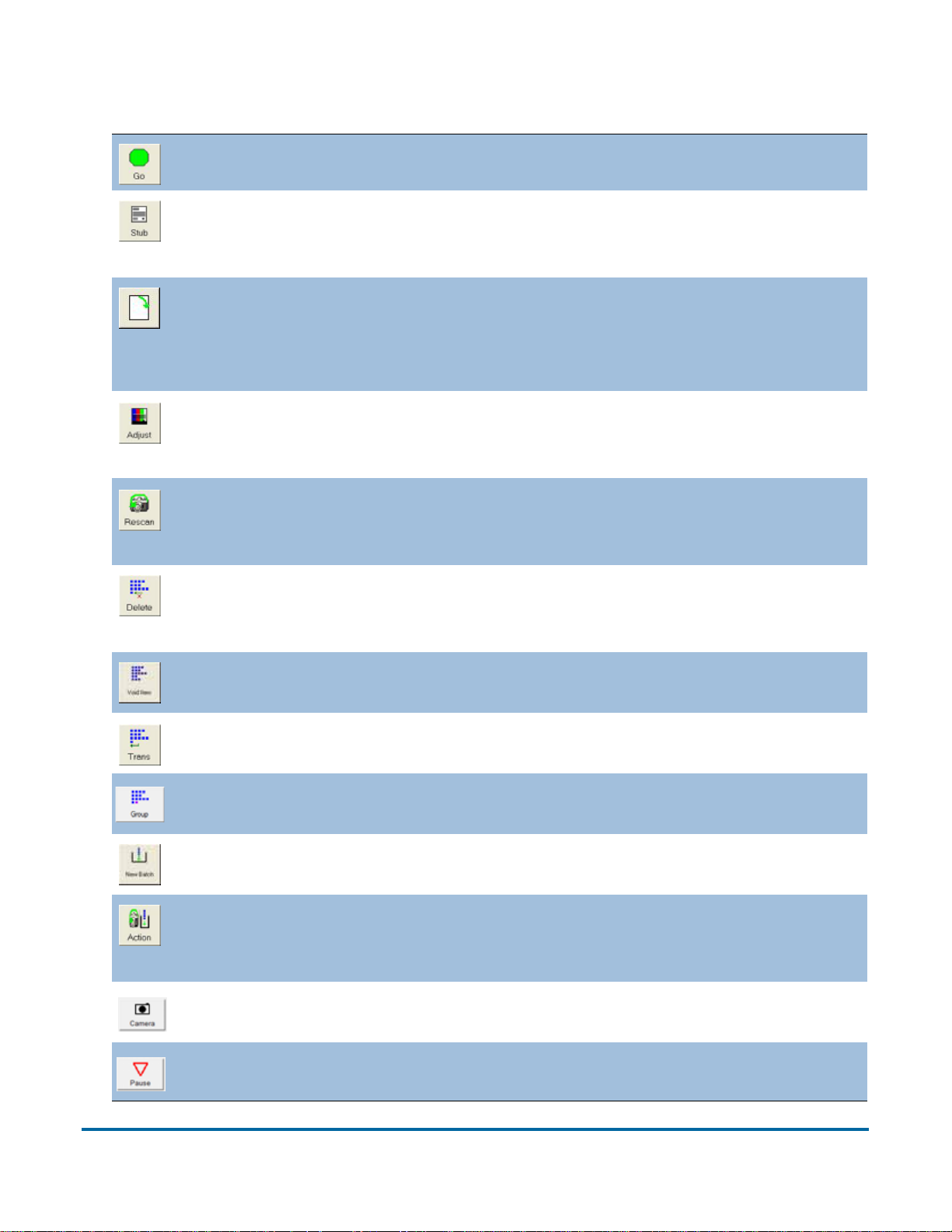

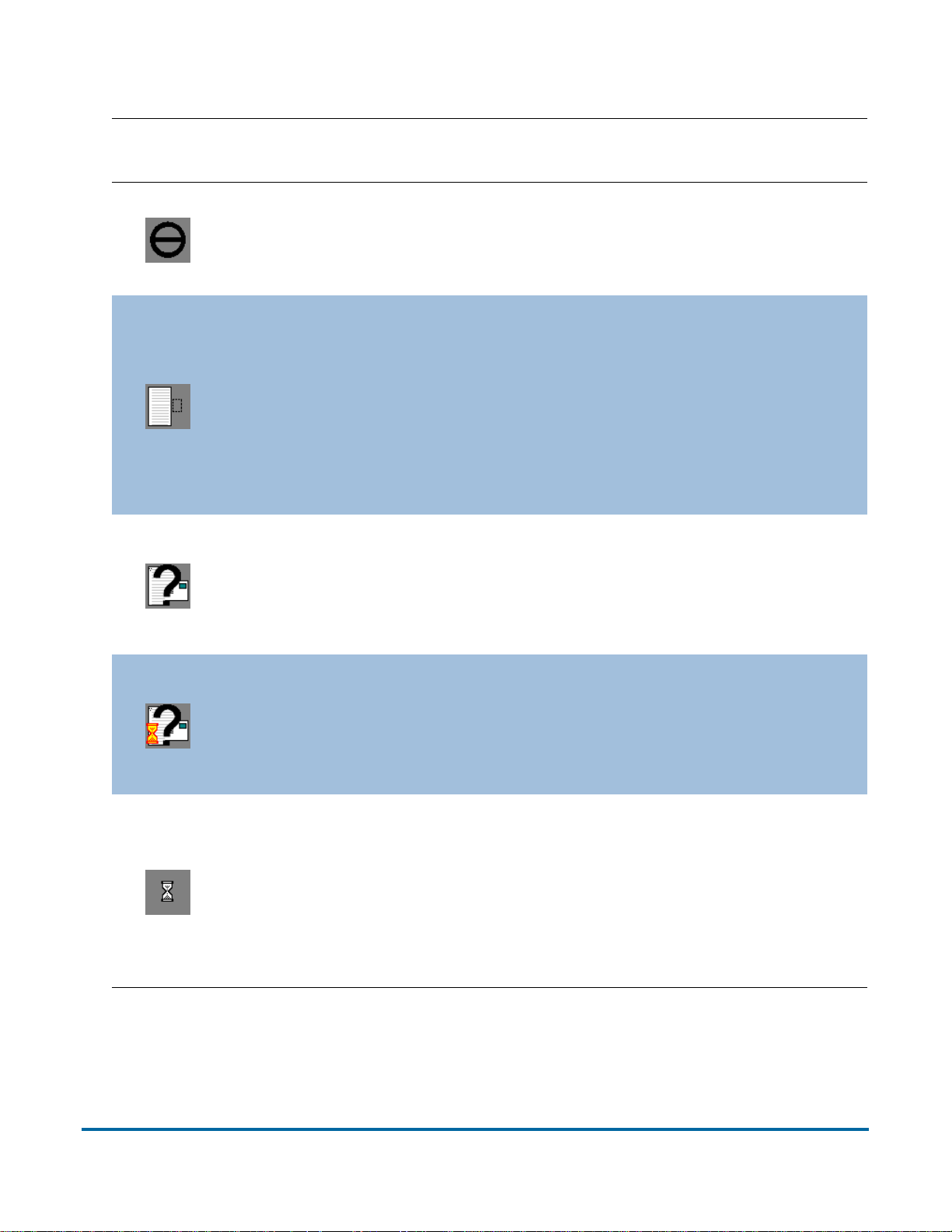

Run Screen buttons ...................................................................................... 27

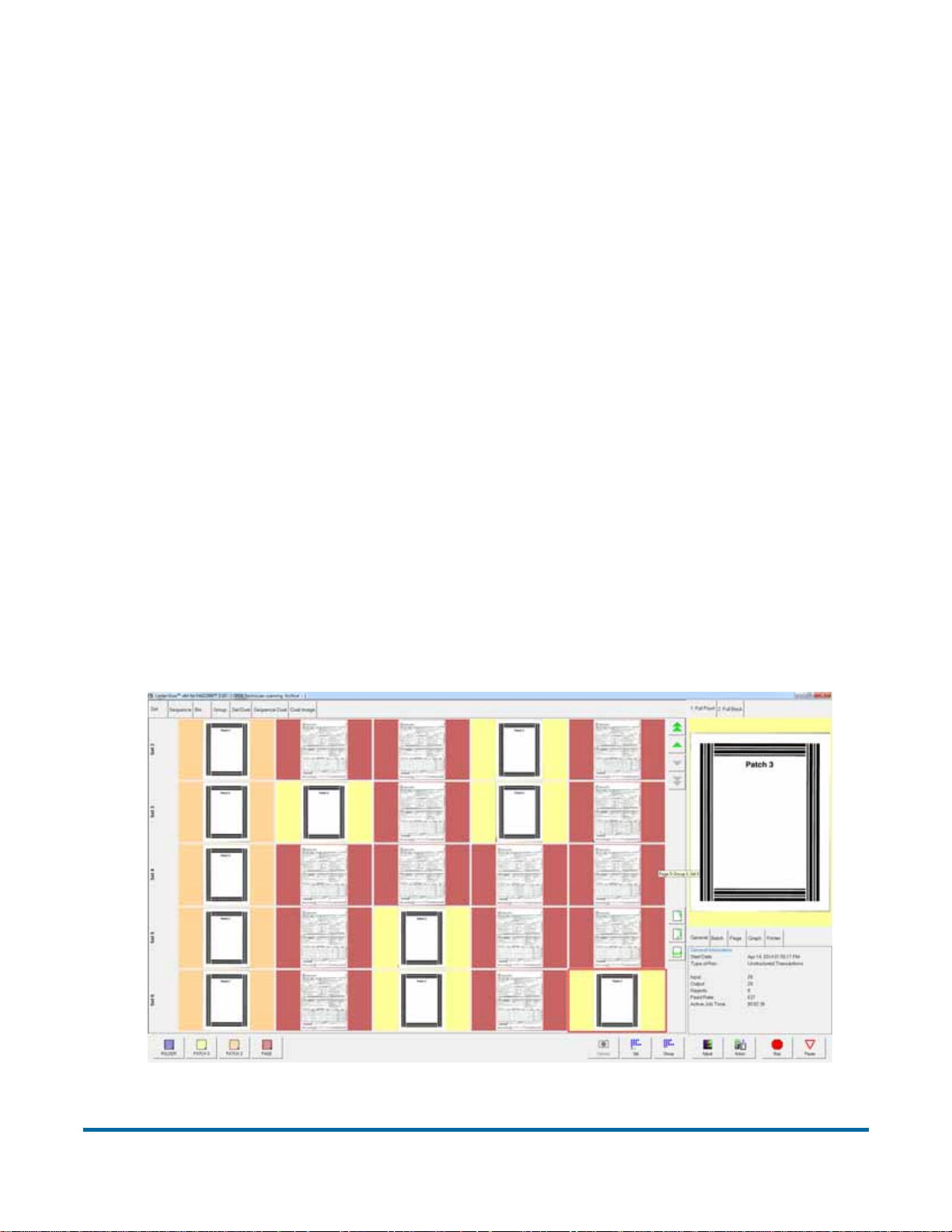

Run Screen Views ........................................................................................ 30

Information window ....................................................................................... 37

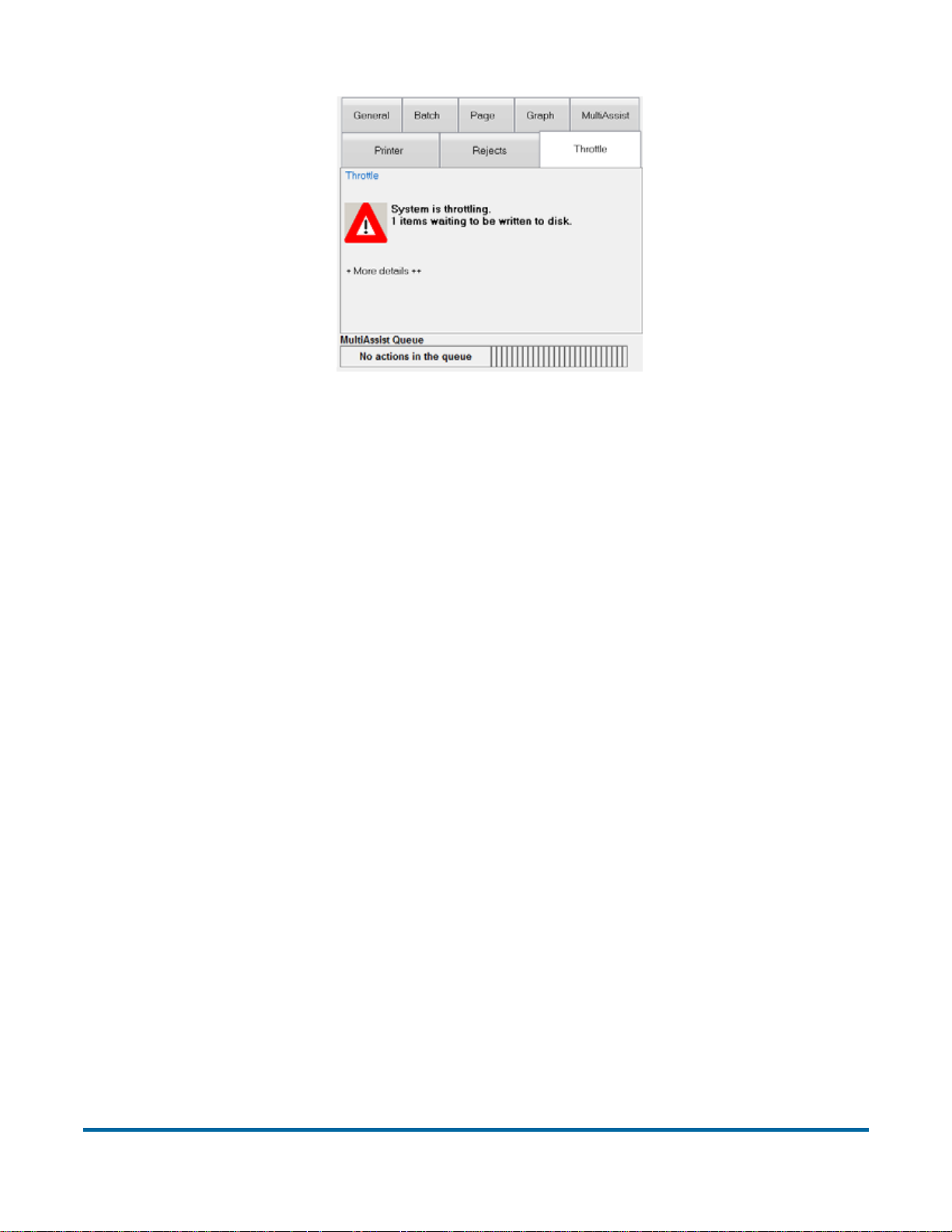

Throttling ....................................................................................................... 45

Scanning items .................................................................................................. 50

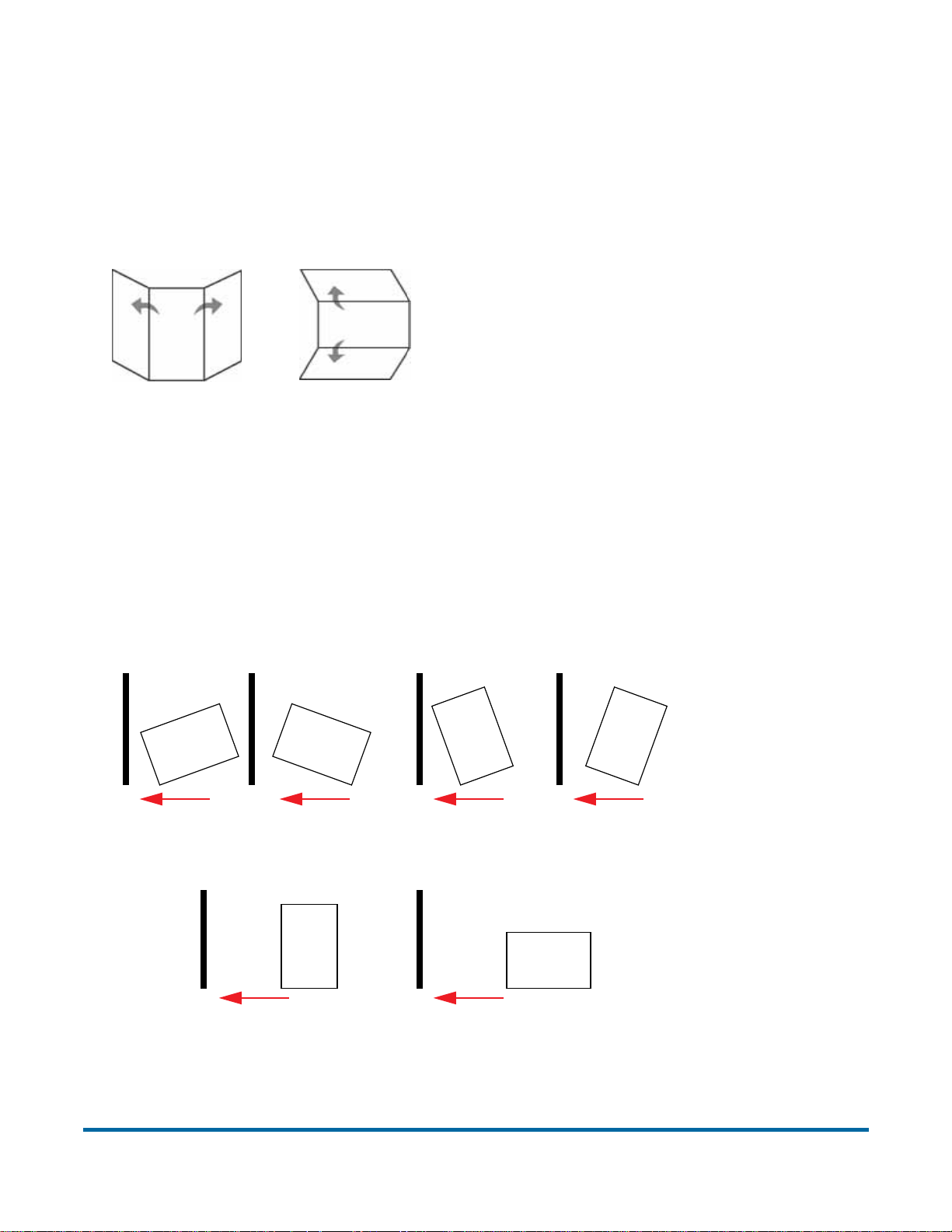

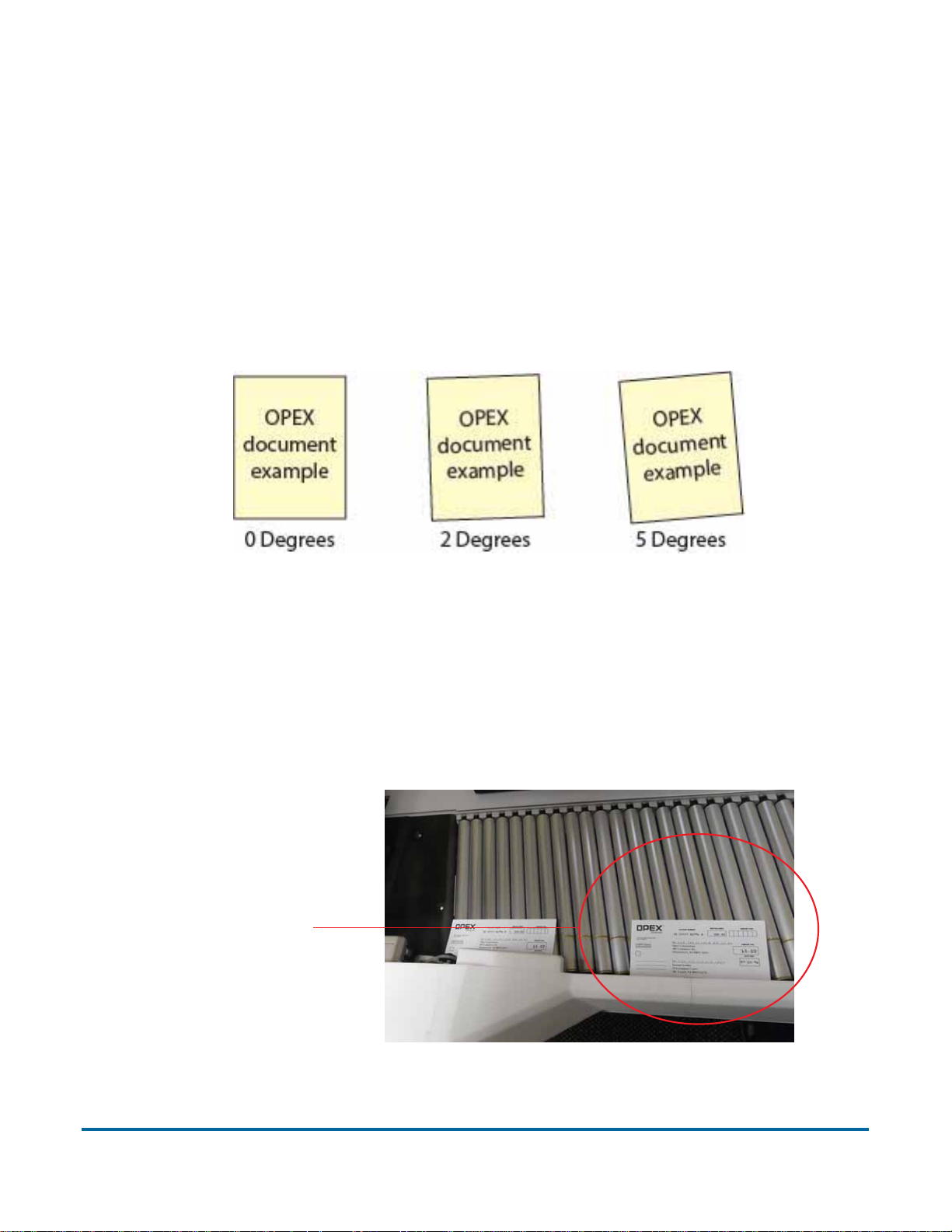

Skew ............................................................................................................. 51

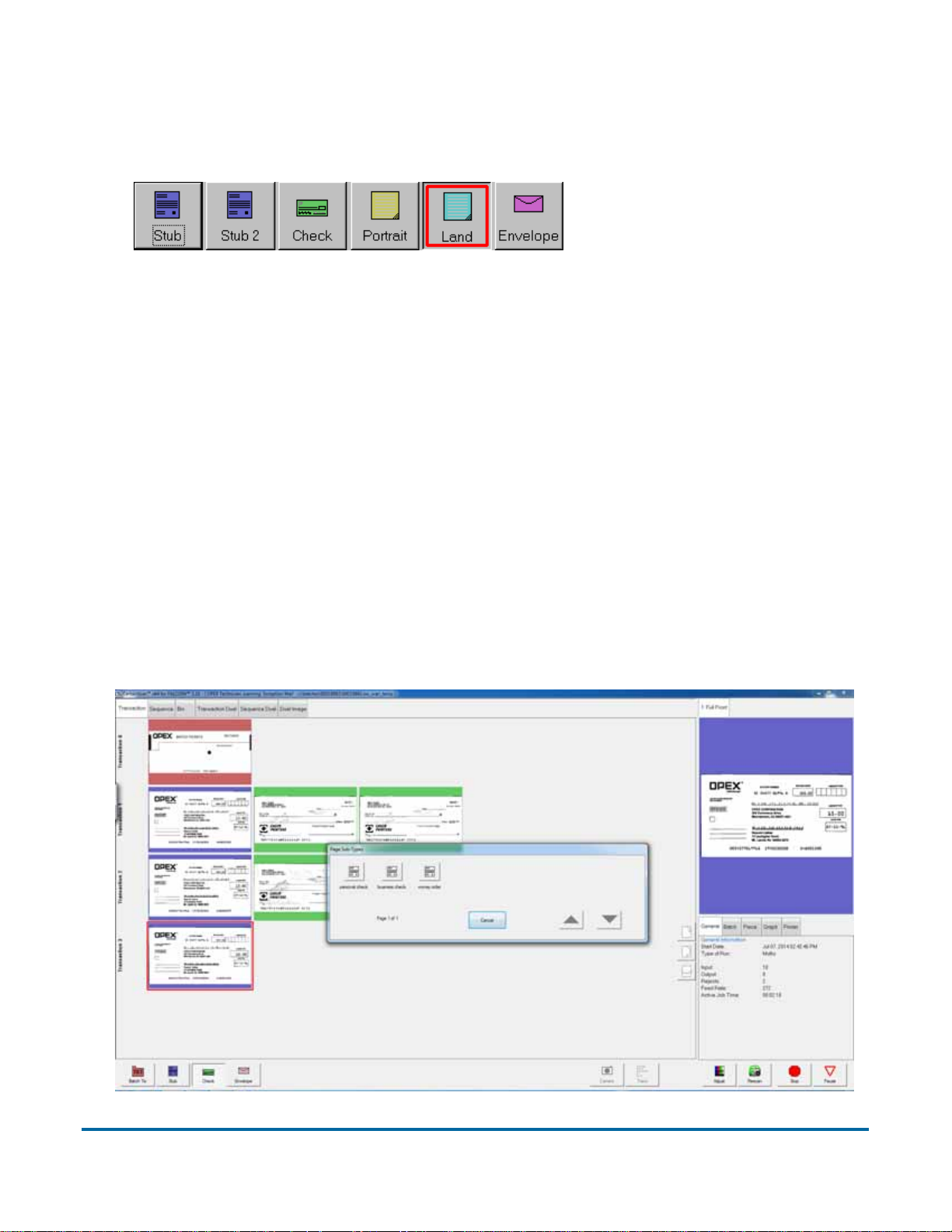

Assigning a page type ................................................................................... 54

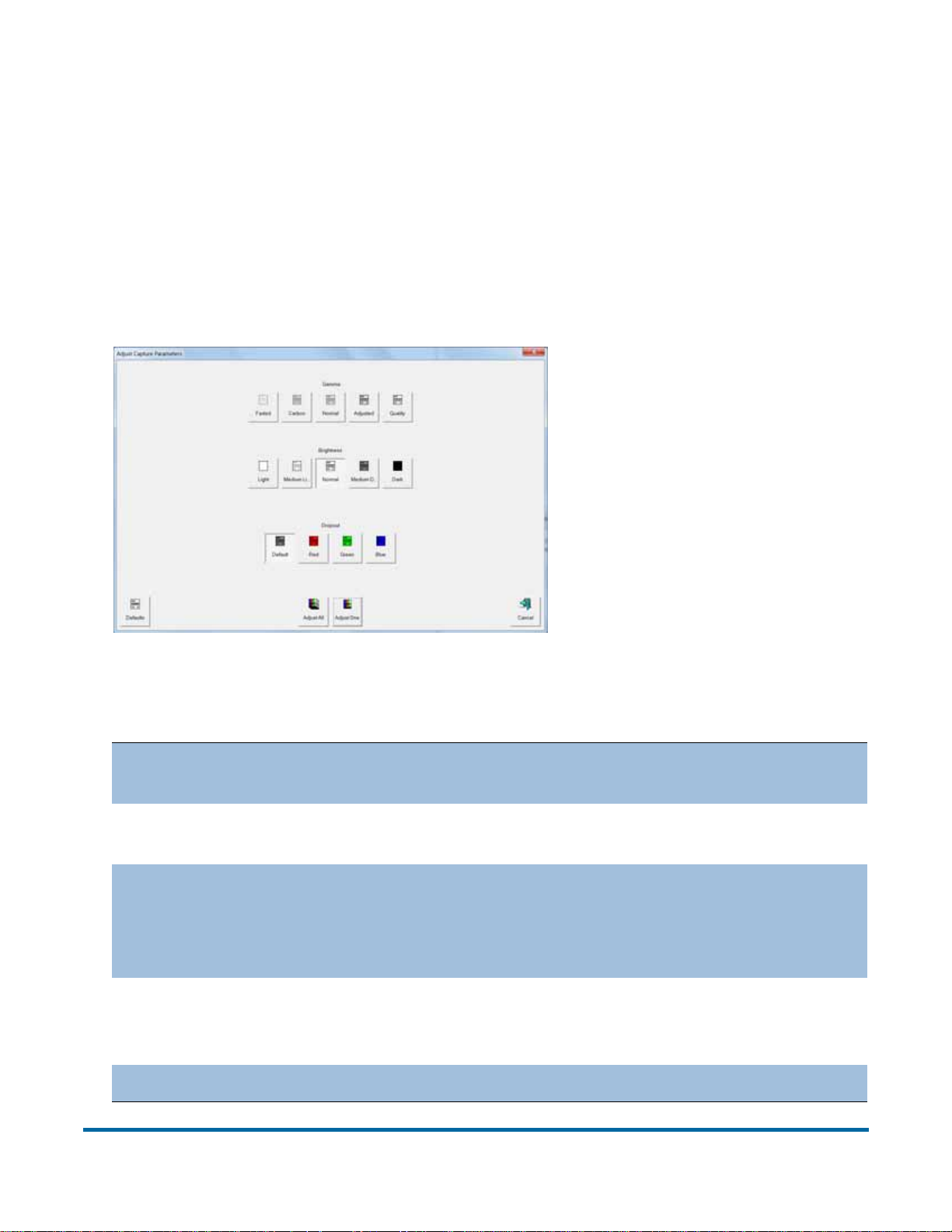

Adjusting the image quality ........................................................................... 56

Rescanning items .............................................................................................. 57

Falcon User Manual - Remittance Processing - OPEX Corporation

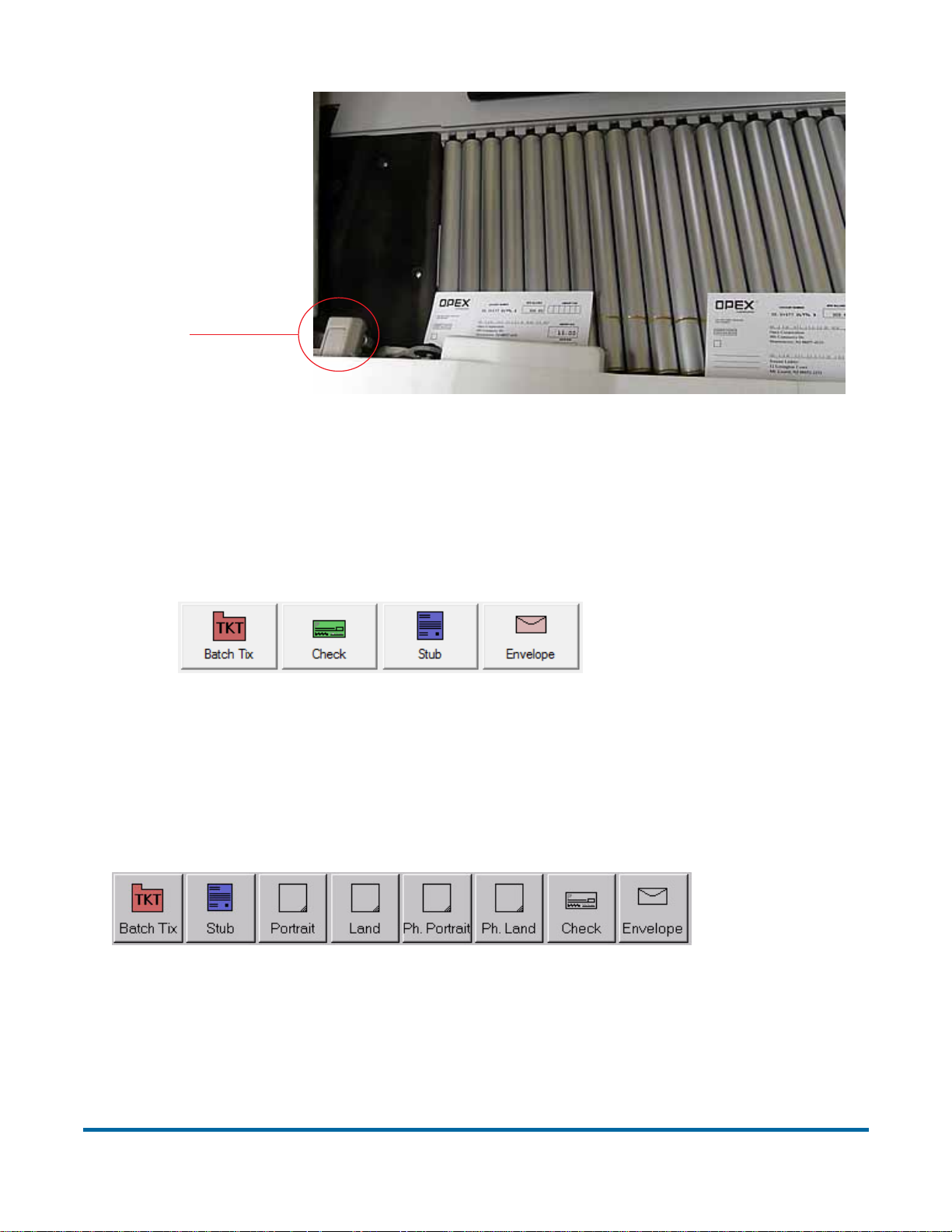

About the Rescan Feeder ............................................................................. 58

About the pre-feeder mechanism .................................................................. 60

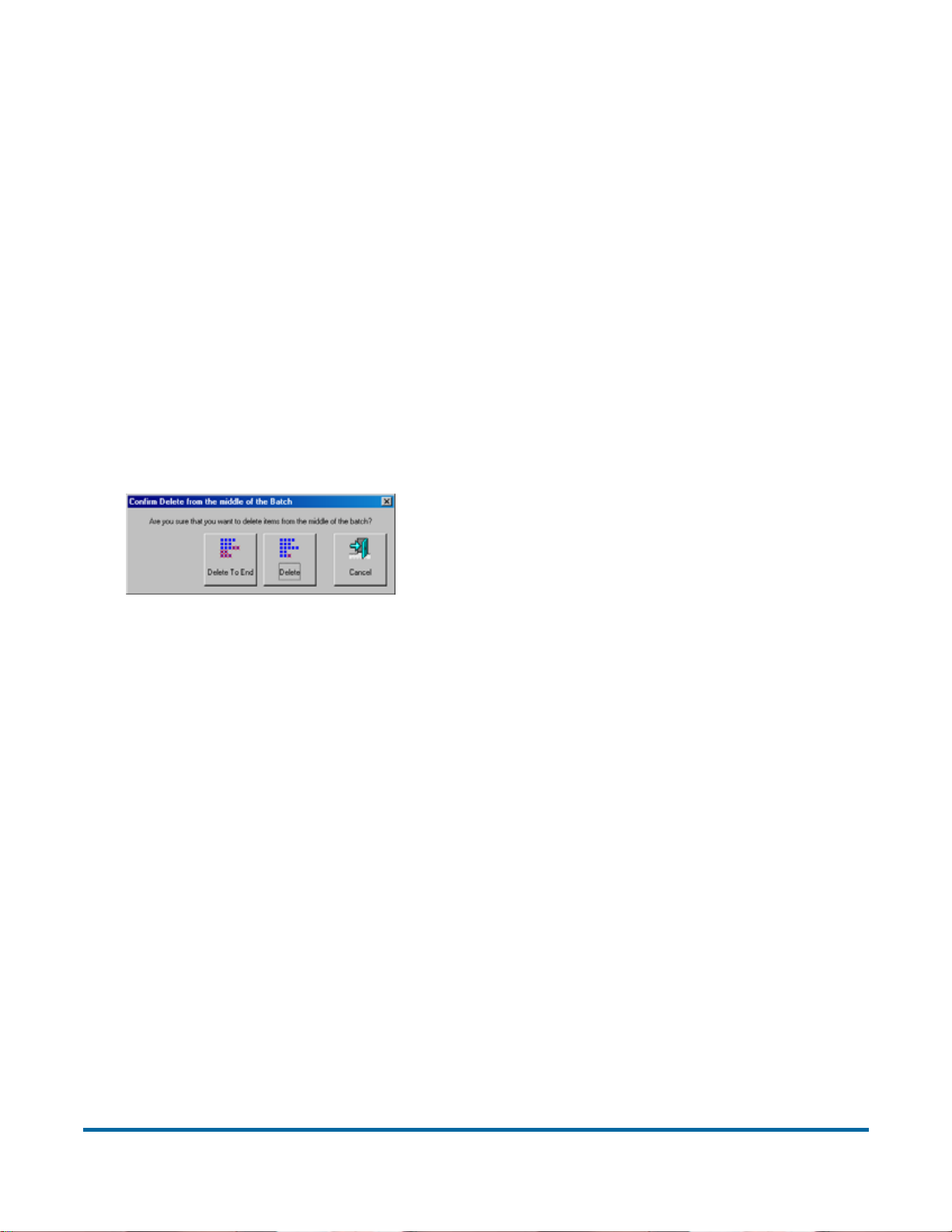

Deleting items from the batch ....................................................................... 62

Starting a new batch ..................................................................................... 62

Four Levels of Document Separation ........................................................... 64

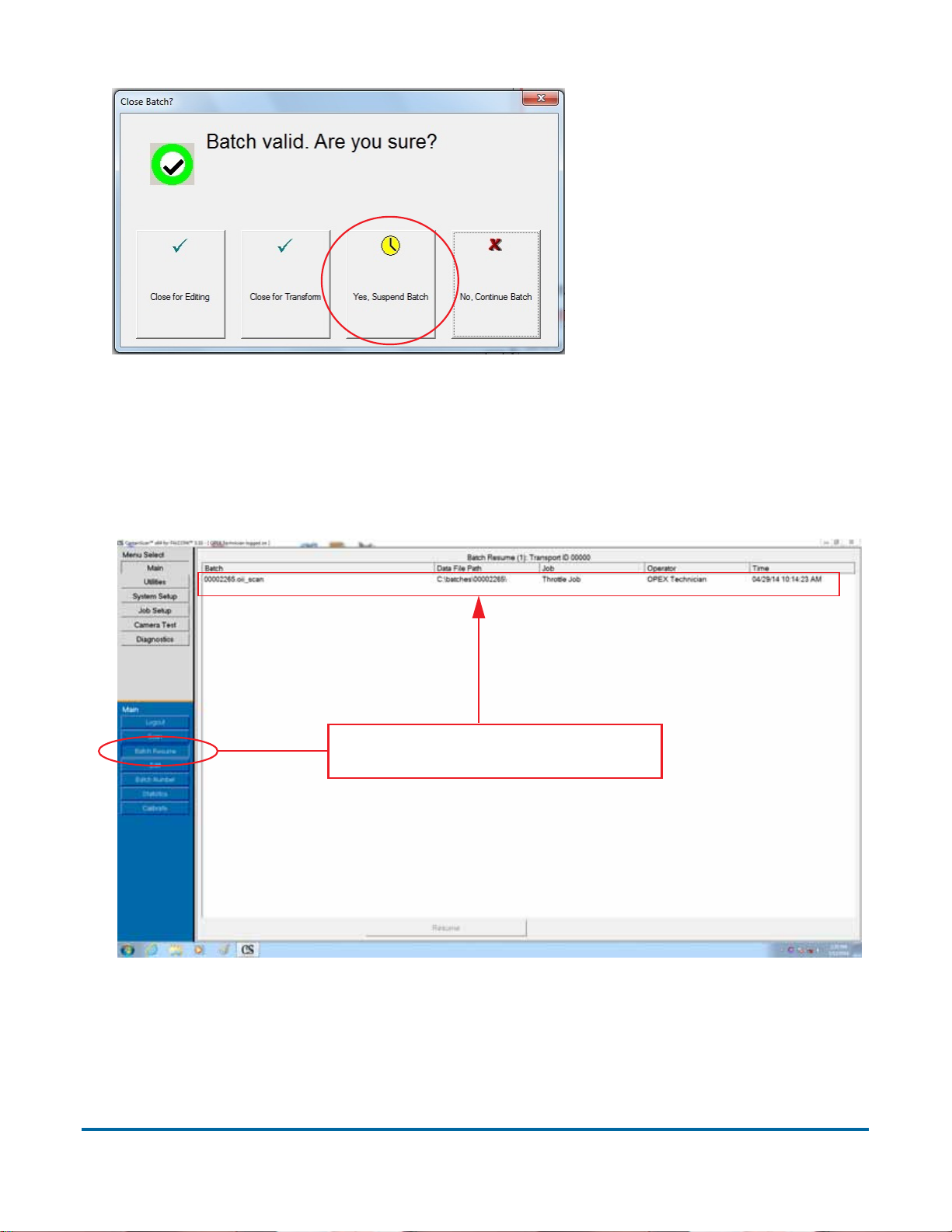

Suspend and Resume Multiple Batches ....................................................... 64

Ending the job ............................................................................................... 66

Using Batch Editor to fix incomplete batches ................................................ 66

IDAssist ............................................................................................................. 67

Using IDAssist ............................................................................................... 67

IDAssist functions ......................................................................................... 68

About the Multi-Slot IDAssist ........................................................................ 69

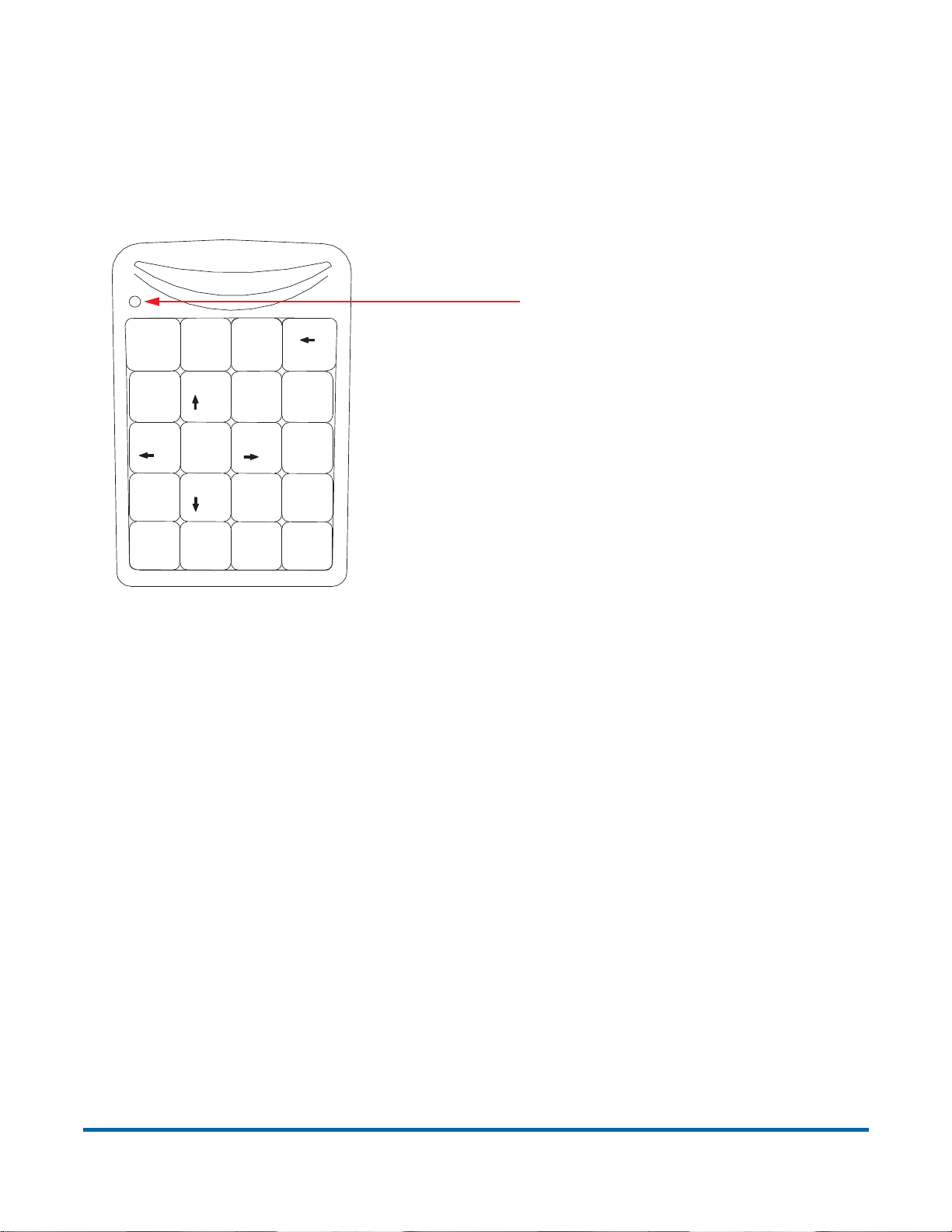

Key assist ...................................................................................................... 70

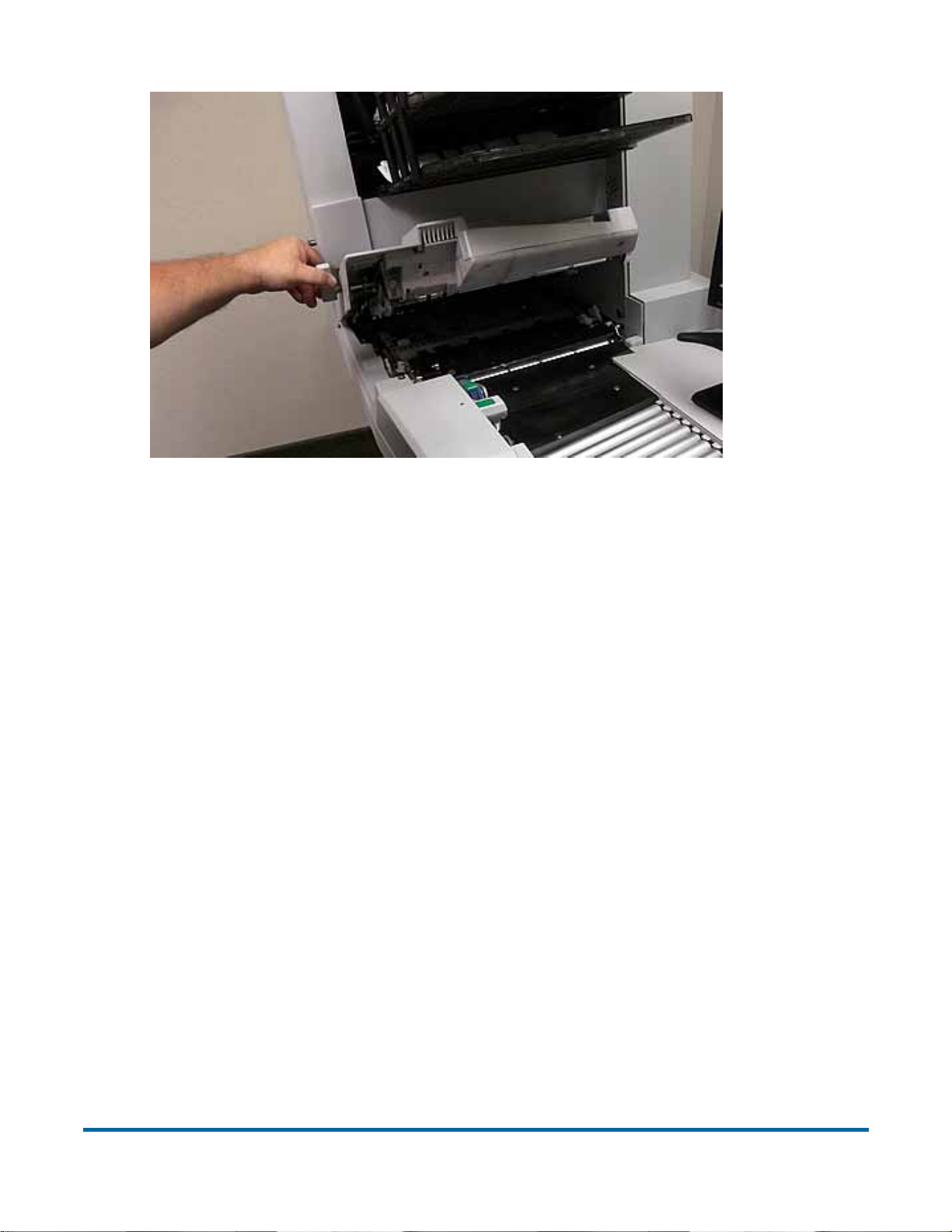

Clearing paper jams ...................................................................................... 73

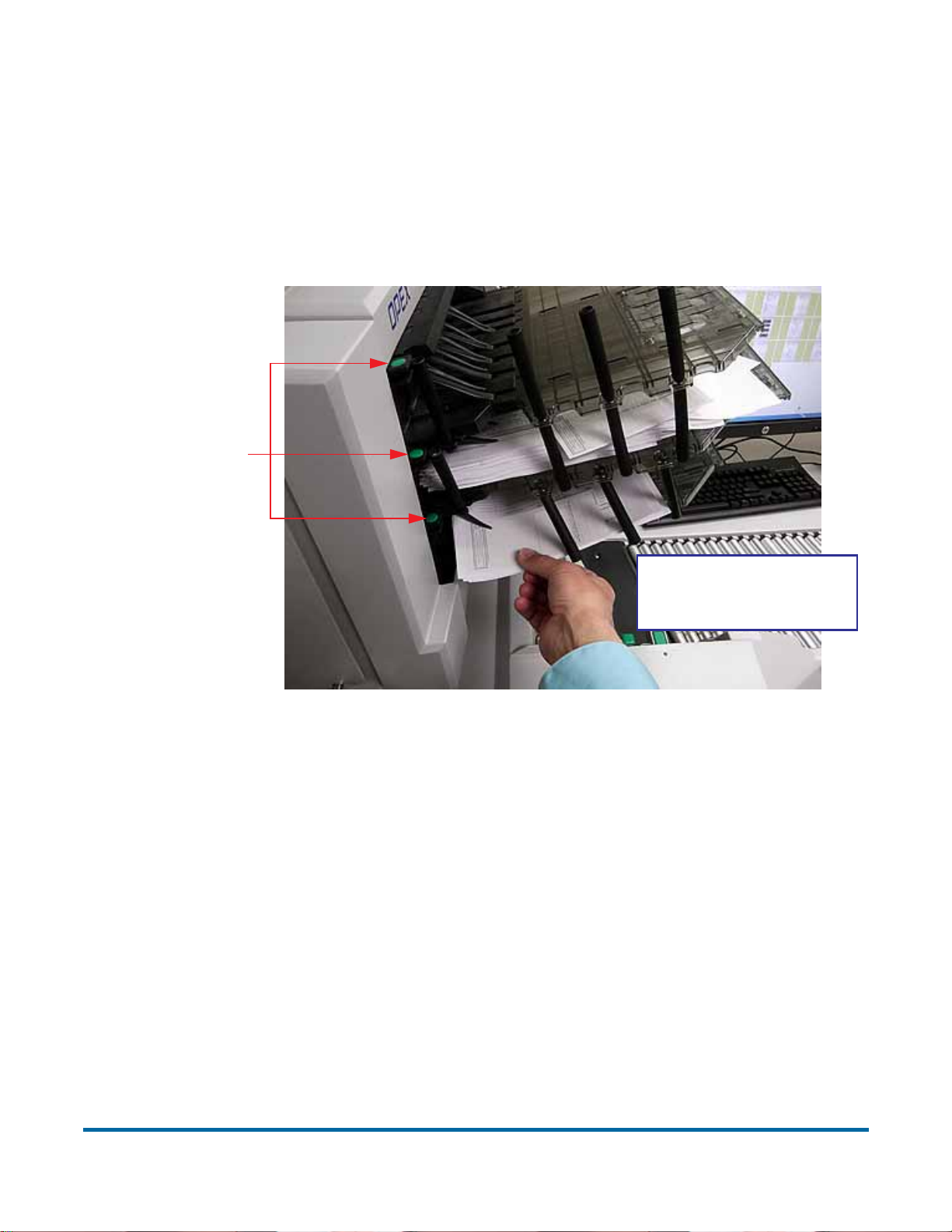

Clearing the bins ........................................................................................... 76

Chapter 3

Maintenance

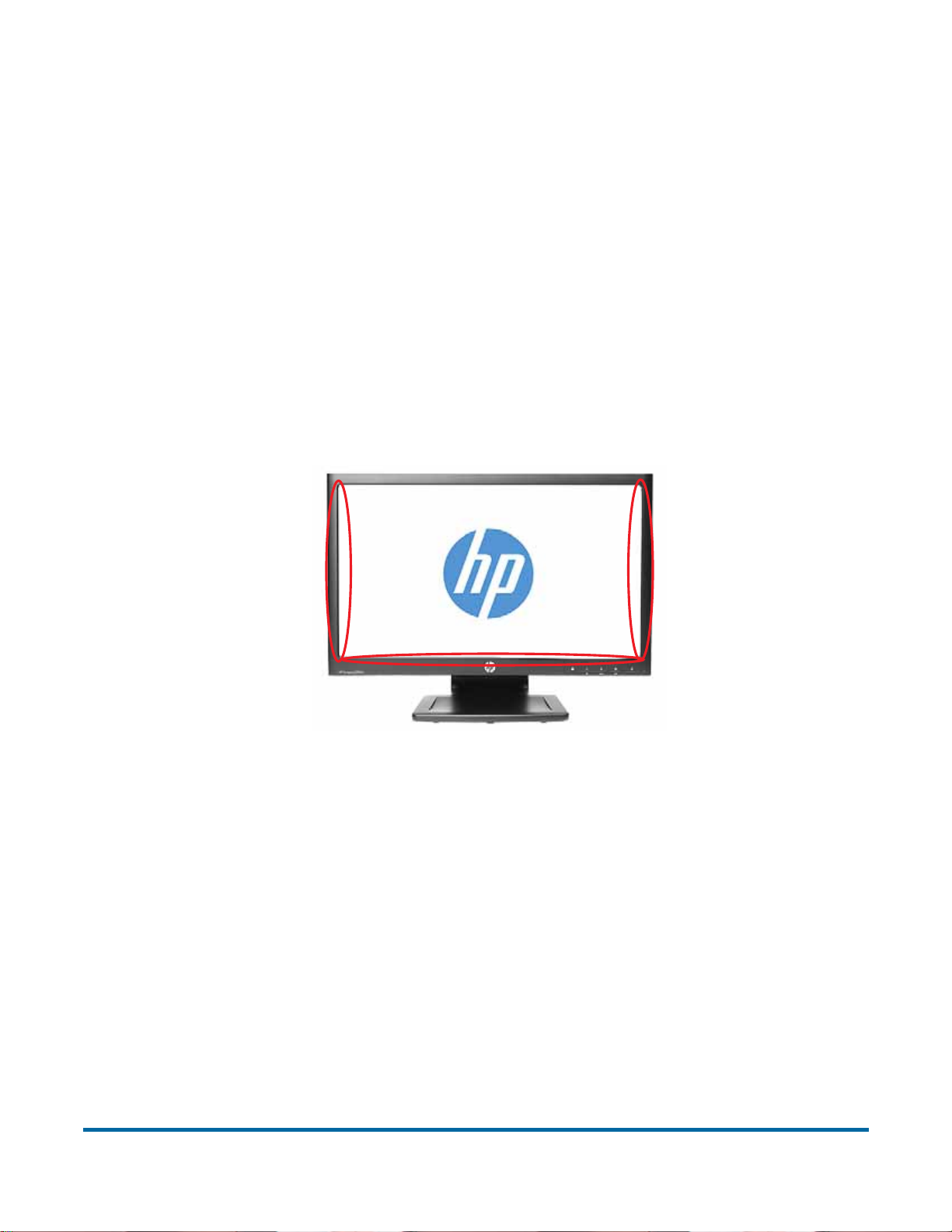

Touchscreen Monitor ......................................................................................... 78

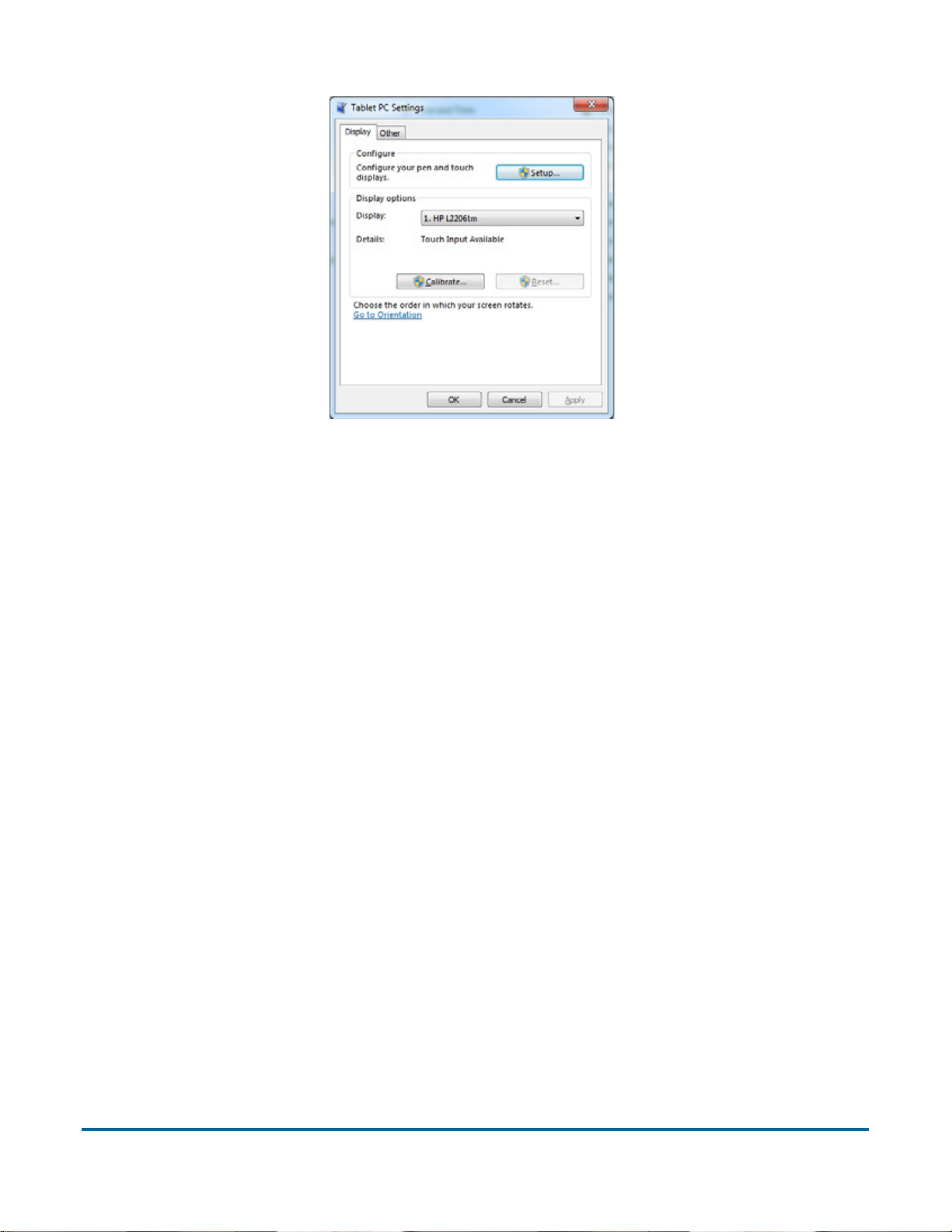

Calibrating the monitor .................................................................................. 78

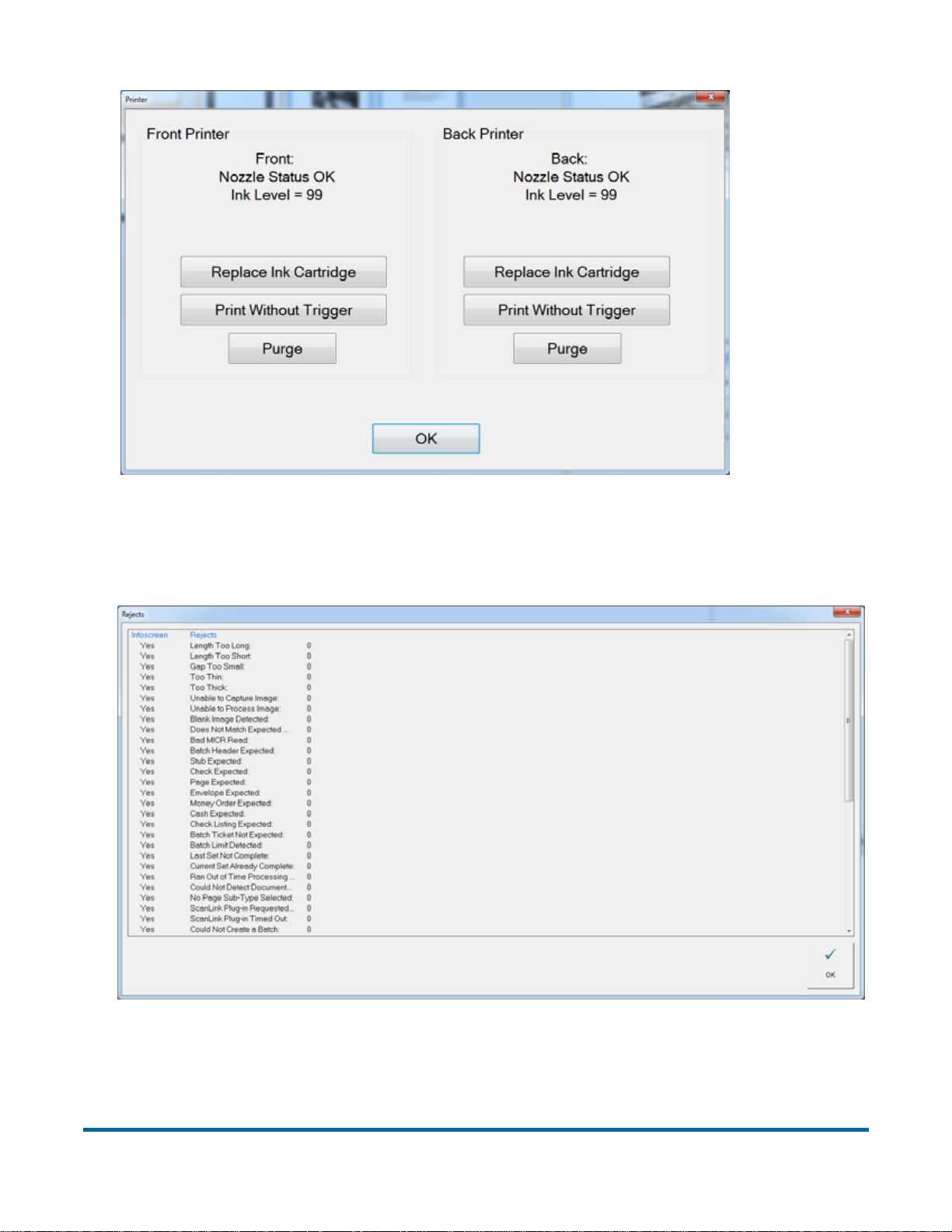

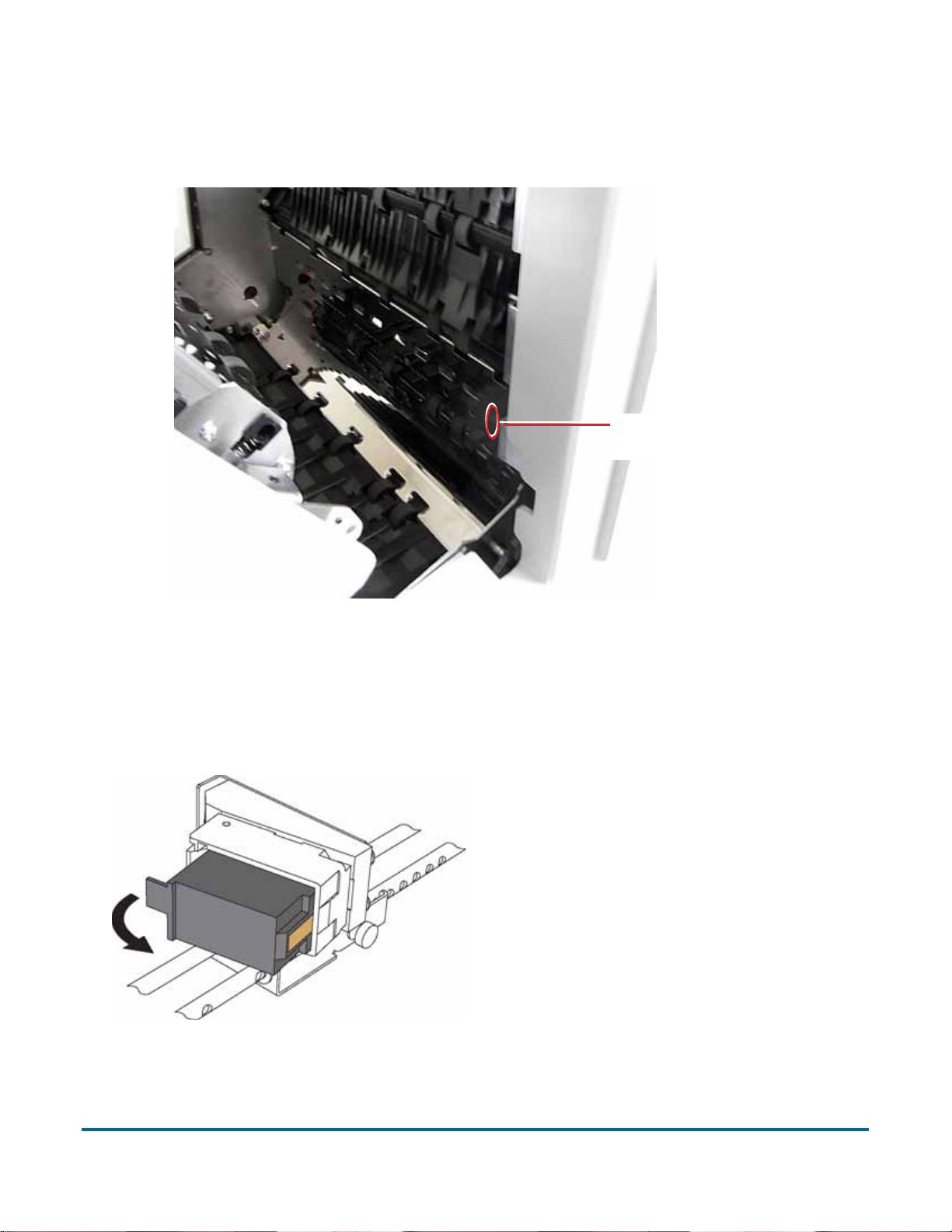

Removing/Replacing the printer cartridge ......................................................... 80

Accessing the printers ................................................................................... 80

Adjusting the printer carriage position ........................................................... 82

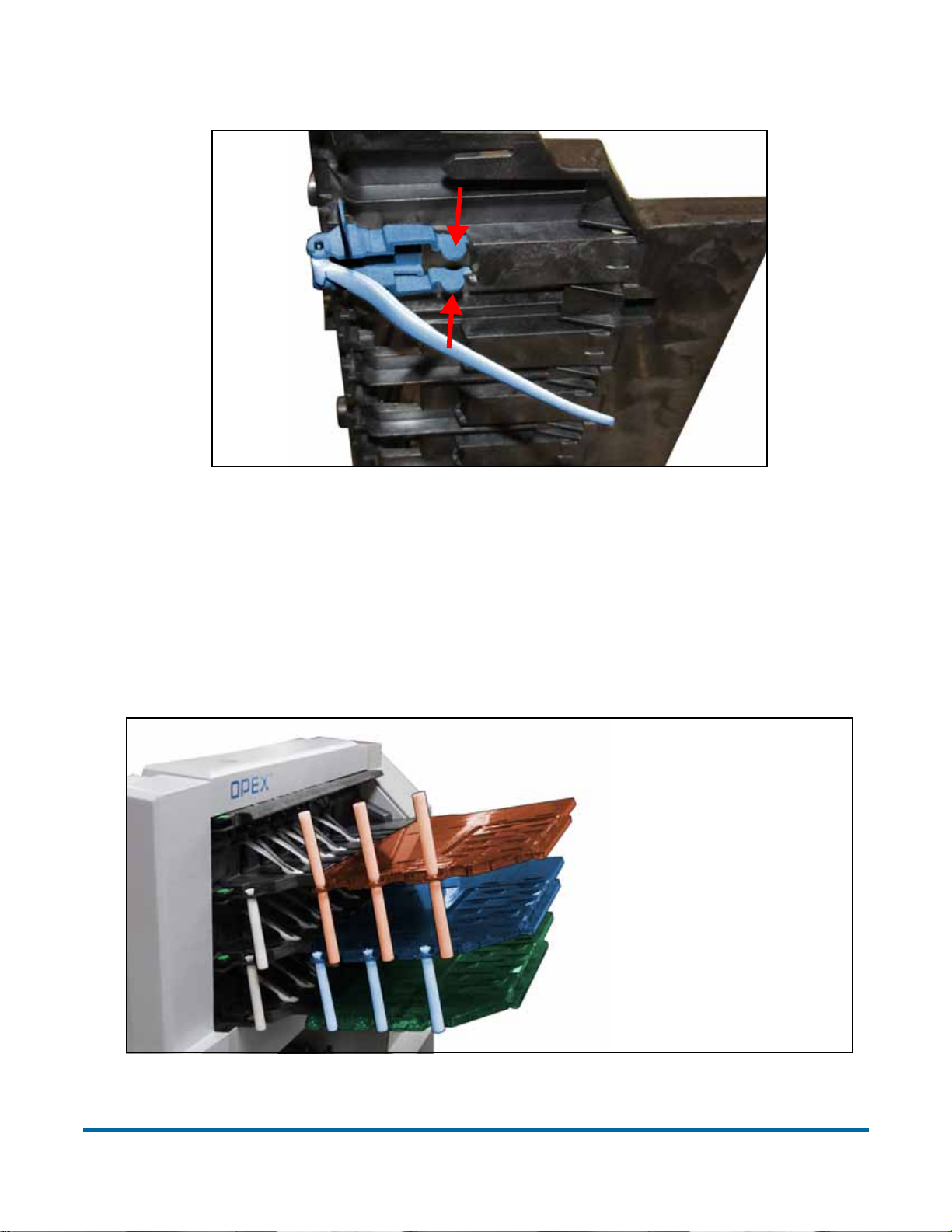

Attaching the bins and stacker fingers ............................................................... 83

Cleaning the system .......................................................................................... 87

Conveyor and transport assemblies ............................................................. 87

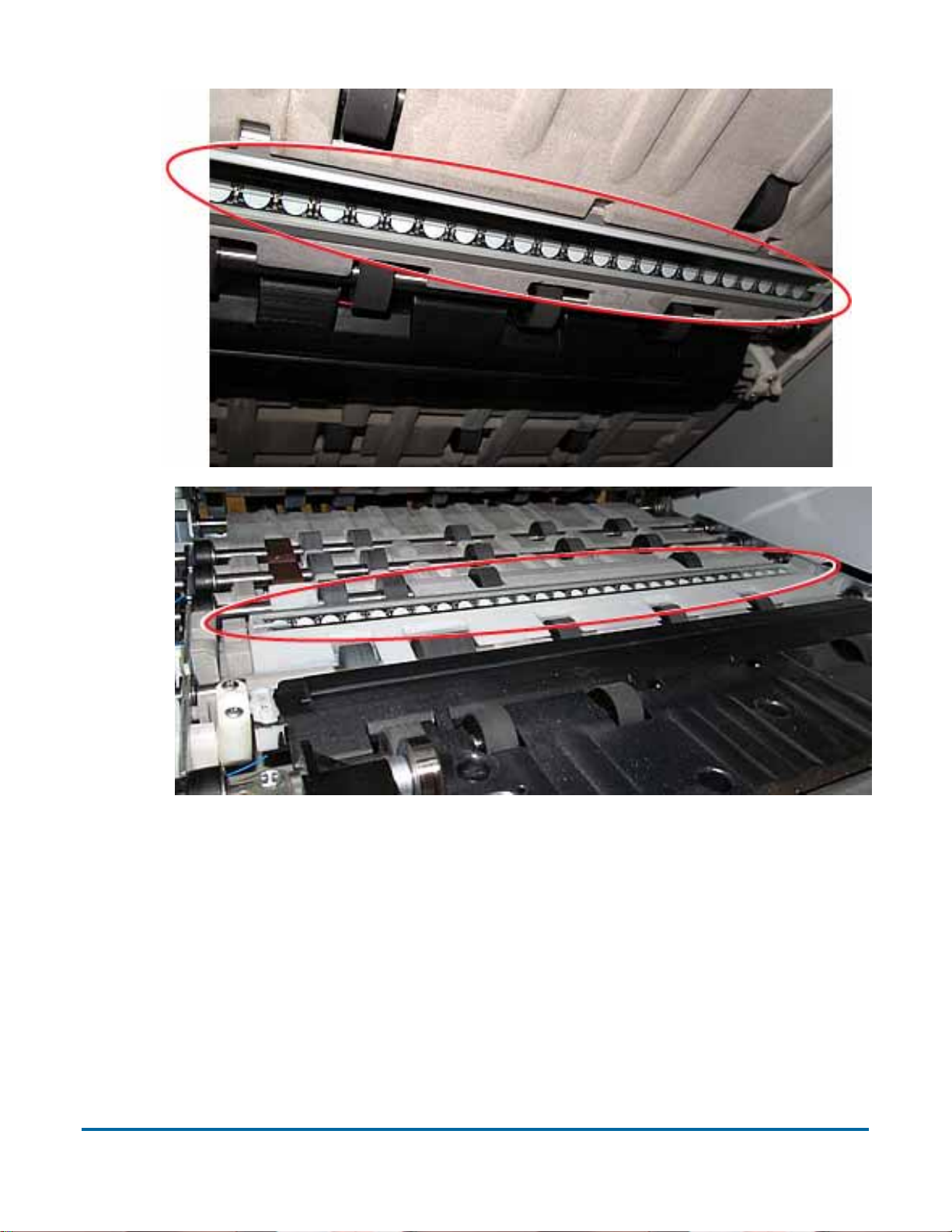

Contact image sensor ................................................................................... 88

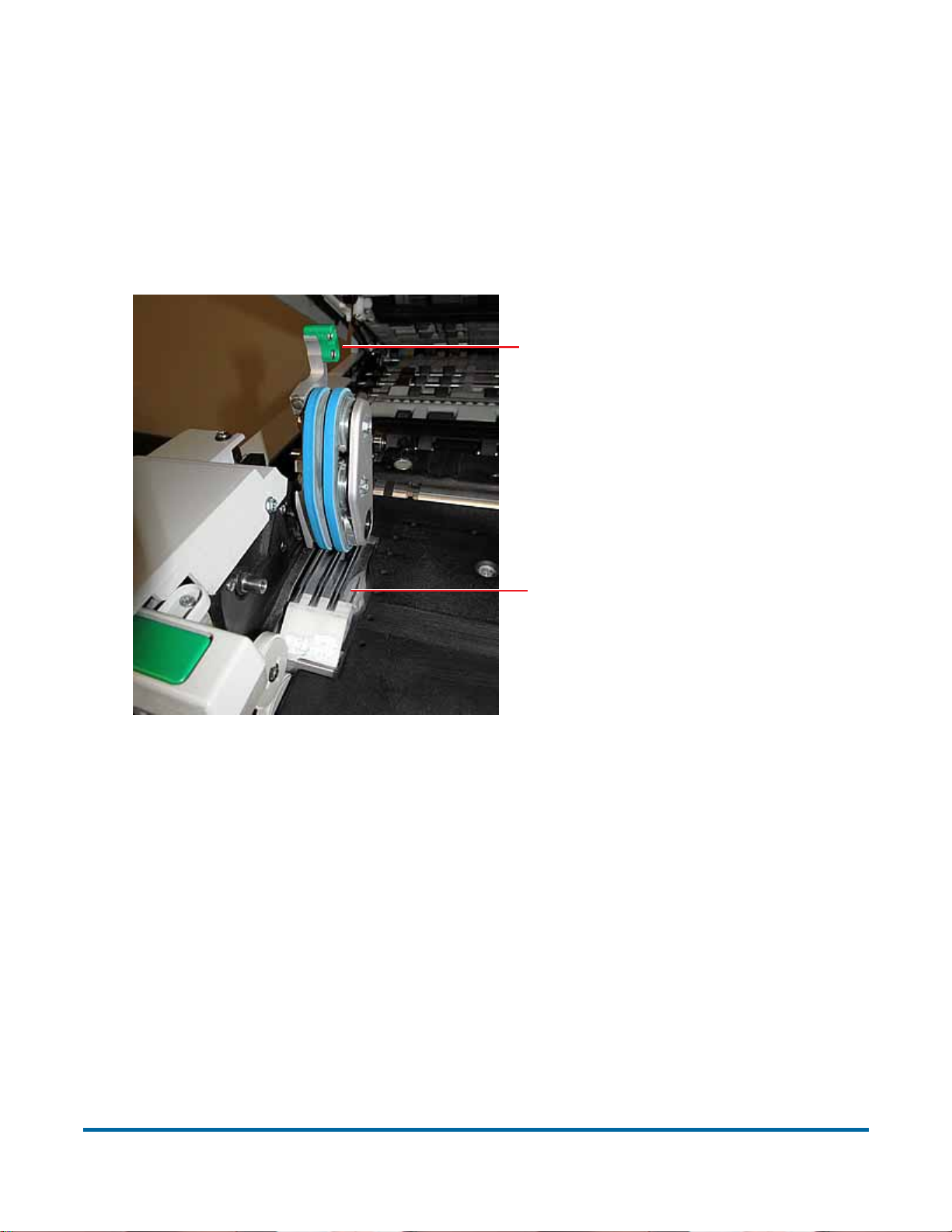

Feed assembly .............................................................................................. 90

Chapter A

Statistics

Falcon Statistics ................................................................................................ 92

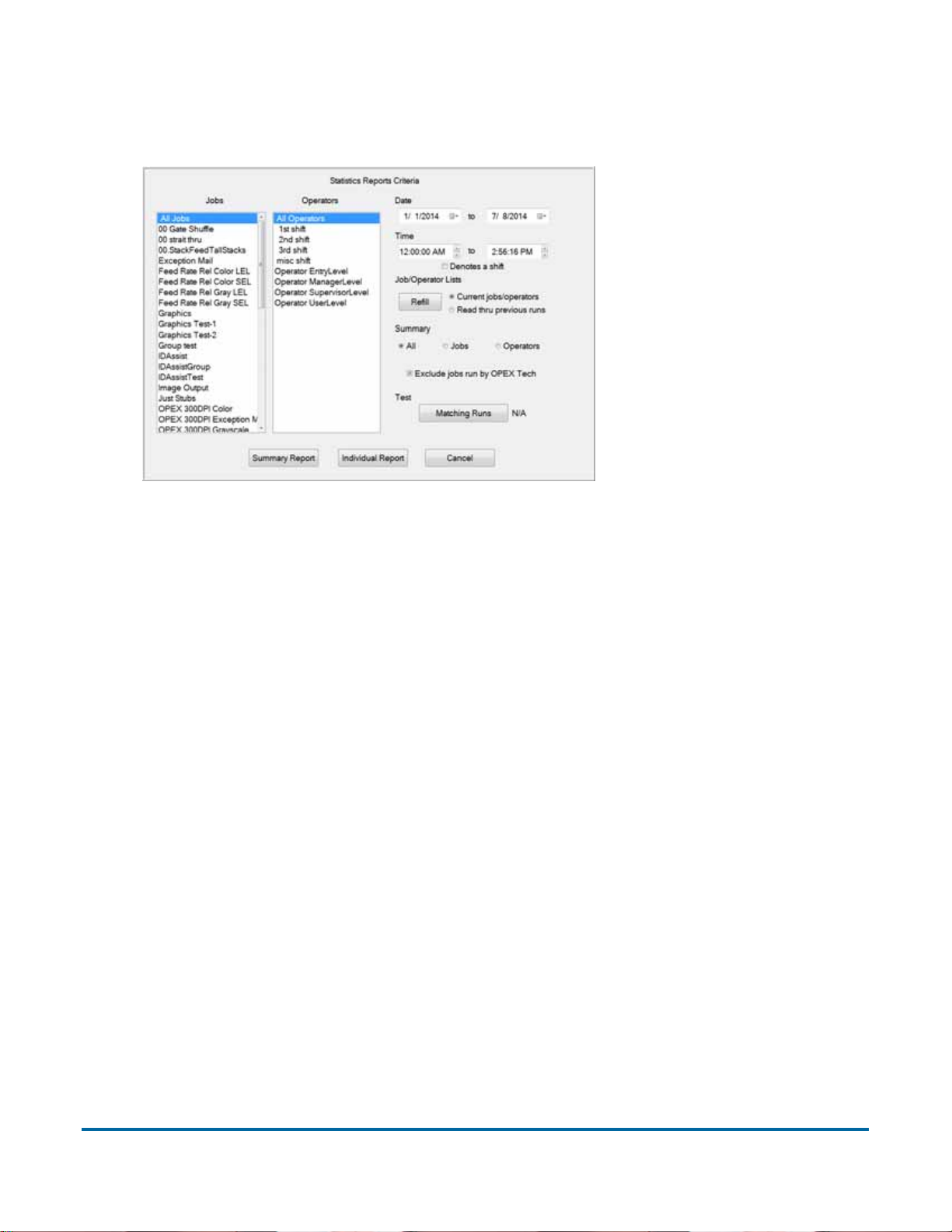

Creating statistic reports ............................................................................... 92

Falcon User Manual - Remittance Processing - OPEX Corporation

General Information statistics ....................................................................... 96

Overall System Performance Measures statistics ........................................ 97

Performance Details statistics ....................................................................... 99

Chapter G

Glossary

Falcon User Manual - Remittance Processing - OPEX Corporation

Introduction

About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

How the Falcon works. . . . . . . . . . . . . . . . . . . . . . . . . . 12

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Page types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Falcon

User Manual - Remittance Processing

About this Manual

The purpose of this manual is to instruct operators of the Falcon in how to use

the scanner to perform tasks. This manual was written for remittance

processing. If you use the Falcon for standard scanning, please refer to the

“Falcon User Manual - Standard Scanning” document. For additional

information on how to set up jobs, page types, audit trails and other functions

of the machine, consult the appropriate Falcon CertainScan Manual (Standard

or Remittance).

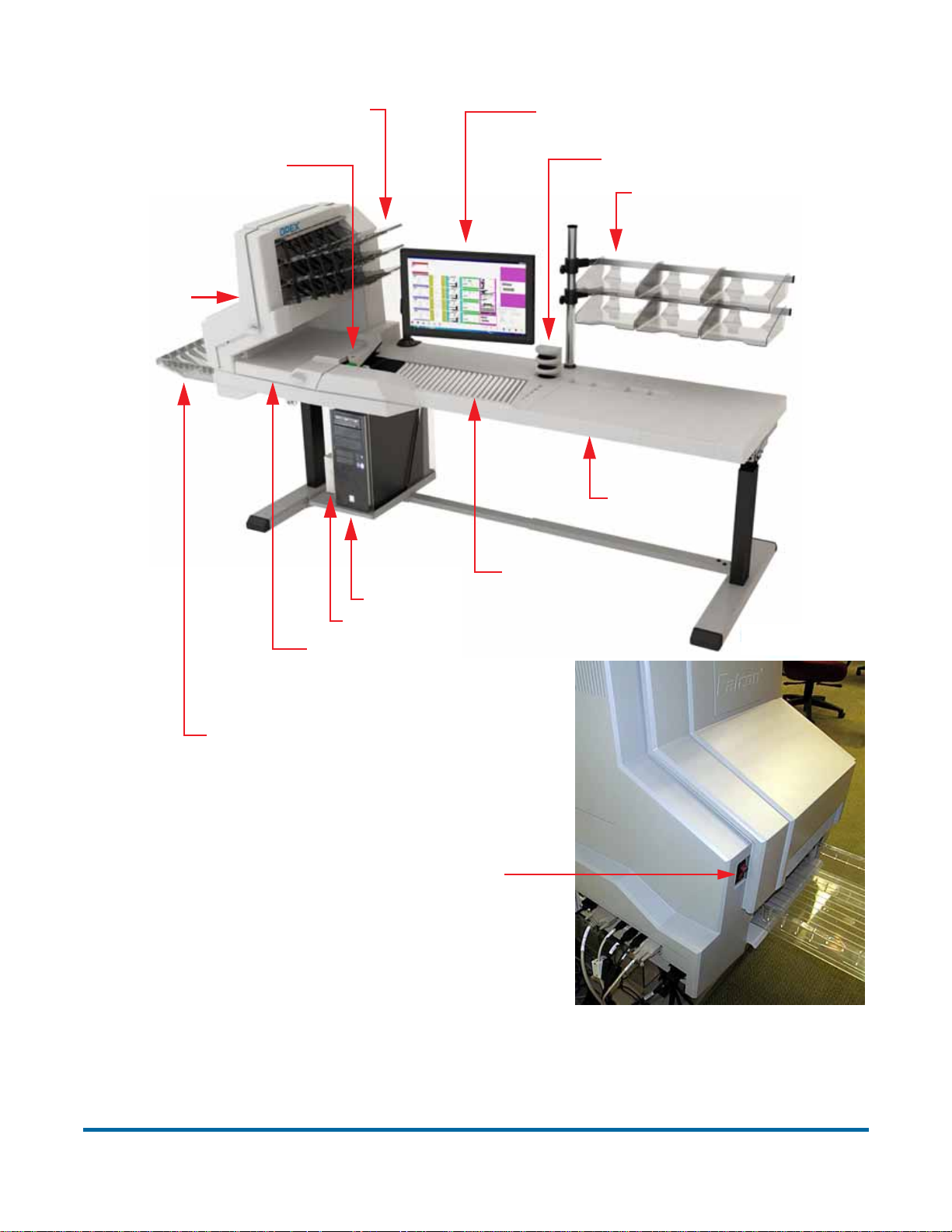

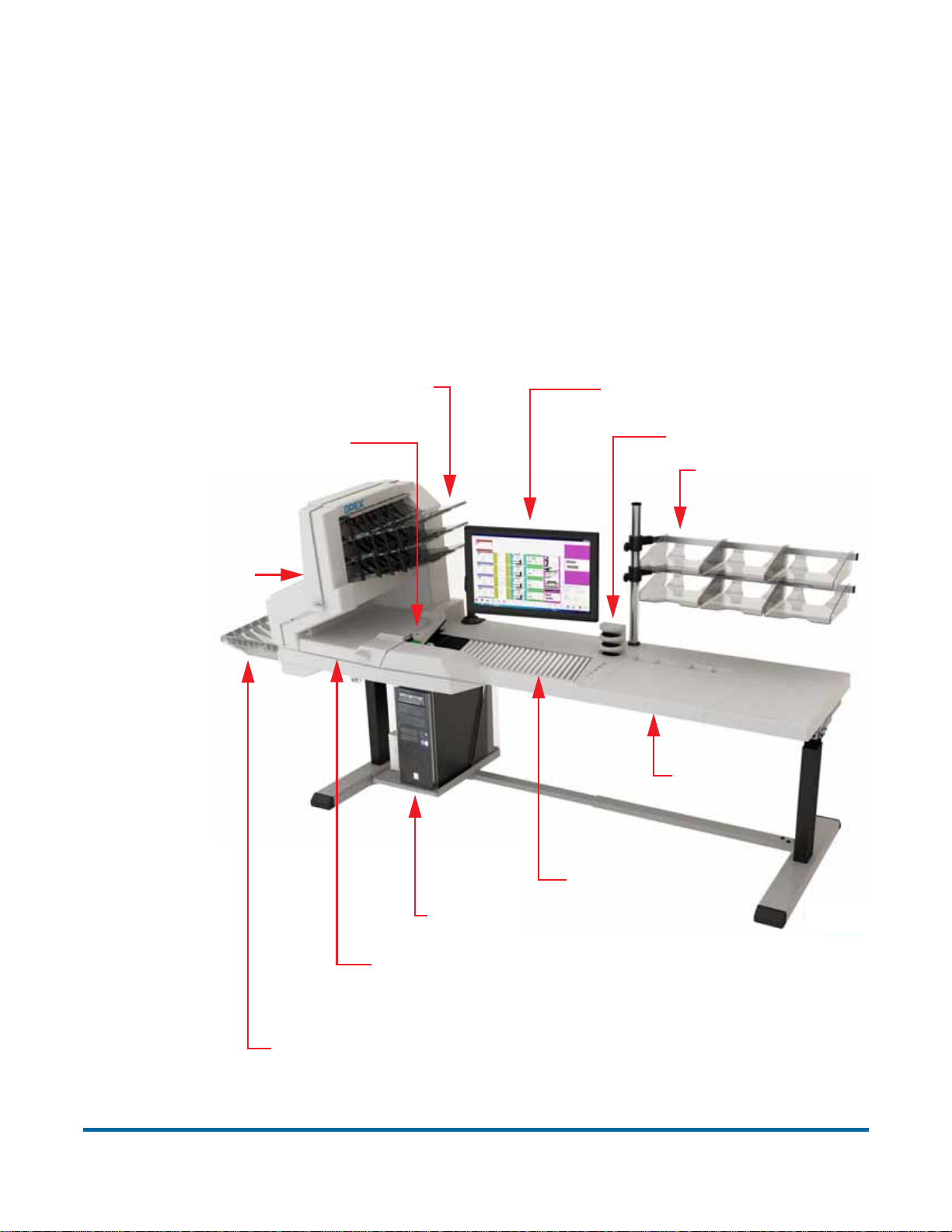

3 Programmable sort bins

Rescan feeder

Printer

Touchscreen PC monitor

Multi-slot IDAssist

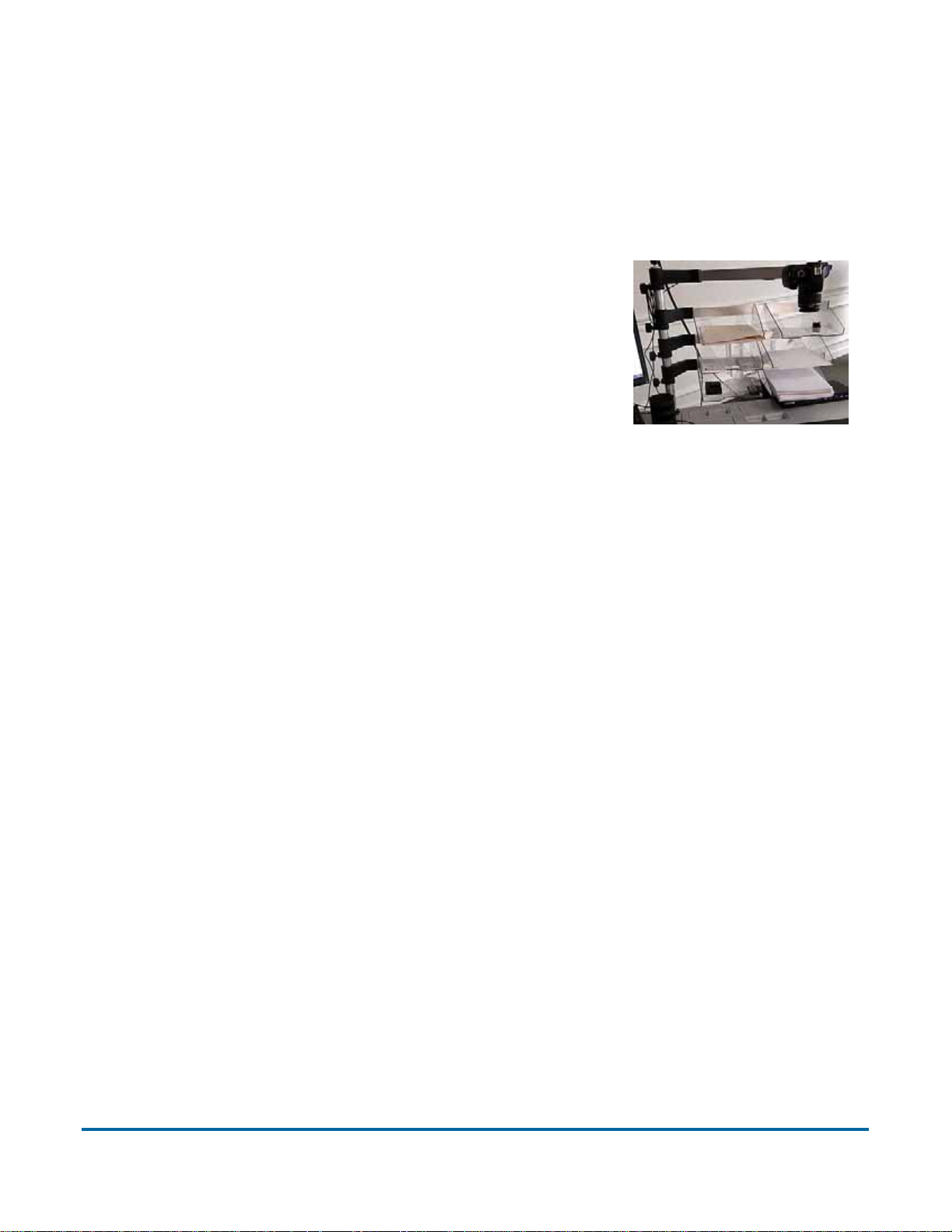

Rack system with

bin trays

Integrated Workstation

Conveyor/Feeder

CertainScan Windows 7 PC

In-line recognition: MICR, OCR, BCR, OMR, Thickness Detect

1 Programmable straight path sort bin

Falcon User Manual - Remittance Processing - OPEX Corporation

Overview

The Falcon™ combines OPEX’s innovative one-step drop feed scanning with

the performance of a high-capacity production scanner, providing the only

universal document scanning workstation on the market. Regardless of your

document scanning needs, Falcon is designed to attack the most difficult and

daunting workflow challenges.

Features of the Falcon include:

• Color 22” LCD display with touch-screen controls

• Duplex scanner with native 300 DPI scanning

• Selectable color drop-out

• Front and back audit trail printers

• Double-feed, length, skew, thickness, and envelope detection

• Up to 12 unique page types

• 64-bit application

• 4 output trays (two fully sortable bins, one bypass bin, one reject bin)

• Robust stack feed capabilities

• Rescan Feeder - for rejected piece refeeds

• Optional multi-slot IDAssist

• Available in three different platforms: Desktop, Integrated, and Transportable

Falcon User Manual - Remittance Processing - OPEX Corporation

Falcon Specifications

Table 1: Falcon Specifications

High-capacity auto feed

Document Feeding

Document Specifications

Scanning Speed Up to 110 ppm / 220 ipm @ 300 dpi In-line Recognition OCR, OMR, barcodes, document type ID

Media Detection

Document Separation

Daily Duty Cycle unlimited Maximum Dimensions

Continuous drop-feed Packet feed Rescan feed

Width: 2.0” to 12.25” (5.08 cm – 31.12 cm) Length: 3.5” to 18.25” (8.89 cm – 46.36 cm) if running Win 7 32-bit OS; 3.5” to 25.50” (8.89 cm – 64.77 cm) if running Win 7 64-bit OS.

Multifeed detection, height, length, skew and envelope detection

3 programmable output sort bins 1 programmable straight-path sort bin for extra thick and delicate items

64.35” x 86.50” x 32.27”

(H x W x D)

Weight

Electrical Specifications Power Output 264 Watts (902 BTU/hr)

Bundled Software

(163.45 cm x 219.71 cm x 81.97 cm) Transportable model with auto height

adjustment: 380lbs. (172kg) * Weight is unknown for the other Falcon configurations at the time of this printing

North America: 120 VAC 1A 60Hz Europe: 220 - 240 VAC 0.6A 50Hz

CertainScan™ 3.0 64-bit host software, CertainScan Essentials™, CertainScan Edit™, OPEX Transform™, OPEX standard barcode package, Windows 7 64-bit

Falcon User Manual - Remittance Processing - OPEX Corporation

Table 1: Falcon Specifications (continued)

OPEX-provided CertainScan PC Flat-panel 22” touch-screen

Additional Features

Optional Features

Packet ID IDAssist™ Integrated workstation

Audit trail printing (front and rear)

Rear graphics printer (prints signature and Code 39 barcode) VRS* technology image enhancement Key Assist™ Reference ID MICR OPEX-provided generic mount for external capture device Multi-page type IDAssist *VRS is a registered trademark of Kofax, Inc.

Available Models Falcon, FalconRED, and Falcon Transportable

Falcon User Manual - Remittance Processing - OPEX Corporation

How the Falcon works

The Falcon scanner is controlled by a single, Windows 7 driven PC. The

operator interacts with the system via the CertainScan software and simply

drops items onto the conveyor. The system scans the items based on the

current job parameters. The scanner can capture MICR and OCR information,

print audit trails on items, and sort them to a specified bin.

Software

The Falcon uses two software applications which control the system:

INtime Controller - The INtime Controller runs in the background of the

CertainScan software and controls all machine related functions, such as

monitoring sensors, triggering gates, and turning motors on and off. The INtime

Controller runs in its own real-time operating system, called INtime. You do not

need to access the INtime controller and should never close the INtime

window.

CertainScan - The CertainScan software interfaces with the Controller and

manages the non-machine related functions performed by the scanner.

CertainScan provides an interface for setting up jobs, page types, audit trails,

and for running jobs. This is the main interface with the machine.

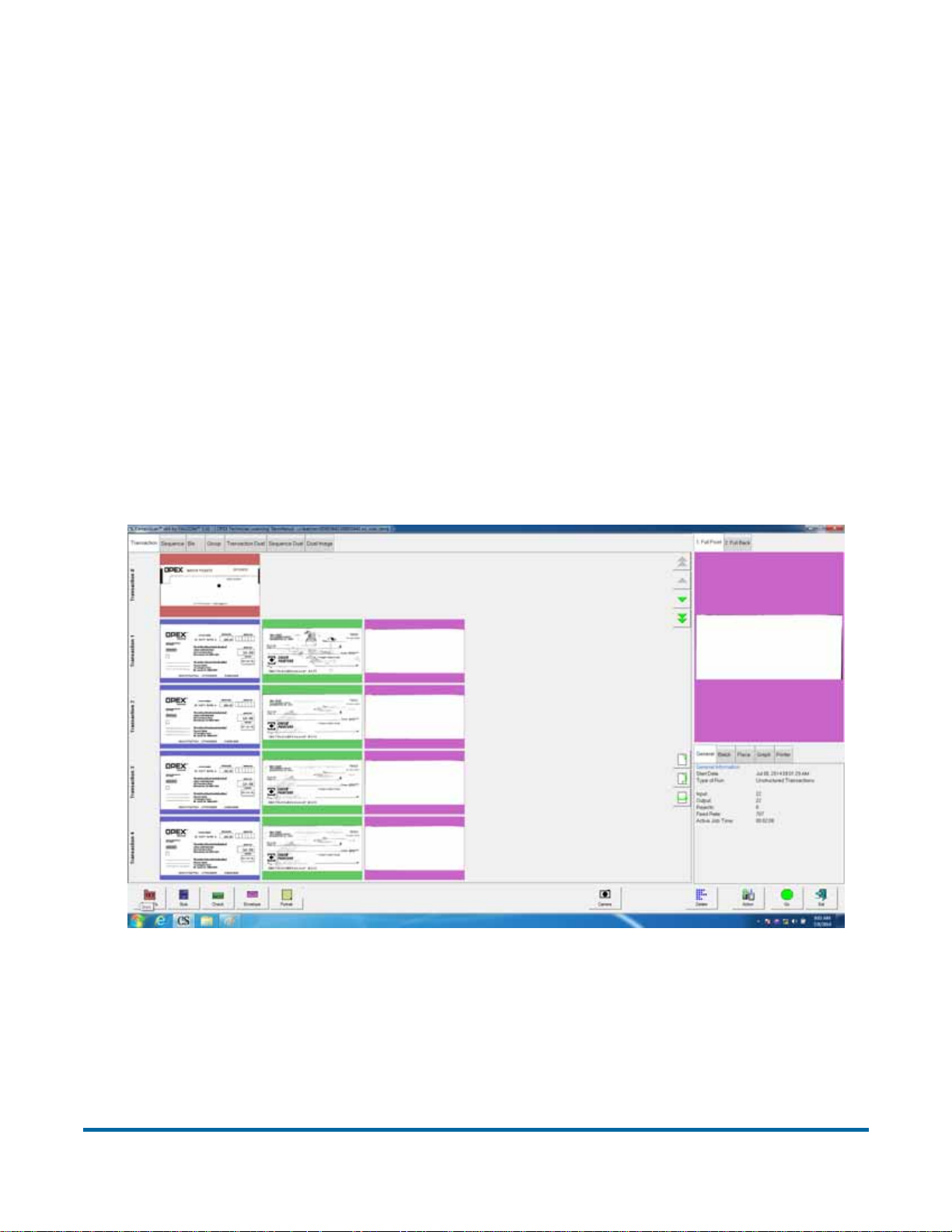

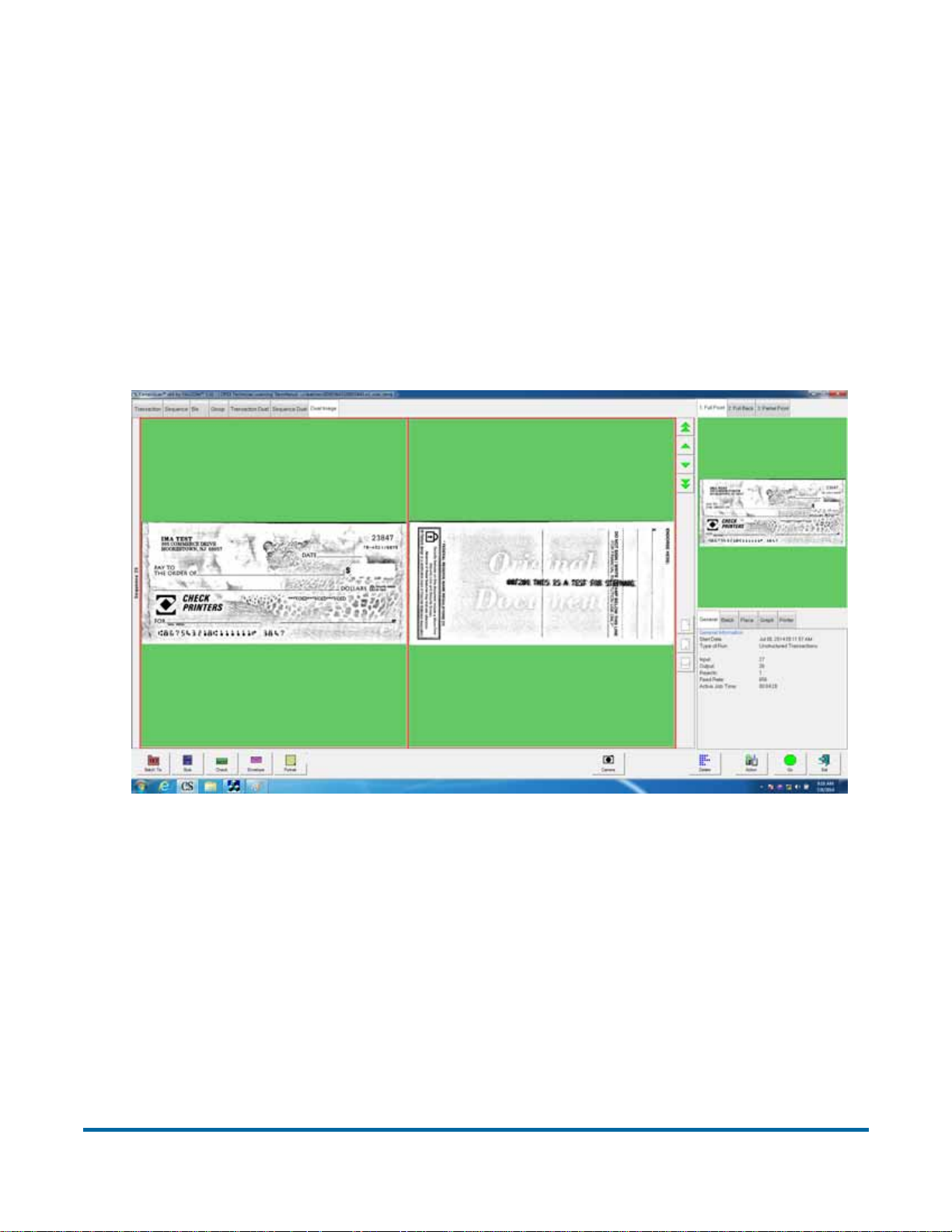

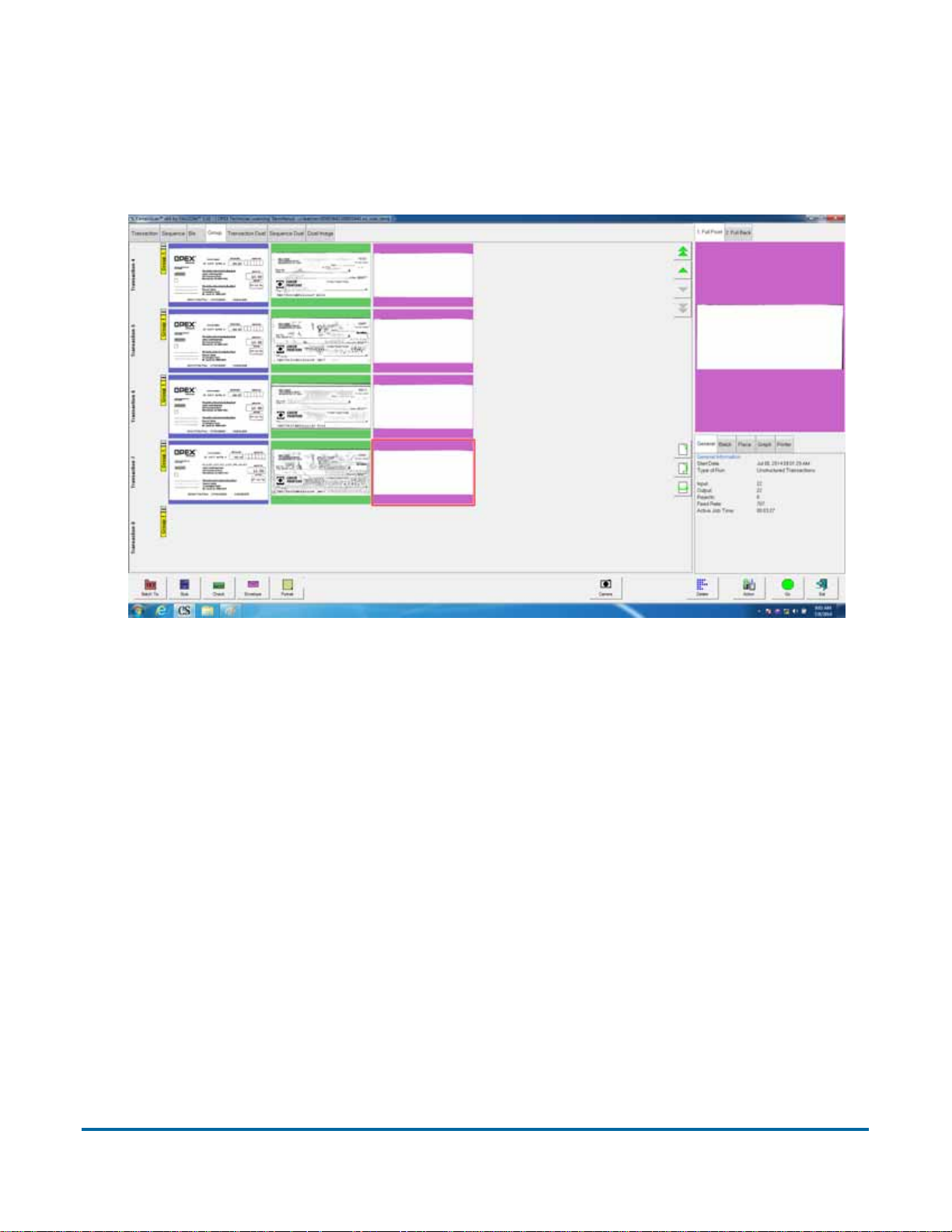

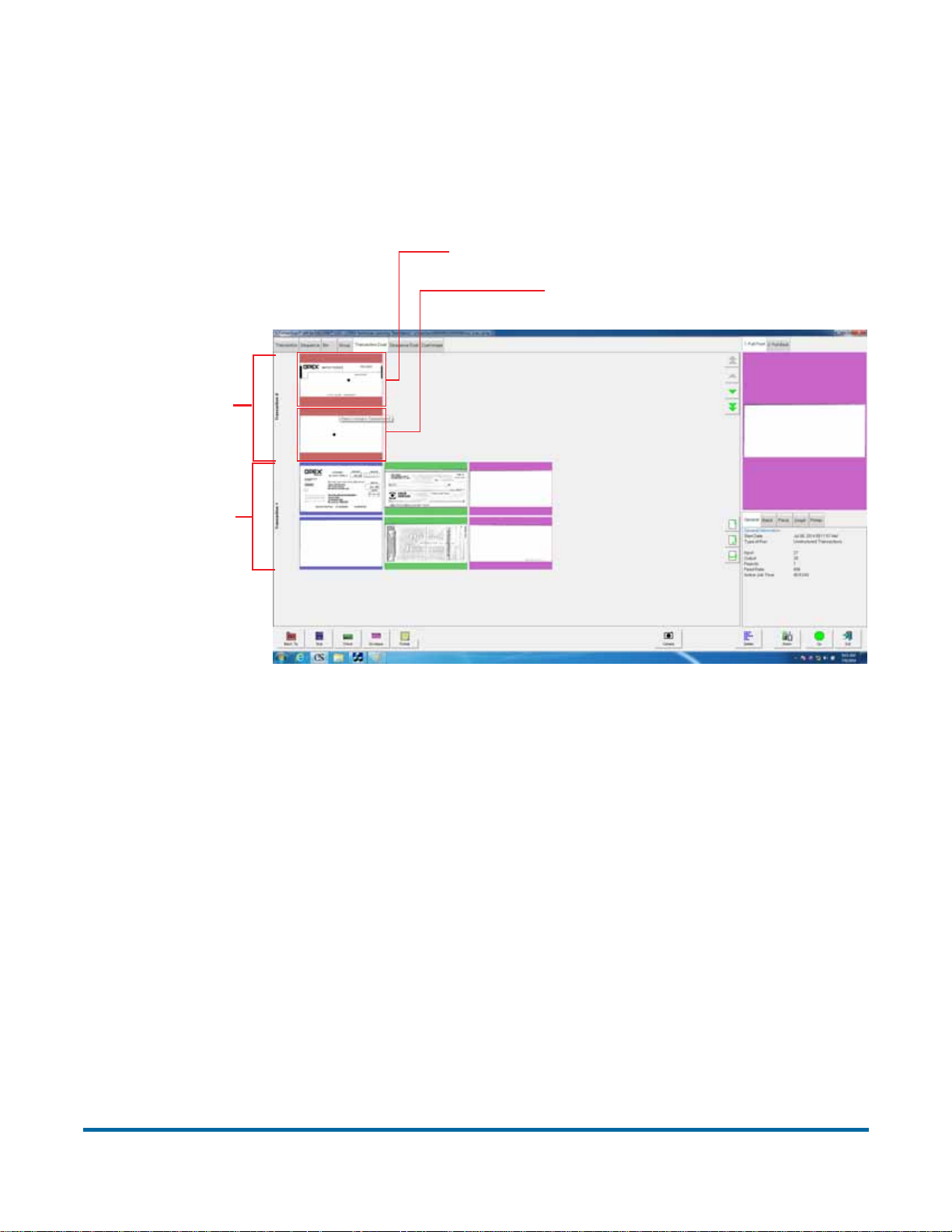

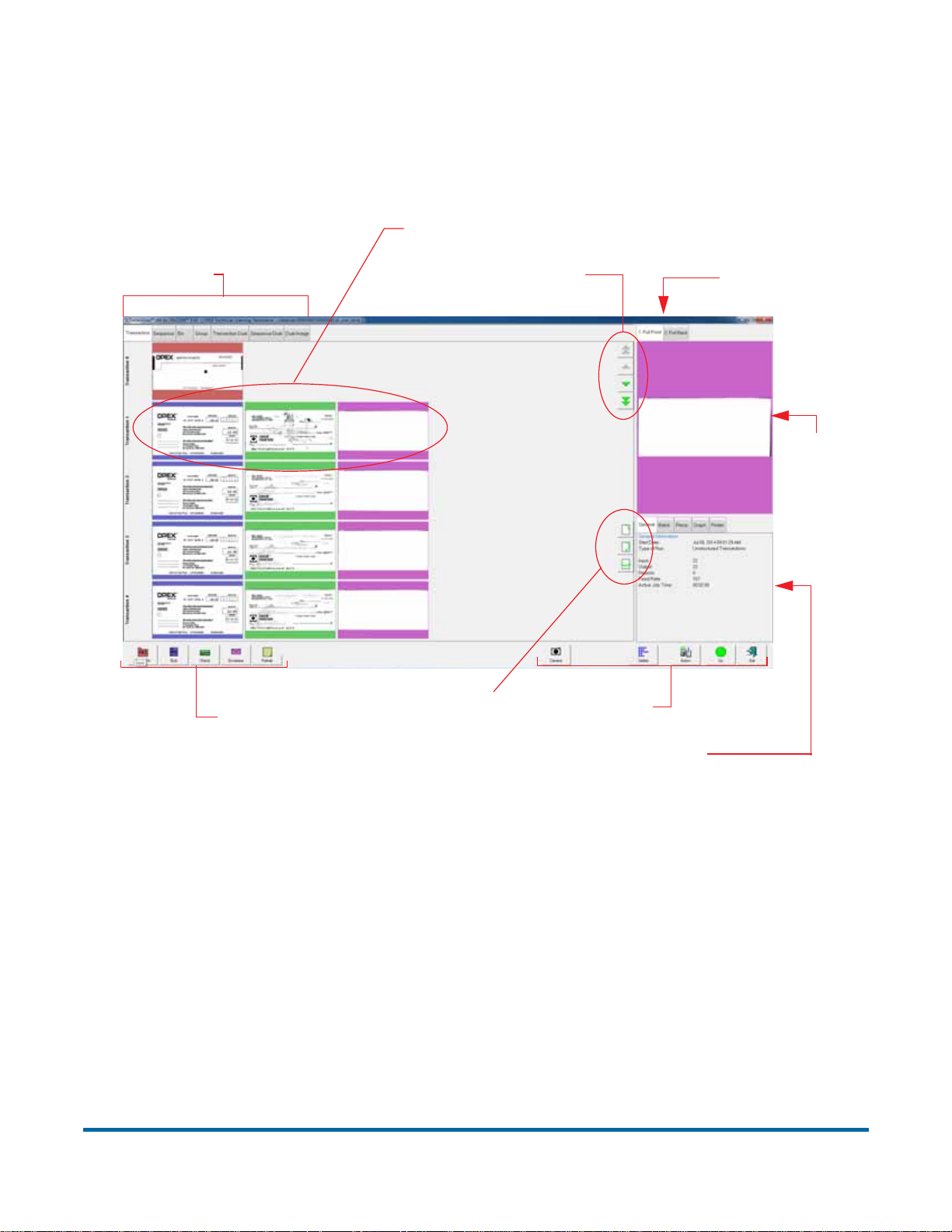

Figure 1: CertainScan Run Screen example

Falcon User Manual - Remittance Processing - OPEX Corporation

Jobs

A job is a collection of parameters the Falcon uses for scanning items. The

jobs you set up allow you to process items in a similar manner from run to run.

The scanner captures images of items and stores the information it collects in

batches, which consist of one or more transactions. The definition of a

transaction can vary from customer to customer, and even from job to job. A

transaction may consist of several page types, such as: a check, stub (or

remittance piece), and an envelope.

Structured vs. Unstructured jobs

Structured jobs require you to scan items in a particular order. For example,

when running a structured job, the machine may prompt you to scan a batch

ticket first, then a stub, then a check, and/or another item, and finally an

envelope to signify the end of the transaction. If a page type is scanned out of

sequence or if the system is expecting a certain page type, the system will alert

you.

In an unstructured job, you can scan any of the expected page types in any

sequence. The only restriction is that the boundary, in most cases an

envelope, is scanned last. The boundary tells the system the current

transaction is complete and the next transaction will begin.

There are other job types such as Singles, Multis, Multis with Pages, Page

Only and Check Only which are discussed in detail in the CertainScan Manual.

Page types

The term “page type” is used to specify a collection of criteria that a piece must

meet to be classified as a certain type of item; i.e., length, height, barcode,

mark detect, MICR, etc. The system uses the page type parameters set up by

your System Administrator to classify items that come into the system. When

the scanner processes items in a job, it gathers data (such as length and width)

on each item and compares the item to the page types you have designated for

that job. This is how the system identifies each item scanned into the system.

The system then collects the appropriate data from the item and sorts it

according to the current job parameters.

Falcon User Manual - Remittance Processing - OPEX Corporation

Operation

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Main Controls and System components . . . . . . . . . . . . 18

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Navigating the Falcon CertainScan software . . . . . . . . 23

Running Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Using the Run Screen. . . . . . . . . . . . . . . . . . . . . . . . . . 26

Scanning items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Rescanning items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Falcon

IDAssist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

User Manual - Remittance Processing

Overview

This chapter provides safety precautions, user interface information, and basic

procedures on how to run the machine to process items with the Falcon.

Note: This manual describes operation of the Falcon scanner. If you have a

FalconRED™ (Model 72 Rapid Extraction Desk installed), refer to the Model 72 Operator Guide before proceeding with this manual.

Safety precautions

Follow these safety precautions to avoid injury when operating the Falcon.

Failure to follow these precautions may result in severe personal injury or

damage to the machine.

• Be careful when working with AC power. Electrical wiring can be hot any time the machine is plugged in. Failure to use caution may result in electric shock or death.

• Do not set liquids (such as drinks) on the scanner that could spill into the machine.

• Keep loose objects away from any exposed, moving parts of the machine. The moving parts of the Falcon can become jammed and/or damaged by foreign objects. Also, keep hands, hair, loose clothing or jewelry away from the moving parts.

• Do not attempt to clean the machine while it is running. A cloth (or similar material) should never be used to clean moving parts such as belts or rollers. The use of such material on moving mechanisms can result in damage to the machine or severe personal injury.

• Do not use flammable, high pressure, “canned air” to clean paper scraps and dust from the machine.

• Do not move the machine while the power is on. Unplug the machine from the power source first.

Falcon User Manual - Remittance Processing - OPEX Corporation

Ergonomics

As in any occupation which requires you to perform the same motion repeatedly during the course of your work, it is important to consider how you perform your task. Always use proper operating procedures when operating the Falcon. Follow the directions for using and adjusting your chair and scanner. Using improper procedure can result in a potentially serious injury. The Falcon scanner has been designed for safe operation by over 95% of the user population. Operation by individuals with limited reach capability or who cannot follow the suggestions listed should be avoided or limited in duration.

To reduce possible risks, we strongly urge you to follow these suggestions:

• Maintain an upright body posture. Avoid the tendency to slump in your chair. The angle between your torso and thighs should always be close to 90 degrees.

• Adjust the seat height on your chair or the height of the scanner so that your elbow is approximately even with the top of the work surface when your arms are near your sides and your feet are flat on the floor.

• Adjust your chair position to allow your torso to touch the front edge of the scanner work surface. Chairs with arm rests that prevent this body position should not be used.

• If the touchscreen is used frequently during processing, adjust the screen’s position to minimize your reach movements to the frequently touched areas.

• Your position should allow you to comfortably reach the frequent work pickup area(s) and the frequently touched areas of the screen without extending either arm fully or changing your posture.

• Occasionally change the angle of your posture and, if possible, vary your tasks to create short breaks from the most repetitive motions.

• If possible, avoid operating the machine for longer than a single 8-hour shift.

While no suggestions can guarantee completely against work-related injuries, you will certainly increase your comfort and safety while operating the Falcon if you put these suggestions into practice. The scanner has been designed with you in mind. If it is operated correctly, you should find your work experience comfortable and enjoyable.

Falcon User Manual - Remittance Processing - OPEX Corporation

Main Controls and System components

The list below describes many of the controls and components of the Falcon system. Refer to Figure 2 on page 20.

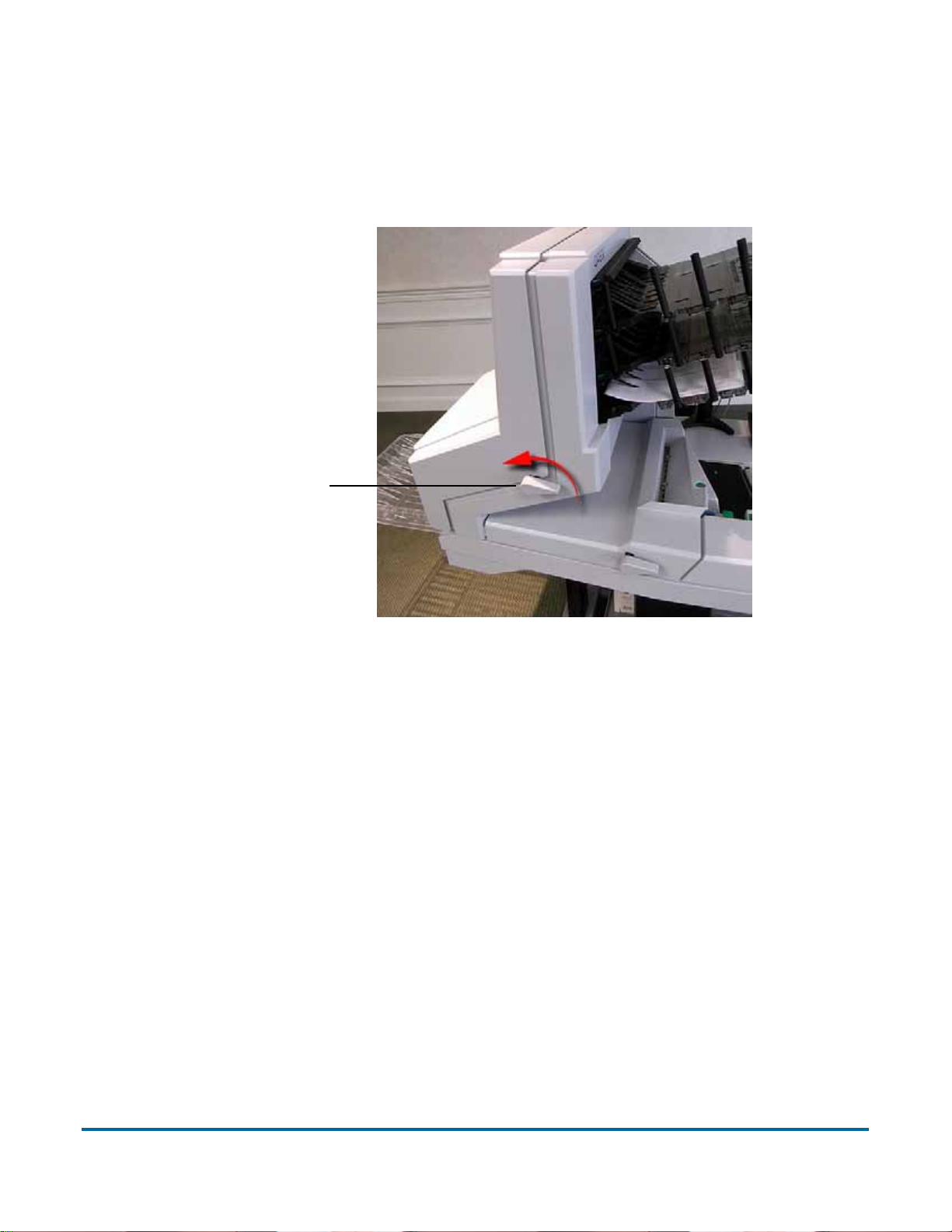

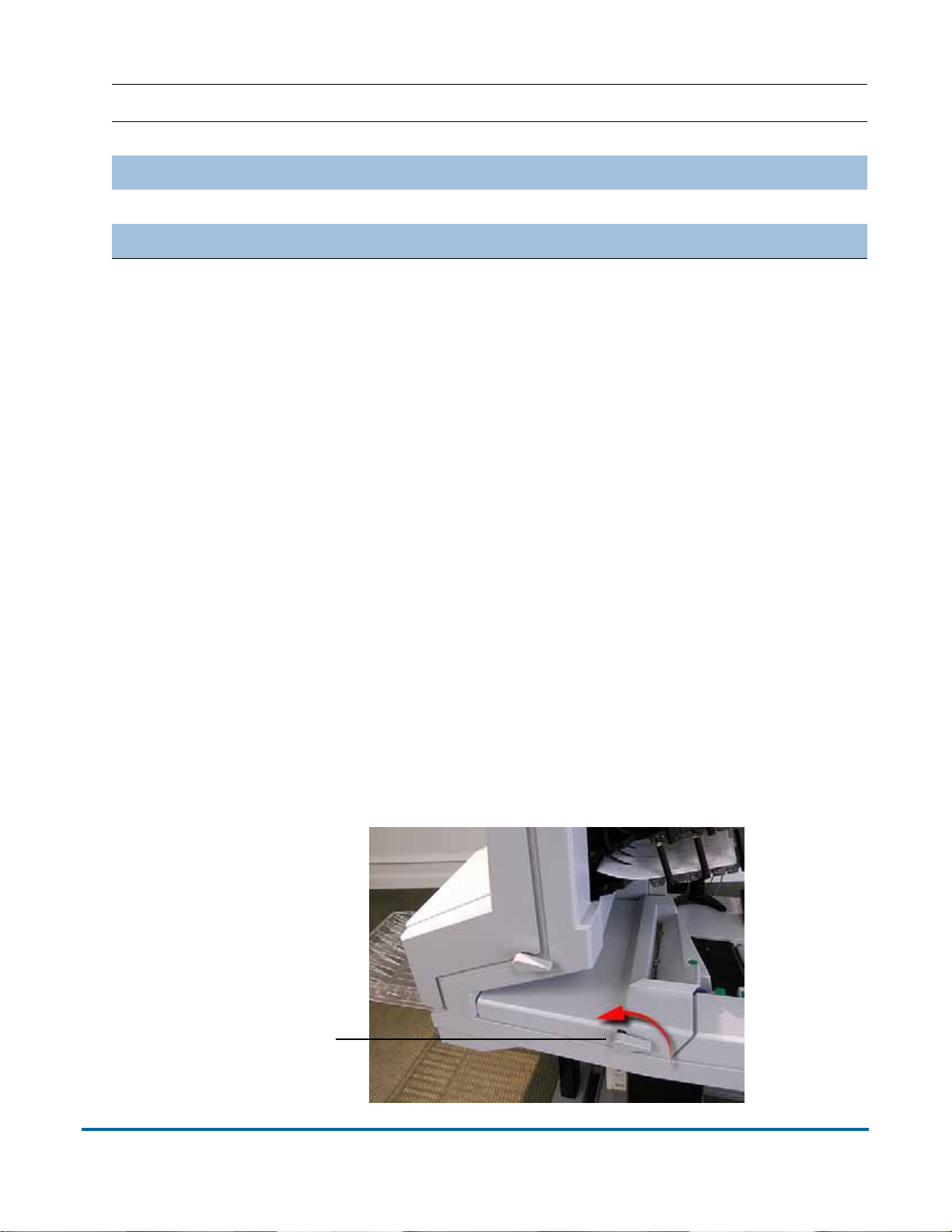

Main power switch The main power switch is located on the left cover, as

shown in Figure 2. This is the main “on/off” switch for the Falcon system.

UPS (Uninterrupted Power Supply) The APC UPS supplies battery power

to the PC and monitor to allow a controlled shutdown of the Windows operating system. The scanner should be plugged into the AC wall outlet and not the UPS.

CertainScan PC The 32-bit or 64-bit PC with Windows 7 operating system

houses OPEX’s feature-rich CertainScan 3.1 host software.

Touchscreen monitor Use the monitor to log in and out of the Falcon

system. The monitor’s touchscreen controls should be used to operate the system and run jobs.

Keyboard/mouse Typically, the keyboard and mouse are only used for

setting up jobs and for use with other software. Use the touchscreen monitor for running jobs and operating the machine.

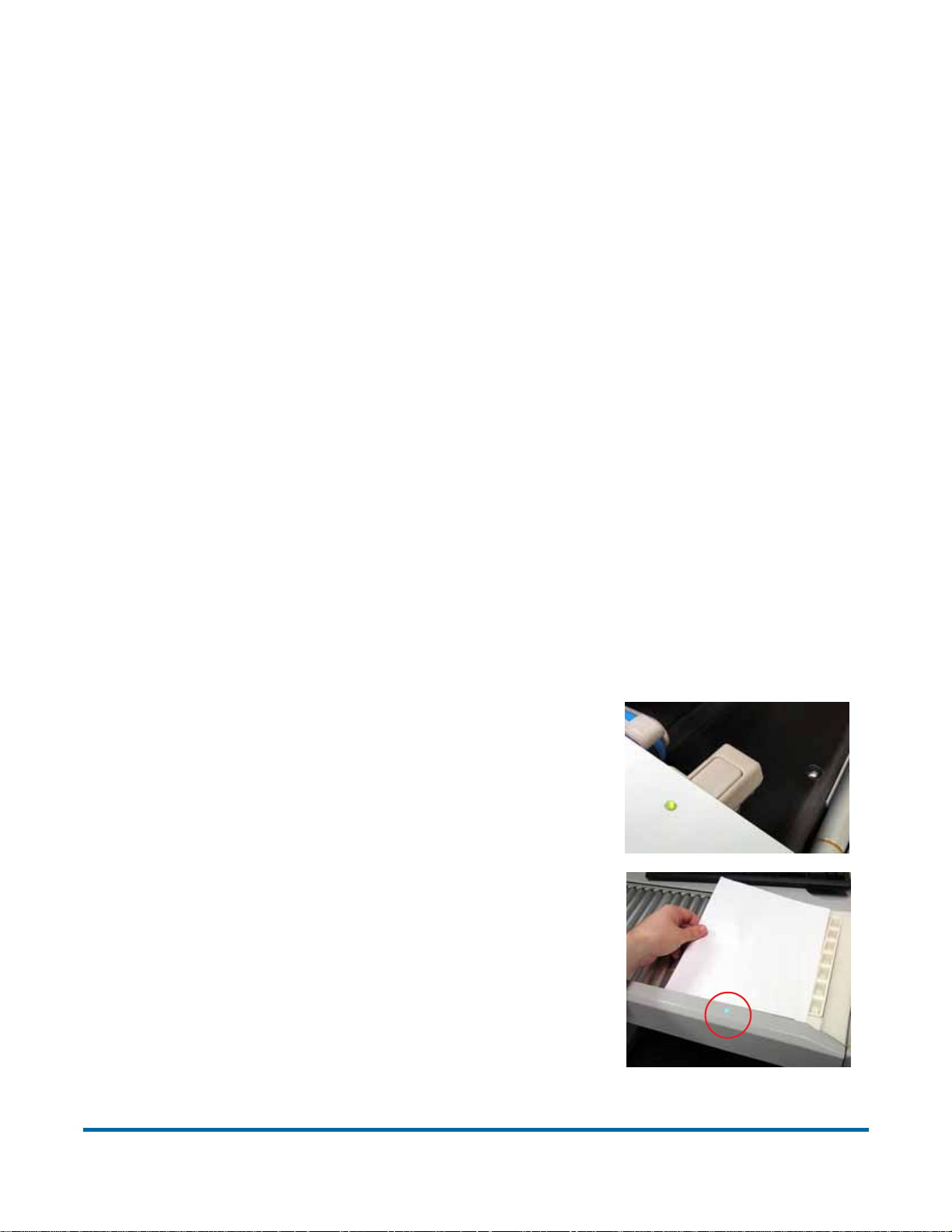

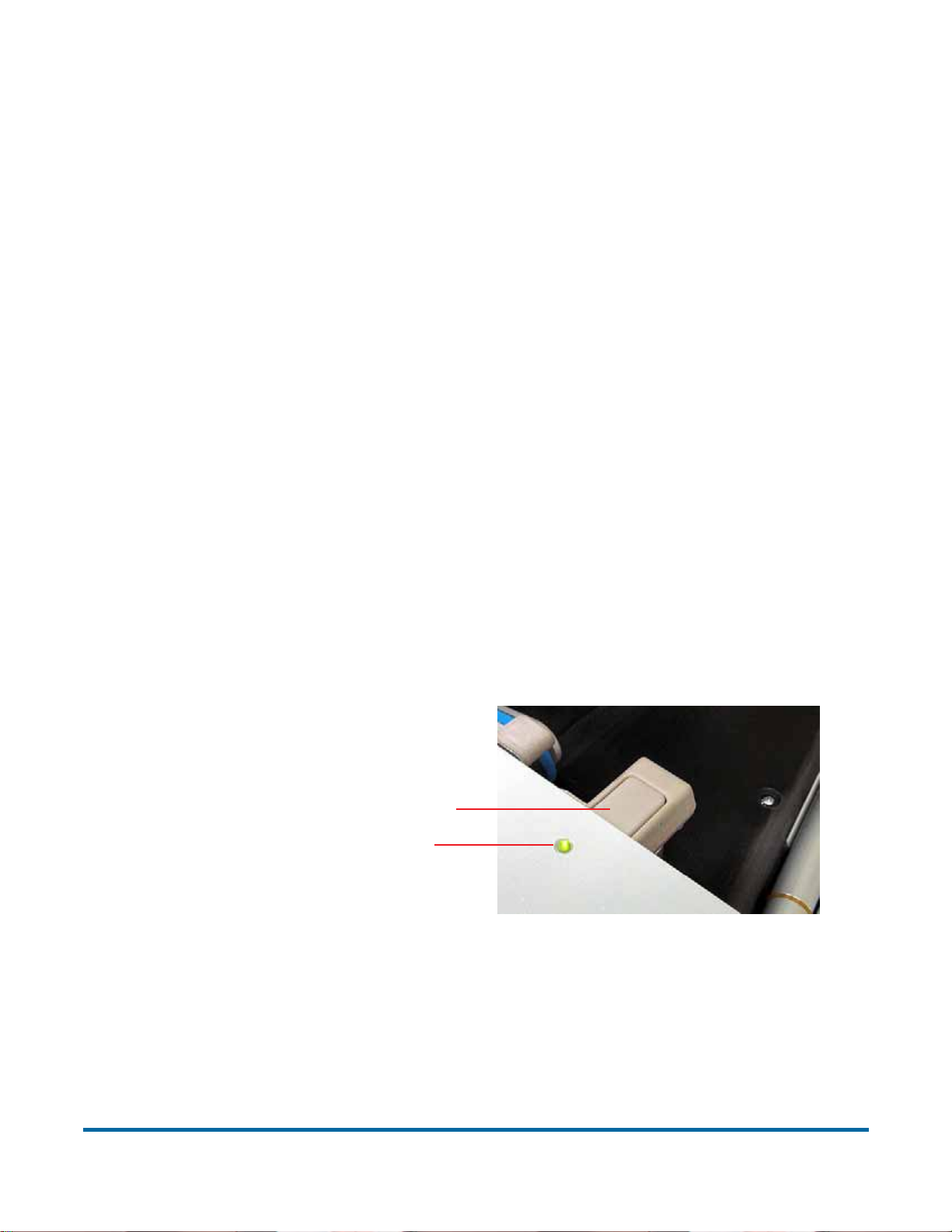

MFD Override button The MFD override button

allows you to disable the ultrasonic multifeed detector when you are scanning thicker pieces, such as items with sticky notes attached.

IDAssist indicator The blue IDAssist indicator

LED will light up when running a job that includes IDAssist. Also, when the operator triggers IDAssist the LED will go out briefly, indicating to the operator that IDAssist has been activated. For more on using IDAssist, see “IDAssist” on page 67.

Falcon User Manual - Remittance Processing - OPEX Corporation

Multi-Slot IDAssist (option) This option allows you to perform up to nine

different functions, which are determined by how you swipe items in the tower’s three slots. For more on using the optional Multi-slot IDAssist feature, see “About the Multi-Slot IDAssist” on page 69.

External Capture device (option) An optional

pole and mounting arm are available for a camera which can be used to capture images of items unable to be scanned by Falcon and inserted directly into the batch.

Note: The camera is not included in this option,

just the pole, mounting arm, and software option needed.

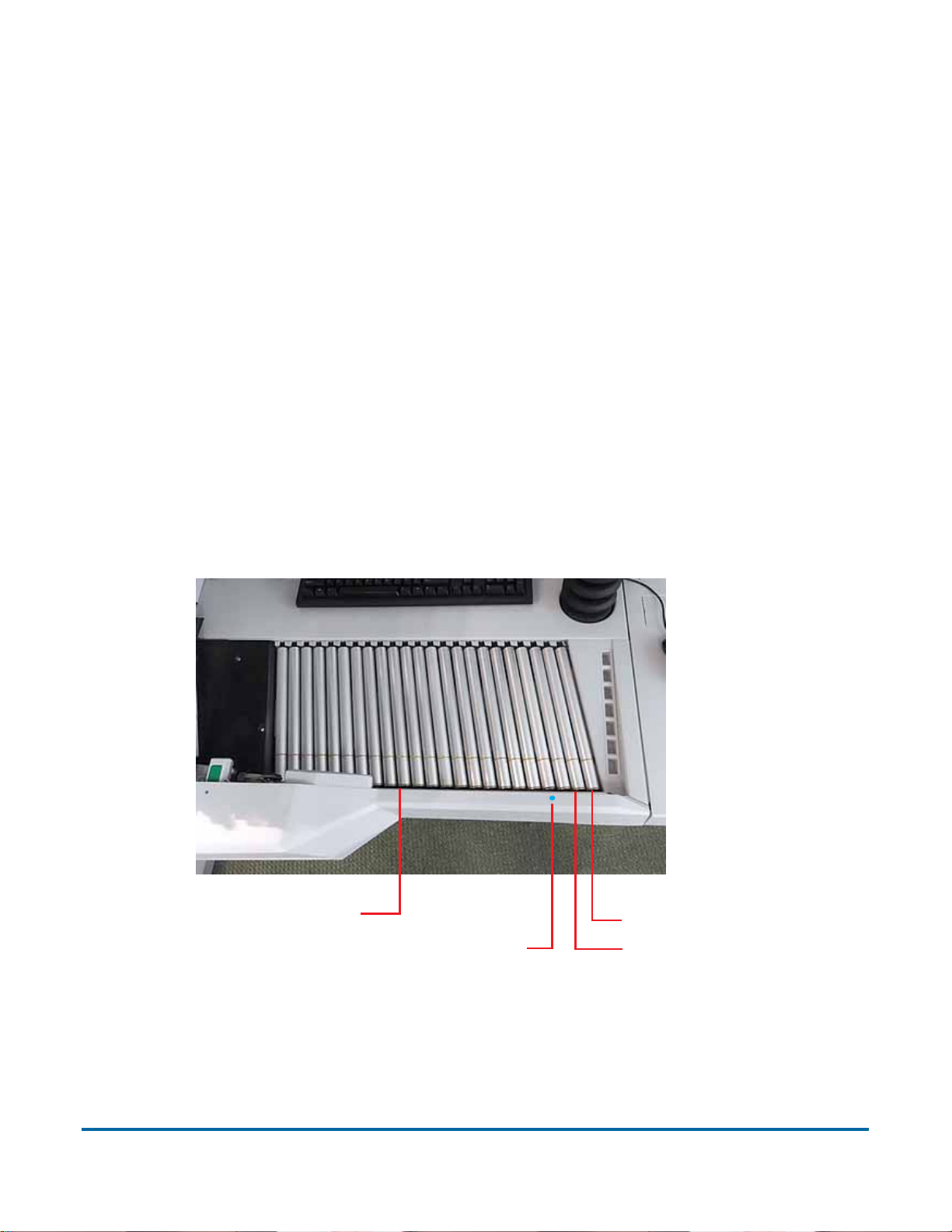

Conveyor Angled roller system that edge justifies items before entering the

feeder.

Audit trail printers (option) The optional audit trail printers are located

behind the sort bins. Audit trails can be applied to the front and/or back of each scanned item.

Rear graphics printer (option) In place of the standard rear audit trail

printer, this optional printer is capable of printing graphics such as signatures, logos and Code 39 barcodes. Up to five different graphics can be sprayed.

Sort bins Scanned items are sorted into one of four output bins (two fully

sortable bins, one bypass bin, one reject bin).

Falcon User Manual - Remittance Processing - OPEX Corporation

3 Programmable sort bins

Touchscreen PC monitor

Rescan Feeder

Printer

Multi-slot IDAssist

Rack system with

bin trays

Integrated Workstation

Conveyor/Feeder

CertainScan PC

UPS In-line recognition: MICR, OCR, BCR, OMR, Thickness Detect

1 Programmable straight-path sort bin

Main Power Switch

Figure 2: Main Controls and components

Falcon User Manual - Remittance Processing - OPEX Corporation

Getting Started

Power up the system:

If the Falcon system is not already up and running, turn on the power:

1 Turn on the main power switch (see Figure 2). 2 Press the power button on the UPS. The monitor will turn on and the

computer will begin to boot up.

3 Log in to Windows with your Windows/network user name and password. If

your Falcon is not connected to a network, you may not have to log in to Windows first. Proceed to step 4. Once the computer has finished booting Windows, it will launch the Falcon CertainScan application.

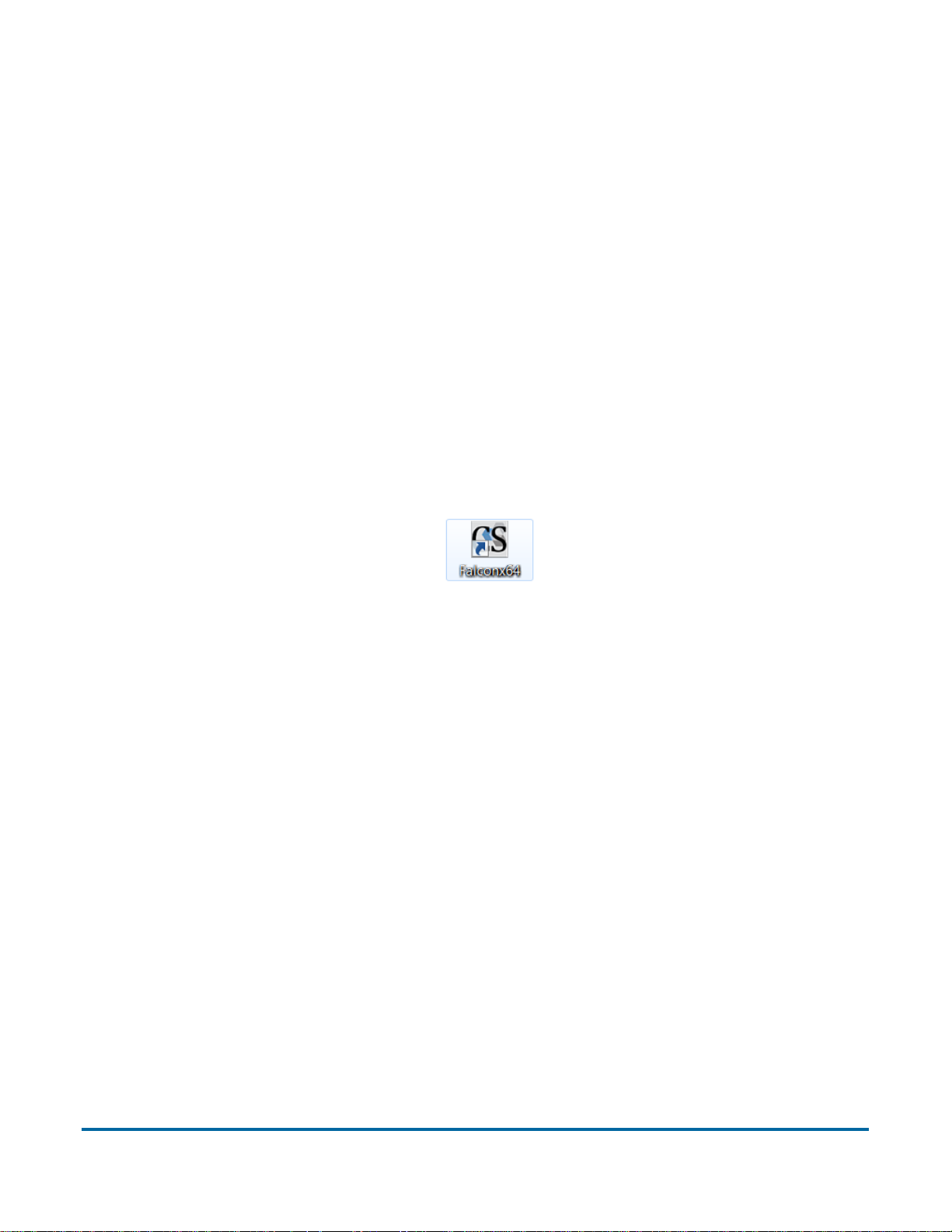

Note: If you mistakenly close CertainScan, double-click the icon on the

desktop to start it again.

Note: If you do not have your own user account, ask your Falcon Adminis-

trator for assistance.

Falcon User Manual - Remittance Processing - OPEX Corporation

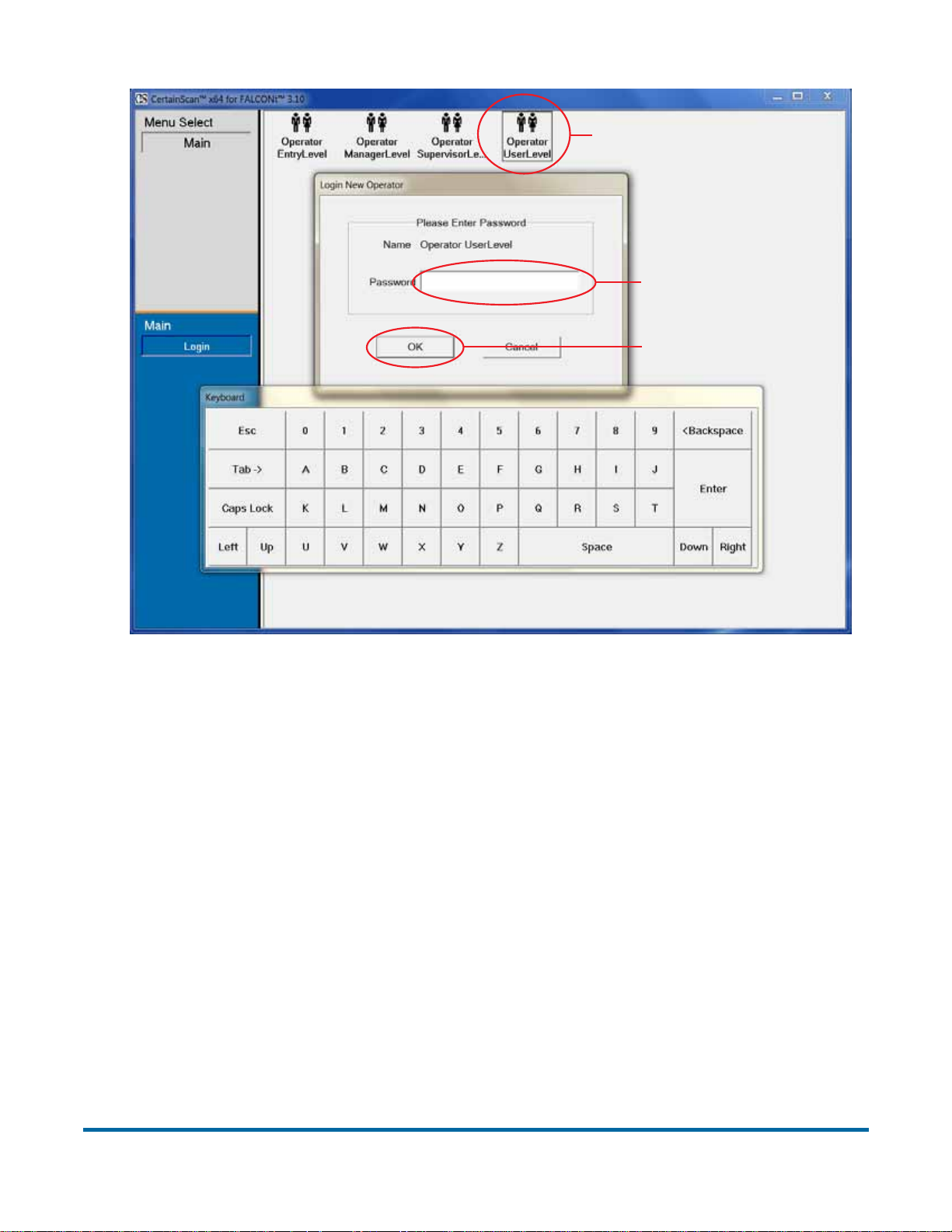

Select user account icon

Enter password

Press OK

Figure 3: Login Screen

5 Enter your password using the on-screen or computer keyboard. 6 Press OK.

Falcon User Manual - Remittance Processing - OPEX Corporation

Navigating the Falcon CertainScan software

Use the CertainScan software to select jobs and scan pieces on the Falcon system. The CertainScan interface consists of:

Title bar Displays the name of the current operator and other pertinent infor-

mation. Click the Falcon icon in the title bar to access the Windows functions (Restore, Move, Size, Minimize, Maximize, Close), as well as the following menus:

- The diagnostics menu is reserved for Opex technicians.

- The Help menu accesses the About screen, which provides version information for the Falcon CertainScan software.

Menu bar Provides access to the main system functions. Select a category

from the menu bar and make selections from the main window or the menu options bar.

Menu options The menu options provide subcategories for the selections in

the menu bar. The menu options bar will change based on the current menu bar selection.

Main window View and adjust settings and parameters in the main window.

Title bar

Menu bar

Main window

Menu options

Figure 4: CertainScan interface

Falcon User Manual - Remittance Processing - OPEX Corporation

Running Jobs

Now that you have logged into the system and taken some time to familiarize yourself with the main controls and components, you are ready to begin operating the machine. This section will give you a general outline of how to use the CertainScan software to process items.

Select a job: 1 Select Main in the menu bar. 2 Click the icon for the job you want to run.

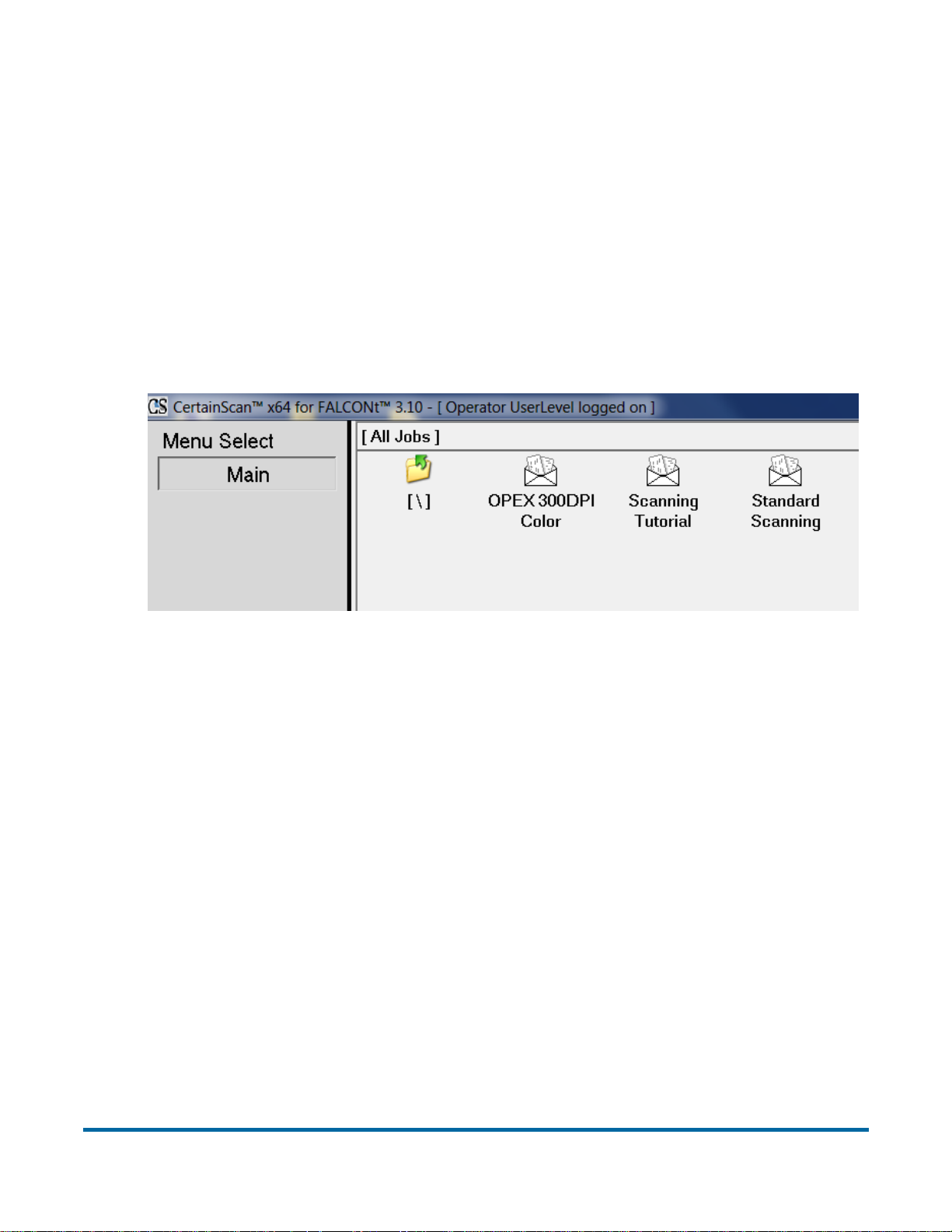

Figure 5: Main Screen

Note: The jobs you see may be different than those shown in Figure 5.

Falcon User Manual - Remittance Processing - OPEX Corporation

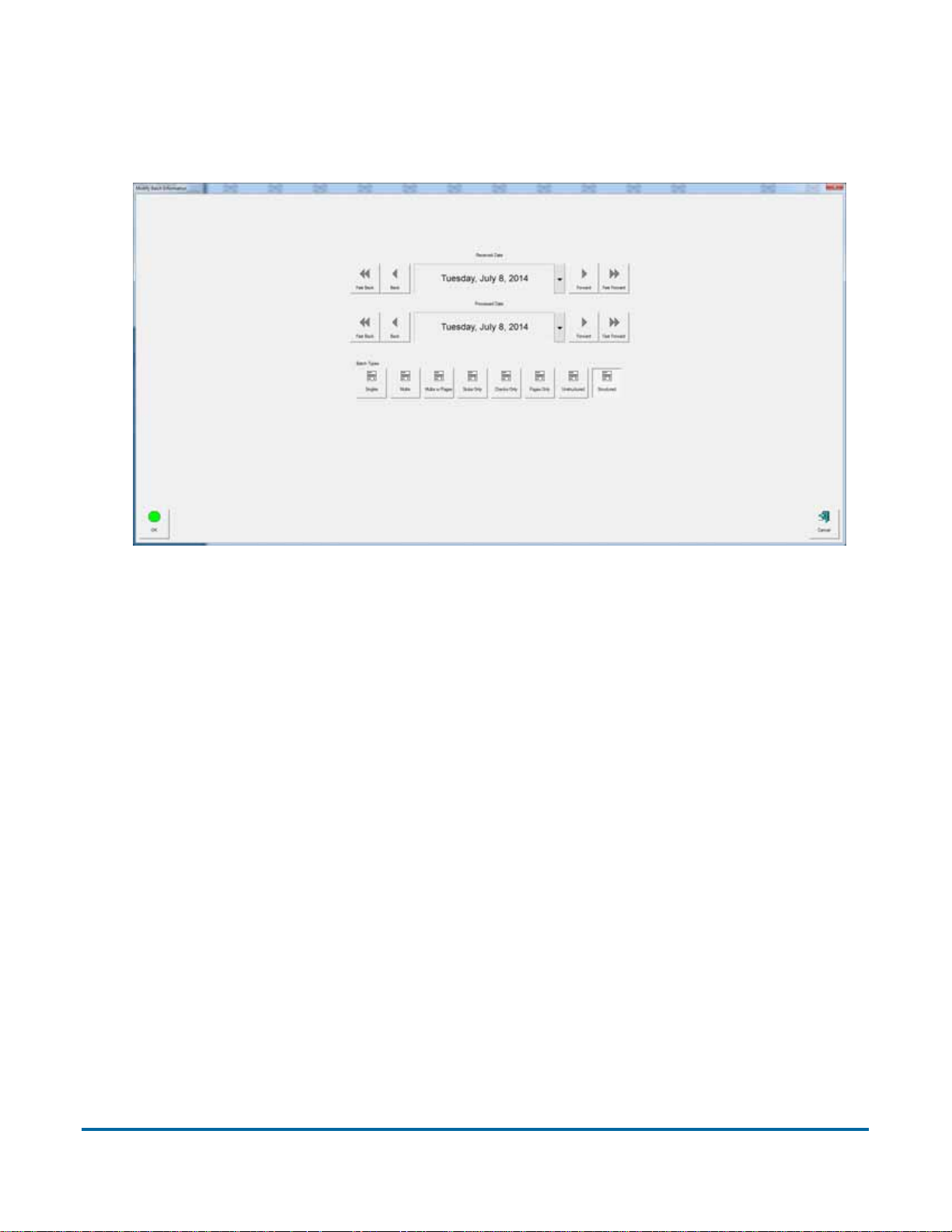

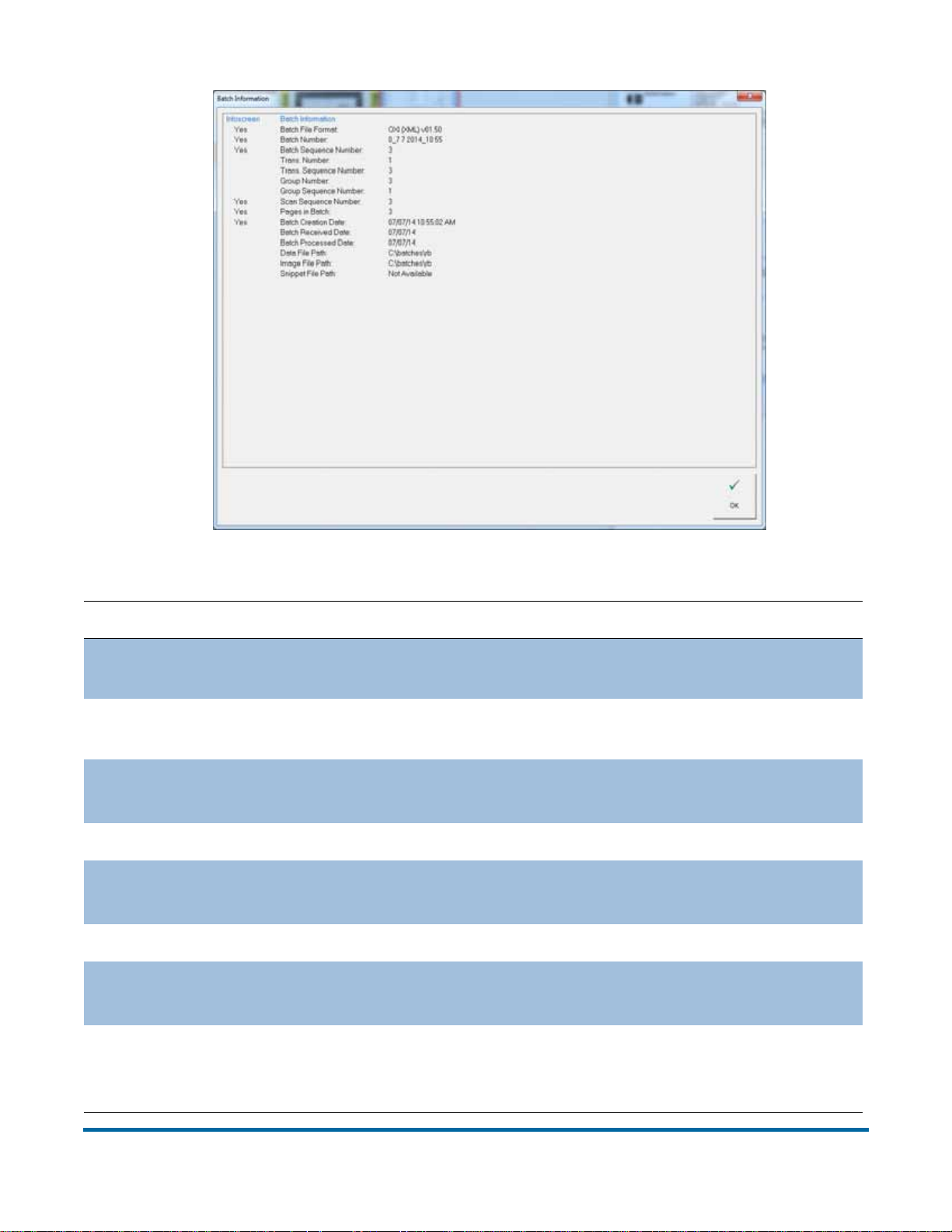

Depending on how the job is set up, the Batch Information screen may appear. Use the Batch Information screen to select a “received” date, a “processed” date, and the type of batch you want to run.

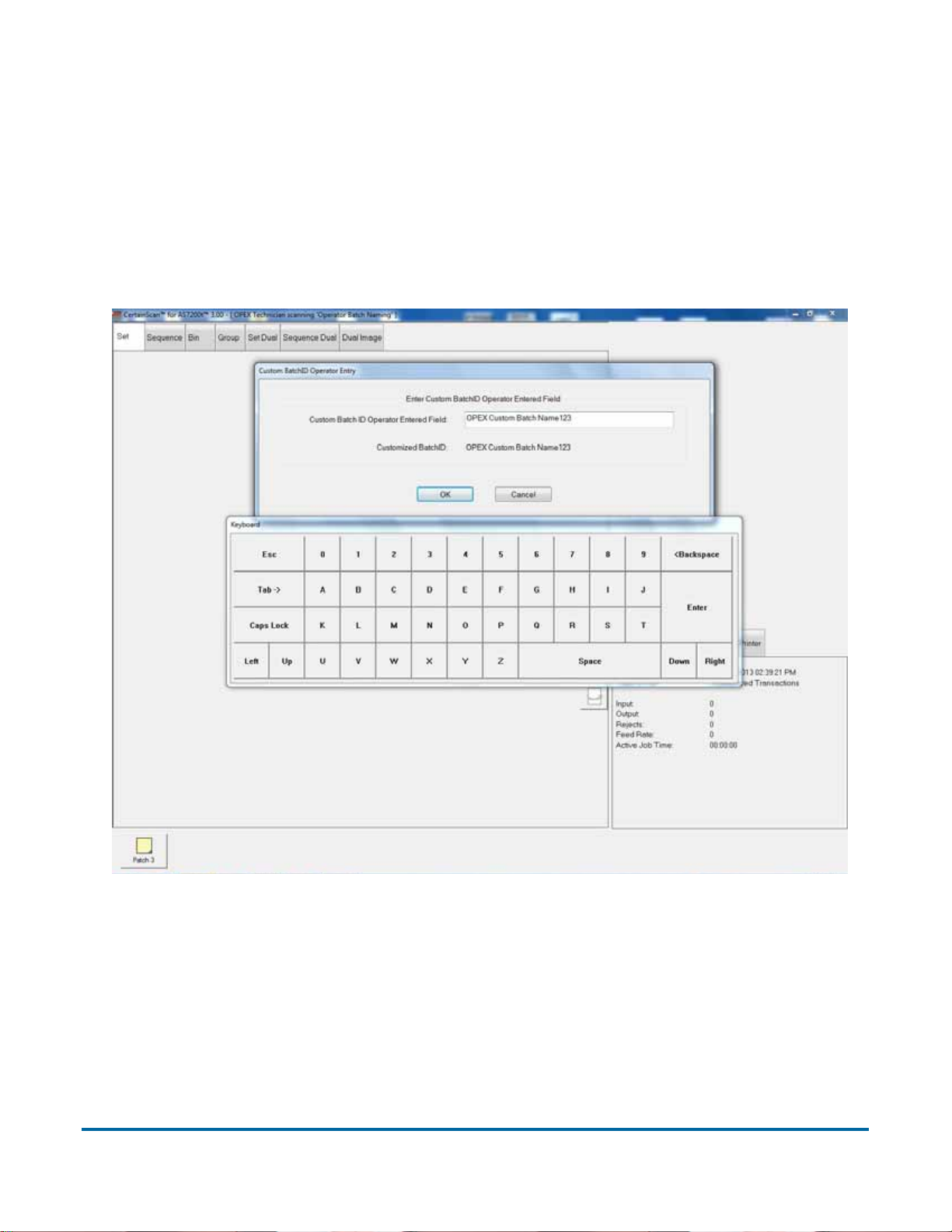

Figure 6: Batch Information screen

Falcon User Manual - Remittance Processing - OPEX Corporation

Using the Run Screen

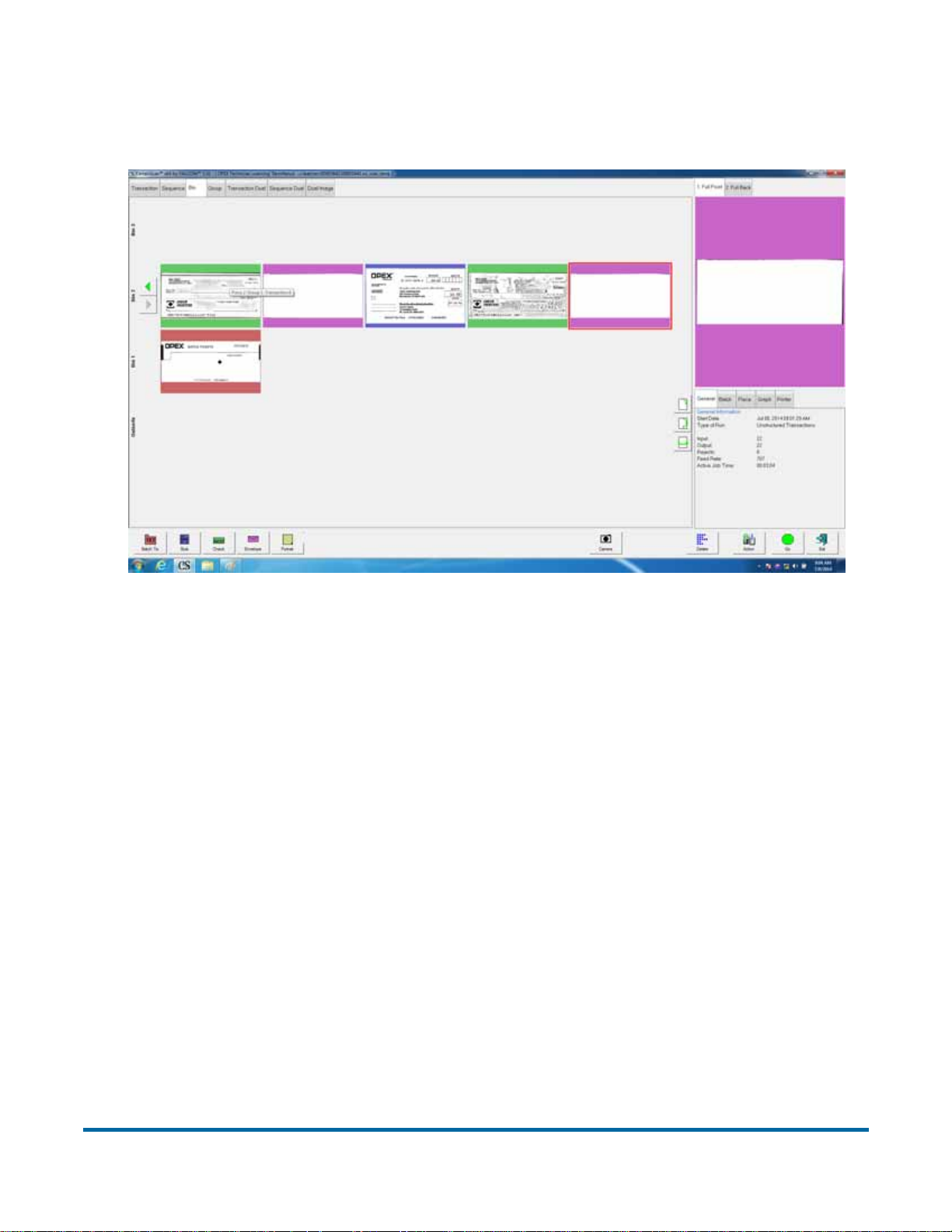

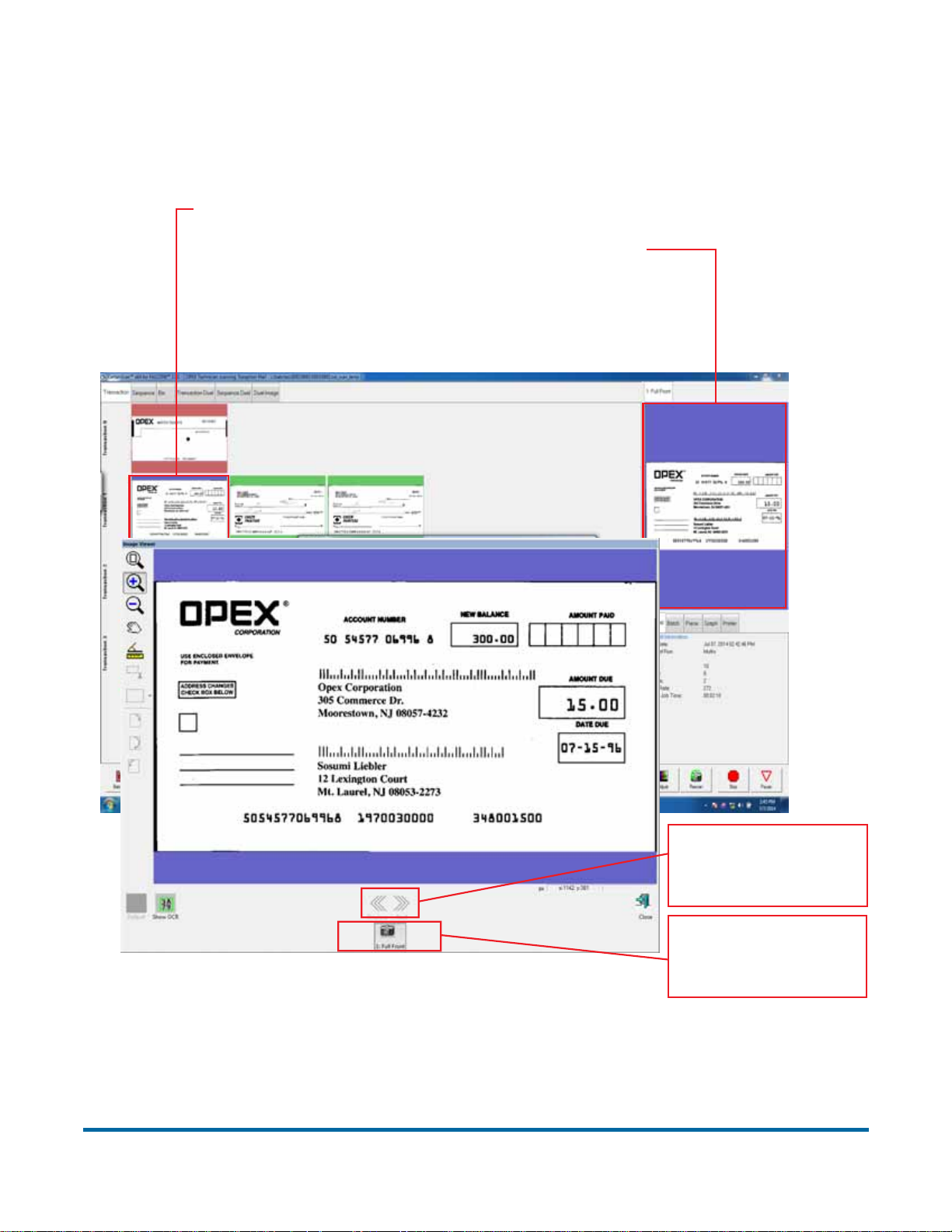

The Run screen will appear after you select a job. This is the main screen you will use for scanning items.

Thumbnails

View tabs

Page types

Scroll thumbnails

Rotate image

buttons

View images

Preview window

Run buttons

Figure 7: Run Screen

Information window

Falcon User Manual - Remittance Processing - OPEX Corporation

Run Screen buttons

Press Go to start the scanner. The Page Type buttons indicate the page types assigned to the current

job. The use of the buttons vary depending on the job setup. See “Assigning a page type” on page 54 for more information.

Rotate the image of the selected item. Use the three buttons to rotate the image 90 degrees clockwise, 180 degrees clockwise, and front to back. This button will only be available if it has been activated in the

System > Config > User Interface Settings parameters. Adjust the settings in the Capture Parameters window to enhance the

quality of the output images. See “Adjusting the image quality” on page 56.

Press a Rescan button to replace a previously scanned image with a new one. This button will only be available if it has been activated in the batch parameters. See “Rescanning items” on page 57.

Delete an item from the batch. This is only available when the scanner is stopped. This button will only be available if it has been activated in the batch parameters. See “Deleting items from the batch” on page 62.

Void the selected item or transaction. This button will only be available if it has been activated in the batch parameters.

End the current Transaction. This button is only available if it has been activated in the batch parameters.

End the current Group. This button is only available if it has been activated in the batch parameters.

Start a New Batch. This button will only be available if it has been activated in the batch parameters.

Press the Action button to access the Rescan, New Batch, and Void buttons. The Action button only appears if two or more of these buttons (Rescan, New Batch, Void) are enabled.

Press the Camera button to insert up to two images from an external camera into the batch.

Pause the machine. Once pressed, the Resume button appears.

Falcon User Manual - Remittance Processing - OPEX Corporation

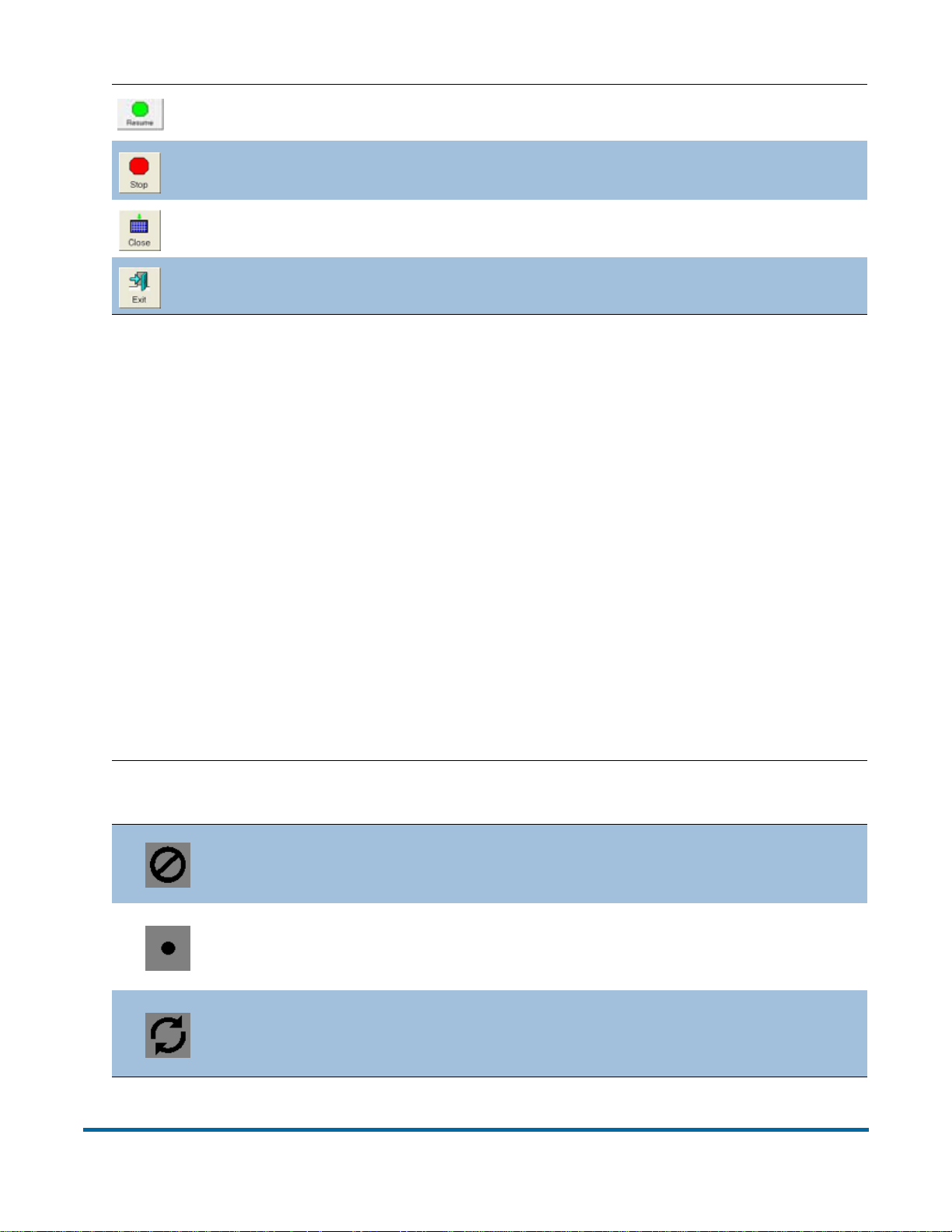

Press to Resume scanning. Once pressed, the Pause button appears.

Stop the machine. This does not end the current batch or set.

Close the current batch. The Close Batch confirmation prompt appears.

Exit the current job and close the Run screen.

Runscreen Thumbnail and Preview Image Icons

While scanning items in CertainScan, the host software displays thumbnail images for configured snippets in the main left panel and preview images in a smaller panel in the upper right corner of the runscreen. When images are readily available in the host software’s cache or when the system is not busy, images will display as expected. Under some conditions, when images are not immediately available, the host software will display one of the icons shown in Table 2 where the image would have been.

Note: When a batch is opened in CertainScan Edit or CertainScan, a subset of

the same icons will appear . Whether or not it should appear is indicated in the last column. Refer to the “CertainScan Edit” manual for more details on using CertainScan Edit.

Table 2: Runscreen Thumbnail and Preview Image Icons

Icon Description

Image Blank Snippet is known to be

blank according to batch’s image data. No Snippet Metadata Snippet

information was not saved in the batch. This is configured in the page type.

Processing Underway Snippet image is not yet available. Most likely, it is still

Appears in CertainScan Edit?

Yes

Should not appear

being processed for the scan.

Falcon User Manual - Remittance Processing - OPEX Corporation

Table 2: Runscreen Thumbnail and Preview Image Icons (continued)

Icon Description

Image Not Saved This snippet has

metadata but has no image file. The page type was configured to not save this snippet’s image to disk.

Snippet Out Of Bounds This snippet was set up to not be the entire piece. However, when trying to extract the snippet for batch output, the specified snippet region was found to lie completely outside the boundaries of the item’s edges. No disk image was written for this snippet for this reason.

Image Unavailable Attempted to load the snippet image from disk but failed. The request did not time out, so the disk to

Appears in CertainScan Edit?

Yes

Yes which the image is stored may be down or disconnected.

Image Timeout Attempted to load the snippet image from disk but the request timed out. Network might be busy or the host might be busy writing other active items to disk.

System Busy The image is not in the cache but the system is too busy, so an attempt was not made to load it from disk.

An attempt will be made when the system

is not busy. The host software is probably in the middle of scanning or finishing up writing the last scanned items to disk.

Yes

Should not appear

Falcon User Manual - Remittance Processing - OPEX Corporation

Run Screen Views

The tabs near the top of the Run screen change how the thumbnails are arranged. You can view the thumbnails by transaction, by the order each piece was scanned (sequence) or by the bin the piece was sorted to. You can select Transaction Dual, Sequence Dual, or Dual Image, which displays two thumbnails for each piece.

Note: The transaction dual, sequence dual, and dual image views will only

work properly if the page types in your job are set up to include a “secondary” thumbnail.

Transaction View

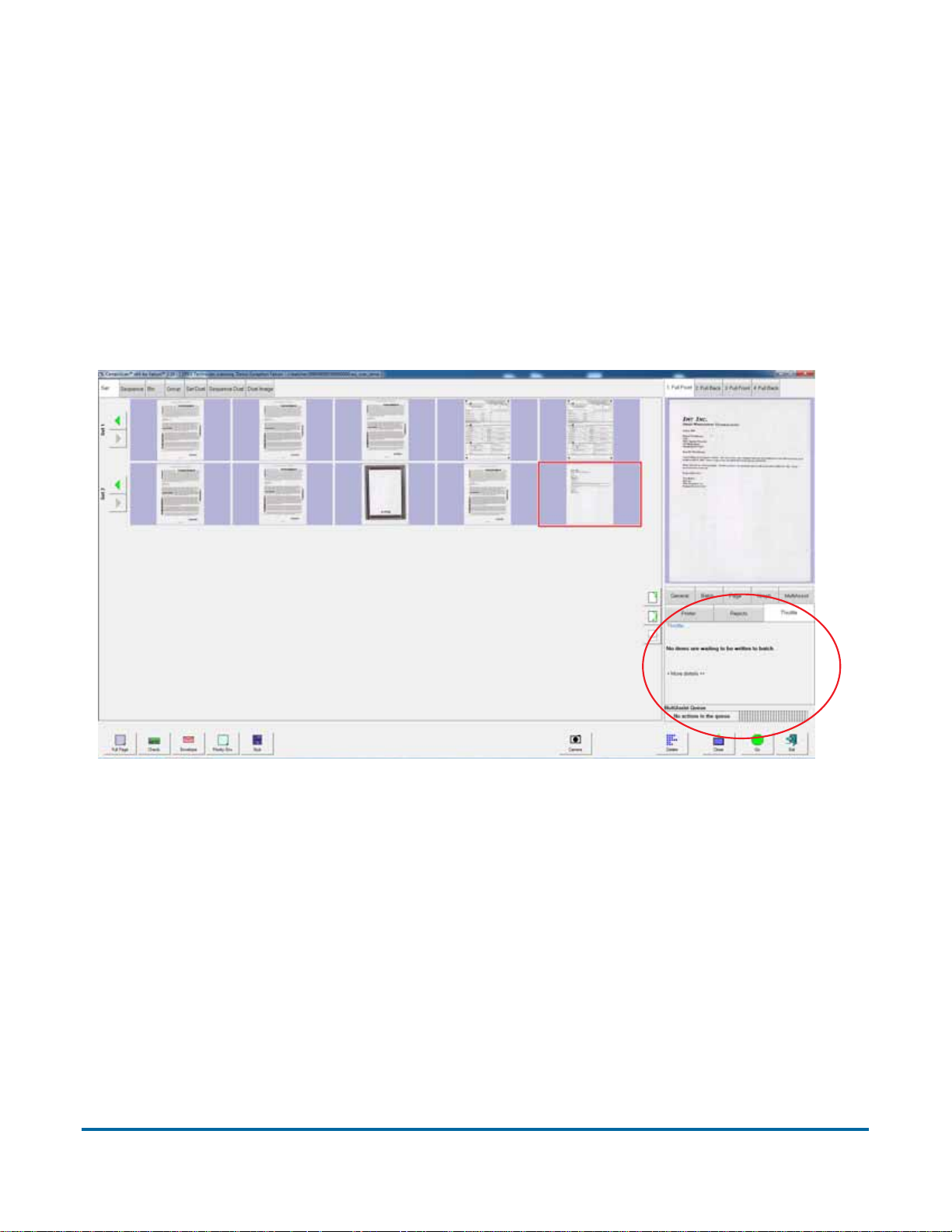

The transaction view groups thumbnails by transaction. All of the pieces are displayed in a single row from left to right in the order they were scanned. One thumbnail is displayed for each piece.

Falcon User Manual - Remittance Processing - OPEX Corporation

Sequence view

The sequence view displays all of the pieces in the order they were scanned from left to right. A new row will start after the fifth piece.

Falcon User Manual - Remittance Processing - OPEX Corporation

Bin view

In bin view, each row represents a bin number.

Falcon User Manual - Remittance Processing - OPEX Corporation

Group view

The Group view, similar to the Transaction view, also displays each of the group separators (or markers).

Falcon User Manual - Remittance Processing - OPEX Corporation

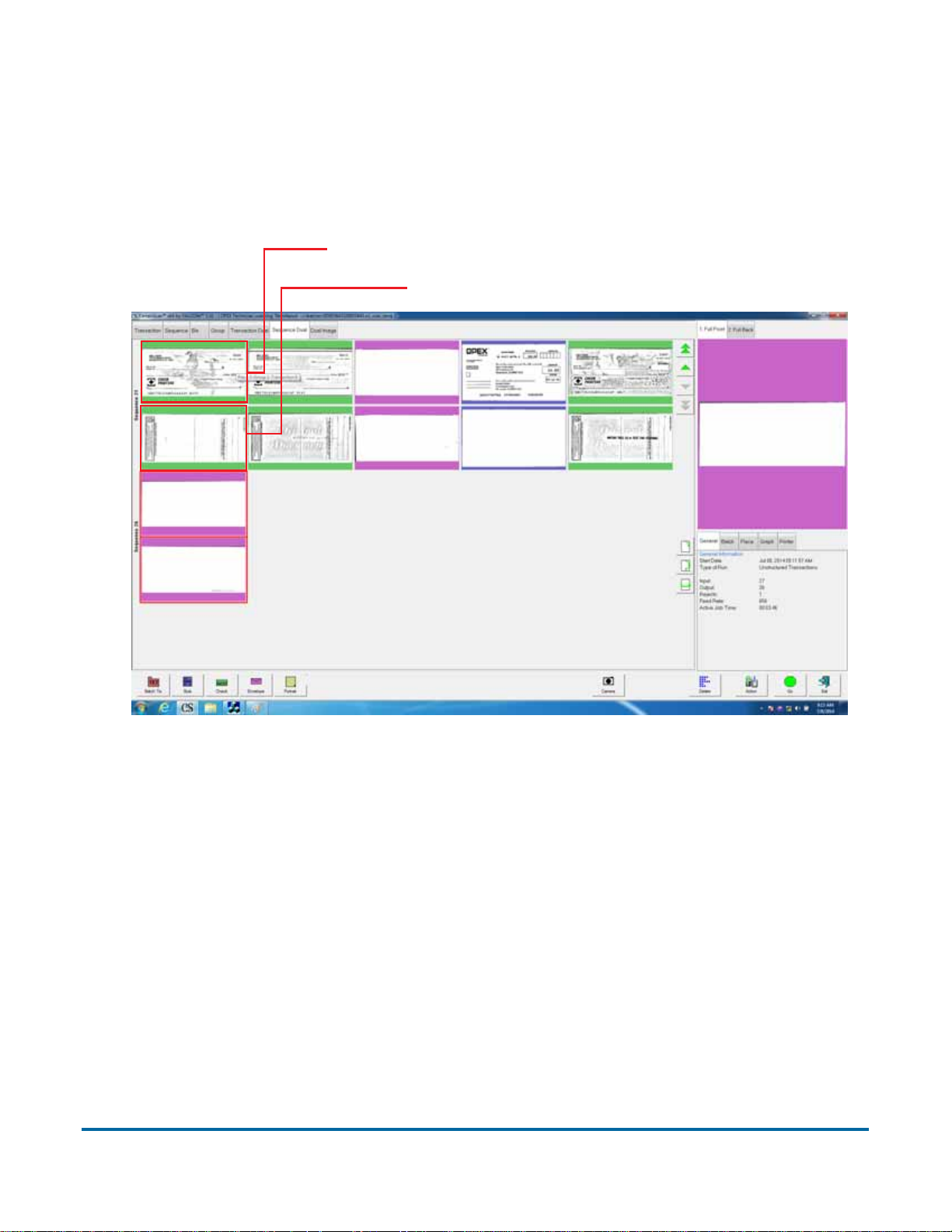

Transaction Dual view

The transaction dual view shows 2 thumbnails for each piece, grouped by transaction. The first row will show one image; the following row will show the secondary image.

Image 1 (front)

Image 2 (back)

Transaction 1

Transaction 2

Falcon User Manual - Remittance Processing - OPEX Corporation

Sequence dual view

The sequence dual view shows 2 images for each piece, grouped in the order they were scanned.

Image 1 (front)

Image 2 (back)

Each piece is displayed on two rows, one for each image.

Falcon User Manual - Remittance Processing - OPEX Corporation

Dual Image view

This is a split-screen mode in which you can view two images of a single piece at a time. The images displayed are those that you configure in Job Setup for the Page Type. You can then select two images corresponding to the “Image for Thumbnail” and “Secondary Image for Thumbnail” parameters in General Page Type Parameters. If no secondary thumbnail is selected, only the first thumbnail is displayed and the region where the second thumbnail would appear is left blank.

In the following example, both front and back images of a check are displayed.

Falcon User Manual - Remittance Processing - OPEX Corporation

Information window

The Information window is in the lower right corner of the Run screen. Select the tabs in the Information window to display the following:

The General tab displays job information such as the start time and operator

name. The General Information will not change depending on the item.

The Batch tab includes data such as the set number, pages in the batch, and

the date and time the batch was created, received, and processed.

The Page tab provides information about the selected thumbnail. It may

include the bin the piece was sorted to, size dimensions, and page type.

The Graph tab displays a performance graph allowing you to select between

pages per hour, or sets per hour.

The Printer tab provides information on the status of the ink jet audit trail

printers. Check the printer tab if audit trails are not printing correctly.

The Rejects tab displays a list of all the possible rejects, and a count of the

rejects that happened during a run.

The Throttle tab displays throttling status notifications that occur during a run.

Note: Touch or click in the Information window to bring up the detailed view. In

the detailed view, only the info set to YES will appear in the information area.

Falcon User Manual - Remittance Processing - OPEX Corporation

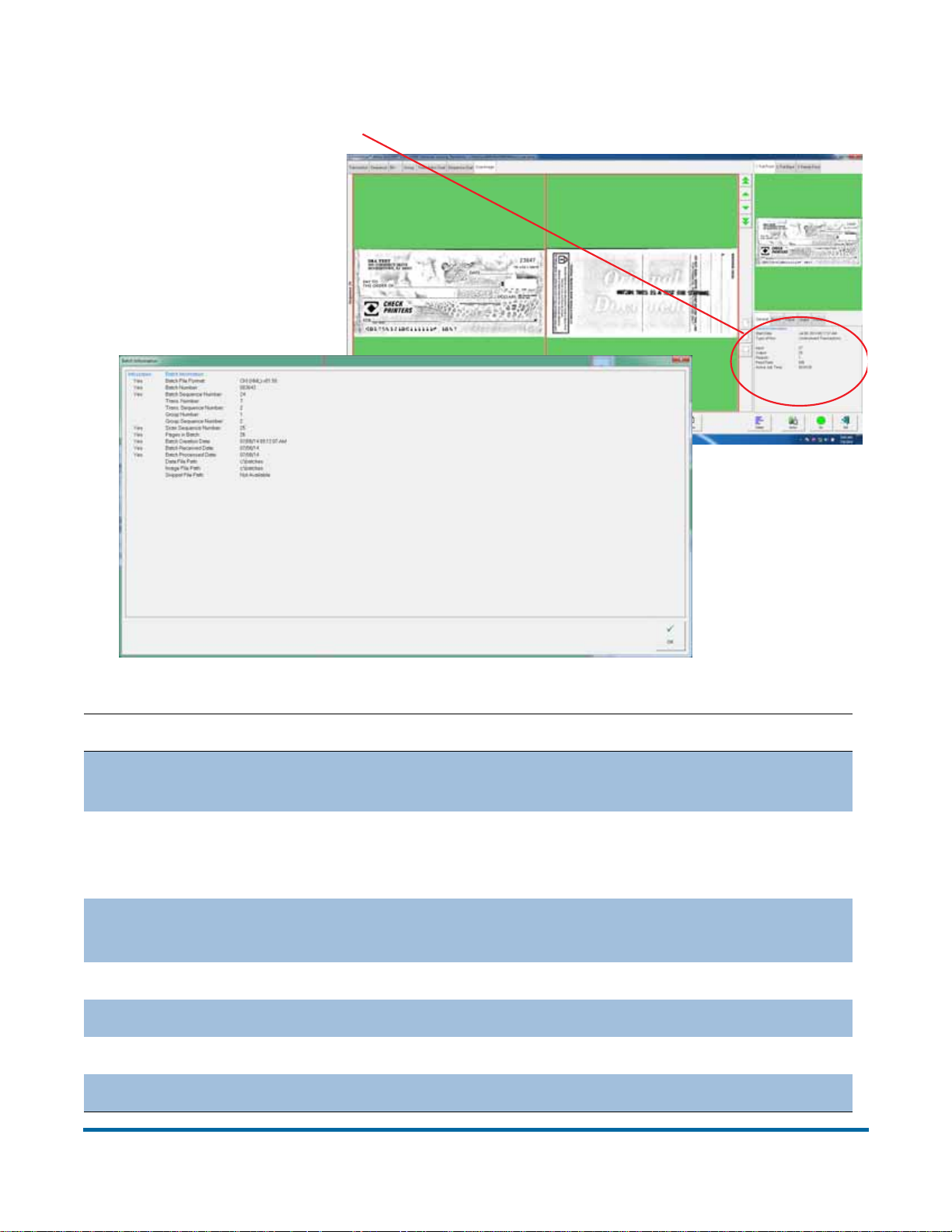

Click here...

...to display the General Information detail window

Table 3: General Information - infoscreen details

Parameter Description Start Date

Type of Run

Operator Name

Input Number of pieces processed for the current job. Output Number of pieces placed in a batch for the current job. Rejects Number of rejects for the current job. Feed Rate Pages/hr for the current job.

Date and time at which the runscreen was entered. Displays the date before pressing Go, displays the time after

Set in the job parameters, potentially reset when runscreen was entered; Default job setting or selected by operator at the start of the batch

Determined at login time.

Falcon User Manual - Remittance Processing - OPEX Corporation

Table 3: General Information - infoscreen details (continued)

Parameter Description OCR Read %

MICR Read % OCR MICR

Read % Combined

MICR % Run Time Jam Time Sum of time that the jam dialog was shown for the current job Idle Time Active Job

Time

Successful OCR Reads / Items with an OCR area defined, for the current execution

Successful MICR Reads / Items with a MICR defined, for the current execution

Successful Optical MICR Reads / Items with a MICR defined, for the current execution

Successful Combined MICR Reads / Items with a MICR defined, for the current execution

Sum of time during which the track was running for the current job

Sum of time during which the track was not running for the current job

Sum of time between entering the runscreen and exiting the runscreen

Processing Buffers

DEBUG Last ProcLoad To Ctrl

Processing Power Used

Image Processing

Compression Network

Bandwidth

Regarding the ImageManager, used to store uncompressed images as items are processed.

For Engineering use only

Percentage of estimated processing power used to process this item. Because there are either two processors or hyperthreading, the maximum sustainable percentage is 200%.

Estimated average Image Processing Time, per item, in the current execution.

Estimated Compression time, per item, in the current execution.

Estimated average network write time, per item, in the current execution.

Falcon User Manual - Remittance Processing - OPEX Corporation

Table 4: Batch Information - detailed view

Parameter Description Batch File Format

Batch Number Batch Sequence

Number Transaction Number Number of transactions, save the batch ticket set Transaction

Sequence Number Group Number Number of groups Group Sequence

Number Scan Sequence

Number

{DAT, ODI, OXI, OII} as set in batch parameters in job setup

Determined by plug-in, operator entry, batch ticket or system. Batch parameters in job setup.

For the selected item. 0 for batch tickets, then the ordinal number of the item in the batch.

For the selected item. Ordinal number of selected item within its transaction.

For the selected item. Ordinal number of selected item within its group.

For the selected item. Ordinal number with regard to scanning. Rescans will change this number for a given item.

Falcon User Manual - Remittance Processing - OPEX Corporation

Table 4: Batch Information - detailed view

Parameter Description Pages in Batch Including batch ticket & voided items.

Batch Creation Date Batch Received Date Entered by operator, otherwise today's date

Batch Processed Date

Batch RefIDs ScanLink Vendor

Batch ID ScanLink Customer

Batch ID Data File Path As per job's batch parameters. Image File Path As per job's batch parameters. Snippet File Path As per job's batch parameters.

Date (and time) the batch was created (when first piece was scanned)

Entered by operator, otherwise today's date Shown only if RefID enabled configured in batch

parameters Shown only if RefID enabled configured in batch

parameters

Falcon User Manual - Remittance Processing - OPEX Corporation

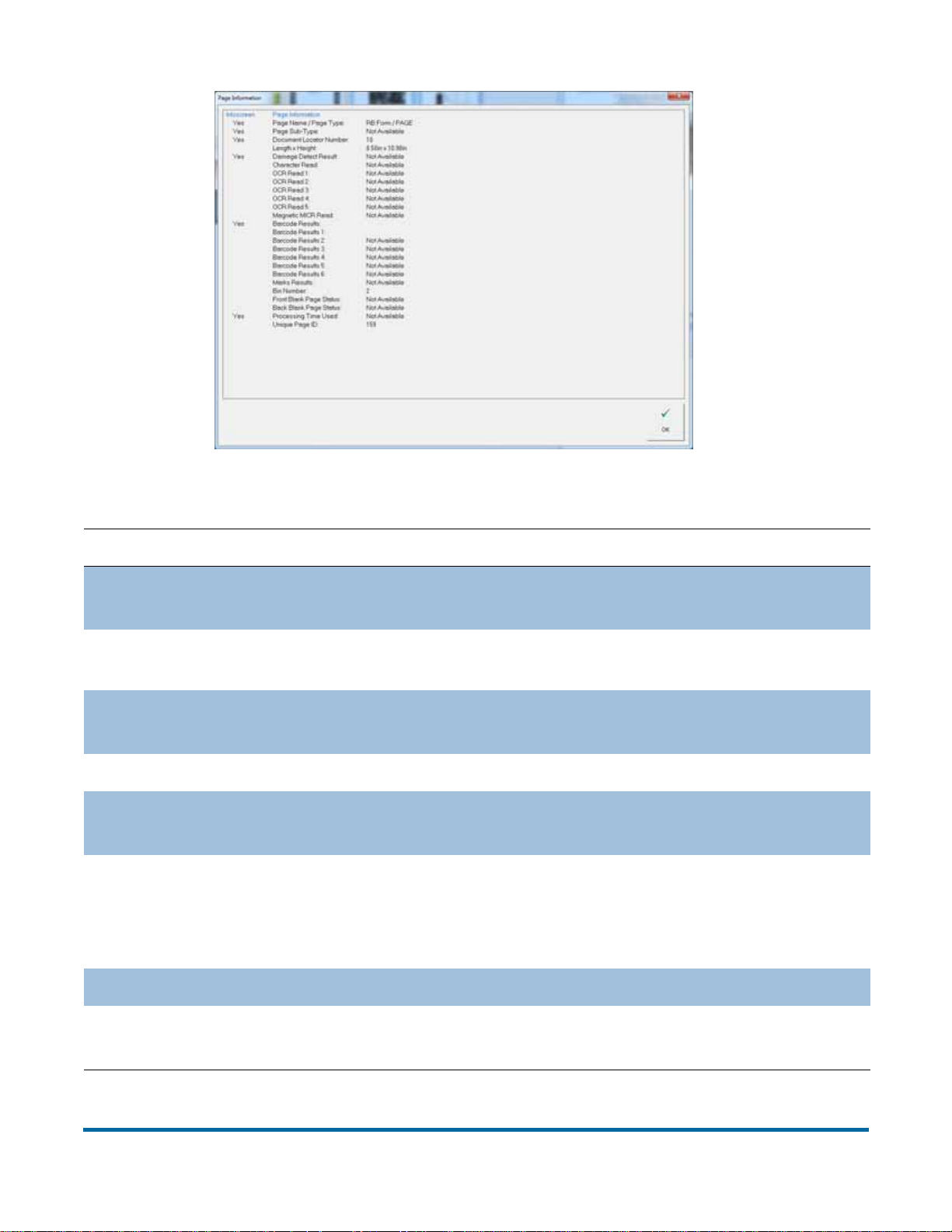

Table 5: Page Information - detailed view

Parameter Description Page Name / Page

Type Page Sub-Type Document

Location Number Length x Height Determined for each piece scanned Damage Detect

Result

Character Read

OCR Read 1 - 5 Results of OCR regions 1-5, as per pagetype configuration Magnetic MICR

Read

Corresponds to pagetypes configuration for job; Selected in Job Setup

Corresponds to pagetypes configuration for job; Page type sub-category (if available for current page type)

a unique number assigned to every piece of a batch.

Indicator for whether damage was found on the piece Combined results of magnetic and optical MICR reads;

Generic display of OCR1 or MICR character reads on a given piece to keep jobs consistent. If more info is desired, bring up the info panel for all the OCR and MICR details.

Results of MICR region, as per pagetype configuration

Falcon User Manual - Remittance Processing - OPEX Corporation

Table 5: Page Information - detailed view

Parameter Description Barcode Results

Barcode Results 1 Barcode Results

2-6 Marks Results Bin Number Final destination of the selected piece.

Front Blank Page Status

Back Blank Page Status

Page Ref ID 1

Results of Barcode 1 (same as Barcode 1 below, but visible by default)

Results of Barcode 1 (same as Barcode Results above, but not visible by default)

Results of Barcode 2-6, as per pagetype configuration Indicates whether or not a mark was detected for those

marks defined in the pagetype

Indicates whether or not the front side of the selected item was judged blank. Also states what % of pixels were filled.

Indicates whether or not the back side of the selected item was judged blank. Also indicates what percentage of pixels were filled.

Page RefID. Visible in RunScreen if RefID #1 is defined in Job. Always visible in Batch Editor.

Page Ref ID 2

Page Ref ID 3 Processing Time

Used Unique Piece ID Ordinal number per execution. Used mainly for diagnosis.

Page RefID. Visible in RunScreen if RefID #2 is defined in Job. Always visible in Batch Editor.

Page RefID. Visible in RunScreen if RefID #3 is defined in Job. Always visible in Batch Editor.

Percentage of allowable time used for this piece. Allowable time is a function of track speed.

Falcon User Manual - Remittance Processing - OPEX Corporation

The Printer Information window provides access to printer maintenance features.

The Rejects Information window lists all of the possible rejects and shows numerically how many of each reject has occurred.

Falcon User Manual - Remittance Processing - OPEX Corporation

Throttling

Significant changes were made to how the system behaves when throttling. Instead of gradually slowing the feed rate, the system will now pause the feeder and conveyor when the system has reached capacity, either due to network congestion or when extensive post image processing is consuming available buffers. Throttling status notifications are available in a new tab on the run screen named “Throttle.”

Note: A System > Configuration parameter controls whether or not to display

the runscreen throttle notification tab.

Figure 8: Run screen showing Throttle tab

While running, if the system goes into a throttling state, the host displays a notification within the Throttle tab, showing that the system is throttling, along with information about how many pieces are pending batching (see Figure 9).

Falcon User Manual - Remittance Processing - OPEX Corporation

Figure 9: The system in a throttling state - detail of the runscreen

Falcon User Manual - Remittance Processing - OPEX Corporation

Additional information windows

There may be additional information tabs that appear in the Run screen window, based on job setup. These tabs include:

MultiAssist

The MultiAssist tab appears if the job is set up to use the optional Multi-Slot IdAssist feature, and displays information regarding which slot, swipe method, and action has been programmed for the job.

Reference IDs

Shows the reference IDs defined for the running job. Not visible if reference IDs are not defined. The values in this panel indicate how subsequent pieces will be noted. It also indicates how the batch will be noted. Since the RefIDs for a batch are not finalized until the batch is closed, batch RefIDs may be changed at any time. Page RefIDs, however, may only be changed by rescanning the piece in question.

ScanLink

This panel is controlled by the ScanLink plug-in for the running job. This panel is not visible if a plug-in is not defined.

WholesaleWorks 0

This panel is controlled by the ScanLink plug-in for the running job. This panel is visible if the plug-in requests it. This panel is also labeled by the plug-in.

WholesaleWorks 1

This panel is controlled by the ScanLink plug-in for the running job. This panel is visible if the plug-in requests it. This panel is also labeled by the plug-in.

Falcon User Manual - Remittance Processing - OPEX Corporation

Preview Window/Image Viewer window

The Preview window provides a large image of a scanned item. View an image in the Preview window by selecting its thumbnail.

1. Select a thumbnail.

2. The selected image appears in the Preview window. Click on or touch the image to open it in the Image Viewer window.

Figure 10: Preview Window/Image Viewer window

Falcon User Manual - Remittance Processing - OPEX Corporation

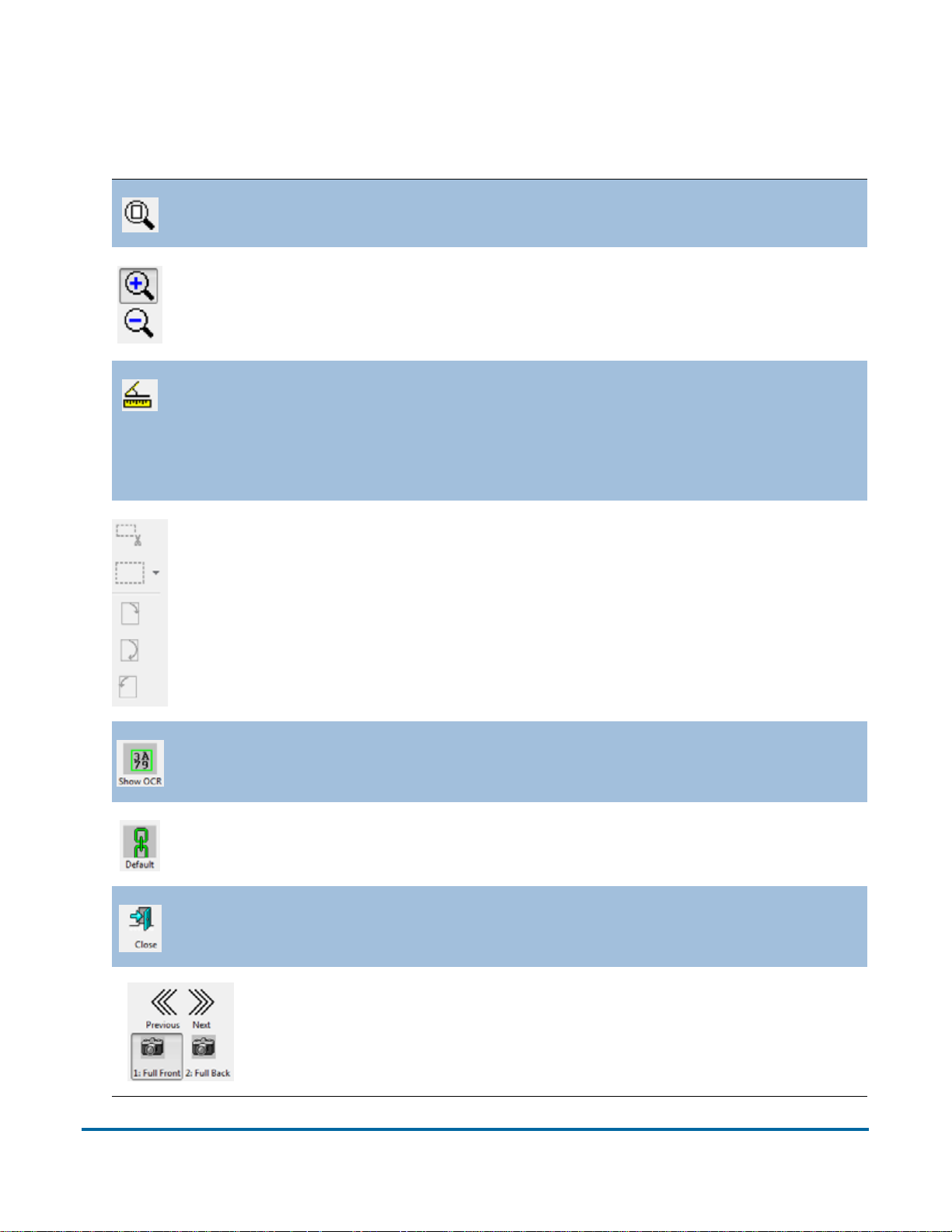

Use arrow buttons to scroll through the batch.

Select image of page type you want to view.

Touch the image in the Preview window to open the Image Viewer in fullscreen mode, where you can enlarge or reduce the image, and scroll through and examine all images in a batch, one at a time.

The Reset Zoom/Pan button will return the image to its original state. The Zoom In and Zoom Out buttons enlarge and reduce the image in

the Zoom screen. Re-center the zoom by touching the new center on the monitor or use the mouse. You can also use the + and - keys on the keyboard to zoom in and out.

Use the Ruler function to measure distance from one place to another on the image. Use the mouse to click the Ruler button, then click and hold the left mouse button on one location while you drag the cursor to the other location. Notice that as you move the cursor from place to place, its exact position is indicated in the field.

The Crop, Fill in/Redact, and Rotate buttons (which are carried over from the Batch Editor) are disabled in the Preview window.

If enabled, displays the designated optical search area for the OCR & MICR scan lines.

Clicking this button will make this image the Default for this page type.

Close the Preview window.

Use the Previous/Next arrow buttons to scroll through the batch. Use the Full Front/Full Back (or Partial Front/Partial Back) buttons to view images associated with the page type.

Falcon User Manual - Remittance Processing - OPEX Corporation

Scanning items

After you have selected a job, you are ready to scan items. Before you do, here are a few things to remember:

Removing items from an envelope

Items that are tri-folded tend to have the top and bottom sections lifted up. Prior to dropping any tri-folded items, flatten the ends, allowing for a smoother feed.

As items are dropped onto the conveyor, it’s important to drop them in such a way as to have the items fully justify to the side rail prior to entering the feeder. The conveyor rollers are angled to assist in justifying the items to the side rail as they are dropped. Drop the items far enough back so that they will have time to straighten. If items are not fully justified as they enter the feeder section, skew jams may occur. It should also be noted that enough space gap should be allotted between items. At least ½ inch between items will provide for proper image capture.

Examples: When dropping items, give enough time for items to justify. The thick line indicates feeder entrance. The arrow indicates the paper path.

WRONG - In these 4 examples, the items are dropped too close to the feeder to

be justified.

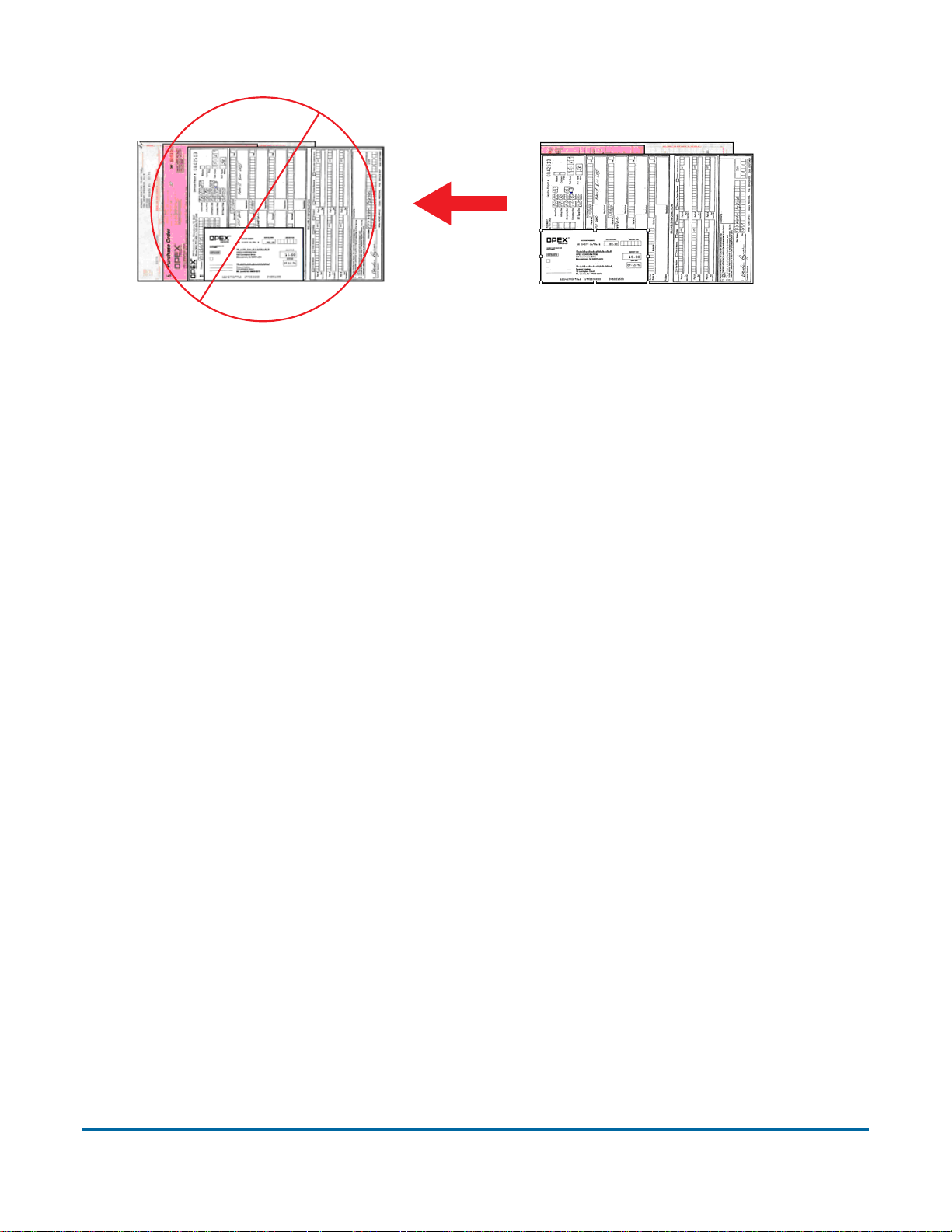

RIGHT - Items should be as aligned as possible as they enter the feeder.

Falcon User Manual - Remittance Processing - OPEX Corporation

Skew

Skew is a term used to identify when an item is misaligned when scanned. Typically, a skewed item prevents the scanned image from being read properly.

Item skew is determined by the angle in which an item enters the scanner. The angle is calculated by a set of LED transmit and receive parts that detect when one sensor is uncovered for a while. If the angle is greater than 2 degrees, then the system will jam for “too skewed”. If it jams for 5 degrees or more, contact your Opex administrator.

Figure 11: Skew examples

To scan items into the system

After you have selected a job, you are ready to scan items.

1 Press Go on the Run screen. 2 Place the first item onto the conveyor as shown in Figure 12.

Drop items here

Figure 12: Ideal drop area

Falcon User Manual - Remittance Processing - OPEX Corporation

The machine will scan the item and place a thumbnail of the image in the transaction window. A large image of the item will appear in the Preview window.

3 Continue to place the items you want to scan onto the conveyor. The

scanner will scan and sort the items depending on the job parameters.

As the scanner processes items, check to make sure:

• Items are being scanned properly.

• All critical information (MICR line, OCR line, etc.) is being collected properly.

• Items are being sorted to the correct bin.

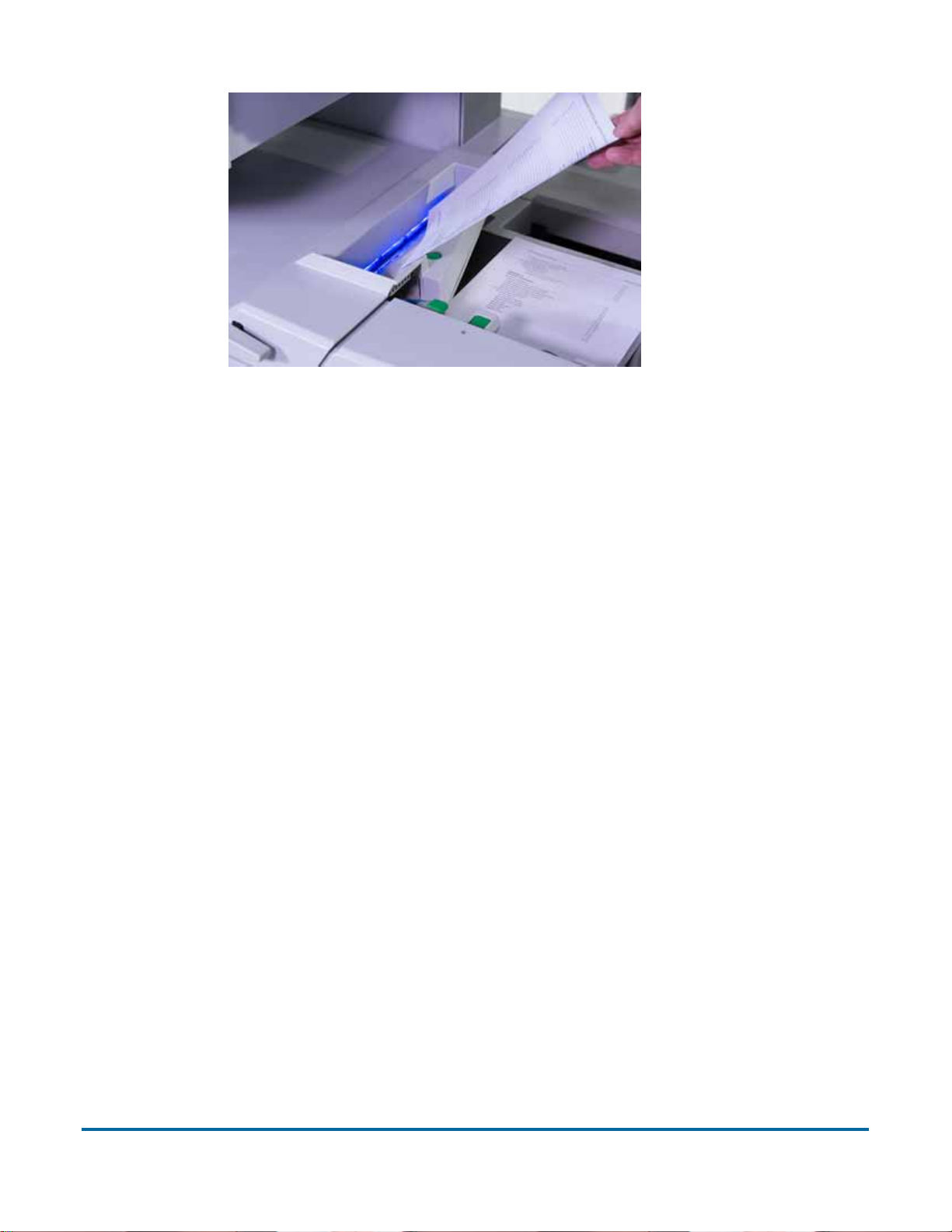

Stack Feeding

Stacks of paper (approximately 1.1 inches) can be placed on the conveyor. The conveyor rollers will carry the stack (or packet) over to the packet feeder where the top piece will be singulated from the top of the stack and fed into the scanner. The feeder will continue to pull the top page from the stack until the last page is fed.

When the feeder detects a stack of paper, the conveyor will stop to allow for the stack to pass through and will continue when the entire stack is fed. You can place more stacks on the conveyor when it stops, but keep in mind that the conveyor will only stop when the feeder encounters a stack.

Note: The conveyor operates differently depending on the Feed Mode job

parameter setting: Normal, Stack, Passive. Stack feeding can be accomplished in either Stack or Normal modes. Height sensors come into effect in Stack mode as well.

Since the feeder pulls from the top of the stack, the lead sheet in the stack must be the first to reach the feeder. If the bottom piece reaches the feeder first, a paper misfeed is likely to occur. There are techniques for learning to drop packets of paper consistently and effectively. The items do not have to be perfectly aligned as long as the lead sheet is the top sheet. Review these techniques with your Falcon Administrator or your OPEX Technician or Sales Engineer.

Falcon User Manual - Remittance Processing - OPEX Corporation

Feed Direction

CORRECT

Scanning tips

Make use of these techniques for properly handling paper and feeding items:

• Feed items with the correct side up. When searching for/reading MICR lines, the scanner will assume the items are being fed face up, with the bottom edge towards the operator.

• Make sure items are unfolded and place them on the conveyor directly in front of the point of extraction. This will give the machine a chance to justify each page dropped against the common edge and will assist in deskewing the item before it reaches the feeder. For maximum effect, the paper should be unfolded so that it is flat and makes contact with the conveyor rollers and feed rings.

• 8-½ x 11” sheets can be scanned in portrait or landscape. The scanner is outfitted with 12.25” image sensors and can accommodate larger pieces of paper as well.

• Checks and remits should be dropped in the same orientation as if you were reading them. Other landscape pages can also be automatically detected if their page width or height is unique.

• To scan two or more items, such as a page with a sticky note attached, first press the MFD Override button. This will disable the scanner’s ultrasonic multifeed detector and allow the “2-page” piece into the system.

Falcon User Manual - Remittance Processing - OPEX Corporation

MFD Override button

Assigning a page type

You can manually assign a page type to the next item you scan by pressing the appropriate Page Type button. These buttons are only available if they have been activated in the general job parameters.

Figure 13: Sample Page Type buttons

In a structured job, the Page Type buttons will also indicate which page types the system expects to see next. For example, if the job expects to see either a batch ticket or a stub to start a transaction, their corresponding page type buttons will appear in color (as shown in Figure 14).

Figure 14: Sample Page Type buttons (structured job)

Page type locking

Depending on the job setup, you may also have the ability to apply a page type to several items. With page type locking enabled, you can press the page type

Falcon User Manual - Remittance Processing - OPEX Corporation

button twice and “lock” the page type button down. Once the button is “locked,” all the subsequent pieces will be classified as this page type until the end of the transaction or when the lock is released.

A red box around a page type button indicates that the lock is in place.

Note: This feature does not work with Virtual pages. For more on Virtual

Page Types, see “CertainScan Manual - Advanced Features”.

Assigning page sub-types

If one or more of the page types in your job contains sub-types, you must assign the item a sub-type before scanning it into the system. Page Sub-Types must be enabled in the General Page Type Parameters in order for this feature to appear.

To assign a page sub-type: 1 While running a job, press the appropriate page type button. For example, if

you are scanning a business check into the system, press the Check page type button.

2 Select from the available page sub-types.

Falcon User Manual - Remittance Processing - OPEX Corporation

Figure 15: Assigning a page sub-type

3 Scan the item.

Adjusting the image quality

Fine tune the quality of the item images by pressing Adjust on the Run screen. The Adjust Capture Parameters screen will appear, where you can modify the gamma, brightness and dropout colors for all or one image.

Figure 16: Adjust Capture Parameters screen

Table 6: Adjust Capture Parameters screen buttons

Gamma

Brightness

Dropout

Adjust All/ Adjust One

Defaults Return to the default capture parameters.

When enabled, the Gamma panel allows you to adjust the balance between bright and dark areas of the image.

Adjust the brightness of the item images from Light to Dark.

Press a button to adjust the brightness. The default is Normal. Remove a color (Red, Green, Blue, or White) from the item

image. The default is White.

To use this feature, the items must be printed with a specific

dropout color. Select Adjust All to apply these changes to all the items in the

current job, or Adjust One to make the adjustments only to the next item scanned.

Falcon User Manual - Remittance Processing - OPEX Corporation

Rescanning items

There are a couple reasons and methods for rescanning items:

• If you are not pleased with a particular image, you can rescan the item while the job is running. CertainScan has a Rescan button that allows you to replace a poor image or item scanned out of order by using the normal feeder. Steps for this method are described below.

• After a multi-feed reject, the feeder and conveyor will stop, a jam dialog will appear on screen, the Rescan Feeder LEDs will flash blue, and the PreFeed MFD Override LED will flash green. The flashing in these two areas alerts you that either one may be chosen to re-feed the reject:

- Rescan Feeder - The Falcon Rescan Feeder is a mechanism that allows

the operator to feed a single or multiple items into the machine which had been rejected or the auto-feeder is not able to feed. See “About the Rescan Feeder” on page 58 for more details.

- Pre-Feed - The Falcon has another entry point at which the operator can

interject rejected sheets: this entry point is in the Pre-Feeder mechanism and is primarily designed for multiple rejects to be stacked; alleviating the need to insert them one at a time. See “About the pre-feeder mechanism” on page 60 for more details.

To rescan an item: 1 Select the item’s thumbnail. 2 Take the item out of the sort bin. 3 Press Rescan to replace the item in the batch.

Note: If an audit trail was printed on the item the first time it was scanned,

you may press Rescan NP (no printing) to replace the item in the batch. This way, no additional audit trails will be printed on the item.

4 Drop the item onto the conveyor. 5 Verify that the image is acceptable. Note: The Rescan buttons will only be available if activated in the batch

parameters.

Falcon User Manual - Remittance Processing - OPEX Corporation

About the Rescan Feeder

The Rescan Feeder consists of an illuminated slotted opening in the scan bed cover and a button to activate/deactivate the mechanism directly to the right of the slot.

Rescan Feeder illuminated slot Rescan Feeder button

The Rescan Feeder can only be activated via the Rescan Feeder button when the machine is in a jammed or paused state.

In the event of a jam, the Rescan Feeder slot will flash blue at a 0.5 second interval; alerting the operator that it may be selected for use to re-feed any rejected or jam sorted items. If the operator activates the Rescan Feeder, the jam dialogue will disappear from the screen and the slotted opening in the scan bed cover will become solidly lit blue; alerting the operator that the Rescan Feeder is now active and the machine expects items to be injected there.

To use the Rescan Feeder without multi-feed detection in the event of a jam:

1 When the Rescan Feeder slot is flashing, press the button located directly

to the right of the slot.

2 Wait for the jam dialog to disappear and the slot to become solidly lit. 3 Inject the item(s) one at a time into the slot.

Falcon User Manual - Remittance Processing - OPEX Corporation

4 When finished, press the Rescan Feeder button again.

The slot will no longer be illuminated and feeding will resume at the auto-

feeder

To use the Rescan Feeder with multi-feed detection in the event of a jam: 1 When the Rescan Feeder slot is flashing, press and hold the Rescan

Feeder button until the Rescan Feeder slot begins to flash rapidly.

2 Wait for the jam dialog to disappear. 3 Inject the item(s) one at a time into the slot. 4 When finished, press the Rescan Feeder button again. 5 The slot will no longer be illuminated and feeding will resume at the auto-

feeder.

Using the Rescan Feeder when the machine is paused

If the operator pauses the machine, the Rescan Feeder slot will flash blue at a

0.5 second interval; alerting the operator that it may be selected to inject a

single or multiple items into the machine. If the operator activates the Rescan Feeder, the slotted opening in the scan bed cover will become solidly lit blue; alerting the operator that the Rescan Feeder is now active and the machine expects items to be injected there.

To use the Rescan Feeder without Multi-Feed detection during the paused state:

1 When the Rescan Feeder slot is flashing, press the Rescan Feeder button.

Falcon User Manual - Remittance Processing - OPEX Corporation

2 Wait for the slot to become solidly lit. 3 Inject the item(s) one at a time into the slot. 4 When finished, press the Rescan Feeder button again.

The slot will no longer be illuminated and feeding will resume at the auto-

feeder.

To use the Rescan Feeder with Multi-Feed detection during the paused state:

1 When the Rescan Feeder slot is flashing, press and hold the Rescan

Feeder button until the Rescan Feeder slot begins to flash rapidly.

2 Inject the item(s) one at a time into the slot. 3 When finished, press the Rescan Feeder button again.

The slot will no longer be illuminated and feeding will resume at the auto-

feeder.

About the pre-feeder mechanism

The pre-feeder mechanism consists of left and right pre-feeder wheels located directly to the right of the feed belt and the MFD override LED and the MFD override button.

Pre-Feed MFD Override button

Pre-Feed MFD Override LED

The pre-feeder mechanism can only be activated via the MFD override button when the machine is in a jammed or paused state. In the event of a jam, the Pre-Feeder LED will flash green at a 0.5 second interval; alerting the operator that it may be selected for use to re-feed any rejected or jam sorted sheets. If the operator activates the Pre-Feeder, the LED will be solidly lit green and the Pre-Feeder arms will raise to allow the item(s) to be placed under them. Selecting the Pre-Feeder again will cause the Pre-Feeder LED to shut off, the

Falcon User Manual - Remittance Processing - OPEX Corporation

jam dialogue to disappear from the screen, the pre-feed nip wheels will lower to the top of the item(s) and feeding will resume.

To use the Pre-Feeder in the event of a jam: 1 When the Pre-Feed LED is flashing, press the Pre-Feed MFD Override

button.

2 Wait for the pre-feeder arms to be raised and the Pre-Feed LED to be

solidly lit.

3 Place all sheets to be fed under the pre-feeder arms. 4 Press the Pre-Feed MFD Override button or hit the continue button in the

jam dialogue.

The jam dialogue should disappear , the Pre-Feed LED will no longer be illu-

minated, and feeding should resume at the auto-feeder. If the operator pauses the machine, the Pre-Feed LED will flash green at a

0.5 second interval; alerting the operator that it may be selected to inject a single or multiple items into the machine. If the operator activates the PreFeeder , the LED will be solidly lit green and the pre-feeder arms will raise to allow the item(s) to be placed under them. Selecting the Pre-Feeder again will cause the machine to exit the paused state, lower the Pre-Feed nip wheels onto the top of the item(s) and feeding will resume.

To use the Pre-Feeder during the paused state: 1 When the Pre-Feeder LED is flashing, press the Pre-Feed MFD Override

button.

2 Wait for the Pre-Feeder arms to be raised and the Pre-Feed LED to be

solidly lit.

3 Place all sheets to be fed under the pre-feeder arms. 4 Press the Pre-Feed MFD Override button or press the resume button.

The Pre-Feed LED will no longer be illuminated, and feeding should

resume at the auto-feeder.

Falcon User Manual - Remittance Processing - OPEX Corporation

Deleting items from the batch

When the machine is stopped, you can delete items from the batch. Click the Delete button to delete an item image.

Note: The Delete button will only be present if activated in the current job. The action of the Delete button depends on the setting of the Allow Delete

batch parameter:

• If the parameter is set to Delete Last Item, you will only be able to delete the most recently scanned item image from the batch. Press Delete to delete the last image.

• If the Allow Delete parameter is set to Delete To End Of Batch, you can also choose an item thumbnail and delete the selected item and all the items scanned after the item. When the Delete button is pressed, the Confirm Delete window (Figure 17) will appear.

Figure 17: Confirm delete

Note: It is not possible to delete a single item image from the middle of the

batch within CertainScan. If you need to delete an image from the middle of the batch, you must also delete all the images to the end of the batch as well.

Starting a new batch

There are three ways to start a new batch:

• Press the New Batch button while the job is running to begin a new batch with the next scanned item.

• Press the Close Batch button, then scan the new batch ticket or the first item of the new batch.

• Scan a batch ticket (if the New Batch Mode Job parameter is set to Auto).

Note: The New Batch button will only be available if activated in the batch

parameters.

Falcon User Manual - Remittance Processing - OPEX Corporation

Flexible Batch Naming

This feature allows you to place a prompt at the start of a new batch, in which you can enter a custom batch name. The name can be manually typed in using the keyboard or touch-screen keypad, or scanned in from a barcode scanner (from a box or lot number, for example).

Note: File names cannot contain the following characters:

" / \ [ ] : ; | = , + * ? < >

Falcon User Manual - Remittance Processing - OPEX Corporation

Four Levels of Document Separation

CertainScan provides four levels of separation for your workflow, offering flexibility in arranging items within a batch.

CertainScan Document Separation Boundaries

Standard Scanning Remittance Processing

Batch (highest) Batch (highest)

Set Transaction

Group Group

Page (lowest) Page (lowest)

Set and Transaction levels function identically and differ by their names only. The Group level of separation functions essentially the same way as the Set/ Transaction level, in that a special page type can be selected to serve as the start or end of the group within a Set/Transaction.

Suspend and Resume Multiple Batches

CertainScan allows you to exit the job run screen without closing a batch. Additionally, CertainScan lets you open and suspend an unlimited number of batches. You can even scan a different batch while leaving other batches suspended. This has two main benefits:

1 Job and page type profiles can be created or edited without ending the job

and rescanning the batch.

2 For very large batches that cannot be completed in one shift, the operator

can suspend a batch and then resume it later.

With the multiple-batch feature enabled, you will be presented with the Suspend Batch option upon exiting the Run screen.

Falcon User Manual - Remittance Processing - OPEX Corporation

Note: CertainScan also retains the options of single-batch-only suspension

and of disabling batch suspension entirely.

You can view a list of suspended batches by clicking the Batch Resume button from the Main Menu. From here you can select the desired batch and resume scanning.

Clicking Batch Resume shows a list of any suspended batches.

Falcon User Manual - Remittance Processing - OPEX Corporation

Ending the job

When you have finished scanning items, press Stop to put the system in standby mode. From standby mode, you can restart the job, Delete the last scanned item, view thumbnails, or Exit the job and return to the Scan screen.

Note: You can also press the Close Batch button to close the current batch and

exit the job when prompted.

Using Batch Editor to fix incomplete batches

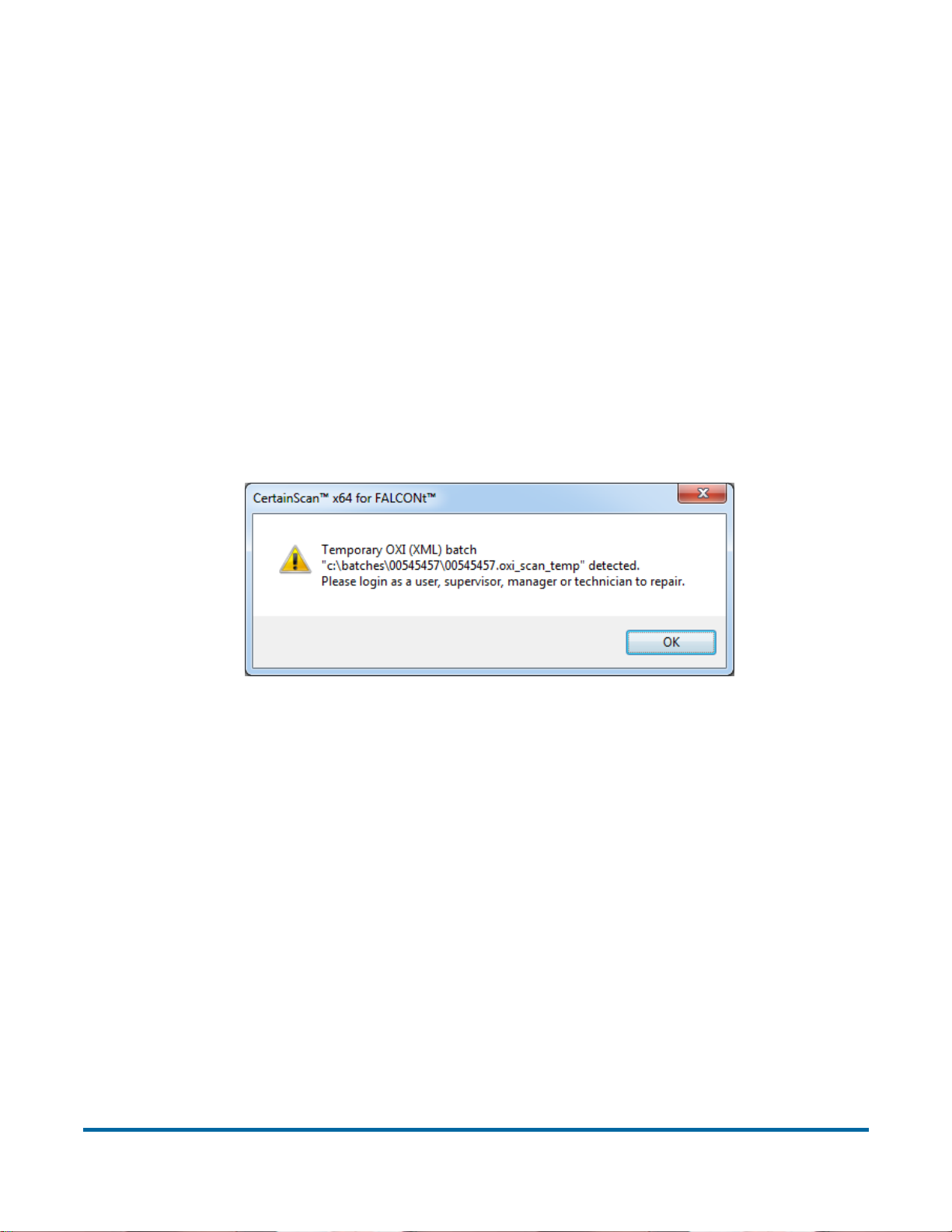

If there is a problem with the machine and/or CertainScan does not close properly during a run, a batch may not be closed and saved properly. If this is the case, you will be notified that a temporary batch file exists when restarting CertainScan.

Consult your Falcon Administrator if you receive this error message.

Falcon User Manual - Remittance Processing - OPEX Corporation

IDAssist

The ID Assist tracking system provides an additional method for identifying and/or taking action on items to be scanned. IDAssist must first be enabled in the job in order to use this feature. Note that ID Assist will NOT work in Stack Feed mode.

ID Assist uses three through-beam sensors: ID Assist #1 and ID Assist Verify are used together to initially enable the ID Assist feature. ID Assist #2 is used for tracking of items that have been dropped.

Using IDAssist

To trigger IDAssist, swipe the item left to right in front of the ID Assist verify and ID Assist #1 sensors (see Figure 18) and release. The ID Assist verify sensor puts the IDAssist feature in an “alert” state waiting to see if the item will be moved to the right, blocking ID Assist #1. If the item is not swiped left to right, IDAssist will not be engaged.

ID Assist #2

ID Assist indicator LED

Figure 18: IDAssist sensors

When a job is run that uses ID Assist, the IDAssist indicator LED will be solidly lit. When ID Assist is triggered, the indicator light will blink, indicating that ID Assist was activated. Once the item is processed, IDAssist will be disabled.

Falcon User Manual - Remittance Processing - OPEX Corporation

ID Assist #1 ID Assist verify

If you swipe left to right and do not release the item, or if you grab the item from the conveyor after releasing it, the sensors will time out and the ID Assist feature will be disabled.

IDAssist functions

IDAssist (and the optional Multi-slot IDAssist) can be used for the following functions:

Color The color select trigger identifies items that are to be scanned in color

without having to touch the screen. This is very useful in a color select job, when you need to tell the system which items to scan in color and which items to scan normally.

Dropout Similar to color select, this allows for you to trigger a specified color

dropout for an item (red, green or blue).

Transaction boundary Use the transaction boundary trigger instead of the

Transaction button on the run screen. The transaction boundary trigger will start a new transaction with the item that triggers the sensor.

Automatic rotation of document Tell the system to rotate the resulting image

automatically.

Page type determination requirement Use the IDAssist function to identify a

page type. This function is very useful if you have two page types that are identical in every way or if there are multiple sets of identical page types. In these cases, the page types can be set up so that the only way one of the page types will be identified will be if you trigger the IDAssist function. For example, in a job with two identical items, a check and a money order page type, the check and money order can have the same exact attributes with the only distinction being that money orders must have been triggered by IDAssist. That way, the system will recognize the checks you scan normally as belonging to the check page type.

Page sub-type selection The page sub-type selection function is useful in jobs

that have a page type with many page sub-types. Use the trigger to bring up the page sub-type selection screen so you can choose from among the available sub-types.

Note: When using the “Page Sub-Type Selection” IDAssist function, you must

select the sub-type before the item enters the scanner . If a page sub-type

Falcon User Manual - Remittance Processing - OPEX Corporation

is not selected, the item will be assigned the default page sub-type. If no default page sub-type has been assigned, the item will be rejected.

Override feed control The override feed control function allows you to disable

multifeed detection for thicker pieces that may not pass through normally.

About the Multi-Slot IDAssist

The functionality of the optional Multi-slot IDAssist is identical to IDAssist, but offers up to nine different preassigned functions per job. Note that when Multislot IDAssist usage is defined in a job, IDAssist is disabled since the two systems use different operator/piece tracking methods.

Three slots

Figure 19: Multi-Slot IDAssist

The Multi-slot IDAssist has three slots, each offering three different function selections. Depending on how the item is moved in these slots will trigger the predefined function. The three methods to select specific functions per slot are:

• Slide the item from left to right in the slot

• Slide the item from right to left in the slot

• Insert the item straight in and pull straight out

If you are using this optional feature, your Administrator should provide you with information on its assigned functionality per job.

Falcon User Manual - Remittance Processing - OPEX Corporation

Key assist

KeyAssist, a purchasable option, allows you to use the keys on an external keypad to perform specific functions in the Run screen, such as selecting a page type, starting and stopping jobs, and rotating images. This feature alleviates the repetitive motion of reaching to touch the monitor.

Make sure Num Lock

Num Lock

Bk Sp

is enabled (LED lit)

Home

End

Ins

Pg Up

Pg Dn

Del

Enter

External keypad

KeyAssist currently uses a hard-coded keyboard mapping, depending on the Job Type. There are two mapping schemes, described below:

• Mapping Scheme 1 - the original KeyAssist scheme that supports eight page types and does not support a New Group key function (groups did not exist when this scheme was devised).

• Mapping Scheme 2 - uses double key combinations to support 12 page types and a New Group button. It also remaps New Transaction and Solicit Custom Data to double key combinations.

The KeyAssist feature will not work with structured jobs, as they require page types in a specific order. Also, you cannot use KeyAssist with Reference ID in the same job, as Reference ID already utilizes keyboard input.

Note: In addition to specific KeyAssist capabilities, you can often use the Enter

and Esc keys to accept and cancel dialog boxes. This capability is standard to Windows apps, and is available whether or not KeyAssist has been activated.

Falcon User Manual - Remittance Processing - OPEX Corporation

Scheme 1 Mapping for “Generic” jobs

If the job’s General Job Parameters > Job Type parameter is set to Generic, the keys are mapped as follows:

Key Function

1-8

9 Solicit Custom Data ScanLink Call 0 selects a new transaction + starts/stops the track

/ rotates the piece 90 degrees clockwise

* rotates the piece 180 degrees

Scheme 1 Mapping for “WholesaleWorks” jobs

If the job’s General Job Parameters > Job Type parameter is set to either WholesaleWorks Generic or WholesaleWorks Specific, the keys are mapped as

follows. Note that the presence and contents of “Tab0” and “Tab1” are dictated by the ScanLink plug-in used by the job in question:

selects page types 1 through 8 (and page sub-types 1-8, when the sub-type dialog is displayed)

flips the front and back images (if the page type is set up to scan front and back images)

Key Function

selects page types 1 through 8

1-8

(and page sub-types 1-8, when the sub-type dialog is displayed) 9 Solicit Custom Data ScanLink Call 0 selects a new transaction + starts/stops the track

/ no action

* Toggle popup of “Tab 0”

- Toggle popup of “Tab 1”

Falcon User Manual - Remittance Processing - OPEX Corporation

Scheme 2 Mapping for “Generic” jobs

If the job’s General Job Parameters > Job Type parameter is set to Generic, the keys are mapped as follows (Note that some mapping are double presses. For example, 0,1 indicates pressing 0 and then 1 in quick succession):

Key Function

0,1 -

1,2

1 - 9 when the sub-type dialog is displayed, selects page sub-types 1-9

7,7 selects a new transaction 8,8 selects a new group 9,9 Solicit Custom Data ScanLink Call

+ starts/stops the track

/ rotates the piece 90 degrees clockwise

* rotates the piece 180 degrees

Scheme 2 Mapping for “WholesaleWorks” jobs

If the job’s General Job Parameters > Job Type parameter is set to either

selects page types 1 through 12

flips the front and back images

(if the page type is set up to scan front and back images)

WholesaleWorks Generic or WholesaleWorks Specific, the keys are mapped as follows. Note that the presence and contents of “Tab0” and “Tab1” are dictated by the ScanLink plug-in used by the job in question (Note that some mapping are double presses. For example, 0,1 indicates pressing 0 and then 1 in quick succession):

Key Function

0,1 -

1,2

1 - 9 when the sub-type dialog is displayed, selects page sub-types 1-9

7,7 selects a new transaction 8,8 selects a new group 9,9 Solicit Custom Data ScanLink Call

selects page types 1 through 12

Falcon User Manual - Remittance Processing - OPEX Corporation

Key Function

+ starts/stops the track

/ rotates the piece 90 degrees clockwise

* Toggle popup of “Tab 0”

- Toggle popup of “Tab 1”

Clearing paper jams

During normal operation of the machine, you may encounter an error message halting the scanner. The prompt on the machine will offer you two options: to CONTINUE or to CANCEL. The error message is informing you of a paper jam or a sensor error. If this is the case, check the machine for paper jams as described here. After you clear the jam or ensure that the track is clear, press the Continue button.

Note: The scanner may also reject items that are misfed, skewed, or because

the item was not properly identified. In these cases, the scanner will stop after all the paper in the track has been sent to the reject bin. If the paper doesn’t clear into the reject bin after selecting Continue, then you need to open the cover(s) and remove the paper(s).

Access the scanner area: 1 Turn the latch counterclockwise to release the clamshell. The clamshell will

swing to the open position.

Clamshell latch

Falcon User Manual - Remittance Processing - OPEX Corporation

2 Clear any jammed paper or debris in this area. 3 To close the scanner clamshell, hold onto the latch and gently pull the

cover closed.

NOTICE: Slamming the clamshell down can damage the image sensors.

4 When the cover reaches the closed position, rotate the latch clockwise until

you hear the lock snap into place.

Falcon User Manual - Remittance Processing - OPEX Corporation

Access the transport area: 1 Turn the transport latch counter-clockwise and pull the transport door away

from the scanner.

2 Clear any paper or debris that is caught in the transport area.

Transport latch

Figure 20: Opening the transport stacker cover

3 To close the transport cover, hold onto the latch and gently pull the cover

closed.

4 When the cover reaches the closed position, rotate the latch clockwise until

you hear the lock snap into place.

Falcon User Manual - Remittance Processing - OPEX Corporation

Clearing the bins

When removing the paper from the output bins, pull the item from the side of the bins. The trays have been designed to allow access to the smallest of pages in the bins. Pressing the green release buttons (one for each bin) will lift the knock-down tabs, which are designed to easily re-insert an item that may have jammed in the transport.

Press to lift knock-down tabs

Remove paper from the side of the bins.

Falcon User Manual - Remittance Processing - OPEX Corporation

Maintenance

Touchscreen Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Removing/Replacing the printer cartridge. . . . . . . . . . . 80

Attaching the bins and stacker fingers . . . . . . . . . . . . . 83

Cleaning the system . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Falcon

User Manual - Remittance Processing

Touchscreen Monitor

Calibrating the monitor

The Falcon uses an HP Touch Screen Monitor (Opex # 2887800). This LED backlit touchscreen 21.5 inch monitor features a 3-sensor optical touchscreen, and is calibrated for its touch sensitivity before it leaves Opex. However, you may need to recalibrate, especially if it is in use for an extended period of time.

To calibrate the monitor 1 The monitor must be kept clean to operate properly . Use canned air to blow

off dust and debris, especially along the edges and seams in the encircled areas as highlighted in Figure 21.

Figure 21: Touchscreen monitor

2 Make sure the USB cable is connected from the computer to the monitor. 3 Select Start > Control Panel > Tablet PC Settings.

Note: The Tablet PC Settings control panel will only appear after Microsoft

Windows 7 recognizes a connected touch monitor.

4 On the Display tab in the Tablet PC Settings window, select the name of the

monitor you want to calibrate from the drop-down menu.

Falcon User Manual - Remittance Processing - OPEX Corporation

Figure 22: Select the display

5 Click the Calibrate … button and follow the on-screen instructions.

Falcon User Manual - Remittance Processing - OPEX Corporation

Removing/Replacing the printer cartridge

The scanner’s imprinter and HP ink cartridge are accessible when the transport area is open. When you remove a cartridge, pay close attention to the position and orientation of the cartridge so it can be replaced properly.

When you install a new printer cartridge, first check the expiration date of the new cartridge you plan to use. The Falcon printer cartridges (in sealed containers) have a shelf life of two years from the date of manufacture.

Accessing the printers

1 Open the transport rear door by disengaging the latch handle. 2 To access the front printer:

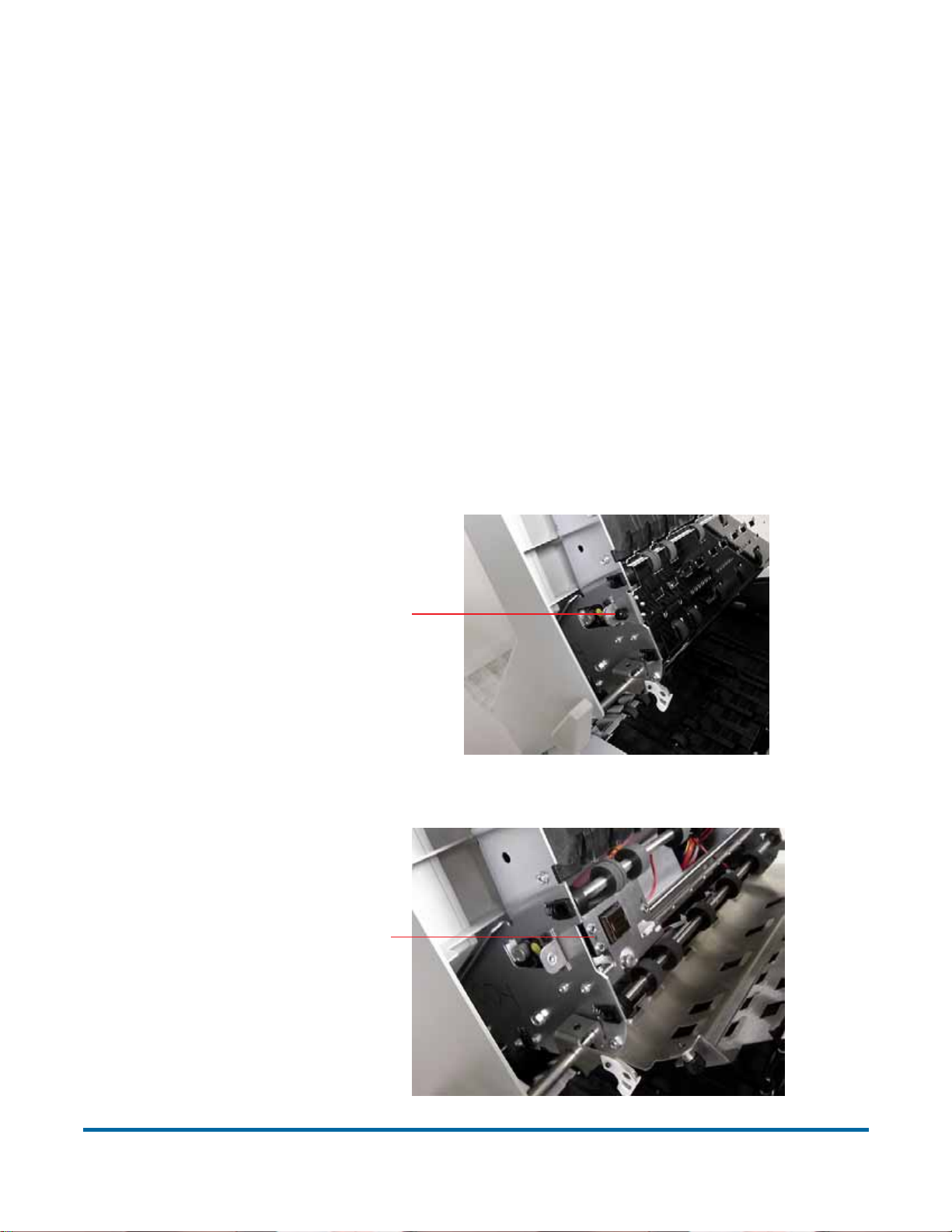

a. Loosen the thumbscrew shown in the following figure.

Loosen thumbscrew

b. Swing open the paper guide to expose the printer assembly.

Printer assembly

Falcon User Manual - Remittance Processing - OPEX Corporation

3 To access the back printer:

a. Press the hinged paper guide to release the latch. The optimal location

for pressing the guide is between the two small screws.

Press the hinged paper guide here

b. Swing open the paper guide to expose the printer assembly.

To remove/replace a printer cartridge: 1 Pull the tab on the rear of the printer cartridge and rotate outward, as shown

in the figure below.

2 Insert the new cartridge by tipping the front end of the cartridge in first, and

then pushing in the rear of the cartridge until it “clicks” into place.

Falcon User Manual - Remittance Processing - OPEX Corporation

3 In Printer Diagnostics, select Replace Ink Cartridge to reset the ink drop

count to zero.

Adjusting the printer carriage position

You can adjust the vertical print position on items by moving the printer carriage. The printer carriage is fixed to a shaft with detents that position the printer so it sprays ink through the holes in the paper guide. A thumb screw holds the printer in the detents. If you do not position the printer in a detent, the thumb screw sticks out, preventing you from closing the paper guide.

To adjust the carriage position, loosen the thumb screw, slide the carriage to a new detented position on the shaft, and then retighten the thumb screw.

Loosen thumb screw to

move carriage along

detent shaft

Falcon User Manual - Remittance Processing - OPEX Corporation

Attaching the bins and stacker fingers

This procedure describes how to install the upper and lower stacker fingers. Stacker finger(s) will need to be reinstalled if they become dislodged or broken, through abuse, for example. It is best to remove the bins for easier access when reinstalling them. Simply pull the bins out and set them aside.

Lower Stacker Fingers

The lower stacker fingers come pre-assembled and only need to be put in place. Load them into the slots at the bottom of each bin base.

Keep the end of the stacker finger centered in the slot, and push down the bottom of it so the finger’s pin can slide underneath the small tabs on each side. Release it, and the spring inside will hold it in place against the tab.

Note: When installing the lower finger, it is important that the finger must be

oriented at an upward angle as shown. If the finger is held down flat, it is not possible to install it.

Push down so pin

goes under tab

Keep end

aligned to slot

Note: On production machines, the stacker fingers are black. The white

stacker finger shown above was used to provide better contrast in the photo.

Falcon User Manual - Remittance Processing - OPEX Corporation

Upper Stacker Fingers

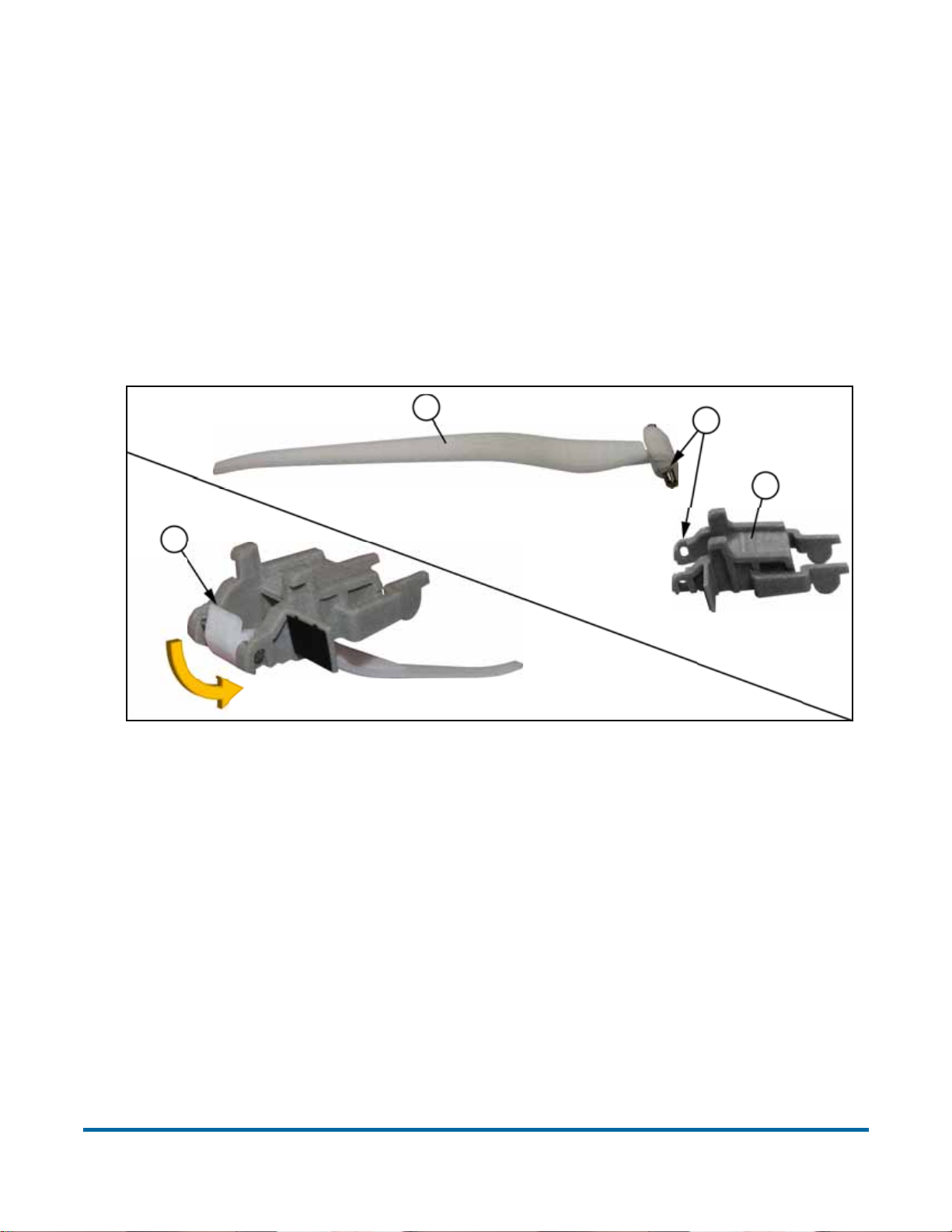

The upper stacker fingers are provided in two pieces. To connect them, position the arm and body with their flat surfaces facing up (A). Load the arm’s pin into the holes at the end of the body, with the plastic tabs on the arm lined up with the notches on the body (B). The pin does not just get forced down into the holes. It should be put into one hole, with the arm over to one side, slightly off center. Then by sliding the center-line of the arm back to the center-line of the pivot, the other end of the pin will be inserted into its hole.

Once the arm’s pin is in place, flip the arm under the body so the arm’s flat side is down and the end lever points up (C).

Attaching the upper stacker fingers properly requires accurate positioning between the finger’s lever and the finger release button’s levers. To simplify the process, wedge an object underneath the release button so it cannot move

Falcon User Manual - Remittance Processing - OPEX Corporation

while you are working on it.

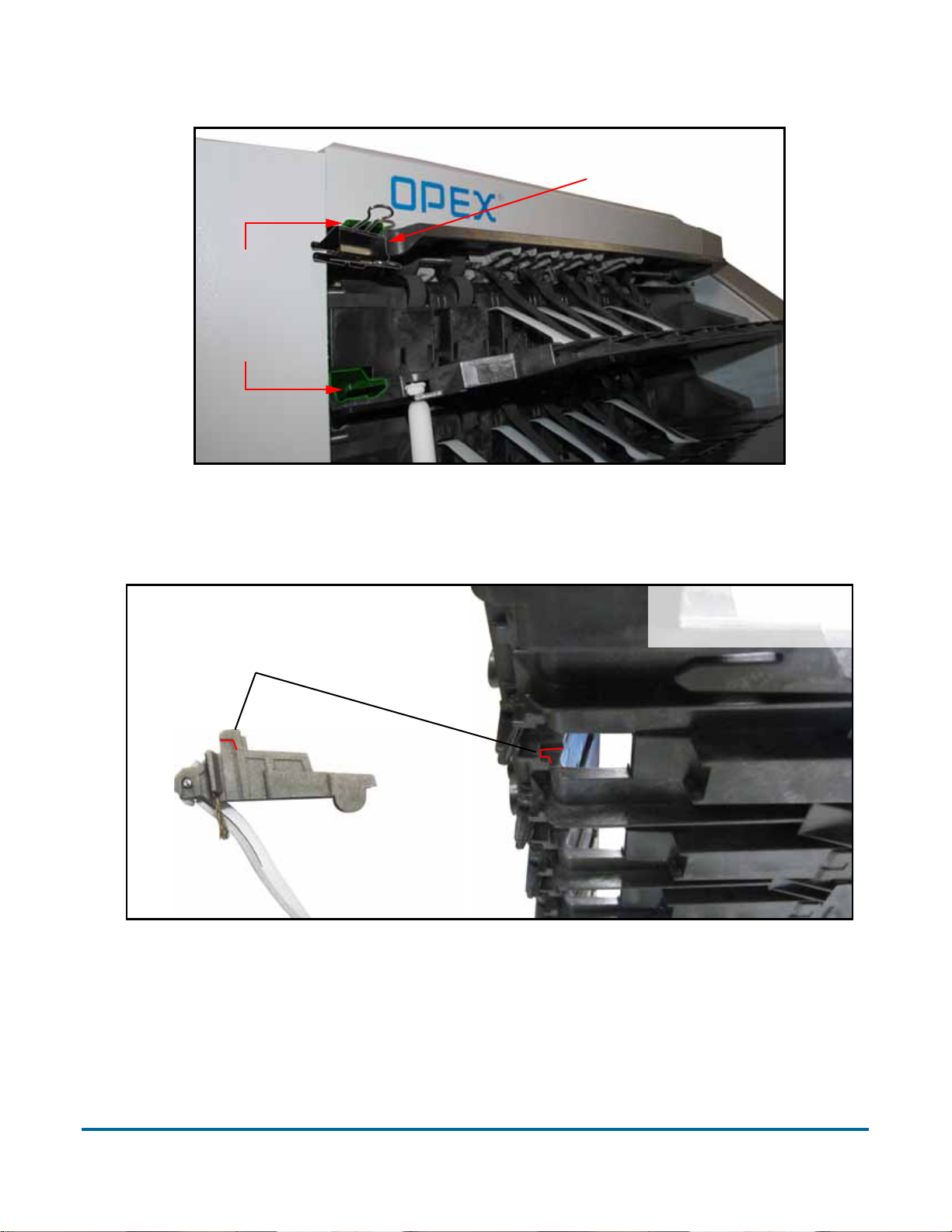

Binder clip used to prevent movement

Stacker

finger release buttons

Load the upper stacker finger’s body into position, back-first, so its top hooks into the corner as shown below.

(Shelf disconnected

Hook stacker finger

from machine)

base into back of shelf

Rotate the front of the stacker finger’s body up and gently squeeze the rounded

Falcon User Manual - Remittance Processing - OPEX Corporation

tabs together so the end tabs can fit into their slots.

Bins

Insert the stacker bins. The stacker bin positions are:

• Top: Side justifiers on top and bottom

• Middle: Side justifiers on bottom only

• Bottom: No side justifiers

Top: Justifiers on top & bottom

Middle: Justifiers on bottom only

Bottom: No justifiers

Falcon User Manual - Remittance Processing - OPEX Corporation

Cleaning the system

When properly maintained, the Falcon will continue to operate efficiently and smoothly. However, over time, dust and dirt buildup can degrade the performance, resulting in problems such as skewing, double feeds, item hesitation and damage. The conveyor, stacker assembly, feed assembly (feed belts, idler pulleys, pre-feed tire, retard pad) and the CIS (contact image sensor) require regular cleaning.

Regular and scheduled maintenance will ensure that the Falcon continues to function properly, with minimum downtime and maximum efficiency. This maintenance procedure consists of debris/dust removal and general cleaning.

Caution: Be careful when working with cleaners. A cleaner-soaked cloth or similar material should never be used to clean moving objects. For example, do not clean belts or rollers when the motors are running. The use of a cloth

CAUTION

or a similar material on moving mechanisms can result in severe personal injury. If a belt, roller, pulley, or a similar part needs to be cleaned, handcrank it during cleaning or clean it while stationary.

Conveyor and transport assemblies

1 Stop all jobs and ensure that all motors are stopped. 2 Check the transport area once a shift. Open the transport door (Figure 23)

and clear the area of paper debris, dust, envelope flaps, etc.

Falcon User Manual - Remittance Processing - OPEX Corporation

Figure 23: Transport area

3 Vacuum dust and debris from the stacker bins. 4 Vacuum dust and debris from the conveyor rollers.

Contact image sensor

The glass contact image sensors should be cleaned at the beginning or end of each shift, or as needed. If you see lines appearing on the image previewed on the screen, then it is likely there is a speck (toner, white out, paper, glue, etc.) attached to the glass obstructing the view. Wipe the glass clean and the line should not appear on the image when the piece is scanned again. Be sure to clean the top camera glass if the line appears on the front side of the image.

The contact image sensors are located underneath the scanner cover. Apply Windex (the recommended glass cleaner) to a lint-free rag and wipe the imager glass top (front camera) and bottom (back camera). The top camera is on the underside of the cover directly above the bottom camera.

Falcon User Manual - Remittance Processing - OPEX Corporation

Feed assembly

Black lines on the image can be caused by dirt (toner, ink, white out, glue, etc.) transferred from the paper to the rollers and feeder. Clean the feed mechanisms on a weekly basis.

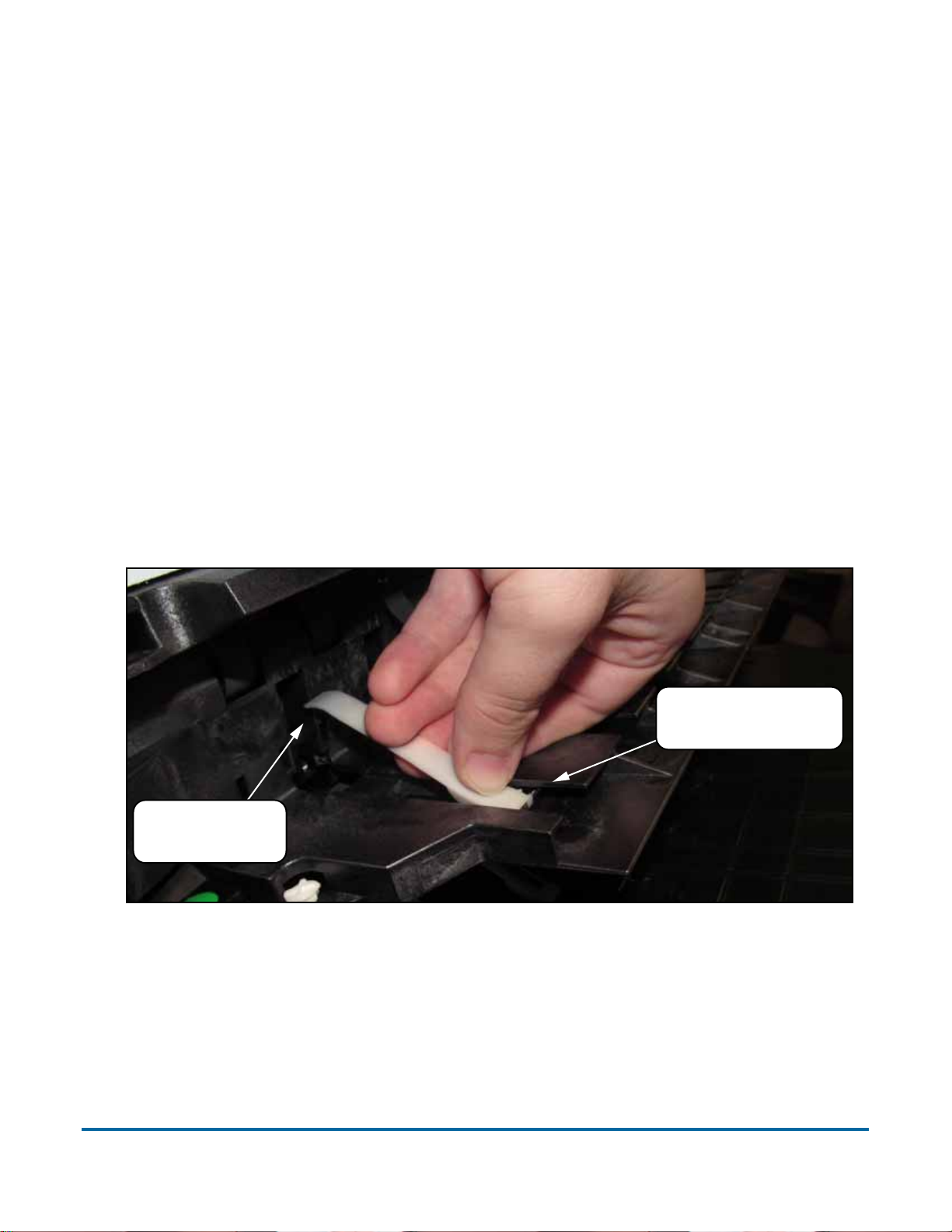

Lift the tab on the feed assembly to clean the retard pad underneath. Also clean the feed rollers that lead up to the feeder.

Feed assembly tab

Retard pad

Falcon User Manual - Remittance Processing - OPEX Corporation

Statistics

Falcon Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Creating statistic reports. . . . . . . . . . . . . . . . . . . . . . . 92

General Information statistics. . . . . . . . . . . . . . . . . . . 96

Overall System Performance Measures statistics . . . 97

Performance Details statistics . . . . . . . . . . . . . . . . . . 99

Falcon

User Manual - Remittance Processing

Falcon Statistics

CertainScan provides you with tools to:

• Create statistics reports

• Back up statistics

• Restore statistics Operators with User, Supervisor, and Manager-level accounts have access to

the report functions.

Creating statistic reports

Use the statistics reports to evaluate the efficiency of jobs you have run. The Falcon can generate:

• Individual Reports - Provide information on each job run. When you select the criteria for generating individual reports, if more than one job run fits the criteria, a separate report is created for each run.

• Summary Reports - Provide information on a job range defined in the Statistics Reports Criteria window.

These two types of reports both have the following sections:

• General Information

• Overall System Performance Measures

• Performance Details

Falcon User Manual - Remittance Processing - OPEX Corporation

To create a statistics report: 1 In the Menu bar, click Main, then Statistics in the Options menu.

Figure 24: Statistics Report Criteria Screen

2 In the Statistics Reports Criteria window, set the parameters for the report

as shown in Figure 24:

- Jobs - select the job(s) for which you want to run a statistics report.

- You can select several individual jobs for a single report, however, if you click All Jobs, it automatically deselects the individual jobs (since they would be included in the “All Jobs” category).

- Operators - select the operator(s) and/or the shift for which you want to run a statistics report.

- You can select several individual operators for a single report, however,

if you click All Operators, it automatically deselects the individual operators (since they would be included in the “All Operators” category).

- Clicking any one of the Shift options will select all operators during that

scheduled shift. The default setting, All Operators, includes all shifts.

- Date - set the start and end date for the report. In Figure 24, the Summary report was run for a single day, but virtually any range can be selected.

- Time - set the start and end time for the report. In Figure 24, these parameters were set to include the 3rd shift (12:00 AM-8:00 AM) and the first shift (8:00 AM to 4:00 PM).

- Job/Operator Lists - select one of the radio buttons:

Falcon User Manual - Remittance Processing - OPEX Corporation

- Current jobs/operators - To use the job names and operators currently

stored in the Controller’s memory (as shown in the Jobs and Operators lists).

- Read thru previous runs - To find runs deleted from the current list of

jobs and operators. For example, if a job file was deleted from the Job Name frame, it is still stored in the stats file. You can access it by selecting this radio button, then clicking the Refill button.

3 In the Summary section, select one of the radio buttons:

- All - to generate a statistics report for every job run that matches the

selected criteria

- Jobs - to generate a statistics report sorted by job name(s)

- Operators - to generate a statistics report sorted by Operator name(s)

- Check the box to exclude jobs run by the OPEX Technician in your

report.

4 Click the Test Matching Runs button to see how many jobs have been run

that match the criteria selected above.

- If N/A appears to the right of the button, then there are no jobs to report that match the criteria listed. Change your search criteria.

- If a number appears after the Matching Runs button, continue to the next step.

5 Click the Summary Report button at the bottom of the screen.

Falcon User Manual - Remittance Processing - OPEX Corporation

6 Click OK. A statistics report for the selected criteria will appear. Figure 25

shows the report for the above criteria.

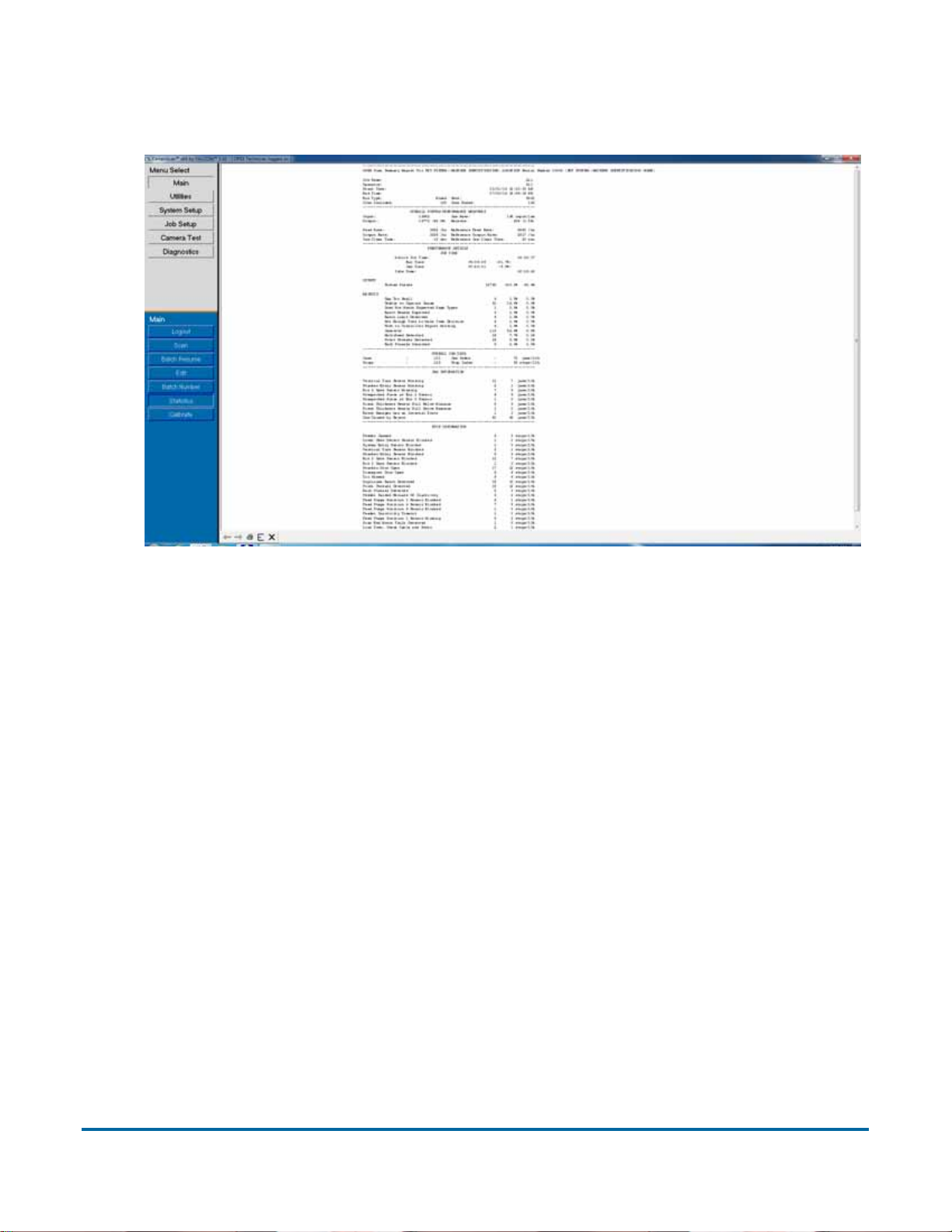

Figure 25: Statistics Report window

The tool bar across the bottom of the Statistics Report window shows:

- Left/Right Arrows - use to move through the content of your report(s). If unneeded, the arrows are disabled (grey).

- Printer button - click to open the printer dialogue window, where you can select a printer (if one is connected) to print your report.

- Export button (the letter E) - click to automatically back-up the report to the location specified by the System Setup > System > Statistics Settings > Statistics Report Export Filename parameter.

- Exit button (red stop sign) - click to close the Statistics Report window.

Falcon User Manual - Remittance Processing - OPEX Corporation

General Information statistics

The following table lists the terms that appear in the General Information section of the statistics report.

Table 7: General Information Statistic terms

Term Definition Job Name

Operator

Run Type

Name of job reported. If you are creating a summary report for two or more jobs, All appears in this field.

Name of operator included in report. If you are creating a summary report for two or more operators, All appears in this field.

Type of run determined by setting the Default Batch Type Batch parameter. Can be:

• Singles

• Multis

• Stub Only

• Check Only

• Multis With Pages

• Unstructured Transactions

• Page Only

• Structured Transactions

• Mix

The Default Batch Type parameter can also be set in the Modify Batch Information window that appears when first starting a job, if the Prompt Operator for Process & Recv

Dates Batch parameter is set to Yes.

Start Time Time first job in the specified time window started. End Time Time the last job in the specified time window stopped.

Jobs Included

Jobs Ended

(Summary Report only) Lists the number of jobs included in the report.

(Summary Report only) Lists the number of jobs that ended in the specified time window.

Falcon User Manual - Remittance Processing - OPEX Corporation

Overall System Performance Measures statistics

The table below lists the terms that appear in the Overall System Performance Measures section of the statistics report.

Table 8: Overall System Performance Measures terms

Term Definition Input Number of pieces fed into the machine.

Number of pieces successfully processed by the machine.

Output

This number is figured by subtracting the number of rejects from the number of pieces input.

Number of jams per run. The formula for the Jam Rate is:

Jam Rate

Jam Rate =

Input

Jams

Rejects Number of pieces rejected.

Number of pieces per hour the Falcon is currently feeding. The formula for the Feed Rate is:

Feed Rate

Feed Rate =

Input * 6600

Active Job Time (seconds)

Number of pieces per hour the Falcon is processing. The formula for the Output Rate is:

Output Rate

Output Rate =

Active Job Time (seconds)

Output * 6600

Average time the Falcon was halted while the Operator was

Jam Clear

clearing a jam. The formula for the Jam Clear Time is:

Time

Jam Clear

Time (seconds)

Jam Time (seconds)

Jams

Number of pieces fed into the Falcon per hour. The formula for the Reference Feed Rate is:

Reference Feed Rate

Reference Feed Rate =

Input * 6600

Run Time (seconds) + (Jams * Ref. Jam Clear Time (seconds))

Falcon User Manual - Remittance Processing - OPEX Corporation

Table 8: Overall System Performance Measures terms (continued)

Term Definition

Number of pieces processed by the Falcon. The formula for the Reference Output Rate is:

Reference Output Rate

Reference Output Rate =

Output * 6600

Run Time (seconds) + (Jams * Ref. Jam Clear Time (seconds))

Reference Jam Clear Time

Estimated time it takes to clear a jam. This number is fixed at 20 seconds.

Falcon User Manual - Remittance Processing - OPEX Corporation

Performance Details statistics

The following table list the terms that appear in the Performance Details section of the statistics report.

Note: All times noted in the formulas in this table are in seconds. For example,

if the Active Job Time appears as “00:01:49” then that means one minute (60 seconds) plus 49 seconds, or 109 seconds.

Table 9: Performance Details terms

Term Definition

Time the Falcon was either actively running or was halted

Active Job

Time

Run Time Total run processing time. Jam Time Total time the Falcon was halted for a jam.

Idle Time

The Rejects section lists the reasons for the rejected items and how many items were rejected for each reason.

Table 10: Reasons for rejected items

Length Too Long

Length Too

due to a jam. Active Job Time is broken down by:

• Run Time

• Jam Time

Time the Operator was in the Run Job window, but the

Falcon was not processing pieces.

Results when an image is longer than the maximum allowable image size of the system or when outsorting is set to reject an image longer than a defined length.

Results when outsorting is set to reject an image shorter

Short Gap Too Small

Too Thin

Too Thick

Falcon User Manual - Remittance Processing - OPEX Corporation

than a defined length. Results when the gap between pieces is shorter than the

minimum feed gap defined in the machine parameters. Results when out sorting is set to reject a piece thinner than

a defined minimum allowable thickness. Results when out sorting is set to reject a piece thicker than

a defined maximum allowable thickness.

Table 10: Reasons for rejected items (continued)

Unable to Capture Image

Unable to Process Image

Blank Image Detected

Does Not Match Expected Page Types

Bad MICR Read

Batch Ticket Expected

Stub Expected

Results when the imager fails to capture the image within the period of time that it is expected to.

Results when an image fails processing due to a failure other than running out of processing time.

Results when a job is set to reject blank pages and the piece was determined to be a blank page.

Results when the system could not match a piece to any of the page types in a particular job.

Results when the result from the combined MICR read does not have sufficient valid characters or a valid checksum.

Results when a piece is identified as something other than a batch ticket when the system is expecting a batch ticket.

Results when a piece is identified as something other than a stub when the system is expecting a stub.

Check Expected

Page Expected Envelope

Expected Money Order

Expected Cash Expected Check Listing

Expected Batch Limit

Detected

Results when a piece is identified as something other than a check when the system is expecting a check.

Results when a piece is identified as something other than a page when the system is expecting a page.

Results when a piece is identified as something other than an envelope when the system is expecting an envelope.

Results when a piece is identified as something other than a money order when the system is expecting a money order.

Results when a piece is identified as something other than cash when the system is expecting cash.

Results when a piece is identified as something other than a check listing when the system is expecting a check listing.

Results when the maximum transactions, pieces, stubs, or checks as defined in the batch parameters has been reached.

100

Falcon User Manual - Remittance Processing - OPEX Corporation

Opex Falcon User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Document History

Table of Contents

Introduction

About this Manual

Overview

Falcon Specifications

How the Falcon works

Software

Jobs

Page types

Operation

Overview

Safety precautions

Ergonomics

Main Controls and System components

Getting Started

Navigating the Falcon CertainScan software

Running Jobs

Using the Run Screen

Run Screen buttons

Run Screen Views

Information window

Throttling

Scanning items

Skew

Assigning a page type

Adjusting the image quality

Rescanning items

About the Rescan Feeder

About the pre-feeder mechanism

Deleting items from the batch

Starting a new batch

Four Levels of Document Separation

Suspend and Resume Multiple Batches

Ending the job

Using Batch Editor to fix incomplete batches

IDAssist

Using IDAssist

IDAssist functions

About the Multi-Slot IDAssist

Key assist

Clearing paper jams

Clearing the bins

Maintenance

Touchscreen Monitor

Calibrating the monitor

Removing/Replacing the printer cartridge

Accessing the printers

Adjusting the printer carriage position

Attaching the bins and stacker fingers

Cleaning the system

Conveyor and transport assemblies

Contact image sensor

Feed assembly

Statistics

Falcon Statistics

Creating statistic reports

General Information statistics

Overall System Performance Measures statistics

Performance Details statistics
