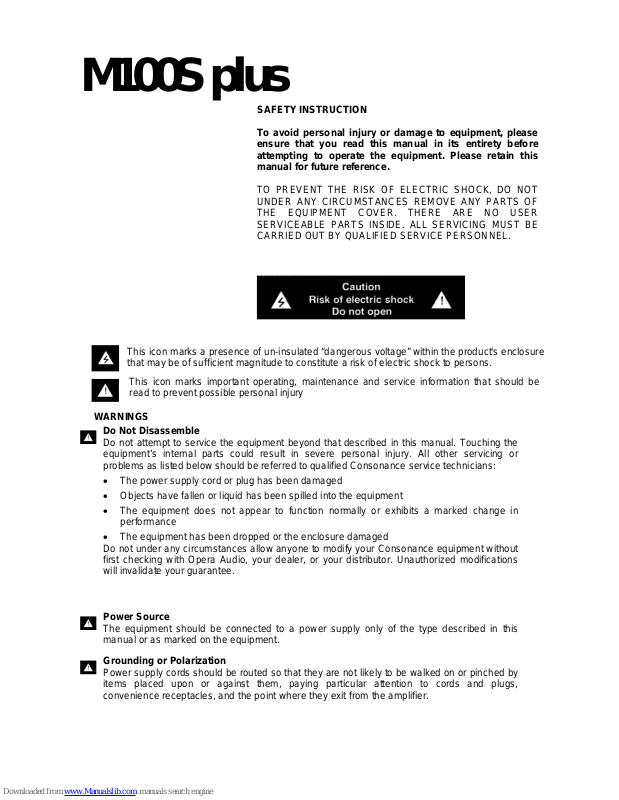

Page 1
M100S plus
SAFETY INSTRUCTION
To avoid personal injury or damage to equipment, please
ensure that you read this manual in its entirety before
attempting to operate the equipment. Please retain this
manual for future reference.
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
UNDER ANY CIRCUMSTANCES REMOVE ANY PARTS OF
THE EQUIPMENT COVER. THERE ARE NO USER
SERVICEABLE PARTS INSIDE. ALL SERVICING MUST BE
CARRIED OUT BY QUALIFIED SERVICE PERSONNEL.
WARNINGS
Power Source
The equipment should be connected to a power supply only of the type described in this
manual or as marked on the equipment.
Do Not Disassemble
Do not attempt to service the equipment beyond that described in this manual. Touching the
equipment’s internal parts could result in severe personal injury. All other servicing or
problems as listed below should be referred to qualified Consonance service technicians:
• The power supply cord or plug has been damaged
• Objects have fallen or liquid has been spilled into the equipment
• The equipment does not appear to function normally or exhibits a marked change in
performance
• The equipment has been dropped or the enclosure damaged
Do not under any circumstances allow anyone to modify your Consonance equipment without
first checking with Opera Audio, your dealer, or your distributor. Unauthorized modifications
will invalidate your guarantee.
This icon marks a presence of un-insulated “dangerous voltage” within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This icon marks important operating, maintenance and service information that should be
read to prevent possible personal injury
Grounding or Polarization
Power supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords and plugs,
convenience receptacles, and the point where they exit from the amplifier.
Page 2
Power Lines
In case of connecting a tuner, an outdoor antenna should be located away from power lines. If
an outside antenna is connected to the system, be sure the antenna is grounded so as to
provide some protection against voltage surges and built up of static charges.
Lighting
Consonance hi-fi system can be damaged by lightning. Power amplifiers are particularly at
risk and therefore should be turned off when there is risk of lightning strike. For complete
protection all mains plugs and any aerial cables should be disconnected when not in use.
Cleaning
Never clean with furniture polish, benzene, or volatile liquids. Dust periodically with a clean,
soft paint brush. Fingerprints can be removed with a moist polishing cloth.
Speaker Impedance
For best performance, the load presented by the speaker has to match the M100SPLUS’s
output impedance per channel. Refer to the speaker’s manufacturer handbook for information
on the nominal impedance. The M100SPLUS is factory set to match the speakers at 8 ohms
Ventilation
The equipment should be situated so that its location or position does not interfere with its
proper ventilation.
1. The equipment must not be placed on bed, sofa, or similar surfaces, that may block the
ventilation openings,
2. The equipment must not be placed in a built-in installation, such as a bookcase or cabinet
that may impede the flow of air.
3. The equipment should be situated away from heat sources such as radiators, heat
register, stoves, or other electronic appliances that produce heat. This equipment is not
intended for commercial use.
Water and Moisture
The equipment should not be used near water, e.g., near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool etc. Similarly, do not placed objects
filled with liquid, such as vases on top of the equipment.
Page 3
Table of Contents
SAFETY INSTRUCTION
1. INTRODUCTION 2
2. UNPACKING & SET-UP 2
3 OPERATING TIPS 3
4. GENERAL WARNINGS 4
5. TROUBLESHOOTING GUIDE 4
6. REMOTE CONTROL 4
7. TECHNICAL SPECIFICATION 6
8. WARRANTY 7
Page 4
2
Introduction
Thank you for the purchase of the M100SPLUS high-end tube amplifiers. Opera Audio
welcomes you to the growing number of discerning audiophiles who own Opera Audio
products. This manual has been pre pared to help you to maximize your enjoyment of the
performance and features of your new Consonance equipment. Please study this manual
carefully and become acquainted with all the f eatures , opera tion and capa bilities of you r new
Consonance equipment. Should you have any questions, or desire information on other
Opera Audio products, please contac t your local Op era de ale r.
Unpacking & Set-up
Unpacking
Before any Opera Audio product leaves the factory it is carefully inspected for physical
imperfections as a routine part of Opera Audio's stringent systematic quality control. After
you have unpacked the equipment, carefully inspect for any physical damage. Save the
shipping carton and packing materials as they are essential for future use to reduce the
possibility of transportation damage.
Set-up
1. Check Equipment Voltage
Ensure that the operating voltage of the amplifier, check the shipping carton label and/or
owners manual, conforms to the delivery voltage of your local power supply (i.e. 240V /
230V / 220V / 115V / 100V AC dependent on country).
2. Positioning the Equipment
The amplifier may generate considerable heat during normal operation. Please ens ure that
the unit is far away from effect of any domestic heat source and adequate air circulation
around the unit is provided to maintain cool operation. For air circulation, leave enough
space around the unit (at least 3 cm on the top and 3 c m on the sides and leave enough
space on the back for the powe r cord and interconnect cables). If the equip ment is going to
be mounted in an enclosed cabinet, it is re commended that the rear of th e cabinet has vents
to allow air to circulate around the unit. With these considerations implemented, the
equipment should then provide exceptional performance as intended. However, the usual
protection of equipment from excess ive dust and moisture should always be observed. All
the equipment made by Opera Audio has been carefully designed with high quality
components so that Long-term undimi nis hed perf or manc e is operat ed in ac corda nce with the
instructions provided.
3. Install Vacuum Tubes
Locate the 300B, 6SN7 and 12AX7 vacuu m tub es and insert them into their sockets
according to the print on top lid. Pay attention on the prop e r t ub e orien tation please and be
sure to hold the tube by its base when inserting and removing. This will minimize the chance
of breaking the glue between the socket and the glass .
Page 5
3
4. Connect Signal Cables
Connect the input source to the amplif ier’s right and left channel RCA jacks. Refer to rear

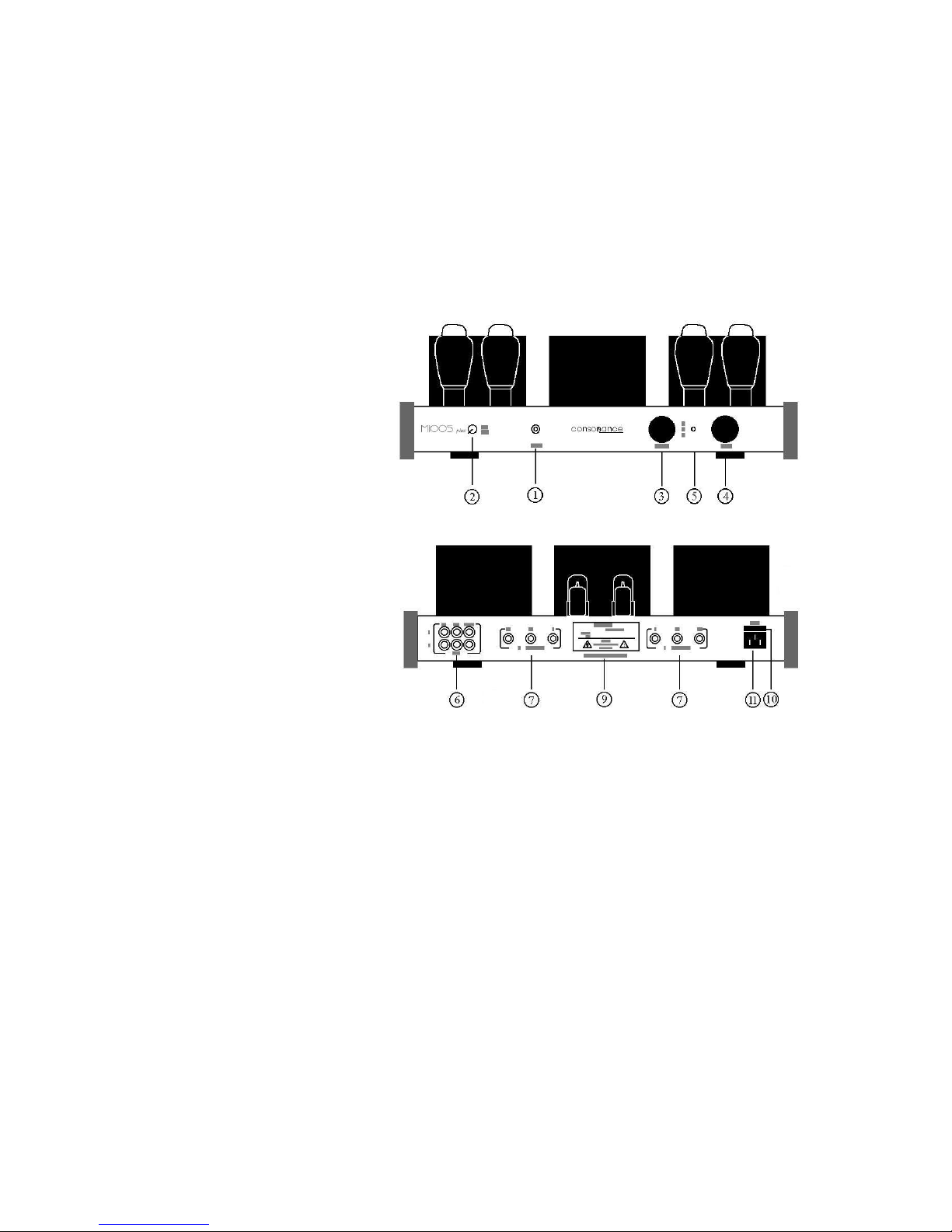

chassis drawing for connection location. These jacks are labeled with colored washers: red
for right and black for left.
5. Connect Speaker Cables
Connect the speaker cables. Refer to rear chassis drawing for speaker connec to r loca tion.
Be sure the positive speaker lead is connected to the plus symbol on the speaker connect or
(In this case, red to red, black to black) Note: NEVER switch on the amplifier unless a
speaker is connected to both output terminals. Operation of the amplifier without a load may
damage the output transformer s .
Operating Tips
A. Power cord, plugs and sockets
The power cord should be routed s o that it is not likel y to be stepp ed on or pinched by it ems
placed upon or against it. All the plugs and sockets supplied with your Consonance
equipment have been chosen because they mark the best possible connection for their
purpose. A poor contact will degrade the signal substantially, plugs and sockets should look
clean and free from corrosion. The easiest way to clean them is t o switch off the equipm ent,
pull the plugs out of their sockets, and push them ba ck in again. Special contact cleaners
and contact enhancers should not be used as they tend to deposit a film, which is very
difficult to remove and may degrade the s oun d.
B. Switching on and off
Source components and power supplies for CD pla yer s, tuners, preamplifiers and crossove rs
should be switched on before swit ching on th e amplifier(s ). Always sw itch the amplif ier(s) off
and wait about 5 minute for its power s upply capacitors to discharge before connecting or
disconnecting any leads. Always use the power switch on the equipment instead of the
mains outlet switch.
C. Running in
Your Consonance equipment will take a considerable time to run-in before it performs at its
best. The duration varies, but under some cond itions you will f ind that the sou nd cont inue s to
improve for as much as five weeks. Better and more consistent performance will be achieved
if the system is left switched on for long periods. However, plea se take note that all electronic
equipment can be damaged by lightning and should not be left on for long periods
unattended.
D. Power supply
Where fused plugs are used various amp fuses should be fitted. Fuses of a lower rating will
fail after a period of use. A hi-fi system usually shares a main circu it with other household
equipment some of which can caus e distort ion of the mains waveform. In s ome Consona nce
equipments such distortion can lead to a mech anical hum f rom the transf ormers. The hum is
not transmitted through the speak ers and has no ef fect on t he perf orma nce of the s yst em but
is purely local to the transformer. A separate fused mains circuit (like that reserved for
electric cookers) will have lower impedance, supply cleaner power, and consequently
improve system performance. Do not wire voltage depen dent resistor s or noise suppressors
into mains plugs. They degrade the mains supply and the sound.
Page 6
4
E. Positioning
Power supplies and amplifiers should be located at a reasonable distance away f rom other
equipments in the system. Adequate spacing will prevent the generation of transformer
resonance which in turns causing audible hum to be heard from the loudspeakers. The
minimum recommended distance is 300mm ( 12 inches), and that allowed by the standard
interconnect lead being maximum.
Many of the Consonance equipments, due to stringent requirements for ultimate sonic
reproduction, are extremely heavy in weight. If you are placing the equipments on equipment
rack or table please ensure that t he frame is structural sound for supporting the total weight
of the equipments.
F. Cables, connections and speaker Impedance
Loudspeaker leads are also very important leads to suit your equipment installation. The
leads should each be at least 3.5 meters long and of equal length. The recommended
maximum is 20 meters. The loudspeaker connec tors s upplied with all Cons onanc e ampl ifiers
and loudspeakers have been spec ifically designed to make a tight mechanical connect ion. It
is essential that these are used in order to comply with local safet y regu lations.
For best performance, the load present ed by the s peaker has t o match t he amplifier's output
impedance. Refer to the manufa cturer's information for your s peaker nom inal impeda nce. All
vacuum tube amplifier made by Opera Audio are factory set to match the speakers at 8
ohms and 4 ohms.
General Warnings
Every piece of Consonance equipment is designed to produce the finest sound quality that
can be achieved, by avoiding compromise wherever possible. This can lead to
circumstances that may be unfamiliar to the equipment owner. The material that follows
contains advice specifically related to Consonance equipment as well as more general
warning about the use of domesti c audio pr oducts.
Please read it carefully:
The transformers in Consonance amplifiers and power supplies may sometimes make a
mechanical noise caused by distortion of the mains waveform . Conso nance transfor mers are
large in size and have heavy gauge secondary windings making them relatively sensit ive to
such distortion. A separate mains circuit for your hi-fi system may reduce the effect while
also giving an overall improvement in sound quality. It may be necessary however to take
account of mechanical transformer nois e wh en pla cing your equipment.
In some circumstances, depending on where you live and the grounding arrangements in
your home, you may experience rad io frequency interference. Controls on broadcasting in
some territories allow very high levels of radio frequen cy radiation and both the choice and
exact placement of equipment may be critical. If there is a known problem i n your localit y it is
advisable to arrange for a home demonstration be fore purchas e to ensure that your se lected
Consonance equipment can be operated normally. Susceptibility to radio frequency
interference is related to the wide internal bandwidth necessary for high sound quality.
Systems incorporating moving coil ph ono prea mplifie rs and active crosso vers are m ore likely
to suffer.
Troubleshooting Guide
Page 7
5
From time to time you may experience problems in obtaining optimum equ ipmen t
performance. Following is list of frequently encountered problems.
Problem Solution
Power indicator and filaments do
not light
Check the fuse and make sure the amplifier is
plugged into a working power outlet
Sound out of one speaker only Turn volume control fully counter-clockwise and
reverse input connectors. If sound changes from
one speaker to the other, check source or replace
inter-connect wires. If the sound is still coming out
of the same speaker only, check speakers on
another piece of equipment for prope r ope ration.
Static, noise, or hum Turn the potentiometers Individually clockwise or
counter-clockwise until the hum reduces to the
lowest level on each channel
Equipment problem could also b e cause d by fault i n any part o f the system or its ins tallation.
As Legal consumer protecti on varies from count ry to country, you should always first cons ult
the local dealer for any technical problems that you may experience. Please contact your
local distributor or Opera Audio at the address in the back of this manual for any difficulties
that cannot be resolved.
Certain Consonance equipment is made in spec ial ve rsions for di fferent terri tor ies as a result
it is impracticable to arrange international guarantees. Please establish appropriate
guarantee arrangements with yo ur ow n deale r at th e time of sale. We are a l ways availab le to
offer help and advice. It is essential that repairs and updates are only carried out by
authorized Consonance deale r or Opera Audio factory. As many Consonance componen ts
are custom made and specially matched, the replacement parts must be ordered through
Opera Audio or its representative. Our dealer will have all relevant information about the
service in your area and will ensure that you equipment is serviced without delay.
If for some reason, there are no service facilities available in your area, please ship the
equipment to the address listed at the back of the manual.
Please note that you are responsible for all s hipp i ng charges, insurance, and re-import ation
to your country, and duty arrangements.
When shipping a product back to factory for service, always include the following:
• Sales slip or other proof of purchase if repair is claimed under warranty.
• A proforma invoice with value of the goods, stating that the amplifier is returned to
china for repair.
• An accompanying letter describing faults, symptoms or problems wit h th e
amplifier.
• Always ship the amplifier in its original carton and packaging material to prevent
damage in transit.
Opera Audio will not accept responsibility for any damage caused in transit, no matter
whatever caused.
Page 8
6
6. REMOTE CONTROL
The Consonance amplifier can be controlled by an optional Consonance system remote
control. Like other Consonance products, the number of buttons is kept to a minimum.
The volume of the amplifier can be operated by us ing the remote control.
The remote control uses four 1.5-volt LR03 AA A ba tteries .
7.Technical Specification
1. Power indicator
2. Power switch
3. Input select
4. Volume control
5. Remote control window
6. Input jacks (red / black).
7. Speaker connector
8.Individually adjustable
potentiometers for minimizing
hum
9. Serial number
10. Fuse
11. Power plug
TECHNICAL SPECIFI CATION
CONTROL FUNCTIONS: Volume, Select, Power On/Off
POWER OUTPUT: 22 watt x 2, RMS 1kHz
TOTAL HARMONIC DISTORTION: less than 1%(10watt, 1kHz)
FREQUENCY RESPONSE: (-3dB points at 10 watt) 8Hz-60kHz
INPUT SENSITIVITY: 230mV
INPUT IMPEDANCE:100k ohms
OUTPUT IMPEDANCE: 4, 8 ohms. (User selectable.)
SIGNAL/NOISE: 90dB
CONSUMPTION: 120watt
INPUT INTERFACES: 3 groups (RCA) 1,2,3
OVERALL NEGATIVE FEEDBACK: Little
VACUUM TUBE: 300B x 4,12AX7 x 2, 6SN7 x 2
DIMENSIONS: 446(L) x 264(W) x 155(H) mm
WEIGHT: 20.5kg
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
Page 9
7
8.Warranty
Opera audio guarantees each product manufactured by us to be free from defects in
materials and workmanship under normal us e. Our obligat ion u nder th is warra nty is limited to
making good at our factory any part or parts thereof which shall, within 1 year after delive ry
to the original purchaser, be ret urned to us with transportation charges prepaid, and which
an examination shall disclose to have been thus defective; this warranty being expressly in
lieu of all other warranties expressed or implied and of all other obligations or liabilities on
our part. This warranty shall not apply to any Opera audio pr oduct which shall have been
repaired or altered outside of our facto ry in any way so as to af fect its stabilit y, nor which has
been subject to misuse, negligenc e or accident. Warranties of the vacuum tubes are by the
respective manufacturers, usually 90 days.
Please mail or e-mail the Registration Card to the address a s fol lows:
Registration Card
Name
Address
City
State
Zip
Email
Telephone
Model
Serial Number
Purchase Date
Dealer
The Opera Audio Co., Ltd.
No.2 JianXianQiaoLu
ChaoYang District
Beijing, China
Tel: 86 10 64377091
Fax: 86 10 64377465
[email protected]
www.opera-consonance.com
Loading...
