Opera Audio FIGARO User Manual

1

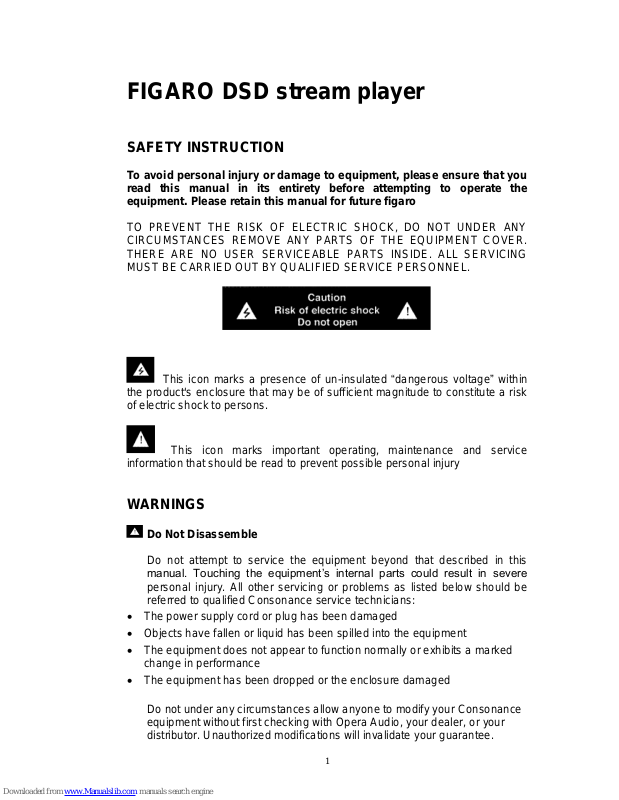

FIGARO DSD stream player

SAFETY INSTRUCTION

To avoid personal injury or damage to equipment, please ensure that you
read this manual in its entirety before attempting to operate the
equipment. Please retain this manual for future figaro

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT UNDER ANY
CIRCUMSTANCES REMOVE ANY PARTS OF THE EQUIPMENT COVER.
THERE ARE NO USER SERVICEABLE PARTS INSIDE. ALL SERVICING
MUST BE CARRIED OUT BY QUALIFIED SERVICE PERSONNEL.

This icon marks a presence of un-insulated “dangerous voltage” within

the product's enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.

This icon marks important operating, maintenance and service

information that should be read to prevent possible personal injury

WARNINGS

Do Not Disassemble

Do not attempt to service the equipment beyond that described in this

manual. Touching the equipment’s internal parts could result in severe

personal injury. All other servicing or problems as listed below should be
referred to qualified Consonance service technicians:

 The power supply cord or plug has been damaged
 Objects have fallen or liquid has been spilled into the equipment
 The equipment does not appear to function normally or exhibits a marked

change in performance

 The equipment has been dropped or the enclosure damaged

Do not under any circumstances allow anyone to modify your Consonance
equipment without first checking with Opera Audio, your dealer, or your
distributor. Unauthorized modifications will invalidate your guarantee.

2

Power Source

The equipment should be connected to a power supply only of the type
described in this manual or as marked on the equipment.

Grounding or Polarization

Power supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying
particular attention to cords and plugs, convenience receptacles, and the
point where they exit from the amplifier.

Ventilation

The equipment should be situated so that its location or position does not
interfere with its proper ventilation.

1. The equipment must not be placed on bed, sofa, or similar surfaces, that
may block the ventilation openings,

2. The equipment must not be placed in a built-in installation, such as a
bookcase or cabinet that may impede the flow of air.

3. The equipment should be situated away from heat sources such as
radiators, heat register, stoves, or other electronic appliances that produce
heat. This equipment is not intended for commercial use.

Water and Moisture

The equipment should not be used near water, e.g., near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool etc. Similarly, do not placed objects filled with liquid, such
as vases on top of the equipment.

Lighting

Consonance hi-fi system can be damaged by lightning. Power amplifiers
are particularly at risk and therefore should be turned off when there is risk
of lightning strike. For complete protection all mains plugs and any aerial
cables should be disconnected when not in use.

Power Lines

In case of connecting a tuner, an outdoor antenna should be located away
from power lines. If an outside antenna is connected to the system, be sure
the antenna is grounded so as to provide some protection against voltage
surges and built up of static charges.

Cleaning

Never clean with furniture polish, benzene, or volatile liquids. Dust
periodically with a clean, soft paint brush. Fingerprints can be removed with
a moist polishing cloth.

3

Table of Contents

Introduction……………………………………………………………………… 5

How to Use ……………………………………………………………………… 6

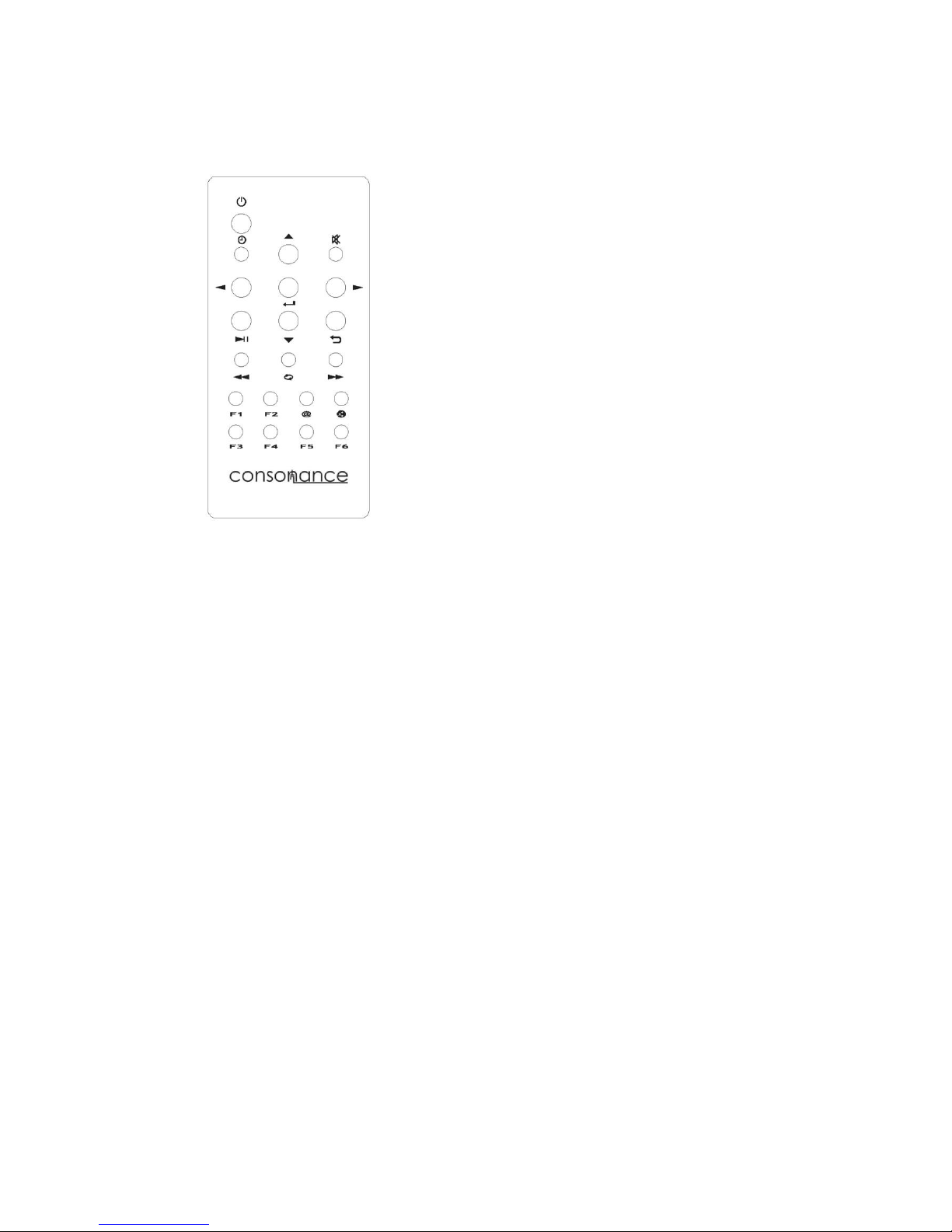

IR remote control shortcut function…………………………………………12

FIGARO Specification………………………………………………………… 13

Warranty ………………………………………………………………………… 14

4

Please check the following Appendix ments are complete：

 Remote control 1pcs
 Power Cable 1pcs

 Instructions for use 1pcs

5

Introduction

1. Power switch：CW “ ” is Power ON

2. Display screen

3. Remote sensor

4. The multifunction knob

5. AC Power Socket

6. Fuse

7. USB 1.1 jack

8. USB 2.0 jack

9. USB DC5V power port

10. Serial port

11. RJ-45 LAN interface

12. Coaxial Digital input

13. Coaxial Digital output

14. XLR Analog outputs

15. RCA Analog outputs
