Opera Audio Consonance Isolde User Manual

1

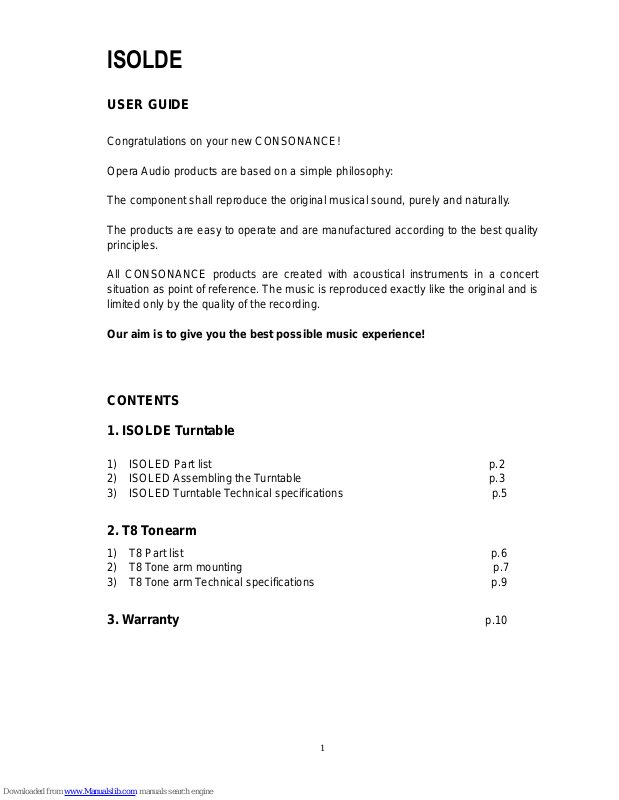

ISOLDE

USER GUIDE

Congratulations on your new CONSONANCE!

Opera Audio products are based on a simple philosophy:

The component shall reproduce the original musical sound, purely and naturally.

The products are easy to operate and are manufactured according to the best quality
principles.

All CONSONANCE products are created with acoustical instruments in a concert
situation as point of reference. The music is reproduced exactly like the original and is
limited only by the quality of the recording.

Our aim is to give you the best possible music experience!

CONTENTS

1. ISOLDE Turntable

1) ISOLED Part list p.2

2) ISOLED Assembling the Turntable p.3

3) ISOLED Turntable Technical specifications p.5

2. T8 Tonearm

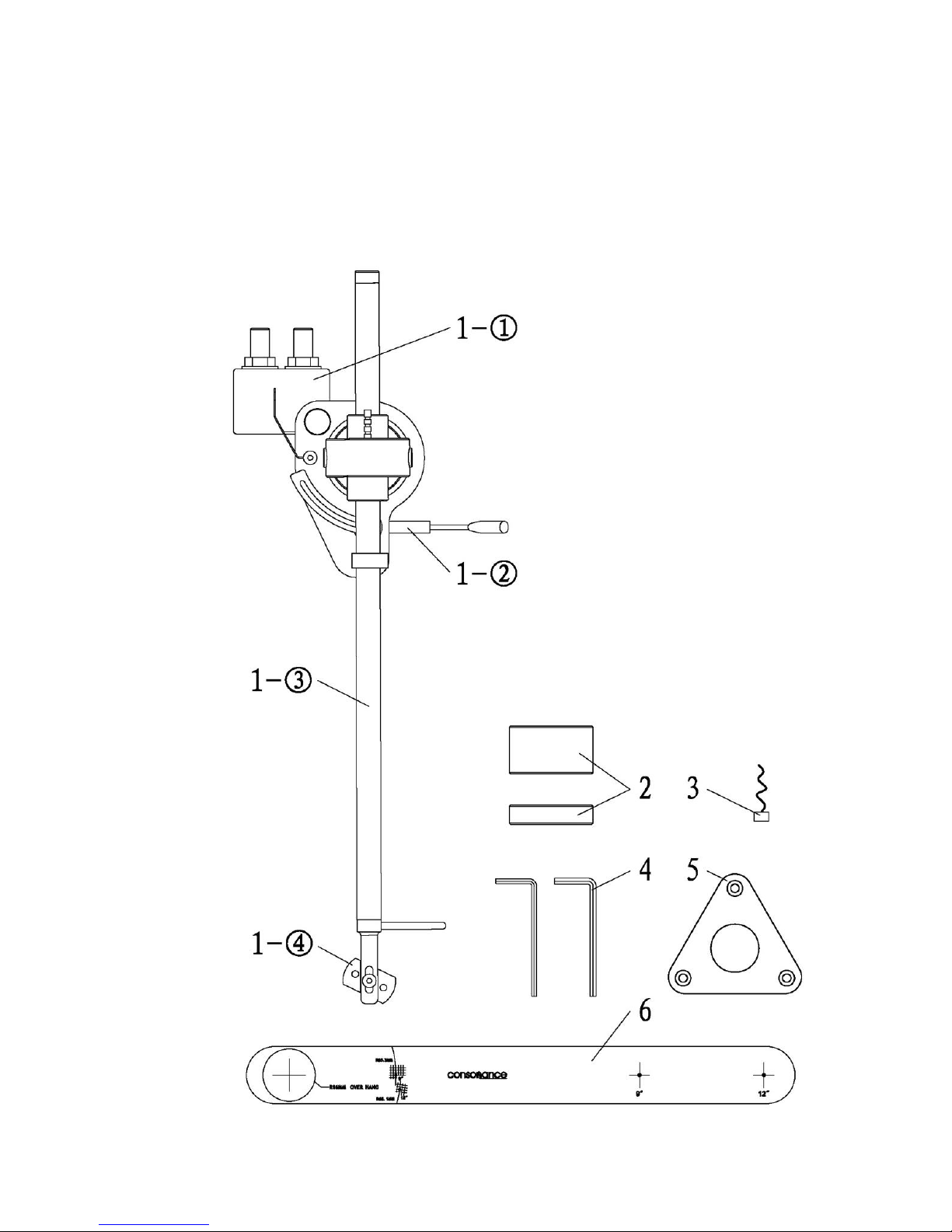

1) T8 Part list p.6

2) T8 Tone arm mounting p.7

3) T8 Tone arm Technical specifications p.9

3. Warranty p.10

2

ISOLDE Turntable

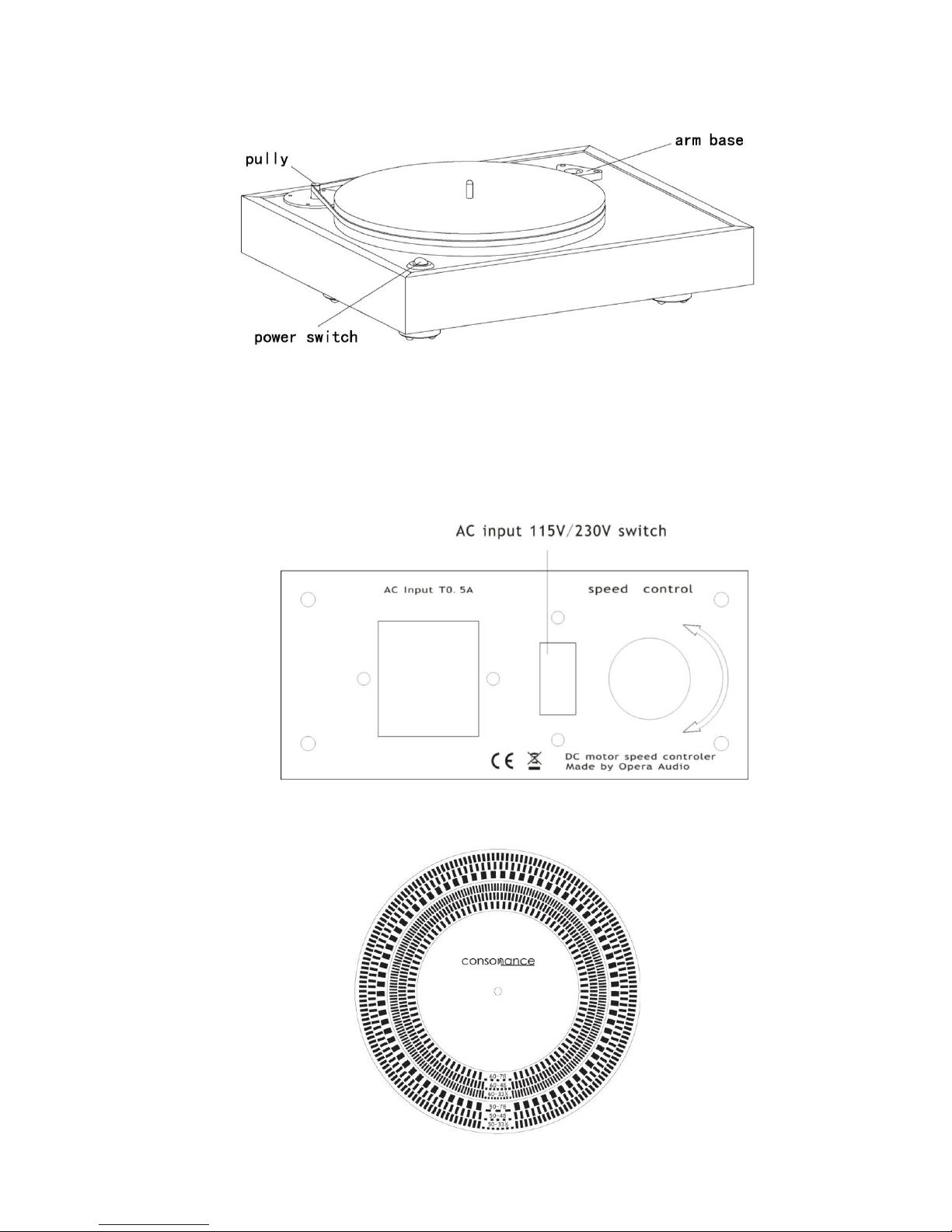

ISOLDE Part List

1. Plinth 2. Platter

3. Strobe disc + Mat 4. Tone arm

5. Feet 6. Allen wrench

7. Dust cover 8. Power cable

9. Lubrication oil 10. Belt

3

ISOLDE Assembling the Turntable

1. Open the box and take out the turntable plinth. The bottom of the plinth(Part 1) has 4 holes for
feet (Part 6). Please put the plinth to the feet exactly.

2. Fill the bearing with lubrication oil(Part 10) supplied to a level of approx 1mm above the bottom
bearing.

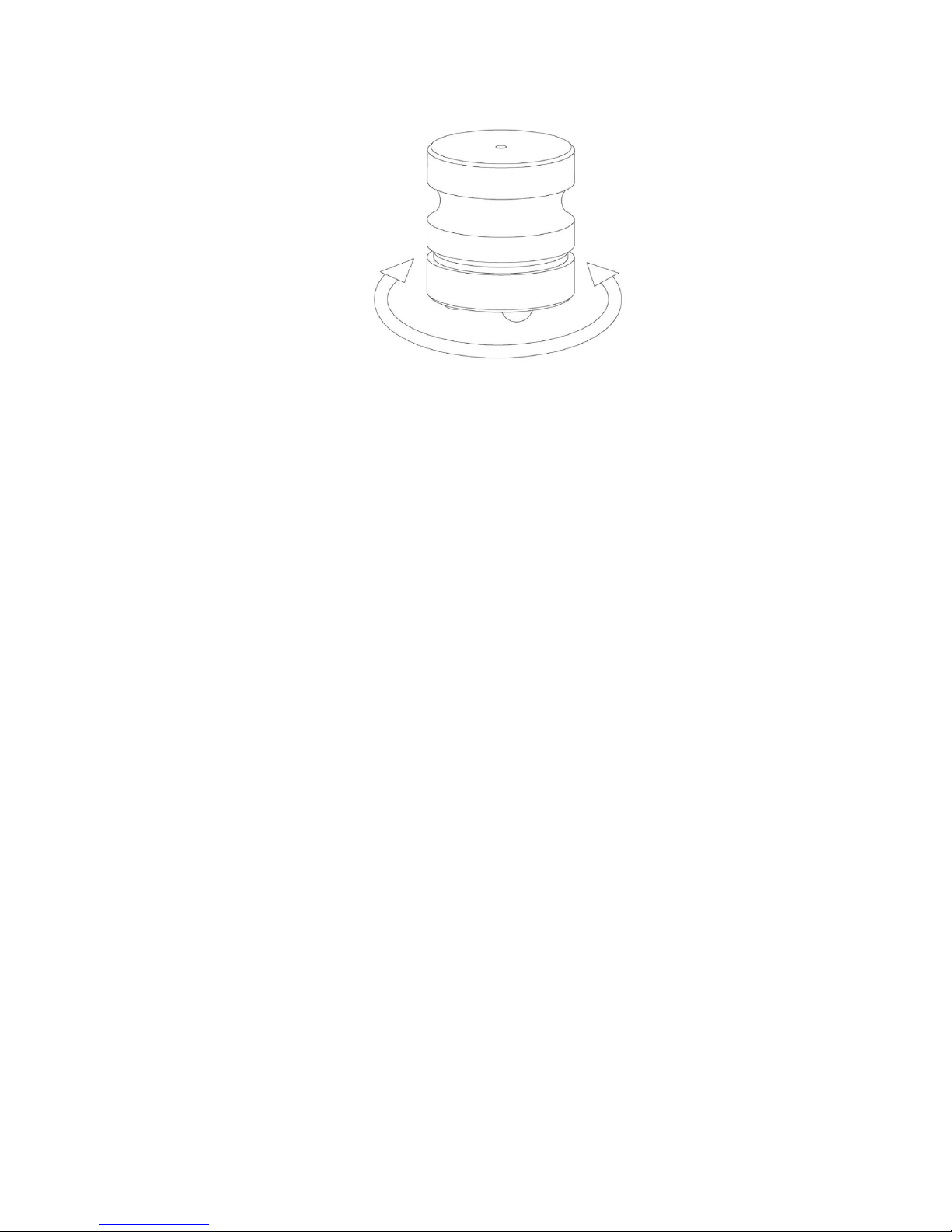

3. Installing the platter.
Pick up the acrylic platter(Part2) from the package after put on the cotton gloves, hold the platter
level above the bearing house, locate the bearing carefully and gently into the bearing house until
it seats fully and rotate smooth.
