Die Walküre Turntable
USER GUIDE
Congratulations on your new CONSONANCE!
Opera Audio products are based on a simple philosophy:
The component shall reproduce the original musical sound, purely and naturally.
The products are easy to operate and are manufactured according to the best quality
principles.
All CONSONANCE products are created with acoustical instruments in a concert
situation as point of reference. The music is reproduced exactly like the original and
is limited only by the quality of the recording.
Our aim is to give you the best possible music experience!
CONTENTS
Part list
Assembling the Turntable
Technical specifications
Warranty
p.2
p.3
p.8
p.9
Page 2
2
Part List
1. Top cover
2. Plinth
3. Platter
4. Strobe Disc
5. Tone-arm
6. DC motor speed controller
7. Arm-base part
8. Arm-base
9. Feet
10. Lubrication oil
11. Screw
12. Allen wrench
13. Cable for speed controller
14. VGA cable
15. Belt
Page 3
3
Assembling the Turntable
Open the box and take out the turntable plinth.

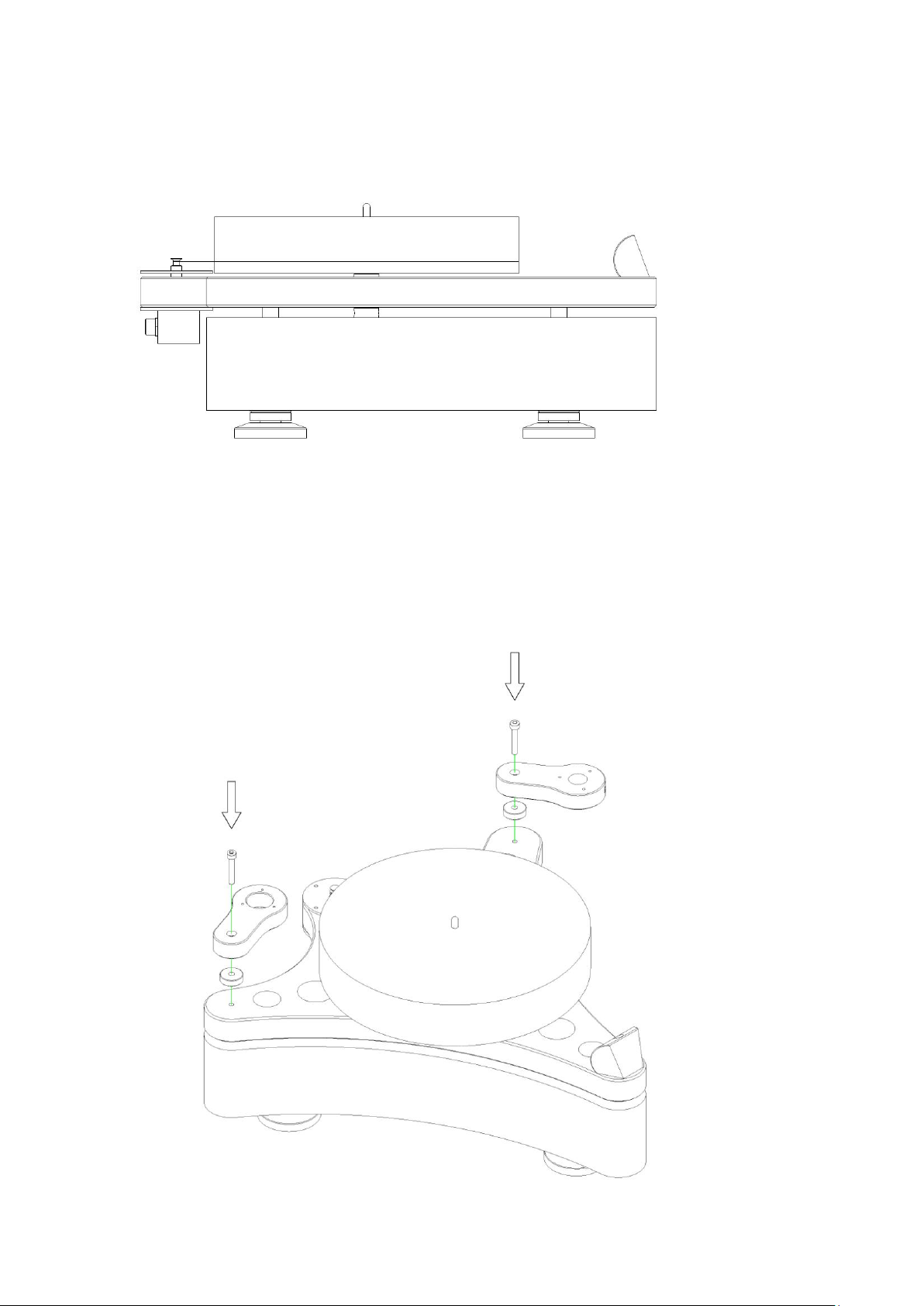

The bottom of the plinth has 3 holes for feet. Please put the plinth to the feet exactly.
Installing the top cover
Page 4
4

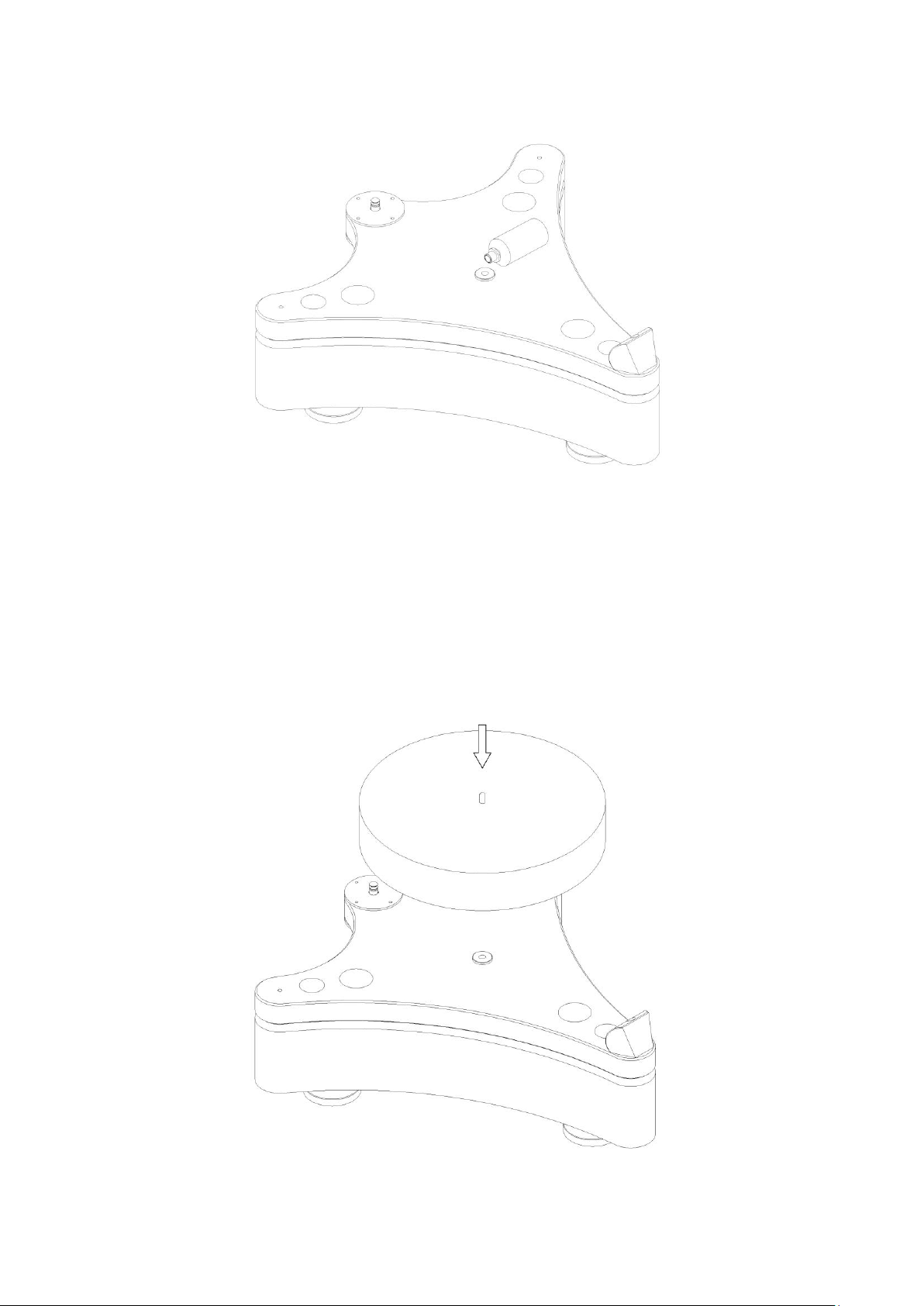

Fill the bearing with lubrication oil supplied to a level of approx 1mm above the bottom bearing.
Installing the platter.
Put on the cotton gloves and pickup the acrylic platter.
Hold it level over the bearing ousing, locate it carefully and gently lower it until it seats fully over
the bearing.
Page 5
5
Take out one of the drive 'belts' and run it round the motor spindle and then round the platter.
Put the Strobe Disc on the platter, and adjust the speed controller knob to get the 33.3rpm or
45rpm. The corresponding circle on Strobe Disc will display stable stripes.
Fix the tone-arm base
Page 6
6

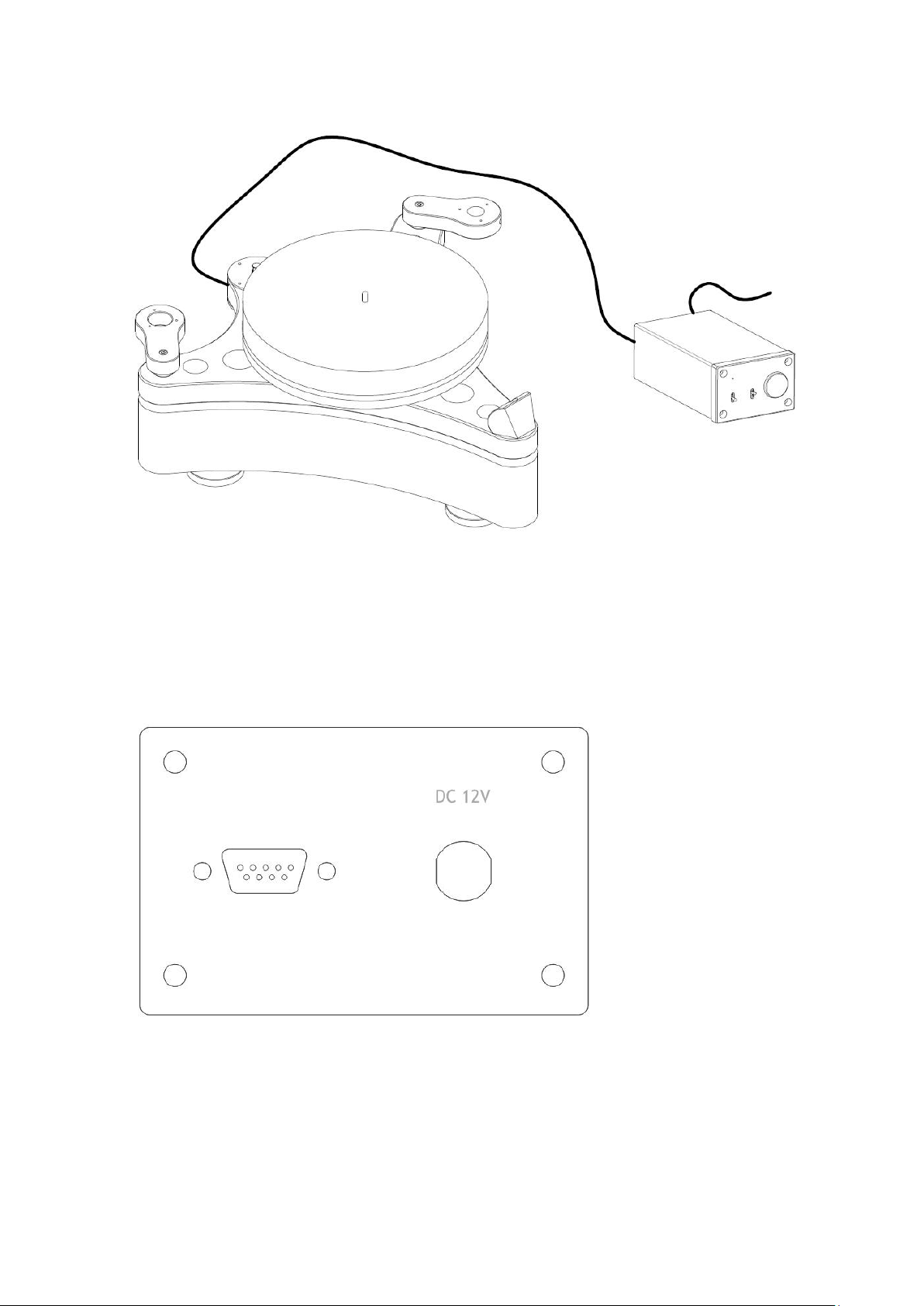

Connecting the speed controller to the DC motor socket safely.
Connecting the DC12V power supply.
Page 7
7

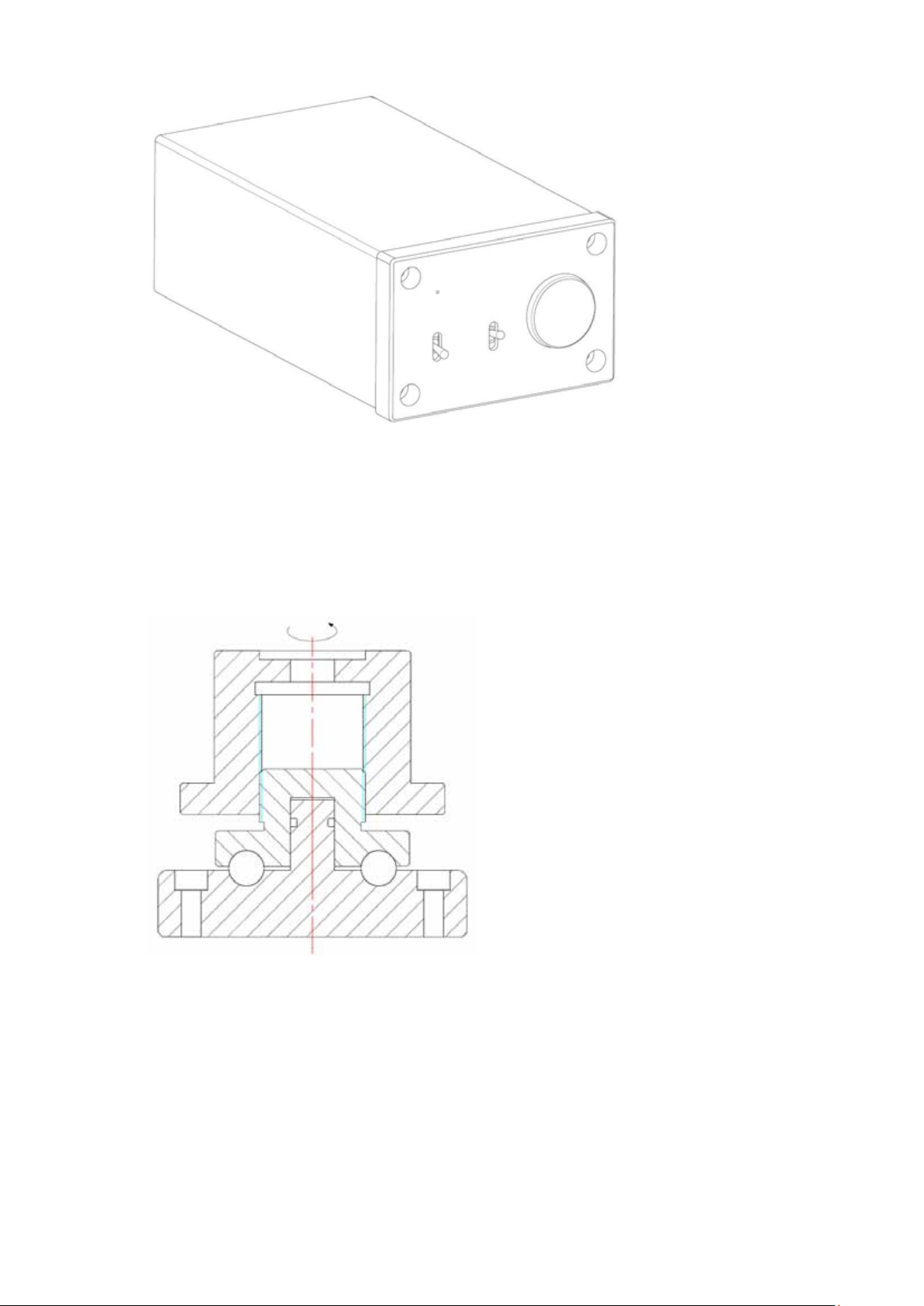

The knob on the right side of the speed controller is for adjusting the speed by speed strobe.
After installing the tone-arm, if the turntable is not level, then using the adjustable feet to fit.
TECHNICAL SPECIFICATION
Wow and Flutter: Less than 0.1%
Rumble: Greater than 80dB down
Speed accuracy: Within 0.01%
