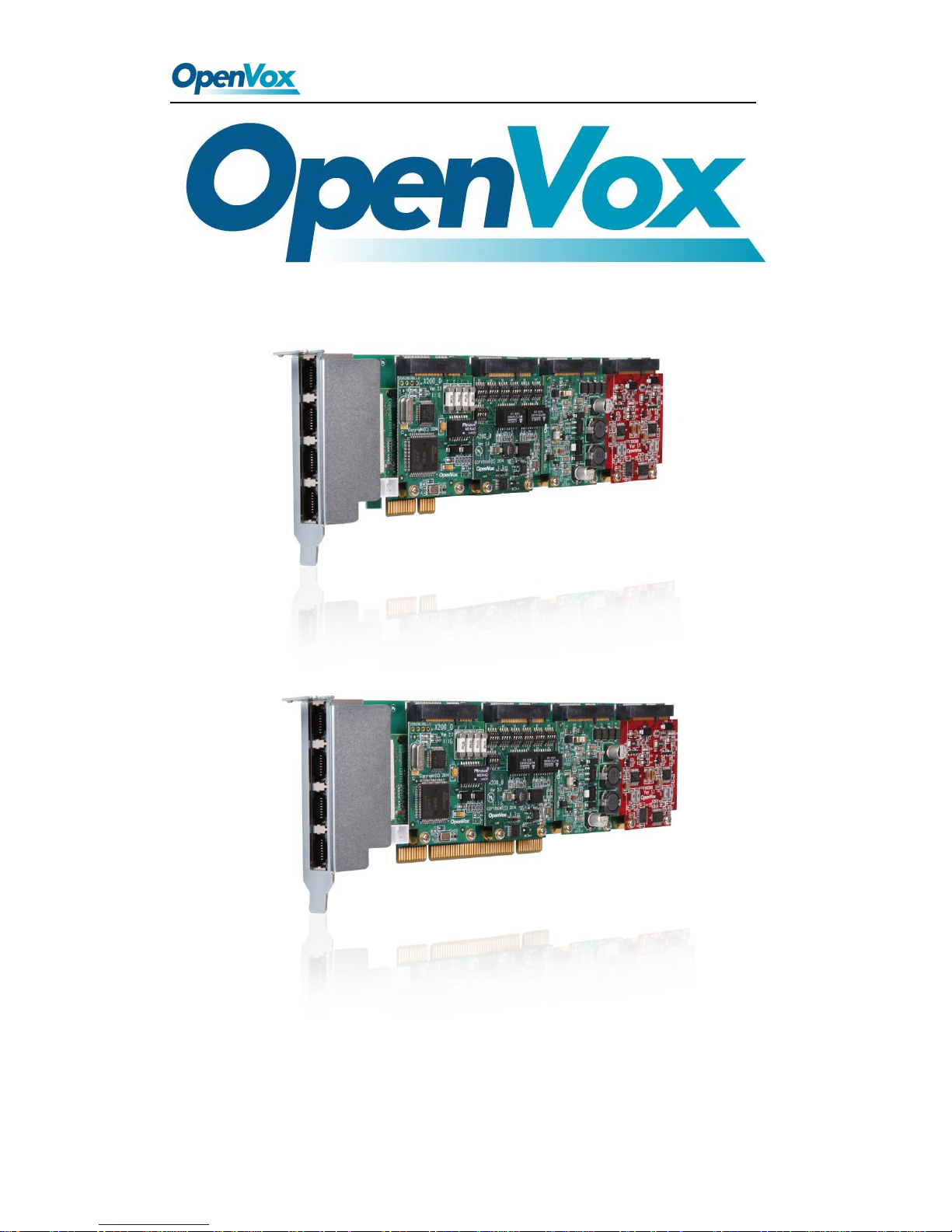

X204 hybrid telephony card User Manual
1
OpenVox Communication Co. LTD. URL: www.openvox.cn
OpenVox Communication Co.Ltd
X204 Series User Manual
Version: 1.0
X204 hybrid telephony card User Manual
2
OpenVox Communication Co. LTD. URL: www.openvox.cn
OpenVox Communication Co.Ltd
Most Advanced Asterisk Cards
Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial
Park, Longhua New District, Shenzhen, Guangdong,China 518109
Tel:+86-755-66630978,82535461, 82535362
Business Contact: sales@OpenVox.cn
Technical Support: support@OpenVox.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn
Thank You for Choosing OpenVox Products!
X204 hybrid telephony card User Manual
3
OpenVox Communication Co. LTD. URL: www.openvox.cn
Copyright
Copyright© 2013 OpenVox Inc. All rights reserved. No part of this document may be
reproduced without prior written permission.
Confidentiality
Information contained herein is of a highly sensitive nature and is confidential and
proprietary to OpenVox Inc. No part may be distributed, reproduced or disclosed
orally or in written form to any party other than the direct recipients without the
express written consent of OpenVox Inc.
Disclaimer
OpenVox Inc. reserves the right to modify the design, characteristics, and products at
any time without notification or obligation and shall not be held liable for any error or
damage of any kind resulting from the use of this document.
OpenVox has made every effort to ensure that the information contained in this
document is accurate and complete; however, the contents of this document are
subject to revision without notice. Please contact OpenVox to ensure you have the
latest version of this document.
Trademarks
All other trademarks mentioned in this document are the property of their respective
owners.
X204 hybrid telephony card User Manual
4
OpenVox Communication Co. LTD. URL: www.openvox.cn
Table of contents
Table of contents .............................................................................. 4
General Safety Instructions ............................................................. 5
Test Environment.............................................................................. 6
Chapter 1 Overview ......................................................................... 7
What is Asterisk ......................................................................................................... 8
Asterisk as a Phone Switch (PBX) ................................................................................ 9
Asterisk as a Gateway ................................................................................................. 9
What is X204 Series Hybrid telephony card? .................................................................. 9
Target applications .................................................................................................... 10
Main features ........................................................................................................... 11
Card identification .................................................................................................... 13
Chapter 2 Hardware Setup ............................................................ 14
Slot compatibility ..................................................................................................... 14
Hardware Installation ................................................................................................ 14
Connecting a Timing Cable ........................................................................................ 16
FXO/FXS, BRI and E1 Connection ............................................................................. 16
Chapter 3 Software Installation and Configuration .................... 17
Software Installation ................................................................................................. 17
Download ................................................................................................................ 17
Driver Configuration ................................................................................................. 22
Asterisk initiation ..................................................................................................... 28
Chapter 5 FXO, FXS, BRI and E1 Explained................................... 29
Appendix A Specifications ............................................................. 34

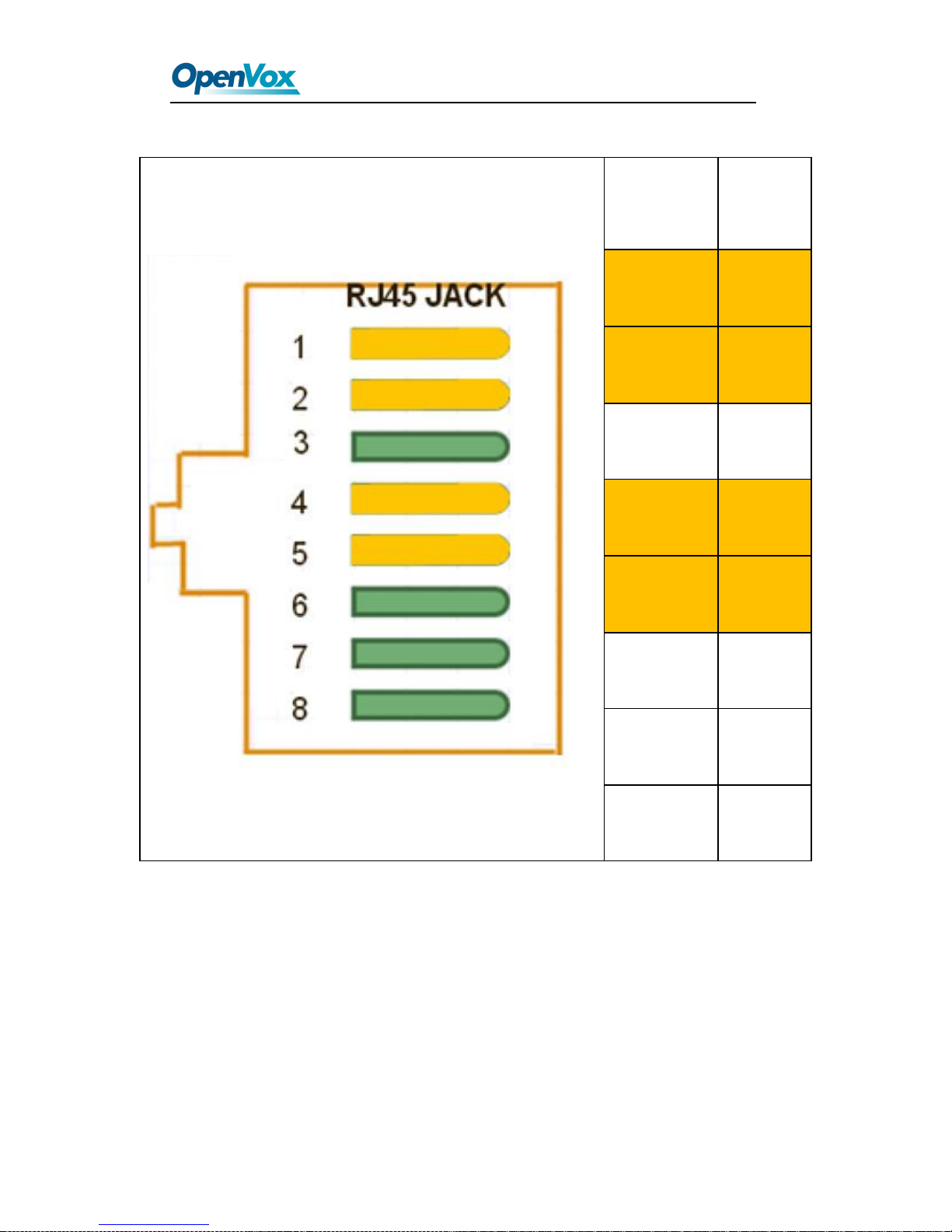

Appendix B PIN Assignments ........................................................ 35
X204 hybrid telephony card User Manual
5
OpenVox Communication Co. LTD. URL: www.openvox.cn
General Safety Instructions
CAUTION
1. The computers that have X204 card installed must comply with the
country’s specific safety regulations.
2. Only service personnel should install X204 card.
3. Before you install X204 card, please unplug the power cord from the
computer and remove the cover from your PC.
4. For avoiding personal injuries and damage to your computer and
X204 card, make sure bracket of the card is secured to the PC’s
chassis ground by fastening the card with screws.
5. Electrical Surges, ESD are very destructive to the equipment. To avoid
it, make sure there is a low impedance discharge path from your
computer to chassis ground.
6. To reduce the risk of damage or injury, please follow all steps or
procedures as instructed.
X204 hybrid telephony card User Manual
6
OpenVox Communication Co. LTD. URL: www.openvox.cn
Test Environment
Hardware Board: OpenVox X204
Operating System: CentOS-6.3
Kernel Version: 2.6.32-279.el6.x86_64
DAHDI： dahdi-linux-complete-2.11.1+2.11.1
Asterisk：1.8.22.0
Libpri：1.4.14
X204 hybrid telephony card User Manual
7
OpenVox Communication Co. LTD. URL: www.openvox.cn
Chapter 1 Overview
The X204 series cards are versatile devices used for connecting your phone
network to the PSTN (Public Switched Telephone Network) world. This is
accomplished through analog connected to the FXO (Foreign Exchange
Office) port, phone handset connected to the FXS (Foreign Exchange
Station) ports, digital lines connected to the BRI (Basic rate ISDN) ports,
and E1(Basic Rate ISDN PRI) ports. The X204 series cards allow Asterisk
to connect to your phone network, creating an office type telephony
environment.
Figure 1 Topology
X204 hybrid telephony card User Manual
8
OpenVox Communication Co. LTD. URL: www.openvox.cn
Figure2 Sample Card Application for FXO/FXS/BRI/E1
What is Asterisk
The Definition of Asterisk is described as follows:
Asterisk is a complete PBX in software. It runs on Linux, BSD, Windows
(emulated) and provides all of the features you would expect from a PBX
and more. Asterisk does voice over IP in four protocols, and can
interoperate with almost all standard-based telephony equipments using
relatively cost-effective hardware. Asterisk provides Voicemail services
with Directory, Call Conferencing, Interactive Voice Response, and Call
Queuing. It supports three-way calling, caller ID services, ADSI, IAX,
SIP, H323 (as both client and gateway), MGCP (call manager only) and
SCCP/Skinny (voip-info.org).
X204 hybrid telephony card User Manual
9
OpenVox Communication Co. LTD. URL: www.openvox.cn
Asterisk as a Phone Switch (PBX)
Asterisk can be configured as the core of an IP or hybrid PBX, switching
calls, managing routes, enabling features, and connecting callers with the
outside world over IP, analog (POST), and digital (T1/E1/J1/BRI)
connections.
Asterisk runs on a wide variety of operating systems including Linux,
Mac OS X, OpenBSD, and Sun Solaris. It provides all of the features you
would expect from a PBX including many advanced features that are
often associated with high end (and high cost) proprietary PBXs.
Asterisk’s architecture is designed for maximum flexibility and supports
Voice over IP in many protocols, and can interoperate with almost all
standards-based telephony equipment using relatively inexpensive
hardware.
Asterisk as a Gateway
It can also be built out as the heart of a media gateway, bridging the
legacy PSTN to the expanding world of IP telephony. Asterisk’s modular
architecture allows it to convert between a wide range of communications
protocols and media codecs.
What is X204 Series Hybrid telephony card?
OpenVox X204 hybrid telephony card is a PCI 2.2 compliant card which
X204 hybrid telephony card User Manual
10
OpenVox Communication Co. LTD. URL: www.openvox.cn
supports 3 types interface: FXO/FXS, BRI and T1/E1/ J1. X204 Series
card allows users to choose the number of FXO/FXS module according to
individual needs. With no additional separate channel combiner and
gateway access to products, each interface access 2 analog line via
junction box. BRI ports can be configured for TE or NT mode
individually by jumpers. It can provide 4 simultaneous voice calls over 2
ISDN BRI lines, turns your legacy ISDN BRI equipment into powerful
Voice over IP devices and provides a soft migration path from ISDN
technology to the new Voice over IP world. T1/E1/ J1 interface is
selectable on a per-card or per-port basis, and supports industry standard
telephony and data protocols, including Primary Rate ISDN (both
American and Standard Euro) protocol families for voice, PPP, Cisco,
HDLC, and Frame Relay data modes. Both line-side and trunk-side
interfaces are supported.
X204 Series Card works perfectly with open source Asterisk® and
enables users to take full advantages of the high performance and rich
features of Asterisk®.
Target applications
Channel Bank Replacement / Alternative
Small Office Home Office (SOHO) applications
Small and Medium Business (SMB) applications
X204 hybrid telephony card User Manual
11
OpenVox Communication Co. LTD. URL: www.openvox.cn
Gateway Termination to analog telephones/lines
High Performance ISDN interface Cards
ISDN PABX for BRI
ISDN LAN Routers for BRI
ISDN Least Cost Routers for BRI
ISDN Test Equipment for BRI
Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP And IAX2)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/SS7/R2 Compatibility-Network or CPE
Main features
BRI Features:
Up to 4 Simultaneous Voice Calls Over 2 ISDN BRI Lines Per PCIe
Slot)
Mix TE and NT Modes as Required
TE/CPE mode: BRI or PRI module can be used as transceiver
synchronous clock, and the clock source line does not require link to
the card
X204 hybrid telephony card User Manual
12
OpenVox Communication Co. LTD. URL: www.openvox.cn
T1/E1/J1 Features:
Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
One T1/E1/J1 port with PCI interface for high performance voice and
data applications
FXO/FXS Features:
Caller ID and Call Waiting
ADSI Telephones
Loopstart Signaling Support
Adjustable Interrupt Routing Design
Interrupts Frequency Adjustment
Up to 2 simultaneous PSTN Calls (Per FXO200M module)
Compatible with All Commercially Available Motherboards
Supports PCI Express 1.0 or above
4 RJ-45 interfaces on a single PCI bracket
RoHS compliant
Certificates:
CE, FCC, A-Tick
Trixbox TM Officially Certified
Elastix® Officially Certified
X204 hybrid telephony card User Manual
13
OpenVox Communication Co. LTD. URL: www.openvox.cn
Card identification
There are multiple configurations in which an X204 series card may be
purchased. Each configuration consists of a combination of single modules,
quad modules, or according to your need in any combination.
X204 hybrid telephony card User Manual
14
OpenVox Communication Co. LTD. URL: www.openvox.cn
Chapter 2 Hardware Setup
There are some points should be paid attention to when setting up X204
series card.
Slot compatibility
Check the slots on your motherboard to verify that you have a slot
available which is compatible with the X204 series card. To determine
which slots you have on your motherboard, identify them by comparing
them to those shown in the following figure.
64-bit 5.0V PCI slot
64-bit 3.3V PCI slot
32-bit 5.0V PCI slot
PCI-E ×1 slot
32-bit 3.3V PCI slot
1
2
3
4
5
Figure3 PCI-E and PCI slots
Hardware Installation
1. Now that you are acquainted with your card, power down your
computer.
2. Attach an anti-static strap to your wrist and open the case.
X204 hybrid telephony card User Manual
15
OpenVox Communication Co. LTD. URL: www.openvox.cn
3. Remove the bracket place holder and insert the card into a PCI or PCI
Express slot. See the following figure3.
Figure4 Insert the card
4. Replace the cover to your computer.
5. Plug all analog telephone lines to the FXO ports (corresponding to the
red modules) and all analog phones to the FXS ports (green modules)
as needed using a patch panel, punch block, or the provided BRI
RJ11-to-RJ45 cables.
6.
Caution: This unit must be connected to the
Telecommunications. Network in your country using an
approved cord, e.g. :for Australia use only line cords
complying with AS/CAS008:2010.
X204 hybrid telephony card User Manual
16
OpenVox Communication Co. LTD. URL: www.openvox.cn
Caution: only connect regulatory equipment (approved
for use in your specific country) to the telecommunications
network voltage circuit port.
Connecting a Timing Cable
The timing port allows up to three X204 series card to share the same
sync (timing) source from the BRI line provider, or provide a consistent
sync source across multiple cards. This is a useful feature foe fax modes
and some voice applications to prevent corruption due to timing slips on
the second and third X204 series cards.
FXO/FXS, BRI and E1 Connection
The X204 series cards provide two RJ11 connectors for access to the
FXO/ FXS and BRI modules installed in the available. Using a standard
RJ45 telephone cable extend to two of the RJ11 connectors associated
with an FXO/FXS module on the X204 series card. Using a standard
RJ45 cable extend to two of the RJ45 connectors associated with a BRI
module on the X204 series card. There is no extension with E1 on the
X204 series card.
X204 hybrid telephony card User Manual
17
OpenVox Communication Co. LTD. URL: www.openvox.cn
Chapter 3 Software Installation and Configuration
Software Installation
DAHDI software packages are available on OpenVox official website or
Digium. Some patches should be applied when the driver source is from
Digium. Therefore, it is recommended that downloading the DAHDI
driver package from OpenVox official website.
Download
Gain DAHDI source package from OpenVox:
http://downloads.openvox.cn/pub/drivers/dahdi-linux-complete/openvox_dahdi-linux-complete-
2.11.1+2.11.1.tar.gz
Get Libpri and Asterisk software packages from Digium official website:
http://downloads.asterisk.org/pub/telephony/libpri/libpri-1.4.14.tar.gz
http://downloads.asterisk.org/pub/telephony/asterisk/oldreleases/asterisk-1.8.22.0.tar.gz
Execute the following commands under the directory of /usr/src/ in
generally to download and decompress these packages:
#_wget_http://downloads.asterisk.org/pub/telephon
y/libpri/releases/libpri-1.4.14.tar.gz
# tar -zxvf libpri-1.4.14.tar.gz
#_wget_http://downloads.openvox.cn/pub/drivers/da
X204 hybrid telephony card User Manual
18
OpenVox Communication Co. LTD. URL: www.openvox.cn
hdi-linux-complete/openvox_dahdi-linux-complete-
current.tar.gz
#_tar_-xvzf_openvox_dahdi-linux-complete-
current.tar.gz
#_wget_http://downloads.asterisk.org/pub/telephon
y/asterisk/releases/asterisk-1.8.22.0.tar.gz
# tar -zxvf asterisk-1.8.22.0.tar.gz
Installation
Hardware detection
# lspci –vvvv
Check the outcome and confirm your system has recognized X204. If it
has been recognized, "Network controller" will be displayed in the output
information like that:
Unassigned class [ff00]: Device 1b74:c200 (rev 01)
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINVVGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap- 66MHz- UDF- FastB2B- ParErrDEVSEL=slow >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 32, Cache Line Size: 4 bytes
Interrupt: pin A routed to IRQ 19
Region 0: Memory at fdef8000 (32-bit, non-prefetchable)
[size=32K]
Kernel driver in use: x200
Kernel modules: x200
X204 hybrid telephony card User Manual
19
OpenVox Communication Co. LTD. URL: www.openvox.cn
If X204 is not recognized by the system, you have to power off and take
out the card to insert it into another PCI slot.
Software installation
Some dependencies are crucial. If any of them is absent, the software
installation process would not go through successfully. Let’s run "yum
install XX" (XX stands for the dependency’s name) to check the
availability of dependencies.
# yum install bison
# yum install bison-devel
# yum install ncurses
# yum install ncurses-devel
# yum install zlib
# yum install zlib-devel
# yum install openssl
# yum install openssl-devel
# yum install gnutls-devel
# yum install gcc
# yum install gcc-c++
# yum install libxml2
# yum install libxml2-devel
# yum install libxml2-devel
X204 hybrid telephony card User Manual
20
OpenVox Communication Co. LTD. URL: www.openvox.cn
If there is no kernel-devel source in the system, users
should run the following command to install the kerneldevel to peer current kernel:
# yum install kernel-devel-`uname –r`
While if there is no matched kernel-devel found, you should download
matched RPM package to install it, or execute the following command to
update to the latest and stable kernel version:
# yum install kernel kernel-devel
After installed, please reboot your machine to apply the new kernel and
install the dependencies. If the dependency has been installed, system
indicates that nothing to do which means you could go to next one
directly. Otherwise, the system will keep on installing it.
Change to the directory dahdi-linux-complete-XX (XX represents
DAHDI version), then perform commands one by one to install DAHDI.
# cd /usr/src/dahdi-linux-complete-2.11.1+2.11.1
# make
# make install
# make config
X204 hybrid telephony card User Manual
21
OpenVox Communication Co. LTD. URL: www.openvox.cn
Caution: If there is something wrong after "make",
please refer to HERE. In the url link, the moderator
introduces you a method how to patch. After patching,
save your changes and exit. Then run "make" again, if successfully done,
it is time for you to install Libpri and Asterisk.
Please execute those commands to install Libpri and Asterisk:
# cd ../libpri-1.4.14
# make
# make install
# cd ../asterisk-1.8.22.0
# ./configure
# make
# make install
# make samples
X204 hybrid telephony card User Manual
22
OpenVox Communication Co. LTD. URL: www.openvox.cn
"make samples" will install the standard
sample configuration file in the directory /etc/asterisk. As a
freshman, you should perform "make samples", that is
to say, it is unnecessary to perform "make samples"
every time. Because once performed, it will cover the old sample
configuration files you have installed.
Driver Configuration
1. Driver loading
After compiling and installing DAHDI and Asterisk, please load the
driver by running:
# modprobe dahdi
#modprobe x200
# modprobe d100m
#modprobe b200m
#modprobe fxs200m
#modprobe fxo200m
# dahdi_genconf
If there is any error, please trace the cause. Until all errors are clear
up,you could execute "dahdi_genconf" again, and then go to the next
step.By running "dahdi_genconf", it will generate /etc/dahdi/system.conf
X204 hybrid telephony card User Manual
23
OpenVox Communication Co. LTD. URL: www.openvox.cn
and etc/asterisk/dahdi-channels.conf automatically. Checking whether the
generated files information agrees with your hardware setup, if not, you
should modify to your specific requirements. Do not forget to confirm
dahdi-channels.conf is included in chan_dahdi.conf, if not, run command:
# echo "#include dahdi-channels.conf" >> /etc/asterisk/chan_dahdi.conf
A part of system.conf which is one of the basic channel configuration
files is displayed.
# Span 1: D100M1/0 "OpenVox D100M (E1|T1) Card 0/0"
CCS/HDB3/CRC4 RED
span=1,1,0,ccs,hdb3,crc4
# termtype: te
bchan=1-15,17-31
dchan=16
echocanceller=mg2,1-15,17-31
# Span 2: B200M/1 "OpenVox B200M (NT|TE) Card 1 Span 1"
AMI/CCS RED
span=2,2,0,ccs,ami
# termtype: te
bchan=32-33
hardhdlc=34
echocanceller=mg2,32-33
# Span 3: B200M/2 "OpenVox B200M (NT|TE) Card 1 Span 2"
AMI/CCS RED
span=3,3,0,ccs,ami
# termtype: te
bchan=35-36
hardhdlc=37
echocanceller=mg2,35-36
# Span 4: FXO200M/3 "OpenVox FXO200M Card 3" (MASTER)
fxsks=38
X204 hybrid telephony card User Manual
24
OpenVox Communication Co. LTD. URL: www.openvox.cn
echocanceller=mg2,38
fxsks=39
echocanceller=mg2,39
# Span 5: FXS200M/2 "OpenVox FXS200M Card 2"
fxoks=40
echocanceller=mg2,40
fxoks=41
echocanceller=mg2,41
# Global data
loadzone = us
defaultzone = us
2. Country mode modification
In order to match your country pattern, you need to change parameters
loadzone and defaultzone to your country. For example, your system is in
CHINA, you would like them change to:
loadzone = cn
defaultzone = cn
Some zonedata is available in the file
../dahdi-XX/tools/zonedata.c, you can refer to it to match
your country mode. Meanwhile, you also need to modify
another parameter which is in file
/etc/asterisk/indications.conf.
country=cn
X204 hybrid telephony card User Manual
25
OpenVox Communication Co. LTD. URL: www.openvox.cn
A part of file /etc/asterisk/dahdi-channels.conf is showed as below.
(Modification, if it is not agree with the hardware setup)
# Span 1: D100M1/0 "OpenVox D100M (E1|T1) Card 0/0"
CCS/HDB3/CRC4 RED
group=0,11
context=from-pstn
switchtype = euroisdn
signalling = pri_cpe
channel => 1-15,17-31
context = default
group = 63
; Span 2: B200M/1 "OpenVox B200M (NT|TE) Card 1 Span 1"
AMI/CCS RED
group=0,12
context=from-pstn
switchtype = euroisdn
signalling = bri_cpe_ptmp
channel => 32-33
context = default
group = 63
; Span 3: B200M/2 "OpenVox B200M (NT|TE) Card 1 Span 2"
AMI/CCS RED
group=0,13
context=from-pstn
switchtype = euroisdn
signalling = bri_cpe_ptmp
channel => 35-36
context = default
group = 63
; Span 4: FXS200M/2 "OpenVox FXS200M Card 2" (MASTER)
;;; line="38 FXS200M FXOKS (EC: MG2 - INACTIVE)"
signalling=fxo_ks
callerid="Channel 38" <4038>
mailbox=4038
group=5
context=from-internal
channel => 38
X204 hybrid telephony card User Manual
26
OpenVox Communication Co. LTD. URL: www.openvox.cn
callerid=
mailbox=
group=
context=default
;;; line="39 FXS200M FXOKS (EC: MG2 - INACTIVE)"
signalling=fxo_ks
callerid="Channel 39" <4039>
mailbox=4039
group=5
context=from-internal
channel => 39
callerid=
mailbox=
group=
context=default
; Span 5: FXO200M/3 "OpenVox FXO200M Card 3"
;;; line="40 FXO200M FXSKS (EC: MG2 - INACTIVE)"
signalling=fxs_ks
callerid=asreceived
group=0
context=from-pstn
channel => 40
callerid=
group=
context=default
;;; line="41 FXO200M FXSKS (EC: MG2 - INACTIVE)"
signalling=fxs_ks
callerid=asreceived
group=0
context=from-pstn
channel => 41
callerid=
group=
context=default
Figure 5 A part of dahdi-channels.conf
After modifying the country mode, please execute the following
command:
X204 hybrid telephony card User Manual
27
OpenVox Communication Co. LTD. URL: www.openvox.cn
# dahdi_cfg –vvvvvv
The command is used for reading and loading parameters in the
configuration file system.conf and writing to the hardware. A part
ofoutputs are showed in the following figure.
[root@localhost ~]# dahdi_cfg -v
DAHDI Tools Version - 2.10.2
DAHDI Version: 2.10.2
Echo Canceller(s): MG2
Configuration
======================
SPAN 1: CCS/HDB3 Build-out: 0 db (CSU)/0-133 feet (DSX-1)
SPAN 2: CCS/ AMI Build-out: 0 db (CSU)/0-133 feet (DSX-1)
SPAN 3: CCS/ AMI Build-out: 0 db (CSU)/0-133 feet (DSX-1)
41 channels to configure.
Setting echocan for channel 1 to none
Setting echocan for channel 2 to none
Setting echocan for channel 3 to none
Setting echocan for channel 4 to none
Setting echocan for channel 5 to none
Setting echocan for channel 6 to none
Setting echocan for channel 7 to none
Setting echocan for channel 8 to none
Setting echocan for channel 9 to none
Setting echocan for channel 10 to none
Setting echocan for channel 11 to none
Setting echocan for channel 12 to none
……
……
Setting echocan for channel 32 to none
Setting echocan for channel 33 to none
Setting echocan for channel 34 to none
Setting echocan for channel 35 to none
X204 hybrid telephony card User Manual
28
OpenVox Communication Co. LTD. URL: www.openvox.cn
Setting echocan for channel 36 to none
Setting echocan for channel 37 to none
Setting echocan for channel 38 to none
Setting echocan for channel 39 to none
Setting echocan for channel 40 to none
Setting echocan for channel 41 to none
Figure 6 Channel map
Asterisk initiation
# asterisk –vvvvvvvgc
If Asterisk is already activate, run "asterisk –r" instead. In the CLI,
please run the following command:
localhost*CLI> dahdi show channels
1 from-pstn default In Service
2 from-pstn default In Service
3 from-pstn default In Service
4 from-pstn default In Service
5 from-pstn default In Service
6 from-pstn default In Service
7 from-pstn default In Service
8 from-pstn defaul In Service
9 from-pstn default In Service
10 from-pstn default In Service
11 from-pstn default In Service
12 from-pstn default In Service
13 from-pstn default In Service
14 from-pstn default In Service
15 from-pstn default In Service
17 from-pstn default In Service
1 from-pstn default In Service
19 from-pstn default In Service
20 from-pstn default In Service
21 from-pstn default In Service
22 from-pstn default In Service
X204 hybrid telephony card User Manual
29
OpenVox Communication Co. LTD. URL: www.openvox.cn
23 from-pstn default In Service
24 from-pstn default In Service
25 from-pstn default In Service
26 from-pstn default In Service
27 from-pstn default In Service
36 from-pstn default In Service
38 from-internal default In Service
39 from-internal default In Service
40 from-pstn default In Service
41 from-pstn default In Service
Figure 7 channels show
If DAHDI channels are found, it means they have been loaded into
Asterisk successfully. You are going to edit dialplan by your
requirements
4. Dialplan edit
Users must make sure that the context "from-pstn" and "from-internal"
are in extensions.conf, here a E1 simple example is given:
# vim /etc/asterisk/extensions.conf
[from-pstn]
exten => s,1,Answer() // answer the inbound call
exten =>s,n,Playback(cc_welcome)
exten => s,n,Hangup()
[from-internal]
exten => _X.,1,Dial(dahdi/g0/${EXTEN})
exten => _X.,n,Hangup()
Chapter 5 FXO, FXS, BRI and E1 Explained
Identification
There are multiple configurations in which an X204 series card may be
X204 hybrid telephony card User Manual
30
OpenVox Communication Co. LTD. URL: www.openvox.cn
purchased. Each configuration consists of a number of FXS, FXO, BRI
and/or E1 modules. These modules are identified by their color.
FXS-Foreign Exchange Station (Green Modules)
FXO-Foreign Exchange Office (Red Modules)
BRI- Basic Rate ISDN (Green Modules)
E1-Basic Rate ISDN PRI(Green Modules）
This chapter provides a review of the four module types and their uses
within your Asterisk server.
Note: Only qualified service personnel should be install the card. User
should not attempt to perform this function themselves.
FXS Module
The FXS module allows an X204 series card to initiate and send ringing
voltage to an FXO device such as an analog telephone. Because of the
module design, you can activate additional ports at any time with more
FXS daughter cards.
FXO Module
The FXO module allows an X204 series card to determinate analog
telephone line (POTS). The FXO module passes all the call features any
standard analog telephone line will support. The phone receiving the call
is the last FXO device in the chain. When it receives voltage from an
FXS device, the phone rings. Because of the modular design, you can
X204 hybrid telephony card User Manual
31
OpenVox Communication Co. LTD. URL: www.openvox.cn
activate additional ports at any time with more FXO daughter cards.
BRI Module
You are able to set a port to NT or TE mode, please refer to figure 3 for
visualized information.
If a port works on NT mode, you should set jumper to CONNECT
(ON).
If a port works on TE mode, theoretically it should be set to OPEN
(OFF), but it might connect to some non-standard ISDN terminal
equipments that do not have terminal resistors, for such equipments,
you should set it to CONNECT(ON).
These jumpers control whether supply power to the external ISDN
terminals. You should adjust accordingly as follows:
If the port works on TE mode, you MUST set the jumper to
OPEN(OFF)
There are two aspects when ports work on NT mode. If the ISDN
terminal has the function of power supply, you should set the jumper
to OPEN (OFF); If ISDN terminal isn’t self- powered, you should set
the jumper to CONNECT (ON).
X204 hybrid telephony card User Manual
32
OpenVox Communication Co. LTD. URL: www.openvox.cn
Channel ①/②: when channe1turn to
Power feeding to feed S/T interface
enable. When channel turn to NT,
power feeding to feed S/T interface
disable.
Figure 8 BRI Module Jumper Settings
E1 module
The default module is E1 module, if you change to T1 module, when
adding parameters you need to load drivers.
T1 module : modmodprobe d100m t1e1override=0
E1 module : modprobe d100m t1e1override=1
Two configuration files need to be modified: /etc/dahdi/system.conf
span=1,1,0,esf,b8zs
bchan=1-24
dchan=25
/etc/asterisk/dahdi-channels.conf
; Span 1: D100M1/0 "OpenVox D100M (E1|T1) Card 0/0"
CCS/HDB3/CRC4 RED
group=0,11
context=from-pstn
switchtype = euroisdn
signalling = pri_cpe
X204 hybrid telephony card User Manual
33
OpenVox Communication Co. LTD. URL: www.openvox.cn
channel => 1-31
context = default
group = 63
Clock sources
BRI module and E1 module both have a clock source , without
connecting to any clock source interface, just need to change the master
clock and the slave clock in the profile.
/etc/dahdi/system.conf
An example shown as below:
# Span 1: D100M1/0 "OpenVox D100M (E1|T1) Card 0/0"
CCS/HDB3/CRC4 RED
span=1,1,0,ccs,hdb3,crc4 #the middle digital“1”stand
for master clock
# termtype: te
bchan=1-15,17-31
dchan=16
# Span 2: B200M/1 "OpenVox B200M (NT|TE) Card 1 Span 1"
AMI/CCS RED
span=2,0,0,ccs,ami # the middle digital “0”stand for
slave clock.
# termtype: te
bchan=32-33
hardhdlc=34
X204 hybrid telephony card User Manual
34
OpenVox Communication Co. LTD. URL: www.openvox.cn
Appendix A Specifications
Weight and size
Weight: 144g
Size: 200mm*78mm
Interface
PCI Bus: Be compatible with PCI-E ×1, ×2, ×4, ×8, ×16
Local Loop Access: Four industry standard RJ-11 ports
Environment
Temperature: 0 ~ 50°C (Operation), -40 ~ 125°C (Storage)
Humidity: 10 ~ 90% NON-CONDENSING
Power consumption
Voltage: 3.3V, 5V, 12V
Power Dissipation: 18.25W Maximum
Hardware and software requirements
RAM 128 + MB
Linux kernel 2.4.X or 2.6.X
CPU 800+ MHZ
X204 hybrid telephony card User Manual
35
OpenVox Communication Co. LTD. URL: www.openvox.cn
Appendix B PIN Assignments
Table B-1 RJ11 Telco Port Connector for FXO/FXS
PIN
Assignments
1
Not used
2
Not used
3
TIP2
4
TIP1
5
RING1
6
RING2
7
Not used
8
Not used
X204 hybrid telephony card User Manual
36
OpenVox Communication Co. LTD. URL: www.openvox.cn
Table B-2 RJ45 ISDN BRI S/T Port Connector
PIN
TE
NT
1
T2+
R2+
2
R2+
T2+
3
T1+
R1+
4
R1+
T1+
5
R1-
T1-
6
T1-
R1-
7
R2-
T2-
8
T2-
R2-
X204 hybrid telephony card User Manual
37
OpenVox Communication Co. LTD. URL: www.openvox.cn
Table B-3 RJ11 Telco Port Connector for E1
PIN
Assignm
ents
1
RL1
2
RL2
3
Not used
4
XL1
5
XL2
6
Not used
7
Not used
8
Not used
Loading...
