1. Overview
What is VS-GW1202-4G?
OpenVox VoxStack Series GSM Gateway is an open source asterisk-based GSM VoIP Gateway
solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily
setup their customized Gateway. Also secondary development can be completed through AMI
(Asterisk Management Interface).
There are three models with VoxStack series GSM Gateway WGW1002G, VS-GW1202-4/8G and
VS-GW1600-20G. There are 2 GSM channels in WGW1002G and 4/8 GSM channels in
VS-GW1202-8G. The Modular Design GSM Gateways are ranging from 4 up to 20 GSM channels on
the VS-GW1600 series gateways, developed for interconnecting the GSM cellular networks with a
wide selection of codecs and signaling protocol, including G.711A, G.711U, G.729, G.722, G.723,
G.726 and GSM to quickly reduce communication expenses and maximize cost-savings. With the
unique design of the VoxStack gateway, it can support hot-swap for both SIM cards and GSM
gateway modules. Users can simply add or remove the modules for hardware expansion or
exchange.
The VoxStack gateway designs with 2 LAN switch boards to provide stack ability on the hardware
upgrade, and five VS-GWM400G modules which are independent with each other, so each one has
a GUI configuration web. If you connect to ETH1, you can access Board 1 only and access other
boards with different port numbers which can avoid IP conflict. Otherwise if you connect to ETH2,
you can access different Boards with different IP addresses.
Our products support SMS messages sending, receiving, group sending and SMS to E-mail. The
GSM gateway will be 100% compatible with Asterisk, Elastix, trixbox, 3CX, FreeSWITCH SIP server
and VOS VoIP operating platform.
OpenVox Communication Co.Ltd
1
Sample Application
VS-GW1202-4G User Manual
Figure 1-2-1 Topological Graph
Product Appearance
The picture below is appearance of VS-GW1202-4G.
OpenVox Communication Co.Ltd
Figure 1-3-1 Product Appearance
2
5
8
6
7
4
SIM Slot
Reset
SIM Card
Reset
Figure 1-3-2 Front Panel
1
2
3
ETH1
ETH2
ACT2
ACT1
PWR
+12V
LED Indicator
Color
Status
Network Status LED
Green and Flash
Network Connected
Signal Status LED
Green and Flash
Module Initiating
Red and Flash
No SIM Card
Red and No-flash
Worst Signal Quality
Yellow and No-flash
Medium Signal Quality
Green and No-flash
Best Signal Quality
VS-GW1202-4G User Manual
Figure 1-3-3 Back Panel
~Network Data Switch Board: ETH1, ETH2.
ETH1: Access Board 1 only, provide proxy access to other boards with different port numbers
which can avoid IP conflict.
ETH2: Access different Boards with different IP address.
Table 1-3-1 LED Indicator
OpenVox Communication Co.Ltd
3
VS-GW1202-4G User Manual
Call Status LED
Flash (0.25s)
Communicating
Blind
Normal
Running Status LED
Green and Flash(0.5s)
Work Normally
Power Indicator
Always Green
Supply Power
During reset, all LED indicators flash.
Stack Num
IP
Username
Password
○
1
172.16.99.1
admin
admin
○
2
172.16.99.2
admin
admin
VoxStack provides 2 working modes: Stand-alone and Cluster.
Stand-alone: A single IP address manages one GSM modules (4 ports).
Table 1-3-2 ETH2 IP Addresses
Cluster: A single IP address manages up to 2 GSM modules (up to 8 ports).
Default IP: 172.16.99.1
Main Features
Modular and VoxStack design
Based on Asterisk
Editable Asterisk
Wide selection of codecs and signaling protocol
Support SMS sending, receiving, group sending
Support transferring SMS to E-mail
Support SMS automatically resent
Support SMS remotely controlling gateway
Support USSD service
○R
○R
configuration file
Support IMEI modification
Support PIN identification
Support unlimited routing rules and flexible routing settings
OpenVox Communication Co.Ltd
4
Weight
1300g
Size
15cm*19cm*4.5cm
Frequency
GSM 850/900/1800/1900MHz
Temperature
-20~70°C (Storage)
0~40°C (Operation)
Operation humidity
10%~90% non-condensing
Power source
12V DC/4A
Max power
10W
LAN port
2
SIM cards and modules are all hot-swap
Stable performance, flexible dialing, friendly GUI
Physical Information
Table 1-5-1 Description of Physical Information
VS-GW1202-4G User Manual
Software
Default IP: 172.16.99.1
Username: admin
Password: admin
Every VS-GWM400G is independent with each other, please enter the default IP in your browser to
scan and configure the module you want. For the first time, please enter every IP to configure
every module one by one. Now we offer you two ways to access to your gateway. There are two
RJ45 Network ports on the board, ETH1 and ETH2. They are different. If choose ETH1, you can
access Board 1 only, then access to other boards with different port numbers but the same IP
address, this will help to avoid IP conflict. If you choose ETH2, you can access different Boards with
different IP addresses.
Notice: Log in
OpenVox Communication Co.Ltd
5
Figure 1-6-1 LOG IN Interface
VS-GW1202-4G User Manual
OpenVox Communication Co.Ltd
6
VS-GW1202-4G User Manual
Options
Definition
Port
Number of GSM ports.
Signal
Display the signal strength of in each channels of GSM.
BER
Bit Error Rate.
Carrier
Display the network carrier of current SIM card.
Registration Status
Indicates the registration status of current GSM module.
2. System
Status

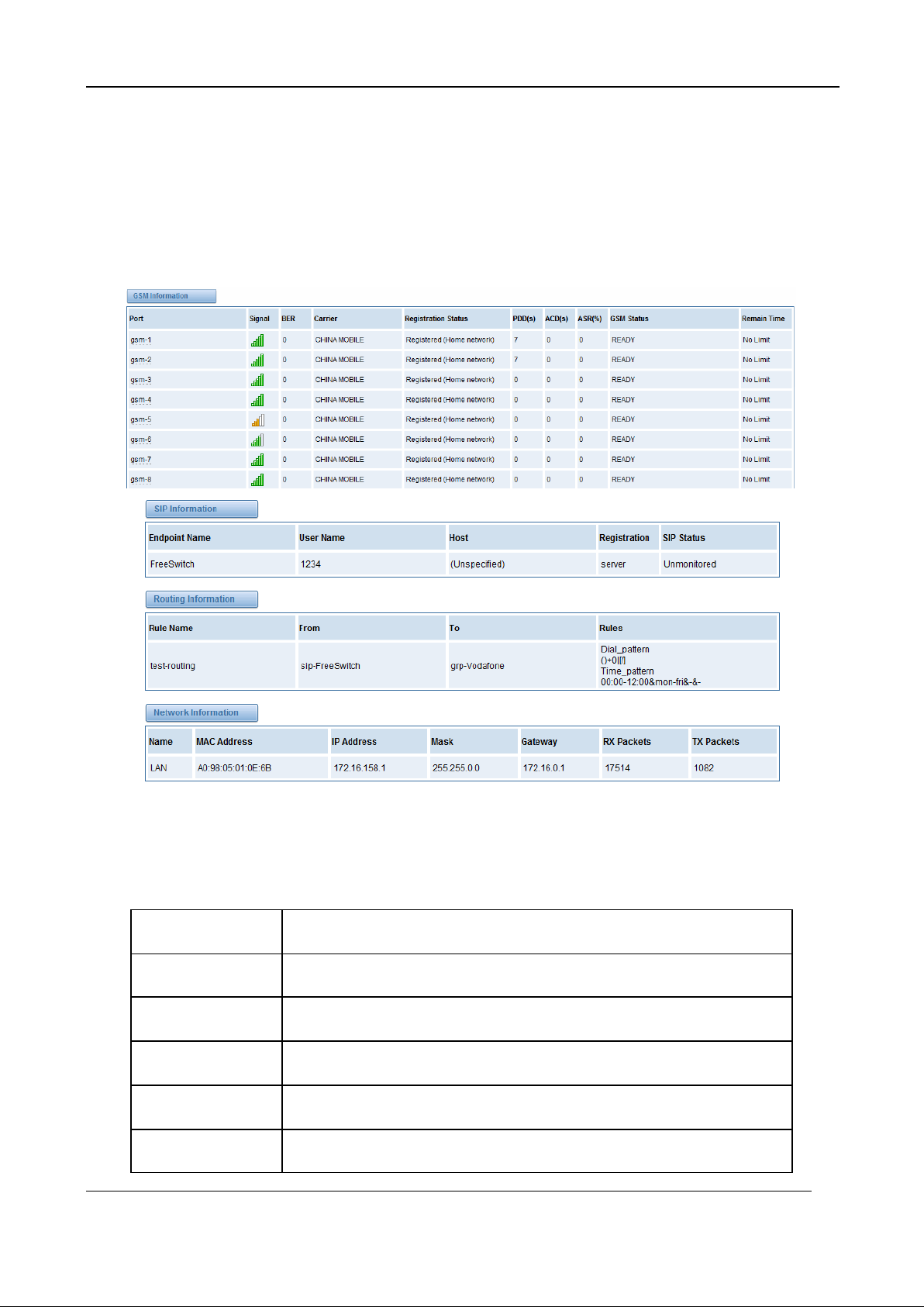

On the “Status” page, you will find all GSM, SIP, Routing, Network information and status.
OpenVox Communication Co.Ltd
Figure 2-1-1 System Status
Table 2-1-1 Description of System Status
7
VS-GW1202-4G User Manual
PDD
Post Dial Delay (PDD) is experienced by the originating customer as the
time from the sending of the final dialed digit to the point at which they
hear ring tone or other in-band information. Where the originating
network is required to play an announcement before completing the call
then this definition of PDD excludes the duration of such announcements.
ACD
The Average Call Duration (ACD) is calculated by taking the sum of billable
seconds (bill sec) of answered calls and dividing it by the number of these
answered calls.
ASR
Answer Seizure Ratio is a measure of network quality. Its calculated by
taking the number of successfully answered calls and dividing by the total
number of calls attempted. Since busy signals and other rejections by the
called number count as call failures, the ASR value can vary depending
on user behavior.
GSM Status
Show the status of port, include blank space and “READY”. Black space
means it is unavailable here and “Ready” means the port is available.
Remain Time
This value is multiplied by to step length is a rest call time.
Options
Definition
System Time
Your gateway system time.
Time Zone
The world time zone. Please select the one which is the same or
the closest as your city.
POSIX TZ String
Posix time zone strings.
NTP Server 1
Time server domain or hostname. For example, [time.asia.apple.com].
NTP Server 2
The first reserved NTP server. For example, [time.windows.com].
NTP Server 3
The second reserved NTP server. For example, [time.nist.gov].
Auto-Sync from NTP
Whether enable automatically synchronize from NTP server or not. ON is
enable, OFF is disable this function.
Time
Table 2-2-1 Description of Time Settings
OpenVox Communication Co.Ltd
8
Sync from NTP
Sync time from NTP server.
Sync from Client
Sync time from local machine.
Options
Definition
User Name
Define your username and password to manage your gateway,
without space here. Allowed characters
"-_+. < >&0-9a-zA-Z". Length: 1-32 characters.
For example, you can configure like this:
VS-GW1202-4G User Manual
Figure 2-2-1 Time Settings
You can set your gateway time Sync from NTP or Sync from Client by pressing different buttons.
Login Settings
Your gateway doesn't have administration role. All you can do here is to reset what new username
and password to manage your gateway. And it has all privileges to operate your gateway. You can
modify “Web Login Settings” and “SSH Login Settings”. If you have changed these settings, you
don’t need to log out, just rewriting your new user name and password will be OK. Also you can
specify the web server port number.
Table 2-3-1 Description of Login Settings
OpenVox Communication Co.Ltd
9
VS-GW1202-4G User Manual
Password
Allowed characters "-_+. < >&0-9a-zA-Z".
Length: 4-32 characters.
Confirm
Password
Please input the same password as 'Password' above.
Port
Specify the web server port number.
Figure 2-3-1 Login Settings
Notice: Whenever you do some changes, do not forget to save your configuration.
General and Cluster
Language Settings
You can choose different languages for your system. If you want to change language, you can
switch “Advanced” on, then “Download” your current language package. After that, you can
modify the package with the language you need. Then upload your modified packages, “Choose
File” and “Add”.
OpenVox Communication Co.Ltd
10
VS-GW1202-4G User Manual
Figure 2-4-1 Language Settings
Scheduled Reboot
If switch it on, you can manage your gateway to reboot automatically as you like. There are four
reboot types for you to choose, “By Day, By Week, By Month and By Running Time”.
Figure 2-4-2 Reboot Types
If use your system frequently, you can set this enable, it can helps system work more efficient.
Working Mode
OpenVox GSM Gateway offers you two ways to cluster your gateway: Automatic Cluster or Manual
Cluster.
When you first time log in your gateway, you will only see 4 ports of one module. Then you can
press button, the system will search other modules in the LAN and
communicate.
OpenVox Communication Co.Ltd
Figure 2-4-3 Automatic Cluster
11
VS-GW1202-4G User Manual
Options
Definition
Mode
Stand-alone Mode
Master Mode
Slave Mode
Password
(master mode)
Master Mode password.
Must be 4~16 bits digital 0-9.
If you want to choose Manual Cluster, you should switch Detail on first.
There are five VS-GWM400G modules which are independent with each other integrated in one
GSM Gateway, so we offer 3 kinds of Working Modes.
Figure 2-4-4 Working Modes
Stand-alone Mode: Run alone, total 4 ports.
Master Mode: Run as master with two different IP, controlling up to two slaves.
(The master can be accessed by the original IP. The target IP is used to communicate with the
slaves.)
Slave Mode: Run as slave with two different IP, controlled by the master. If the original IP is
forbidden, the slave can be accessed by the master with inward IP only.
Notice: You can choose Remain Original IP address ON or OFF. If set it on, you can log in your getaway
with Original IP and Target IP.
Table 2-4-1 Definition of Master Options
OpenVox Communication Co.Ltd
12
VS-GW1202-4G User Manual
Master IP(Local IP)
(master mode)
Master’s target IP.
Must be set in the subnet different from external subnet,
so that the external subnet couldn’t access internal subnet.
Slaves IP List
Set the slaves’s original and target IP. The original IP is outward IP, and the
target IP is inward IP. Up to four slaves.
Options
Definition
System Reboot
This will turn off your gateway and then turn it back on. This
will drop all current calls.
Asterisk Reboot
This will restart Asterisk and drop all current calls.
Tools and Information
On the “Tools” pages, there are reboot, update, upload, download and reset toolkits.
Reboot Tools
You can choose system reboot and Asterisk reboot separately.
Figure 2-5-1 Reboot Prompt
If you press “Yes”, your system will reboot and all current calls will be dropped. Asterisk Reboot is
the same.
Table 2-5-1 Instruction of reboots
We offer 2 kinds of update types for you, you can choose System Update or System Online Update.
System Online Update is an easier way to update your system, if you choose it, you will see some
information below.
OpenVox Communication Co.Ltd
13
VS-GW1202-4G User Manual
Figure 2-5-2 Prompt Information
If you want to update your system and remain your previous configuration, you can first backup
configuration, then you can upload configuration directly. That will be very convenient for you.
Figure 2-5-3 Upload and Download
Sometimes there is something wrong with your gateway that you don’t know how to solve it,
mostly you will select factory reset. Then you just need to press a button, your gateway will be
reset to the factory status.
Figure 2-5-4 Factory Reset
Information
On the “Information” page, there shows some basic information about the GSM gateway. You can
see software and hardware version, storage usage, memory usage and some help information.
OpenVox Communication Co.Ltd
14
VS-GW1202-4G User Manual
Figure 2-5-5 System Information
OpenVox Communication Co.Ltd
15
3. GSM
You can see much information about your SIM cards on this page.
GSM Settings
Figure 3-1-1 GSM System
VS-GW1202-4G User Manual
On this page, you can see your GSM module status and click action button to configure the
port.
OpenVox Communication Co.Ltd
Figure 3-1-2 Port Configure
16
VS-GW1202-4G User Manual
As you see, we have offered “Band” option, you can select different bands easily and you have
many options.
Figure 3-1-3 Band Binding
If you have set your Pin Code, you can check on like this:
Figure 3-1-4 PIN Code Application
Then input your password, system will identify numbers of SIM cards. It can help to prevent SIM
card from being stolen and improve security.
If you want to hide your number when you call out, you can just switch CLIR “ON” (Of course you
need your operator’s support).
Figure3-1-5 CLIR Application
When you are on the phone, other calls coming in, you can set Call Waiting on, then the coming
calls won’t be hung up.
Figure3-1-6 Call Waiting
If you have some voice quality problems, you can open Echo Cancellation for an attempt.
Figure3-1-7 Echo Cancellation
OpenVox Communication Co.Ltd
17
VS-GW1202-4G User Manual
IMEI Modification
One more feature, we offer you IMEI automatically modification.
Figure 3-1-8 Automatically IMEI Modify
We have offered you IMEI modification function. If you want to modify your IMEI number, please
do as follows.
You can log in your gateway and modify IP address as follows. Input web site below on your
browser. http://172.16.158.1/cgi-bin/php/gsm-autoimei.php. Then you will see the following
picture. Don’t forget to switch “Enable” to “ON”, or you can’t change your IMEI numbers.
Figure 3-1-9 IMEI Modification
Also you can choose to modify one or more certain ports or all ports. You can set automatic
modification interval by filling in the time you want.
If you choose “Immediately”, then the ports you have chosen will modify IMEI numbers at once.
On the contray, system will keep time from now until the time of next modification. And If you
choose “Force”, System will hang up all your current calls, then modify IMEI.
You can press to do some settings. We offer you two ways to
modify your IMEI. You can choose Autogeneration or Manual.
OpenVox Communication Co.Ltd
18
VS-GW1202-4G User Manual
Options
Definition
Name
The alias of the GSM port. Input name without space here.
Allowed characters "-_+.<>&0-9a-zA-Z".Length: 1-32 characters.
Speaker Volume
The speaker volume level, the range is 0-100.
This will adjust the loud speaker volume level by an AT
command.
Microphone
Volume
The microphone volume, range is: 0-15. This will change the
microphone gain level by an AT command.
Figure 3-1-10 Advanced Settings
As you can see, you can set any number you wan for every port. “X” means any digits from 0 to 9.
You just need to fill in “Set to All ”, then press “Set to All”, you can see the interface as above. Don’t
forget to press “Save”. Then “Current IMEI” will change. That means Autogeneration. If you want to
set a certain number as your IMEI, you can press “Manual”. Then you will be required to input a
new IMEI.
Figure 3-1-11 Manual
After configuration, you can press “Back Home” to return your gateway interface.
Table 3-1-1 Definition of GSM Settings
OpenVox Communication Co.Ltd
19
VS-GW1202-4G User Manual
DAC Gain
The range is: -42 to +20
ADC Gain
The range is: -42 to +20
Dial Prefix
The prefix number of outgoing calls from this GSM channel
PIN Code
Personal identification numbers of SIM card. PIN code can be modified to
prevent SIM card from being stolen.
Custom AT
commads when
start
User custom AT commands when start system, use “|” to split AT
command.
CLIR
Caller ID restriction, this function is used to hidden caller ID of SIM card
number. The gateway will add ‘#31#’ in front of mobile number. This
function must support by Operator.
SMS Center
Number
Your SMS center number of your local carrier.
GSM Module
IMEI
You can click “Modify” button and automatically modify it.
Call Duration Limit Settings
Now we can offer you two types of call duration limit, you can choose “Single Call Duration Limit”
or “Call Duration Limitation” to control your calling time.
Single Call Duration Limit
This will limit the time of each call.
Figure 3-1-12 Single Settings
First you need to switch “Enable” on, then you can set “Step” and “Single Call Duration Limitation”
any digits you want. When you make a call by this port, it will limit your calling time within the
product of
Step * Single Call Duration Limitation
And if your calling time overtops the value above, the system will hang up this call.
Call Duration Limitation
This will limit your total calling time of this port.
OpenVox Communication Co.Ltd
20
VS-GW1202-4G User Manual
Figure 3-1-13 Call Duration Limitation Settings
The same algorithm with single time limitation, the total calling time of this port can’t beyond the
product of “Step” and “Call Duration Limitation”.
If the duration of a call is less than “Minimum Charging Time”, it will be not included in “Call
Duration”.
You can set a digit for “Alarm Threshold”, when the call minutes less than this value, the gateway
will send alarm info to designated phone.
You can enable your Auto Reset, then choose by day, by week, or by month.
Figure 3-1-14 Auto Reset Settings
You can save your configuration to other ports.
OpenVox Communication Co.Ltd
21
VS-GW1202-4G User Manual
Figure 3-1-15 Save To Other Ports
If you have set like this, you will see many on the Web GUI, you can set whether to check.
Notice: When you do some changes, you need to Save and Apply, then “Remain Time” will show as you
set.
Your calling status will show on the main interface.
OpenVox Communication Co.Ltd
Figure 3-1-16 GSM Information
22
VS-GW1202-4G User Manual
Options
Definition
Step
Step length value range is 1-120 s, step length multiplied by time of
single call just said a single call duration time allowed.
Enable Single Call
Duration Limit
Definite maximum call duration for single call. Example: if Time of
single call set to 10, the call will be disconnected after talking
10*step seconds.
Enable Call Duration
Limitation
This function is to limit the total call duration of GSM channel. The
max call duration is between 1 to 65535 minutes.
Call Duration
Limitation
The value of limitation single call, this value range is 1-65535. Step
length multiplied by time of single call just said a single call duration
time allowed.
Minimum Charging
Time
A single call over this time, GSM side of the operators began to
collect fees, unit for seconds.
Alarm Threshold
Define a threshold value of call minutes, while the call minutes less
than this value, the gateway will send alarm information to
designated phone.
Alarm Description
Alarm port information description, which will be sent to user
mobile phone with alarm information.
Alarm Phone
Number
Receiving alarm phone number, user will received alarm message
from gateway.
Remain Time
This value is multiplied by to step length is a rest call time.
Enable Auto Reset
Automatic restore remaining talk time, that is, get total call minutes
of GSM channel.
Auto Reset Type
Reset call minutes by date, by week, by month.
Next Reset Time
Defined next reset date, system will count start from that date and
work as Reset Period setting
Table 3-1-2 Description of Call Duration Limit Settings
Call Forwarding
Sometimes it’s not convenient for you to answer a call, if you don’t want to lose some important
calls, you can choose Call Forwarding. You can choose Call Forwarding Unconditional, Call
Forwarding No Reply, Call Forwarding Busy or Call Forwarding on Not Reachable.
If want to cancel your call forwarding settings, you can choose Cancel All.
OpenVox Communication Co.Ltd
23
VS-GW1202-4G User Manual
Figure 3-2-1 Call Forwarding
Notice: Don’t forget to save your settings. Please first press button, then press
button..
DTMF
You can do some DTMF Detection Settings if you choose “GSM -> DTMF”.
Figure 3-3-1 DTMF Detection Settings
Notice: If you don’t have special need, you don’t have to modify these settings. You can just choose
“Default”.
DTMF Normal Twist and Reverse Twist is the difference in power between the row and column
energies. Normal Twist is where the Column energy is greater than the Row energy. Reverse
OpenVox Communication Co.Ltd
24
VS-GW1202-4G User Manual
Options
Definition
Twist is where the Row energy is greater.
DTMF Relative Peak Row: The value is the smaller and the detection is easier. If you lost some
numbers, you can try to put the value down. The adjustment range is 0.02 at a time.
DTMF Relative Peak Col: The value is smaller and the detection is easier. If you lost some
numbers, you can try to put the value down. The adjustment range is 0.1 at a time.
DTMF Hits Begin: Sampling matching value. You can choose 2 or 3.
DTMF Misses End: The time interval between the two digits you input. Adjust the speed of
input. The smaller value represents the shorter intervals.
Toolkit
You can get USSD information, send AT command and check number with this module. When you
have a debug of the GSM module, AT command is useful.
Figure 3-4-1 Function Options
Table 3-4-1 Definition of Functions
OpenVox Communication Co.Ltd
25
VS-GW1202-4G User Manual
Check Number
Enter a known number (like your mobile phone) to check what number it is
of the SIM card. Click "Execute", then the gateway will dial to the number
you already input. It only rings for one time and hangs up at once. Not
generating telephone charge during this procedure.
Get USSD
Enter a specific USSD number (For example,*142# to check your SIM card's
balance. This USSD number is might be different from different carriers) to
get the USSD information.
The gateway will try to get by AT commands.
AT Command
To perform some specific AT commands. This is useful when you have a
debug of the GSM modem.
e.g. perform [ AT+CSQ ] to check what signal qualify it is. In AT
commands, there is no difference between “a” and “A”.
If you want to send AT command, first you should input your command, then select certain ports
and choose “Copy to Selected”, finally choose “Execute”.
Figure 3-4-2 AT Command Example
OpenVox Communication Co.Ltd
26
VS-GW1202-4G User Manual
4. SIP and Routing
SIP Endpoints
This page shows everything about your SIP, you can see status of each SIP.
Figure 4-1-1 SIP Status
Main Endpoint Settings
You can click button to add a new SIP endpoint, and if you want to modify
existed endpoints, you can click button.
There are 3 kinds of registration types for choose. You can choose Anonymous, Endpoint registers
with this gateway or This gateway registers with the endpoint.
You can configure as follows :
If you set up a SIP endpoint by registration “None” to a server, then you can’t register other SIP
endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and
Trunks confused.)
OpenVox Communication Co.Ltd
27
VS-GW1202-4G User Manual
Figure 4-1-2 Anonymous Registration
For convenience, we have designed a method that you can register your SIP endpoint to your
gateway, thus your gateway just work as a server.
Figure 4-1-3 Register to Gateway
Also you can choose registration by “ This gateway registers with the endpoint”, it’s the same with
“None”, except name and password.
OpenVox Communication Co.Ltd
28
Figure 4-1-4 Register to Server
Options
Definition
Name
Display name.
Username
Register name in your SIP server.
Password
Authenticating with the gateway and characters are allowed.
Registration
None---Not registering;
Endpoint registers with this gateway---When register as this type, it
means the GSM gateway acts as a SIP server, and SIP endpoints register to
the gateway;
This gateway registers with the endpoint---When register as this type, it
means the GSM gateway acts as a client, and the endpoint should be
register to a SIP server;
Hostname or IP
Address
IP address or hostname of the endpoint or 'dynamic' if the endpoint has a
dynamic IP address. This will require registration.
Transport
This sets the possible transport types for outgoing. Order of usage, when
the respective transport protocols are enabled, is UDP, TCP, TLS. The first
enabled transport type is only used for outbound messages until a
Registration takes place. During the peer Registration the transport type
may change to another supported type if the peer requests so.
Table 4-1-1 Definition of SIP Options
VS-GW1202-4G User Manual
OpenVox Communication Co.Ltd
29
NAT Traversal
No---Use Rport if the remote side says to use it.
Force Rport on---Force Rport to always be on.
Yes---Force Rport to always be on and perform comedia RTP
handling.
Rport if requested and comedia---Use Rport if the remote side
says to use it and perform comedia RTP handling.
Options
Definition
Authentication
User
A username to use only for registration.
Register Extension
When Gateway registers as a SIP user agent to a SIP proxy (provider ), calls
from this provider connect to this local extension.
From User
A username to identify the gateway to this endpoint.
From Domain
A domain to identify the gateway to this endpoint.
Remote Secret
A password which is only used if the gateway registers to the remote side.
Port
The port number the gateway will connect to at this endpoint.
Quality
Whether or not to check the endpoint's connection status.
Qualify Frequency
How often, in seconds, to check the endpoint's connection status.
Options
Definition
Advanced: Registration Options
Table 4-1-2 Definition of Registration Options
VS-GW1202-4G User Manual
Call Settings
Table 4-1-3 Definition of Call Options
OpenVox Communication Co.Ltd
30
DTMF Mode
Set default DTMF Mode for sending DTMF. Default: rfc2833.
Other options: 'info', SIP INFO message (application/dtmf-relay);
'Inband', Inband audio (require 64kbit codec -alaw, ulaw).
Trust
Remote-Party-ID
Whether or not the Remote-Party-ID header should be trusted.
Send
Remote-Party-ID
Whether or not to send the Remote-Party-ID header.
Remote Party ID
Format
How to set the Remote-Party-ID header: from Remote-Party-ID or from
P-Asserted-Identity.
Caller ID
Presentation
Whether or not to display Caller ID.
Options
Definition
Progress Inband
Set default DTMF Mode for sending DTMF. Default: rfc2833.
Other options: 'info', SIP INFO message (application/dtmf-relay);
'inband', Inband audio (require 64kbit codec -alaw, ulaw).
Allow Overlap
Dialing
Whether or not the Remote-Party-ID header should be trusted.
Append
user=phone to URI
Whether or not to send the Remote-Party-ID header.
Add Q.850 Reason
Headers
How to set the Remote-Party-ID header: from Remote-Party-ID or from
P-Asserted-Identity.
Honor SDP Version
Whether or not to display Caller ID.
Allow Transfers
Whether or not to globally enable transfers. Choosing 'no' will disable all
transfers (unless enabled in peers or users). Default is enabled.
Advanced: Signaling Settings
VS-GW1202-4G User Manual
Table 4-1-4 Definition of Signaling Options
OpenVox Communication Co.Ltd
31
Allow Promiscuous
Redirects
Whether or not to allow 302 or REDIR to non-local SIP address.
Note that promiscredir when redirects are made to the local system will
cause loops since this gateway is incapable of performing a "hairpin" call.
Max Forwards
Setting for the SIP Max-Forwards header (loop prevention).
Send TRYING on
REGISTER
Send a 100 Trying when the endpoint registers.
Outbound Proxy
A proxy to which the gateway will send all outbound signaling instead of
sending signaling directly to endpoints.
Options
Definition
Default T1 Timer
This timer is used primarily in INVITE transactions. The default for Timer
T1 is 500ms or the measured run-trip time between the gateway and the
device if you have qualify=yes for the device.
Call Setup Timer
If a provisional response is not received in this amount of time, the call
will auto-congest. Defaults to 64 times the default T1 timer.
Session Timers
Session-Timers feature operates in the following three modes: originate,
Request and run session-timers always; accept, run session-timers only
when requested by other UA; refuse, do not run session timers in any
case.
Minimum Session
Refresh Interval
Minimum session refresh interval in seconds. Default is 90secs.
Maximum Session
Refresh Interval
Maximum session refresh interval in seconds. Defaults to 1800secs.
Session Refresher
The session refresher, uac or uas. Defaults to uas.
Advanced: Timer Settings
Table 4-1-5 Definition of Timer Options
VS-GW1202-4G User Manual
OpenVox Communication Co.Ltd
32
Advanced SIP Settings
Options
Definition
UDP Bind Port
Choose a port on which to listen for UDP traffic.
Enable TCP
Enable server for incoming TCP connection (default is no).
TCP Bind Port
Choose a port on which to listen for TCP traffic.
TCP Authentication
Timeout
The maximum number of seconds a client has to authenticate. If the client
does not authenticate before this timeout expires, the client will be
disconnected.(default value is: 30 seconds).
TCP Authentication
Limit
The maximum number of unauthenticated sessions that will be
allowed to connect at any given time(default is:50).
Enable Hostname
Lookup
Enable DNS SRV lookups on outbound calls Note: the gateway only uses
the first host in SRV records Disabling DNS SRV lookups disables the ability
to place SIP calls based on domain names to some other SIP users on the
Internet specifying a port in a SIP peer definition or when dialing
outbound calls with suppress SRV lookups for that peer or call.
Enable Internal SIP
Call
Whether enable the internal SIP calls or not when you select the
registration option "Endpoint registers with this gateway".
Internal SIP Call
Prefix
Specify a prefix before routing the internal calls.
Local Network
Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or
IP ranges which are located inside a NATed network.
This gateway will replace the internal IP address in SIP and SDP messages
with the external IP address when a NAT exists between the gateway and
other endpoints.
Networking
Table 4-2-1 Definition of Networking Options
VS-GW1202-4G User Manual
OpenVox Communication Co.Ltd
33
VS-GW1202-4G User Manual
Local Network List
Local IP address list that you added.
Subscribe Network
Change Event
Through the use of the test_stun_monitor module, the gateway has the
ability to detect when the perceived external network address has
changed. When the stun_monitor is installed and configured, chan_sip will
renew all outbound registrations when the monitor detects any sort of
network change has occurred. By default this option is enabled, but only
takes effect once res_stun_monitor is configured. If res_stun_monitor is
enabled and you wish to not generate all outbound registrations on a
network change, use the option below to disable this feature.
Options
Definition
Match External
Address Locally
Only substitute the externaddr or externhost setting if it matches.
Dynamic Exclude
Static
Disallow all dynamic hosts from registering as any IP address
used for statically defined hosts. This helps avoid the configuration error
of allowing your users to register at the same address as a SIP provider.
Externally
Mapped TCP Port
The externally mapped TCP port, when the gateway is behind a static NAT
or PAT.
External
Hostname
The external hostname (and optional TCP port) of the NAT.
Hostname Refresh
Interval
How often to perform a hostname lookup. This can be useful when your
NAT device lets you choose the port mapping, but the IP address is
dynamic. Beware, you might suffer from service disruption when the
name server resolution fails.
Advanced: NAT Settings
Table 4-2-2 Definition of NAT Settings Options
OpenVox Communication Co.Ltd
34
Start of RTP Port
Range
Start of range of port numbers to be used for RTP.
End of RTP port
Range
End of range of port numbers to be used for RTP.
Options
Definition
Strict RFC
Interpretation
Check header tags, character conversion in URIs, and multiline headers
for strict SIP compatibility(default is yes)
Send Compact
Headers
Send compact SIP headers
SDP Owner
Allows you to change the username filed in the SDP owner string.
This filed MUST NOT contain spaces.
Disallowed SIP
Methods
The external hostname (and optional TCP port) of the NAT.
Shrink Caller ID
The shrinkcallerid function removes '(', ' ', ')', non-trailing '.', and '-' not in
square brackets. For example, the caller id value 555.5555 becomes
5555555 when this option is enabled. Disabling this option results in no
modification of the caller id value, which is necessary when the caller id
represents something that must be preserved. By default this option is
on.
Maximum
Registration Expiry
Maximum allowed time of incoming registrations and subscriptions
(seconds).
Minimum
Registration Expiry
Minimum length of registrations/subscriptions (default 60).
Default
Registration Expiry
Default length of incoming/outgoing registration.
Parsing and Compatibility
Table 4-2-3 Instruction of Parsing and Compatibility
VS-GW1202-4G User Manual
OpenVox Communication Co.Ltd
35
Registration
Timeout
How often, in seconds, to retry registration calls. Default 20 seconds.
Number of
Registration
Attempts Enter '0'
for unlimited
Number of registration attempts before we give up. 0 = continue forever,
hammering the other server until it accepts the registration. Default is 0
tries, continue forever.
Options
Definition
Match Auth
Username
If available, match user entry using the 'username' field from the
authentication line instead of the 'from' field.
Realm
Realm for digest authentication. Realms MUST be globally unique
according to RFC 3261. Set this to your host name or domain name.
Use Domain as
Realm
Use the domain from the SIP Domains setting as the realm. In this case,
the realm will be based on the request 'to' or 'from' header and should
match one of the domain. Otherwise, the configured 'realm' value will be
used.
Always Auth
Reject
When an incoming INVITE or REGISTER is to be rejected, for any reason,
always reject with an identical response equivalent to valid username and
invalid password/hash instead of letting the requester know whether
there was a matching user or peer for their request. This reduces the
ability of an attacker to scan for valid SIP usernames. This option is set to
'yes' by default.
Authenticate
Options Requests
Enabling this option will authenticate OPTIONS requests just like INVITE
requests are. By default this option is disabled.
Allow Guest Calling
Allow or reject guest calls (default is yes, to allow). If your gateway is
connected to the Internet and you allow guest calls, you want to check
which services you offer everyone out there, by enabling them in the
default context.
Security
VS-GW1202-4G User Manual
Table 4-2-4 Instruction of Security
OpenVox Communication Co.Ltd
36
Media
Options
Definition
Premature Media
Some ISDN links send empty media frames before the call is in ringing or
progress state. The SIP channel will then send 183 indicating early media
which will be empty - thus users get no ring signal. Setting this to "yes" will
stop any media before we have call progress (meaning the SIP channel will
not send 183 Session Progress for early media). Default is 'yes'. Also make
sure that the SIP peer is configured with progressinband=never. In order
for 'noanswer' applications to work, you need to run the progress()
application in the priority before the app.
TOS for SIP
Packets
Sets type of service for SIP packets
TOS for RTP
Packets
Sets type of service for RTP packets
VS-GW1202-4G User Manual
Table 4-2-5 Instruction of Media
Codec Settings
Select codecs from the list below.
OpenVox Communication Co.Ltd
Figure 4-2-1 Codec Settings
37
VS-GW1202-4G User Manual
5. Routing
Figure 5-1-1 Routing Rules
You are allowed to set up new routing rule by , and after setting routing
rules, move rules’ order by pulling up and down, click button to edit the routing and
to delete it. Finally click the button to save what you set. shows
current routing rules. Otherwise you can set up unlimited routing rules.
Call Routing Rule
You can click button to set up your routings.
Figure 5-1-2 Example of set up Routing Rule
The figure above realizes that calls from “support” SIP endpoints which you have registered will be
transferred to gsm-1. When “Call Comes in From” is gsm, “prepend”, “prefix” and “ match pattern”
in “Advanced Routing Rule” are ineffective, and just “CallerID” option is available.
OpenVox Communication Co.Ltd
38
VS-GW1202-4G User Manual
Options
Definition
Routing Name
The name of this route. Should be used to describe what types of calls this
route matches (for example, 'SIP2GSM' or 'GSM2SIP').
Call Comes in
From
The launching point of incoming calls.
Send Call Through
The destination to receive the incoming calls.
Options
Definition
Dial Patterns that
will use this Route
A Dial Pattern is a unique set of digits that will select this route and send
the call to the designated trunks. If a dialed pattern matches this route, no
subsequent routes will be tried. If Time Groups are enabled, subsequent
routes will be checked for matches outside of the designated time(s).
Rules:
X matches any digit from 0-9
Z matches any digit from 1-9
N matches any digit from 2-9
[1237-9] matches any digit in the brackets (example: 1,2,3,7,8,9)
. wildcard: matches one or more dialed digits.
prepend: Digits to prepend to a successful match.
If the dialed number matches the patterns specified by the subsequent
columns, then this will be prepended before sending to the trunks.
prefix: Prefix to remove on a successful match.
The dialed number is compared to this and the subsequent columns for a
match.
Upon a match, this prefix is removed from the dialed number before
sending it to the trunks.
Table 5-1-1 Definition of Routing Options
Table 5-1-2 Description of Advanced Routing Rule
OpenVox Communication Co.Ltd
39
VS-GW1202-4G User Manual
match pattern: The dialed number will be compared against the prefix +
this match pattern.
Upon a match, the match pattern portion of the dialed number will be
sent to the trunks
Caller ID: If Caller ID is supplied, the dialed number will only match the
prefix + match pattern if the Caller ID has been transmitted matches this.
When extensions make outbound calls, the Caller ID will be their
extension number and NOT their Outbound CID.
The above special matching sequences can be used for Caller ID matching
similar to other number matches.
Set the Caller ID
Name to
What caller ID name would you like to set before sending this call to the
endpoint.
Set the Caller ID
Number to
What caller number would you like to set before sending this call to the
endpoint.
Forward Number
What destination number will you dial?
This is very useful when you have a transfer call.
Failover Call
Through Number
The gateway will attempt to send the call out each of these in the order
you specify.
You can create various time routes and use these time conditions to limit some specific calls.
Figure 5-1-3 Time Patterns that will use this Route
If you configure like this, then from January to March, from the first day to the last day of these
months, from Monday to Thursday, from 00:00 to 02:00, during this time(meet all above time
conditions), all calls will follow this route. And the time will synchronize with your Sever time.
Figure 5-1-4 Time Reference
OpenVox Communication Co.Ltd
40
VS-GW1202-4G User Manual
You set your caller ID name and caller number as you like before sending the call to the endpoint.
You can also configure forward number when you have a transfer call.
Figure 5-1-5 Change Rules
You can add one or more “Failover Call Through Numbers”.
Figure 5-1-6 Failover Call Through Number
Groups
Sometimes you want to make a call through one port, but you don’t know if it is available, so you
have to check which port is free. That would be troublesome. But with our product, you don’t
need to worry about it. You can combine many GSM or SIP to groups. Then if you want to make a
call, it will find available port automatically.
OpenVox Communication Co.Ltd
Figure 5-2-1 Establish Group
41
VS-GW1202-4G User Manual
MNP Settings
Mobile Number Portability allows switching between mobile phone operators without changing
the mobile number. Sounds simple, but there are loads of tasks performed behind the scene at the
operator end.
The URL is shown in the password string way. So please type the url in other place such a txt file,
check it, then copy it to the gateway. The outgoing number in the url should be replaced by the
variables ${num}.
Here is an example of the MNP url:
https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=8388166902
The 8388166902 is the outgoing phone number, when config the MNP url, should replce it with
${num}. Then it turns to
https://s1.bichara.com.br:8181/chkporta.php?user=832700&pwd=sdsfdg&tn=${num }.
Figure 5-3-1 MNP Settings
OpenVox Communication Co.Ltd
42
VS-GW1202-4G User Manual
Options
Definition
Resend Failed
Message
The times that you will attempt to resend your failed message.
Repeat Same
Message
The times that you will resend the same message.
Verbose
Verbose level of sending message
6. SMS
SMS Settings
General
You can choose enable SMS stored and SMS status report or not. But if you want to see your SMS
outbox, you should switch SMS Status Report ON.
Figure 6-1-1 SMS Settings
Sender Options
You can change sender options here, include resend, times of resend.
Figure 6-1-2 Sender Options
Table 6-1-1 Description of Sender Options
OpenVox Communication Co.Ltd
43
VS-GW1202-4G User Manual
E-mail Box Type
SMTP Server
SMTP Port
SMTP Security
Connectivity
Gmail
smtp.gmail.com
587
√
HotMail
smtp.live.com
587
√
Yahoo!
smtp.mail.yahoo.co.in
587
×
SMS to E-mail
This is a tool that makes it available for you to email account to transmit the SMS to other email
boxes. The following settings realize that received SMS through openvpnvoip@gmail.com transmit
to openvpnvoip@yahoo.com.cn, openvpnvoip@hotmail.com and support@openvox.cn
OpenVox Communication Co.Ltd
Figure 6-1-3 SMS to E-mail Options
Table 6-1-2 Types of E-mail Box
44
VS-GW1202-4G User Manual
Other: 163 free
e-mail
smtp.163.com
25
×
Options
Definition
Enable
When you choose on, the following options are available, otherwise,
unavailable.
Email Address of
Sender
To set the email address of an available email account.
For example, openvpnvoip@gmail.com.
Domain
To set outgoing mail server.
e.g. smtp.gmail.com
SMTP Port
To set port number of outgoing mail server. (Default is 25)
SMTP User Name
The login name of your existing email account.
This option might be different from your email address.
Some email client doesn't need the email postfix.
SMTP Password
The password to login your existing email.
TLS Enable
When you choose Yahoo and 163 free e-mails, this option is not
available.
SMTP Server
To set outgoing mail server.
e.g. mail.openvox.cn.
Destination
Email Address1
The first email address to receive the inbox message.
Destination
Email Address2
The second email address to receive the inbox message.
Destination
Email Address3
The third email address to receive the inbox message.
Table 6-1-3 Definition of SMS to E-mail
SMS Control
Allowing endpoints to send some specific KEY WORDS and corresponding PASSWORD to operate
OpenVox Communication Co.Ltd
45
VS-GW1202-4G User Manual
Enable
ON(enable), OFF(disable)
Password
The password to confirm that SMS makes the gateway rebooted, shut
down, restored configuration files and get info on this gateway.
SMS Format
For example, the message formats:
reboot system PASSWORD: To reboot your whole gateway.
The PASSWORD is referring to the PASSWORD you set up from option
“PASSWORD” above.
Reboot asterisk PASSWORD: To restart your gateway core.
Restore configs PASSWORD: To reset the configuration files back to the
default factory settings.
Get info PASSWORD: To get your gateway IP address.
the gateway and message is case-sensitive. In default, this function is disabled.
Figure 6-1-4 SMS Control
For example, SMS control password is 123456789 which has nothi ng to do with the login password,
you can send “get info 123456789” to the GSM module’s phone number to get your gateway’s IP
information.
Table 6-1-4 Definition of SMS Control
OpenVox Communication Co.Ltd
46
VS-GW1202-4G User Manual
SMS inbox Auto
clean
switch on:
When the size of the SMS inbox record file reaches the max size, the
system will cut a half of the file. New record will be retained.
switch off:
SMS record will remain, and the file size will increase gradually.
default on, max size = 20 MB
SMS Sender
You can choose one or more ports to send SMS to the destination number, different numbers
should be separated by symbols: '\r', '\n', space character, semicolon and comma.
Then you can see much feedback information.
OpenVox Communication Co.Ltd
Figure 6-2-1 SMS Sender Status
47
VS-GW1202-4G User Manual
SMS Inbox
On this page, you are allowed to scan, delete, clean up, and export each port’s received SMS. Also
you are allowed to check messages by port, phone number, time order and message keywords.
Figure 6-3-1 SMS Information
SMS Outbox
You will see your SMS recorder if you have enabled SMS Status Report on this page.
Figure 6-4-1 SMS Outbox
OpenVox Communication Co.Ltd
48
VS-GW1202-4G User Manual
7. Network
On “Network” page, there are five sub-pages, “LAN Settings”, “DDNS Settings”, and “Toolkit”.
LAN Settings
There are three types of LAN port IP, Factory, Static and DHCP. Factory is the default type, and it is
172.16.99.1. When you Choose LAN IPv4 type is “Factory”, this page is not editable.
A reserved IP address to access in case your gateway IP is not available. Remember to set a similar
network segment with the following address of your local PC.
OpenVox Communication Co.Ltd
Figure 7-1-1 LAN Settings Interface
49
Table 7-1-1 Definition of LAN Settings
Options
Definition
Interface
The name of network interface.
Type
The method to get IP.
Factory: Getting IP address by Slot Number (System information
to check slot number).
Static: manually set up your gateway IP.
DHCP: automatically get IP from your local LAN.
MAC
Physical address of your network interface.
Address
The IP address of your gateway.
Network
The subnet mask of your gateway.
Default Gateway
Default getaway IP address.
Reserved Access IP
A reserved IP address to access in case your gateway IP is not
available. Remember to set a similar network segment with the
following address of your local PC.
Enable
A switch to enable the reserved IP address or not.
ON(enabled), OFF(disabled)
Reserved Address
The reserved IP address for this gateway.
Reserved Netmask
The subnet mask of the reserved IP address.
VS-GW1202-4G User Manual
Basically this info is from your local network service provider, and you can fill in four DNS servers.
Figure 7-1-2 DNS Interface
OpenVox Communication Co.Ltd
50
Table 7-1-2 Definition of DNS Settings
Options
Definition
DNS Servers
A list of DNS IP address. Basically this info is from your local
network service provider.
Options
Definition
DDNS
Enable/Disable DDNS(dynamic domain name server)
Type
Set the type of DDNS server.
Username
Your DDNS account’s login name.
Password
Your DDNS account’s password.
Your domain
The domain to which your web server will belong.
DDNS Settings
You can enable or disable DDNS (dynamic domain name server).
VS-GW1202-4G User Manual
Toolkit
Figure 7-2-1 DDNS Interface
Table 7-2-1 Definition of DDNS Settings
It is used to check network connectivity. Support Ping command on web GUI.
OpenVox Communication Co.Ltd
51
VS-GW1202-4G User Manual
Figure 7-3-1 Network Connectivity Checking
OpenVox Communication Co.Ltd
52
8. Advanced
Options
Definition
Port
Network port number
Manager Name
Name of the manager without space
Manager secret
Password for the manager.
Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32
characters.
Deny
If you want to deny many hosts or networks, use char & as
separator. <br/><br/>Example: 0.0.0.0/0.0.0.0 or
192.168.1.0/255.255.255.0&10.0.0.0/255.0.0.0
Permit
If you want to permit many hosts or network, use char & as
separator.<br/><br/>Example: 0.0.0.0/0.0.0.0 or
192.168.1.0/255.255.255.0&10.0.0.0/255.0.0.0
Asterisk API
When you make “Enable” switch to “ON”, this page is available.
VS-GW1202-4G User Manual
Figure 8-1-1 API Interface
Table 8-1-1 Definition of Asterisk API
OpenVox Communication Co.Ltd
53
VS-GW1202-4G User Manual
System
General information about the system and ability to run system
management commands, <br/>such as Shutdown, Restart, and
Reload.
Call
Information about channels and ability to set information in a
running channel.
Log
Logging information. Read-only. (Defined but not yet used.)
Verbose
Verbose information. Read-only. (Defined but not yet used.)
Command
Permission to run CLI commands. Write-only.
Agent
Information about queues and agents and ability to add queue
members to a queue.
User
Permission to send and receive UserEvent.
Config
Ability to read and write configuration files.
DTMF
Receive DTMF events. Read-only.
Reporting
Ability to get information about the system.
CDR
Output of cdr, manager, if loaded. Read-only.
Dialplan
Receive NewExten and Varset events. Read-only.
Originate
Permission to originate new calls. Write-only.
All
Select all or deselect all.
Once you set like the above figure, the host 172.16.123.123/255.255.0.0 is allowed to access the
gateway API. Please refer to the following figure to access the gateway API by putty.
172.16.123.123 is the gateway’s IP, and 5038 is its API port.
Figure 8-1-2 Putty Access
OpenVox Communication Co.Ltd
54
Asterisk CLI
Options
Definition
Command
Type your Asterisk CLI commands here to check or debug your
gateway.
In this page, you are allowed to run Asterisk commands.
VS-GW1202-4G User Manual
Figure 8-2-1 Asterisk Command Interface
Table 8-2-1 Definition of Asterisk API
If you type “help” or “?” and execute it, the page will show you the executable commands.
Asterisk File Editor
On this page, you are allowed to edit and create configuration files.
Click the file to edit.
OpenVox Communication Co.Ltd
55
Figure 8-3-1 Configuration Files List
VS-GW1202-4G User Manual
Click “New Configuration File” to create a new configuration file. After editing or creating, please
reload Asterisk.
OpenVox Communication Co.Ltd
56
VS-GW1202-4G User Manual
9. Logs
On the “Log Settings” page, you should set the related logs on to scan the responding logs page.
For example, set “System Logs” on like the following, then you can turn to “System” page for
system logs, otherwise, system logs is unavailable. And the same with other log pages.
OpenVox Communication Co.Ltd
Figure 9-1-1 System Logs Control
57
VS-GW1202-4G User Manual
Figure 9-1-2 System Logs Output
You can choose one specific board to see it related logs.
Figure 9-1-3 Choose One Board
You can scan your CDR easily on web GUI, and also you can delete, clean up or export your CDR
information.
OpenVox Communication Co.Ltd
58
VS-GW1202-4G User Manual
Options
Definition
System Logs:
Whether enable or disable system log.
Figure 9-1-4 CDR Output
Recently we have made our LOGS display richer, you can see your GSM Outbound of every port
clearly.
OpenVox Communication Co.Ltd
Figure 9-1-5 Time Patterns that will use this Route
Table 9-1-1 Definition of Logs
59
VS-GW1202-4G User Manual
Auto clean:
(System Logs)
switch on :
when the size of log file reaches the max size,
the system will cut a half of the file. New logs will be
retained.<br>
switch off :
logs will remain, and the file size will increase gradually.
default on, max size=1MB.
Verbose:
Asterisk console verbose message switch.
Notice:
Asterisk console notice message switch.
Warning:
Asterisk console warning message switch.
Debug:
Asterisk console debug message switch.
Error:
Asterisk console error message switch.
DTMF:
Asterisk console DTMF info switch.
Auto clean:
(asterisk logs)
switch on :
when the size of log file reaches the max size,
the system will cut a half of the file. New logs will be retained.
switch off :
logs will remain, and the file size will increase gradually.
default on, max size=100KB.
SIP Logs:
Whether enable or disable SIP log.
Auto clean:
(SIP logs)
switch on :
when the size of log file reaches the max size,
the system will cut a half of the file. New logs will be retained.
switch off :
logs will remain, and the file size will increase gradually. <br>
default on, maxsize=100KB.
Debug AT
Commands Logs:
Displaying GSM module AT messages.
Auto clean:
(AT logs)
switch on :
when the size of log file reaches the max size,
the system will cut a half of the file. New logs will be
retained.<br>
switch off :
logs will remain, and the file size will increase gradually.
default on, max size=100KB.
Call Detail Record:
Displaying Call Detail Records for each channel.
OpenVox Communication Co.Ltd
60
VS-GW1202-4G User Manual
Auto clean:
(CDR logs)
switch on :
when the size of log file reaches the max size,
the system will cut a half of the file. New logs will be
retained.<br>
switch off :
logs will remain, and the file size will increase gradually.
default on, max size=20MB.
OpenVox Communication Co.Ltd
61
Appendix Feature List
General In fo
GSM
SIP Features
Routing and Number Conversion
Wireless port：GSM 850/900/1800/1900MHz
Storage temperature：-20~70℃
Operating temperature：0~40℃
Operating humidity：10％~90％
Power supply specifications：12V DC/2.33A
Maximum power：10W
Support Volume adjustment
Support Gain adjustment
Support CLID display & hide (need operators support)
VS-GW1202-4G User Manual
Support IMEI number automatically modify, avoid blocking
Support PIN identification
Support GSM frequency range：850/900/1800/1900MHz
Support Band binding
Support SMS bulk transceiver, messages sent to email and SMS automatically resent
Support USSD transceiver
Support call transfer
Support open API interface（AMI）
Support add, modify & delete SIP trunk
Support different SIP trunks combined into one SIP trunk Group
Support SIP registration with domain
Support multiple SIP registrations：Anonymous, Endpoint registers with this gateway, This
gateway registers with the endpoint
Support protocols：SIP, IAX（easily expand other protocols that Asterisk supports）, TCP, UDP,
RTP, TELNET, HTTP, SMTP, POP3
Support routing before number changed
Support routing after number changed
Support GSM—>IP routing
Support IP—>GSM routing
OpenVox Communication Co.Ltd
62
Support add, modify & delete routing
Business Control
System Features
Network Fe atures
Support unlimited routing rules
Flexible routing settings
Permit and prohibit certain calls
Extensible automatic callback
Extensible speed dial
Support customizable IVR, DISA and other applications
Simple and convenient configuration via Web GUI
Signal strength indicator, LED status indicator
Support NTP time synchronization and client time synchronization
Support DTMF：RFC2833, In-band, Info
VS-GW1202-4G User Manual
Working mode: stand-alone, Master, slave.
Each Board integrated independent Asterisk system would make it easier for independent
operation, improve stability
Support SSH access for background management, Asterisk CLI command operation
Support AT command interface
GSM ports group management
Support PDD (Post Dialing Delay) display, ACD (Average Call Duration) display, ASR
(Answer-Seizure Ratio) display and BER (Bit Error Rate) display
Support configuration file backup and upload
Support for custom scripts, dialplans
Support codecs：G.711A, G.711U, G.729, G.722, G.723, G.726, GSM
Support DDNS
2*RJ45 Network port
① ETH1：access Board 1 only, provide proxy access to other boards with different
port numbers which can avoid IP conflict
② ETH2: access different Boards with different IP addresses
Network type：Static IP, Dynamic, PPPoE
Support modify username and password for web login
Support ping & traceroute command on the web
OpenVox Communication Co.Ltd
63
Operation Maintenance
Support SMS remotely controlling gateway
Support Echo cancellation, Jitter buffer
Support gateway boards and SIM hot plug
Reboot settings（According to the running time, specific time）
Update Firmware：HTTP
Support multiple detailed LOG output
Support Restore the factory settings
One Year Warranty
VS-GW1202-4G User Manual
OpenVox Communication Co.Ltd
64
Application diagrams
VS-GW1202-4G User Manual
Thank You for Choosing OpenVox Products!
OpenVox Communication Co.Ltd
65
Loading...
