OpenVox A400E User Manual

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

OpenVox Communication Co.Ltd

A400E on DAHDI User Manual

Version: 2.2

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

1

OpenVox Communication Co.Ltd

OpenVox-Best Cost Effective Asterisk Cards

Address: F/3, Building No.127, Jindi Industrial Zone,

Shazui Road, Futian District, Shenzhen, Guangdong 518048, China

Tel:[phone], Fax:[phone]

Business Contact: [e-mail]

Technical Support: [e-mail]

Business Hours: 09:00-18:00(GMT+8) from Monday to Friday

URL: www.openvox.cn

Thank You for Choosing OpenVox Products!

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

2

Copyright

Copyright© 2011 OpenVox Inc. All rights reserved. No part of this document may be
reproduced without prior written permission.

Confidentiality

Information contained herein is of a highly sensitive nature and is confidential and
proprietary to OpenVox Inc. No part may be distributed, reproduced or disclosed
orally or in written form to any party other than the direct recipients without the
express written consent of OpenVox Inc.

Disclaimer

OpenVox Inc. reserves the right to modify the design, characteristics, and products at
any time without notification or obligation and shall not be held liable for any error or
damage of any kind resulting from the use of this document.
OpenVox has made every effort to ensure that the information contained in this
document is accurate and complete; however, the contents of this document are
subject to revision without notice. Please contact OpenVox to ensure you have the
latest version of this document.

Trademarks

All other trademarks mentioned in this document are the property of their respective
owners.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

3

Contents

General Safety Instructions ........................................................................................ 4

Test Environments ....................................................................................................... 5

Chapter 1 Overview ..................................................................................................... 6

1.1 What is Asterisk ................................................................................................ 6

1.2 What is A400E .................................................................................................. 7

Chapter 2 Hardware Setup ....................................................................................... 10

2.1 Power supply................................................................................................... 10

2.2 Slot compatibility ............................................................................................ 10

2.3 Timing cable.................................................................................................... 11

2.4 FXO and FXS modules ................................................................................... 11

2.5 Hardware setup procedure .............................................................................. 12

Chapter 3 Software Installation and Configuration ............................................... 14

3.1 Download ........................................................................................................ 14

3.2 Installation....................................................................................................... 15

3.3 Configuration .................................................................................................. 19

Chapter 4 Reference .................................................................................................. 26

Appendix A Specifications ........................................................................................ 27

Appendix B PIN Assignments ................................................................................... 28

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

4

General Safety Instructions

CAUTION

1. The computers that have A400E card installed must comply with

the country’s specific safety regulations.

2. Only service personnel should go to install A400E card.

3. Before installing A400E card, please unplug the power cord and

remove the cover from your PC.

4. For avoiding personal injuries and damages to your machine and

A400E card, make sure bracket of the card is secured to the PC ’s
chassis ground by fastening the card with a screw.

5. Electrical Surges, ESD are very destructive to the equipment. To

avoid it, make sure there is a low impedance discharge path from
your computer to chassis ground.

6. To reduce the risk of damage or injury, please follow all steps or

procedures as instructed.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

5

Test Environments

CentOS-5.6
Kernel version: 2.6.18-238.12.1.el5
DAHDI: dahdi-linux-complete-current
Asterisk: 1.8.0
Hardware: OpenVox A400E

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

6

Chapter 1 Overview

1.1 What is Asterisk

The Definition of Asterisk is described as follows:
Asterisk is a complete PBX in software. It runs on Linux, BSD, Windows
(emulated) and provides all of the features you would expect from a PBX
and more. Asterisk does voice over IP in four protocols, and can
interoperate with almost all standard-based telephony equipment using
relatively cost-effective hardware. Asterisk provides Voicemail services
with Directory, Call Conferencing, Interactive Voice Response, Call
Queuing. It supports for three-way calling, caller ID services, ADSI, IAX,
SIP, H323 (as both client and gateway), MGCP (call manager only) and
SCCP/Skinny (voip-info.org).

PC+Softphone

SIP phone

Analog phone

Switch

Asterisk
VOIP PBX

Operating System Linux and Free BSD
OpenSource Drivers Asterisk®,DAHDI,
Zaptel,Bristuff,Misdn and ISDN4 BSD
Protocol SIP, IAX, SS7, MGCP, H 323, R2 and more..
Applications IVR, CRM, FAX, E-m ail, CallCenter, Billing
and your application..

Figure 1 Topology

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

7

1.2 What is A400E

OpenVox A400E delivers great voice quality in the telephony systems.
With interchangeable FXS/FXO modules, it can eliminate the
requirements for separate channel banks or access gateways.
The A400E contains 4 module banks. Each bank supports one analog
interface. The module banks may be filled with up to 4 FXO or FXS
modules enabling the creation of any combination of ports. Scaling of an
analog card solution is accomplished by simply adding additional cards.
A400E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash,
trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source
and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Sample application

When you need 2 PSTN lines and 2 extension sets, for example, 2
FXO-100 modules and 2 FXS-100 modules should be installed. PSTN
lines correspond to FXO modules which are red while extension lines
correspond to FXS modules which are green.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

8

PSTN line 1

PSTN line 2

FXS-100

module

FXO-100

module

Analog phone 1

Analog phone 2

PCI-E

Figure 2 Sample application

Key benefits

 High performance with low price
 Modular Design: Up to 4 FXS, FXO or mixed FXS/FXO ports per

card. Each port can be set as FXO or FXS via plugging different
modules in it

 LEDs display the board’s status
 Scalable: Just adding more cards to extend the system.
 Easy to use: the modules are Pin to Pin compatible with Digium’s

X100M and S100M. Users are also able to apply Digium’s
X100M/S100M modules on this card, or setup our FXO-100/
FXS-100 modules on TDM400P

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

9

 Worldwide usable: Configurable line interface to meet global

telephone line interface requirements

 RoHS compliant
 Certificates: CE, FCC, A-Tick
 trixbox

TM

Officially Certified

 Elastix® Officially Certified

Features

 Supports PCI 2.2 or above, 3.3 V and 5 V PCI slots
 Industry standard full size length PCI card
 Open source driver working with Zaptel, DADHI and so on.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

10

Chapter 2 Hardware Setup

There are some points that should be paid attention to when setting up
A400E.

2.1 Power supply

The board is powered by PCI Express slot, which provides power the
A400E need, so there is no need for external power source no matter what
modules you have setup.

2.2 Slot compatibility

A400E is compatible with PCI-E slot, i.e., PCI-E ×1(slot 1), ×2, ×4, ×8,
×16 are all fit for A400E, while PCI is not fit; you should confirm your
slot type and insert A400E into any type of PCI-E slot as previously
described.

64-bit 5.0V PCI slot

64-bit 3.3V PCI slot

32-bit 5.0V PCI slot

PCI-E ×1 slot

1

2

3

4

Figure 3 PCI-E and PCI slot

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

11

2.3 Timing cable

If you have just one card in the system, all channels on that card have
already run under the same clock source, so timing cable is unnecessary.
But if there are more than one card, using timing cable has some
advantages. Before using the clock line, each card works on its own
clock, therefore precision of the clock is limited; each card will send
/receive voice data at different speeds. In voice usage, this small issue can
be omitted, but in data communication such as Fax/Modem, it will cause
big problem. Data loss will cause communication broken or fax broken.
Timing cable will force all cards to work at the same clock source, send
data at the same speed, as a result no data will lost.

If you found J914 (input) and J915 (output) interfaces on the card, it
means the card supports clock line, for the details, please refer to HERE.

2.4 FXO and FXS modules

There is so much difference between FXO modules and FXS modules,
they can be identified by color, the former ones are red and the latter ones
are green. FXO modules use FXS signaling while FXS modules use FXO
signaling. FXO modules correspond to FXO port and the same with FXS
modules and FXS ports. FXO ports allow A400E connect to PSTN lines
and FXS ports connect to extension sets.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

12

2.5 Hardware setup procedure

 Power off your PC, remember unplug the AC power cable
 Insert A400E into a PCI-E slot
 Put timing cable correctly if necessary, for more details, please refer

to HERE

 Please plug PSTN lines into FXO ports and extension telephone lines

into FXS ports before you have detected your PSTN line works well.

 Fix the board by a screw
 Power on PC

Port

PCI-E ×1 slot

Power supply connector

LED

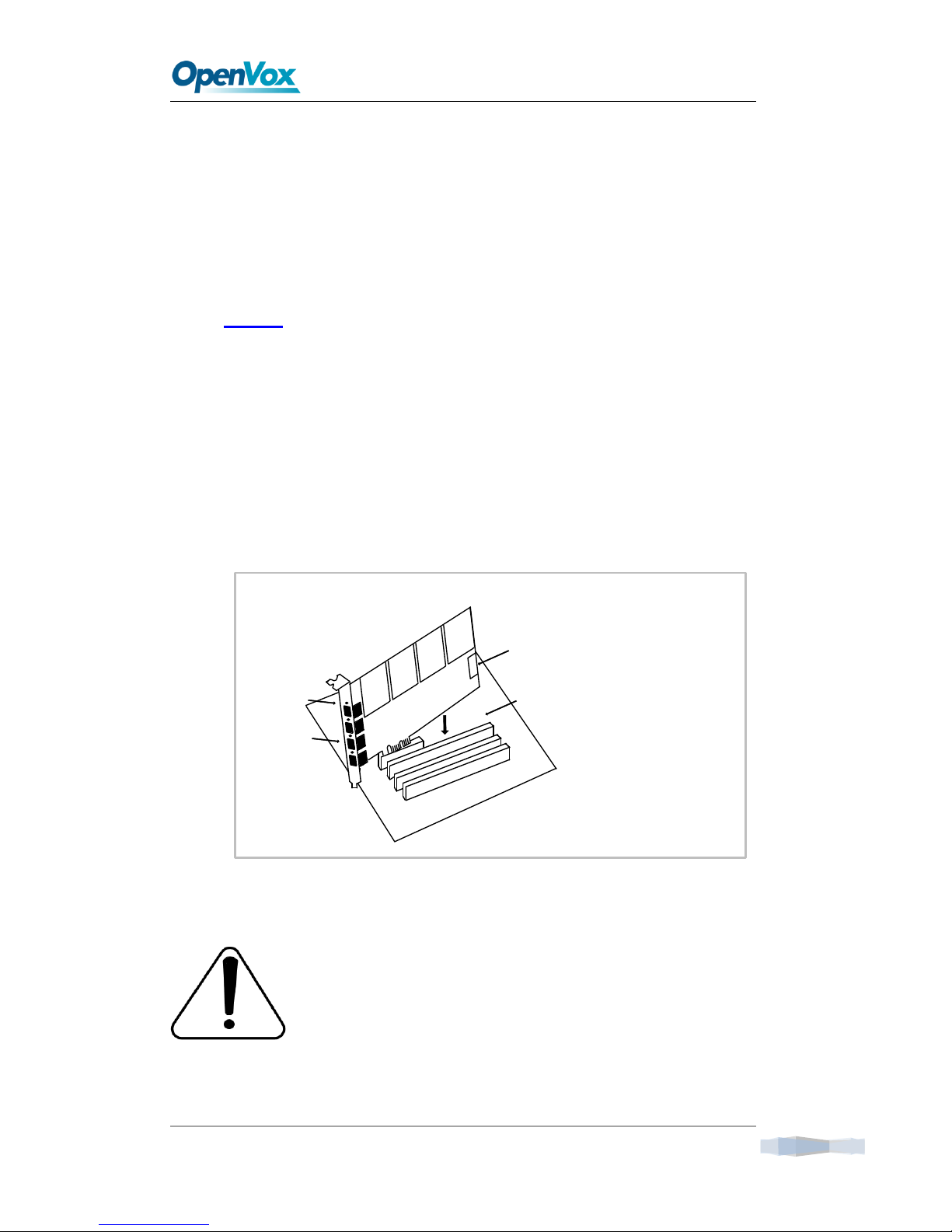

Figure 4 Hardware setup

Caution: If any FXS module is setup, you should make

power on. During the above processes, an ESD wrist strap
is needed. Once power is on, you must not attempt to

install or take down the board. Do not forget to connect PSTN lines into

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

13

analog phones directly to make sure the lines and phones are available
before insert the PSTN lines into FXO ports. After hard ware setup, it is
time to install software.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

14

Chapter 3 Software Installation and Configuration

A400E supports DAHDI software driver on Linux. To make full use of
A400E, you should download, compile, install and configure DAHDI and
Asterisk.

3.1 Download

DAHDI software packages are available on openvox official website or
Digium. Some patches should be made while the driver source is from
Digium, therefore, it is recommended that downloading the DAHDI
driver package from openvox official website.

Gain DAHDI source package from openvox:

http://downloads.openvox.cn/pub/drivers/dahdi-linux-complete/openvox_
dahdi-linux-complete-current.tar.gz

Get Asterisk software package from digium official website:

http://downloads.asterisk.org/pub/telephony/asterisk/releases/asterisk-1.8
.0.tar.gz

Execute the following commands in the directory /usr/src/ in general, the
former two below are used for downloading these two packages and the
later two are for unzipping them.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

15

#_wget_http://downloads.openvox.cn/pub/drivers/da

hdi-linux-complete/openvox_dahdi-linux-complete-c

urrent.tar.gz

#_wget_http://downloads.asterisk.org/pub/telephon

y/asterisk/releases/asterisk-1.8.0.tar.gz

#_tar_-xvzf_openvox_dahdi-linux-complete-current.

tar.gz

# tar –xvzf asterisk-1.8.0.tar.gz

3.2 Installation

1. Hardware detection

# lspci –vvvv

Check the outcome and confirm your system has recognized A400E. If it
has been recognized, "Network controller" will be displayed in the

output information like that:

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

16

01:02.0 Network controller: Tiger Jet Network Inc. Tiger3XX Modem/
ISDN interface
Subsystem: Device b100:0001
Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop­ParErr- Step ping- SERR- FastB2B- DisINTx­ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=medium
>TAbort- <TAbort - <MAbort- >SERR- <PERR- INTx­ Latency: 64 (250ns min, 32000ns max)
Interrupt: pin A routed to IRQ 225
Region 0: I/O ports at c800 [size=256]
Region 1: Memory at dedff000 (32-bit, non-prefetchable)
[size=4K]
Capabilities: [40] Power Management version 2
Flags: PMEClk- DSI+ D1- D2+ AuxCurrent=55mA
PME(D0+,D1-,D2+,D3ho t+,D3cold+)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0
PME­ Kernel driver in use: wctdm
Kernel modules: wctdm, hisax

Figure 5 Hardware detection

If A400E is not recognized by the system, you have to power off and take
out the card, then try to insert it into another PCI-E slot.

2. Software installation
Some dependencies are crucial. If any of them is absent, the software
installation process would not go through successfully. Let’s run "yum
install XX" (XX stands for the dependency’s name) to check the

availability of dependencies.

# yum install bison

# yum install bison-devel

# yum install ncurses

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

17

# yum install ncurses-devel

# yum install zlib

# yum install zlib-devel

# yum install openssl

# yum install openssl-devel

# yum install gnutls-devel

# yum install gcc

# yum install gcc-c++

# yum install libxml2

# yum install libxml2-devel

If there is no kernel-devel source in the system, users
should run the following command to install the

kernel-devel to peer current kernel:
# yum install kernel-devel-`uname –r`
While if there is no matched kernel-devel found, you should download
matched RPM package to install it, or execute the following command to
update to the latest and stable kernel version:
# yum install kernel kernel-devel

After installed, please reboot your machine to apply the new kernel and
install the dependencies. If the dependency has been installed, system
indicates that nothing to do which means you could go to next one

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

18

directly. Otherwise, the system will keep on installing it.

After install the dependencies, please change to the directory
dahdi-linux-complete-XX (XX represents DAHDI version), then perform
the following commands one by one to install DAHDI.

# cd /usr/src/dahdi-linux-complete-XX

# make

# make install

# make config

Caution: If there is something wrong after "make",
please refer to HERE. In the url link, the moderator
introduces you a method how to patch. After patching,

save your changes and exit. Then run "make" again, if successfully, you
are going to install Asterisk.

Please operate those commands to install Asterisk.

# cd asterisk-1.8.0

# ./configure

# make

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

19

# make install

# make samples

"make samples" will install the standard

sample configuration file in the directory /etc/asterisk. As a

freshman, you should perform make samples, that is to say,
it is unnecessary to perform make samples every time. Because once
performed, it will cover the old sample configuration files you have
installed.

3.3 Configuration

1. Driver loading

After compiling and installing DAHDI and Asterisk, please load the
driver by running:

# modprobe dahdi

# modprobe wctdm opermode=CHINA

# dahdi_genconf

After running "modprobe dahdi" or "modprobe wctdm
opermode=CHINA", there is not any indication

information displayed if loaded normally and successfully.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

20

"wctdm" is the driver module name of A400E. "opermode" applies to

FXO port and is invalid for FXS port, and you are allowed to take place
of "CHINA" to other mode name which is available in the file:
../dahdi-linux-XX/linux/drivers/dahdi/fxo_modules.h

If there is any error, please trace the cause. Until all errors are clear up,
you could execute "dahdi_genconf" again, and then go to the next step.
By running "dahdi_genconf", it will generate /etc/dahdi/system.conf and
etc/asterisk/dahdi-channels.conf automatically. Checking whether the
generated files information agrees with your hardware setup, if not, you
should modify to your specific requirements. Do not forget to confirm
dahdi-channels.conf is included in chan_dahdi.conf, if not, run command:

# echo "#include dahdi-channels.conf" >>

/etc/asterisk/chan_dahdi.conf

FXO ports use FXS signaling, while FXS ports adopt FXO signaling. A
part of system.conf which is one of the basic channel configuration files
is displayed.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

21

# Span 1: WCTDM/4 "Wildcard TDM400P REV E/F Board 5" (MASTER)
fxoks=1
fxoks=2
fxsks=3
fxsks=4

# Global data

loadzone = us
defaultzone = us

Figure 6 A part of system.conf

2. Country mode modification

In order to match your country pattern, you need to change parameters
loadzone and defaultzone to your country. For example, your system is in
CHINA, you would like them change to:

loadzone = cn

defaultzone = cn

Some zonedata is available in the file
.. /dahdi-XX/tools/zonedata.c, you can refer to it to match
your country mode. Meanwhile, you also need to modify
another parameter which is in file

/etc/asterisk/indications.conf.

country=cn

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

22

A part of file /etc/asterisk/dahdi-channels.conf is showed as below.
(Modification, if it is not agree with the hardware setup)

span 1: WCTDM/4 "Wildcard TDM400P REV E/F Board 5"
(MASTER)
;;; line="1 WCTDM/4/0 FXOKS"
signalling=fxo_ks
callerid="Channel 1" <4001>
mailbox=4001
group=5
context=from-internal
channel => 1
callerid=
mailbox=
group=
context=default

;;; line="2 WCTDM/4/1 FXOKS"
signalling=fxo_ks
callerid="Channel 2" <4002>
mailbox=4002
group=5
context=from-internal
channel => 2
callerid=
mailbox=
group=
context=default

;;; line="3 WCTDM/4/2 FXSKS"
signalling=fxs_ks
callerid=asreceived
group=0
context=from-pstn
channel => 3
callerid=
group=
context=default

;;; line="4 WCTDM/4/3 FXSKS"
signalling=fxs_ks
callerid=asreceived
group=0
context=from-pstn
channel => 4
callerid=
group=
context=default

Figure 7 A part of dahdi-channels.conf

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

23

After modifying the country mode, please execute the following
command:

# dahdi_cfg –vvvvvv

The command is used for reading and loading parameters in the
configuration file system.conf and writing to the hardware. A part of
outputs are showed in the following figure.

Channel map:

Channel 01: FXO Kewlstart (Default) (Echo Canceler: none) (Slaves: 01)
Channel 02: FXO Kewlstart (Default) (Echo Canceler: none) (Slaves: 02)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: none) (Slaves: 03)
Channel 04: FXS Kewlstart (Default) (Echo Canceler: none) (Slaves: 04)

4 channels to configure.

Setting echocan for channel 1 to none
Setting echocan for channel 2 to none
Setting echocan for channel 3 to none
Setting echocan for channel 4 to none

Figure 8 Channel map

3. Asterisk initiation

# asterisk -vvvvvvvgc

If Asterisk is already activate, run "asterisk –r" instead. In the CLI,

please run the following command:

localhost*CLI> dahdi show channels

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

24

Chan Extension Context Language MOH Interpret
Pseudo default default
1 from-internal default
2 from-internal default
3 from-pstn default
4 from-pstn default

Figure 9 channels show

If DAHDI channels are found, it means they have been loaded into
Asterisk. You are going to edit dialplan by your requirements.

4. Dialplan edit
Users must make sure that the context "from-pstn" and "from-internal"

are in extensions.conf, here a simple example is given:

# vim /etc/asterisk/extensions.conf

[from-pstn]
exten => s,1,Answer()
exten => s,n,Dial(dahdi/1,,r)
exten => s,n,Hangup()

[from-internal]
exten => 200,1,Dial(dahdi/3/outgoing_number)
exten => 200,2,Hangup()

Figure 10 dial plan

You should write the destination number instead of the
outgoing_number in the above dial plan. The dialplan
achieves that when any extension telephone dials 200,
Asterisk will transfer through channel 3 to the destination.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

25

While a call comes from PSTN line, Asterisk answers firstly, and then
gets through to the extension set which connects channel 1.

After saving your dialplan, please run "asterisk –r", then execute
"reload" in the CLI. Next you are able to make calls.

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

26

Chapter 4 Reference

www.openvox.cn
www.digium.com
www.asterisk.org
www.voip-info.org
www.asteriskguru.com

Tips

Any questions during installation please consult in our forum or look up
for answers from the following websites:

Forum
wiki

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

27

Appendix A Specifications

• Weight and size
Weight: 89g (3.14oz)
Size: 13.8×11.1×1.8cm (5.43×4.37×0.71 inch)

• Interfaces
PCI-E Bus: Be compatible with PCI-E ×1, ×2, ×4, ×8, ×16
Power Supply Connect: 12V 4-pin connector (When any FXS modules
are installed)
Local Loop Access: Four industry standard RJ-11 ports

• Environment
Temperature: 0 ~50°C (Operation) - 40 ~125°C (Storage)
Humidity: 10 ~90% NON-CONDENSING

• Power consumption
Voltage: 3.3/12V, 3REN
Maximum power dissipation: 2.06W/11.6W

• Hardware and software requirements
RAM 128 + MB CPU 800+ MHZ
Linux kernel 2.4.X or 2.6.X

http://ArtTel.ru

A400E on DAHDI User Manual

OpenVox Communication Co. LTD. URL: www.openvox.cn

28

Appendix B PIN Assignments

Either 4-pin or 6-pin RJ11 port is compatible with A400E, let’s illustrate
pin assignments of RJ11 port by the following tables.

4-pin RJ11 port

4-pin RJ11 port

PIN

Description

1
2
3
4

1

Not used

2

Tip

3

Ring

4

Not used

6-pin RJ11 port

6-pin RJ11 port

PIN

Description

1

6

1

Not used

2

Not used

3

Tip

4

Ring

5

Not used

6

Not used

http://ArtTel.ru
