Open Plan Systems OPS-B14 IMPACT User Manual

www.openplan.com | 844.OPS.OPS1 | [e-mail] | REV 08.09.16

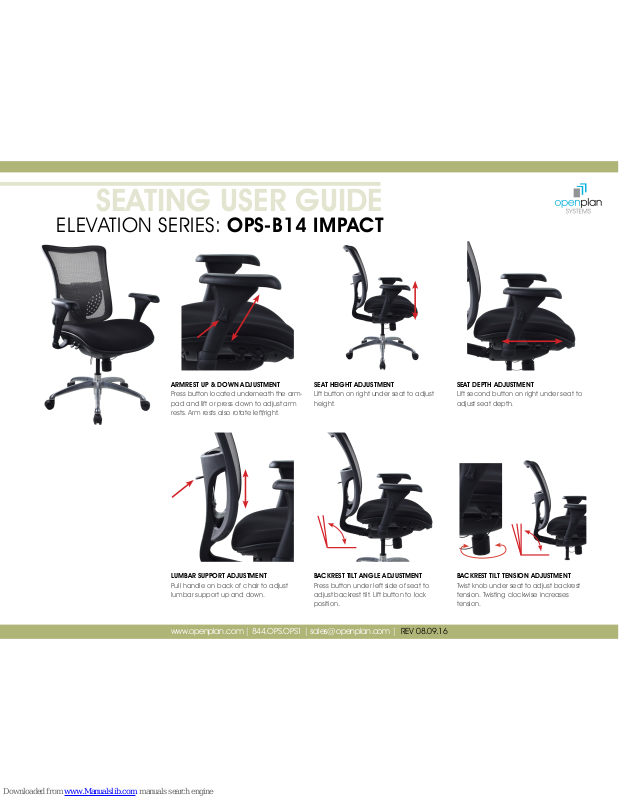

SEATING USER GUIDE

ELEVATION SERIES: OPS-B14 IMPACT

ARMREST UP & DOWN ADJUSTMENT

Press button located underneath the arm­pad and lift or press down to adjust arm
rests. Arm rests also rotate left/right.

SEAT HEIGHT ADJUSTMENT

Lift button on right under seat to adjust
height.

SEAT DEPTH ADJUSTMENT

Lift second button on right under seat to
adjust seat depth.

LUMBAR SUPPORT ADJUSTMENT

Pull handle on back of chair to adjust
lumbar support up and down.

BACKREST TILT ANGLE ADJUSTMENT

Press button under left side of seat to
adjust backrest tilt. Lift button to lock
position.

BACKREST TILT TENSION ADJUSTMENT

Twist knob under seat to adjust backrest
tension. Twisting clockwise increases
tension.

www.openplan.com | 844.OPS.OPS1 | [e-mail] | REV 08.09.16

SEATING USER GUIDE

ELEVATION SERIES: OPS-B14 IMPACT

29.5”

21.7”

18.5”

22.4”

26.8”

24.8”

21.3”

10.6”

30.3”

20.5”

26.4”

41.7”
