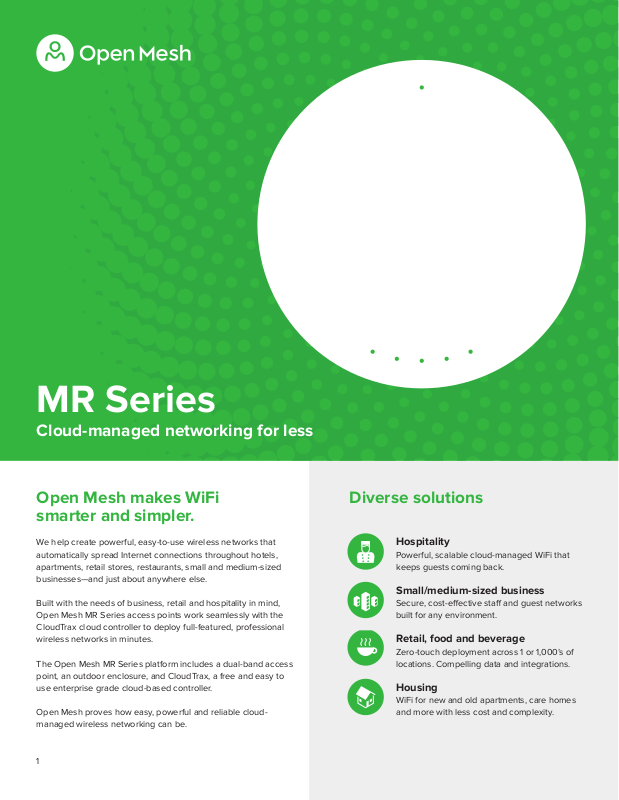

MR Series
Cloud-managed networking for less
Open Mesh makes WiFi
smarter and simpler.
We help create powerful, easy-to-use wireless networks that
automatically spread Internet connections throughout hotels,
apartments, retail stores, restaurants, small and medium-sized
businesses—and just about anywhere else.
Built with the needs of business, retail and hospitality in mind,
Open Mesh MR Series access points work seamlessly with the
CloudTrax cloud controller to deploy full-featured, professional
wireless networks in minutes.
The Open Mesh MR Series platform includes a dual-band access
point, an outdoor enclosure, and CloudTrax, a free and easy to
use enterprise grade cloud-based controller.
Open Mesh proves how easy, powerful and reliable cloudmanaged wireless networking can be.
1
Diverse solutions
Hospitality
Powerful, scalable cloud-managed WiFi that
keeps guests coming back.
Small/medium-sized business
Secure, cost-eective sta and guest networks
built for any environment.
Retail, food and beverage
Zero-touch deployment across 1 or 1,000’s of
locations. Compelling data and integrations.
Housing
WiFi for new and old apartments, care homes
and more with less cost and complexity.
MR Series Access Points
Cloud-managed wireless LAN
Open Mesh MR Series access
points provide robust wireless
LAN coverage anywhere you
need to share a connection.
Each access point is a cloudmanaged concurrent dual
band 2.4 GHz and 5 GHz
access point, router, mesh
gateway and repeater all in
one compact, reliable, highperformance package.
Features
Benefits
Cloud managed
What used to require a
dedicated server can now be
done through a browser and
our free, cloud-based network
controller, CloudTrax. CloudTrax
is packed with powerful
features to meet the demands
of IT professionals, yet is
easy enough to be deployed
by someone with little to no
network experience.
● Zero config, plug and
play networking
● Self forming, self
healing mesh
High performance
Open Mesh MR Series
access points are designed
to deliver all the features and
performance you’d expect from
enterprise-grade hardware at a
fraction of the price. Features
include dual band simultaneous
2.4GHz/5GHz, 3x3
configurations on wireless N or
AC, Gigabit Ethernet, standard
802.3af PoE and more.
● Free cloud-based network
controller for complete
control and monitoring
● Four SSIDs for public and
private use
Mesh enabled
Install units like traditional
hardwired access points and
add additional power-only units
to extend coverage. All access
points work together to form
a self-organizing, self-healing
encrypted mesh network with
seamless roaming. Mesh allows
you to balance performance
with deployment flexibility in
locations where additional
cabling isn’t always feasible.
● Free iOS and Android
monitoring apps
● Hardware Watchdog
auto-restarts after power
spikes and outages
White labeled
Open Mesh is ideal for systems
integrators, resellers and IT
consultants because we don’t
put any logos on our boxes or
access points. Even our cloud
controller, CloudTrax, contains
no links or references back to
Open Mesh. With no competing
messages, your brand is the
star of the show.
2
MR Series Enclosures
Outdoor installation
Take the MR Series access
points outdoors for professional, modular WLAN installations anywhere.
The outdoor enclosure is ideal
for covering an outdoor sector
or for short range point to multipoint deployments with the narrower antenna pattern of the MR
Series access points.
Features
● Weather-tight enclosure
● Pole and wall mountable
● Compact size
● Bright white, UV-stabilized ABS plastic
Benefits
A perfect fit
Open Mesh makes it easy to get wireless coverage exactly where
you need it. Out of the box, Open Mesh MR Series access points
can be installed in any indoor location like a ceiling (to cover a
room) or wall (to cover a sector of a larger facility). And with the
outdoor enclosure that mounts to a wall or pole, you can take
your wireless network outside. Open Mesh enclosures blend in
seamlessly in any oce, school conference facility or event venue.
Specifications
Size Diameter: 8.0cm (3.1”)
Depth: 4.5cm (1.8”)
Compatible Power Supplies 802.3af PoE recommended
Material Bright white, UV-stabilized
ABS plastic with rubber seal
Mounting Options Pole, wall
Warranty 1 Year
3
Open Mesh Cloud Controller
Powerful network management
Say goodbye to onsite controllers
— and monthly fees.
Build, manage and monitor your
networks across one site or thousands through the cloud. With no
servers or software to install, Open
Mesh is powerful enough to meet
the demands of IT professionals
yet easy enough to use by someone with little or no experience.
Features
Benefits
Easy scalability
Whether you’re managing one
site or thousands, CloudTrax is
built to grow with you. Because
there’s nothing to configure
on-site, adding new access
points and network locations
takes just seconds. Create new
networks by cloning existing
ones and provision new access
points in just a click. CloudTrax
makes it easy to get all of your
networks behind a single pane
of glass.
● Single point of configu-
ration for one access
point or thousands
● Automatic reporting
and alerts
Mobile apps
CloudTrax includes free iOS
and Android apps, so you can
build, manage and monitor
your networks while on the
go. Create new networks in
seconds, add new APs by
simply scanning them, and
swap old APs with new with
zero typing or configuration.
You have access to the full
functionality available at
cloudtrax.com and can switch
between mobile and desktop
seamlessly.
● Usage statistics and
control with client
device fingerprinting
● Full captive portal/
voucher system
Multiple SSIDs
CloudTrax can broadcast
multiple unique networks,
some public and others
private. Public networks can
be customized with powerful
captive portal features,
while private networks work
seamlessly as an extension
of your LAN. Each network
can be uniquely named, left
visible or hidden, and left
open or password-protected
with WPA2 encryption.
● Free iOS and Android
apps
● Zero cost license
● Full CloudTrax API
(additional cost)
Automated alerts
Don’t have time to check the
network status every day?
Don’t worry. If any access
point goes down and doesn’t
come back up within an hour,
CloudTrax will automatically
email you (and anyone else you
designate). Outage alerts are
easy to turn on and o, always
keeping you in-the-know when
it comes to the health of your
wireless network.
4
MR Series Specifications
MR1750
Speed (rated) 3x3 MIMO 450 + 1300 Mbps
Radio: 2.5 GHz 11b/g/n: 2.412~2.484 GHz
Radio: 5 GHz 11a/n/ac: 5.18-5.24 and 5.745-5.825 GHz
Antenna Six internal (2.4 GHz: 4 dBi; 5 GHz: 5 dBi)
Power Up to 23 dBm (200 mw)
Processor QCA9558 (Processor @ 700mhz MIPS74K + 2.4 GHz radio) + AR9880 (5 GHz Radio)
Max users (recommended)
Memory 128MB DRAM
Security WPA/WPA2 Personal, WPA/WPA2 Enterprise, 802.1X RADIUS, captive portal, client isolation
Zero config plug and play Ye s
Self-forming, self-healing
mesh
Seamless roaming Ye s
Hardware watchdog CPU Ye s
Free cloud management Ye s
Free iOS/Android Apps Ye s
Captive portal w/ bandwidth
throttling, splash pages and
user controls
SSIDs 4
SSID to VLAN tagging Ye s
Ethernet 1 x Gigabit
PoE 802.3af/at* 48v
Power supply options Universal 24v (US, EU, UK, AU)
LEDs Power, Ethernet, 2.4 GHz, 5 GHz, Trac
Temperature 0-50 C
Mounting options Solid ceiling, wall, 9/16” or 15/16” drop ceiling (included); outdoor enclosure ODMRX00 (optional)
Size 6.38” (diameter) x 1.5” (height) | 0.52 Lbs
50-100 per AP
Yes (2.4 GHz)
Ye s
* While most deployments will use less than 15.4W (802.3af), you may not be able to use high TX power with long cable runs and/or high client
density unless your switch supports 802.3at, or up to 20w per port.
Transmission pattern
0
330
300
270
240
210
5
30
60
-10
0
10
120
150
180
300
90
270
240
5 GHz
0
330
210
30
60
-10
0
10
90
120
150
180
330
300
270
240
210
0
30
60
-10
0
10
90
120
150
180
330
300
270
240
210
0
30
60
-10
0
10
90
120
150
180
