Eurocode Digi50 Controller V1.03 04/07/2005 Page - 1 -
EUROCODE SERI ES
OPERATOR INSTRUCTIONS
PARTS LISTING
CIRCUIT DIAGRAMS
INSTALLATION DETAILS
These instructions cover the following models:-
EUROCODE 150
EUROCODE 180
EUROCODE 300
Designed and manufactured by:
OPEN DATE EQUIPMENT LIMITED
UNITS 8 & 9 PUMA TRADE PARK
145 MORDEN ROAD
MITCHAM
SURREY
CR4 4DG
UNITED KINGDOM
Tel: 0044 (0) 208 655-4999
Fax: 0044 (0) 208 655-4990
Email: [email protected]
Web site: www.opendate.co.uk
(Dig i50 C ontrolle r)
Page 2
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 2 -
EUROCO D E SERIES (Digi50) IN D EX.
Description
Page
Index 2
Declaration of Conformity. 3
Safety Instructions. 4
Digi50 Control - Description. 5
Digi50 Front Panel Layout. 6
Digi50 Rear Panel Layout. 7
Operating Instructions
Printhead - Magazine Removal and Fitting. 8
Foil Threading. 8
Type Holder Removal and Replacement. 8
Foil Feed Adjustment. 8
Printhead - Foil Threading Diagram. 9
Initial Setting. 10

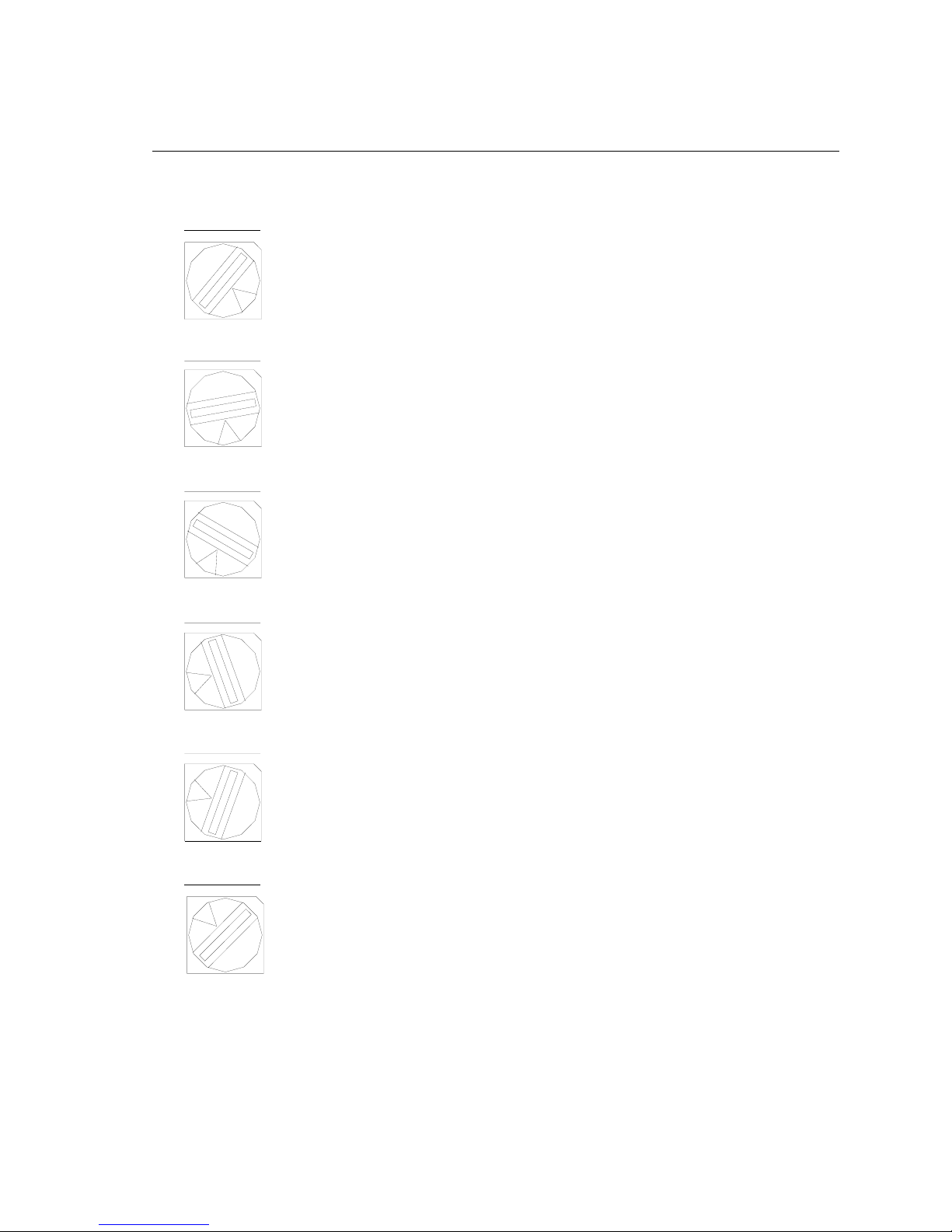

Print Orientation. 10
Temperature Adjustment. 10
Print Dwell (Timer) Adjustment. 11
Air Flow Controls. 11

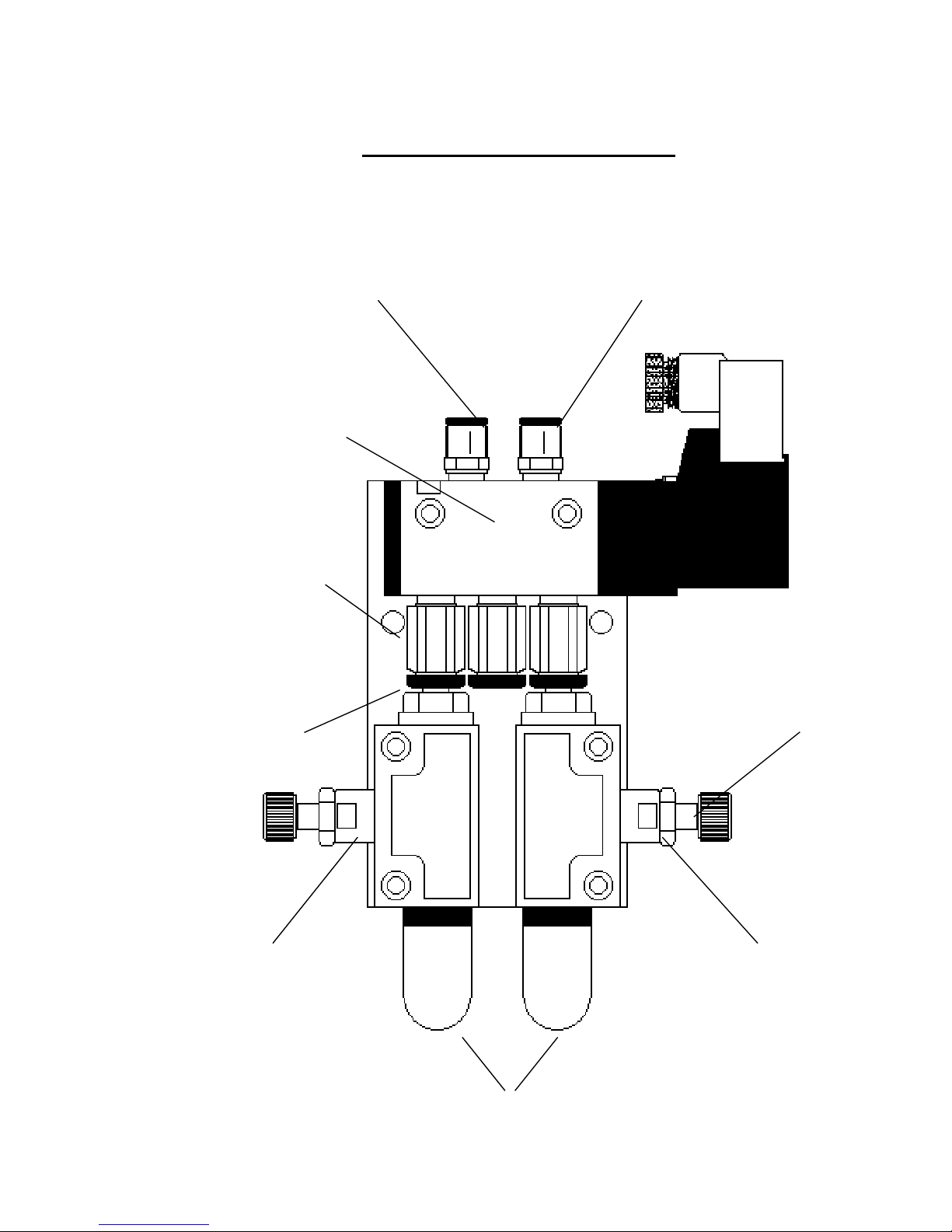

Solenoid Valve Details 12

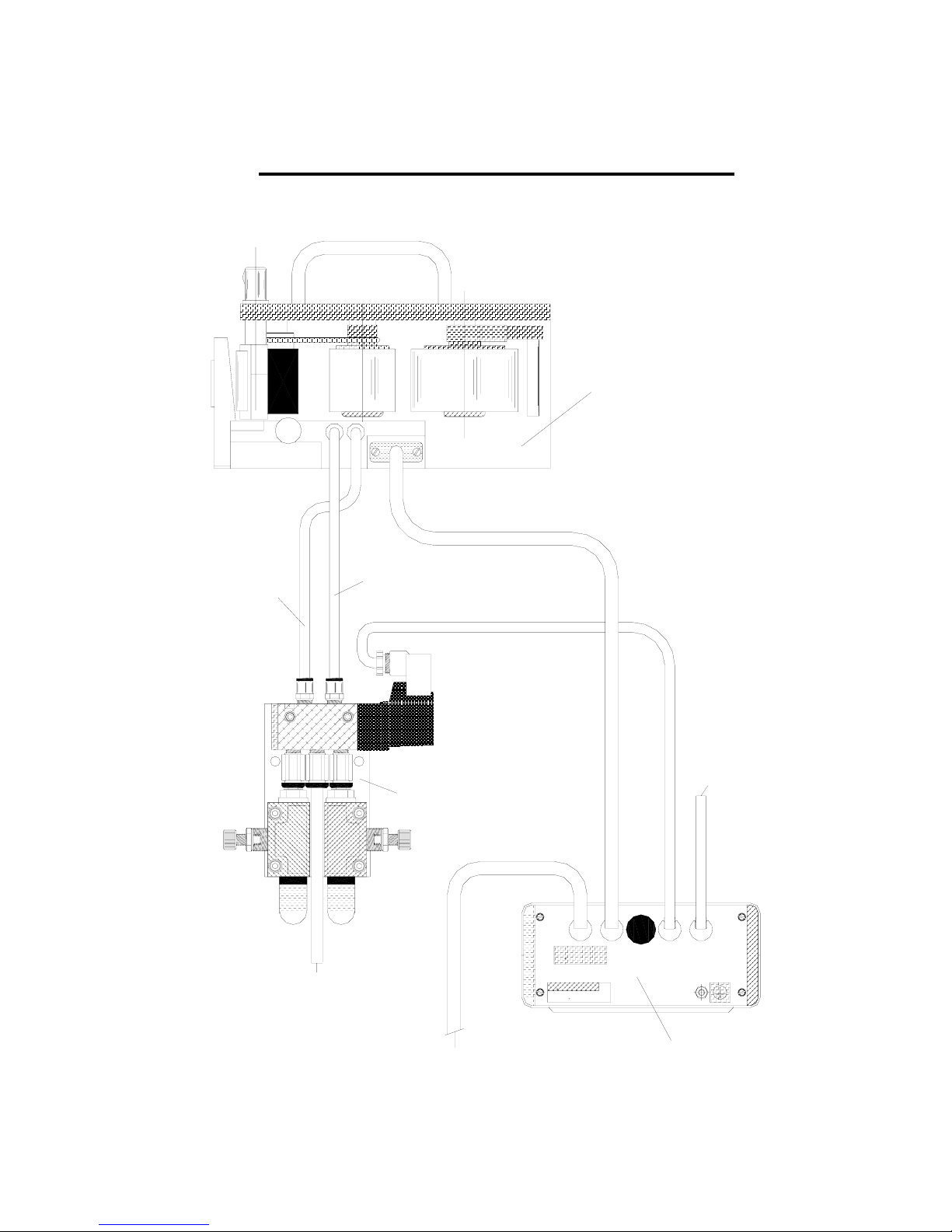

Interconnection Details - Electrical and Pneumatic. 13

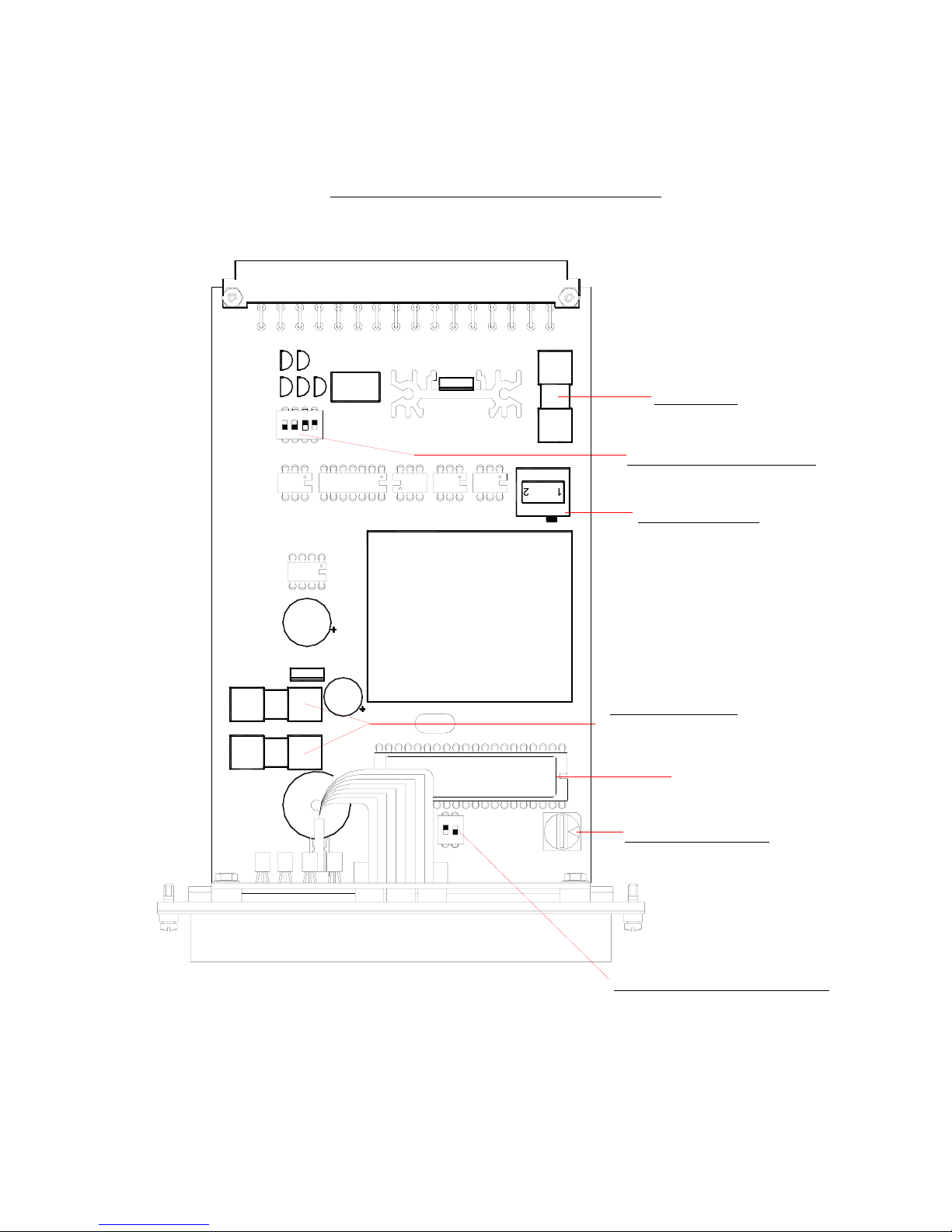

Digi50 Setting Up Controller (Voltage, Mode and D ip Switch Sele ction) 14
Digi50 Mode Settings 15

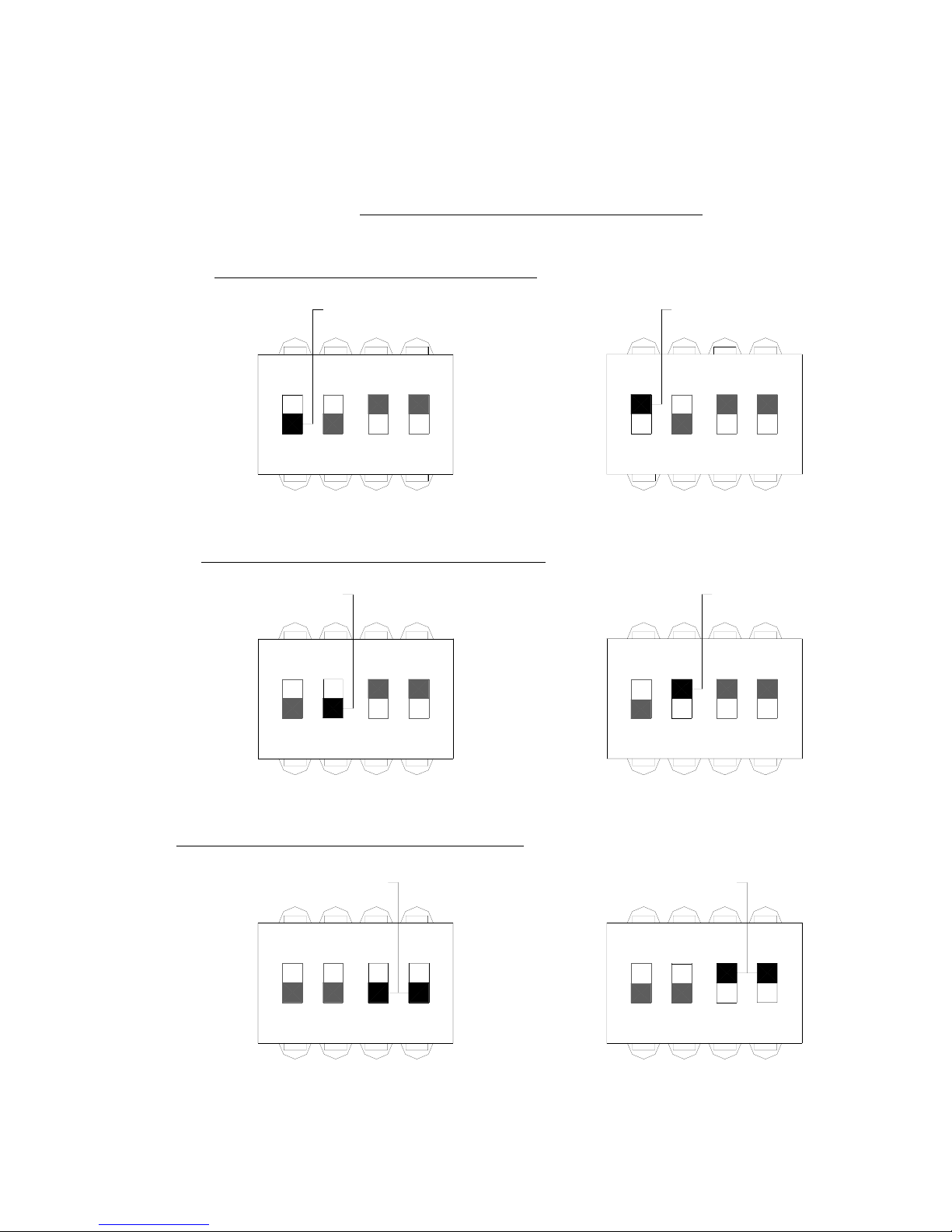

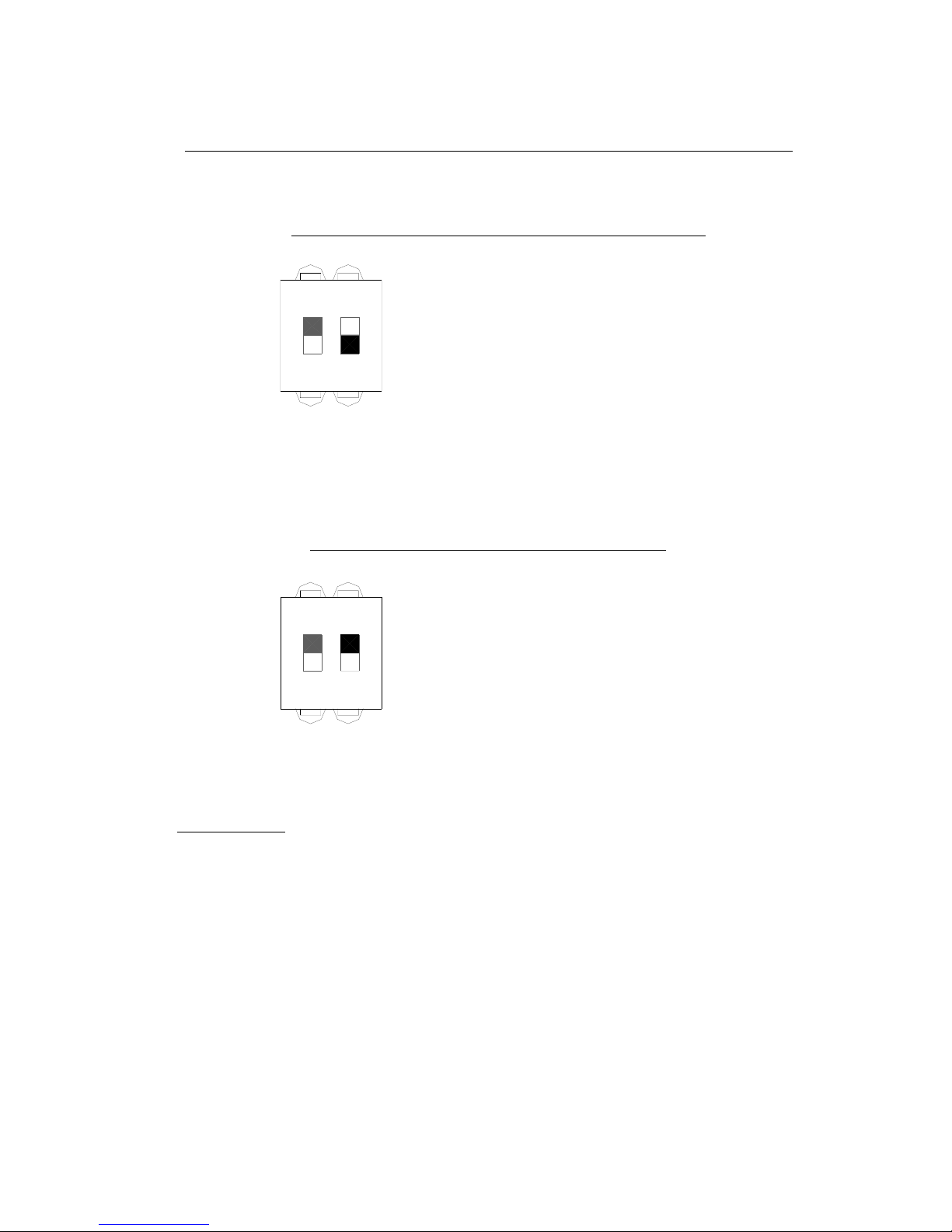

Digi50 Dip Switch Settings (Centigrade/Fahrenheit Selection etc. ) 16
Digi50 Thermistor Dip Switches. 17

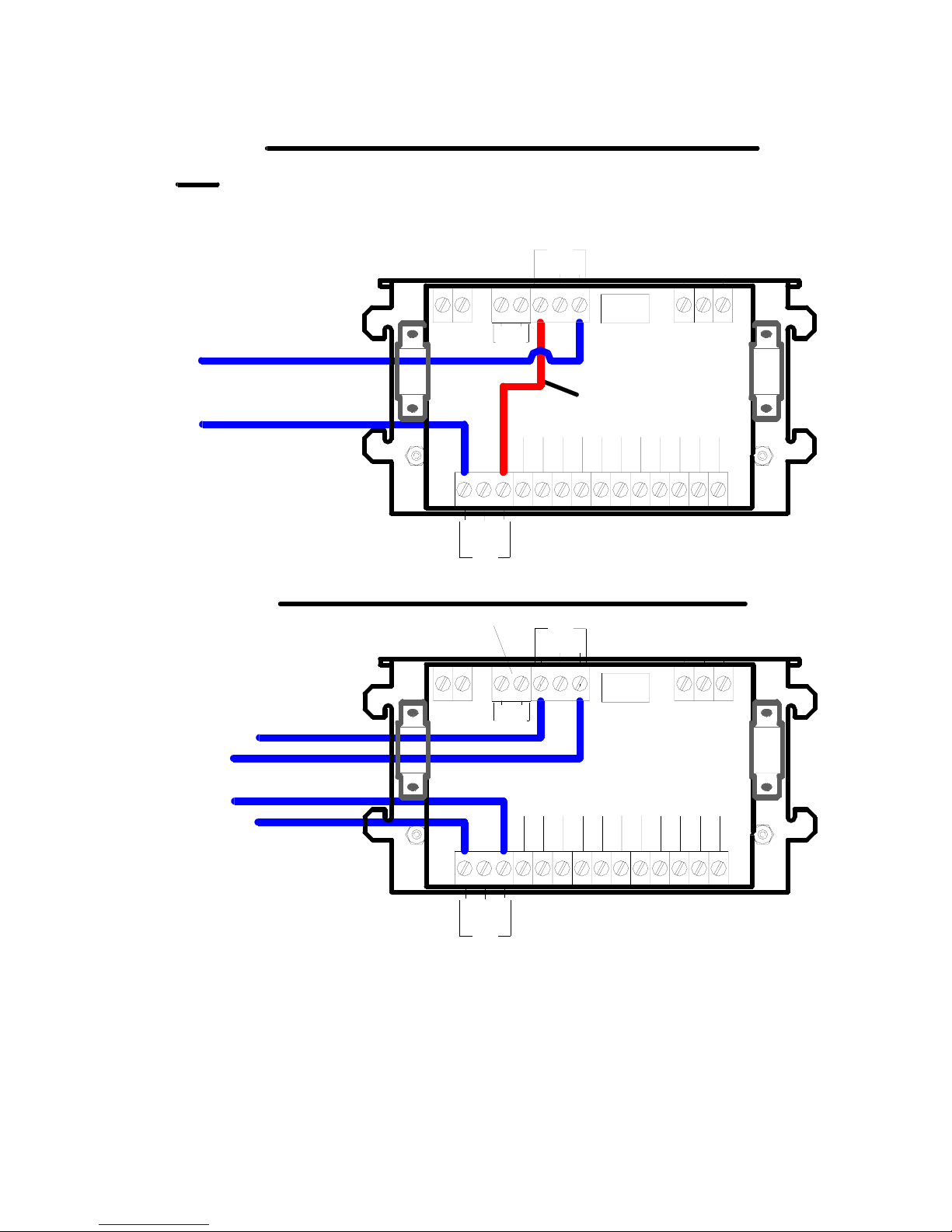

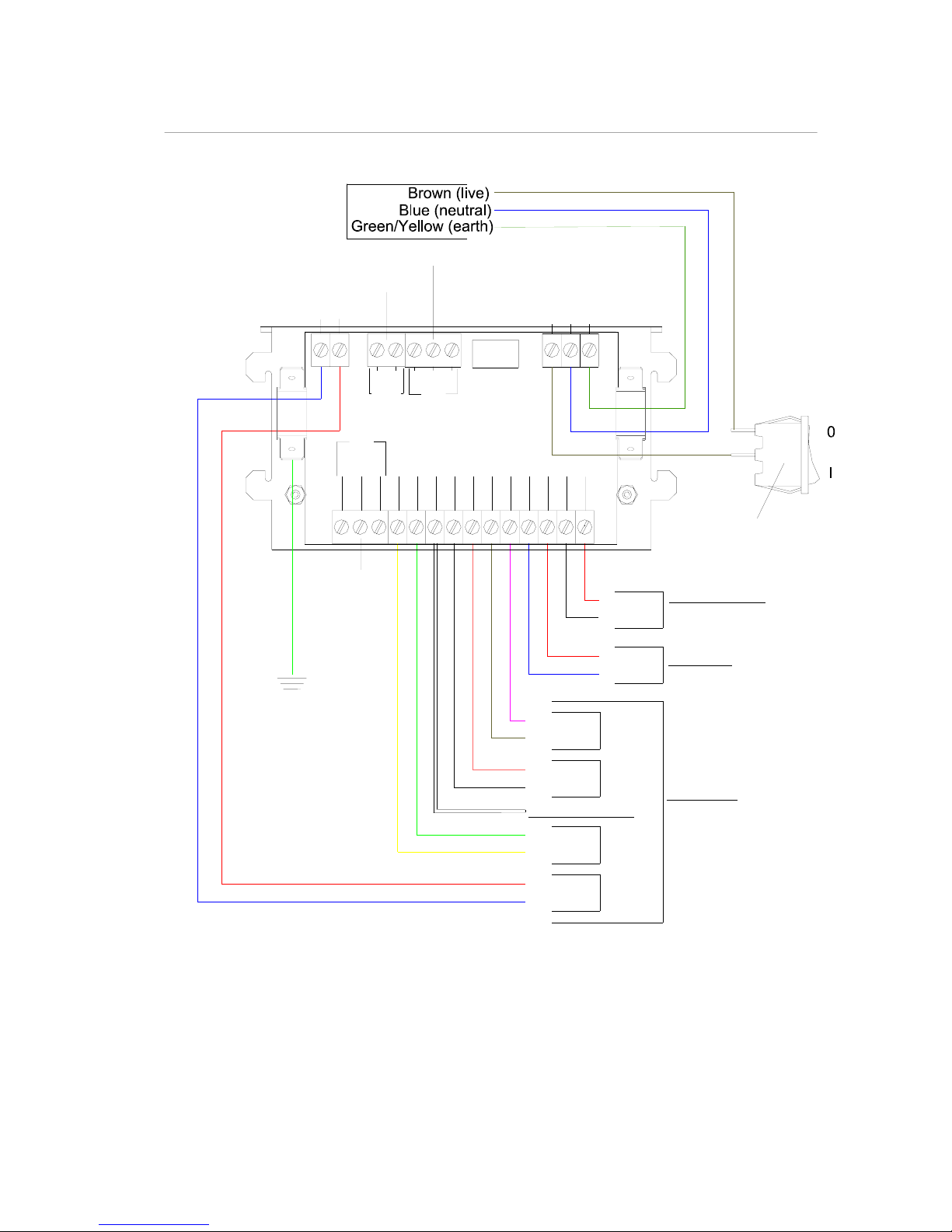

Digi50 Connection Details Control Unit. 18
Digi50 Connection Details Row “c”. 19

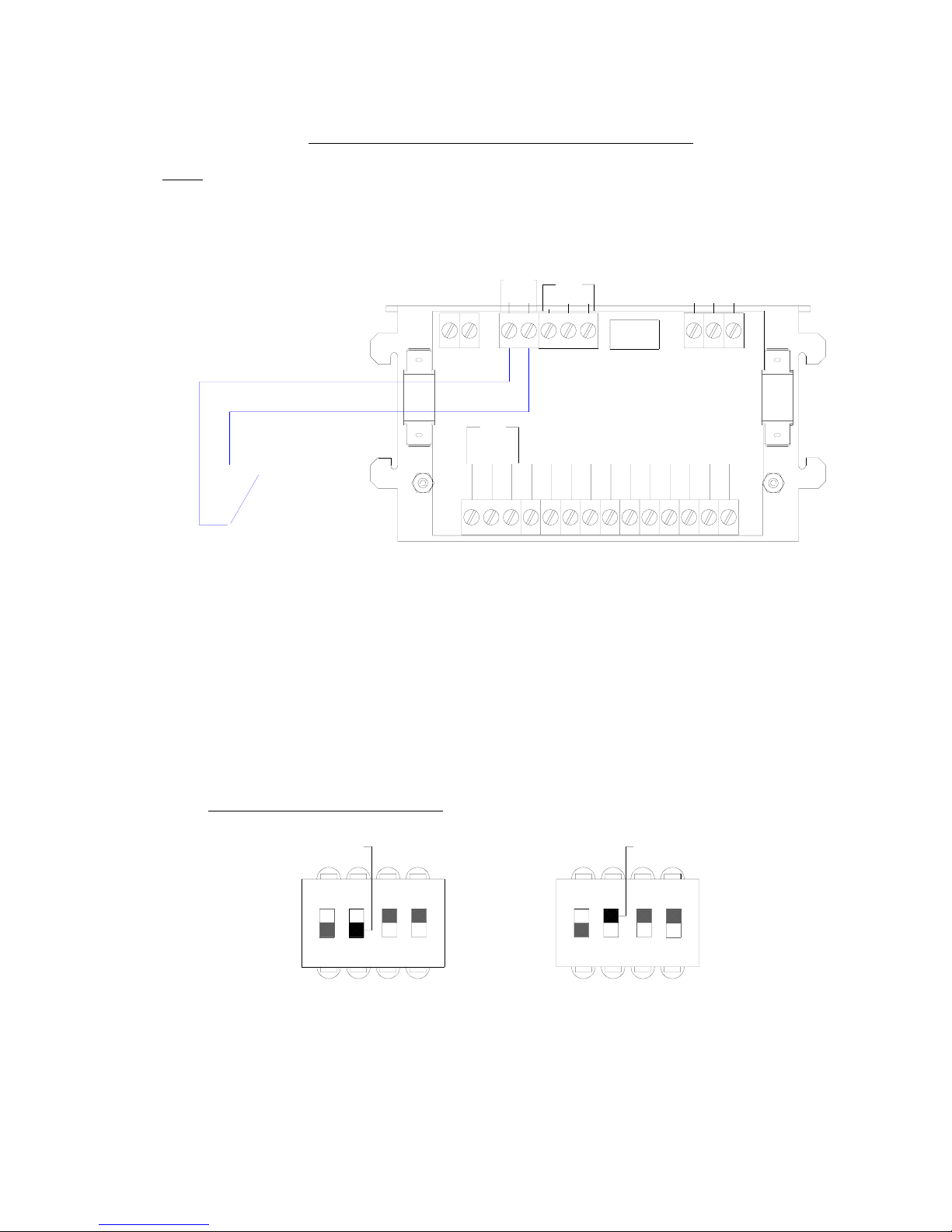

Output Connection Digi50 Details. 20
Low Air Pressure Option. 21
Calibration. 22

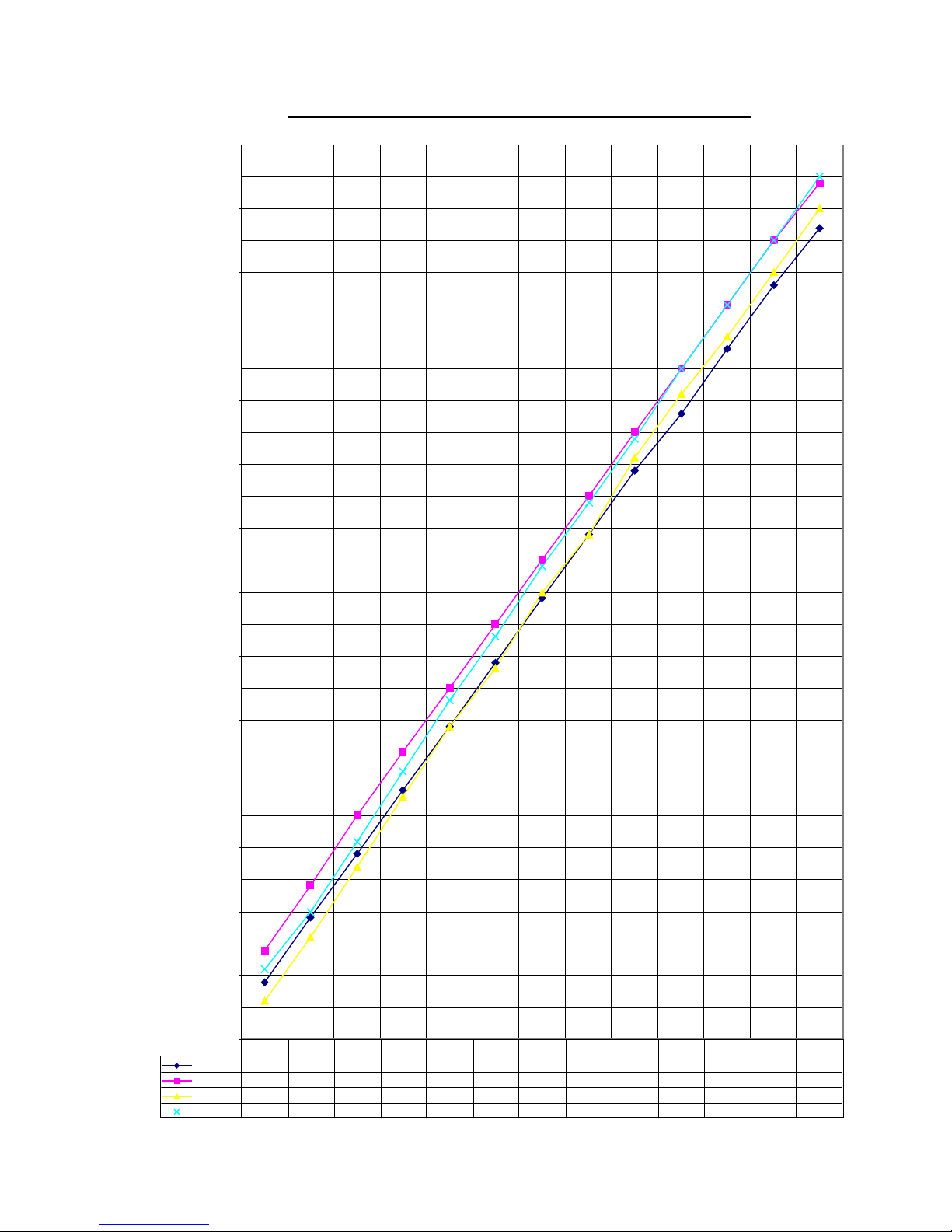

Temperature Chart. 23
Fault Finding.
System Faults 24
Alarm System Faults (Block Diagram) 25
Block Diagram for Thermistor 26
Mechanical Fault Finding 27
Print Quality Deterioration 28

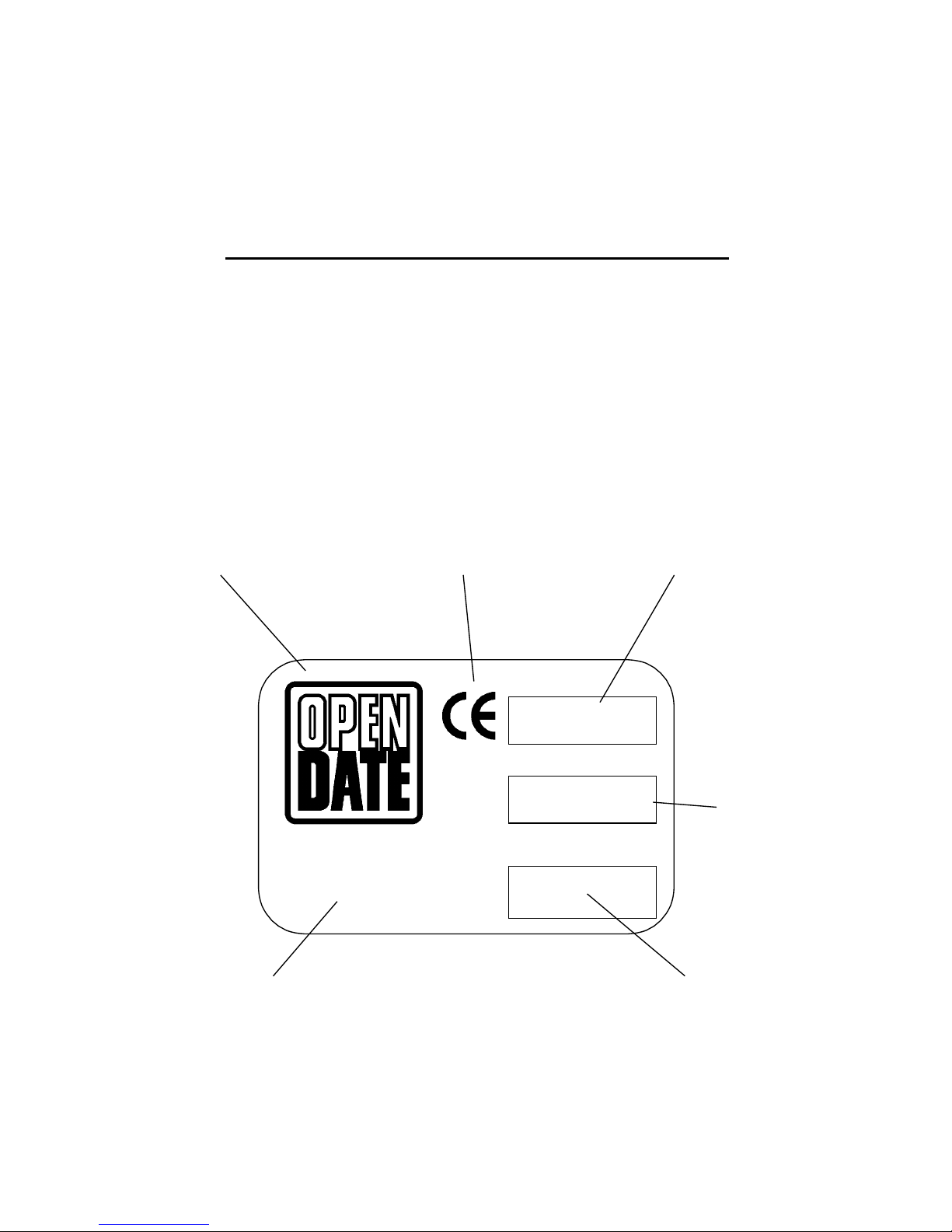

Machine Serial No. Identification. 29
Recommended Spares Kit. 30
Parts Lists. (Mechanical page 1) 31
Parts Lists. (Mechanical page 2 ) 32
Parts Lists. (Mechanical page 3 ) 33

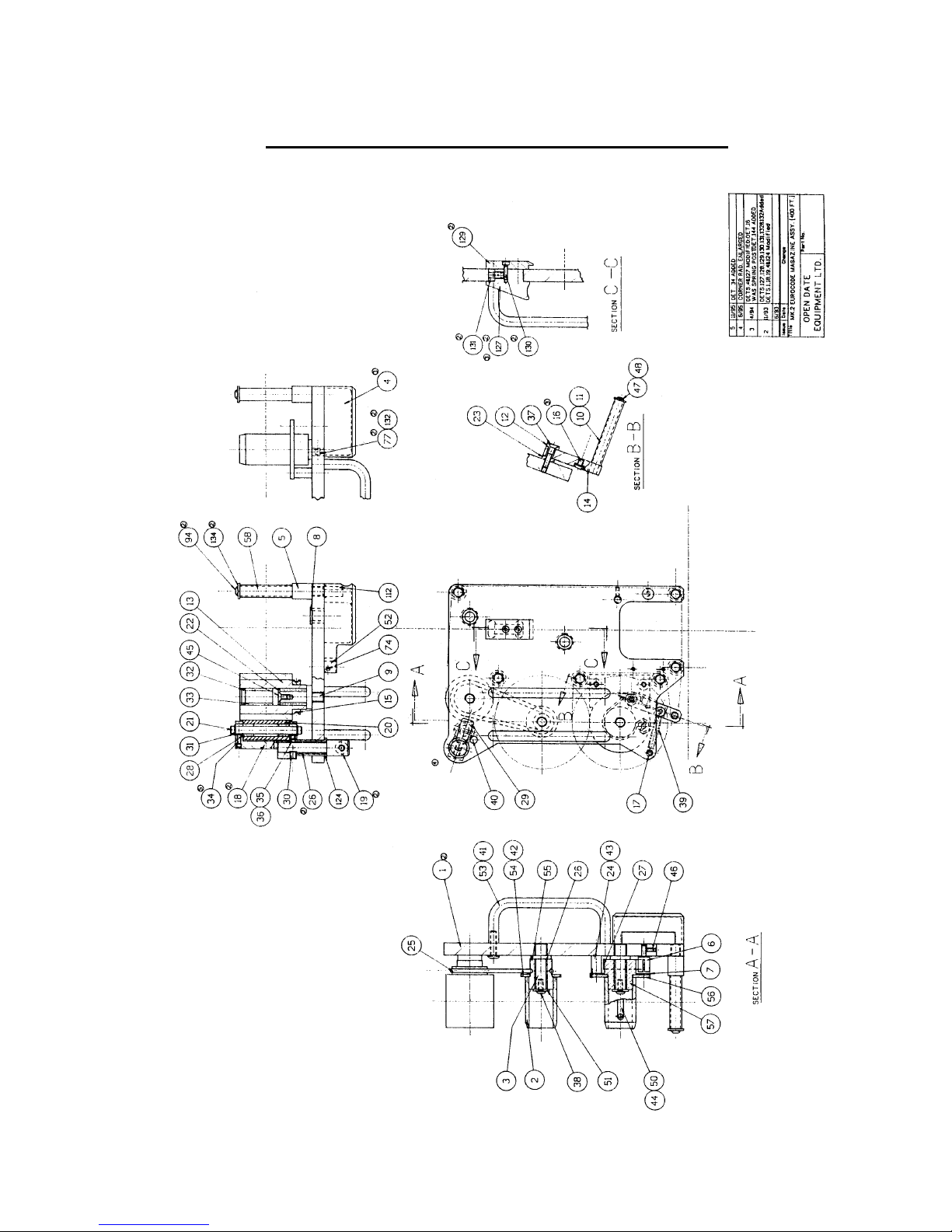

Eurocode 150/180 Magazine Details. 34

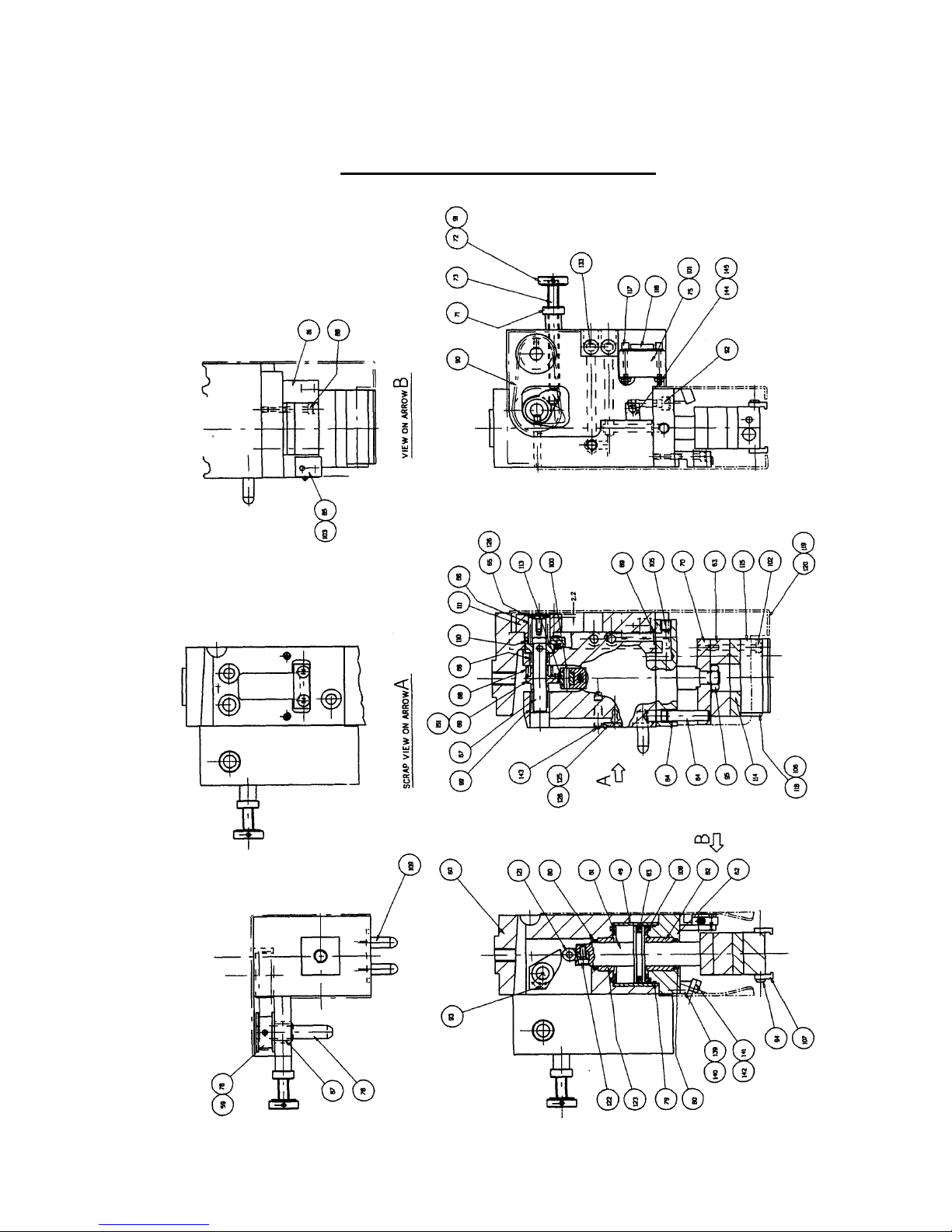

Eurocode Body Details. 35
Eurocode 300 Magazine Details. 36

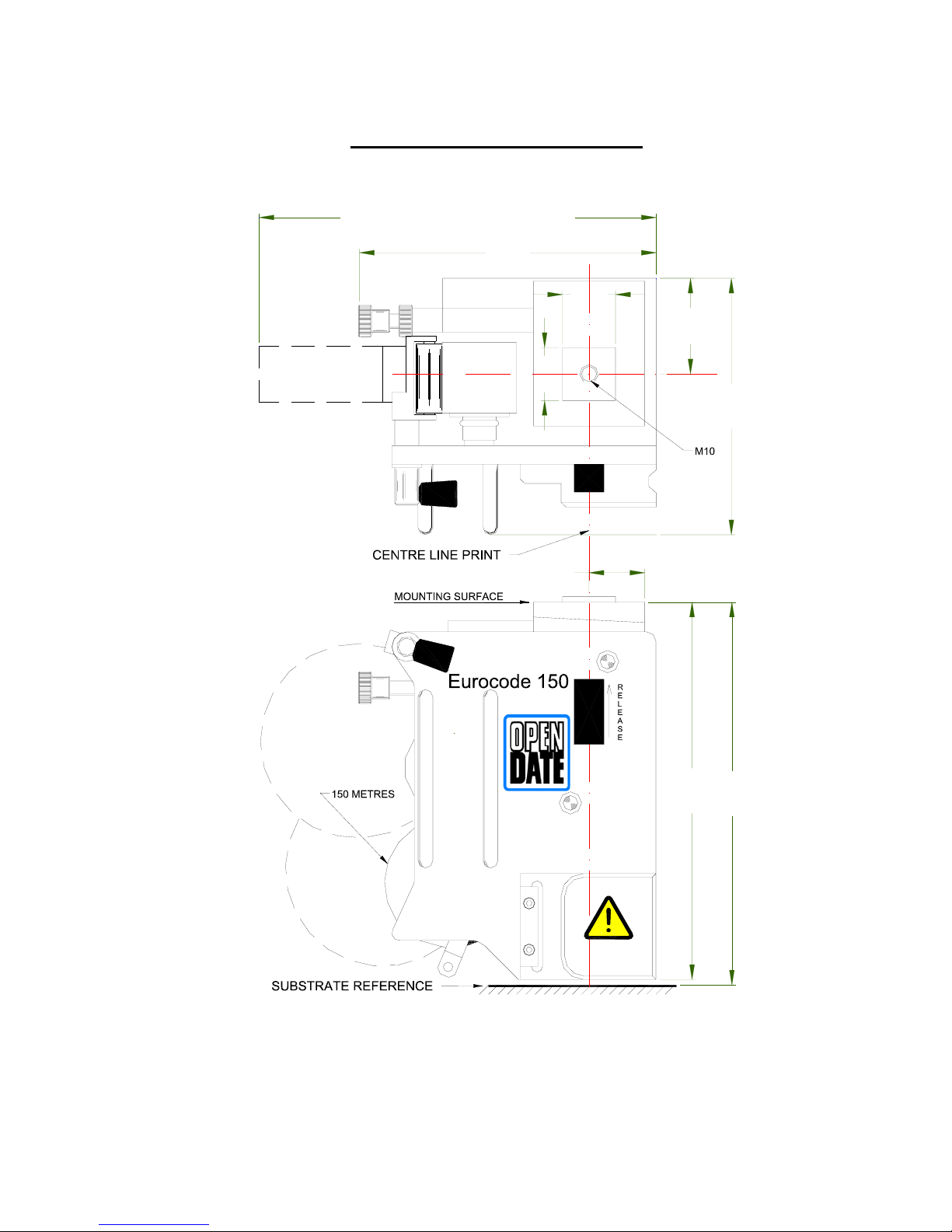

Eurocode Dimensions Datasheet. 37

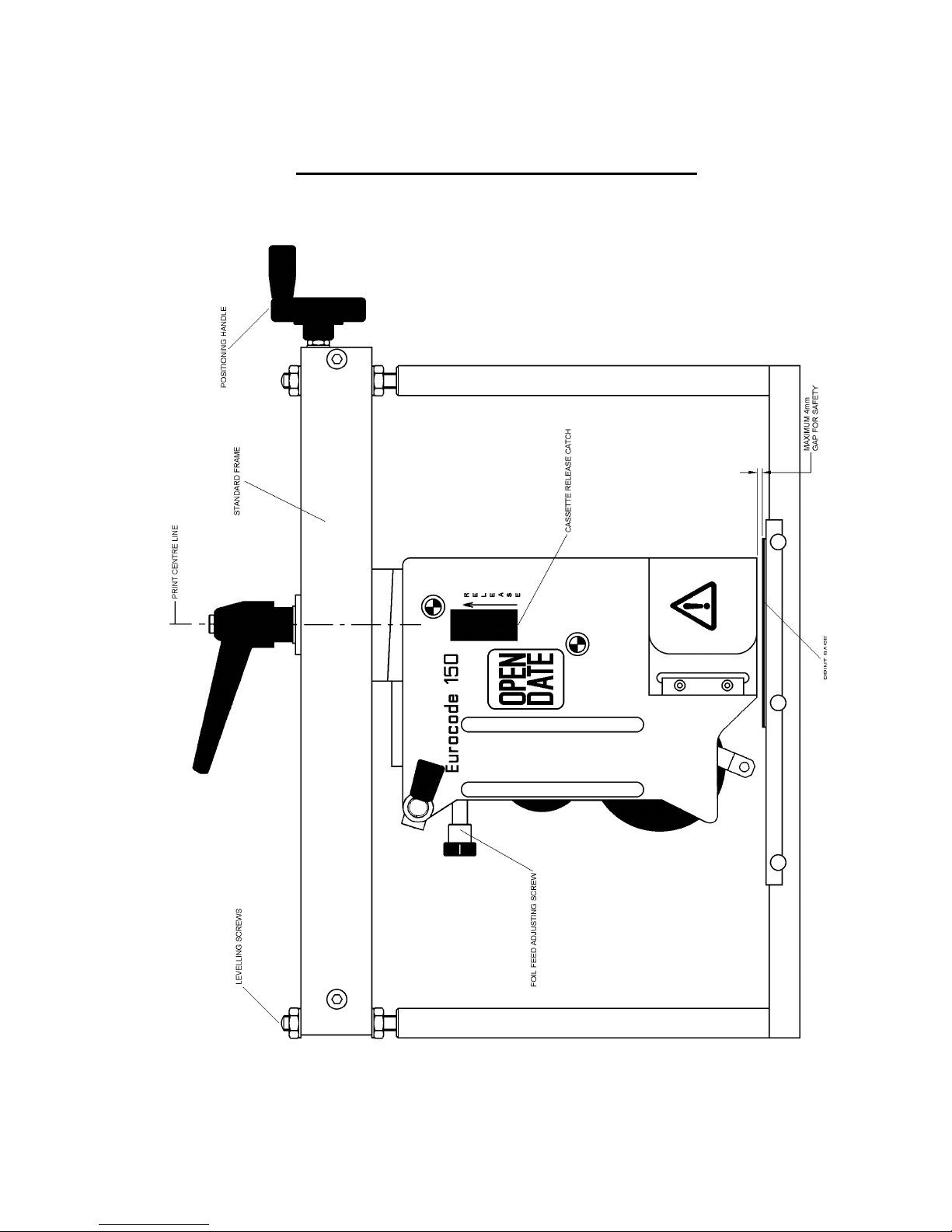

Frame Installation Datasheet. 38
A
irborne Noise Emissions. 39
Digi50 Operating Specifications (Eurocode Series Printers) 40
Warranty 41
Open Date Group Companies & Agents. 42
Page 3
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 3 -
EC DECLARATION OF CONFORMITY
(Passed EMC Tests 24 November 2004)
We hereby declare that the f ollowi ng machinery complies w ith the essent ial health and
safety requirements of the Machinery Directive 98/37/EC, and the L ow Voltage Directive
73/23/EEC and its amend m ents, and the requiremen t s of the Electromagnetic Compatibility
Directive 89/ 336/ E E C an d i t s amendments.
Machine Description:
Hot Foil Printer with D igi5 0 C ontr olle r .
Model:
Eur oc ode
Type: .....................
Serial number: .....................
Manufactured by:
Open Da te Equipment Limited.
Address
Units 8 & 9 , P uma Trade P ar k ,
145 Morden Road,
Mitcham,
Surrey. CR4 4 D G
United Kingdom.
The following transposed harmonised European standards have been used
.
BS EN ISO 12100: part 1, 2003
.
Safety of machinery. Basic concepts, general principles for
design. Basic terminology, methodology.
BS EN ISO 12100: part 2, 2003
.
Safety of machinery. Basic concepts, general principles for
design. Technical principles.
EN294: 1992.
Safety of machinery. Safety distances to prevent danger zones being reached by
the upper limbs.
BS EN 563:1994.
Safety of machin ery. Temperatures o f touchable surfac es. Ergonomics data to
establish temperature limit values for hot surfaces
.
EN60204: part 1, 1997
.
Safety of machinery. Elec trical equipment of machines. Specificatio n f o r
general requirements.
BS EN 61000-6: part 4, 2001
.
Electromagnetic compatibility (EMC). Generic standards.
Emission standard for i n dustri al environments.
BS EN 61000-3: part 2, 2000
.
Electromagnetic compatibility (EMC). Limits. Limits for harmonic
current emissions. (equipment input current up to and including 16 A per phase)
BS EN 61000-3: part 3, 1994
.
Electromagnetic compatibility (EMC). Limits. Limitation of voltage
changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with
rated current <= 16 A per phase and not subject to co n ditional conn ec ti on.
BS EN 61000-6: part 2, 2001
.
Electromagnetic compatibility (EMC). Generic standards.
Immunity standard for industrial environments.
FCC Part 15 Verification , Class A
.
Conducted and Radi at ed Em is s i on s.
In addition, this machinery has been designed and manufactured in accordance with:-
PD 5304:2000
,
Safe use of machinery.
A technic a l c ons tr uc tion f ile f or t his m a chine r y is r e ta ine d a t the a bov e address.
Signed:
............................................
Date:
...........................................
Name
K.F. Wingfield.
Position
Service Manager
Signing on behalf of the manufa c t ur e r .
Page 4
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 4 -
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions carefully. Follow all warnings and instructions marked on the product.
2. Always disconnect the printhead and controller from the mains electricity and air supply before
attempting to clean or service it.
3. Never operate the printhead unless it is installed within the mounting frame supplied. When installed
correctly the gap between the printer and print base should not be greater than 4mm (see page 38).
4. Do not use the product near water. Never spill liquid of any kin d on to the pr oduct.
5. Do not place this product on an unstable stand, table or machine. It may fall causing serious damage to
the product or injury to the operator.
6. Never insert objects of any kind into this product through any openings or gaps as they may touch
dangerous voltage points or short circuit parts that could result in fire or electric shock.
7. This product should only be operated from the type of electrical supply as indicated on the rear of the
printhead control unit (see page 7).
8. Ensure that the printhead connection cable is fully secured to the printhead with the screws attached to
the " D " c o nnec t o r c over. Failu r e to d o t h is will r esu lt in t h e machine no t b eing properly earthed.
9. Use only the power cable supplied with the product. The cable supplied is three core mains cable,
utilis in g one wire a s a g r ounding conductor. This must be connected to a suitable earth point at the
electrical supply. This is a safety feature. If any doubt arises in trying to connect the power cable, please
contact the manufacturer or agent who supplied the product.
10. Do not allow anything to rest on the power cable. Do not locate the product where persons w ill walk on
the cable.
11. If an extension cable is used with this product, make sure that the total ampere ratings of the equipment
plugged into the extension cable does not exceed the extension cable ampere rating. Also make sure
that the total rating does not exceed the fuse rating.
12. Do not service this product yourself as opening or removing guards may expose you to dangerous
voltage points, major burns and other risks. Refer all servicing to qualified personnel.
13. Do not attempt to use to use this product in areas where explosive gases or substances are present.
14. Once the product is under normal working conditions, care must be taken when removing the type
holder as you can easily burn yourself. There is a yellow warning sign on the type holder access door
indicating a danger. Open the door by gripping it at the side. The type holder can get very hot, it should
only be held by its plastic handle. Never touch the metallic part s, as t e mp eratures c ould be as high as
220 degrees C.
15. Disconnect the product from the electrical and air supply, referring to servicing by qualified personnel
under the following conditions.
a. If the power cable is damaged or frayed.
b. If the air pipes are damaged in any way.
c. If liquid has been spilled into or if the product has been exposed to rain or water.
d. If the product does not operate normally when the operating instructions are followed. Adjust
only those controls that are covered by the instructions. Improper adjustment may result an
damage needing qualified technicians to restore the product to normal operating conditions.
Page 5
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 5 -

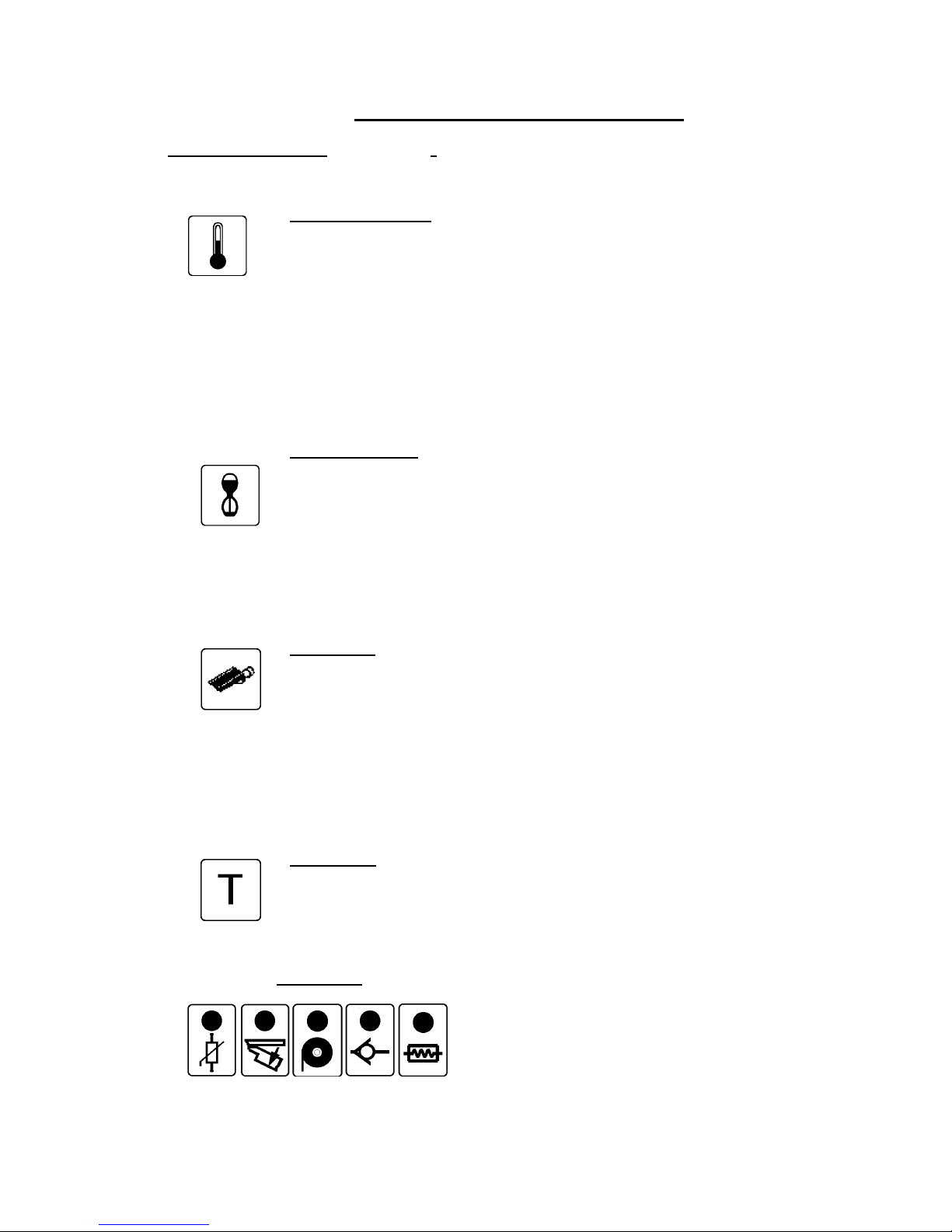

Digi50 Operating Instructions
Digi50 Control Unit
(see page 6)
Temperat ure Button
To adjust the temperature setting, press and hold down the tempe r ature button
and use the up/down arrow keys to the left of t he d isplay to increase or dec r ease
the set point. (Required Tem per ature)
Range:- Minimum 70ºC (158ºF), Maximum 220ºC (428ºF).
Note!
When sel e c ting operating Modes 2, 4 or 6, the printer will not operate on the
external trigger until the temperature has reached the pre-progr ammed set point.
(see page 15 for ranges of the mode settings etc.)
In normal operation, t he temperature will fluctuate by up to ±4ºc from the set point.
Print Dwell Button
To adjust the pr int dwell setti ng, press and hold down the print dwell button and
use the up/down arrow keys to the left of t he display to incr ease or dec r ease.
This adjustment controls the time the type/die face is in contact wi th the substrate.
Higher num ber s i n dicate longer dwell times.
Range:- 10 to 2000 milli–seconds
. (0.010 – 2 Seconds)
Print Switch
1. Switches the print signal between external tri g ger (automatic pri nt cycle) and
the test button feature (manua l operation).
Note!
The Print L E D ( gr een) is illuminated when switched for external triggering
(automatic print c y c le).
Any Fault condition, will cancel (switch off) the Print Switch automatically.
“This is a saf ety feature”

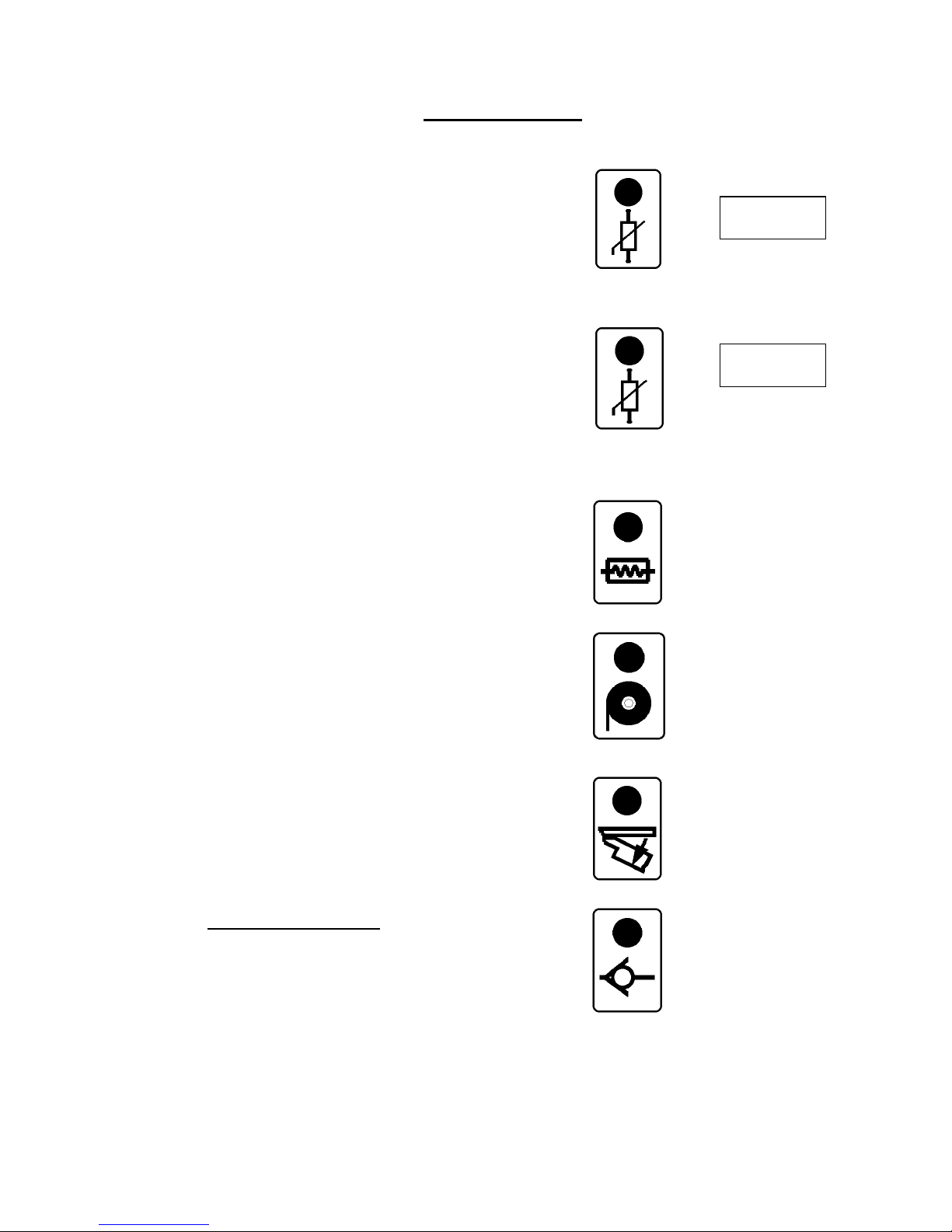

Fault LED’s.
Test Button.
Manually oper ates the printer (wil l not operate whil st the Print LED i s on).
Refer t o pages 24 & 25 for system f a ults.
Page 6
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 6 -
T

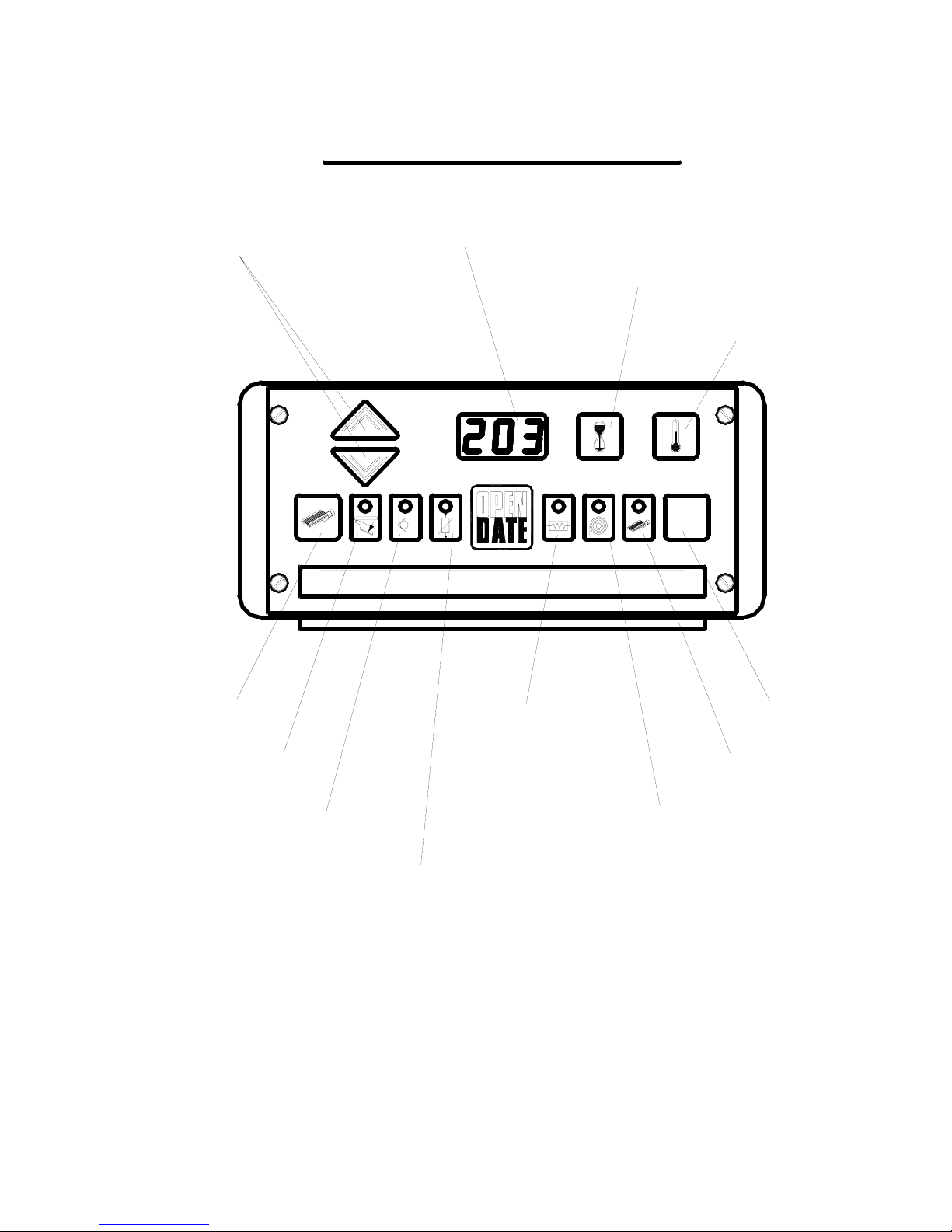

Digi50 Control Unit Front Panel
Up & Down Keys
Display "Temperature" & "Dwell"
Print Dwell (Timer Switch)
Temperature Switch
Print Switch
Low Air Pressure LED (Red)
Door LED (Red)
Thermistor LED (Red)
Heater LED (Red)
Print LED (Green)
Foil Run Out LED (Red)
Test Button
Page 7
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 7 -
Supply Voltage Details
Print Signal (External Trigger)
(Cables Excluded For Clarity)

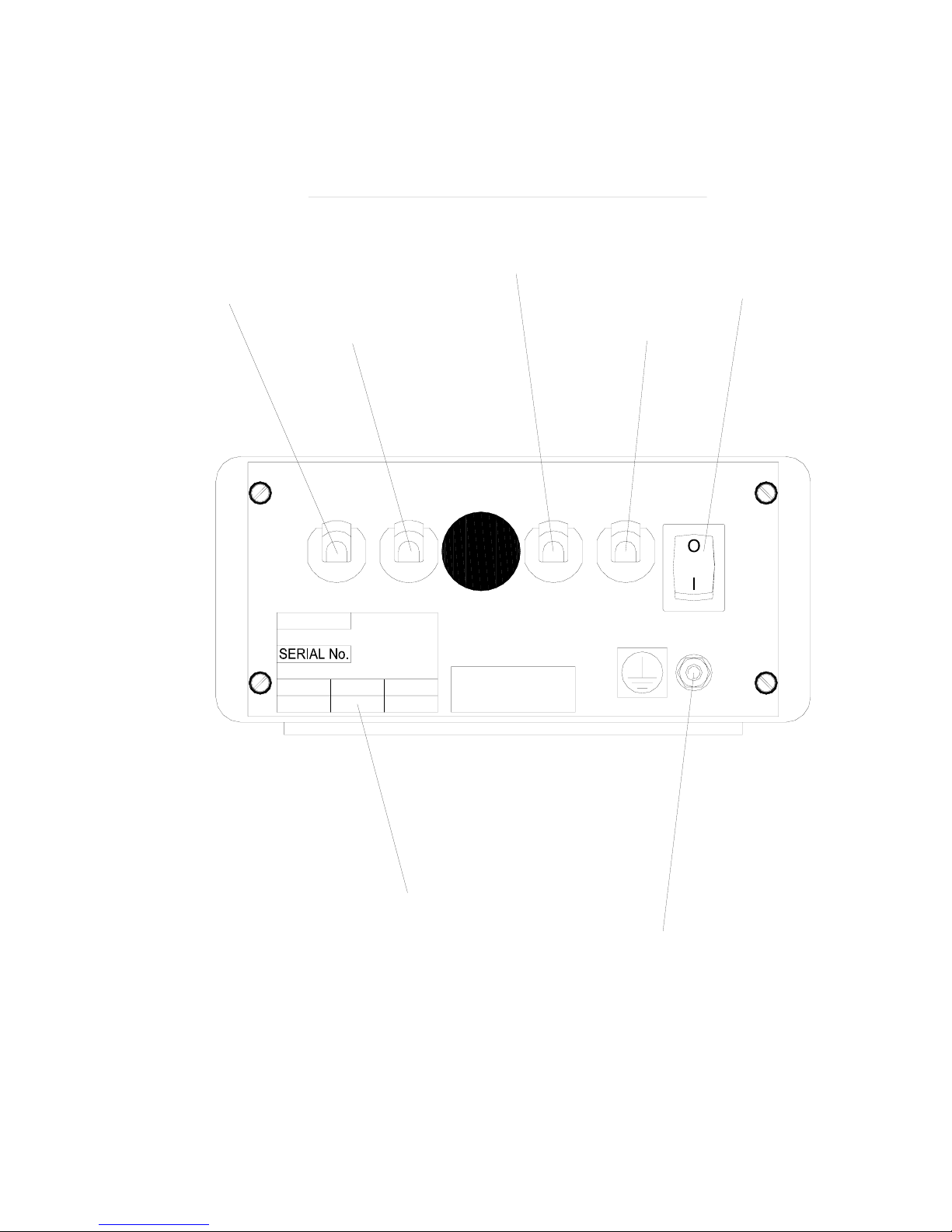

Digi50 Control Unit Rear Panel
240V
AMPS
240
VOLTS
0.6
50/60
H
z
Printer Cable
G6613
208000
MODEL
Earth Test Point
On / Off Switch
Supply Voltage
Solenoid Valve
Page 8
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 8 -
OPERATING INSTRUCTIONS
MAGAZINE REM OVA L
(refer to page 38)
To remove the foil magazine, slide the catch away from the type holder access door,
hold in place and withdraw the magazine using the two handles. Press off the
PRINT
switch to silence the audible alarm.
FOIL THREADING
(refer to pages 9 & 38)
1. Fit an empty foil core onto the rewind mandrel.
2. Disengage the pinch drive roller.
3. Rem ove label from a new roll of foil.
4. Fit new roll of foil onto take-off mandrel (note unwind direction as shown on
threading diagram).
5. Thread foil around all rollers as shown on threading diagram. N ote, the gloss
side of the foil should face inwards throughout the foil path.
6. Attach end of foil to empty core on rew ind mandrel, gloss side facing inwards.
7. Wind foil on a few turn to track and tension it.
8. Engage pinch drive roller.
RE-FITTING FOIL MAGAZINE
Hold the magazine by the two handles, slide in onto the locating pins and push to lock
in place. Press the
PRINT
switch on.
FITTING TYPE/DIE HOLDER
Only pick up a type/die holder by its handle. Ensure that the face of the magnetic catch
is clean, open the red type holder access door (the alarm will sound unless the print
switch is off), align the type/die holder within the two side locators and slide in until the
magnet catches on the end plate. Close the door.
FOIL FEED ADJUSTING SCREW
“
Never assume that a Type/die holder is cold”
(refer to page 38)
This is used to adjust the amount of foil used per print, winding it in reduces the foil pull.
Ensure that the locking nut is fully tightened after adjustm ent. A gap of 1 or 2mm is
recommended between each section of used foil.
Page 9
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 9 -

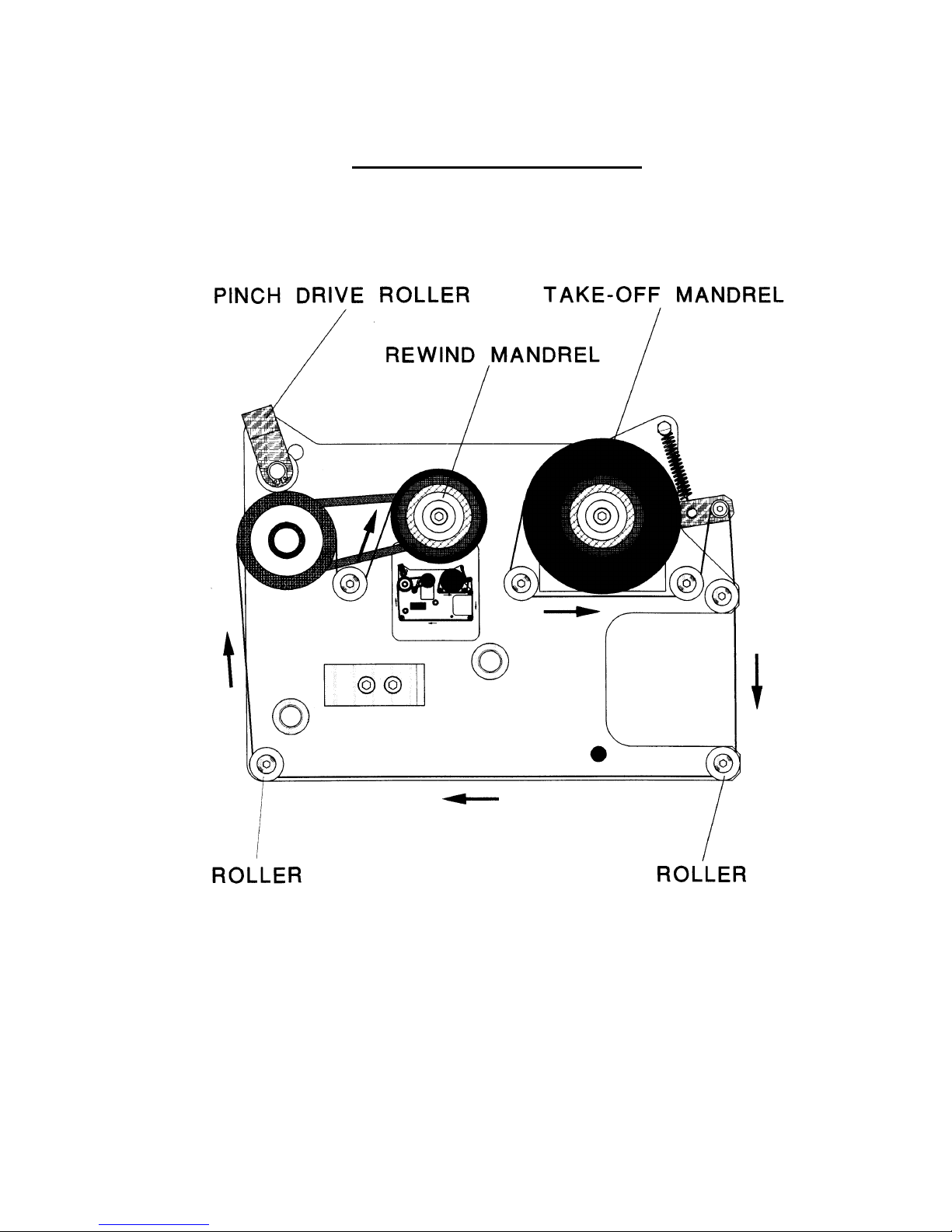

FOIL THREADING DIAGRAM
Page 10
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 10 -
Initial Setting Pr oc e dur e
1. Ensure that printing foil and substrate are compatible. If in doubt, contact foil supplier for
assistance.
2. Rem ove Type Holder from printhead.
3. Ensure that rubber print base is clean, undamaged and securely retained in position
under printer.
4. Set air pressure regulator. 4 to 7 Bar is recommended (60 to 100 PSI).
5. Sw itch controller on.
6. Set print dwell time to 120 milli-seconds and temperature to 125ºc (257ºF). 3 to 4
minutes should be allowed for printer to reach working temperature.
7. Load type or die into holder, centrally if possible and fasten securely. Make sure that
typeface is clean.
8. Load type/die holder into printer and close door. If cold, allow 3 to 4 minutes for holde
r
to heat up before printing.
9. Rem ove foil magazine and load foil as detailed in this m anual.
10. Re-fit foil magazine.
11. Ensure that
PRINT
switch is off.
12. Place a sample of substrate material under printer and press
TEST
button. Inspect
resulting print.
13. Adjust print levelling screws until a light, uniform print impression is achieved. Lock
levelling screws.
14. Adjust foil metering screw for economic foil use as detailed previously.
15. Tighten thumb nut.
16. Press the
PRINT
switch for automatic operation.
Print Orienta tion
(refer to page 38)
To rotate the printer and therefore turn the overprint through 90 degrees, Remove the foil
magazine, unscrew the clamping handle until the location square on top of the printhead is clear
of the top rails. Turn the printer to the required position, tighten the clamping handle and replace
the magazine.
Temperature A dj ustment
(refer to page 5)
•
Normal setting is about 125ºc. (257ºF).
•
•
Should the print not fully adhere to the substrate then a higher setting may be used.
•
•
Small, fine detail print generally requires a lower tem perature.
•
•
Thermoplastic films and especially polyethylene generally require a lower temperature.
•
•
Aluminium foils, paper and untreated polyester require a higher temperature.
See pages 10 & 23 for mode & temperatu re calibr ation
Page 11
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 11 -
Initial Setting Pr oc ed ur e
(continued)
Print Dwell Adju s t me nt (refer to page 5)
•
Normal setting is about 120 milli-seconds.
•
•
Generally, the larger the print, the higher the setting.
•
•
Should the print not adhere fully to the substrate, a higher setting may be used.
•
•
Remem ber, the printhead can only operate during the stationary cycle of the web, if
the print time is longer than this the web may break.
•
•
Should the dwell time have to be decreased to accommodate higher production
speeds, it may be necessary to compensat e by increasing the temperature setting.
A ir Flow Controls (refer to page 12)
The airflow restrictors are usually attached to the solenoid val ve exhaust ports. The
y
work by regulating the speed at which air is exhausted from the air cylinder.
Turning the adjusting screws will alter the exhaust airflow and consequently the prin
t
ram velocity (speed), will also a ff e c t no is e lev e ls .
Increasing the exhaust airflow from the forward stroke of the print ram will increase the
print pressure. Decreasing the exhaust airflow will reduce print pressure and the
result in g p rin t will be ligh t e r .
The drive for the printi ng foil i s taken from the return stroke of the print ram. Increasing
the exhaust airflow will speed up the foil feed. To ensure efficient foil feeding, the return
stroke should be as gentle as possible.
For higher speed operation, the exhaust airflow from both the forward and return
strok e s will hav e t o be in c re a s e d .
Note !!
It is very important that the print ram returns fully before the next print cycle
commences
.
Page 12
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 12 -
SOLENOID VALVE DETAILS
BLACK PIPE
TO PRINTER
RED PIPE
TO PRINTER
SOLENOID VALVE
MOUNTING
PLATE
AIR FLOW RESTRICTOR
(for forward stroke)
AIR FLOW RESTRICTOR
(for return stroke)
SILENCERS
LOCK NUT
FIXING HOLES
Page 13
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 13 -
EUROCODE INTERCONNECTI ON DETAILS
CONTROL UNIT
REAR ELECTRONIC
SIGNAL
TRIGGER/PRINT
NYLON TUBING
NYLON TUBING
8mm NYLON TUBING
AIR SUPPLY, 4/6 BAR
SUPPLY
MAINS VOLTAGE
VALVE ASSY
SOLENOID
6mm "BLACK"
6mm "RED"
(Plan View)
EUROCODE PRINTER
Page 14
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 14 -
Digi50 V1 . 03
Setting Up Digi50 Controller
230V
FS2 FS3
ON
21
ON
SW2
3 421
Open Date Ltd
(see page 17)
Thermistor Dip Switch Settings
(showing software version)
Eprom Label
Thermistor Fuses (FS2 & FS3)
(see page 15)
Rotary Mode Switch (SW4)
MODE
SW4
0
IC1
Mains Fuse (FS1)
Dip Switch Settings (SW2)
(see page 16)
(Shown as 115 Volt selected)
SW3 - Position 2 = 230 Volts
SW3 - Position 1 = 115 Volts
Voltage Selector (SW3)
115V
SW3
FS1
2.0 Amp, 250 Volt (Anti-Surge)
(Part No. FUS 503512)
63 milliamp, 250 Volt (Quick Blow)
(Part No. FUS 503511)
Page 15
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 15 -
Modes 7, 8, 9 and 0 are the same as the default value. (Mode 1)
(The printer will continue to print when under or over temperature)
(The printer will continue to print when under or over temperature)
(The printer will continue to print when under or over temperature)
Fault relay functions within the temperature range of the set point.
Printer operates with in the temperatures range of the set point.
Temperature Range. -10% to +10% of the set point.
Printer operates on all temperatures.
Fault relay functions within the temperature range of the set point.
Temperature Range. -10% to +10% of the set point.
Temperature Range. -5% to +5% of the set point.
Fault relay functions within the temperature range of the set point.
Printer operates within the temperatures range of the set point.
Temperature Range. -5% to +5% of the set point.
Fault relay functions within the temperature range of the set point.
Printer operates on all temperatures.
Printer operates within the temperatures range of the set point.
Temperature Range. -5% to +10% of the set point.
Fault relay functions within the temperature range of the set point.
Printer operates on all temperatures.
Temperature Range. -5% to +10% of the set point.
The Mode selector is a Rotary Switch located between the Front Panel and the Transformer.
Digi50 Mode Settings for Temperature Tolerance Ranges
Mode 4
Mode 6
Mode 5
SW4SW4
5
4
SW4
3
Mode 3
1
Mode 2
Mode 1 (Default)
6
SW4
2
SW4
SW4
Fault relay functions within the temperature range of the set point.
Page 16
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 16 -
Voltage (10-50V DC)
Print Trigger Selection SW2 (No 1 & 2)
Low Air Configuration SW2 (No 3)
Temperature Range SW2 (No 4)
Dip Switch Settings
SW2
1 2
43
Voltage Free
ON
3
421
SW2
ON
Disabled
Centigrade
3
42
ON
1
SW2
SW2
1
3
2
4
ON
4231
ON
SW2
Enabled
Fahrenheit
4
ON
231
SW2
Page 17
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 17 -
Part No. THE 312080
Part No. THE 500502 (Standard)
Thermistor Type USP 5362
Settings for optional Thermistor.
Thermistor Type G55-Bead
Settings for the Standard Thermistor.
Thermistor Dip Switch Settings (SW1)
2ON1
ON
21
your local supplier, referring to your printer serial number.
NOTE!
White Connection wires.
Black Connection wires.
If in doubt as to which thermistor is fitted, please contact
Page 18
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 18 -
Digi50 Connections shown from rear of the Control Unit
Air Switch
Print Relay
COM
HEATER
HEATER
RELAY
NC
NO
T
FAULT
A
SWITCH
AIR
B
PMT F1
PRINT
N/C
RELAY
COM
N/O
P+
E
24VDC
S-D1F2 D2 S+ P-
LN
G5V-1
OMRON
TRK 293709 Issue 4
(Screen connected to Earth)
Grey twin Screened Cable.
Trigger (Print Signal)
Black (-)
Red (+)
to 9 pin "D" plug.
Multicore cable
Black Twin Core Cable.
Solenod Valve
White Printmaster Only
Green
Yellow
Mauve
Brown (-)
Black O/P
Pink (+)
Thermistor
Door Switch
Foil Sensor
(if fitted)
Blue (-)
Red (+)
Blue
Red
Heater
240V AC
Fault Relay
(Three Core White)
Mains Cable
On/Off Switch
(Screen connected to Earth)
To Chassis (Earth Stud)
Page 19
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 19 -
Connection Details - Row “c”
Trigger/Print Signal
- Grey twin core screened
.
See page 39 for details of “Input Print Signals”
P+. Red External tr igger input. + volts connection.
P-. Black External trigger input. – volts connection.
Solenoid Valve
- Black twin core.
S+ Red Solenoid out put. + volts connection.
S-. B lue Solenoid out put. – volts connection.
Printer
– Multi-Core screened to 9 pin D plug. D plug Connections.
D2. Mauve Type Holder door safety switc h r eturn. Pin 6
D1. Brown Feed to the safety switch & f oil sensor, –0v DC. Pi n 5
F2. Pink Feed t o the foil sensor, +14v DC. Pin 9
F1. Black Out put from the foil sensor. Pin 8
PM. White Foil sensor
Printmaster only.
Pin 7
T. Green Thermistor connection. Pin 2
T. Yellow Thermistor connection. Pin 1
H. Red Heater element. Pin 3
H. B lue Neutral ac heater element. Pin 4
Mains Cable
- Three core white.
N. Blue Neutral.
L. Brown Live.
E. Yellow/Green Earth.
Page 20
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 20 -
Digi50 Fault and Print Relay Connections
Linking the Fault & Print Relay will achieve optimum security. If the Print Switch is switched off,
or when any printer fault occurs the relays will change state. This will break the Signal Return
Digi50 Individual Relays & Connections
SWITCH
AIR
AIR
SWITCH
Airswitch Connections (see seperate diagrams)
24v DC Max
Output
24v DC Max
Output
FAULT
NC
RELAY
COM
NO
A
connection (High going Low.) see below.
Max 24v DC (1 amp)
Signal Return
Note.
FAULT
RELAY
NC
COM
NO
A
D2TT PM F2F1 D1
B
COM
N/C
RELAY
G5V-1
24VDC
OMRON
N/O
TRK 293709 Issue 4
P-S- S+ P+
NL E
PRINT
D2
Link Wire
Print Relay:- Rated 24v DC, 1 amp max current
Fault Relay:- Rated 24v DC, 1 amp max current
TT PM F2F1 D1
B
COM
N/C
RELAY
OMRON
G5V-1
24VDC
N/O
TRK 293709 Issue 4
P-S- S+ P+
NL E
Page 21
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 21 -
Digi50 Low Air Pressure Option
Air Switch Not Supplied
Note.
The low air pressure switch connections are to Air Switch "A" and "B" and can be found on the
terminal board mounted in the rear section of the enclosure. (See Below)
Low Air Configuration SW2 (No 3)
SW2
1 2
4
3
ON
Disabled
SW2
1
3
2
4
ON
Enabled
Adjust the Air Pressure Switch to suit the application.
See specification sheet to suit the printer, should be in the front of this manual.
Ensure the Dip Switch settings are correct. (See below)
PM
PRINT
RELAY
COM
FAULT
RELAY
NC
NO
TT
B
SWITCH
A
AIR
COM
N/C
TRK 293709 Issue 4
D1F1 F2 D2 S- P+P-S+
24VDC
G5V-1
OMRON
N/O
EL N
N/O
COM
Page 22
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 22 -
Digital Cont ro l C alibr a t ion
NOTE!
Calibration & Temperature Range:= 70ºC to 220ºC (158ºF to 428ºF)
The unit is factory cali brated at 130ºC, and is set up as “MODE 1”supplied as standard.
(See page 15 for a list of the different modes available)
Unless you are running temperatures outside the range 70ºC to 180ºC (158ºF to 356ºF),
the default calibration should not be altered.
Fitting of an optional thermistor (THE 312080) will require (SW1) position to be altered
(See page 17), again this will be accurate to plus or minus 7°C. If accurate temperatures
are needed, you should recalibrate to suit the individual thermistor fitted.
For normal running temperatures above 180°C recalibrate at 200°C
External Calibration Method
1. Switch the Digi50 unit on and adjust the temperature setting to 130ºc or 266ºF.
2. Leave on for 10 to 15 minutes, allowing the temperature to stabilise.
3. Measure the temperature at the type face using a temperature probe.
4. Allow the temperature probe to stabilise before noting the reading.
5. Adjust the Digi50’s set point to match the temperature probe reading.
6. Press the both the up and down arrow keys at the same time, then press the print
switch.
7. The controller is now calibrated.
Page 23
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 23 -
Static Temperature Results. Calibrated at 130° C
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
display low
89 99 109 119 129 139 149 159 169 178 188 198 207
display high
94 104 115 125 135 145 155 165 175 185 195 205 214
probe low
86 9 6 107 118 129 138 150 15 9 17 1 181 190 200 210
probe high
91 100 111 122 133 143 154 164 174 185 195 205 215
setp 90 s etp 100 setp 1 1 0 setp 120 setp 130 se tp 140 setp 150 setp 160 setp 1 70 setp 180 setp 190 setp 200 setp 210
Page 24
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 24 -
System Faults
2.7.1
. . 5
Thermistor
Thermistor short circuit; the LED is on and digital
display reads sim ilar to, or the same as that shown (the
figur es may be different depend upon cali br ation
values).
The heater is switched off.
Internal bleeper is sounding.
Thermistor
Thermistor open circuit , the LED is on and the display
reads similar to or the same as that shown (the figures
may change).
The heater is switched off.
Internal bleeper is sounding.
Heater
Heater is open cir c uit, the LED is on.
Internal bleeper is sounding.
Foil Run Out
At end of foil roll, the LED is on.
Internal bleeper is sounding.
Type Holder Door Opened
Type holder door is open, the LED is on.
Print & Test trigger signals, ar e disabled.
Internal bleeper is sounding.
Low Air Pressure Switch
(If c onnec ted)
When air pressure is low, the LED is on.
External Pressure switch required.
See separate wiring detail. (see page 21)
Internal B leeper is sounding.
Set Dip Swit c h to enable this func tion.(see page 16)
In any of the above fault conditions, the fault relay will be de-energised. See pages 18, 20 & 21 for
connection details.
Page 25
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 25 -
(for wiring connections see page s 1 2 , 14 & 1 5)
If no LED's are on, check the mains supply a nd th e fuses o n t h e PCB.
Digi50 Alar m System Faults
out. Re-align the sensor
If yes, and the foil has run
Cover sensor, a red LED
should come on. (sensor)
The foil sensor is on.
The green LED is on.
Change Foil.
Foil has run out
Foil Sensor LED on
(If foil sensor fitted)
Open the type holder door.
be affected. Replace or repair.
circuit, the foil run out would
in the printer. If the blue is open
the printer, then the blue & blue in
"D1" & "D2". Check for open circuit
between the mauve & orange in
Disconnect the wiring from terminals
Remove rear cover of the Digi50.
Switch off main supply off.
Switch off main suppl y off.
Remove rear cover of the printer.
Replace if not working.
make and break.
Check that door switch contacts
switch position.
LED switch off, adjust the
actuator. If the alarm and
pen, press the switch
With a back of a ball point
YES
YES
Type Door
LED on
ALARM SOUNDS CONTINUALLY
LED on
Type Door
settings. (see page 10)
check dip switch
If no switch is fitted
Chec k wiring of switch.
pre s ssu re switch.
Check Air Pre ssu r e .
Check calibration of
YES
YES
YES
NO
Low Air
LED on
YES
the door sensor. Remove foil to
YES
YES
(If foil sensor fitted)
Foil LED off, & foil run out.
Remove the rear cover of the
Di gi50 controller. The voltage across
"D 1" (- brown) & "F2" (+ pink) should
be 24 volts dc. If less than 18 volts
then change the main Digi50 PCB.
Cover the foil sensor, then measure
voltage across " D1 (- brown) & "F1"
(+ black) if les s then 18 volts dc,
off and the Thermistor LED comes
LED, the heater LED should go
from printer, to check the door.
Di sconnect 9 pin "D" connector
Close door and replace foil.
(if the sensor is fitted)
check the sensor is working.
YES
NO
change the sensor.
NO
NO
YES
NO
on.
Open the type holder door to check
LED on
NO
LED on
YES
Thermistor
Possible LED failure.
NO
YES
NO
Heater
See Pages 24 & 26
Page 26
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 26 -
Thermistor Faults
Digi50 co ntrolle r utilising the Opendate Printer Range and a Standard Thermistor,
THERMISTOR FAULT
Therm istor Short Circuit. LED is on.
Display reads
2.7.1
(or simi lar)
Disconn ect T h ermis tor i n side pr i n t er. Meas ure the
resistance at 20° C. It should be 500k (see note below)
Disconnect wires from terminals “T” (green) and “T”
(yellow) inside the rear of the control box. Check f or
short circuit.
If either FS2 or FS3 is blown, find short
to GND or mains. R epair & replace fuse.
Repl ace Th er mistor
Reconnect wiring. Re-calibrate
controller as detailed on page 16
Th ermist or Open Circ uit. LE D is on .
Display reads
. . 5.
(or simi lar)
Disconnect wires from terminals “T” (green) and “T”
(yellow) inside the rear of the control box. Check f or
open circu it .
THERMISTOR FAULT
Re-calibrate controller as
detailed on page 16
Locat e open cir cuit, repair or repl ace
faulty items as necessary.
Repl ace Th er mistor
Re-calibrate controller as
detailed on page 16
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
NOTE ! R esults may vary, dependant on type of Therm istor and actual temperature.
Page 27
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 27 -
MECHANICAL FAULT FINDING
FAULT
POSSIBLE CAUSE
Insufficient foil pull.
Foil adjusting screw wound in too far.
Pinch roller not engaged.
Torsion spring on body broken.
Grub screw loose in cam or lever.
Drive roller damaged or dirty.
Insufficient clearance between printer and
print base.
Cam worn.
Fork-end roller worn.
Solenoid operates but printer does not.
No air.
Air pipe damaged.
Printer operates but does not print, i.e.
impression but no print.
Printing foil exhausted.
Printing foil not being driven through.
Printing foil not suitable for substrate.
Little or no heat.
Printing foil tracks over to one side.
Bent spindle on foil magazine.
Brake arm loose.
Pinch roller misaligned with drive roller.
Foil rewind is loose.
Green drive belt worn out or dirty.
Foil feed too rapid (slow down return
stroke of print ram, see page 11).
Printer is sluggish.
Insufficient air pressure.
Flow restrictors wound in too far.
Faulty valve.
Page 28
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 28 -
PRINT Q U ALITY DETERIORATION.
Print quality deterioration can be attributed to any of the following causes;
POSSIBLE CAUSE
CURE
Insufficient foil pull See pages 8, 9 & 38.
(Foil Feed Adjustment)
Insufficient air pressure. Check pressure regulator setting.
See that pipes are not damaged.
Printer not level with print base. Adjust levelling screws.
Too much or too little heat. Check that settings are correct.
Dirty, worn or damaged dies or type. Clean or replace.
Damaged or out of position print base
rubber.
Replace or re-position.
Printing foil not compatible with substrate. Contact foil supplier.
Substrate surface altered, i.e. different
coating.
Contact substrate or foil supplier.
Print ram not com pleting full stroke. Open forward flow restrictor (where fitted).
Increase print dwell time.
Substrate moving before print head is
clear.
Reduce print dwell time.
Print Dwell incorrectly set. Adjust as necessary.
Page 29
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 29 -
MACHINE SERIAL NUMBER IDENTIFICATION
The identification label can be found on the outside of the printer, usually on the back
of the side guard.
Always quote the model and serial number when ordering spare parts.
MANUFACTURED
SERIAL NO.
MODEL
EUROCODE 150
Open Date Equipment Ltd.
Units 8 & 9 Puma Trade Park,
145 Morden Road.
Mitcham.
Surrey CR4 4DG
TEL: +44(0) 20 8655 4999
FAX: +44(0) 20 8655 4990
2005
Company Logo CE mark Type of machine
Serial number
Year of manufactureManufacturer
123456
Page 30
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 30 -
RECOMMENDED SPARES LIST
Covering:-
EUROCODE 150 / 180 / 300
MECHANICA L
STOCK REF
1. Spring Set (Eurocode 150) SPR620216
or
Spring Set (Eurocode 180) SPR620215
or
Spring Set (Eurocode 300) SPR620217
2. Drive Belt (Eurocode 150) DRI110022
or
Drive Belt (Eurocode 180) DRI620048
or
Drive Belt (Eurocode 300) DRI620049
3. Drive Roller Assembly DRI620204
4. Fork End Roller Assembly FOR620208
5. Brake Strap (Eurocode 150/180) BRA620038
or
Brake Strap (Eurocode 300) BRA620051
6. Grey Self Adhesive Print Base SABASE
300 x 450mm sheet
or
7. White Silicone Rubber Print Base SRBASE
300 x 300 x 3mm thick sheet
Digi50 Controller
ELECTRICAL
STOCK REF
8. Cartridge Heater (240v) HEA501506
9. Thermistor Probe THE500502
10. Microswitch for Door SWI395011
11. Digi50 plug in Card (240v) CPC293502
12. Digi50 plug in Card (110v) CPC293503
13. Pack of Mains Fuses (5) 2A Anti-Surge FUS503512
14. Pack of Thermistor Fuses (10) 63mA Quick Blow FUS503511
15. Solenoid Valve without fittings VAL510524
Note!
The stock reference for the Digi50 plug-in control card listed above, (item 11 or 12) ensure
you have selected the correct voltage required. Other variations may be available. If in doubt,
please advise the serial number of your existing unit to our sales office.
This list covers machines supplied after 28 June 2005 for the first two years of operation
only.
Page 31
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 31 -
EUROCODE PARTS LIST
MECHANICA L
Item num bers refer to those on the assembly drawings. When ordering spare parts
please use the Stock Reference.
ITEM DESCRIPTION STOCK REF QTY NOTES
1 Magazine plate N/A 1
2a Take-off hub assy HUB620201 1 Includes items 26,44,50,56,57.
2b Rewind hub assy HUB620202 1 Includes items 26,42,44,50,54,55
See supplementary list for Eurocode 300.
3 Hub spindle SPI620003 2
See supplementary list for Eurocode 300.
4 Door assy DOO620203 1 Includes items 52,74,112.
5 Roller spindle SPI620005 6
6 Anchor ANC190006 1
7 Foil guide GUI620006 1
See supplementary list for Eurocode 300.
8 Bush BUS190008 2
9 Drive roller spindle SPI620007 1
10 Dancing bar DAN620008 1
11 Roller ROL620009 1
12 Bush BUS190012 1
13 Drive roller assy DRI620204 1 Includes items 15,22,32,33,45.
14 Dancing arm ARM620011 1
15 Pulley PUL190015 1
16 Spring post SPR190016 2
17 Spring post SPR190017 1
18 Yoke YOK620012 1
19 Spindle SPI620013 1
20 Pinch rolle r assy PIN620205 1 Includes item 28.
21 Pinch rolle r spindle SPI620015 1
22 Washer WAS620016 1
23 Spacer SPA120042 1
24 Support SUP190024 2
25 Drive belt DRI110022 1 Part of Spring Set.
See supplementary list for EC 300 & 180.
26 Bearing BEA520003 6
See supplementary list for Eurocode 300.
27 Brake strap BRA620038 1
See supplementary list for Eurocode 300.
28 Bearing BEA521006 2
29 Handle HAN530502 1
30 Grub screw 1 M5x6
31 Circlip CLI530024 2
32 Seal SEA512034 1 Part of Seal Kit.
33 Clutch bearing BEA521504 2
34 Spring SPR530034 1 Part of Spring Set
35 Spring SPR530035 1 Part of Spring Set.
36 Grub screw 2 M4x4
37 CSK screw 1 M4x20
38 Button screw 7 M4x8
39 Spring SPR530008 1 Part of Spring Set.
40 Dowel pin 1 6 dia x 28
41 Button screw 4 M5x20
42 Pan head screw 2 No.2-56 x 1/4"
43 CSK screw 2 M4x25
44 Pan head screw 4 No.2-56 x 1/8"
45 CSK screw 1 M4x8
46 Grub screw 1 M3x6
47 Button screw 1 M3x6
48 Washer 1 M3
49 Cylinder liner LIN620017 1
50 Spring clip SPR530001 2 Pa rt of Spring Set.
51 Washer WAS120035 8
52 Hinge block HIN122006 1
53 Handle HAN120079 2
54 Back disc DIS121009 1
55 Drive boss DRI120052 1
See supplementary list for Eurocode 300.
56 Back disc DIS121008 1
57 Brake hub BRA120063 1
Page 32
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 32 -
EUROCODE MECHANICA L PARTS LIST
(continued)
ITEM
DESCRIPTION STOCK REF QTY NOTES
58 Roller ROL620018 6
59 Grub screw 1 M4x5
60 Main body N/A 1
61 Piston PIS620020 1 Piston/Seal assy ref. PIS620200
62 Bottom cap N/A 1
63 Databox packing PAC190028 1
64 Guide pin PIN620022 1
65 Washer WAS620065 1
66 Needle Bearing BEA521008 1
67 Spindle SPI620059 1
68 Spring SPR530033 1 Part of Spring Set.
69 Cam CAM620025 1
70 Mounting plate PLA620026 1
71 Lock nut NUT620027 1
72/73 Foil a djusting screw assy ADJ620207 1 Includes item 91.
74 Dowel pin 2 3 dia x 10
75 Plug housing HOU130023 1
76 Drive spindle SPI620029 1
77 Strike plunger PLU620036 1
78 Timing pulley PUL620030 1
79 "O" ring O-R512005 1 Part of Seal Kit.
80 Rod seal SEA512038 2 Part of Seal Kit.
81 Microswitch support SUP620031 1
82 Nose bearing BEA620070
83 Piston seal SEA512036 1 Part of Seal Kit.
84 Bush BEA520017 1
85 Microswitch SWI395010 1
86 Clutch Bearing BEA521507 1
87 Needle bearing BEA521001 1
88 Cap screw 2 M4x30
89 "O" ring O-R512030 1 Part of Seal Kit.
90 Timing belt BEL522512 1
91 Roll pin 1 3 dia x 20
92 Cap screw 4 M6x20
93 Grub screw 1 M5x8
94 Button screw 10 M4x8
95 Lock nut 1 M10
96
97
98
99 Needle bearing BEA520018 1
100 Dowel pin 1
101 Cap screw 2 M3x25
102 Cap screw 4 M4x45
103 Cheese head screw 2 M2x10
104
105 Grub screw 1 M8x8
106 CSK screw 2 M3x6
107 Side locator SID120014 2
108 Cushion DAM120074 2
109 Location pin LOC620032 2
110 lever LEV620110 1
111 Timing pulley assy PUL620219 1 Includes item 86.
112 Magnet MAG531001 1
113 Roller N/A 1 Part of item 121.
114 Insulating plate INS120012 1
115 Heater block HEA120013 1
116
117 Mounting screw SCR120070 2
118 Keep plate KEE120030 1
119 Button screw 4 M5x8
120 Cover COV620034 1
121 Fork end assy FOR620208 1 Includes items 100,113.
122 Cap screw 1 M4x12
Page 33
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 33 -
EUROCODE MECHANICA L PARTS LIST
(continued)
ITEM DESCRIPTION STOCK REF QTY NOTES
123 Bearing BEA620064 1
124 Bush BUS620035 1
125 Keep plate CAT620125 1
126 CSK screw 3 M4x10
127 Thumb plate THU620127 1
128
129 Locking plate LOC620129 1
130 Cap screw 2 M4x20
131 Spring SPR530032 1 Part of Spring Set.
132 Grub screw 1 M3x8
133 Plug PLG620037 2
SUPPLEME NTARY LI S T FOR EUROCODE 300 I TEMS ONLY.
ITEM DESCRIPTION STOCK REF QTY NOTES
2c Rewind hub assy HUB620203 1 Includes items 42,44,50,54,148,149.
135 Magazine Plate N/A 1
136 Foil Guide GUI620040 1
137 Drive Belt DRI620049 1 Part of Spring Set.
138 Brake Strap BRA620051 1
147 Hub Spindle SPI620147 1
148 Clutch Bearing BEA521505 1
149 Drive Boss DRI620149 1
SUPPLEME NTARY LI S T FOR EUROCODE 180 I TEMS ONLY
.
ITEM DESCRIPTION STOCK REF QTY NOTES
25 Drive Belt DRI620048 1 Part of Spring Set.
150 Magazine Plate N/A 1
ADDITIONAL SPARE PA RTS AND REPAIR KI TS
PNEUMATIC
STOCK REF
Solenoid valve without fittings. VAL510524
ELECTRONIC
Cartridge heater, 240v, 250w. HEA501506
Thermistor probe. THE500502
Safety microswitch. SWI395011
"End of foil ala rm" sensor. ALA395018
Plug-in Digi50 control card, 240v, box mount (horizontal). CPC293502
Plug-in Digi50 control card, 115v, box mount (horizontal). CPC293503
REPAIR KITS
Seal kit containing all seals. SEA620209
Spring set containing all springs and drive belt (Eurocode 150). SPR620216
Spring set containing all springs and drive belt (Eurocode 300). SPR620217
Spring set containing all springs and drive belt (Eurocode 180). SPR620215
Page 34
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 34 -
EUROCODE 150/180 MAGAZINE DETAILS
Page 7.3
Page 35
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 35 -
EUROCODE BODY DETAILS
Page 36
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 36 -
EUROCODE 300 MAGAZINE DETAILS (Iss. 5)
Page 37
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 37 -
EUROCODE DIMENSIONS
207.0
203.0
36.5
51.3
136.0
28.5
152.0
28.5
218.5 Max Ribbon Eurocode 300
Page 38
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 38 -
EUROCODE FRAME INSTALLATION
Page 39
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 39 -
AIRBOR N E N O ISE EMISSIONS
Comprehensive tests have been carried out with the Eurocode fitted in a standard
printer frame and mounted onto a typical label appli cator. Measurements were taken at
1.6 metres above floor level and approximately 1 metre away from the printer in all
directions.
The measuring equipment used for conducting the tests was a Digital Sound Level
Meter, type d-1405E supplied by Lucas CEL. Before the tests were carried out the
instrument was calibrated and fitted with a foam w indshield.
The results shown below are based upon a standard type installation for the printer, the
operating air pressure was set at 6 bar and the air flow restrictors correctly adjusted.
The noise levels shown below are the equivalent continuous "A-weighted" sound
pressure levels in decibels "dB(A)".
PRINTS PER MINUTE NOISE LEVEL -
DECIBELS (dB)
100 65
200 69
300 72
400 75
Page 40
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 40 -
Specifications for Digi50 Controller
Supply Voltage
Nominal 230v AC, plus or minus 10% tolerance (207 – 253). 50 or 60 Hertz.
Nominal 115v AC, plus or minus 5% tolerance (109 – 121). 50 or 60 Hertz.
Heater
Maximum 4 Heaters. (240 Volt 250 Watt)
Thermistor
(Standard)
Model No. G55W (Part No. THE 500502)
Output Relay Contacts
Fault Relay:- Rated at 24V DC, 1 amp current.
Print Relay:- Rated at 24V DC, 1 amp current.
(both relays utilise common, normally open or normally closed contacts)
Input Print Signa ls
Voltage Free contacts. (relay or plc etc.)
Voltage 10 – 30 Volts AC or DC (polarity unimportant)
Microproccessor
PIC Micro-Processor.
Controlled by a specific designed membrane panel with inbuilt switches etc.
The temperature display, is seen through a translucent red panel on the membrane.
Solenoid Valve Output
24 Volt DC, 80mA current normally.
(Part No’s VAL 400017 or VAL 400018 or VAL 400021)
A maximum of 2 Solenoid Valves (Opendate Supplied) can be driven by the Controller.
(Maximum current available 200mA)
Page 41
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 41 -
STANDARD WARRANTY TERMS AND CONDITIONS – HOT FOIL PRINTERS
All Open Date Hot Foil Printers Carry a twelve (12) month return to base (at our
discretion) warranty.
Open Date printers should be install ed and operated according to the instructions
given in the operating manual. No liability will be accepted for faults caused by
incorrect installation or operation of the equipment or if the product has been altered
or subjected to unreasonable use.
The following components are not covered by the warranty as they will be subject to
wear and tear: -
1. Print base rubber.
2. Hardened steel type.
Should you have cause to claim for repair under warranty then please contact our
service department stating the model, serial number of the product and the nature of
the problems or faults.
We reserve the right to charge for components replaced during the warranty period,
which are subsequently found to be damaged due to any of the above conditions not
being followed.
Any items repaired or replaced under warranty will carry the balance of the original
warranty period only.
Page 42
Eurocode Digi50 Controller V1.03 04/07/2005 Page - 42 -
OPEN DATE GROUP COMPANIES
FRANCE
OPEN DATE FRANCE
Z.I. D’Attichy
No.8, Voie Industrielle
60350 Attichy.
Local Tel:- 03 44 42 94 43
Local Fax:- 03 44 42 17 17
International Tel:- 0033 3 44.42.94.43
International Fax:- 0033 3 44.42.17.17
GERMANY
OPEN DATE GmbH
Mittlerer Stämmig 4
D - 97292 Üttingen
Local Tel:- 09369 9824 0
Local Fax:- 09369 9824 24
International Tel:- 0049 9369 9824 0
International Fax:- 0049 9369 9824 24
U.S.A.
OPEN DATE SYSTEMS INC.
Springfield Road
PO Box 538
Georges Mills
NH 03751-0538.
Local Tel:- 603 763 3444
Local Fax:- 603 763 4222
International Tel:- 001 603 763 3444
International Fax:- 001 603 763 4222
INTERNATIONAL AGENTS & DISTRIBUTORS
Please visi t:
www.opendate.co.uk
for a list of international agents & distributors.
Loading...
