Opel Corsavan 2014, Combo 2014, 2014 Vivaro, 2014 Movano, Astra 5 Door Van 2014 Installation Manual

2014 Models Edition 1

OPEL COMMERCIAL VEHICLES

Opel commercial vehicles.
Built for you and your business.

The purchase of a commercial vehicle represents a

signicant investment. Its true value can be judged by
how efciently it works for you and your business. All

Opel vehicles excel to meet the demands of operators

and we go to extraordinary lengths to ensure that they
also spend the maximum time where they work their
hardest – on the road.

3

4-9 Corsavan

10-15 Astra 5 Door Van

16-21 Combo

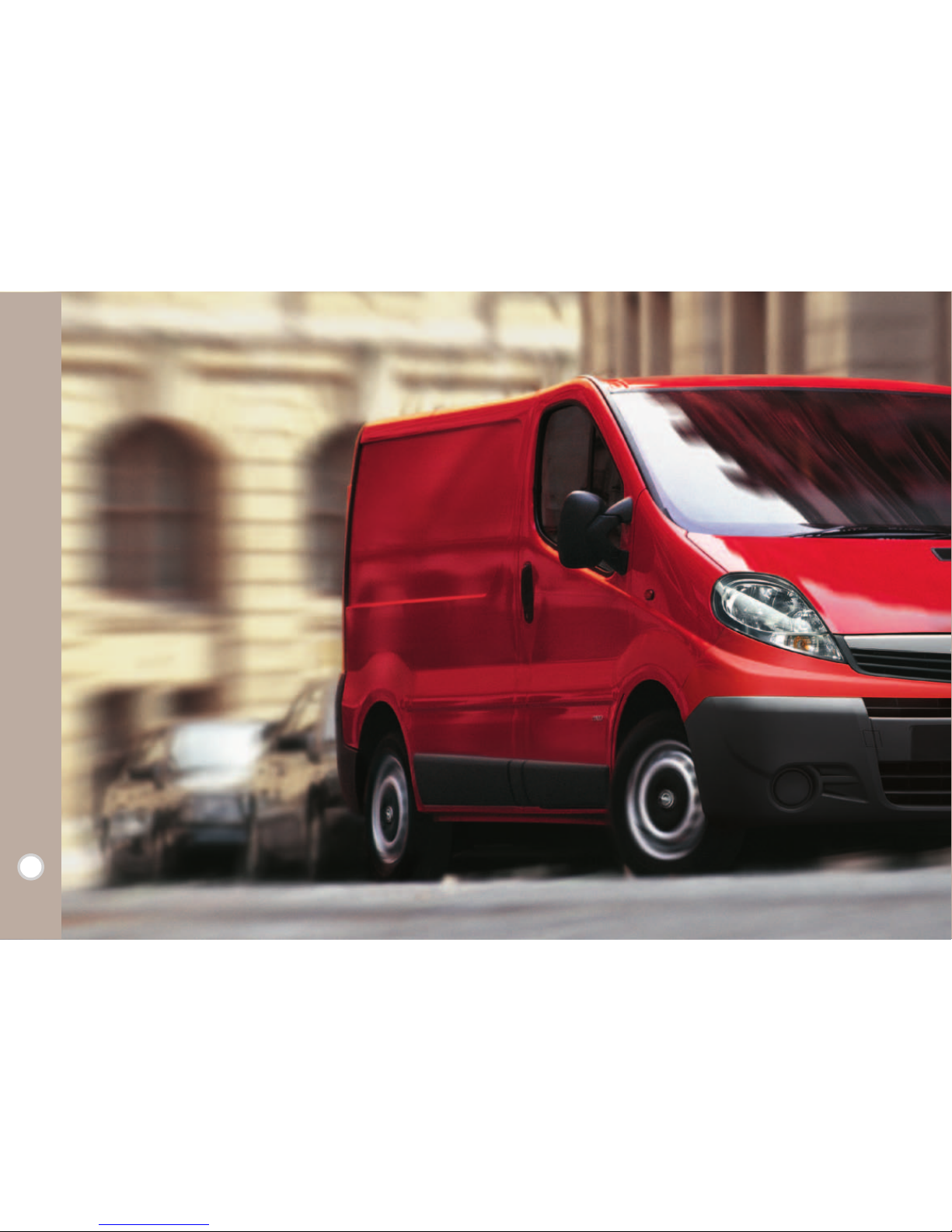

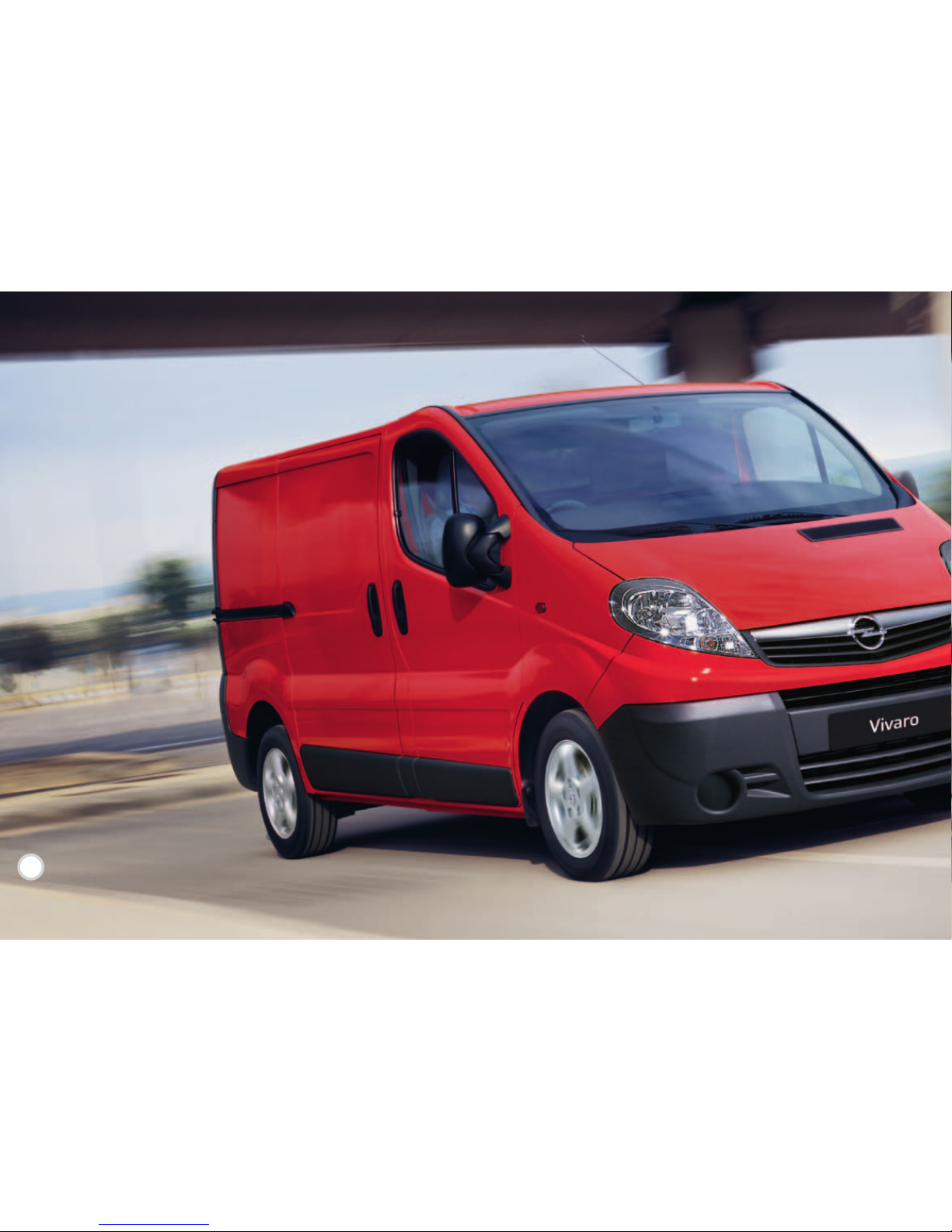

22-31 Vivaro

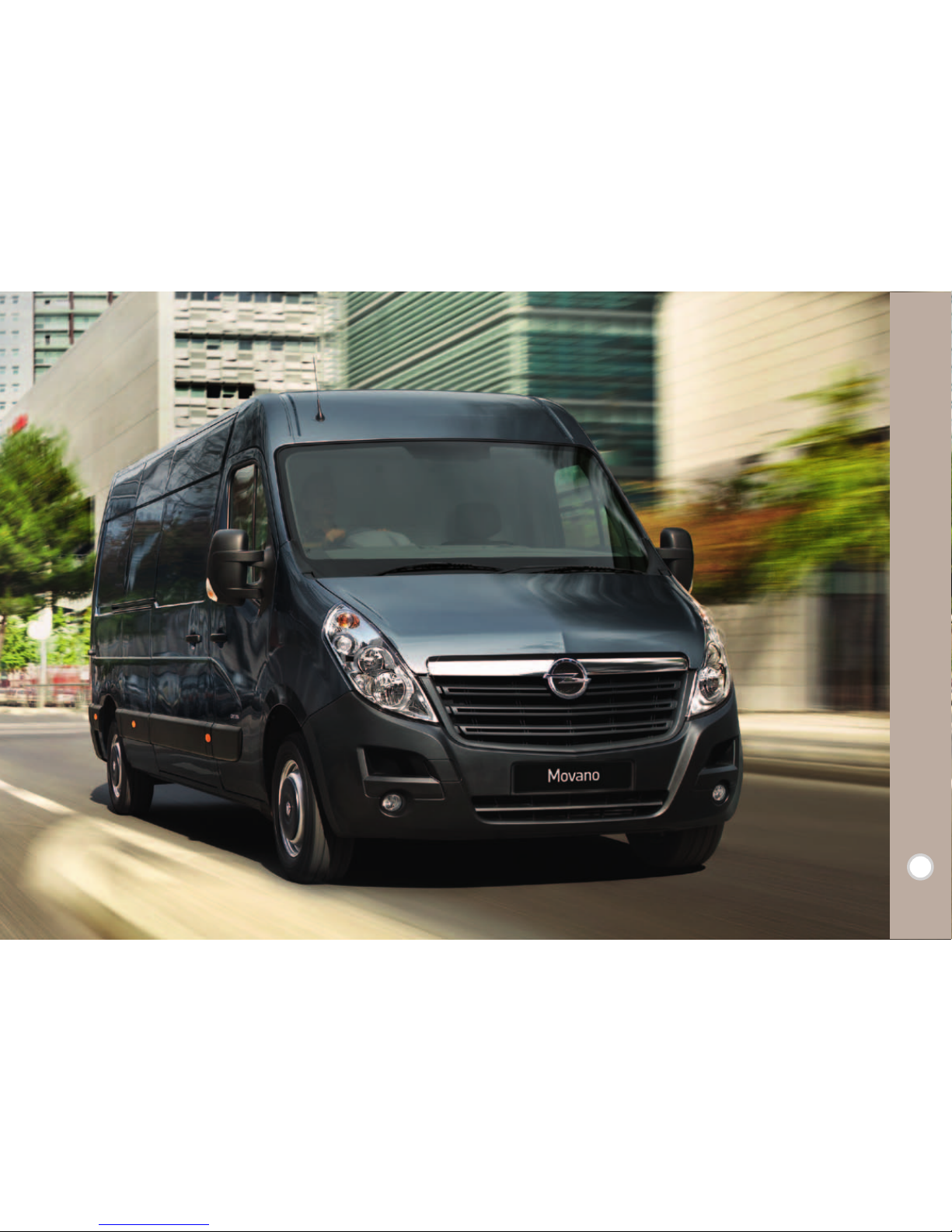

32-41 Movano

42 Options

43 Accessories

44 Colours

47 Trims

Some of the vehicles shown in this brochure include options and accessories available at extra cost. And not all of the features
described are available on every model. So please check the Commercial Vehicle Price Guide available from your Opel dealer.
Or log on to www.opel.ie for more information.

4

Corsavan.
The small van that gives you more.

Small enough for congested city streets, yet big enough to
eat up the miles on the open road, Corsavan matches
stunning looks with a dynamic chassis, spacious cabin and
high levels of safety and security. The load area is also easy
to access, with purpose-built load protection and a class­leading 550kg payload.

On the road, few vans can match Corsavan’s low running
costs. Our 75PS 1.3CDTi 16v diesel engine – in particular
– matches superb driveability with excellent fuel economy.

Inside, the Corsavan cabin is built for long-term driver
comfort complete with supportive seats and plenty of useful
in-cab storage for paperwork, drinks and other essentials.

With a choice of engines, a 1.2i 16v petrol engine or a

1.3CDTi 16v common rail turbo diesel, both Euro 5 compliant
– it’s clear to see it’s the small van that gives you more.

5

6

7

Corsavan takes its load carrying duties very seriously, with strong
attention to detail in areas that really matter. A tall, wide tailgate
aperture makes it easy to load. The long, high load area has
superb load and occupant protection features. Most of all, it
carries an impressive 550kg maximum payload – a figure that
puts all its competitors in the shade.

Loadspace

Easy loadability

Corsavan has never been easier to
load. The tall tailgate aperture allows
larger items to be loaded. The tailgate

itself lifts high (for good headroom)

and extends down into the bumper
making for a low loading height.

Load protection

A sturdy steel  oor and half-height steel
bulkhead, tough sidewall half-height

panelling and load restraint lashing

eyes are all standard. An upper load
restraint mesh,  tted rubber  oor mat
and four-piece load compartment

cover are optional for even more load

protection.

Loadspace dimensions mm inches

Maximum load oor length 1257 49. 5

Maximum load area height 924 36.4

Maximum load area width 1264 49. 8

Width bet ween wheel arches 969 38.1

Load sill height (unladen) 691 27. 2

Maximum tailgate aperture height 650 25.6

Maximum tailgate aperture width 980 38.6

Loadspace volume cu. m cu.ft

Maximum loadspace volume (VDA method) 0.92 32.5

Features include:

>

550kg maximum payload

>

Steel load area  oor

>

Half-height steel bulkhead

>

Sidewall half-height panelling

>

Load restraint lashing eyes

>

14-inch steel wheels with  ush covers

>

Upper load restraint mesh

(optional)

>

Fitted rubber  oor mat

(optional)

>

Four-piece load compar tment cover

(optional)

Loadspace

8

9

1.2i 16v Twinport

The 70PS 16v petrol engine uses
advanced Twinport technology for

increased performance and fuel

economy and meets Euro 5 emission
standards.

1.3CDTi 16v common rail diesel

Our 1.3CDTi 16v (75PS) common rail
diesel engine is matched to a  ve­speed gearbox. This delivers
outstanding performance combined
with excellent fuel economy.

Dynamic SAfety Suspension (DSA)

The latest ABS system with Electronic
Brakeforce Distribution (EBD) and
Emergency Brake Assist (EBA) can
reduce emergency stopping distances
even further, particularly on slippery

roads and help drivers retain steering

control.

Anti-lock Braking System (ABS)

When any vehicle brakes on surfaces
with differing levels of grip (e.g. gravel
or mud versus dry tarmac), there is
always the potential for loss of control.
Corsavan’s DSA suspension helps
correct this tendency, making the van
safer under ‘break away’ conditions.

Electronic Stability Programme-plus

The optional ESP-plus with Enhanced
Understeering Control works in
conjunction with the vehicle’s Traction
Control system to help you maintain
control during adverse or emergency
conditions. Traction control also stops
wheelspin during acceleration.

Driving comfort, affordability and safety are major considerations
for any busy working van driver. So Corsavan’s car-like ride and
handling help ensure a comfortable and relaxing day at the wheel
– especially now with modifications to the spring, damper and anti­roll bar settings providing even more driving comfort.

The Euro 5 compliant engine choices – common rail diesel and
multi-valve petrol – are designed to save you money. Anti-lock
Braking System (ABS) with Electronic Brakeforce Distribution (EBD)
is standard, as is speed-sensitive power-assisted steering, making
Corsavan especially easy to manoeuvre and park.

Dynamics and efficiency

Dynamics and efficiency

Choice of engines

>

1.2i 16v (70PS/115Nm)

>

1.3CDTi 16v (75PS/190Nm)

Features include:

>

Five-speed manual gearbox

>

Anti-lock Braking System with
Electronic Brakeforce Distribution

>

Electric speed-sensitive
power-assisted steering

>

Dynamic SAfety Suspension

>

Two-year unlimited mileage
manufacturer’s warranty
and 12-year body panel
anti-perforation warranty

Anti-lock Braking System

ABS with EBD and EBA is  tted as
standard to all Corsavan models.

10

Astra 5 door Van.
Puts your business in the spotlight.

The ultimate in Astra sporting style is now available as
a van. So you get modern hatchback styling and a
dynamic drive together with a choice of two multi-valve
turbo-diesel engines.

Plus two generously equipped trim levels. Combine all that
with supreme loadspace versatility and real world carrying
capacity and it’s easy to see why the Astra 5 door Van is for
businesses who know what it takes to deliver in style.

11

SC model illustrated features Navi 650 satellite navigation system and two-coat metallic paint,
optional at extra cost.

The Astra 5 door Van load compartment provides a completely flat inner load floor area that
combines a maximum load length of 1400mm, with generous width and height. There’s a maximum
carrying capacity of 1100 litres and with a payload of over 400kg there’s more than enough flexibility
at the business end too.

A full-height mesh steel bulkhead as standard provides valuable protection against shifting loads.
The load area is fully lined and comes complete with load restraint lashing eyes that allow you to
secure the load. And, access to the load area is made easy by the rear side doors and high-lifting
tailgate. We’ve even added raised load area side walls to prevent items falling out when the side
doors are opened.

Loadspace and features

Loadspace dimensions mm inches

Max. load area height 850 33.4

Max. load area width 1250 49. 4

Width between wheel arches 985 38.8

Load oor length 1400 55.1

Loadspace volume

litres

cu.ft

All models 110 0 38.8

12

*Please see the Commercial Vehicle Price Guide
for full details.

Features include:

S models
>

Full-height steel mesh bulkhead

>

Raised load area side walls

>

Panelled rear side windows

>

Driver’s seat height adjuster

>

Reach/rake adjustable

steering wheel

>

CD/MP3 CD player/stereo radio

>

Electric front windows

>

Electrically adjustable/heated

door mirrors

>

Heated rear window with wash/wipe

>

16-inch steel wheels with  ush

wheel covers

SC models add the following

additional features:

>

17-inch 10-spoke alloy wheels

>

Air conditioning

>

Cruise control

>

Steering wheel mounted

audio controls

Options include:*

>

B l u e t o o t h

®

mobile phone system

>

USB connection

>

Satellite navigation system with

seven-inch colour monitor and USB

connection – SC model

>

Front and rear parking distance

sensors – SC model

>

Space-saver spare wheel (in lieu of

emergency t yre in ation kit)

>

Two-coat metallic or

pearlescent paint

Loadspace and features

13

Safety assured

A safe working environment is assured
thanks to a full complement of active
and passive safety features such as
an anti-lock braking system with
emergency brake assist with no less
than four airbags as standard.

Common rail diesel engines

The Astra 5 door Van comes with a
choice of ecoFLEX turbo diesel
engines; the 95PS 1.3CDTi 16v and a
powerful 110PS 1.7CDTi 16v unit, both
featuring Euro 5 compliance and the
very latest common rail technology.

Low running costs

Astra 5 door Van owner’s can also look

forward to extended ser vice intervals

of 30,000km/one-year, plus there’s a
two-year unlimited mileage warranty.

With its smart yet sporty styling, the Astra 5 door Van looks better
than a van should. And with a dynamic chassis it performs
better than a van should too. But with fuel economy of up to

4.2 litres/100km for the 1.3CDTi 16v model and ease of serviceability
for low running costs, it’s easy to see why the Astra 5 door Van
makes total business sense.

Dynamics and efficiency

Engine:

>

1.3CDTi 16v (95PS)

>

1.7CDTi 16v (110PS)

Features include:

>

Two-year unlimited mileage
manufacturer’s warranty
and 12-year body panel
anti-perforation warranty

>

Electronic Stability Programme-plus
(ESP-plus)

>

Emergency Brake assist (EBA)

>

Electronic Brakeforce
Distribution (EBD)

>

Anti-lock Braking System (ABS)
with EBA and EBD

>

Driver’s and front passenger’s
airbags

>

Front seat side-impact airbags

>

Daytime running lights

>

High-level LED brake light

14

SC model illustrated features two-coat metallic paint, optional at extra cost.

15

Dynamics and efficiency

16

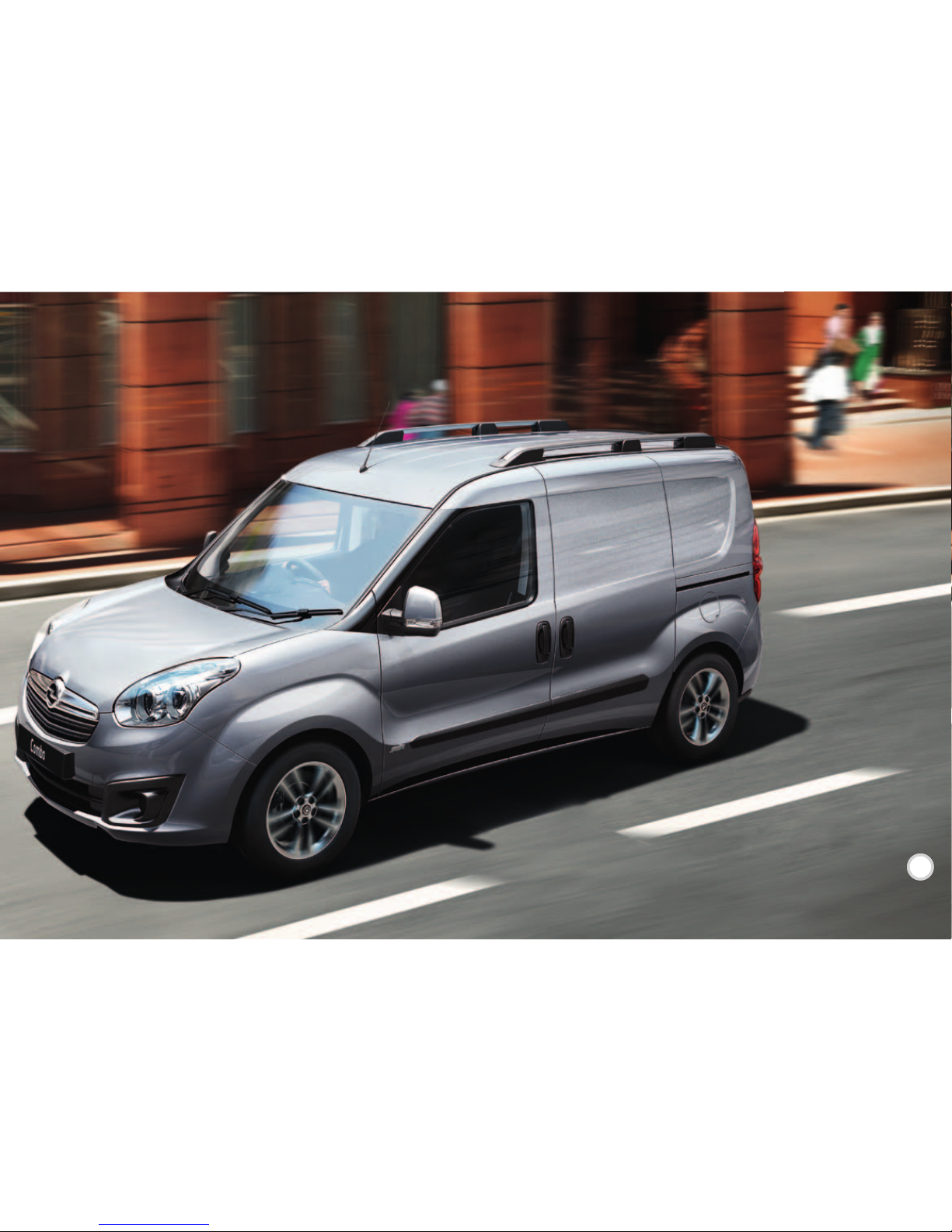

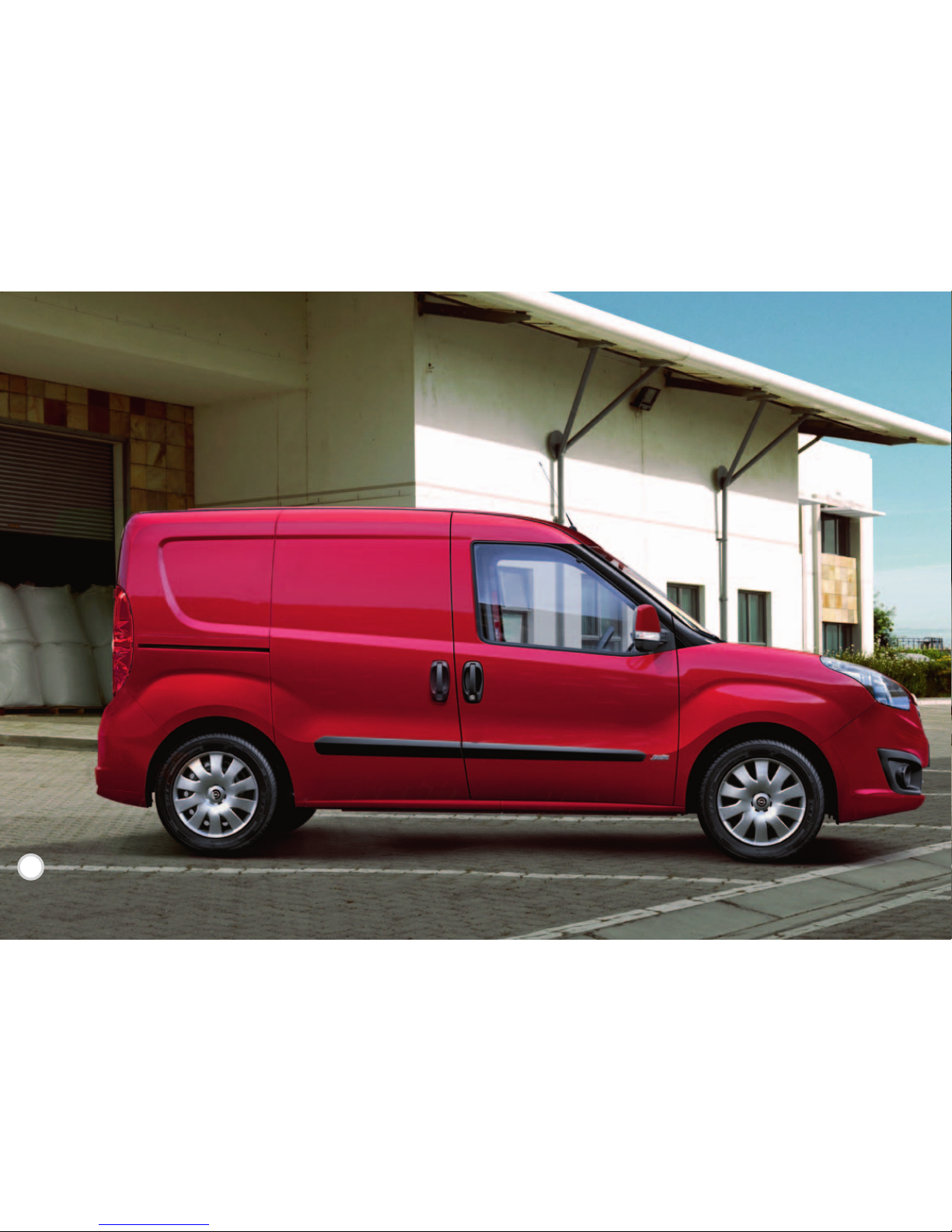

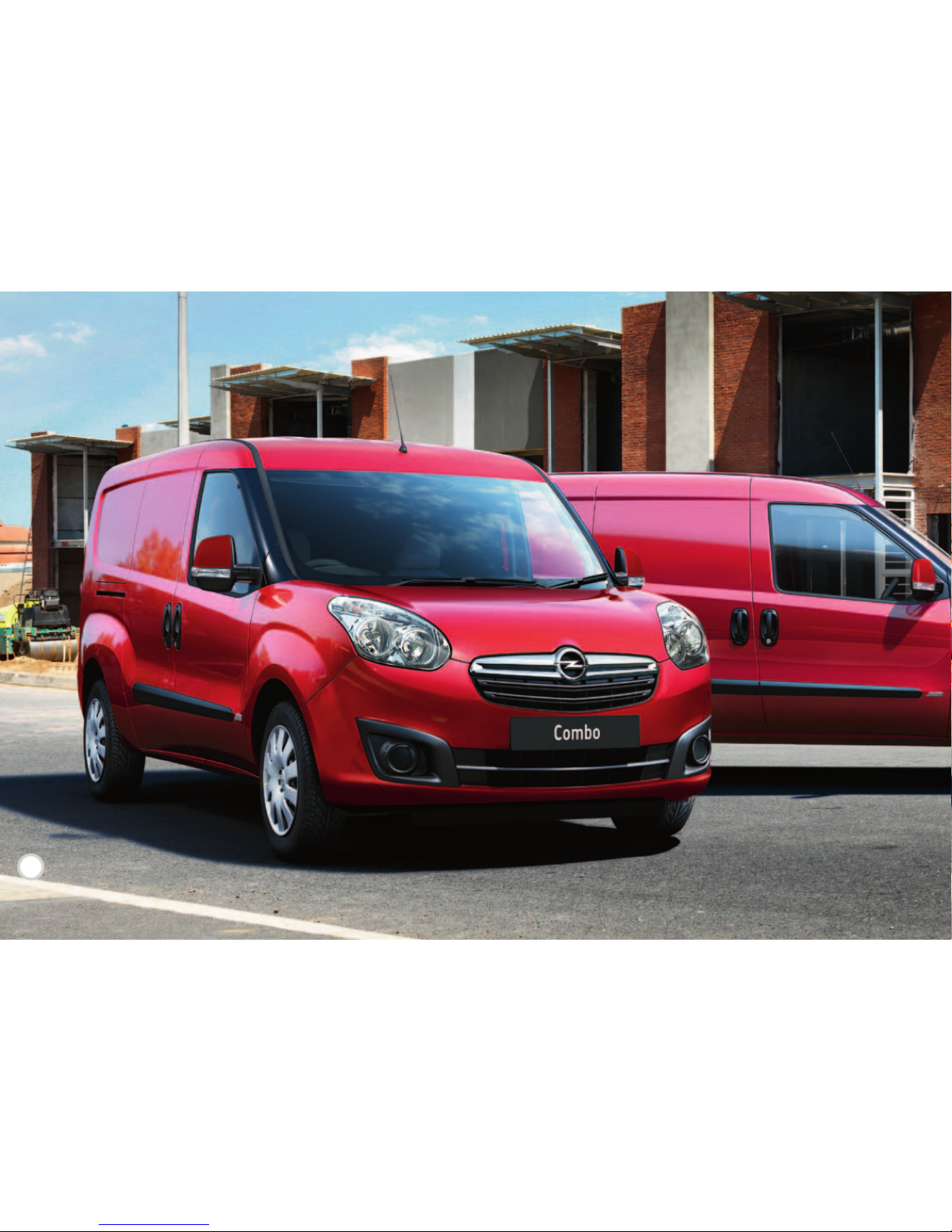

Combo. Solid capabilities.

Want to give your business a lift? Then get yourself a vehicle
that delivers a list of commercial rsts.

The Combo from Opel can haul up to a tonne. In addition,
not only does it have one of the longest and most spacious
load areas in its class but it has the highest rear axle weight
and the largest rear door opening; coupled with a useful, low
rear loading height.

The Combo also has ultra-low fuel consumption gures of up
to 5.0 litres/100km for the 1.3CDTi model. It’s also practical,
dependable and versatile, with long wheelbase and high
roof models now available. With capabilities such as these,
Combo can really help your business deliver.

17

Far left: L1 H1 Sportive model illustrated features offside sliding side-access door,
optional at extra cost.

18

L1 H1 Sportive model illustrated features offside sliding side-access door, optional at extra cost.

Loadspace and access

19

At a massive 3.4cu.m for the standard wheelbase version, there’s
no mistaking Combo’s cavernous load area. But you won’t notice
one of its most impressive features until you actually get in and
drive the vehicle. Combo’s bi-link independent rear suspension
gives you the best possible ride quality and handling – even when
you’re hauling heavy loads. Combo. Built to perform. Built to last.
Combo’s stylish yet functional facia has been carefully designed

around the driver, with all controls falling readily to hand. Extra­durable materials give the cab a reassuring solidity. Outstanding
all-day driving comfort is guaranteed and there are storage
facilities abound, including plenty of space for odds and ends.
On the infotainment front all Combo models boast a CD player/
radio as standard. Upgrade to include Bluetooth

®

* connectivity for

compatible mobile phones.

Loadspace and access

Open the rear doors of the standard wheelbase Combo and
you’re looking at a record holder. Quite simply, it has the
biggest payload in its class. It also boasts one of the longest

and most spacious cargo areas in its class plus a low rear

loading height, so there’s less chance of straining your back
while working. A full-height bulkhead – with optional glazing
– provides valuable protection against shifting loads, while
glazed rear door options enhance rear visibilit y.

To help you choose the Combo that ’s just right for your
business, we’ve adopted a customer-friendly naming
scheme. L stands for Length: there are two versions available,
L1 (short wheelbase) and L2 (long wheelbase). Height (H)
comes in two sizes, H1 (standard roof) and H2 (high roof).

For details of the complete model line-up, please ask your
Opel Commercial dealer for a copy of the Commercial
Vehicle Price Guide.

PANEL VAN

Loadspace dimensions mm inches

Maximum rear door aperture heights 1250-1455 49.2-57. 2

Maximum rear door aperture width 1231 48.5

Maximum load area heights 1305-1550 51.4-61.0

Maximum load area width 1714 67. 5

Width between wheel arches 1230 48.4

Maximum load floor lengths 1820-2170 71.7-85.4

Sliding side-access door aperture height 117 5 46.2

Sliding side-access door aperture width 700 2 7.5

Loading height (unladen) 545 21.4

Loadspace volume

cu.m cu.ft

Maximum loadspace volumes (VDA method) 3.4-4.2 1 21-1 4 8

Payloads

kg

Maximum payload 750-1000

Features include**:

>

CD/MP3 CD player/stereo radio

>

Driver’s airbag > ABS with EBD

>

Full-height steel bulkhead

>

Electrically operated front windows

>

Remote control central deadlocking

>

Electronic engine immobiliser

>

Rake-adjustable steering column

>

Steel wheels with centre covers

– standard models

>

Steel wheels with  ush wheel covers

– Sportive models

Options include**:

>

Bluetooth

®

plus aux-in socket, USB
connectivity and pre-installation for
TomTom satellite navigation system

>

Nearside and offside sliding

side-access doors (std on L2 H1

models)

>

Glazed rear doors and bulkhead

>

Glazed rear tailgate

>

Rear roof  ap

>

Load area ladder storage bars

*Optional at extra cost.
**Not all option s are available on ever y model. Please see the Commercial Vehicle Price Guide for details.

The engine range comprises a 90PS

1.3CDTi 16v, a 105PS 1.6CDTi 16v unit
and a powerful 135PS 2.0CDTi 16v.
In addition the 1.6 unit features Opel’s
Start/Stop system as standard. Start/
Stop switches the engine off when you
stop at the lights or in traf c, then
restarts it once the clutch is depressed,
cutting fuel bills and reducing
emissions.

A choice of Combo drivers can also
look forward to long service intervals
(up to 30,000km or one year) and
class-leading fuel consumption for
the 1.3CDTi 16v 90PS engine.

Combo doesn’t only ride and handle like a dream; it also performs
with remarkable verve for what is, to all intents and purposes, a
working vehicle. Drivers can select from three powerful yet efficient
Euro 5 compliant turbo-diesel engines, all designed for optimum
ease of serviceability and low running costs.

Efficiency

Choice of engines

>

1.3CDTi 16v (90PS)

>

1.6CDTi 16v (105PS) Start/Stop

>

2.0CDTi 16v (135PS)

More great features

>

Five-speed manual gearbox

>

Service inter vals up to 30,000km/
one-year

>

Two-year unlimited mileage
manufacturer’s warranty
and 12-year body panel
anti-perforation warranty

20

L1 H1 Sportive model illustrated features roof rails
and 16-inch alloy wheels, optional at extra cost.

21

Efficiency

21

22

Vivaro.
Spends more time on the road.

Big on style, big on performance and big on the kind of
features that take the hard graft out of everyday working life,
Vivaro continues to dene the standard by which all medium
vans are judged.

Visually, the Vivaro makes a clear statement of professional
intent. Practically, there’s a wide choice of loadspace and
payload capacities.

Inside, Vivaro is as functional as ever, with a stylish yet
practical facia, superb ergonomics and a host of intelligent
storage facilities.

Under the bonnet, the fuel-efcient common rail turbo diesel
line-up comprises cost-effective 90PS and 115PS 2.0CDTI 16v
units providing exceptionally low running costs.

Add 30,000km/one-year service intervals, a choice of
wheelbases and a versatile 9-seat Combi derivative – and
here’s a range that continues to build on a remarkable
track record.

23

Short wheelbase standard roof model illustrated features offside sliding side-access door and
16-inch alloy wheels, optional at extra cost

24

Short wheelbase standard roof model illustrated features offside sliding side-access door
and glazed rear doors, optional at extra cost.

Vivaro offers a choice of loadspace volumes. But sometimes it’s payload, not dimensions, that
counts – that’s why Vivaro boasts a range of payloads from 1100kg to 1254kg. The rear suspension
set-up uses progressive-rate springs and gas-pressure dampers which adapt to the vehicle load,
resulting in superb roadholding and a smooth, reassuring ride. All Vivaro engines and transmissions
are up to the task of shifting even the heaviest of loads.

With its two wheelbases, Vivaro makes it easy for you to get the right van for the job. With a
maximum load floor length of 2815mm, the Vivaro long wheelbase model offers a substantial

6.2cu.m of loadspace volume (SAE method). All models feature full-height unglazed rear doors –
plus a full-height steel bulkhead to further enhance safety and security.

Payloads and loadspace

Optional FlexxCargo anchorage system
makes light work of securing loads.

25

Loadspace dimensions mm inches

Maximum load floor lengths 2415-2815 95.1-110.8

Maximum load area width 1663 65.5

Maximum load area height 1387 54.6

Width between wheel arches 1268 4 9.9

Maximum rear door aperture height 1320 52.0

Rear door aperture width (at floor) 1390 54.7

Loading height (unladen) 549 21. 6

Sliding side-access door aperture height 1285 50.6

Sliding side-access door aperture width 1000 39. 4

Loadspace volumes cu.m cu.ft

Maximum loadspace volumes (VDA method) 5.0-5.9 177-208

Maximum loadspace volumes (SAE method) 5.3-6.2 187-219

Payloads kg

Maximum payload 1100-1254

Payloads

Cabin

As existing drivers will testify, Vivaro’s interior raises the bar for vans
in this class. There’s the stylishly appointed facia and centre
console – creating the perfect driving environment. An effect that’s
set off by hard-wearing cloth or grey vinyl seat trim.

Safety and security levels are high too, thanks to the fitment of a
full-height steel bulkhead as standard. Not to mention plenty of
storage space for all your drinks, bags, CDs and other stuff.

26

Intelligent storage

Moulded recesses above the glovebox and centre console create useful additional
storage space.

CD/MP3 player

All Vivaro audio systems feature Bluetooth®
and USB connectivity and an aux-in socket.

Steering column audio controls

Standard on all Vivaro models, enabling
you to operate audio functions.

Features include:*

>

CD/MP3 CD player/stereo radio
Bluetoot h

®

and USB connectivity

>

Steering column mounted
audio controls

>

Aux-in socket

>

Electrically operated front windows

>

12-volt electrical accessory socket

>

Driver’s airbag

>

ABS with Emergency Brake Assist

>

Remote control central deadlocking

>

Electronic engine immobiliser

>

16-inch steel wheels with centre covers

Options include:*

>

Front passengers’ twin airbag

>

Electronic Stability Programme-plus

with traction control

>

Selective door locking

>

Remote control ultrasonic securit y
alarm system

*Not all features and options are available on every model. Please see the Commercial Vehicle Price Guide for details.

27

Interior, safety and security

Vehicle illustrated features optional audio unit and cruise control both available at extra cost.

28

With a choice of highly efficient, common rail turbo diesel engines
and a 90-litre fuel tank, Vivaro is designed to spend more time on
the road. Both engines – 2.0CDTI 90PS and 2.0CDTI 115PS
combine strong power output with high flexibility and impressive
fuel economy.

Power and efficiency

Power and efficiency

29

Choice of engines:

>

2.0CDTI 16v (90PS)

>

2.0CDTI 16v (115PS)

Features include:*

>

Six-speed manual gearbox

>

90-litre fuel tank

>

Two-year unlimited mileage
manufacturer’s warranty
and 12-year body panel
anti-perforation warranty

Options include:*

>

Engine-driven power take-of f

>

Speed limiter

Hard working

30,000km/one-year service inter vals,
a ‘long-lasting’ stainless steel exhaust
system and a t wo-year warranty mean

more earning time – and less

downtime.

Matched with a smooth-shifting
six-speed manual gearbox, Vivaro
is well up to the tasks faced by a
modern commercial vehicle.

*Not all features and options are available on
every model. Please see the Commercial Vehicle
Price Guide for details.

30

Vivaro Combi short wheelbase model illustrated features Vision Pack, 16-inch alloy wheels and two-coat pearlescent paint, optional at extra cost.

9-seat Combi

31

9-seat Combi

Perfect for hotels, businesses, airports and hire companies, the
Vivaro 9-seat Combi is one of the most versatile vehicles around.
It combines stylish good looks with the ability to carry up to eight
passengers plus driver, in a high degree of safety and comfort.

The Combi provides generous accommodation allied to massive
luggage space, thanks to an ingenious fold- and-stow facility on
the third-row of seats. This creates additional space for suitcases,
packages and business equipment – without removing the seats.

Further ensuring long-distance comfort for every rear passenger,
Combi features full-length headlining and half-height panelling as
standard, plus optional sliding side-access door windows.

The 60/40 split-folding second-row seat back, passenger assist grab
handles and twin sliding doors – also standard – make entry and
exit a simple proposition. While for maximum ease of use, both
models feature a high-lift tailgate, the long wheelbase version
adding a removable luggage cover for optimum security.

9-seater comfort

With all seats in place, Combi offers comfortable transport for nine, plus the added
reassurance of inertia-reel lap and diagonal seatbelts for every occupant.

Features include:*

>

Tailgate with heated window and

wash/wipe facility

Options include:*

>

Rear parking distance sensors

>

Remote control ultrasonic securit y
alarm system

>

Selective door locking

Vivaro Combi short wheelbase model illustrated features 16-inch
alloy wheels and two-coat metallic paint, optional at extra cost.

Second-row split-folding rear seat

The easy-to-operate 60/40 split-folding
seat back allows convenient access for
third-row passengers.

*Not all features and options are available on
every model. Please see the Commercial Vehicle
Price Guide for details.

Movano.
No job too big.

Big. Strong. And Versatile. That’s Movano. With an extensive
range of models that give you more of what you need from
a commercial vehicle. Three load lengths. Larger load
volumes. Higher gross combination weights. Plus a choice of
front-wheel drive, single rear-wheel drive or twin rear-wheel
drive variants.

Add to this more powerful, more efcient engines. A vastly
improved cabin environment with plenty of useful storage,
plus a host of innovative features that can really make a
difference when you’re out on the road.

In short, there’s ‘No Job Too Big’ for Movano.

32

Right: F3500 L2 H2 model illustrated features full-height steel bulkhead with window, front fog lights,
270-degree opening glazed rear doors and full-diameter wheel trims, optional at extra cost.

Far right: R3500HD L4 H2 model illustrated features front fog lights and 270-degree opening
unglazed rear doors optional at extra cost.

33

34

35

4 vehicle lengths. 2 roof heights.
Front-wheel or rear-wheel drive.

Heavy van operators face a variety of challenges and with a GVW
of 3.5 tonnes, Movano certainly gets the job done. And with panel
vans available in 4 load lengths and 2 roof heights – choice is
never going to be an issue. Plus with no less than three different
drivetrains. Front-wheel drive with a lower loading height and low
kerb weights to maximise payload. Single rear-wheel drive for
improved towing capability. Or twin rear-wheel drive for improved
traction and higher GVWs. Whatever your requirement, Movano
has it covered.

Above: F3500 L3 H2 model illustrated features offside sliding side-access door, 270-degree opening
unglazed rear doors and two-coat metallic paint, optional at extra cost.

Left: R3500HD L4 H2 model illustrated features front fog lights, offside sliding side-access door and
270-degree opening unglazed rear doors optional at extra cost.

Far left:F3500 L3 H2 model illustrated features front fog lights, offside sliding side-access door,
270-degree opening unglazed rear doors and two-coat metallic paint optional at extra cost.

36

270-degree opening unglazed rear doors, offside sliding side-access door and full-diameter wheel trims are optional at extra cost.

PAYLOADS kg

Maximum payload 966-1610

For some van operators, maximum payload is far more important
than loadspace, so we’ve gone and covered that off too. Indeed,
Movano boasts serious flexibility to match the van’s capacity to
your business needs. To this end the 3500 GVW has corresponding

payloads ranging up to 1610kg. If you want serious load-lugging
capability, Movano R3500 HD GVW models offer up to an
impressive 6500kg gross combination weight, allowing you to pull
trailers up to 3.0 tonnes.

Payload

37

Loadspace

With a choice of load lengths, getting the right-sized Movano
model for your business couldn’t be simpler. To start with, all models
feature low loading heights, excellent headroom and generous load
lengths. But you also get a full-height steel bulkhead and load
lashing eyes – properly positioned for maximum convenience.
Half-height load area protection panels are standard on rear-wheel
drive models. So far as hard figures are concerned, maximum load
volumes range from 7.8 to 14.9cu.m, while load lengths vary
between 2.58 and 4.38m.

Movano offers superb accessibility – whatever the loading
conditions. Rear doors can be swung clear to 180° and locked in
place at 90° – providing safe and convenient loading, even where
space is restricted. Movano can also be specified with 270° opening
rear doors, with or without windows. The wider opening, standard
1270mm sliding side-access door means a Euro pallet can now be
loaded sideways. While a flat load floor ensures easy access for
forklifts. In other words, Movano doesn’t only look the business – it
actually does the business.

Payload and Loadspace

Panel van

Loadspace dimensions mm inches

Max. rear door aperture height 1627-1820 64.0-71.7

Rear door aperture width
(at floor)

1577 62 .1

Maximum load area height 1700-1894 66.9-74.6

Maximum load area width 1765 6 9 . 5

Width between wheel arches 1080-1380 42.5-54.3

Maximum load floor lengths 2583-4383 101.7-172.6

Loading heights (unladen) 557-724 21.9-28.5

Sliding side-access door

aperture height

1581-1780 62.2-70.1

Sliding side-access door

aperture width

1050-1270 41.3-50.0

Loadspace volumes cu.m cu.ft

VDA method 7.0-13.0 247-459

Maximum 7.8-14.8 275-523

Resin-coated plywood floor, window for bulkhead and glazed rear doors are optional at extra cost.

38

39

Comfort

Movano raises the bar on cabin design, creating a practical, well-equipped driver environment.
With a height-adjustable steering wheel and a driver’s seat that’s adjustable for height, cushion
angle, reach and rake, it’s one workspace you won’t mind spending time in. Outstanding
ergonomics – allied to high levels of equipment (including an excellent audio package that now
includes Bluetooth® connectivity and USB facility as standard), maximum ease of access and a
superb driving position – come together to create the right travelling and working experience,
whatever job you’re undertaking.

Model illustrated left features Convenience Pack and bulkhead window optional at extra cost.

Cabin comfort

Drinks holders

Two facia-mounted drinks holders are
standard on all models.

Improved instruments

Clear and easier to read in a simple,
no-nonsense binnacle.

Bluetooth® connectivit y

Virtually universal in compatibilit y and
enables hands-free mobile phone
communication.

Flat-folding middle seat back

Flat work surface with two drinks
holders and storage tray (par t of
Convenience Pack).

*Not all features and options are available on
every model. Please see the Commercial Vehicle
Price Guide for details.

Features include:*

>

Six-way adjustable driver’s seat

>

Driver’s seat armrest

>

Dual front passengers’ bench seat

>

CD 15 BT USB CD/MP3 CD player/
stereo radio with integrated display

>

Steering column mounted
audio controls

>

Aux-in socket

>

Bluetoot h

®

connectivity

>

USB facility

>

Electrically operated front windows

Options include:*

>

Air-suspended driver’s seat

>

‘Comfort’ driver’s seat with
adjustable armrest and lumbar
adjustment

40

Drivetrains

At the heart of Movano’s flexible performance lies a brand new

2.3 litre 16-valve common rail diesel engine. It delivers seriously
impressive performance, excellent fuel economy with low emissions.
To start with the Euro 5 engine is available in three power outputs
ranging from 100PS/285Nm to 125PS/310Nm and 146PS/350Nm.
All delivering high levels of low-end torque. Along with outstanding
durability, 30,000km servicing intervals ensure down time is kept to
a minimum.

In terms of transmission, a six-speed gearbox – with an electronic
‘Shift’ indicator – is standard for smooth and economical operation.

So whatever your needs, whatever your line of business – Movano
has it covered.

Choice of engines:

>

2.3CDTI 16v (100PS)

>

2.3CDTI 16v (125PS)

>

2.3CDTI 16v (146PS)

Features include:*

>

Six-speed manual gearbox

>

Power-assisted steering

Options include:*

>

Limited-slip differential

>

Engine-driven power take-of f

>

Gearbox-driven power take-off

>

Cruise control

*Not all features and options are available on
every model. Please see the Commercial Vehicle
Price Guide for details.

Above: L4 H2 RWD HD model illustrated features 270-degree opening rear doors, offside sliding side-access
door and rear parking distance sensor options, available at extra cost.

Right: L3 H2 FWD model illustrated features front fog lights, offside sliding side-access door, 270-degree
opening rear doors and two-coat metallic paint, optional at extra cost.

41

Drivetrains

42

Options and option packs

Internal ladder carrier – Combo.

These internal bars mean you can
x a foldable ladder out of sight
under the roof and still pack all
your gear in.

Our options and option packs allow you to tailor your equipment package
to suit the individual demands of your business. Please see the Commercial
Vehicle Price Guide for full details of option availability and prices.

Convenience Pack.
Available for Movano

•

CD 35 BT USB CD/MP3 CD player/

stereo radio/aux-in socket/
Bluetooth

®

connectivity for
compatible mobile phones/USB
facility/remote monochromatic
display/two 20-watt speakers

•

Steering column-mounted

phone controls

•

Retractable document clip in facia

•

‘Comfort’ driver’s seat

•

Bulkhead soundproong

•

Multi-function ofce bench seat

with folding seat back on centre

passenger seat including swivelling

work tray

•

Storage under bench seat

accessed by folding seat cushions

•

‘One-touch down’ facility for driver’s

electrically operated window

Other individual options* include:

Loadspace

•

Full-height load area

plywood panelling

•

Half-height load area trim panels

•

Resin-coated plywood oor

•

Window for bulkhead

•

Glazed rear doors

(90°/18 0°/270° opening)

•

Unglazed rear doors (270° opening)

•

Offside sliding side-access door

•

Heated rear windows (glazed

doors only)

Safety and security

•

Additional airbags

•

Security alarm

Mechanical

•

Engine- or gearbox-driven PTO

•

Tow bar and digital tachograph

Facia instruments and controls

•

Multi-function trip computer

•

Cruise control

•

Satellite navigation system

Interior

•

Air conditioning

•

Electronic Climate Control

Seating

•

Vinyl seat trim

•

Comfort driver’s seat

•

Air-suspended driver’s seat

Optional USB facility

Available for Astra 5 door van,
Vivaro and Movano models, allows
you to view iPod functionality via
the audio display.

Load cover/oor mat – Corsavan.

Four-piece load compartment cover
hides contents from prying eyes
whilst a tted rubber oor mat
safeguards the cargo area.

Options and option packs

Available for Movano, plywood

full-height load area panelling

panels provide maximum load

space protection.

*Not all the options listed are available on every
model. Please see the Commercial Vehicle Price
Guide for details.

43

Accessories

Accessories

Other accessories* include:

Protection

•

Floor mats – carpet and rubber

Safety

•

Safety Pack

•

Rear parking distance sensors

•

First aid kit and warning triangle

Practical

•

Mudaps

•

Fuel can

•

Jump leads

•

Fire extinguisher (1kg or 2kg)

•

Temporary tyre ination kit

Audio and navigation

•

Audio connection box (jack, iPod

and USB interface)

Audio accessories

•

Portable CD storage bag or box

•

Sun visor CD storage

Towing

•

Fixed tow bar

•

Towing electrics (7-pin or 13-pin)

•

Towing electrical adaptors (7/13-pin

or 13/7-pin or 12S adaptor)

Walkway for roof rack tray.

Made from lightweight but sturdy

perforated aluminium and for use

with the roof rack tray, the walkway
enhances access to the roof.

Roof rack tray. With dimensions

tailored to the individual vehicle, the
aluminium roof rack tray offers a
maximum load capacity of 200kg.

Carpet mats. Constructed from

smart yet hard-wearing textile – and
available in dark grey – the one-piece
Movano-branded carpet mat features
ttings to prevent slippage in use.

Trailer hook. Particularly suited
to heavier loads, the trailer hook is
nished in an anti-corrosive epoxy
powder treatment.

Rear window protection grilles.

Constructed from 1mm thick epoxy
coated steel, the rear window

protection grilles help avoid theft

while retaining rearward visibility.

Rubber oor mats. Protect your
interior from everyday
wear and tear, with secure xings
and an anti-slip underside.

Opel accessories are all about choice – selecting your van then personalising
it to suit the way you work. We offer a huge range of dealer-t accessories,
all designed to the same exacting standards as the vehicle itself. For further
information please speak to your Opel Commercial Vehicle dealer.

*Not all the accessories listed are available on
every model. Please see the Commercial Vehicle
Price Guide for details.

44

Colours and trims

Opel Commercial Vehicles are available in a wide range of colours, including the latest metallics and
pearlescents, matched to a variety of hard wearing trims, so you’re sure to  nd a combination that best suits you
and your business. Not all colours may be available, please check with your Opel dealer for more information.

Arctic White

Movano

Power Red

Astra 5 door van

Cargo Yellow

(special order)

Corsavan

Saffron Yellow

Movano

Signal Blue

Movano

Deep Blue

Combo

Summit White

Astra 5 door van

Flame Red

Corsavan / Vivaro

Tom ato Re d

Combo

Glacier White

Corsavan / Vivaro

Ink Blue

Vivaro / Movano

Mandarin Orange

Movano

North Sea Blue

Movano

Royal Blue

Astra 5 door van

Polar White

Combo

Poppy Red

Movano

Solid

45

Colours and trims

Ambient Blue

Movano

Halo Silver

Movano

Magnetic Silver

Combo

Deep Sky Blue

Astra 5 door van

Marine Blue

Combo

Pearl Black

Movano

Pepperdust

Combo

Two-coat Metallic*

*Two-coat metallic paint is optional at extra cost.

Ruby Red

Combo

Sage

Vivaro

Sovereign Silver

Corsavan /

Astra 5 door van

Seashell

Astra 5 door van

Sculpture Bronze

Astra 5 door van

Star Silver

Vivaro

Steel Grey

Vivaro

Twilight Blue

Combo

Carbon Flash

Corsavan / Astra 5 door van

Midnight Black

Vivaro / Combo

Silver Lake

Corsavan / Astra 5 door van

46

Asteroid Grey

Corsavan / Astra 5 door van

Waterworld

Corsavan

Winterwind

Vivaro

Macadamia

Astra 5 door van

Crinan Blue

Corsavan

Panorama Blue

Vivaro

Two-coat Pearlescent**

**Two-coat pearlescent paint is optional at extra cost.

47

Colours and trims

Dark Grey Punch Cloth

Vivaro

Black Cordoba Cloth Black Silvanus Cloth

Charcoal Reection cloth

Astra S 5 door van Astra SC 5 door van

Corsavan

Grey Pulse Cloth

Movano

Black Cube Cloth

Grey Vinyl

††

Combo

Vivaro / Movano

Black Vinyl

†

Combo

Trims

†Black Vinyl optional at extra cost on Combo models.
No cost option on Sportive models.
††Vinyl Trim is optional at no extra cost on Vivaro and
Movano models.

OP1400228

www.opel.ie

Every effort has been made to ensure that the contents of this publication were accurate and up-to-date at the time of going to press (January 2014). Opel vehicles are

equipped with components manufactured by various General Motors operating units and outside suppliers. The Company reserves the right to change specications
and withdraw products from sale without notice. Any such alterations will be notied to Opel dealers at the earliest opportunity; please consult your local dealer for
the latest information. The specications detailed within this brochure are not necessarily applicable to alternative models such as Special Editions. Details of any such
models will be contained in specic literature or found on the Opel website. The colours reproduced in this brochure may vary slightly from the actual paint colour or

trim material due to the limitations of the printing process. Please note that Opel dealers are not the agents of General Motors Ireland Limited and are not authorised

to bind the Company by any specic or implied undertaking or representation. It is advisable to ensure that your motor insurance policy provides adequate cover for
additional tted options and accessories. As part of Opel’s policy of environmental care, this brochure is printed on paper manufactured using Elemental Chlorine Free
pulps from specially farmed, sustainable timber resources. All rights reserved. No part of this publication may be reproduced in any form or by any means, without the

prior written permission of General Motors Ireland Limited.

Published February 2014 General Motors Ireland Limited, Fern Road, Sandyford Business Estate, Dublin 18. www.opel.ie

Opel Service.

Commercial vehicle dealer network.

A network of nationwide Opel Ireland commercial
vehicle dealers, including dedicated heavy van
specialists responsible for Vivaro and Movano,

offer sales support and the expert service and

maintenance know how to keep your business

moving.

Europe-wide Customer Service.

Throughout Europe, more than 6,000 Opel repair
workshops are ready to provide professional
and punctual service. As you’d expect, they’ll

repair your vehicle to the highest standards.

More unusually, perhaps, they’ll tell you exactly
what’s been done and why, and they will show

any costs involved clearly and concisely.

New Vehicle Warranty.

2-year new vehicle warranty. This warranty applies

to
any new Opel commercial vehicle for a period
of 24 months without any mileage restrictions,
as from the day on which it was either registered for
the first time or delivered to the customer by the

dealer, depending on which date comes first.

Opel Roadside Assistance.

This free-of-charge mobility service is valid
for all new Opel vehicles during the first year
after the date on which they were first
registered or delivered to the customer by the

dealer, depending on which date comes first.
No matter where you are, the Opel Assistance

is there to help. In more than 40 European countries

– round the clock. Offering services such as
breakdown assistance, towing services, rental car,

hotel accommodation or the organisation of

onward transportation, e.g. via rail or air
(please see programme conditions).

12-year Anti-Perforation Warranty.

Opel provides you with a reliable long-term

warranty against perforation, provided you have

your vehicle serviced and all necessary inspections

performed according to the service booklet.

2-year Warranty for Opel Batteries.

With a 2-year warranty for service-installed Opel
original batteries your starting problems are
over – even in the coldest winter.

Parts and Accessories Service.

Opel parts and accessories are available at your

local Opel Shop, where you’ll find everything to
make your vehicle more comfortable or to meet
your individual needs, as well as expert advice.

Opel on the Internet.

Need instant information? At www.opel.ie you
can access a wealth of information on all Opel cars,
services, and accessories. Get online for Opel news

and product updates.

Recycling.

Information about Design for Recycling, Take­Back points for End of Life Vehicles (ELVs) and

the recycling of ELVs can be found on the Opel
website www.opel.ie

In case of any questions, please ask your
Opel dealer. More information can be found
at www.opel.ie
