Opel 2011 Astra J Owner's Manual

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 19

Seats, restraints ........................... 35

Storage ........................................ 53

Instruments and controls ............. 82

Lighting ...................................... 117

Climate control ........................... 127

Driving and operating ................. 134

Vehicle care ............................... 159

Service and maintenance .......... 200

Technical data ........................... 204

Customer information ................ 225

Index .......................................... 226

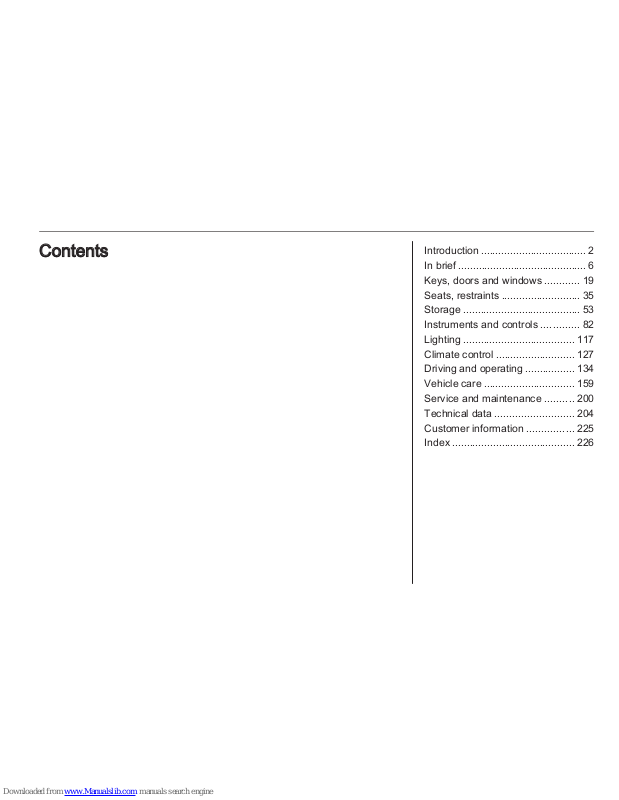

Contents

2 Introduction

Introduction

Introduction 3

Vehicle specific data

Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.

Introduction

Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness
and economy.

This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.

Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.

You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner's Manual.

When this Owner's Manual refers to
a workshop visit, we recommend your
Opel Service Partner.

All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.

The customer literature pack should
always be kept ready to hand in the
vehicle.

Using this manual

■ This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.

■ The "In brief" section will give you
an initial overview.

■ The table of contents at the
beginning of this manual and within
each section shows where the
information is located.

■ The index will enable you to search
for specific information.

■ This Owner's Manual depicts left­hand drive vehicles. Operation is
similar for right-hand drive vehicles.

■ The Owner's Manual uses the
factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".

■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.

■ The vehicle display screens may
not support your specific language.

■ Display messages and interior
labelling are written in bold letters.

Danger, Warnings and
Cautions

9 Danger

Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.

4 Introduction

9 Warning

Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.

Caution

Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.

Symbols

Page references are indicated with

3. 3 means "see page".
We wish you many hours of

pleasurable driving.
Adam Opel GmbH

Introduction 5

6 In brief

In brief

Initial drive information

Vehicle unlocking

Press button c to unlock the doors
and load compartment. Open the
doors by pulling the handles. To open
the tailgate, push the touchpad switch
below the handle.

Radio remote control 3 19, Central
locking system 3 21, Load
compartment 3 24.

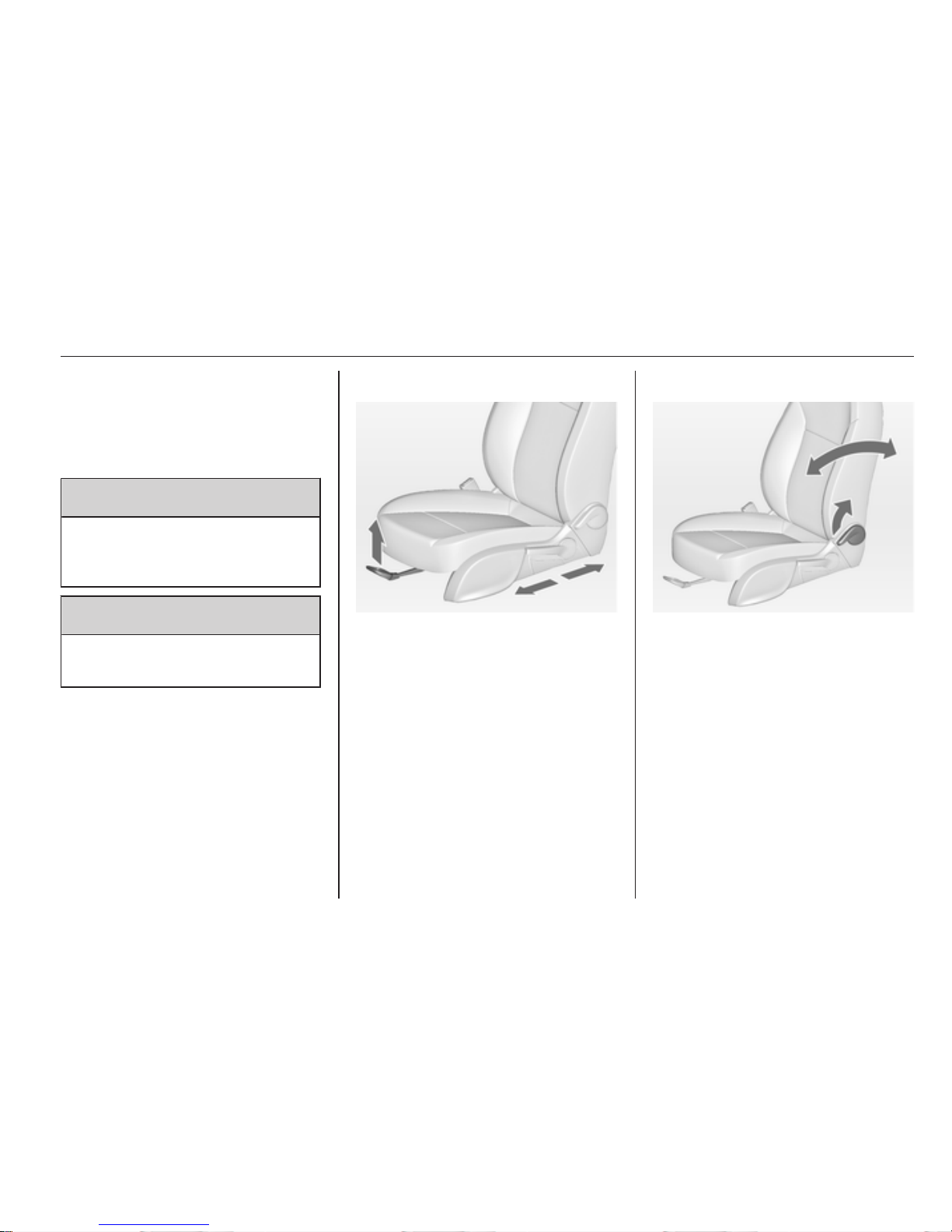

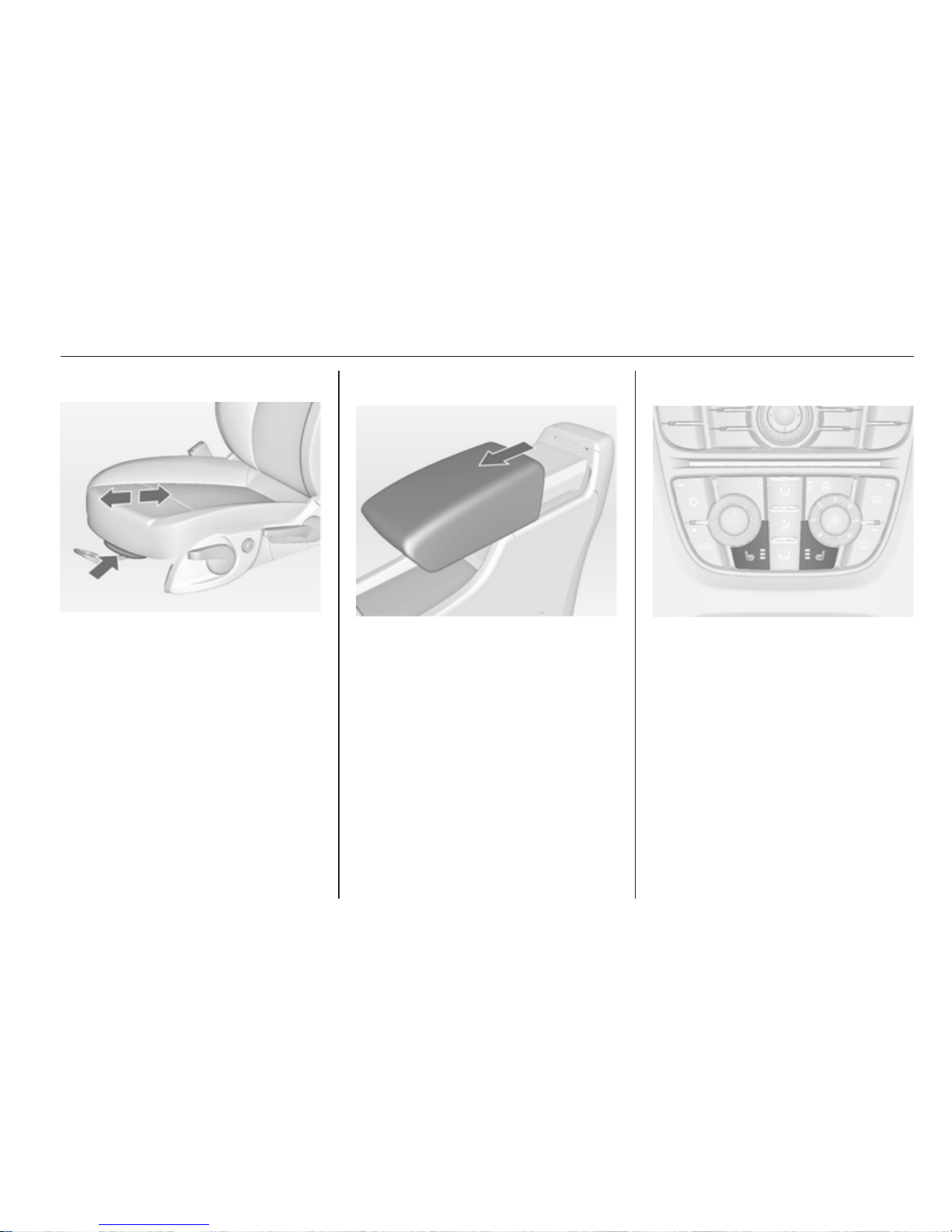

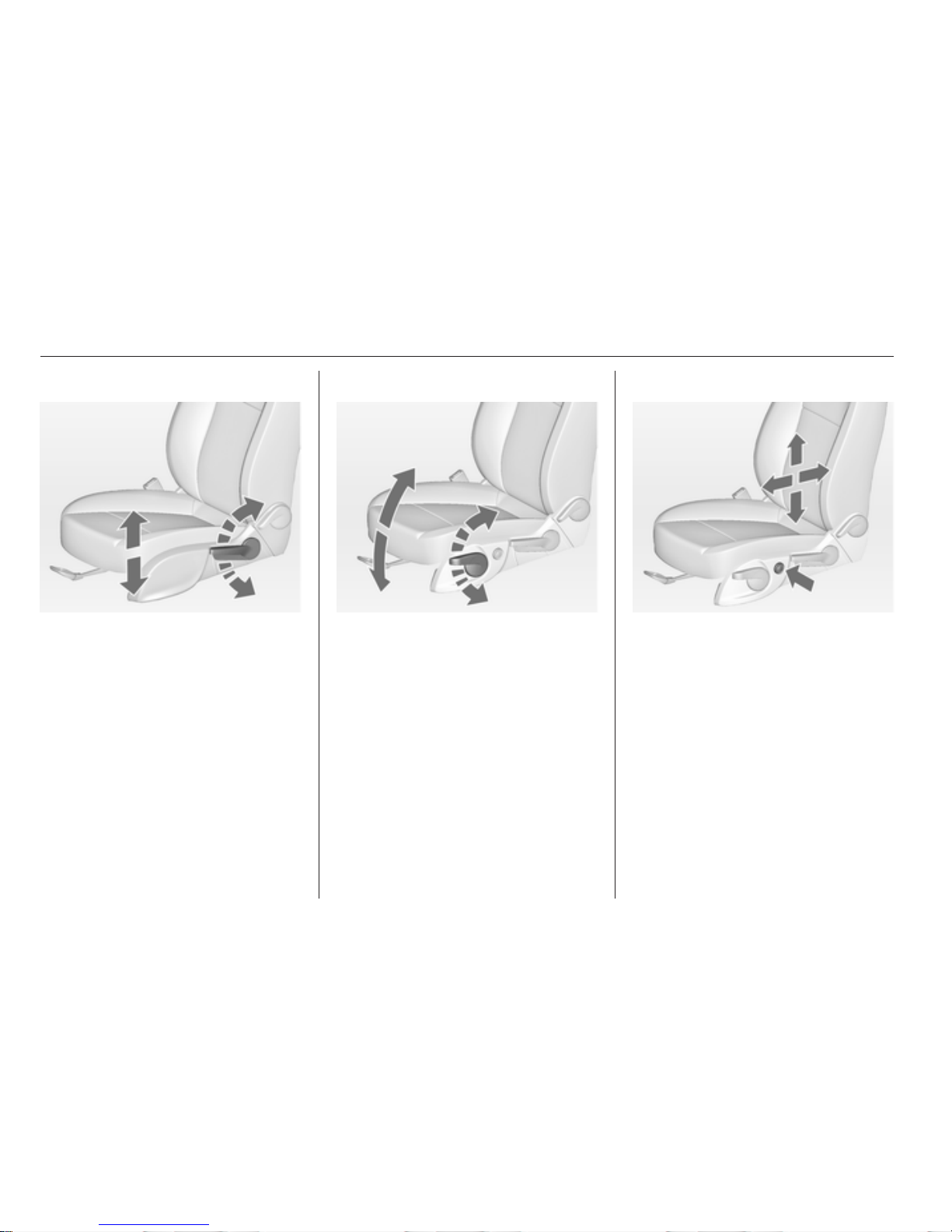

Seat adjustment

Seat positioning

Pull handle, slide seat, release
handle.

Seat position 3 36, Seat adjustment
3 37.

9 Danger

Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

In brief 7

Seat backrests

Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.

Seat position 3 36, Seat adjustment
3 37.

Seat height

Lever pumping motion
up = seat higher

down = seat lower

Seat position 3 36, Seat adjustment
3 37.

Seat inclination

Lever pumping motion
up = front end higher

down = front end lower

Seat position 3 36, Seat adjustment
3 37.

8 In brief

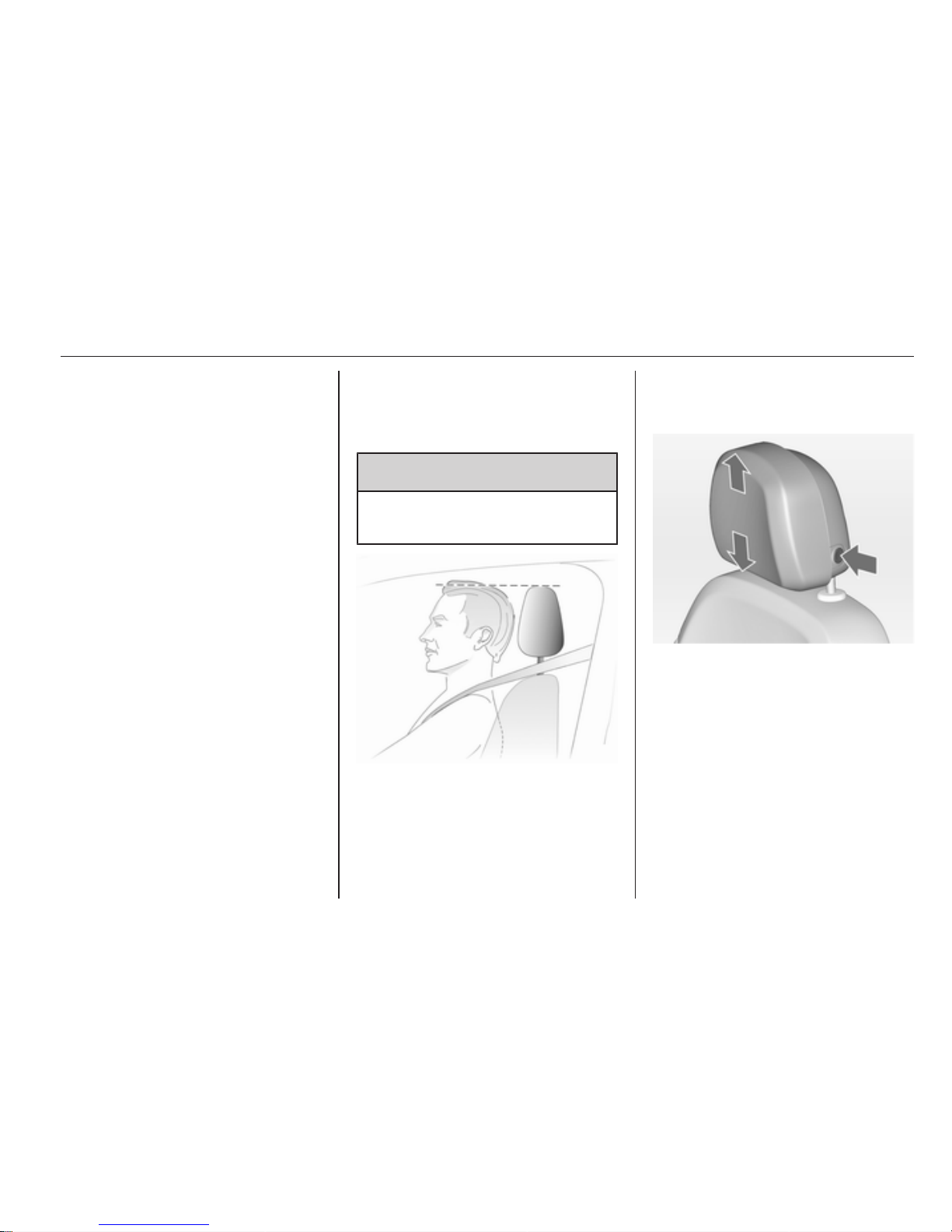

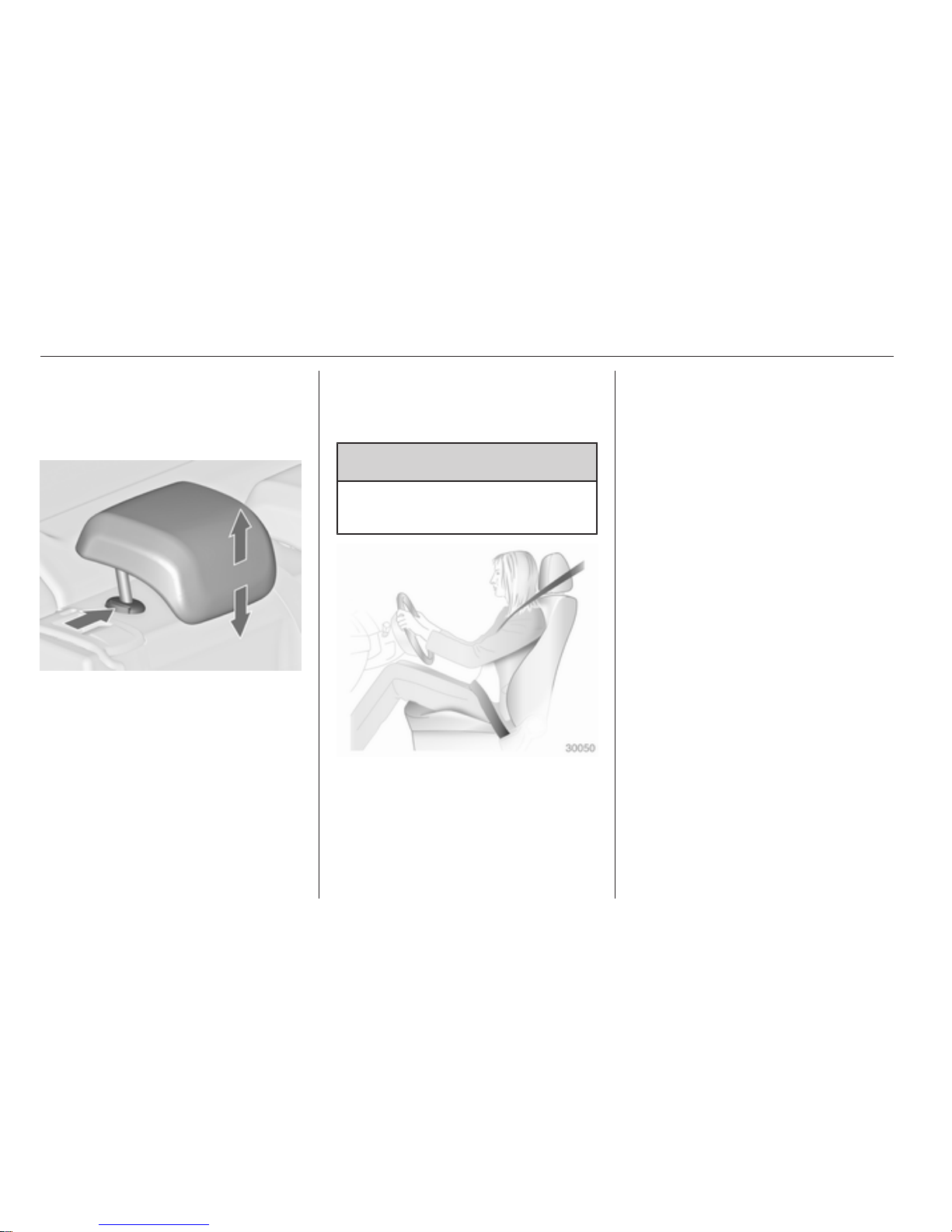

Head restraint adjustment

Press the button, adjust height and
engage.

Head restraints 3 35.

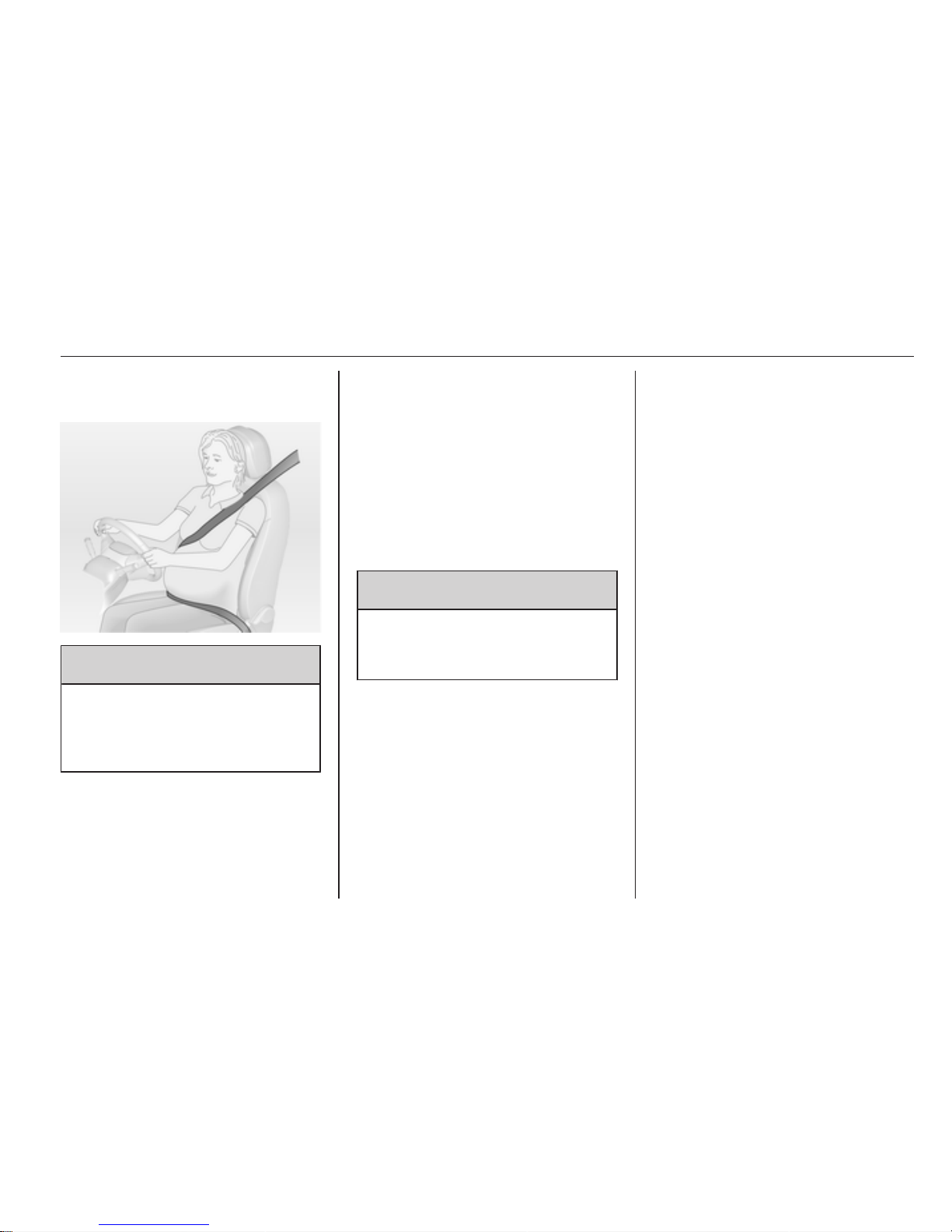

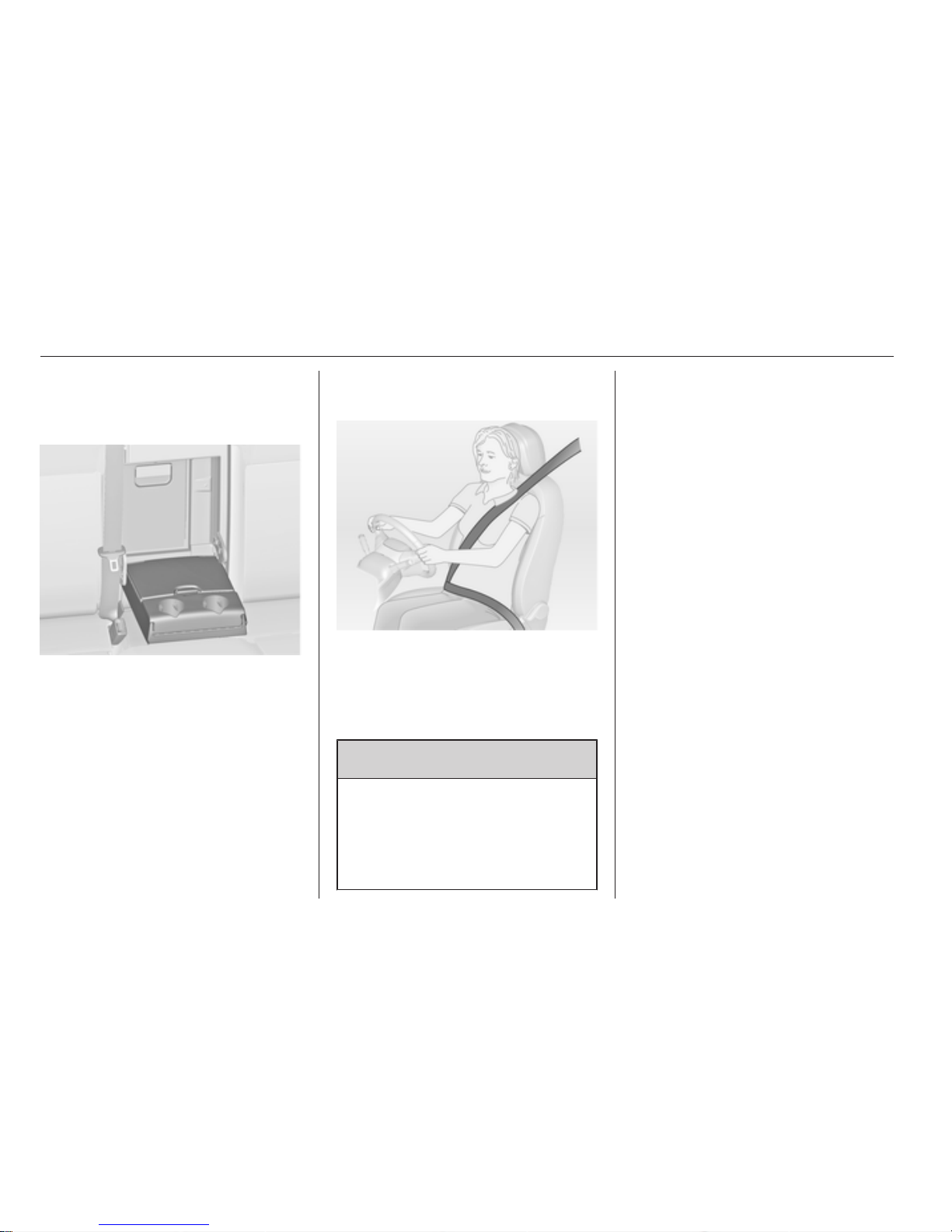

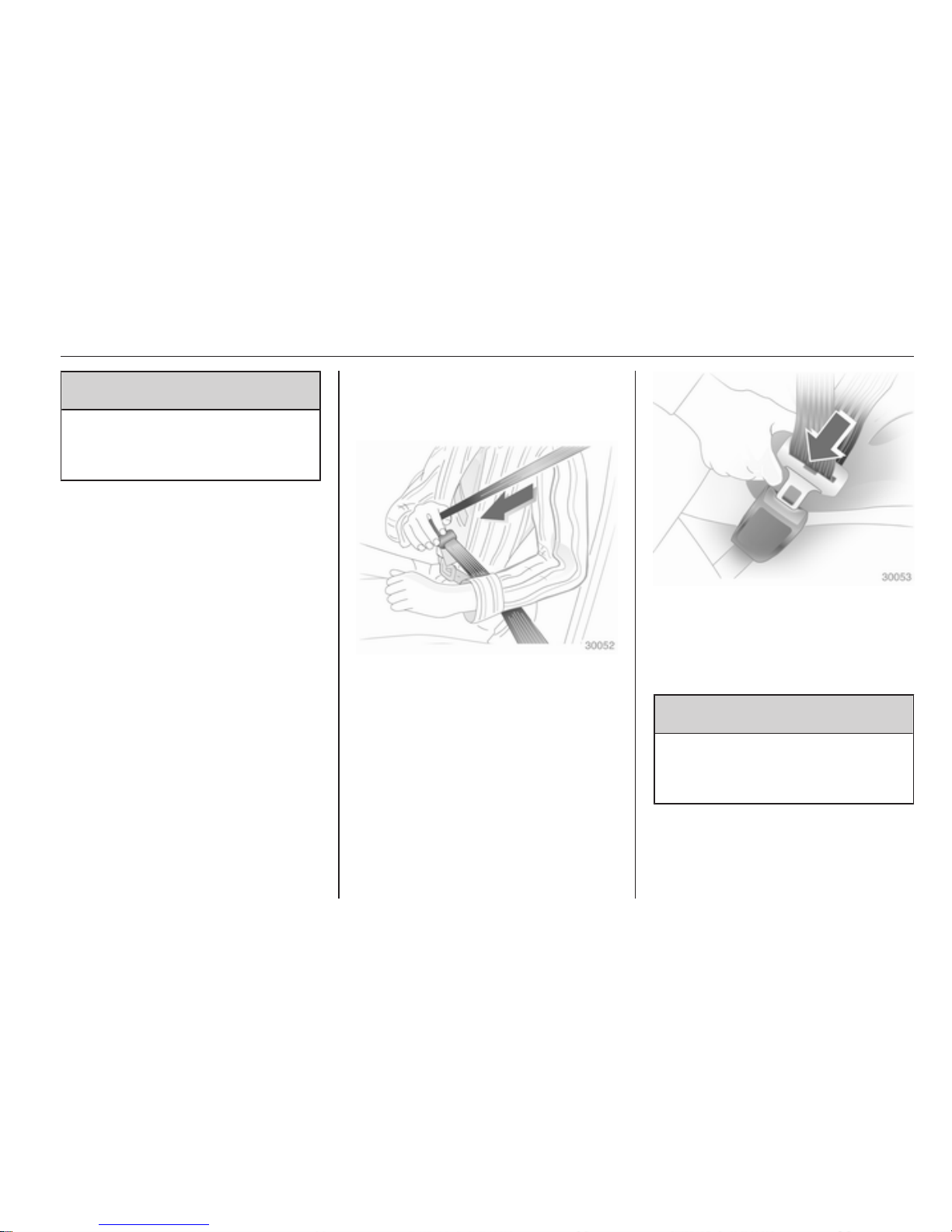

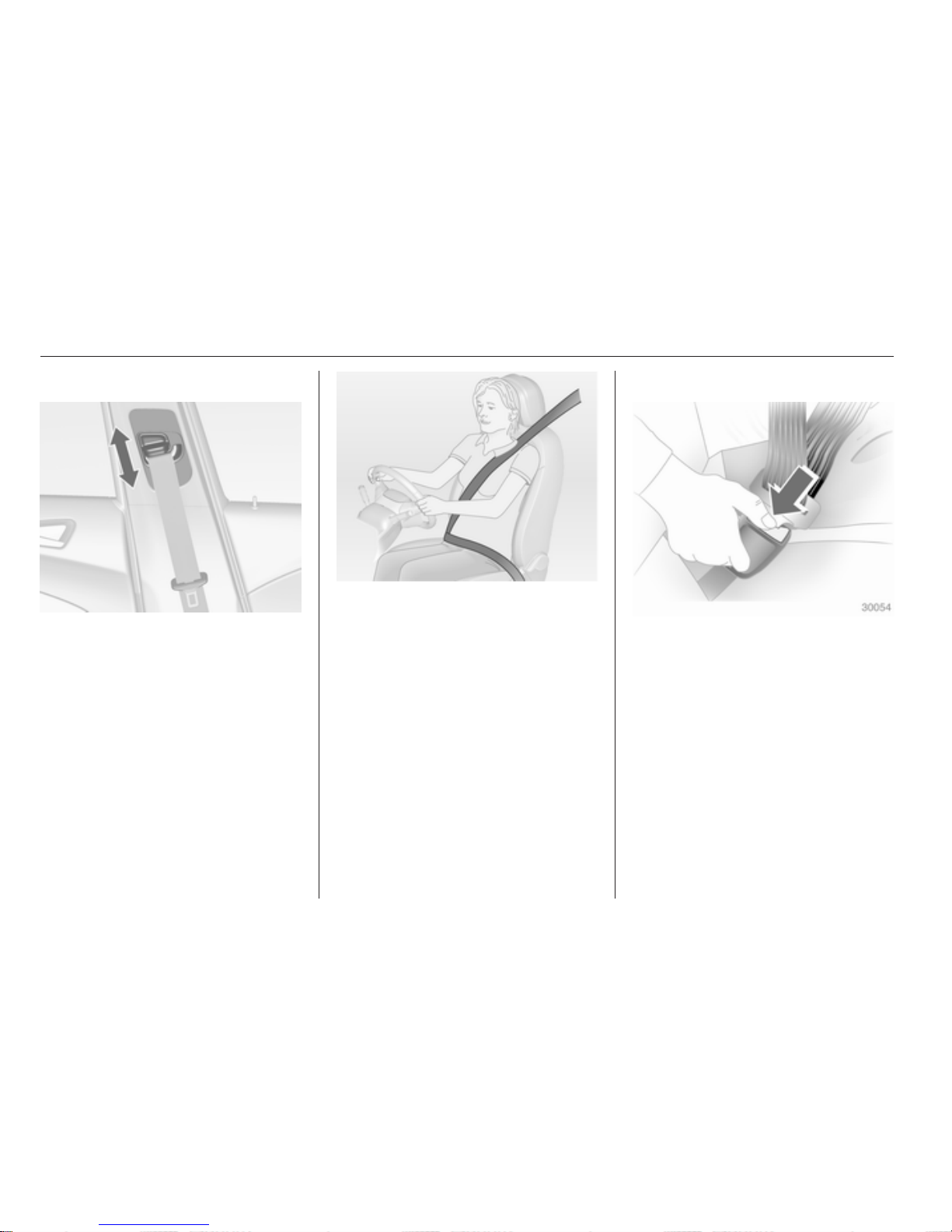

Seat belt

Pull out the seat belt and engage in
belt buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).

To release belt, press red button on
belt buckle.

Seat position 3 36, Seat belts
3 40, Airbag system 3 43.

Mirror adjustment

Interior mirror

To reduce dazzle, adjust the lever on
the underside of the mirror housing.

Interior mirror 3 29, Automatic anti­dazzle interior mirror 3 29.

In brief 9

Exterior mirrors

Select the relevant exterior mirror and
adjust it.

Convex exterior mirrors 3 28,
Electric adjustment 3 28, Folding
exterior mirrors 3 28, Heated
exterior mirrors 3 29.

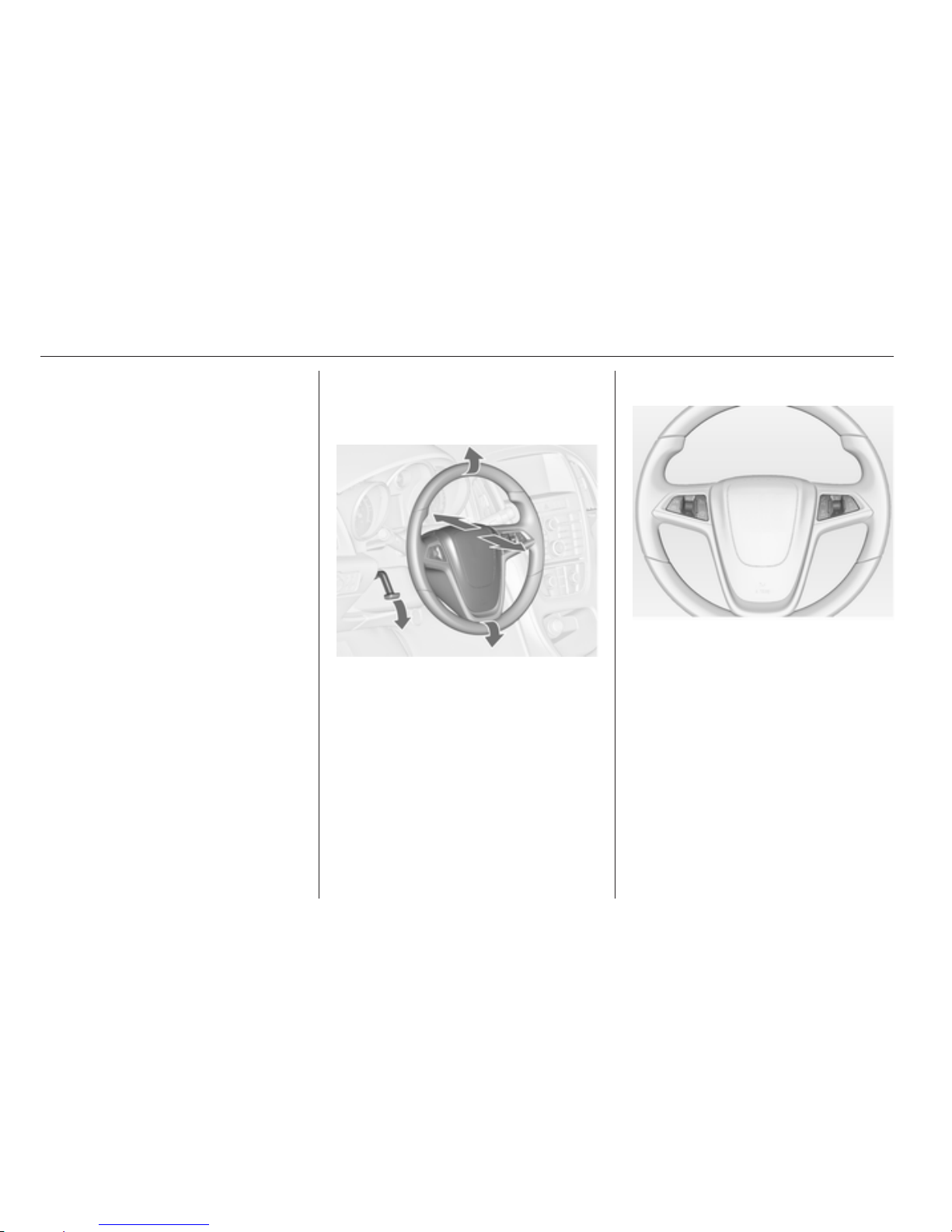

Steering wheel adjustment

Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.

Do not adjust the steering wheel
unless the vehicle is stationary and
the steering wheel lock has been
released.

Airbag system 3 43, Ignition
positions 3 135.

10 In brief

In brief 11

Instrument panel overview

1 Light switch ........................ 117

Headlight range

adjustment ......................... 118

Front fog lights ................... 122

Rear fog light ...................... 122

Instrument illumination ....... 123

2 Side air vents ...................... 132

3 Turn and lane-change

signals, headlight flash,

low beam and high beam ... 122

Exit lighting ......................... 125

Parking lights ...................... 123

Driver Information Center ...... 99

4 Cruise control ..................... 148

5 Instruments .......................... 88

6 Horn ..................................... 83

Driver airbag ........................ 44

7 Driver Information Center ...... 99

8 Steering wheel controls .......82

9 Windscreen wiper,

windscreen washer

system, headlight washer

system, rear wiper ................ 84

10 Centre air vents .................. 132

11 Infotainment system ............. 10

12 Info-Display ........................ 101

13 Anti-theft alarm system

status LED ........................... 25

14 Central locking system .......... 21

Hazard warning flashers ....121

Control indicator for airbag

deactivation .......................... 94

Control indicator for front

passenger seat belt ............. 93

15 Sport mode ........................ 146

Tour mode .......................... 146

Traction Control system ..... 145

Electronic stability control ..145

Parking assist ..................... 149

Lane departure warning ..... 151

16 Front passenger airbag ........ 44

17 Glovebox .............................. 53

18 Climate control system ........ 127

19 AUX input, USB input ..........10

20 Selector lever, manual

transmission ....................... 141

Automatic transmission ...... 138

21 Power outlet .......................... 88

22 Accelerator pedal ............... 134

23 Ignition switch with

steering wheel lock ............ 135

24 Brake pedal ........................ 142

25 Clutch pedal ....................... 134

26 Steering wheel

adjustment ........................... 82

27 Storage compartment,

fuse box ............................. 177

28 Bonnet release lever .......... 160

12 In brief

In brief 13

Exterior lighting

Turn light switch
AUTO = automatic light control:

Headlights are switched
on and off automatically

m

= activation or deactivation

of the automatic light
control

7

= off

8

= sidelights

9

= headlights

Press light switch

>

= front fog lights

r

= rear fog light

Lighting 3 117.

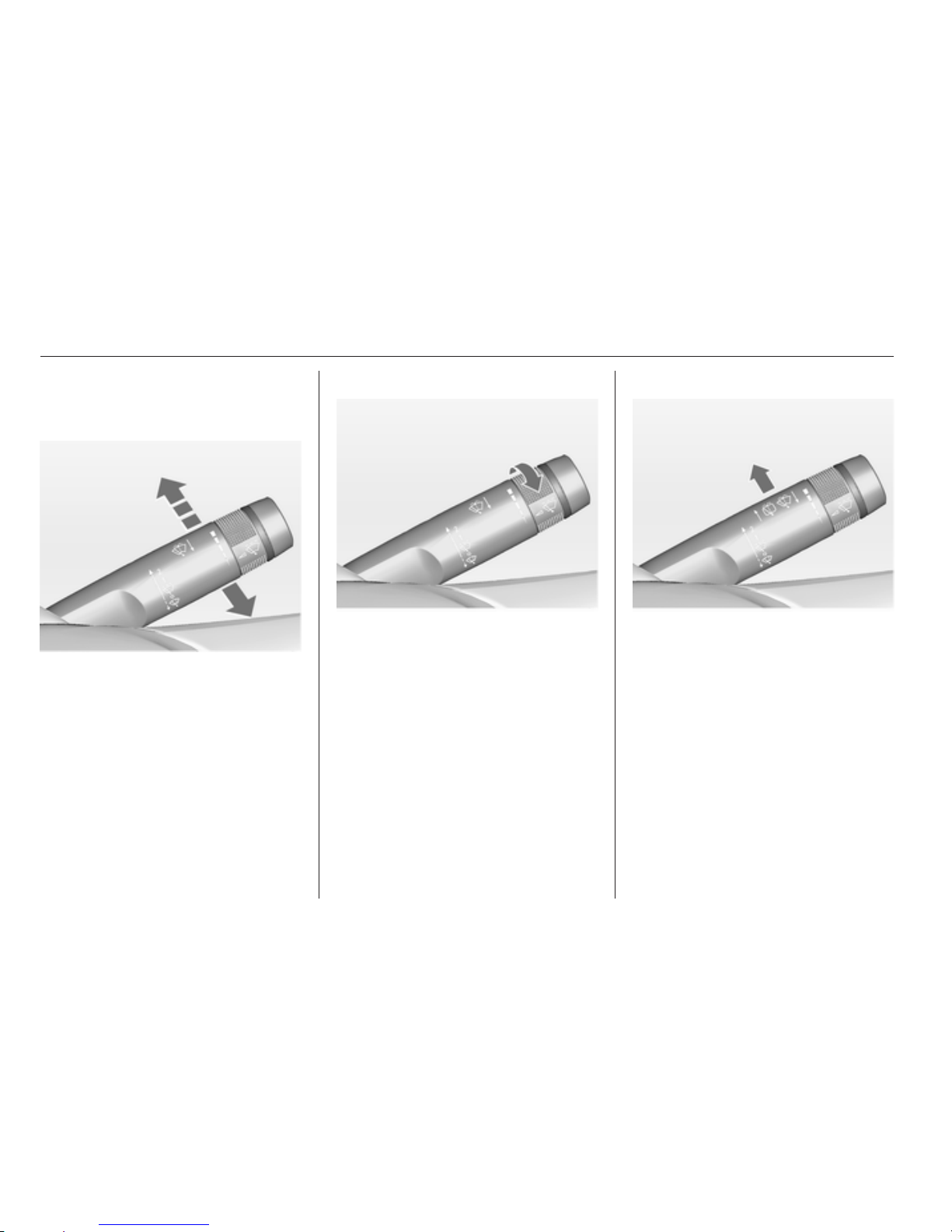

Headlight flash, high beam and
low beam

headlight flash = pull lever
high beam = push lever
low beam = push or pull lever

Automatic light control 3 118, High
beam 3 118, Headlight flash 3 118.

14 In brief

Turn and lane-change signals

lever up = right turn signal
lever down = left turn signal

Turn and lane-change signals
3 122, Parking lights 3 123.

Hazard warning flashers

Operated with the ¨ button.
Hazard warning flashers 3 121.

Horn

Press j.

In brief 15

Washer and wiper systems

Windscreen wiper

2 = fast
1 = slow

P

= timed interval wiping or

automatic wiping with rain
sensor

§

= off

For a single wipe when the
windscreen wiper is off, press the
lever down.

Windscreen wiper 3 84, Wiper
blade replacement 3 164.

Windscreen and headlight
washer systems

Pull lever.
Windscreen and headlight washer

system 3 84, Washer fluid 3 163.

Rear window wiper and washer
systems

Press the rocker switch to activate the
rear window wiper:

upper
position

= continuous operation

lower
position

= intermittent operation

middle
position

= off

Rear window wiper/
washer 3 86

16 In brief

Push lever.
Washer fluid is sprayed on the rear

window and the wiper wipes a few
times.

Climate control

Heated rear window, heated
exterior mirrors

The heating is operated by pressing
the Ü button.

Heated rear window 3 32.

Demisting and defrosting the
windows

Press button V.
Set the temperature control to the

highest level.
Cooling n on.
Heated rear window Ü on.
Climate control system 3 127.

In brief 17

Transmission

Manual transmission

Reverse: with the vehicle stationary,
depress the clutch pedal, press the
release button on the selector lever
and engage the gear.

If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.

Manual transmission 3 141.

Automatic transmission

P = park
R = reverse
N = neutral
D = drive

Manual mode: move selector lever
from D to the left.

<

= higher gear

]

= lower gear

The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.

Automatic transmission 3 138.

Starting off

Check before starting off

■ Tyre pressure and condition

3 182, 3 217.

■ Engine oil level and fluid levels

3 161.

■ All windows, mirrors, exterior
lighting and number plates are free
from dirt, snow and ice and are
operational.

■ Proper position of mirrors, seats,
and seat belts 3 28, 3 36,
3 41.

■ Brake function at low speed,
particularly if the brakes are wet.

18 In brief

Starting the engine

■ Turn key to position 1

■ move the steering wheel slightly to
release the steering wheel lock

■ operate clutch and brake

■ automatic transmission in P or N

■ do not operate accelerator pedal

■ diesel engines: turn the key to
position 2 for preheating and wait
until control indicator ! goes out

■ turn key to 3 and release

Starting the engine 3 135.

Parking

■ Always apply the parking brake.
Activate the manual parking brake
without pressing the release button.
Apply as firmly as possible on
a downhill slope or uphill slope.
Depress foot brake at the same
time to reduce operating force.

For vehicles with electrical parking
brake pull switch m.

■ Switch off the engine. Turn the
ignition key to 0 and remove it. Turn
the steering wheel until the steering
wheel lock is felt to engage.

For vehicles with automatic
transmission, the key can only be
removed when the selector lever is
in the P position.

■ If the vehicle is on a level surface or
uphill slope, engage first gear or set
the selector lever to P before
switching off the ignition. On an
uphill slope, turn the front wheels
away from the kerb.

If the vehicle is on a downhill slope,
engage reverse gear or set the
selector lever to P before switching

off the ignition. Turn the front
wheels towards the kerb.

■

Lock the vehicle with button e on
the radio remote control.

Activate the anti-theft alarm system
3 25.

■ Do not park the vehicle on an easily
ignitable surface. The high
temperature of the exhaust system
could ignite the surface.

■ Close the windows and the sunroof.

■ The engine cooling fans may run
after the engine has been switched
off 3 160.

■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for
approx. 30 seconds before
switching off, in order to protect the
turbocharger.

Keys, locks 3 19, Laying the vehicle
up for a long period of time 3 159.

Keys, doors and windows 19

Keys, doors and
windows

Keys, locks ................................... 19

Doors ........................................... 24

Vehicle security ............................ 25

Exterior mirrors ............................ 28

Interior mirrors ............................. 29

Windows ...................................... 30

Roof ............................................. 32

Keys, locks

Keys

Replacement keys

The key number is specified in the
Car Pass or on a detachable tag.

The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.

Locks 3 197.

Key with foldaway key section

Press button to extend. To fold the
key, first press the button.

Car Pass

The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.

When the vehicle is taken to
a workshop, this vehicle data is
needed in order to perform certain
operations.

Radio remote control

20 Keys, doors and windows

Used to operate:

■ Central locking system

■ Anti-theft locking system

■ Anti-theft alarm system

■ Power windows

■ Sunroof
The radio remote control has an

approximate range of up to
20 metres. It can be restricted by
external influences. The hazard
warning flashers confirm operation.

Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.

Fault

If the central locking system cannot
be operated with the radio remote
control, it may be due to the following:

■ Range exceeded

■ Battery voltage too low

■ Frequent, repeated operation of the
radio remote control while not in
range, which will require re­synchronisation

■ Overload of the central locking
system by operating at frequent
intervals, the power supply is
interrupted for a short time

■ Interference from higher-power
radio waves from other sources

Unlocking 3 21.

Basic settings

Some settings can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation 3 112.

Radio remote control battery
replacement

Replace the battery as soon as the
range reduces.

Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.

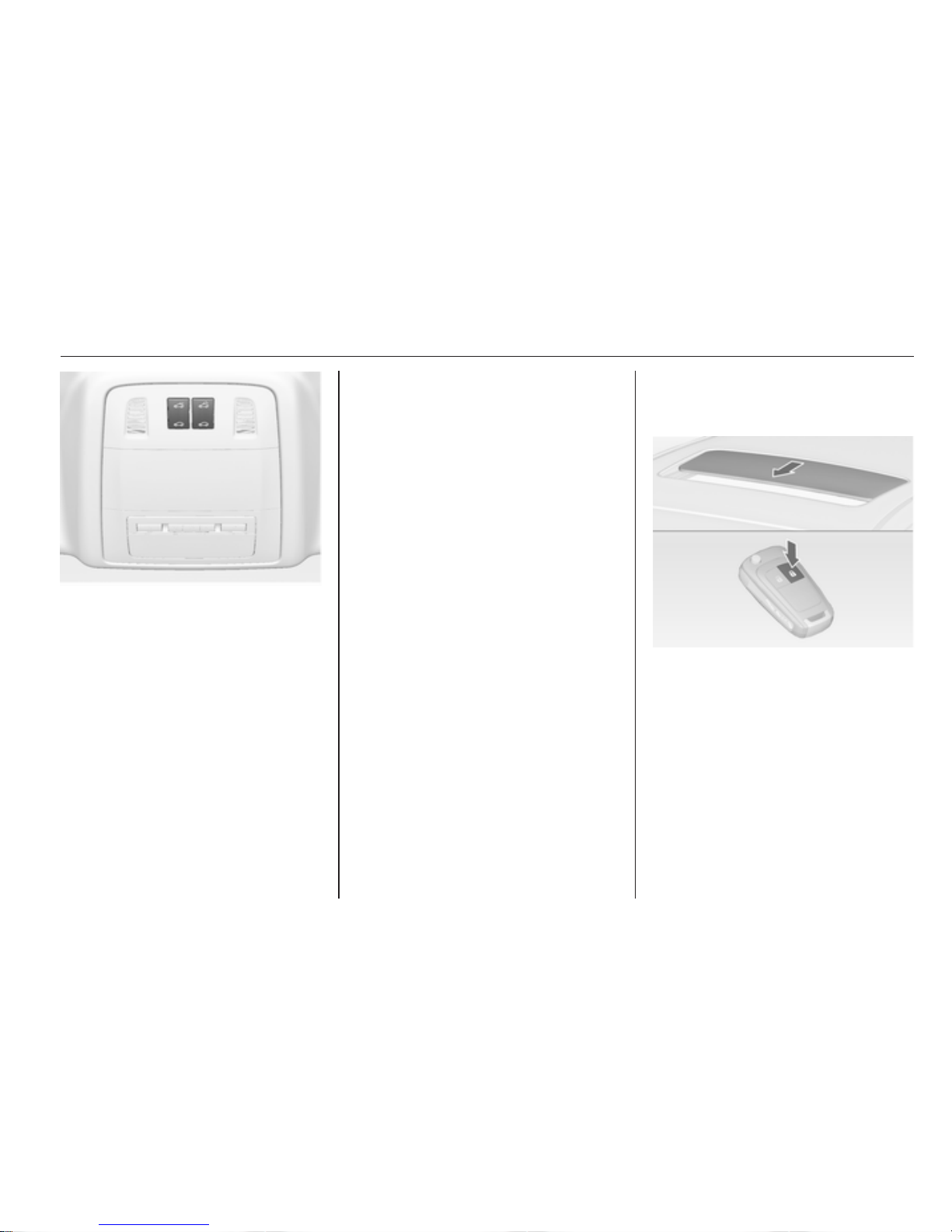

Key with foldaway key section

Extend the key and open the unit.
Replace the battery (battery type
CR 2032), paying attention to the
installation position. Close the unit
and synchronise.

Radio remote control
synchronisation

After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control will be
synchronised when you switch on the
ignition.

Keys, doors and windows 21

Memorised settings

Whenever the key is removed from
the ignition switch, the following
settings are automatically memorised
by the key:

■ Lighting

■ Infotainment system

■ Central locking system

■ Sport mode settings

■ Comfort settings
The saved settings are automatically

used the next time the memorised key
is inserted into the ignition switch and
turned to position 1.

Precondition is, that Personalization
by driver in the personal settings of
the Info-Display is activated. This
must be set for each key used.

Vehicle personalisation 3 112.

Central locking system

Unlocks and locks doors, load
compartment and fuel filler flap.

A pull on an interior door handle
unlocks the respective door. Pulling
the handle once more opens the door.

Note
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.

Unlocking

Press button

c.

Two settings are selectable:

■ To unlock only the driver's door,
load compartment and fuel filler

flap, press button c once. To unlock
all doors, press button c twice

or

■

press button c once to unlock all
doors, load compartment and fuel
filler flap

The setting can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation 3 112.

The setting can be saved for the key
being used. Memorised settings
3 21.

Locking

Close doors, load compartment and
fuel filler flap.

22 Keys, doors and windows

Press button e.
If the driver's door is not closed

properly, the central locking system
will not work.

Unlocking and opening the
tailgate

Press button c when the ignition is off.
The tailgate is released to be
unlocked and opened by pushing the
touchpad switch below the handle.

Central locking buttons

Locks or unlocks all doors, the load
compartment and fuel filler flap from
the passenger compartment.

Press the e button to lock.
Press the c button to unlock.

Keys, doors and windows 23

Fault in radio remote control
system

Unlocking

Manually unlock the driver's door by
turning the key in the lock. Switch on
the ignition and press the central
locking button c to unlock all doors,
load compartment and fuel filler flap.
By switching on the ignition, the anti­theft locking system is deactivated.

Locking
Manually lock the driver's door by

turning the key in the lock.

Fault in central locking system

Unlocking
Manually unlock the driver's door by

turning the key in the lock. The other
doors can be opened by pulling the
interior handle twice. The load
compartment and fuel filler flap
cannot be opened. To deactivate the
anti-theft locking system, switch on
the ignition 3 25.

Locking
Push inside locking knob of all doors

except driver's door. Then close the
driver's door and lock it from the
outside with the key. The fuel filler flap
and tailgate cannot be locked.

Automatic locking

This security feature can be
configured to automatically lock all
doors, load compartment and fuel
filler flap as soon as a certain speed
is exceeded.

Settings can be changed in the menu
Settings in the Info-Display. Vehicle
personalisation 3 112.

The settings can be saved for the key
being used 3 21.

Child locks

9 Warning

Use the child locks whenever
children are occupying the rear
seats.

Using a key or suitable screwdriver,
turn the child lock in the rear door to
the horizontal position. The door

24 Keys, doors and windows

cannot be opened from the inside. For
deactivation turn the child lock to the
vertical position.

Doors

Load compartment

Tailgate

Opening

Saloon/Hatchback
After unlocking push the touchpad

switch below the handle and open the
tailgate.

Station wagon
After unlocking push the touchpad

switch under the tailgate moulding
and open the tailgate.

Central locking system 3 21.

Closing

Use one of the interior handles.
Do not push the touchpad switch

below the handle whilst closing as this
will unlock the tailgate again.

Central locking system 3 21.

Keys, doors and windows 25

General hints for operating
tailgate

9 Warning

Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which can not be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.

Caution

Before opening the tailgate check
overhead obstructions, such as
a garage door, to avoid damage to
the tailgate. Always check the
moving area above and behind the
tailgate.

Note
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are
people in the vehicle! The doors
cannot be unlocked from the
inside.

The system deadlocks all the doors.
All doors must be closed otherwise
the system cannot be activated.

If the ignition was on, the driver's door
must be opened and closed once so
that the vehicle can be secured.

Unlocking the vehicle disables the
mechanical anti-theft locking system.
This is not possible with the central
locking button.

Activating

Press e on the radio remote control
twice within 15 seconds.

Anti-theft alarm system

The anti-theft alarm system is
combined with the anti-theft locking
system.

It monitors:

■ Doors, tailgate, bonnet

■ Passenger compartment including
adjoining load compartment

■ Vehicle inclination, e.g. if it is raised

■ Ignition

26 Keys, doors and windows

Activation

■ Self-activated 30 seconds after
locking the vehicle (initialisation of
the system)

■

Directly by pressing e on the radio
remote control once more after
locking

Note
Changes to the vehicle interior such
as the use of seat covers, and open
windows or sunroof, could impair the
function of passenger compartment
monitoring.

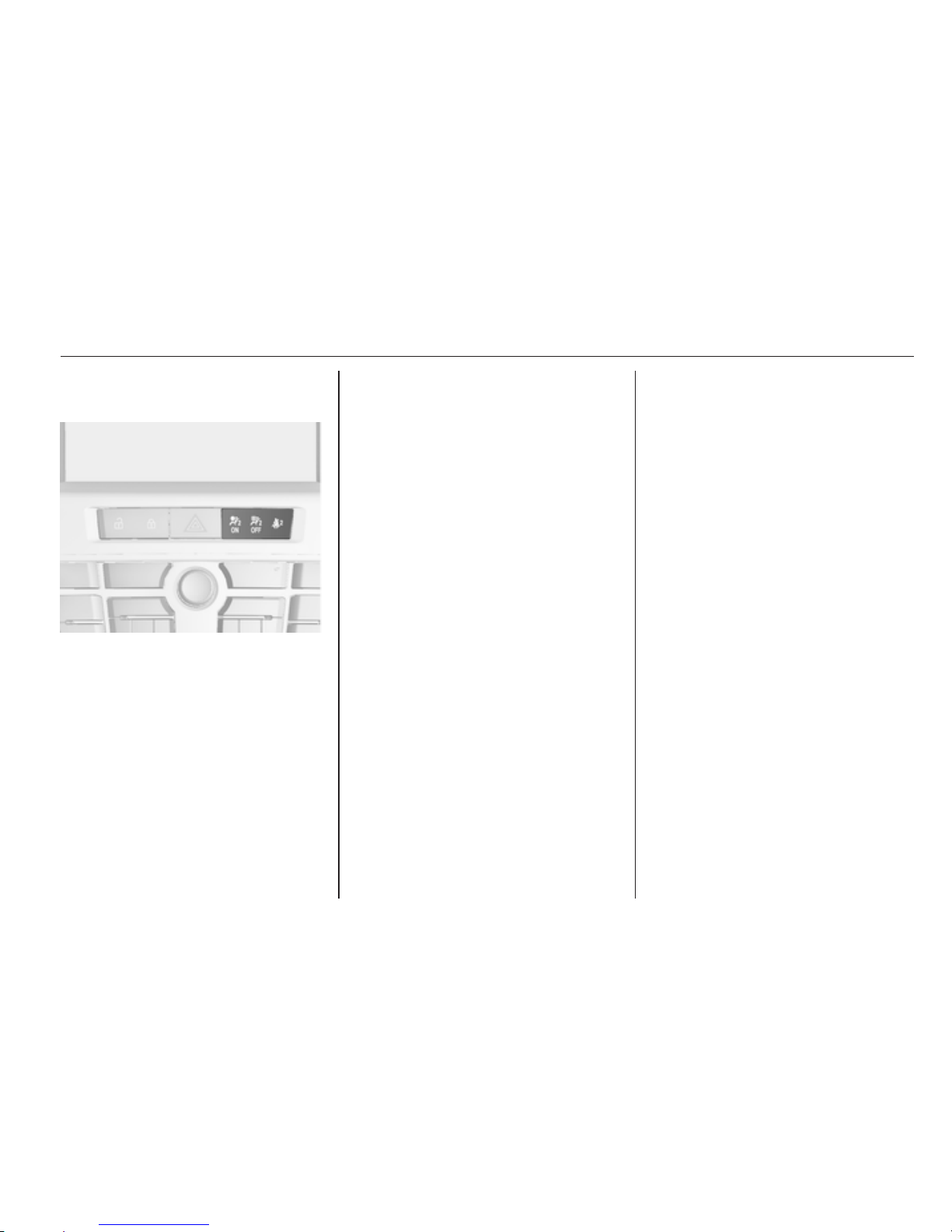

Activation without monitoring of
passenger compartment and
vehicle inclination

Switch off the monitoring of
passenger compartment and vehicle
inclination when animals are being
left in the vehicle, because of high
volume ultrasonic signals or
movements triggering the alarm.
Switch off as well when the vehicle is
on a ferry or train.

1. Close tailgate, bonnet, windows
and sunroof.

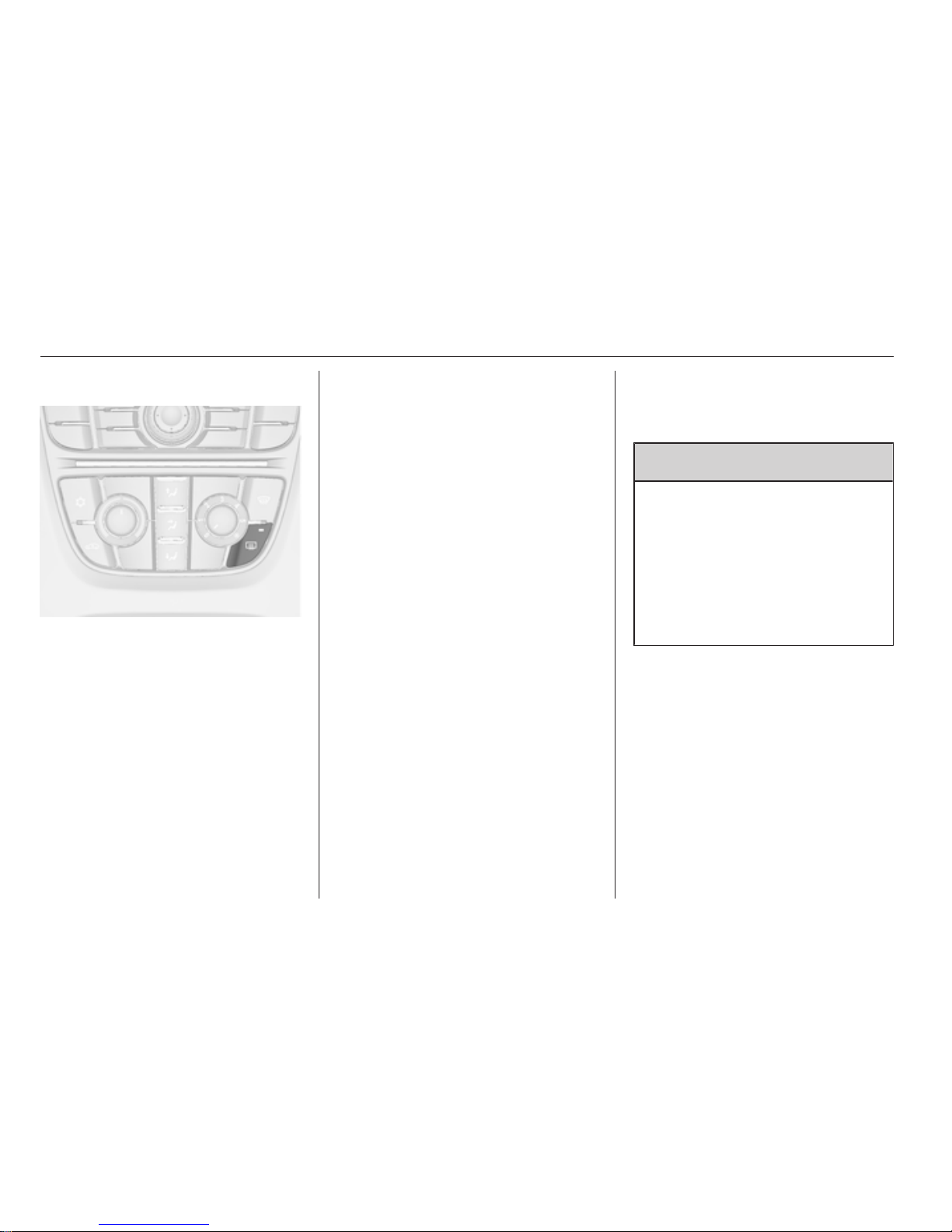

2. Press button o. LED in the
button o illuminates for
a maximum of 10 minutes.

3. Close doors.

4. Activate the anti-theft alarm
system.

Status message is displayed in the
Driver Information Center.

Status LED

Status LED is integrated in the sensor
on top of the instrument panel.

Keys, doors and windows 27

Status during the first 30 seconds of
anti-theft alarm system activation:

LED
illuminates

= test, arming delay.

LED flashes
quickly

= doors, tailgate or

bonnet not
completely closed,
or system fault.

Status after system is armed:
LED flashes

slowly

= system is armed.

LED flashes
quickly
3 times after
unlocking

= system is disarmed.

Seek the assistance of a workshop in
the event of faults.

Deactivation

Unlocking the vehicle deactivates
anti-theft alarm system.

Alarm

When triggered, the alarm sounds via
a separate battery-backed power
sounder, and the hazard warning

lights flash simultaneously. The
number and duration of alarm signals
are stipulated by legislation.

The alarm can be silenced by
pressing any button of the radio
remote control or by switching on the
ignition.

The anti-theft alarm system can be
deactivated only by pressing button
c or by switching on the ignition.

Immobiliser

The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.

The immobiliser activated
automatically after the key has been
removed from the ignition switch.

If the control indicator d flashes when
the ignition is on, there is a fault in the
system; the engine cannot be started.
Switch off the ignition and then repeat
the start attempt.

If the control indicator continues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.

Note
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it and switch on
the anti-theft alarm system 3 21,
3 25.

Control indicator d 3 98.

28 Keys, doors and windows

Exterior mirrors

Convex shape

The convex exterior mirror reduces
blind spots. The shape of the mirror
makes objects appear smaller, which
will affect the ability to estimate
distances.

Electric adjustment

Select the relevant exterior mirror by
turning the control to left (L) or right
(R). Then swivel the control to adjust
the mirror.

In position 0 no mirror is selected.

Folding

For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.

Electric folding

Turn control to 7, then push the
control down. Both exterior mirrors
will fold.

Push the control down again - both
exterior mirrors return to their original
position.

If an electrically folded mirror is
manually extended, pressing down
the control will only electrically extend
the other mirror.

Keys, doors and windows 29

Heated

Operated by pressing the Ü button.
Heating works with the engine

running and is switched off
automatically after a short time.

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on
the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles at
night is automatically reduced.

30 Keys, doors and windows

Windows

Manual windows

The door windows can be opened or
closed with the window winders.

Power windows

9 Warning

Take care when operating the
power windows. Risk of injury,
particularly to children.

If there are children on the rear
seats, switch on the child safety
system for the power windows.

Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.

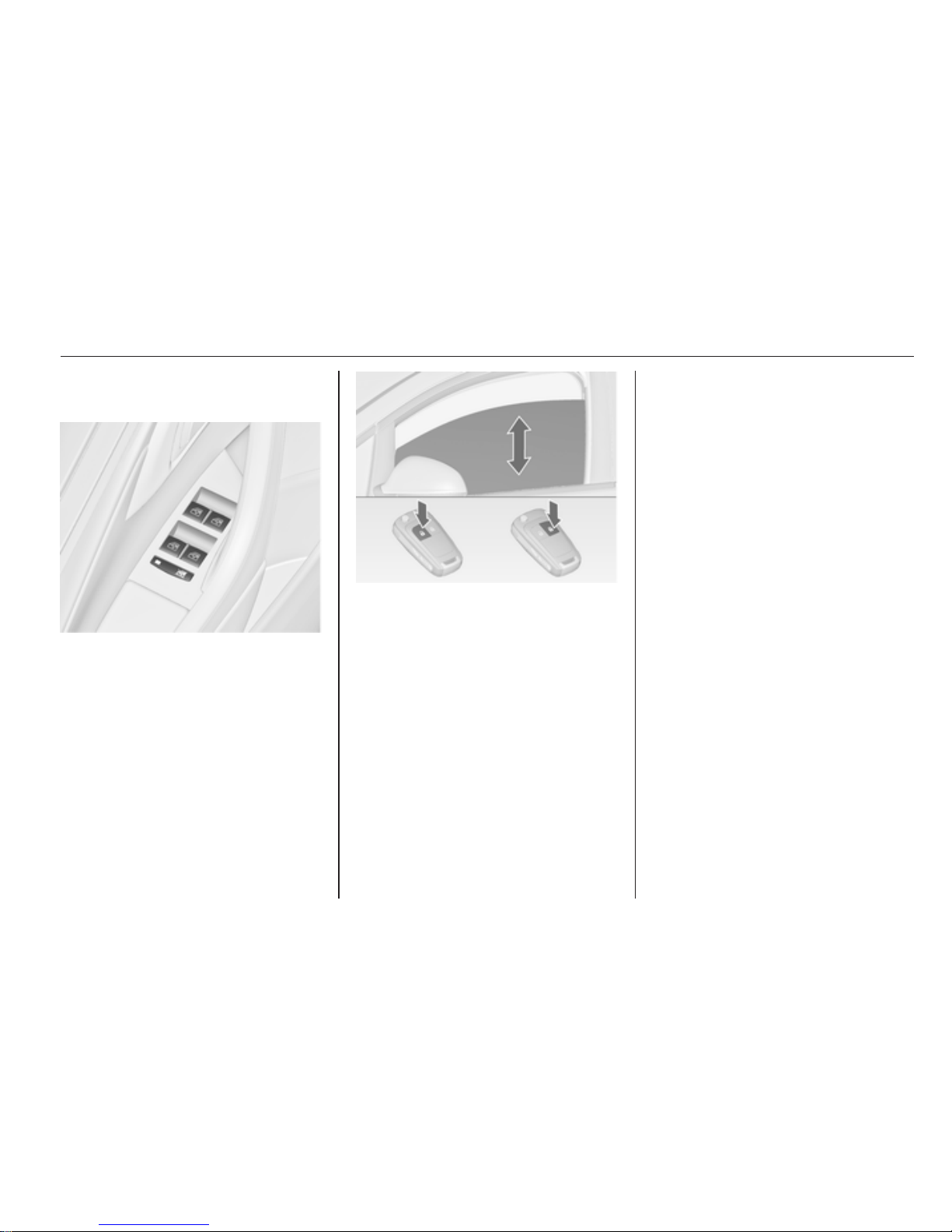

Switch on ignition to operate power
windows.

Operate the switch for the respective
window by pushing to open or pulling
to close.

Pushing or pulling gently to the first
detent: window moves up or down as
long as the switch is operated.

Pushing or pulling firmly to the second
detent and then releasing: window
moves up or down automatically with
safety function enabled. To stop
movement, operate the switch once
more in the same direction.

Safety function

If the window glass encounters
resistance above the middle of the
window during automatic closing, it is
immediately stopped and opened
again.

Override safety function

In the event of closing difficulties due
to frost or the like, pull and hold the
switch. The window moves up without
safety function enabled. To stop
movement, release and pull the
switch once more.

Keys, doors and windows 31

Child safety system for rear
windows

Press switch z to deactivate rear
door power windows, the LED
illuminates. To activate, press z
again.

Operating windows from outside

The windows can be operated
remotely from outside the vehicle.

Press and hold c button to open
windows.

Press and hold e button to close
windows.

Release button to stop window
movement.

Overload

If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.

Initialising the power windows

If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery),
a warning message or a warning code
is displayed in the Driver Information
Center.

Vehicle messages 3 103.
Activate the window electronics as

follows:

1. Close doors.

2. Switch on ignition.

3. Pull switch until the window is
closed and keep pulling for
additional 2 seconds.

4. Repeat for each window.

32 Keys, doors and windows

Heated rear window

Operated by pressing the Ü button.
Heating works with the engine

running and is switched off
automatically after a short time.

Depending on the engine type, the
heated rear window comes on
automatically when the diesel particle
filter is being cleaned.

Sun visors

The sun visors can be folded down or
swivelled to the side to prevent
dazzling.

If the sun visors have integral mirrors,
the mirror covers should be closed
when driving.

A ticket holder is located on the
backside of the sun visor.

Roof

Sunroof

9 Warning

Take care when operating the
sunroof. Risk of injury, particularly
to children.

Keep a close watch on the
movable parts when operating
them. Ensure that nothing
becomes trapped in them as they
move.

Switch on ignition to operate the
sunroof.

Keys, doors and windows 33

Open or close

Press p or r gently to the first
detent: sunroof is opened or closed
with safety function enabled as long
as the switch is operated.

Press p or r firmly to the second
detent and then release: the sunroof
is opened or closed automatically
with safety function enabled. To stop
movement, operate the switch once
more.

Raise or close

Press q or r: sunroof is raised or
closed automatically with safety
function enabled.

If the sunroof is raised, it can be
opened in one step by pressing p.

Sunblind

The sunblind is manually operated.
Close or open the sunblind by sliding.

When the sunroof is open, the
sunblind is always open.

General hints

Safety function
If the sunroof encounters resistance

during automatic closing, it is
immediately stopped and opened
again.

Override safety function
In the event of closing difficulties due

to frost or the like, hold the switch
r pressed to the second detent.
The sunroof closes without safety
function enabled. To stop movement,
release the switch.

Closing sunroof from outside
The sunroof can be closed remotely

from outside the vehicle.

Press and hold e button to close the
sunroof.

Release the button to stop the
movement.

Initialising of the roof
If the sunroof cannot be operated

(e.g. after disconnecting the vehicle
battery), activate the sunroof
electronics as follows:

34 Keys, doors and windows

■ If sunroof is closed, press the

switch r gently to the first detent
for 10 seconds.

■ If sunroof is open, keep the switch

r pressed until sunroof is fully
closed. Then release switch briefly
and press it again gently to the first
detent for 10 seconds.

Relearning of safety function
If the sunroof does not close correctly

after initialising:

1. Open sunroof fully by pressing

switch p.

2. Release switch and then press

switch p again gently to the first
detent for approx. 30 seconds.
Then close sunroof by pressing
switch r until the sunroof is fully
closed.

Seats, restraints 35

Seats, restraints

Head restraints ............................ 35

Front seats ................................... 36

Rear seats ................................... 40

Seat belts ..................................... 40

Airbag system .............................. 43

Child restraints ............................. 47

Head restraints

Position

9 Warning

Only drive with the head restraint
set to the proper position.

The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.

Adjustment

Head restraints on front seats

Height adjustment
Press the button, adjust height and

engage.

Active head restraints on front seats
In the event of a rear-end impact, the

front parts of the active head
restraints are moved slightly
forwards. Thus the head is supported
so that the risk of whiplash injury is
reduced.

36 Seats, restraints

Note
Approved accessories may only be
attached, if the seat is not in use.

Head restraints on rear seats

Height adjustment
Pull the head restraint upwards or

press the catch to release and push
the head restraint downwards.

Removal
Press both catches, pull the head

restraint upwards and remove.

Front seats

Seat position

9 Warning

Only drive with the seat correctly
adjusted.

■

Sit with buttocks as far back against
the backrest as possible. Adjust the
distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.

■ Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We
recommend a maximum rake of
approx. 25°.

■ Adjust the steering wheel 3 82.

■ Set seat height high enough to
have a clear field of vision on all
sides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Your thighs should rest
lightly on the seat without pressing
into it.

■ Adjust the head restraint 3 35.

■ Adjust the height of the seat belt
3 41.

■ Adjust the thigh support so that
there is a space approx. two fingers
wide between the edge of the seat
and the hollow of the knee.

Seats, restraints 37

■ Adjust the lumbar support so that it
supports the natural shape of the
spine.

Seat adjustment

9 Danger

Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

9 Warning

Never adjust seats while driving as
they could move uncontrollably.

Seat positioning

Pull handle, slide seat, release
handle.

Seat backrests

Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly.

38 Seats, restraints

Seat height

Lever pumping motion
up = seat higher

down = seat lower

Seat inclination

Lever pumping motion
up = front end higher

down = front end lower

Lumbar support

Adjust lumbar support using the four­way switch to suit personal
requirements.

Moving support up and down: push
switch up or down.

Increasing and decreasing support:
push switch forwards or backwards.

Seats, restraints 39

Adjustable thigh support

Pull the lever and slide the thigh
support.

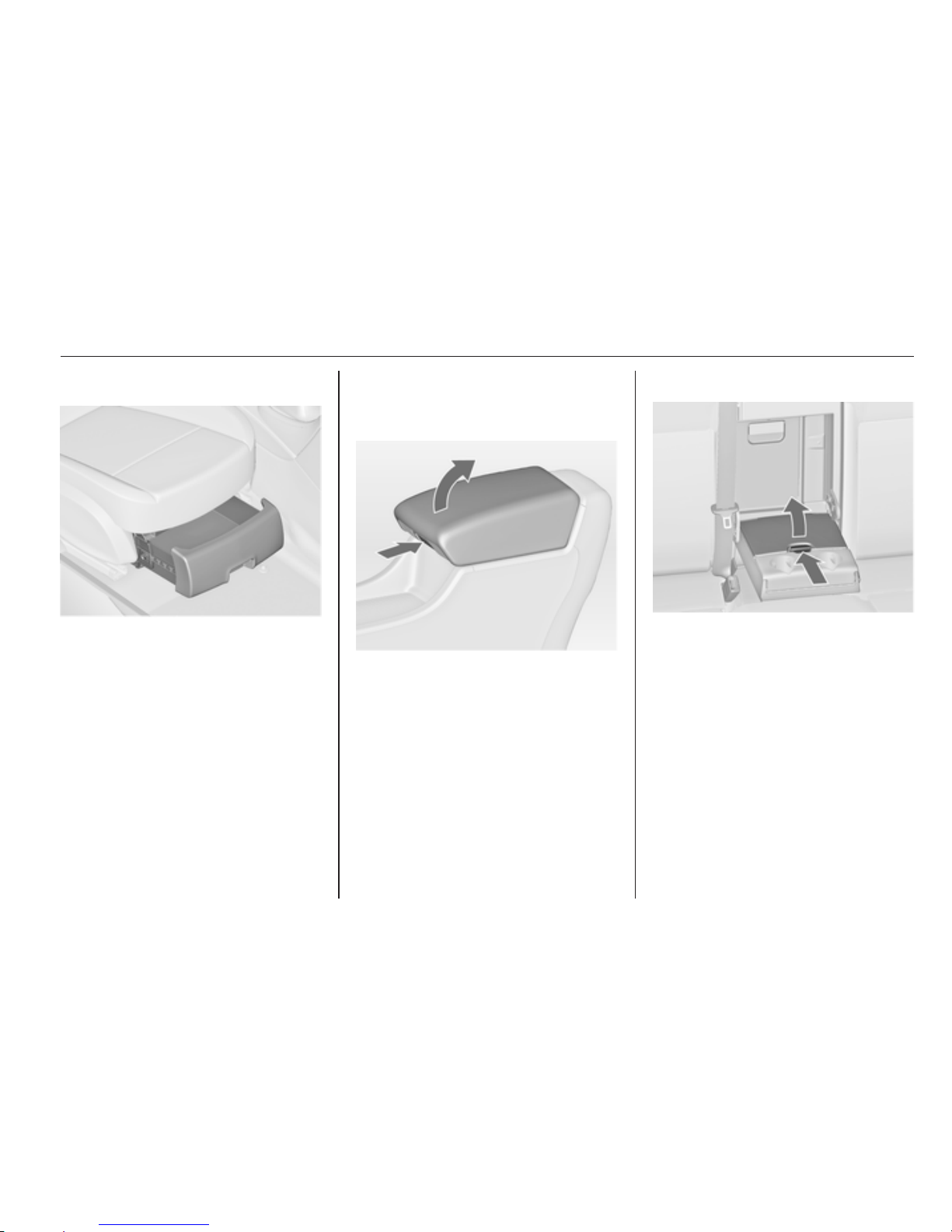

Armrest

The armrest can be slid forwards by
10 cm. Under the armrest there is
a storage compartment.

Armrest storage 3 55.

Heating

Adjust heating to the desired setting
by pressing the ß button for the
respective seat one or more times
with the ignition on. The control
indicator in the button indicates the
setting.

Prolonged use of the highest setting
for people with sensitive skin is not
recommended.

Seat heating is operational when
engine is running.

40 Seats, restraints

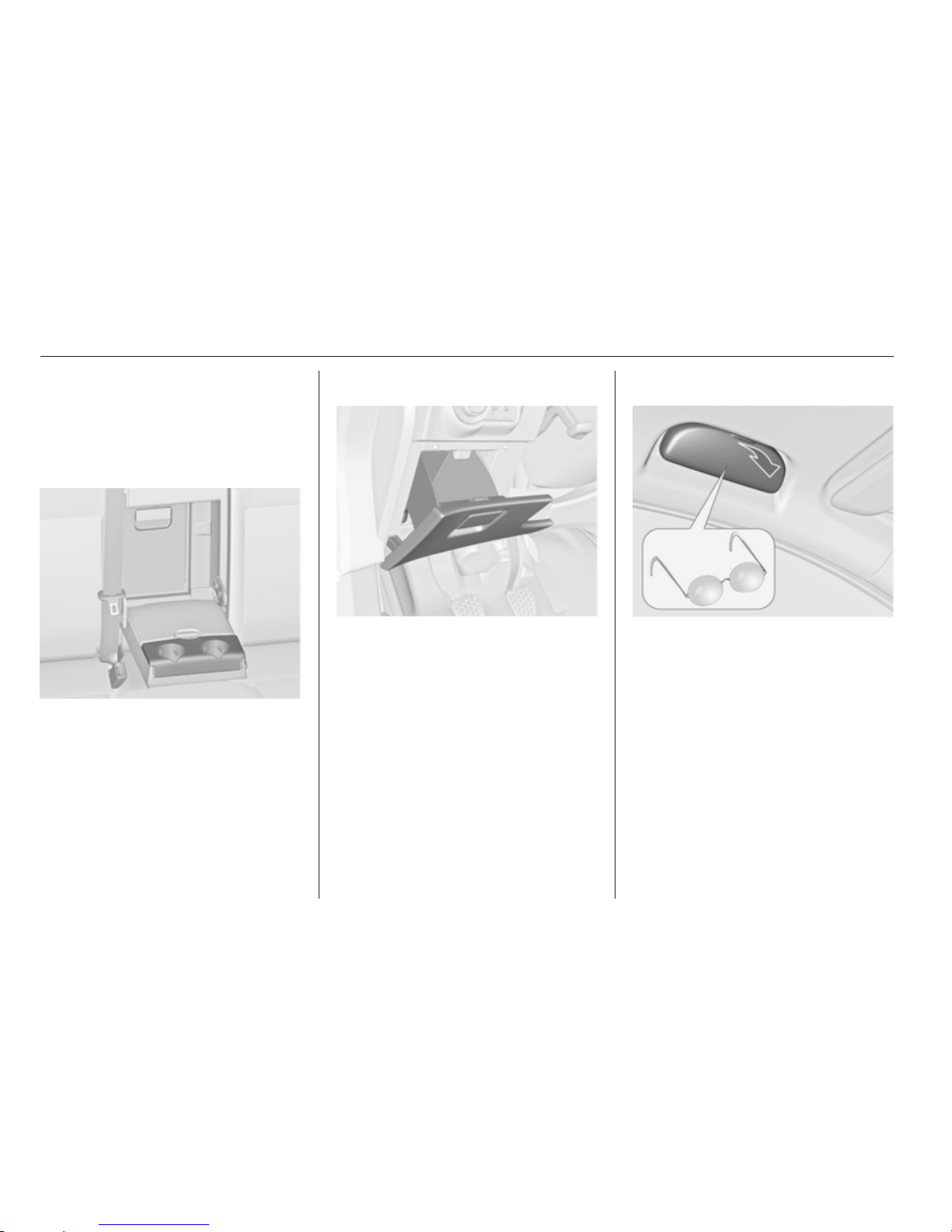

Rear seats

Armrest

Fold armrest down. The armrest
contains cupholders and a storage
box.

Seat belts

The seat belts are locked during
heavy acceleration or deceleration of
the vehicle holding the occupants in
the sitting position. Thereby the risk of
injury is considerably reduced.

9 Warning

Fasten seat belt before each trip.
In the event of an accident, people

not wearing seat belts endanger
their fellow occupants and
themselves.

Seat belts are designed to be used by
only one person at a time. They are
not suitable for people smaller than
150 cm. Child restraint system
3 47.

Periodically check all parts of the belt
system for damage and proper
functionality.

Have damaged components
replaced. After an accident, have the
belts and triggered belt pretensioners
replaced by a workshop.

Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.

Seat belt reminder X 3 93.

Belt force limiters

On the front seats, stress on the body
is reduced by the gradual release of
the belt during a collision.

Belt pretensioners

In the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.

Seats, restraints 41

9 Warning

Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.

Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 93.

Triggered belt pretensioners must be
replaced by a workshop. Belt
pretensioners can only be triggered
once.

Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.

Three-point seat belt

Fastening

Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
whilst driving by pulling the shoulder
belt. Seat belt reminder 3 93.

Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your
body.

9 Warning

The belt must not rest against hard
or fragile objects in the pockets of
your clothing.

42 Seats, restraints

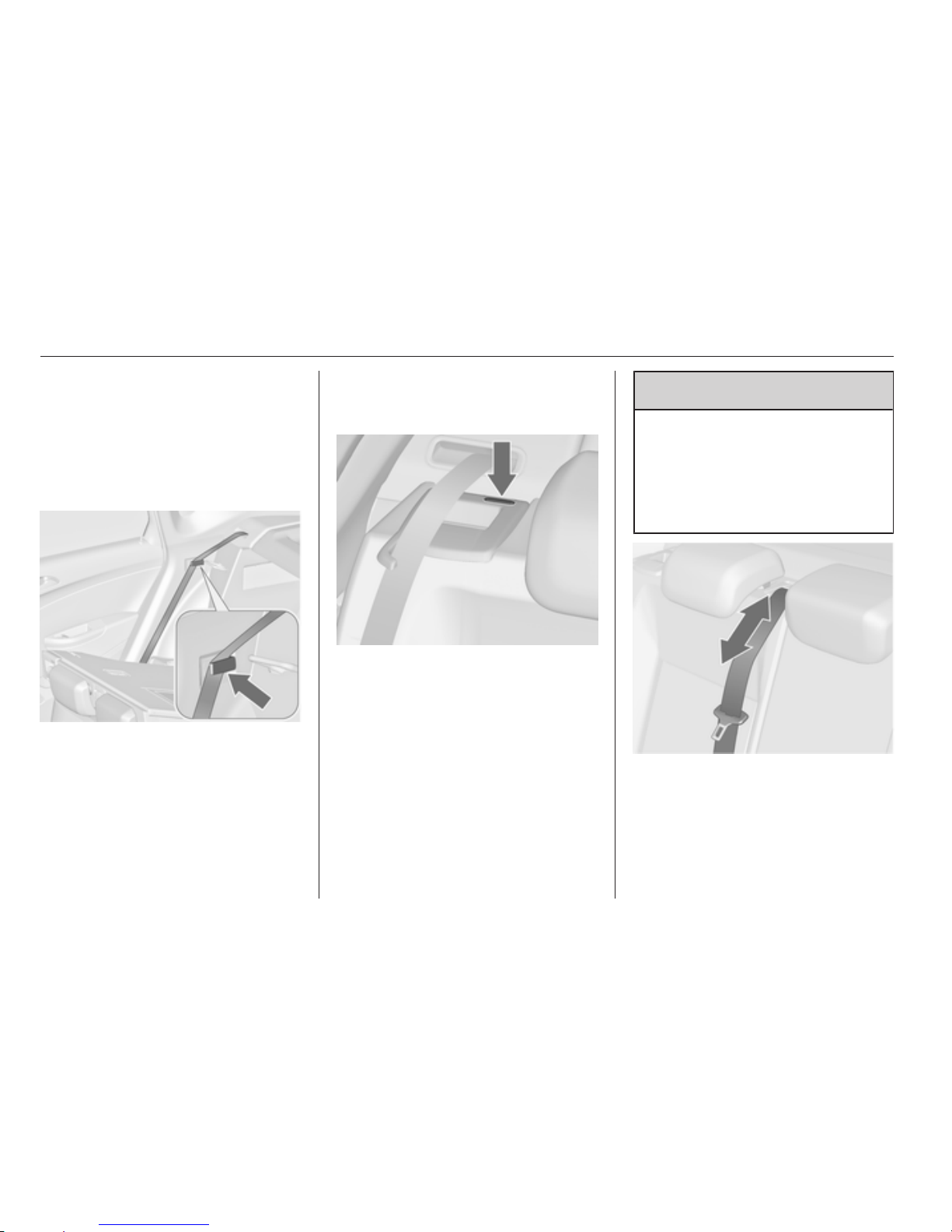

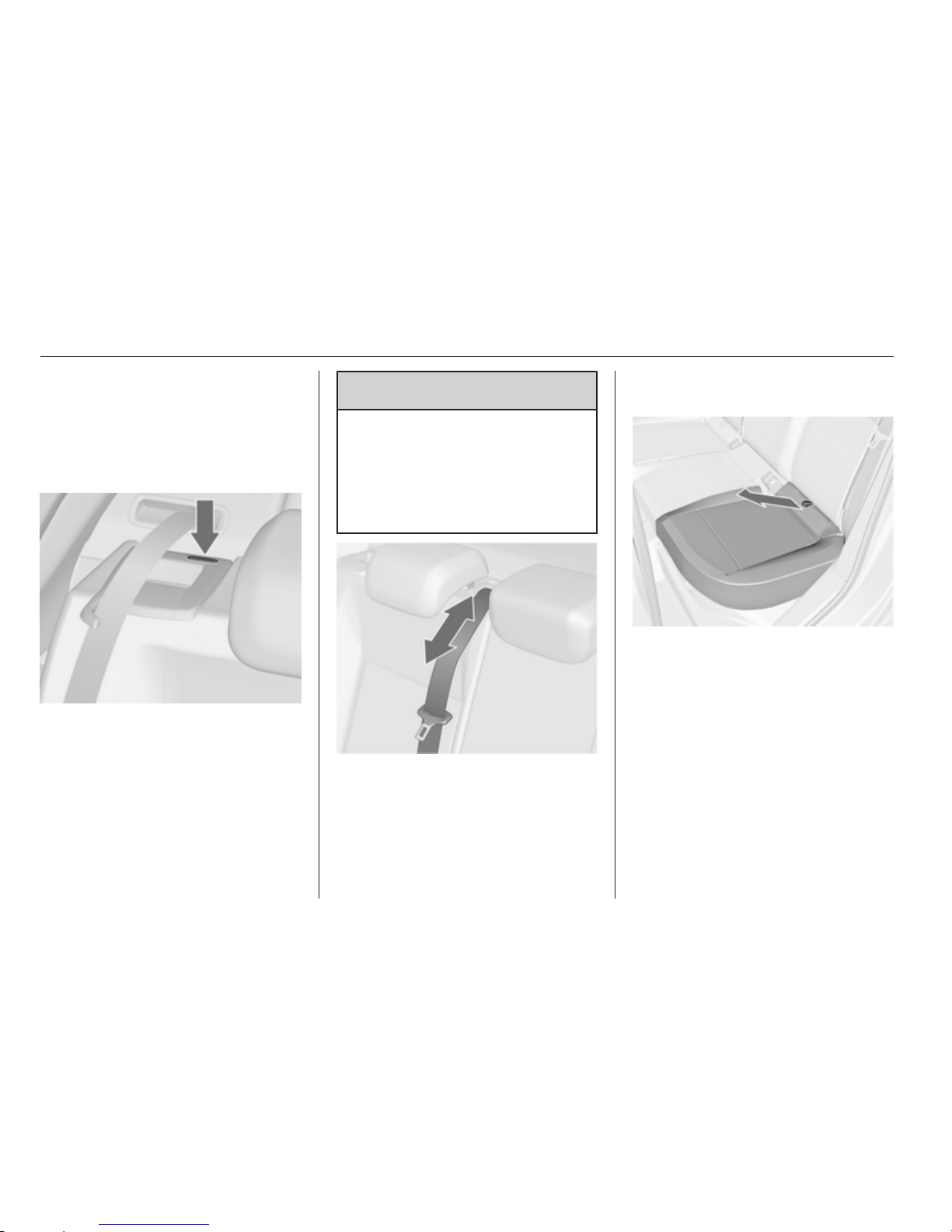

Height adjustment

1. Pull belt out slightly.

2. Press button.

3. Adjust height and engage.

Adjust the height so that the belt lies
across the shoulder. It must not lie
across the throat or upper arm.

Do not adjust while driving.

Removing

To release belt, press red button on
belt buckle.

Seat belts on the rear seats

The seat belt for the rear centre seat
can only be withdrawn from the
retractor if the backrest is in the rear
position.

Seats, restraints 43

Using the seat belt while
pregnant

9 Warning

The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.

Airbag system

The airbag system consists of
a number of individual systems
depending on the scope of
equipment.

When triggered the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision.

9 Warning

If handled improperly the airbag
systems can be triggered in an
explosive manner.

Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.

Do not stick anything on the airbag
covers and do not cover them with
other materials.

Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it might be
necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.

Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.

When the airbags inflate escaping hot
gases may cause burns.

Control indicator v for airbag systems
3 93.

44 Seats, restraints

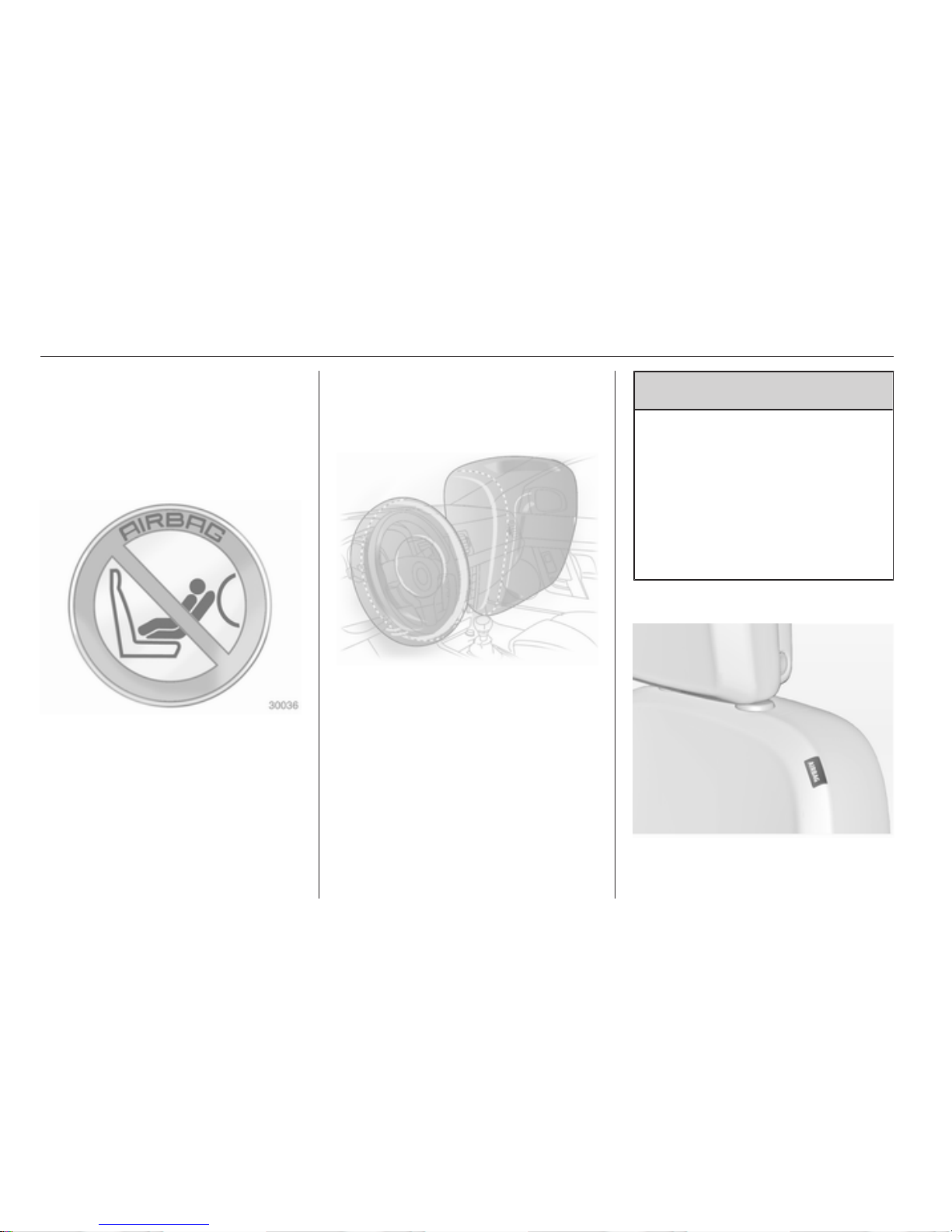

Front airbag system

The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel on the
front passenger side. These can be
identified by the word AIRBAG.

There are also warning labels on both
sides of the sunblind on the front
passenger side.

Furthermore there is a warning label
on the side of the instrument panel,
visible when the front passenger door
is open.

The front airbag system is triggered in
the event of a front-end impact of
a certain severity. The ignition needs
to be switched on.

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and head of
the front seat occupants
considerably.

9 Warning

Optimum protection is only
provided when the seat is in the
proper position 3 36.

Keep the area in which the airbag
inflates clear of obstructions.

Fit the seat belt correctly and
engage securely. Only then the
airbag is able to protect.

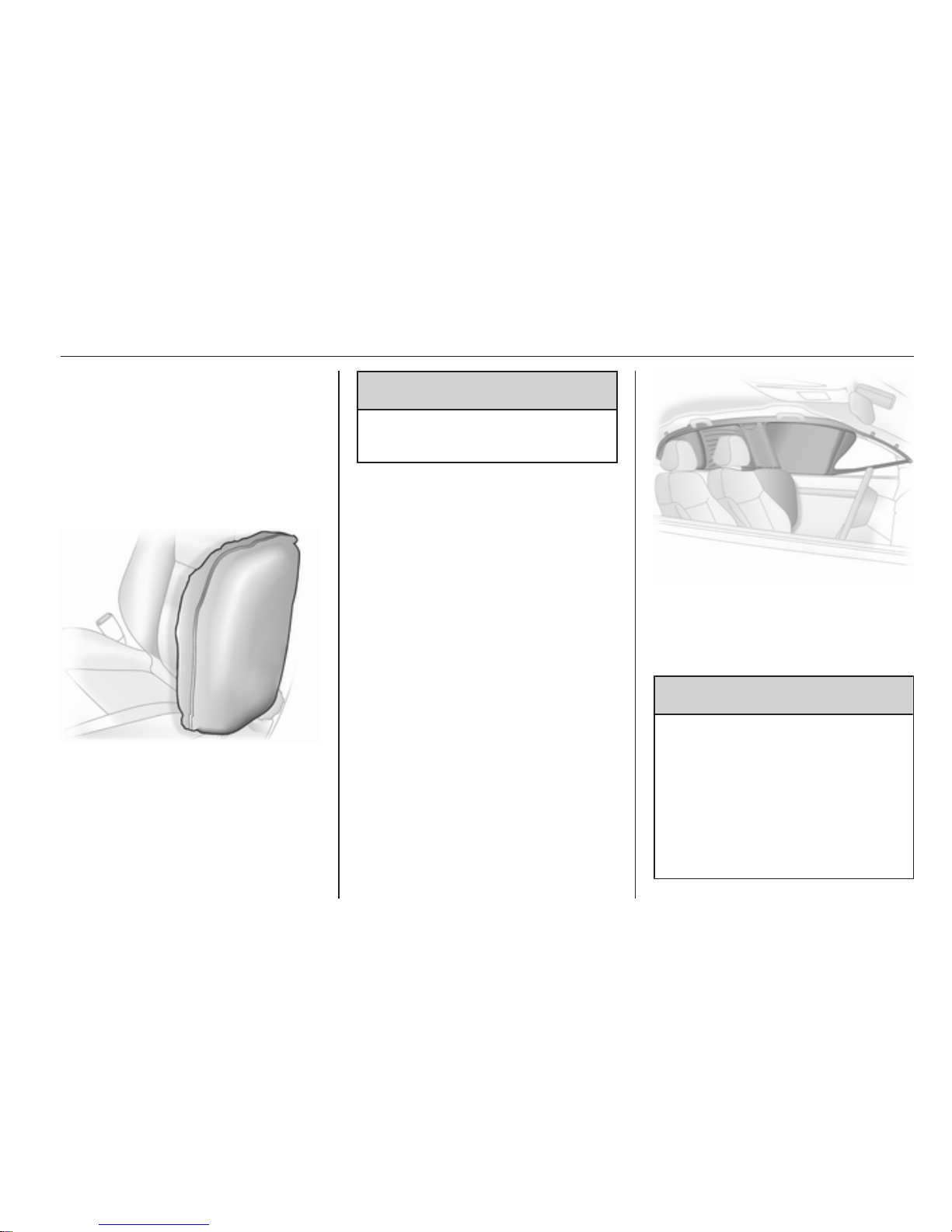

Side airbag system

Seats, restraints 45

The side airbag system consists of an
airbag in each front seat backrest.
This can be identified by the word
AIRBAG.

The side airbag system is triggered in
the event of a side impact of a certain
severity. The ignition needs to be
switched on.

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and pelvis in
the event of a side-on collision
considerably.

9 Warning

Keep the area in which the airbag
inflates clear of obstructions.

Note
Only use protective seat covers that
have been approved for the vehicle.
Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of
an airbag in the roof frame on each
side. This can be identified by the
word AIRBAG on the roof pillars.

The curtain airbag system is triggered
in the event of a side-on impact of
a certain severity. The ignition needs
to be switched on.

The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the head in the event of
a side-on impact considerably.

9 Warning

Keep the area in which the airbag
inflates clear of obstructions.

The hooks on the handles in the
roof frame are only suitable for
hanging up light articles of
clothing, without coat hangers. Do
not keep any items in these
clothes.

46 Seats, restraints

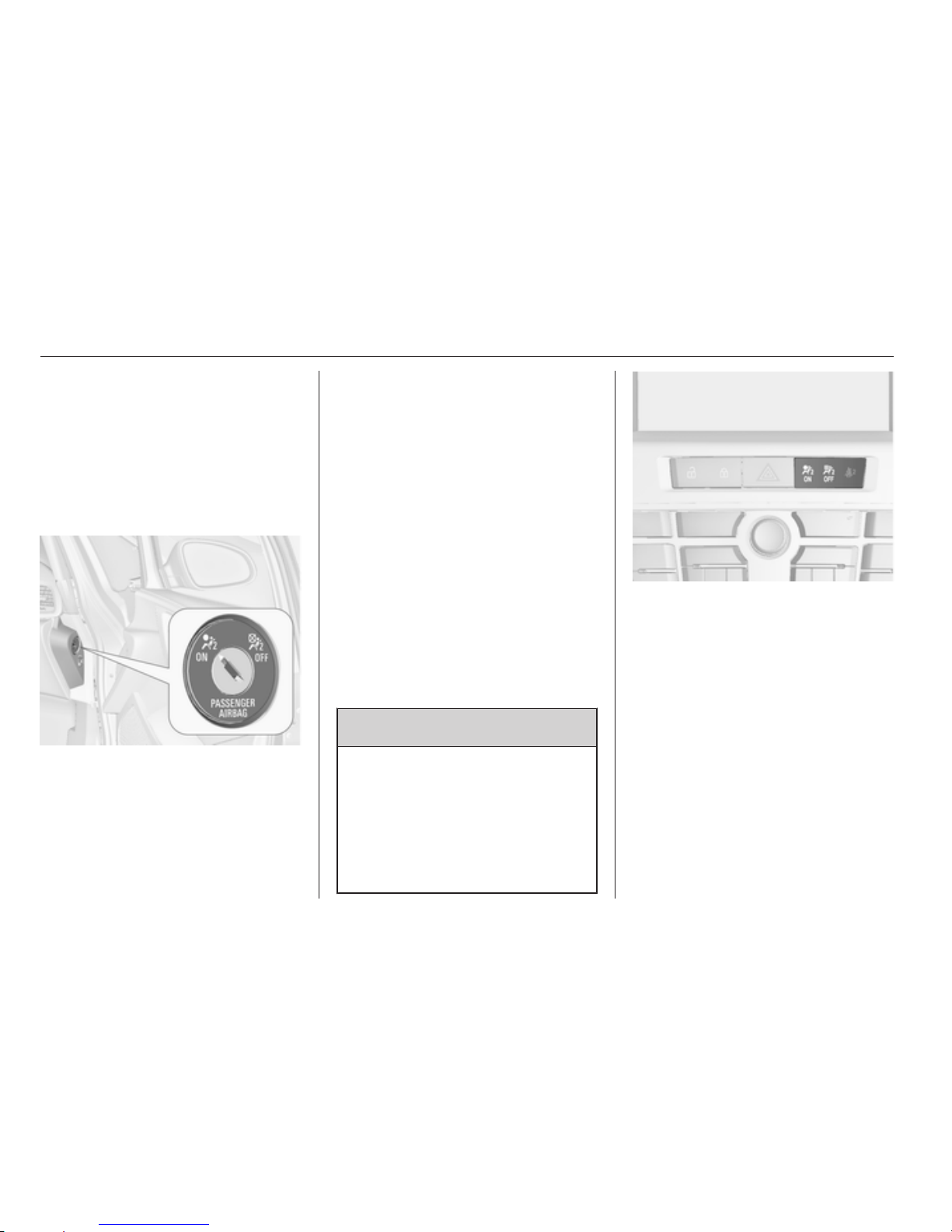

Airbag deactivation

The front passenger airbag system
has to be deactivated if a child
restraint system is to be fitted on this
seat. The side airbag and curtain
airbag systems, the belt
pretensioners and all driver airbag
systems will remain active.

The front passenger airbag system
can be deactivated via a key­operated switch on the right side of
the instrument panel.

Use the ignition key to choose the
position:

*

= front passenger airbag is

deactivated and will not inflate
in the event of a collision.
Control indicator * illuminates
continuously in the centre
console. A child restraint
system can be installed in
accordance with the
chart Child restraint
installation locations 3 49.
No adult person is allowed to
occupy the front passenger
seat.

V

= front passenger airbag is

active. A child restraint system
must not be installed.

9 Danger

Risk of fatal injury for a child using
a child restraint system on a seat
with activated front passenger
airbag.

Risk of fatal injury for an adult
person on a seat with deactivated
front passenger airbag.

As long as the control indicator * is
not illuminated, the front passenger
airbag system will inflate in the event
of a collision.

If both control indicators are
illuminated at the same time, there is
a system failure. The status of the
system is not discernible, therefore
no person is allowed to occupy the
front passenger seat. Contact
a workshop immediately.

Consult a workshop immediately, if
neither of the two control indicators is
illuminated.

Change status only when the vehicle
is stopped with the ignition off.

Seats, restraints 47

Status remains until the next change.
Control indicator for airbag

deactivation 3 94.

Child restraints

Child restraint systems

We recommend the Opel child
restraint system which is tailored
specifically to the vehicle.

When a child restraint system is being
used, pay attention to the following
usage and installation instructions
and also those supplied with the child
restraint system.

Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.

9 Warning

When using a child restraint
system on the front passenger
seat, the airbag systems for the
front passenger seat must be
deactivated; if not, the triggering of
the airbags poses a risk of fatal
injury to the child.

This is especially the case if rear­facing child restraint systems are
used on the front passenger seat.

Selecting the right system

The rear seats are the most
convenient location to fasten a child
restraint system.

Children should travel facing
rearwards in the vehicle as long as
possible. This makes sure that the
child's backbone, which is still very
weak, is under less strain in the event
of an accident.

Children under the age of 12 years
that are smaller than 150 cm are only
allowed to travel in a restraint system
that is suitable for the child. Suitable

48 Seats, restraints

are restraint systems that comply with
ECE 44-03 or ECE 44-04. Since
a proper position of the belt is rarely
possible with a child that is smaller
than 150 cm, we strongly advise the
use of an appropriate child restraint
system, even though this might, due
to the age of the child, no longer be
legally binding.

Ensure that the child restraint system
to be installed is compatible with the
vehicle type.

Ensure that the mounting location of
the child restraint system within the
vehicle is correct.

Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.

When the child restraint system is not
in use, secure the seat with a seat belt
or remove it from the vehicle.

Note
Do not stick anything on the child
restraint systems and do not cover
them with any other materials.

A child restraint system which has
been subjected to stress in an
accident must be replaced.

Seats, restraints 49

Child restraint installation locations

Permissible options for fitting a child restraint system

Weight and age class

On front passenger seat

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

Group 0: up to 10 kg
or approx. 10 months

X

U

1

U

2

U

Group 0+: up to 13 kg
or approx. 2 years

X

U

1

U

2

U

Group I: 9 to 18 kg
or approx. 8 months to 4 years

X

U

1

U

2

U

Group II: 15 to 25 kg
or approx. 3 to 7 years

X X U U

Group III: 22 to 36 kg
or approx. 6 to 12 years

X X U U

1

= Only if front passenger seat airbag system is deactivated. If the child restraint system is being secured using a three-

point seat belt, move seat height adjustment to uppermost position and ensure that vehicle safety belt runs forwards
from the upper anchorage point.

2

= Seat available with ISOFIX and Top-Tether mounting brackets.
U = Universal suitability in conjunction with three-point seat belt.
X = No child restraint system permitted in this weight class.

50 Seats, restraints

Permissible options for fitting an ISOFIX child restraint system

Weight class Size class Fixture On front passenger seat On rear outboard seats On rear centre seat

Group 0: up to 10 kg E ISO/R1 X IL X

Group 0+: up to 13 kg E ISO/R1 X IL X

D ISO/R2 X IL X

C ISO/R3 X IL X

Group I: 9 to 18 kg D ISO/R2 X IL X

C ISO/R3 X IL X

B ISO/F2 X IL, IUF X

B1 ISO/F2X X IL, IUF X

A ISO/F3 X IL, IUF X

IL = Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type.

IUF = Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight

class.

X = No ISOFIX child restraint system approved in this weight class.

Seats, restraints 51

ISOFIX size class and seat device

A – ISO/F3 = Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.
B – ISO/F2 = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.
B1 – ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.
C – ISO/R3 = Rear-facing child restraint system for children of maximum size in the weight class up to 13 kg.
D – ISO/R2 = Rear-facing child restraint system for smaller children in the weight class up to 13 kg.
E – ISO/R1 = Rear-facing child restraint system for young children in the weight class up to 13 kg.

52 Seats, restraints

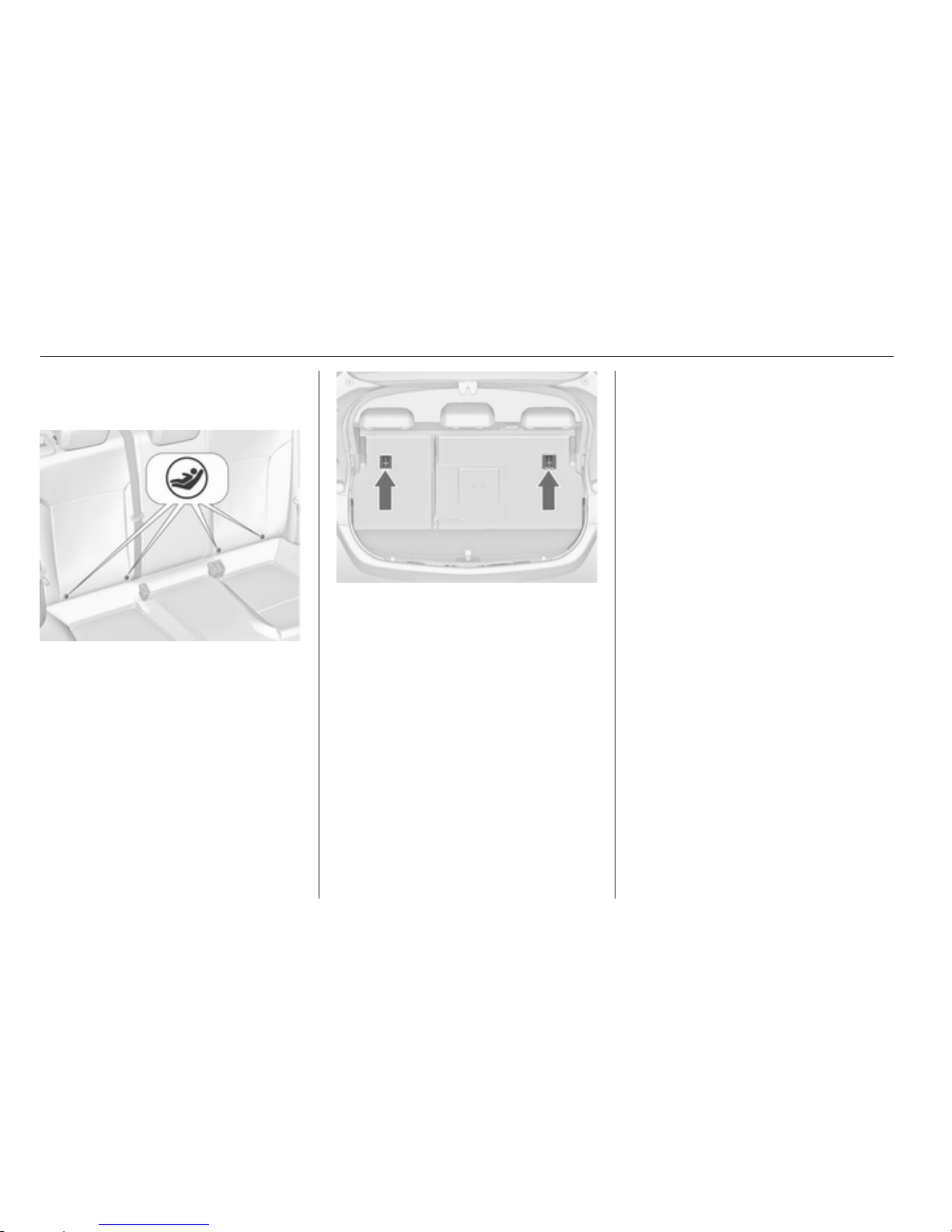

ISOFIX child restraint
systems

Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets. Specific vehicle
ISOFIX child restraint system
positions are marked in the table by
IL.

ISOFIX mounting brackets are
indicated by a label on the backrest.

Top-tether fastening eyes

Top-tether fastening eyes are marked
with the symbol : for a child seat.

In addition to the Isofix mounting
fasten the Top-tether strap to the
Top-tether fastening eyes. The strap
must run between the two guide rods
of the head restraint.

ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.

Storage 53

Storage

Storage compartments ................ 53

Load compartment ....................... 65

Roof rack system ......................... 79

Loading information ..................... 80

Storage compartments

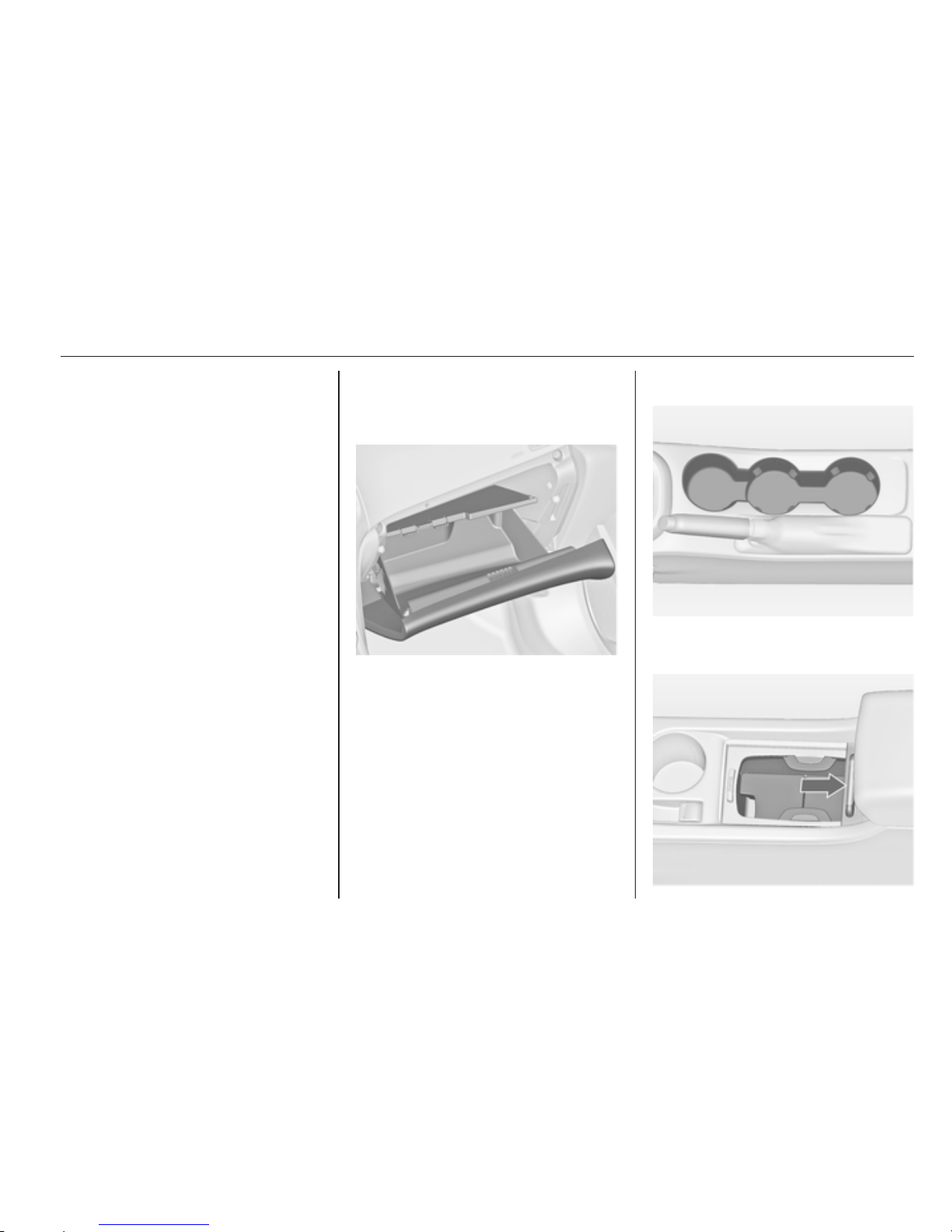

Glovebox

The glovebox features a pen holder,
a credit card holder and a coin holder.

The intermediate shelf can be
removed.

The glovebox should be closed whilst
driving.

Cupholders

Cupholders are located in the centre
console.

54 Storage

Depending on the version,
cupholders are located under a cover
in the centre console. Slide cover
backwards. Bottles can be stowed
after folding up the intermediate shelf
3 56.

Additional cupholders are located in
the rear armrest. Fold down the
armrest.

Front storage

A storage compartment is located
next to the steering wheel.

Sunglasses storage

Fold down and open.
Do not use for storing heavy objects.

Storage 55

Underseat storage

Press button in the recess and pull out
drawer. Maximum load: 3 kg. To
close, push in and engage.

Depending on the version, the tyre
repair kit is stowed in the drawer.

Armrest storage

Storage under the front armrest

Press button to fold up the armrest.
The armrest must be in rearmost
position.

Storage in the rear armrest

Fold down armrest and open cover.
Close cover before folding the

armrest up.

56 Storage

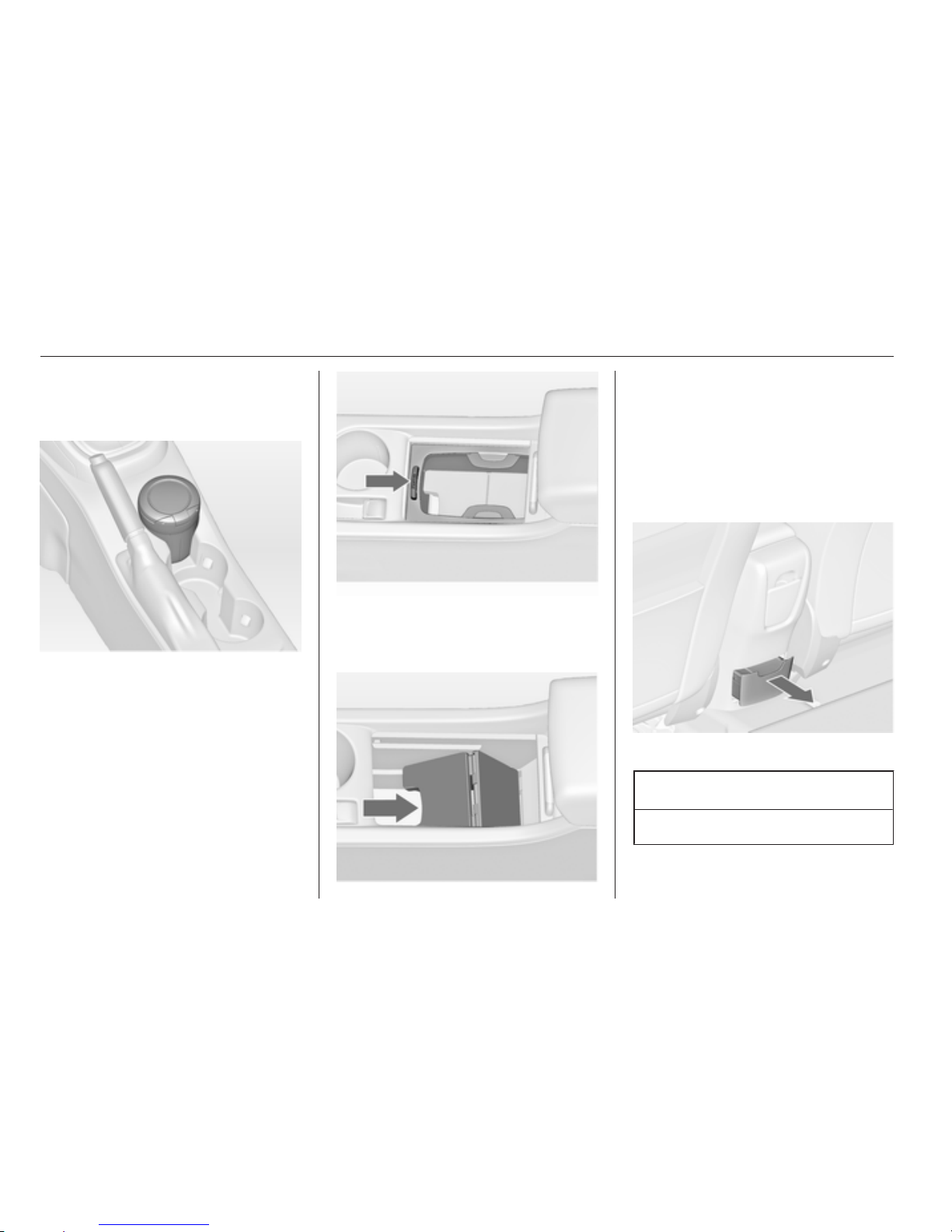

Centre console storage

Front console

The storage container can be used to
store small items.

Depending on the version, a storage
compartment is located under
a cover.

Slide cover backwards.

Press button to remove the frame of
the cupholder. The frame can be
stowed in the glovebox.

A further storage compartment is
located under the intermediate shelf.
Fold up the intermediate shelf and fix
it in the vertical position. The frame of
the cupholder can be reintegrated to
stow bottles.

Rear console

Pull out the drawer.

Caution

Do not use for ash.

Storage 57

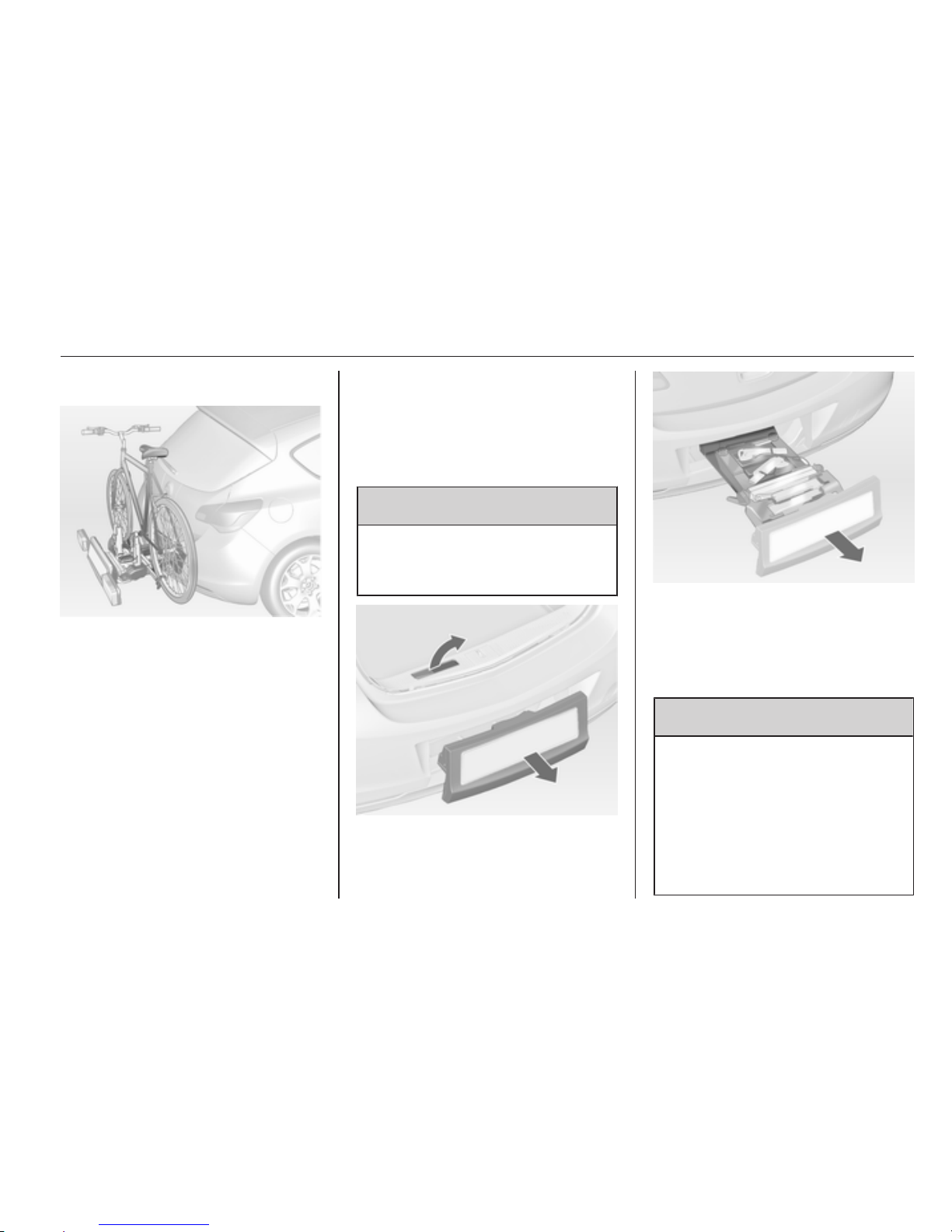

Rear carrier system

The rear carrier system (Flex-Fix
system) allows bicycles to be
attached to a pull-out carrier
integrated into the vehicle floor.

The maximum load of the rear carrier
system is 40 kg. The maximum load
per bicycle is 20 kg.

If not in use, the carrier system can be
slid back into the vehicle floor.

A multifunction box is offered as an
accessory for the rear carrier system.
The transportation of other objects is
not permitted.

There must not be any objects on the
bicycles that could become loose
during transportation.

Extending

Open the tailgate.

9 Warning

No-one should be in the extension
zone of the rear carrier system,
risk of injury.

Pull release lever up. The system
disengages and travels quickly out of
the bumper.

Completely pull out the rear carrier
system until you hear it engage.

Ensure that it is not possible to push
in the rear carrier system without
pulling the release lever again

9 Warning

It is only permissible to fit objects
to the rear carrier system if the
system has been correctly
engaged. If the rear carrier system
will not engage correctly, do not fit
objects to the system and slide the
system back. Seek the assistance
of a workshop.

58 Storage

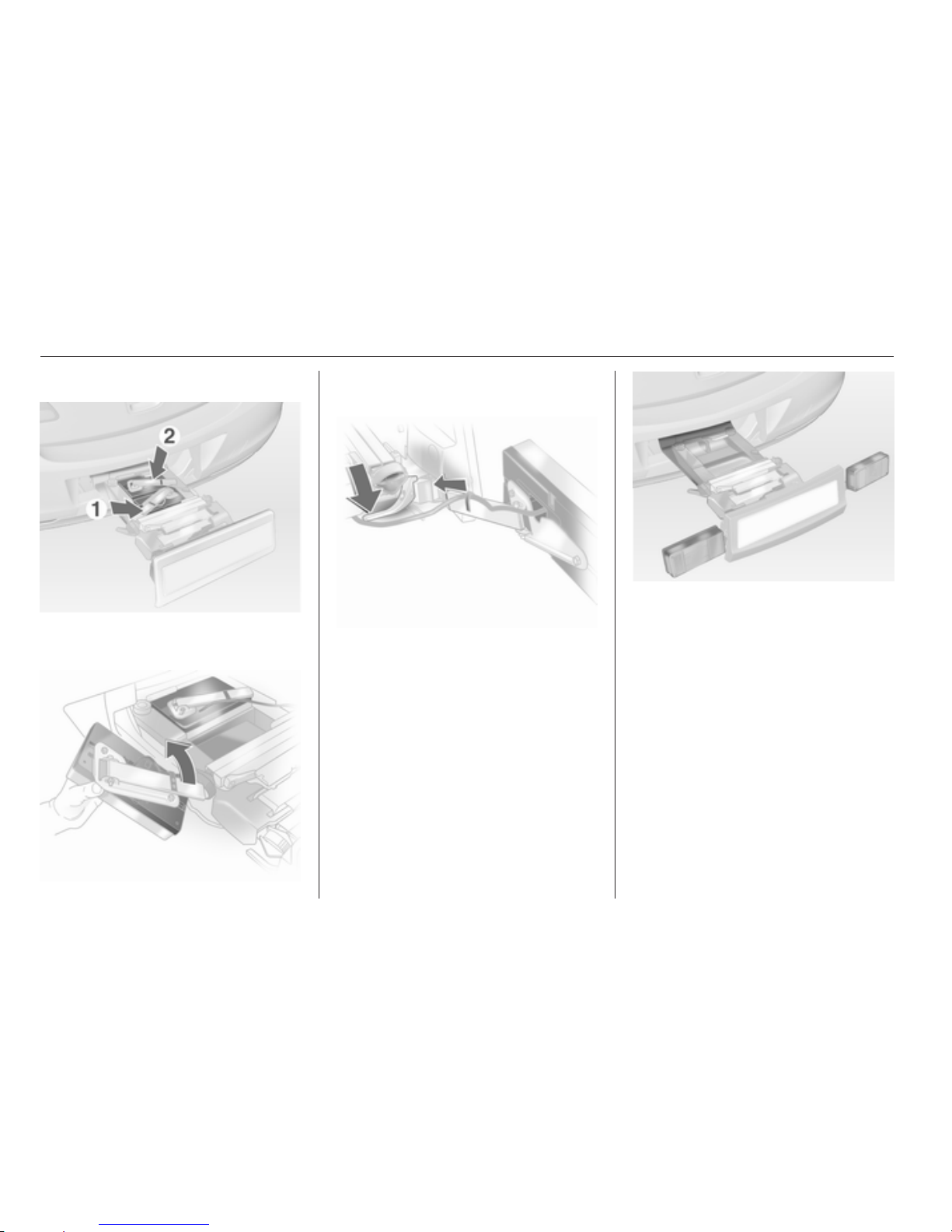

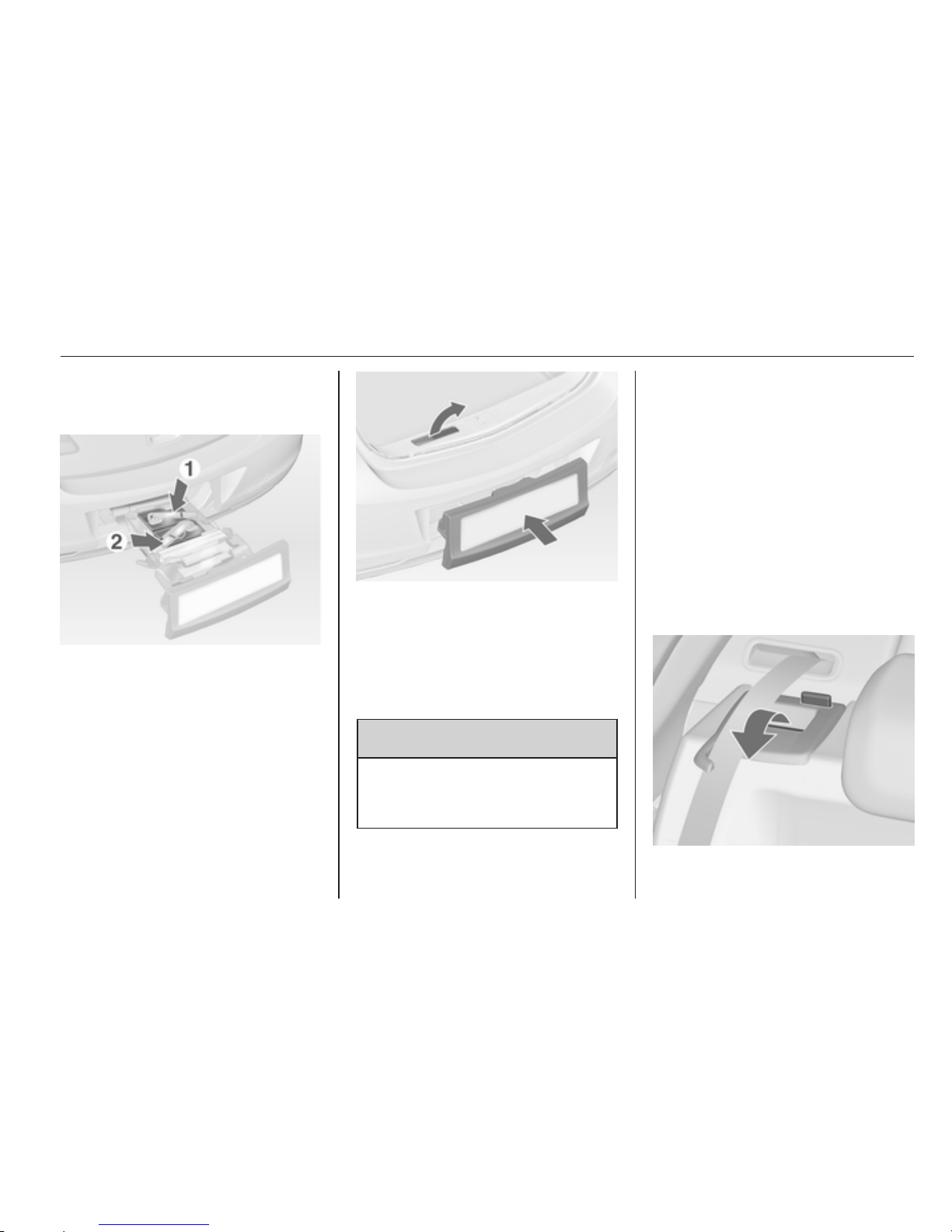

Install the tail lamps

First remove the rear (1), then the
front (2) tail lamp from the recesses.

Open out the lamp support on the
back of the tail lamp completely.

Push the clamping lever down and
push the lamp support into the
retainer until it engages.

Perform this procedure for both tail
lamps.

Check the cable and lamp position to
make sure these are correctly
installed and are securely located.

Storage 59

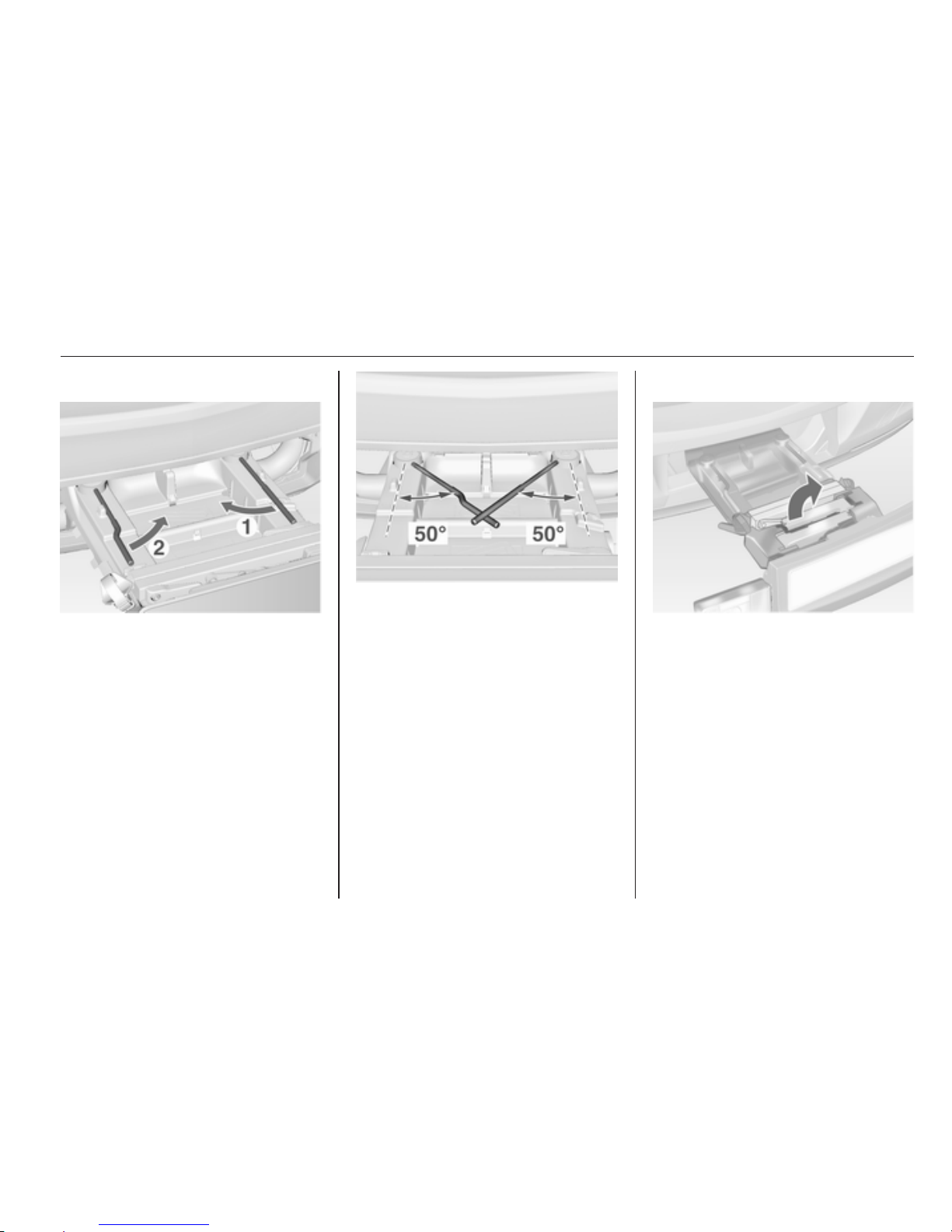

Lock the rear carrier system

Swivel the right clamping lever (1)
first, followed by the left clamping
lever (2), until a resistance is
noticeable.

The rear carrier system is locked
when the clamping levers are
swivelled by approx. 50°. Otherwise
safe functionality is not guaranteed.

Note
Close the tailgate.

Unfold pedal crank recesses

Fold one or both pedal crank
recesses upwards until the diagonal
support engages.

60 Storage

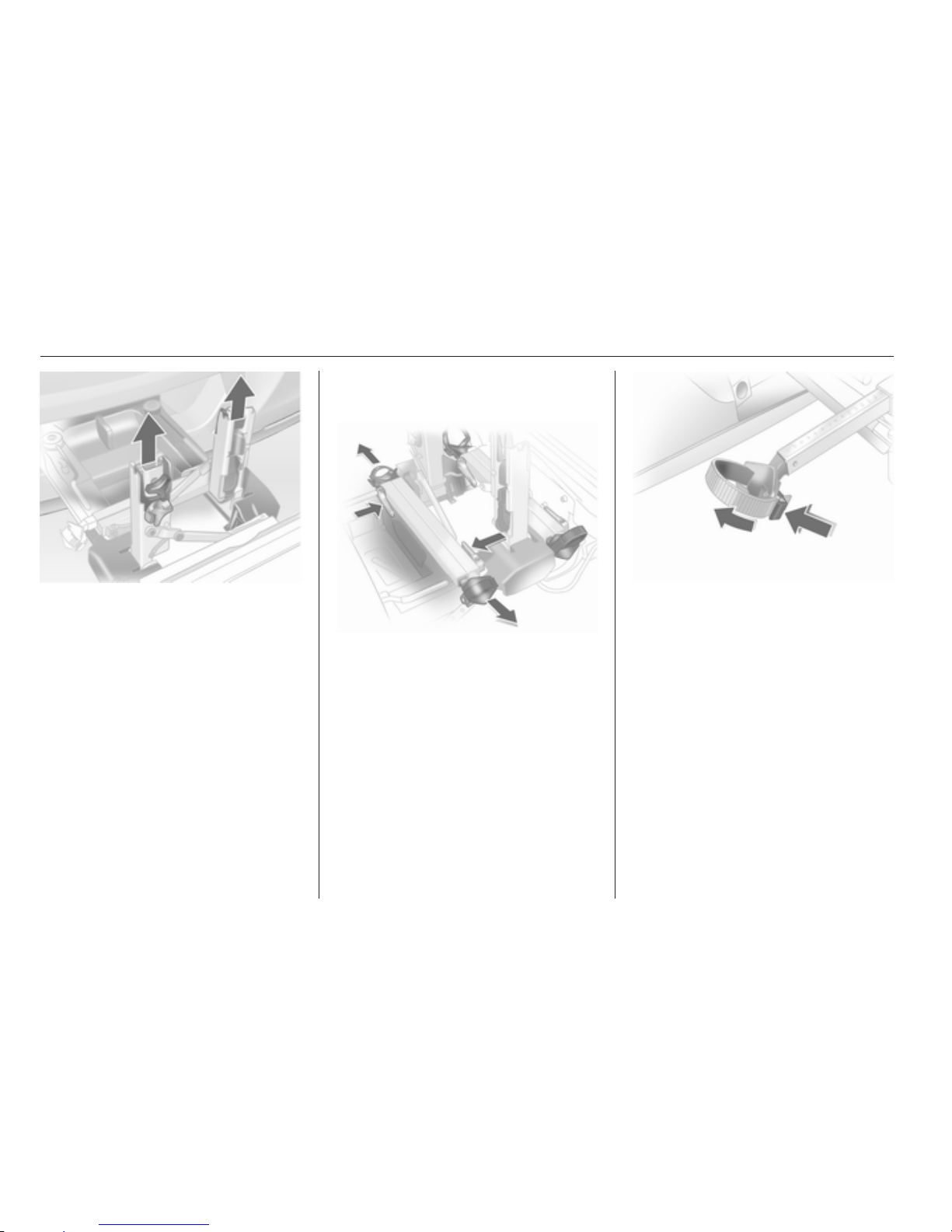

Remove the pedal crank mounts from
the pedal crank recesses.

Adapting the rear carrier system
to a bicycle

Press the release lever and withdraw
the wheel recesses.

Push the release lever on the strap
retainer and remove the strap
retainer.

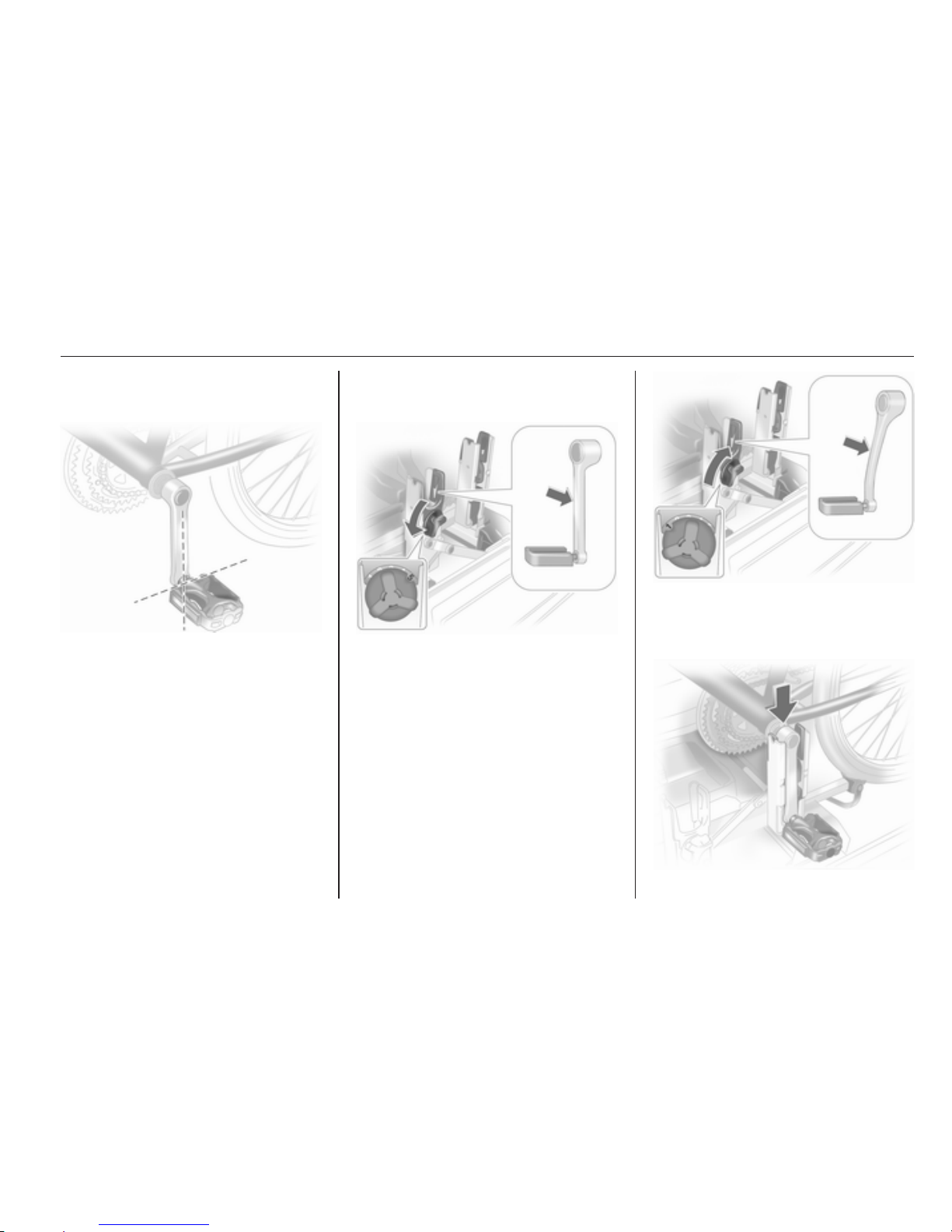

Storage 61

Prepare the bicycle for
attachment

Rotate the left pedal (without a chain
cog) vertically downwards. The pedal
on the left pedal crank must be
horizontal.

The front bicycle must have its front
wheel facing left.

The rear bicycle must have its front
wheel facing right.

Attaching a bicycle to the rear
carrier system

With the rotary lever on the pedal
crank recess, roughly adapt the
adjustable pedal crank unit to the
protrusion of the pedal crank.

If the bicycle has straight pedal
cranks, unscrew the pedal crank unit
completely (position 5).

If the bicycle has curved pedal
cranks, screw in the pedal crank unit
all the way (position 1).

62 Storage

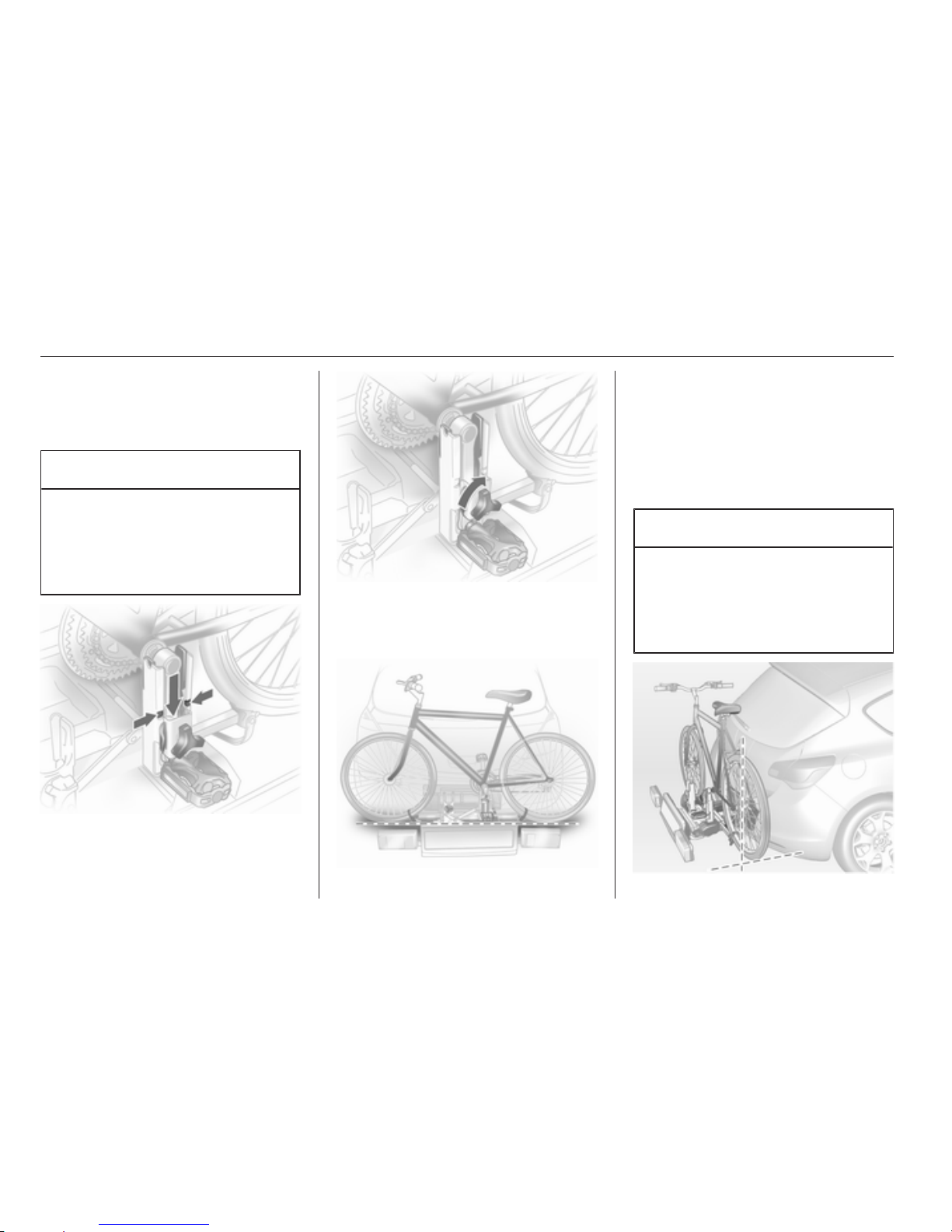

Put on the bicycle. The pedal crank
here must be placed in the pedal
crank recess opening as shown in the
illustration.

Caution

Make sure that the pedal does not
touch the surface of the rear end
carrier. Otherwise the crankset
might be damaged during the
transport.

Insert pedal crank mount into outer
rail of each pedal crank recess from
above and slide downwards until at
least underneath the notching.

Attach the pedal crank by rotating the
attachment screw on the pedal crank
mount.

Place the wheel recesses such that
the bicycle is more or less horizontal.
Here, the distance between the
pedals and the tailgate should be at
least 5 cm.

Both bicycle tyres must be in the
wheel recesses.

Caution

Make sure that the pedal does not
touch the surface of the rear end
carrier. Otherwise the crankset
might be damaged during the
transport.

Storage 63

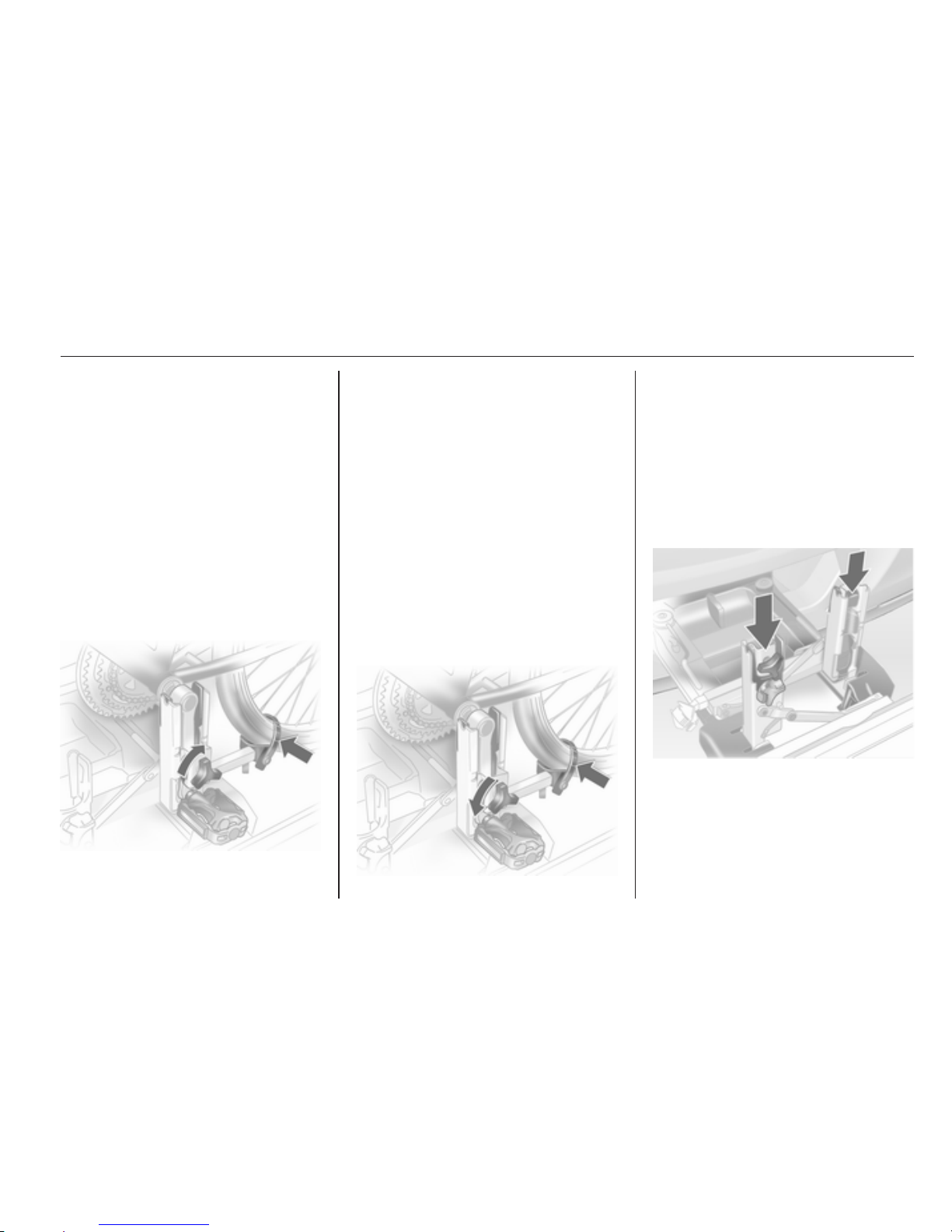

Align the bicycle in the longitudinal
direction of the vehicle: Slightly
loosen the pedal mount.

Place the bicycle upright using the
rotary lever on the pedal crank
recess.

If the two bicycles obstruct one
another, the relative positions of the
bicycles can be adapted by adjusting
the wheel recesses and the rotary
lever on the pedal crank recess until
the bicycles no longer touch one
another. Make sure there is sufficient
clearance from the vehicle.

Tighten the attachment screw for the
pedal bearing mount hand-tight.

Secure both bicycle wheels to wheel
recesses using strap retainers.

Check the bicycle to make sure it is
secure.

The settings for the wheel recesses
and on the rotary lever on the pedal
crank recess should be noted and
saved for each bicycle. Correct
presetting will facilitate refitting of the
bicycle.

Removing a bicycle from the
rear carrier system

Undo strap retainers on both bicycle
tyres.

Hold on to the bicycle, loosen the
attachment screw for the pedal
bearing mount, then lift the pedal
bearing mount to remove it.

Retracting the rear carrier
system

Push the pedal crank mounts into the
pedal crank recess like shown in the
graphic.

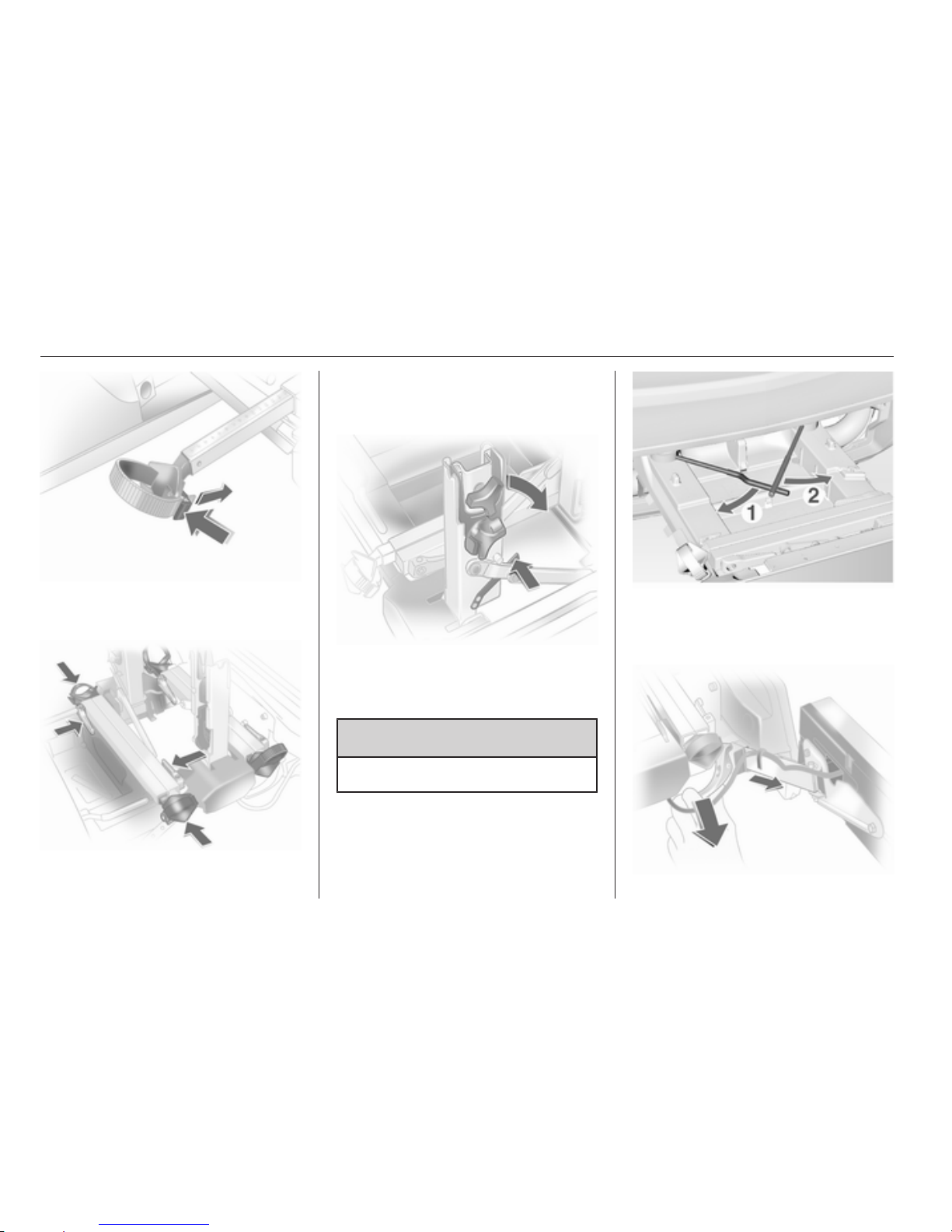

64 Storage

Insert the strap retainer and pull
tightly downwards as far as possible.

Press release lever and slide in wheel
recesses all the way as far as they will
go.

Disengage the locking lever on the
diagonal support and fold both pedal
crank recesses down.

9 Warning

Risk of pinching.

Swivel first the left clamping lever (1),
followed by the right clamping lever
(2), until they stop.

Storage 65

Push the clamping lever down and
pull both lamp supports out of the
recesses.

Fold in the lamp supports on the
backs of the tail lamps.

First place the front (1) tail lamp, then
the rear (2) tail lamp in the recesses
and push down as far as possible.
Push cables all the way into all guides
in order to prevent damage.

Open the tailgate.
Pull the release lever up and push the

system into the bumper until it
engages.

Release lever must return to original
position.

9 Warning

If the system cannot be correctly
engaged, please seek the
assistance of a workshop.

Load compartment

The rear seat backrest is divided into
two parts. Both parts can be folded
down.

Load compartment extension,
Saloon/Hatchback

Remove the load compartment cover
if necessary.

Press and hold the catch, then push
the head restraints down.

Fold up the rear armrest.

66 Storage

Guide the seat belts through side
supports to protect them against
damage. When folding the backrests,
pull the seat belts along with them.

Pull the release lever on one or both
sides and fold down the backrests
onto the seat cushion.

If the vehicle is to be loaded via a rear
door, take the seat belt out of the seat
backrest guide and put it behind the
retainer as shown in the illustration.

To fold up, raise the backrests and
guide them into an upright position
until they engage audibly.

Ensure that the seat belts of the
outboard seats are placed in the
corresponding belt guides.

The backrests are properly engaged
when the red marks on both sides
near the release lever are no longer
visible.

9 Warning

Only drive the vehicle if the
backrests are securely locked into
position. Otherwise there is a risk
of personal injury or damage to the
load or vehicle in the event of
heavy braking or a collision.

The seat belt of the centre seat could
be blocked when the backrest is
folded up too quickly. To unlock the
retractor, push in the seat belt or pull
it out by approximately 20 millimetres
and then let go.

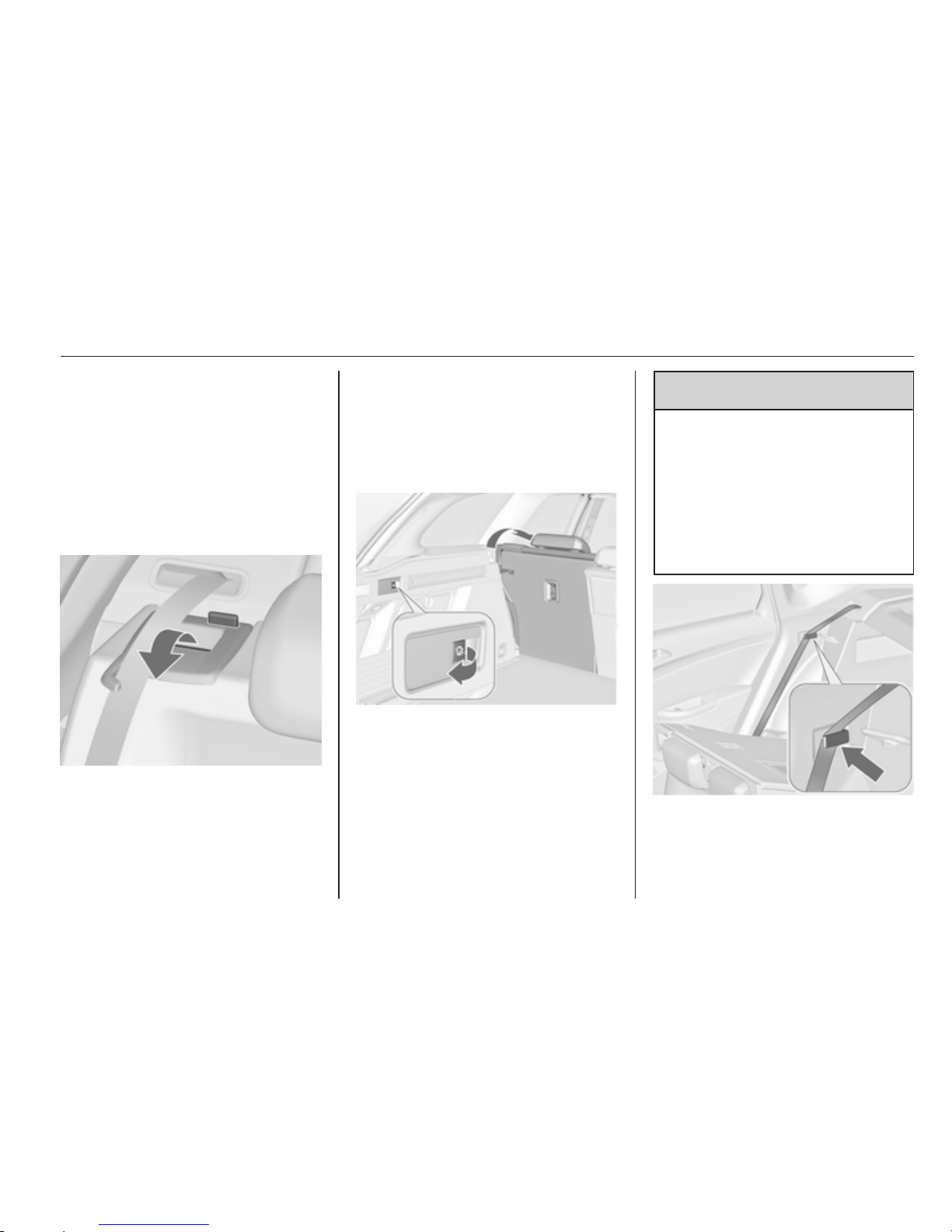

Storage 67

Load compartment extension,
Station wagon

Folding down rear backrests
Remove the load compartment cover

if necessary.
Press and hold the catch, then push

the head restraints down.
Fold up the rear armrest.

Guide the seat belts through side
supports to protect them against
damage. When folding the backrests,
pull the seat belts along with them.

Pull the release lever on one or both
sides and fold down the backrests
onto the seat cushion.

On vehicles with electric seat folding,
the rear seats can also be folded from
the load compartment.

Pull switch on left or right side wall of
the load compartment to fold the
corresponding part of the rear seat.

9 Warning

Take care when operating the
electric foldable rear seats. The
seat backrest is folded with
considerable power. Risk of injury,
particularly to children.

Ensure that nothing is attached to
the rear seats or located on the
seat cushion.

If the vehicle is to be loaded via a rear
door, take the seat belt out of the seat
backrest guide and put it behind the
retainer as shown in the illustration.

68 Storage

To fold up, raise the backrests and
guide them into an upright position
until they engage audibly.

Ensure that the seat belts of the
outboard seats are placed in the
corresponding belt guides.

The backrests are properly engaged
when the red marks on both sides
near the release lever are no longer
visible.

9 Warning

Only drive the vehicle if the
backrests are securely locked into
position. Otherwise there is a risk
of personal injury or damage to the
load or vehicle in the event of
heavy braking or a collision.

The seat belt of the centre seat could
be blocked when the backrest is
folded up too quickly. To unlock the
retractor, push in the seat belt or pull
it out by approximately 20 millimetres
and then let go.

Raise the seat cushion and fold the
backrest

Pull the strap on one or both seat
cushions and lift the rear of the
cushion forwards.

Push rear head restraints downward.
Pull the release lever on one or both

sides of the backrests and fold down
onto the seat cushion to get a flat load
bay.

Storage 69

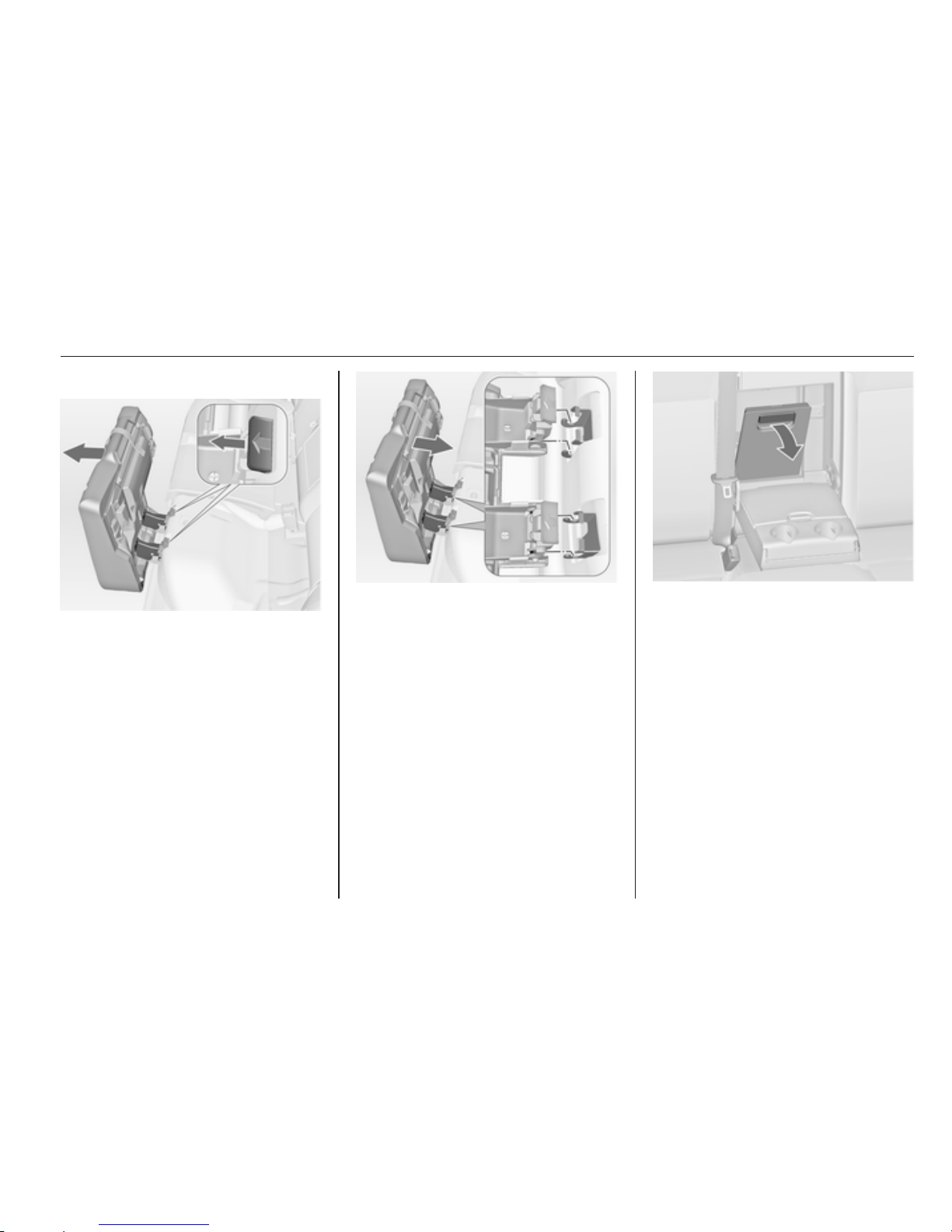

Remove the seat cushion

Push both levers forward and remove
seat cushion to extend the loading
area.

To attach, apply seat cushion as
shown in the illustration and engage
both levers.

Open the pass-through in the
rear centre backrest

Fold down the rear armrest.

Pull the grip and open the cover.
Suitable for loading long, narrow

objects.
Ensure that the cover engages after

folding up.

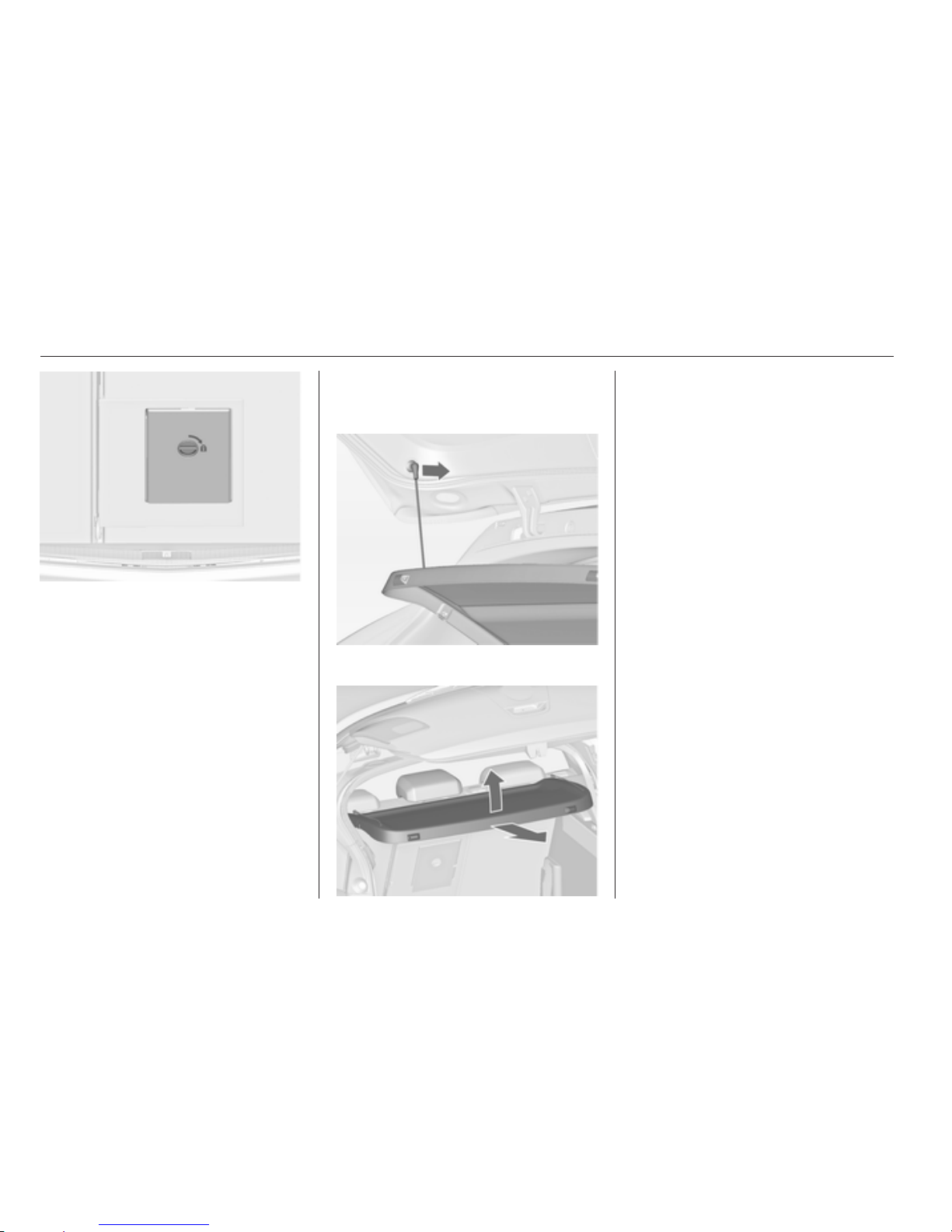

70 Storage

The closed cover can be secured
from the side of the load
compartment. Turn the knob 90°:

knob
horizontal

= cover secured from

the side of the
passenger

compartment
knob
vertical

= cover not secured

Load compartment cover

Do not place any objects on the cover.

Saloon/Hatchback

Removing

Unhook retaining straps from tailgate.

Lift cover at the rear and push it
upwards at the front.

Remove the cover.
If the height adjustable cover is

mounted in the middle or upper
position, the load compartment cover
can be stowed below it.

Height adjustable cover 3 72.

Fitting
Engage cover in side guides and fold

downwards. Attach retaining straps to
tailgate.

Station wagon

Closing cover
Pull the cover towards the rear using

the handle until it engages in the
sideward retainers.

Storage 71

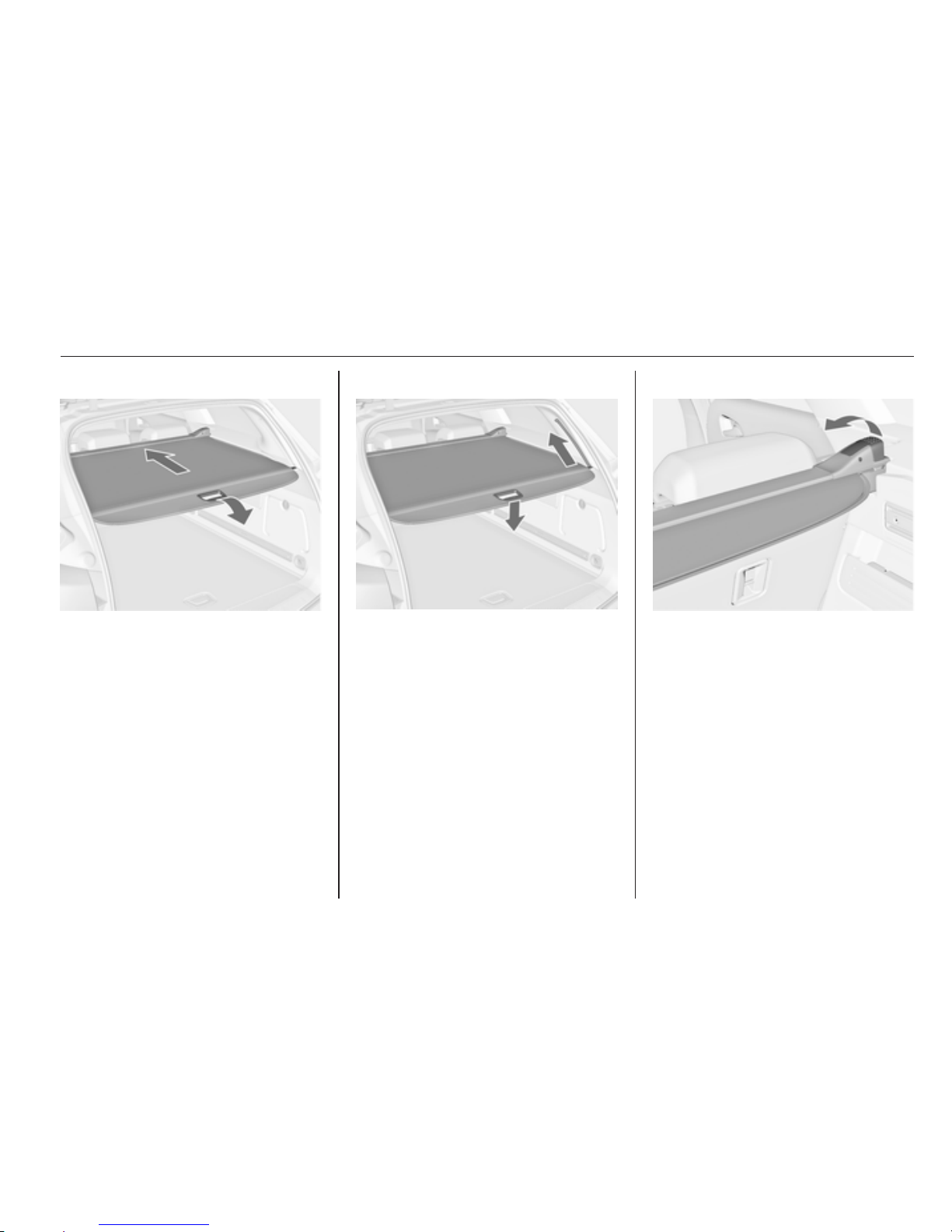

Opening cover

Pull the handle at the end of the cover
to the rear and downwards. It rolls up
automatically.

Cover in upper position

Push the handle at the end of the
cover downwards.The rear of the
cover is guided upwards
automatically.

Removing cover

Open the load compartment cover.
Pull the release lever on the right side

up and hold it. Lift the cover first on
the right side and remove from
retainers.

72 Storage

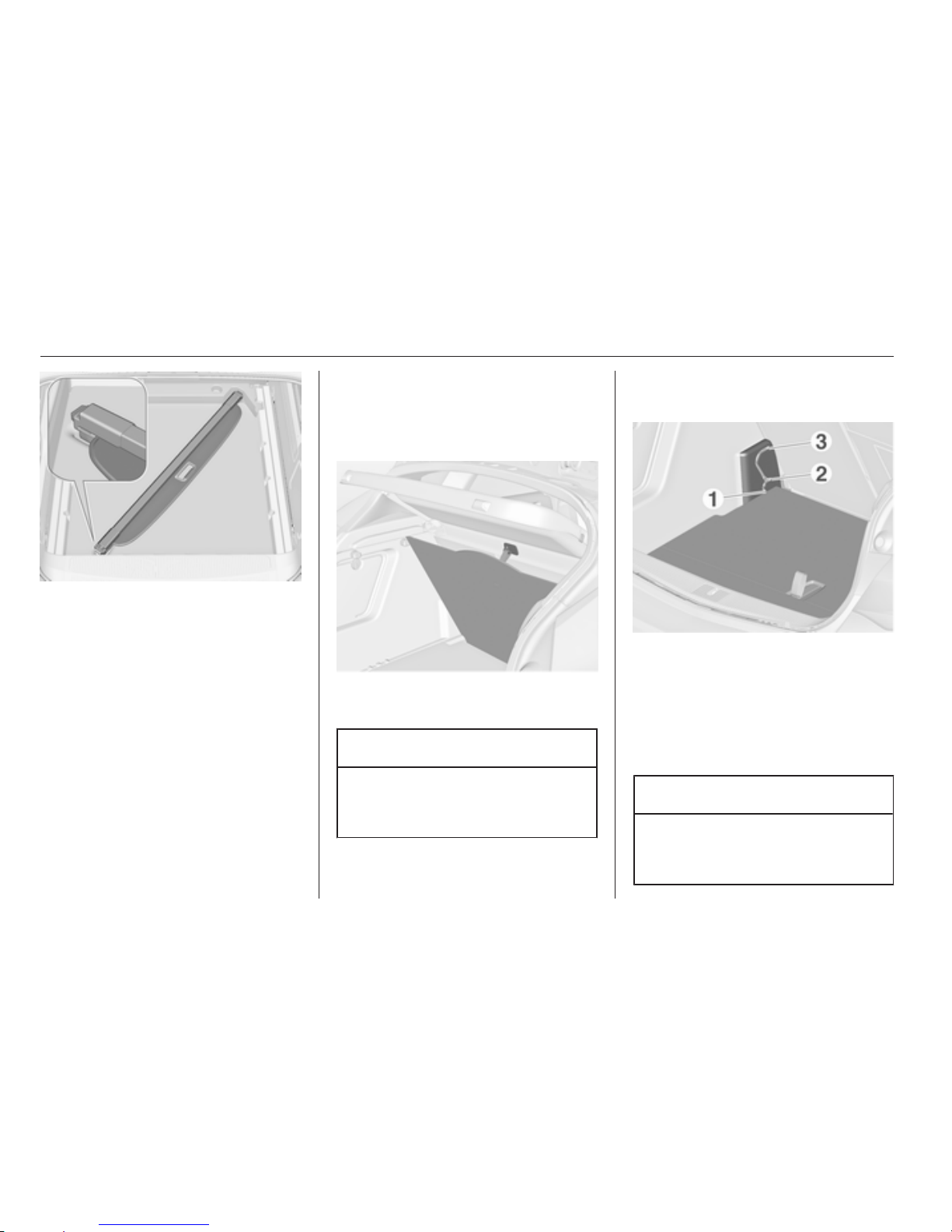

The removed cover can be stored
under the rear floor cover like shown
in the graphic.

Rear floor storage cover 3 72.

Installing cover
Insert the left side of the load

compartment cover in the recess, pull
the release lever up and hold it, insert
the right side of the load compartment
cover and engage.

Rear floor storage cover

Rear floor cover, Saloon/
Hatchback

The rear floor cover can be lifted and
hooked in with the loop.

Caution

Only use the hook for hanging up
the rear floor cover and the height
adjustable cover.

Height adjustable cover,
Saloon/Hatchback

The height adjustable cover can be
mounted in three positions:

■ directly above the rear floor cover
(1),

■ in a middle position (2)

■ in an upper position (3).

Caution

Ensure that the front and rear end
of the height adjustable cover are
attached to the same level.

Storage 73

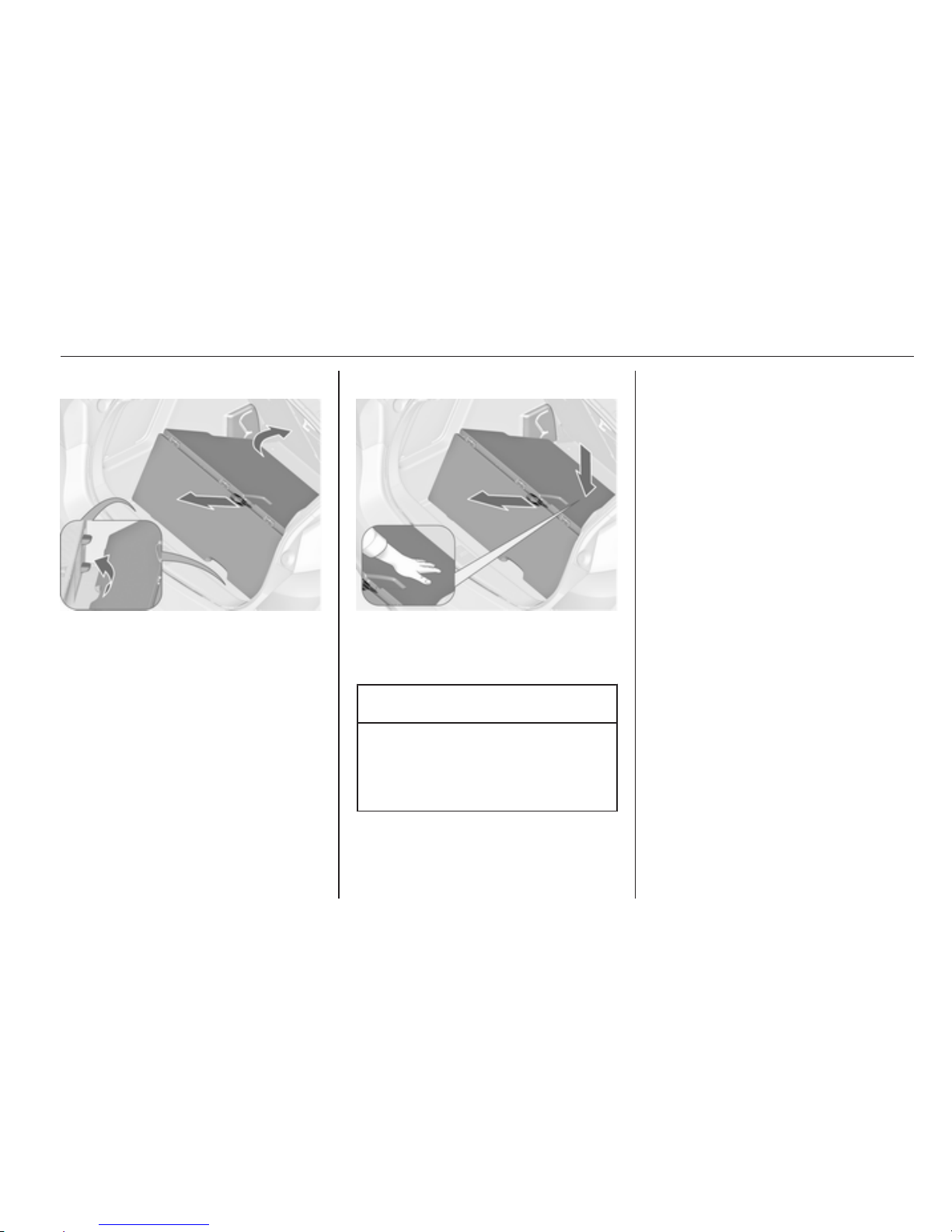

Lifting

To lift the cover to a higher level, pull
the loop backwards and lift the rear
edge of the cover onto the
corresponding supports.

Lowering

To lower the cover, pull the strap
backwards and push down the front
center of the cover at the same time.

Caution

Do not lower the height adjustable
cover to position 1 in vehicles
equipped with subwoofer. The
subwoofer could be damaged.

Note

■ If mounted in position 2 or 3, the
space between the rear floor
cover and the height adjustable
cover can be used as a stowage
compartment.

■ The height adjustable cover can
be lifted and hooked in with the
strap when it is mounted in
position 1 or 2.

■ If mounted in position 2, an almost
completely flat load bay is created
if the rear seat backrests are
folded forwards.

■ The height adjustable cover is
able to withstand a load of no more
than 100 kg.

■ Opening the side covers (e.g.
when exchanging the rear light
bulbs) is only possible with the
height adjustable cover mounted
in position 1 or 2.

74 Storage

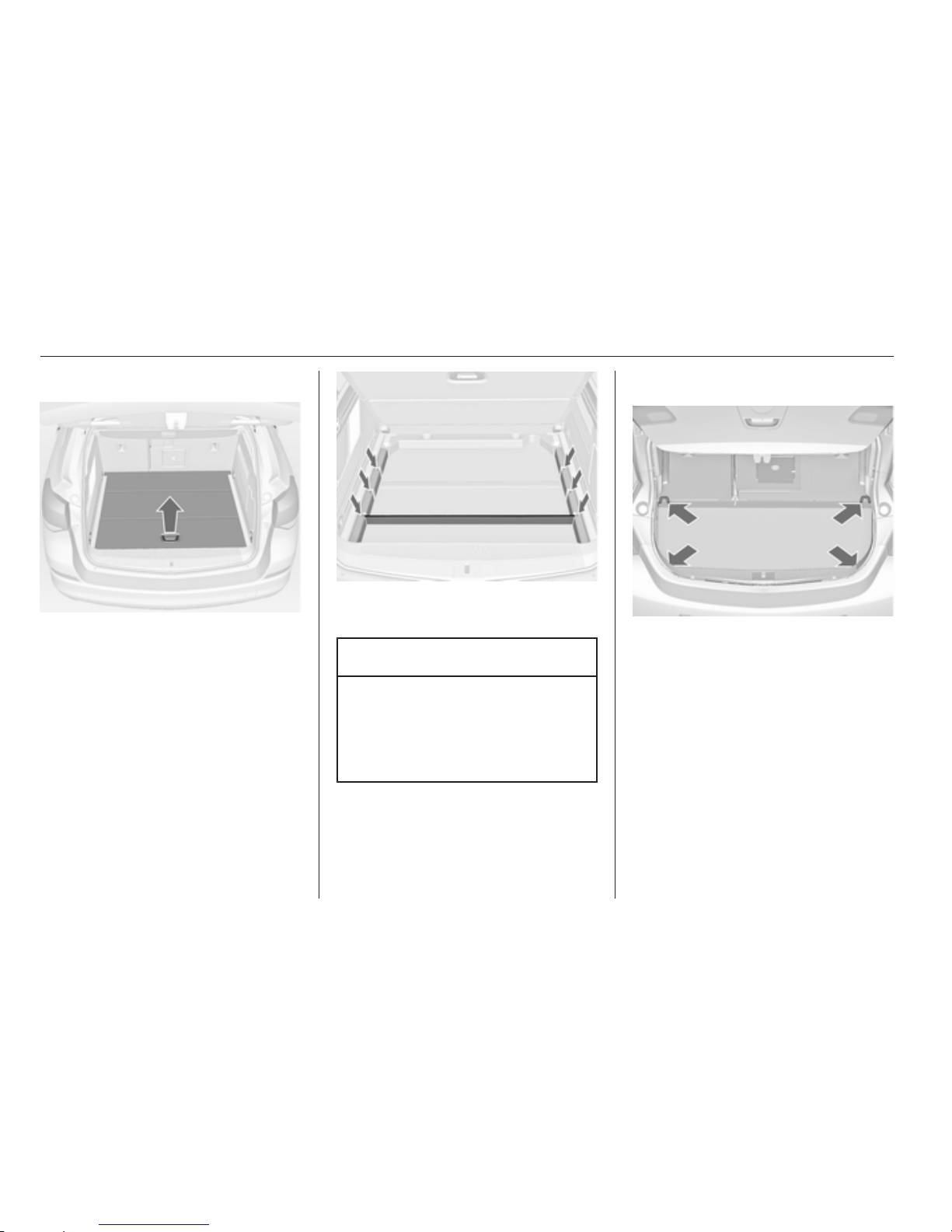

Rear floor cover, Station wagon

Lift the rear floor cover by pulling the
handle. Fold and place the cover
behind the rear seats.

The storage compartment below the
rear floor cover can be divided by
a bar.

Insert the bar into the recesses at the
sidewalls.

Caution

Insert the bar into the rearmost
recess when transporting heavy
objects in the load compartment.
Otherwise the rear floor cover
might be damaged.

Lashing eyes

The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.

Cargo management
system

The FlexOrganizer is a flexible
system for dividing up the load
compartment.

The system consists of

■ adapters,

■ mesh pockets,

Storage 75

■ hooks,

■ service box,

■ strap set.
The components are fitted in rails on

both side panels using adapters and
hooks.

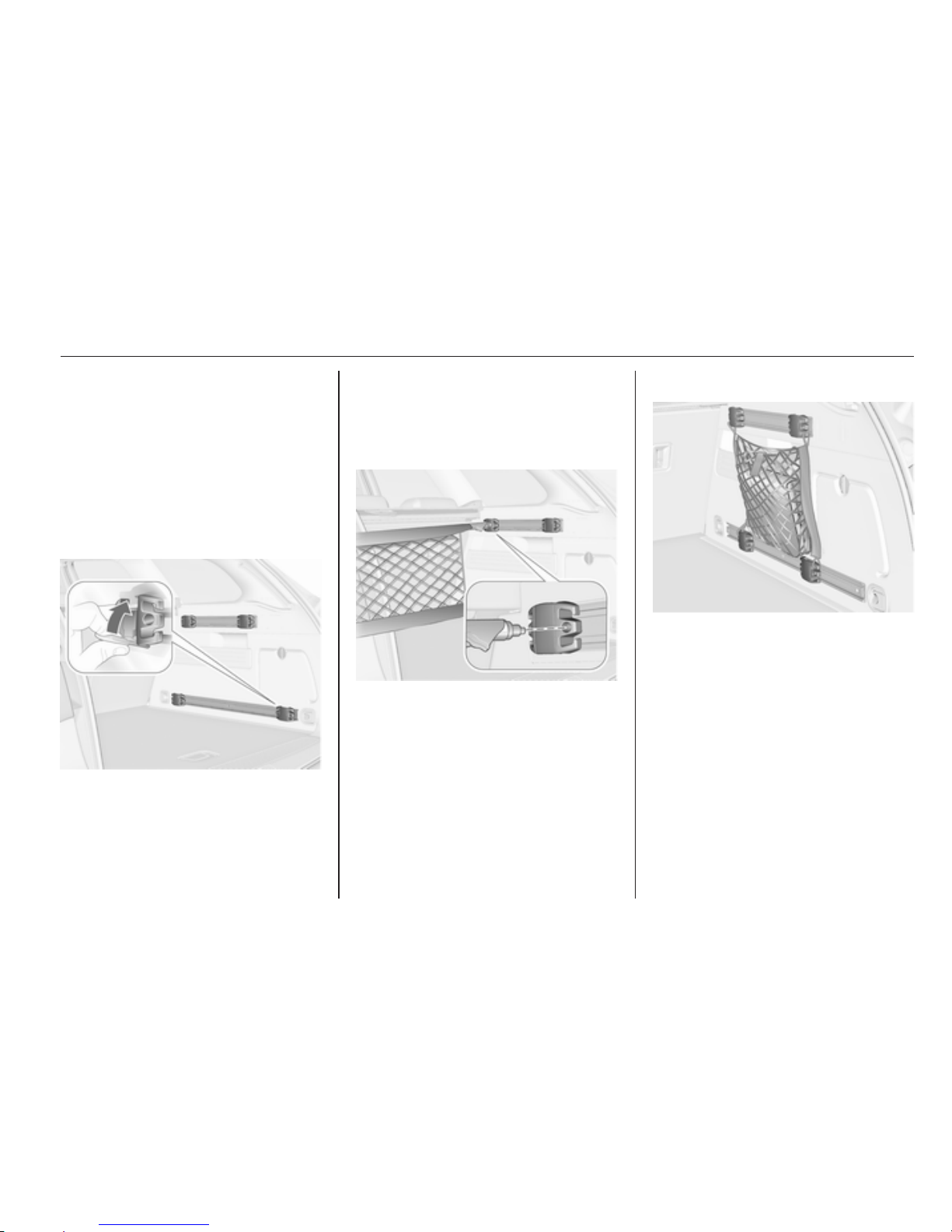

Installation of adapters in the
rails

Fold open the handle plate, insert the
adapter into the upper and lower
groove of the rail and move to the
required position. Turn the handle

plate upwards to lock the adapter. To
remove, turn the handle plate down
and move out of the rail.

Variable partition net

Insert adapters into the required
position in the rails. Stick together the
halves of the net rods.

To install, push rods together a little
and insert into the relevant openings
in the adapters.

To remove, press the net rods
together and remove from the
adapters.

Net pocket

Insert adapters into the required
position in the rails. The net pocket
can be suspended from the adapters.

76 Storage

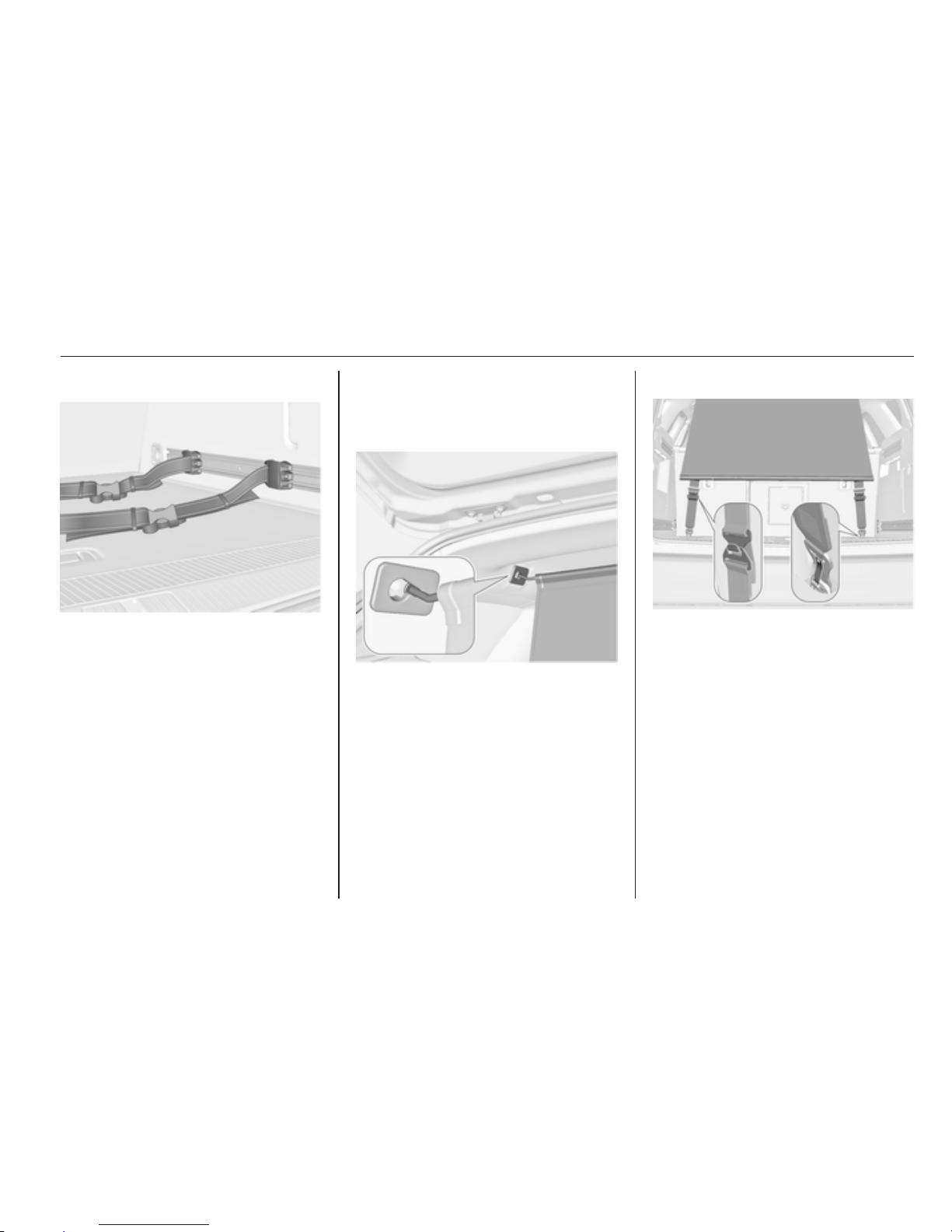

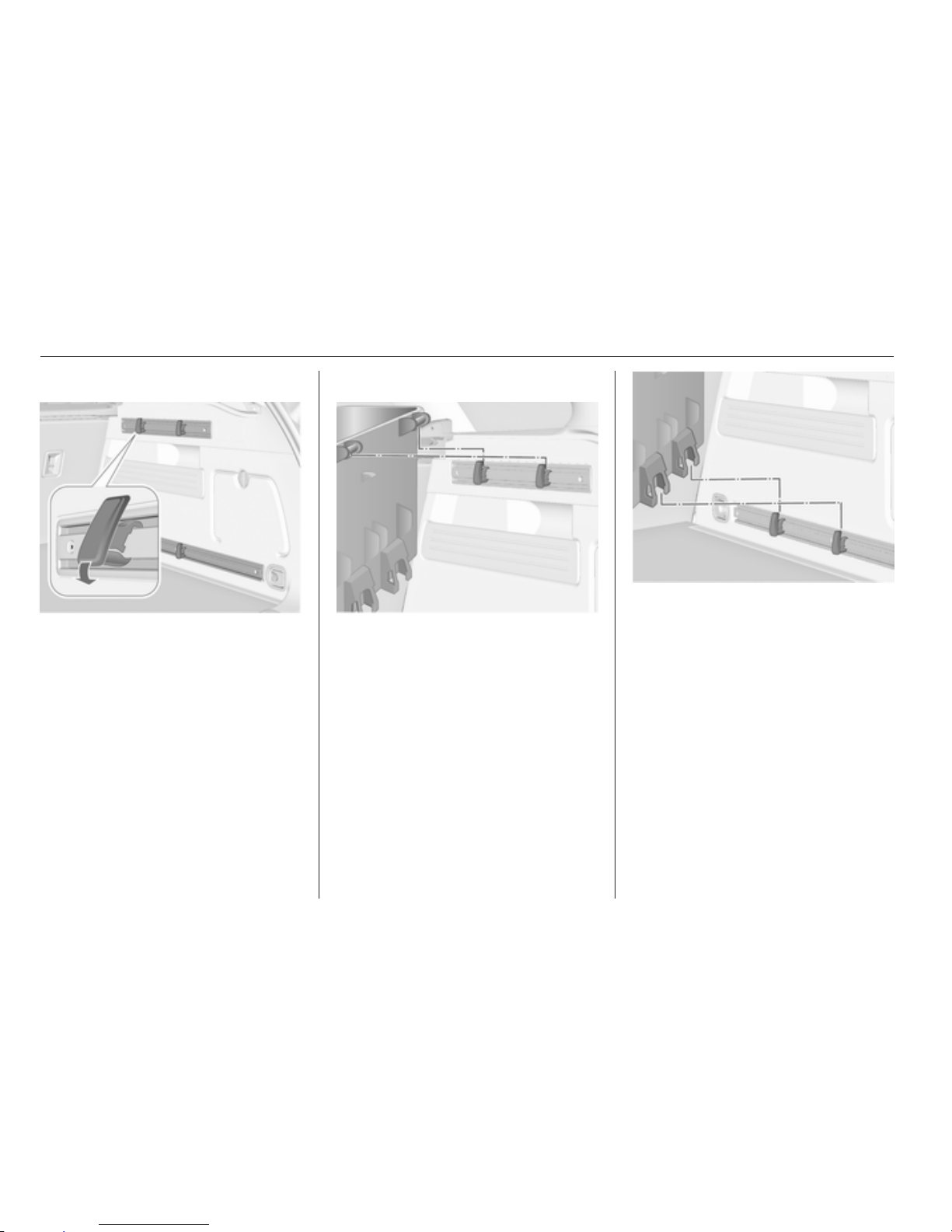

Installation of hooks in the rails

Insert the hook in the desired position
first in the upper groove of the rail and
then press in the lower groove. To
remove, first pull out of the upper
groove.

Service box

Install two hooks in the upper rail.
Insert the upper brackets of the box
from above into the hooks.

Alternatively install both hooks in the
lower rail. Plug in the lower brackets
of the box from above into the lower
hooks.

Storage 77

Strap set

Insert the adapters of the strap set in
a rail. Make sure that the belt is not
twisted.

The strap set has two locks to open.
The belt can be tightened.

Safety net

The safety net is available on the
Station wagon and can be installed
behind the rear seats or, if the rear
seat backrests are folded and the
seat cushions raised, behind the front
seats.

Passengers must not be transported
behind the safety net.

Installation

There are two installation openings in
the roof frame: suspend and engage
rod of net at one side, compress rod
and suspend and engage at other
side.

Behind the rear seats

Adjust strap length on safety net by
attaching the upper hook to the eyes
of the strap. Attach lower hook to eye
in the right and left of the floor.

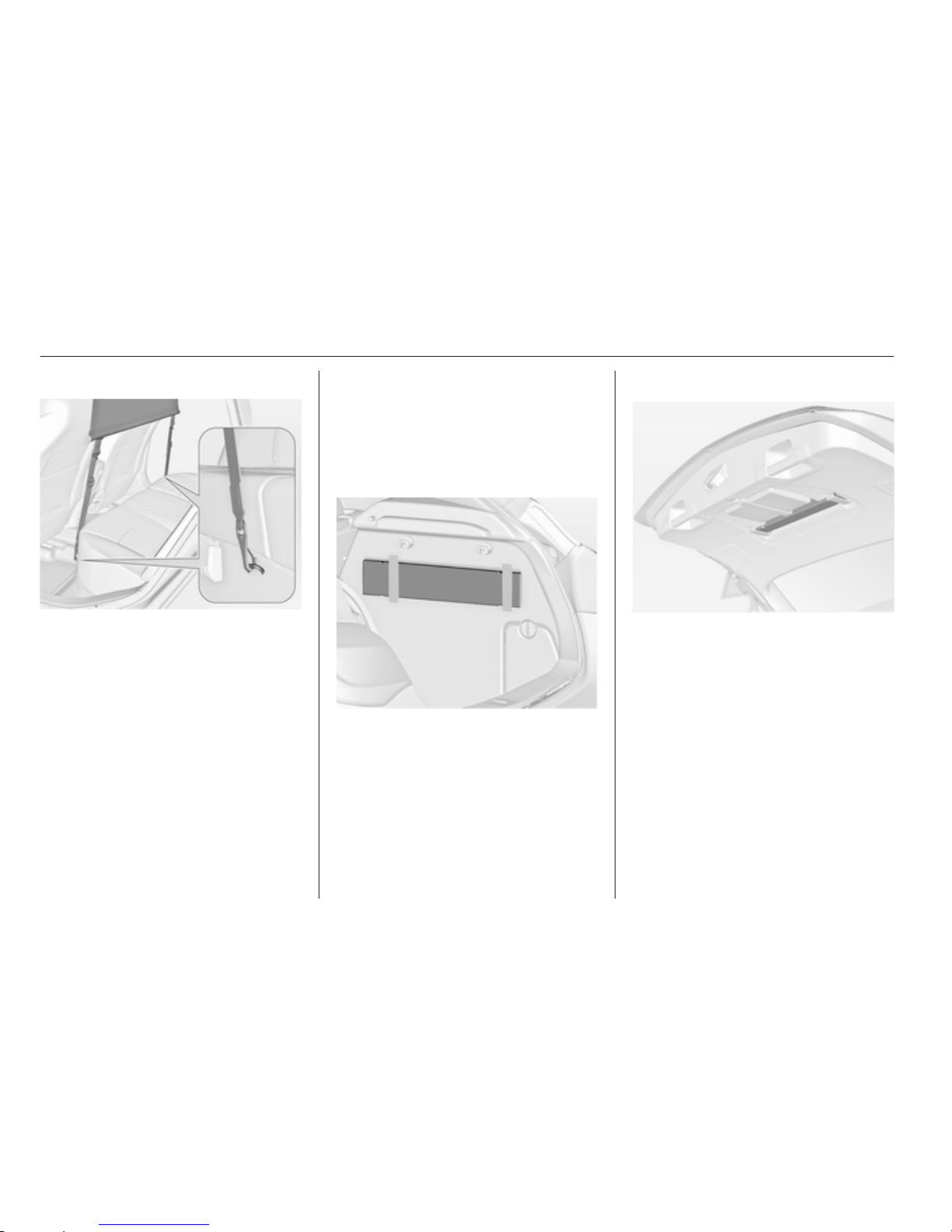

78 Storage

Behind front seats

Attach strap to eyes underneath the
rear seat cushion.

Fold backrests forward.
To get a flat load bay, first fold seat

cushion before attaching the safety
net.

Load compartment 3 65.

Removal

Detach straps from the eyes. Unhook
the safety net rods from the brackets
in the roof frame. Roll up the net and
secure with a strap.

The removed safety net can be stored
under the rear floor cover 3 72.

Warning triangle

Saloon/Hatchback

Stow the warning triangle in the space
behind the strap on the right side of
the load compartment.

Station wagon

Fold down straps. Stow the warning
triangle in the space behind the straps
on the inside of the tailgate.

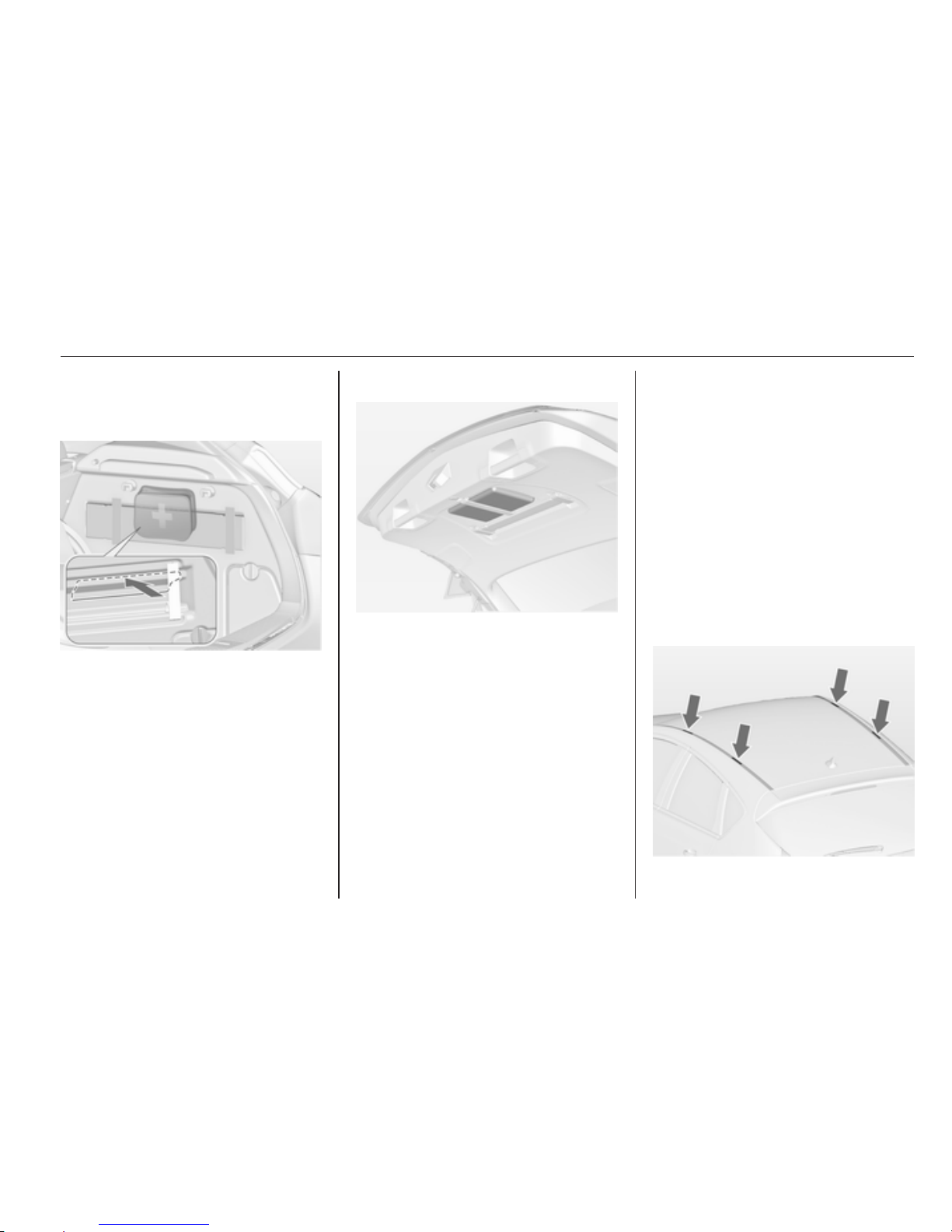

Storage 79

First aid kit

Saloon/Hatchback

Stow the first aid kit in the stowage
compartment behind the warning
triangle.

Before first use, press in the interior
trim at the top and at the sides of the
perforation. Then fold the trim
outward to gain access to the
stowage compartment.

Station wagon

Fold down strap. Stow the first aid kit
in the space behind a strap on the
inside of the tailgate.

Roof rack system

Roof rack

For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended.

Follow the installation instructions
and remove the roof rack when not in
use.

Mounting roof rack

Saloon/Hatchback

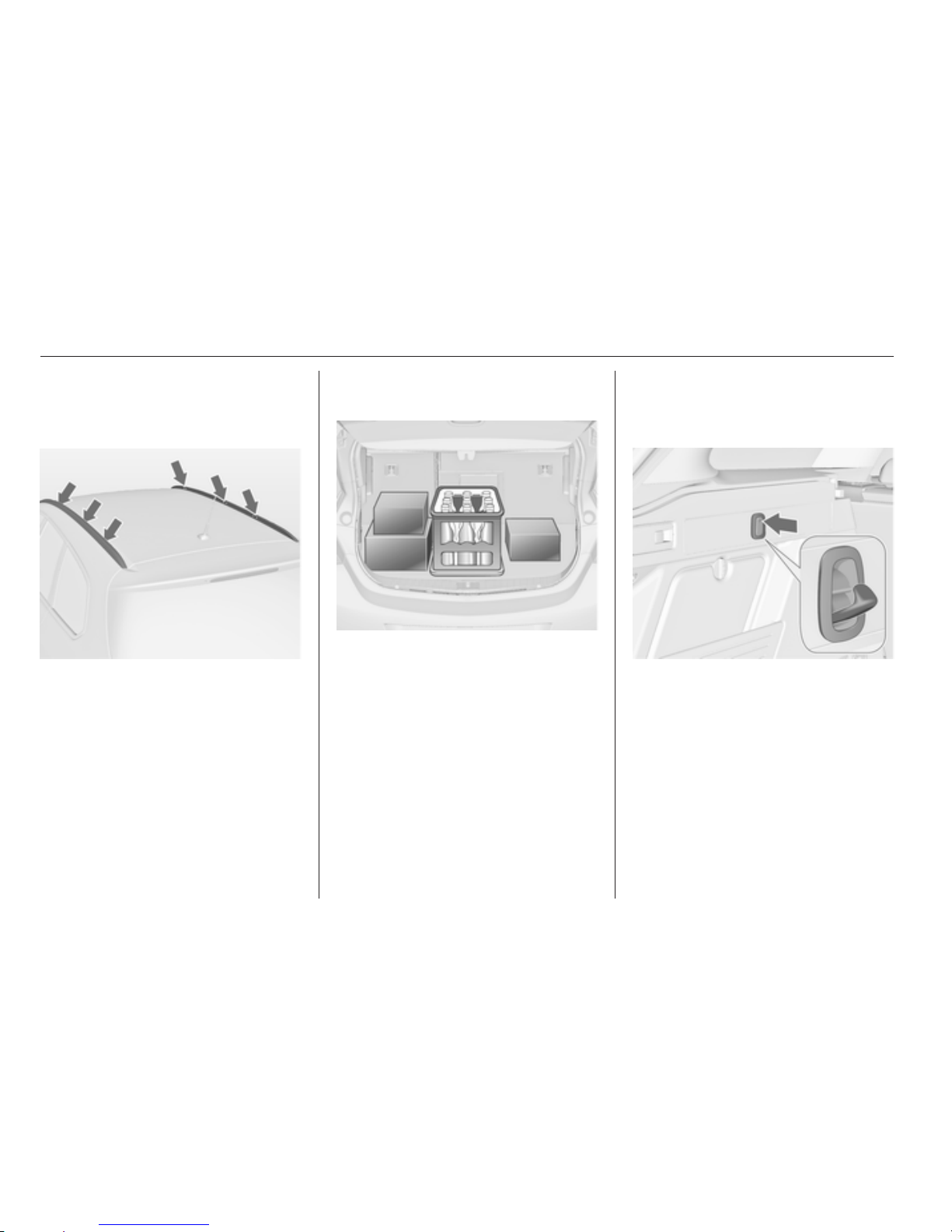

80 Storage

Detach the cover from each mounting
point by using a coin.

Station wagon with roof railing

To fasten the roof rack, insert the
mounting bolts in the holes indicated
in the figure.

Loading information

■ Heavy objects in the load
compartment should be placed
against the seat backrests. Ensure
that the backrests are securely
engaged. If objects can be stacked,
heavier objects should be placed at
the bottom.

■ Secure objects with lashing straps
attached to the lashing eyes 3 74.
Attach the height adjustable cover
in the lowest position (1) 3 72.

■ Use the four hooks at the side walls
of the load compartment for
hanging up carrier bags. Maximum
load: 5 kg per hook.

■ Station wagon: Use the hook at the
left side wall of the load
compartment for hanging up carrier
bags. Press to fold out the hook.

■ Secure loose objects in the load
compartment to prevent them from
sliding.

■ When transporting objects in the
load compartment, the backrests of
the rear seats must not be angled
forward.

Storage 81

■ Do not allow the load to protrude
above the upper edge of the
backrests.

■ Do not place any objects on the
load compartment cover or the
instrument panel, and do not cover
the sensor on top of the instrument
panel.

■ The load must not obstruct the
operation of the pedals, parking
brake and gear selector lever, or
hinder the freedom of movement of
the driver. Do not place any
unsecured objects in the interior.

■ Do not drive with an open load
compartment.

9 Warning

Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.

■ The payload is the difference
between the permitted gross

vehicle weight (see identification
plate 3 204) and the EC kerb
weight.

To calculate the payload, enter the
data for your vehicle in the Weights
table at the front of this manual.

The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (tank
90 % full).

Optional equipment and
accessories increase the kerb
weight.

■ Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a detrimental
effect on vehicle handling due to
the vehicle's higher centre of
gravity. Distribute the load evenly
and secure it properly with retaining
straps. Adjust the tyre pressure and
vehicle speed according to the load
conditions. Check and retighten the
straps frequently.

The permissible roof load is 75 kg.
The roof load is the combined
weight of the roof rack and the load.

82 Instruments and controls

Instruments and
controls

Controls ....................................... 82

Warning lights, gauges and

indicators ..................................... 88

Information displays ..................... 99

Vehicle messages ...................... 103

Trip computer ............................. 110

Vehicle personalisation .............. 112

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.

Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.

Steering wheel controls

The Infotainment system, the cruise
control and a connected mobile
phone can be operated via the
controls on the steering wheel.

Further information is available in the
Infotainment system manual.

Cruise control 3 148.

Instruments and controls 83

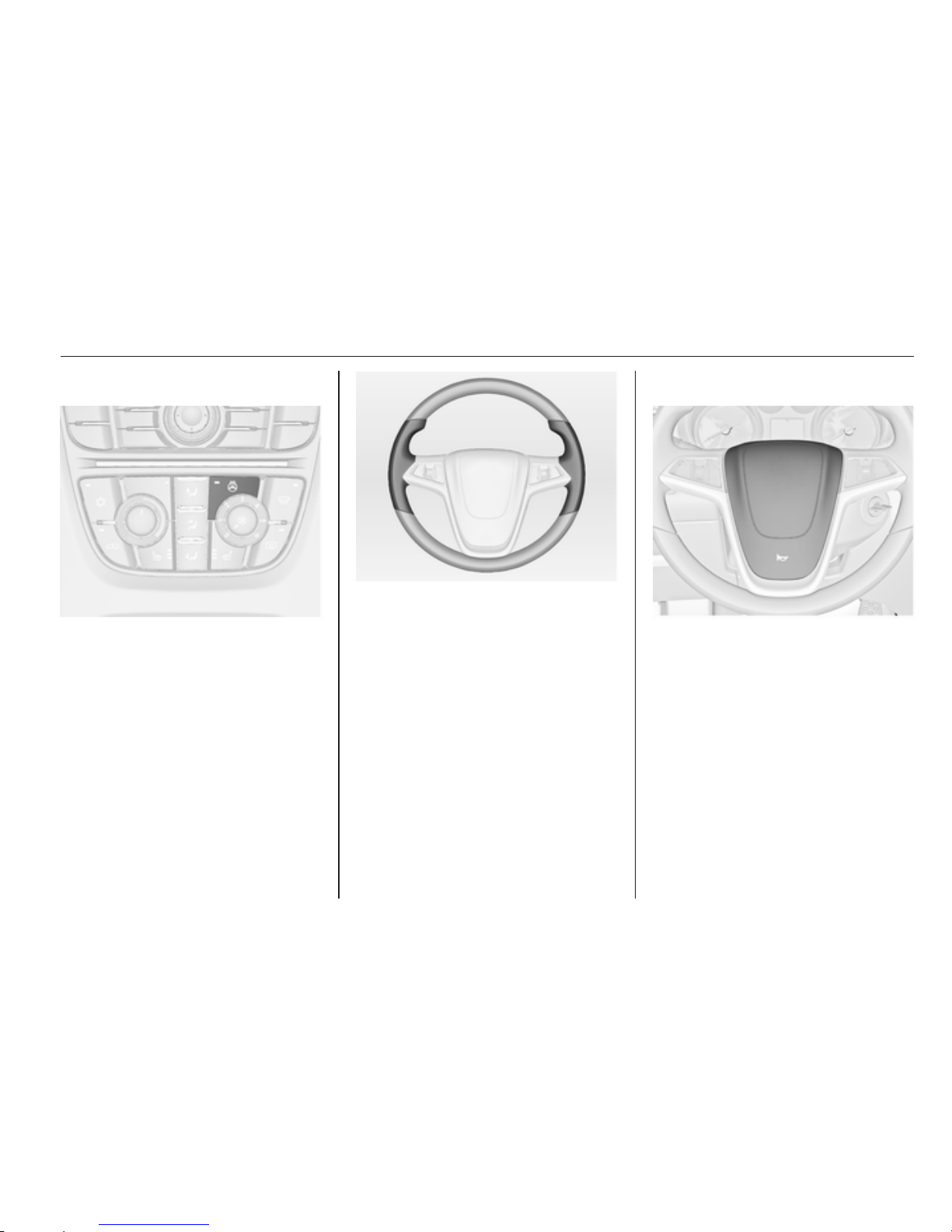

Heated steering wheel

Activate heating by pressing *
button. Activation is indicated by the
LED in the button.

The recommended grip areas of the
steering wheel are heated quicker
and to a higher temperature than the
other areas.

Horn

Press j.

84 Instruments and controls

Windscreen wiper/washer

Windscreen wiper

2 = fast
1 = slow

P

= interval wiping

§

= off

For a single wipe when the
windscreen wiper is off, press the
lever down.

Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position P.
Turn the adjuster wheel to adjust the

desired wipe interval:
short

interval

= turn adjuster wheel

upwards
long
interval

= turn adjuster wheel

downwards

Automatic wiping with rain sensor

P

= automatic wiping with rain

sensor

The rain sensor detects the amount of
water on the windscreen and
automatically regulates the frequency
of the windscreen wiper.

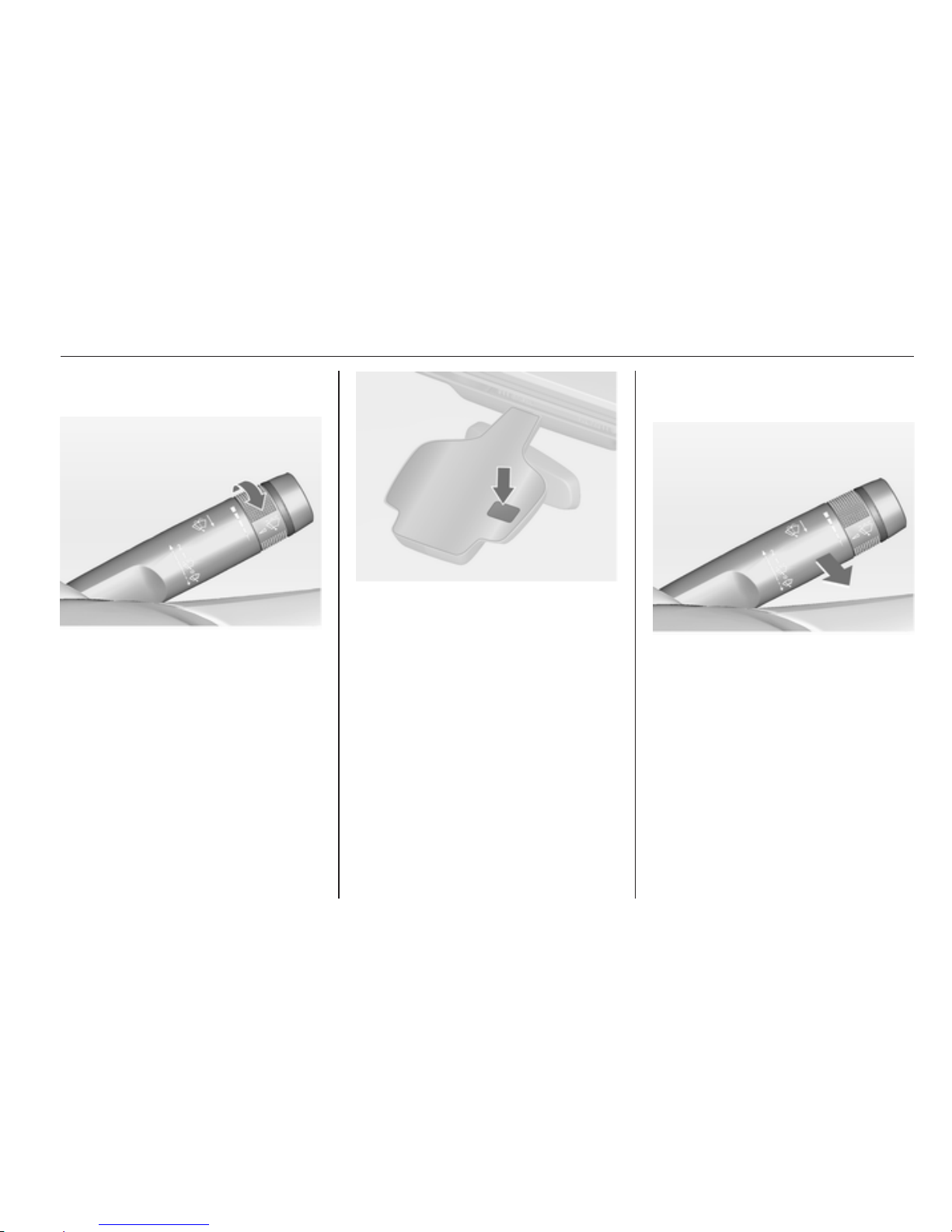

Instruments and controls 85

Adjustable sensitivity of the rain
sensor

Turn the adjuster wheel to adjust the
sensitivity:

low
sensitivity

= turn adjuster wheel

downwards
high
sensitivity

= turn adjuster wheel

upwards

Keep the sensor free from dust, dirt
and ice.

Windscreen and headlight
washer

Pull lever. Washer fluid is sprayed
onto the windscreen and the wiper
wipes a few times.

If the headlights are on, washer fluid
is also sprayed onto the headlights.
Afterwards the headlight washer
system is inoperative for 2 minutes.

86 Instruments and controls

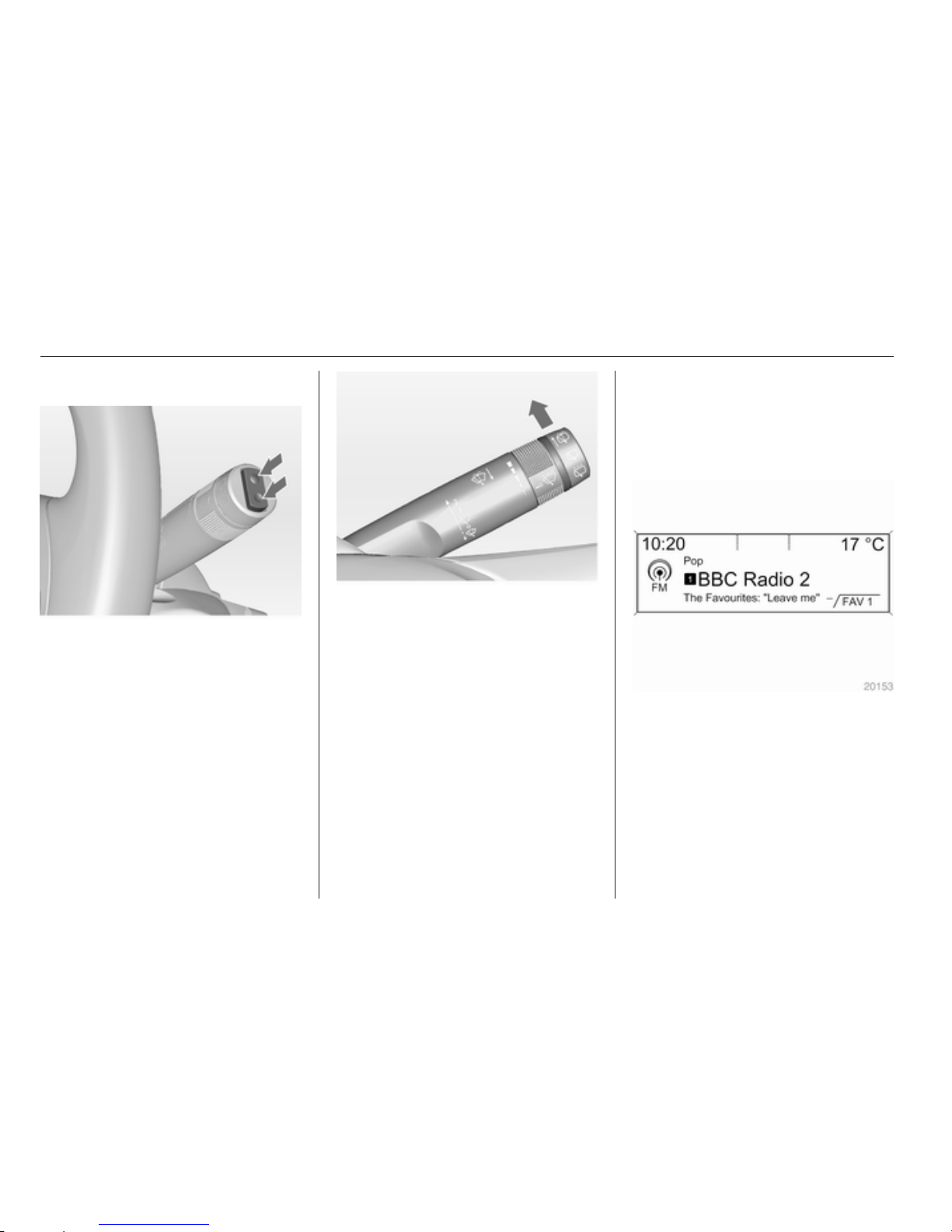

Rear window wiper/washer

Press the rocker switch to activate the
rear window wiper:

upper
position

= continuous

operation
lower
position

= intermittent

operation
middle
position

= off

Push lever. Washer fluid is sprayed
onto the rear window and the wiper
wipes a few times.

Do not use if the rear window is
frozen.

Switch off in car washes.
The rear window wiper comes on

automatically when the windscreen
wiper is switched on and reverse gear
is engaged.

Activation or deactivation of this
function can be changed in the menu
Settings in the Info-Display.

Vehicle personalisation 3 112.

The rear window washer system is
deactivated when the fluid level is
low.

Outside temperature

A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.

If outside temperature drops to 3 °C,
the symbol 4 illuminates in the Driver
Information Center with Uplevel­Display or in the Info-Display as
a warning for icy road conditions. 4
remains illuminated until
temperatures reach at least 5 °C.

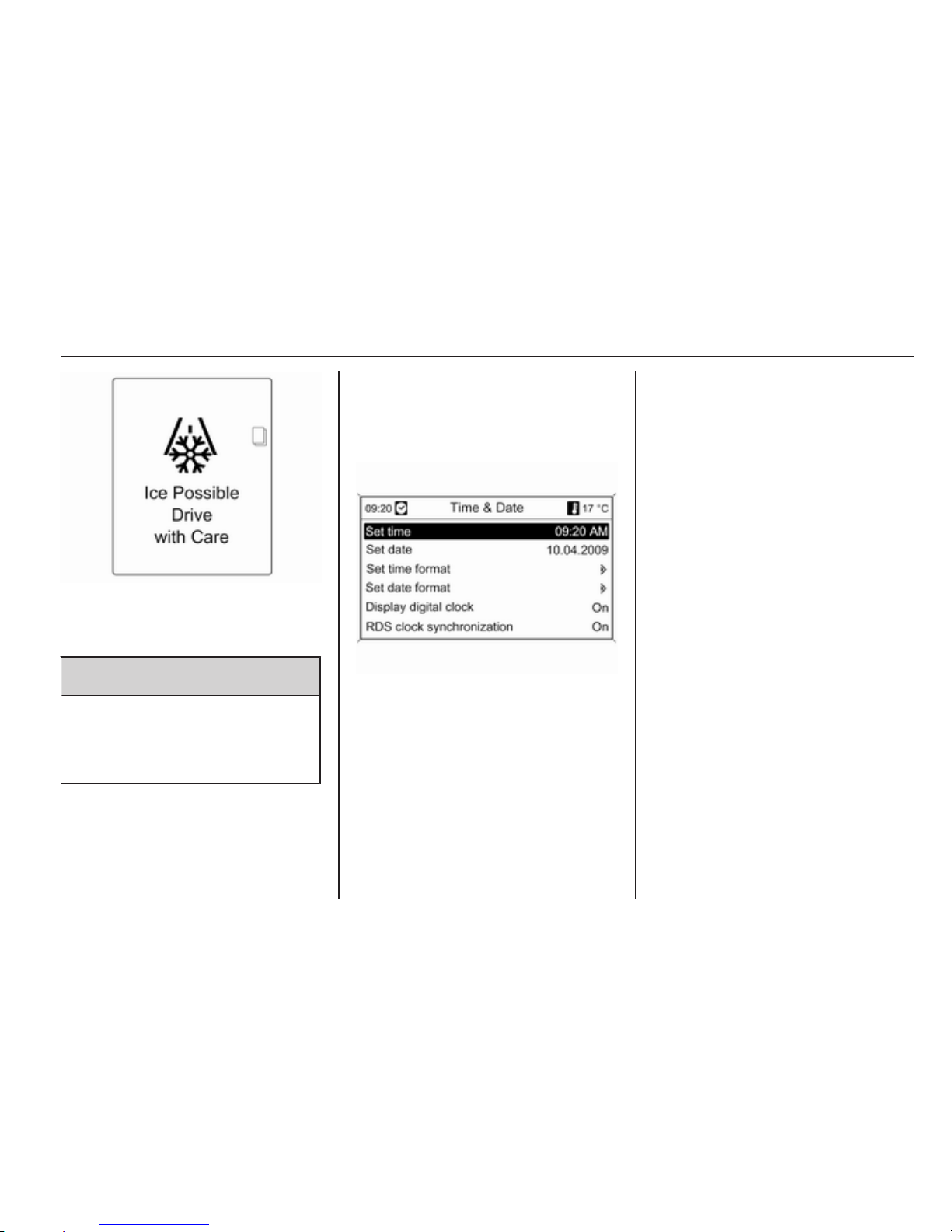

Instruments and controls 87

Additionally a warning message is
displayed in the Driver Information
Center with Uplevel-Display.

9 Warning

The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.

Clock

Date and time are shown in the
Info-Display.

Set date and time

Press the CONFIG button. The menu
Settings is displayed.

Select Time & Date.

Selectable setting options:

■ Set time: Changes the time shown
on the display.

■ Set date: Changes the date shown
on the display.

■ Set time format: Changes
indication of hours between 12
hours and 24 hours.

■ Set date format: Changes
indication of date between MM/DD/
YYYY and DD.MM.YYYY.

■ Display digital clock: Switches on/
off indication of time on the display.

■ RDS clock synchronization: The
RDS signal of most VHF
transmitters automatically sets the
time. RDS time synchronisation
can take a few minutes. Some
transmitters do not send a correct
time signal. In such cases, it is
recommended to switch off
automatic time synchronisation.

Vehicle personalisation 3 112.

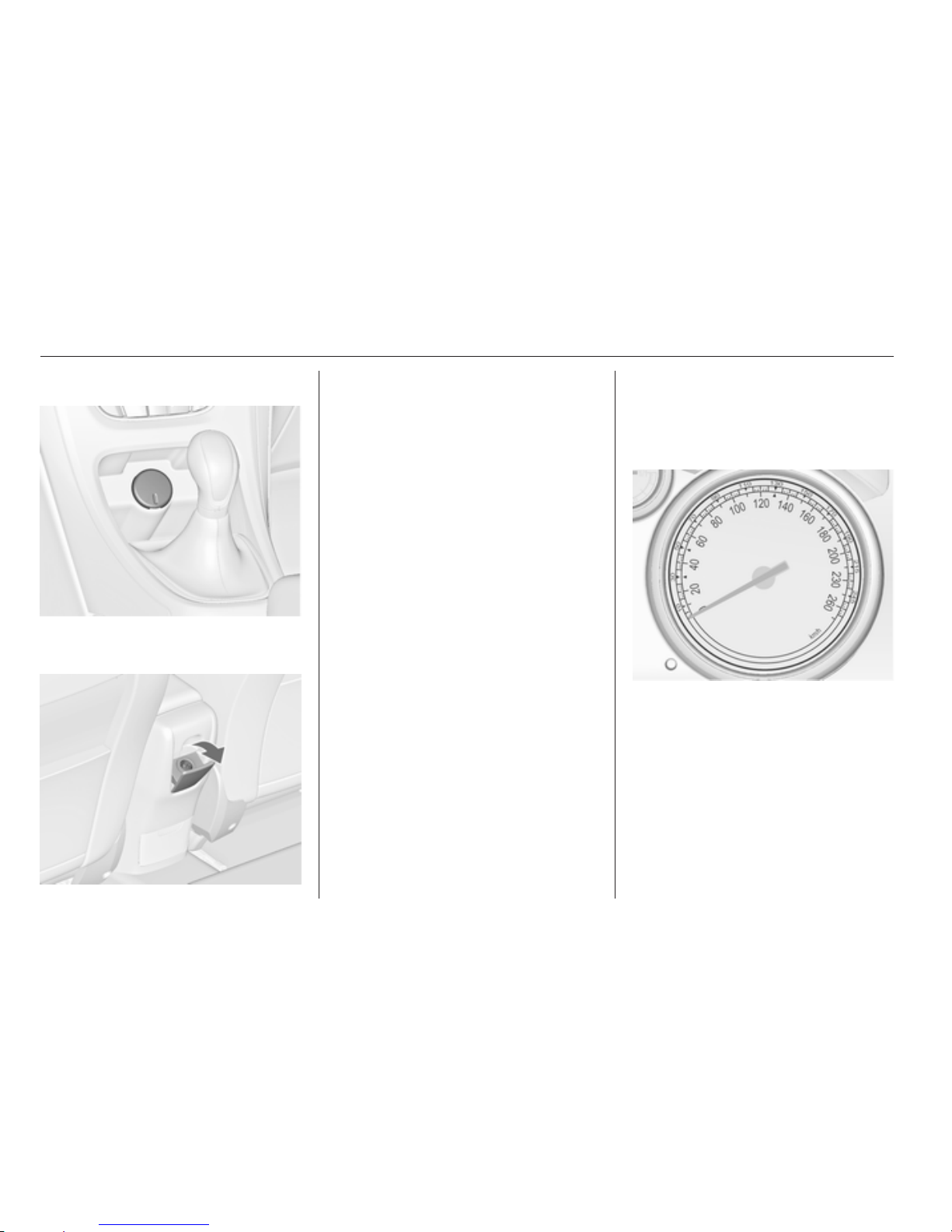

88 Instruments and controls

Power outlets

A 12 Volt power outlet is located in the
front console.

A further 12 Volt power outlet is
located in the rear console. Fold the
cover downwards.

Station wagon: A 12 Volt power outlet
is located at the left side wall in the
load compartment.

Do not exceed the maximum power
consumption of 120 watts.

With ignition off, the power outlets are
deactivated. Additionally the power
outlets are deactivated in the event of
low battery voltage.

Electrical accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in
DIN VDE 40 839.

Do not connect any current-delivering
accessories, e.g. electrical charging
devices or batteries.

Do not damage the outlet by using
unsuitable plugs.

Warning lights, gauges
and indicators

Speedometer

Indicates vehicle speed.

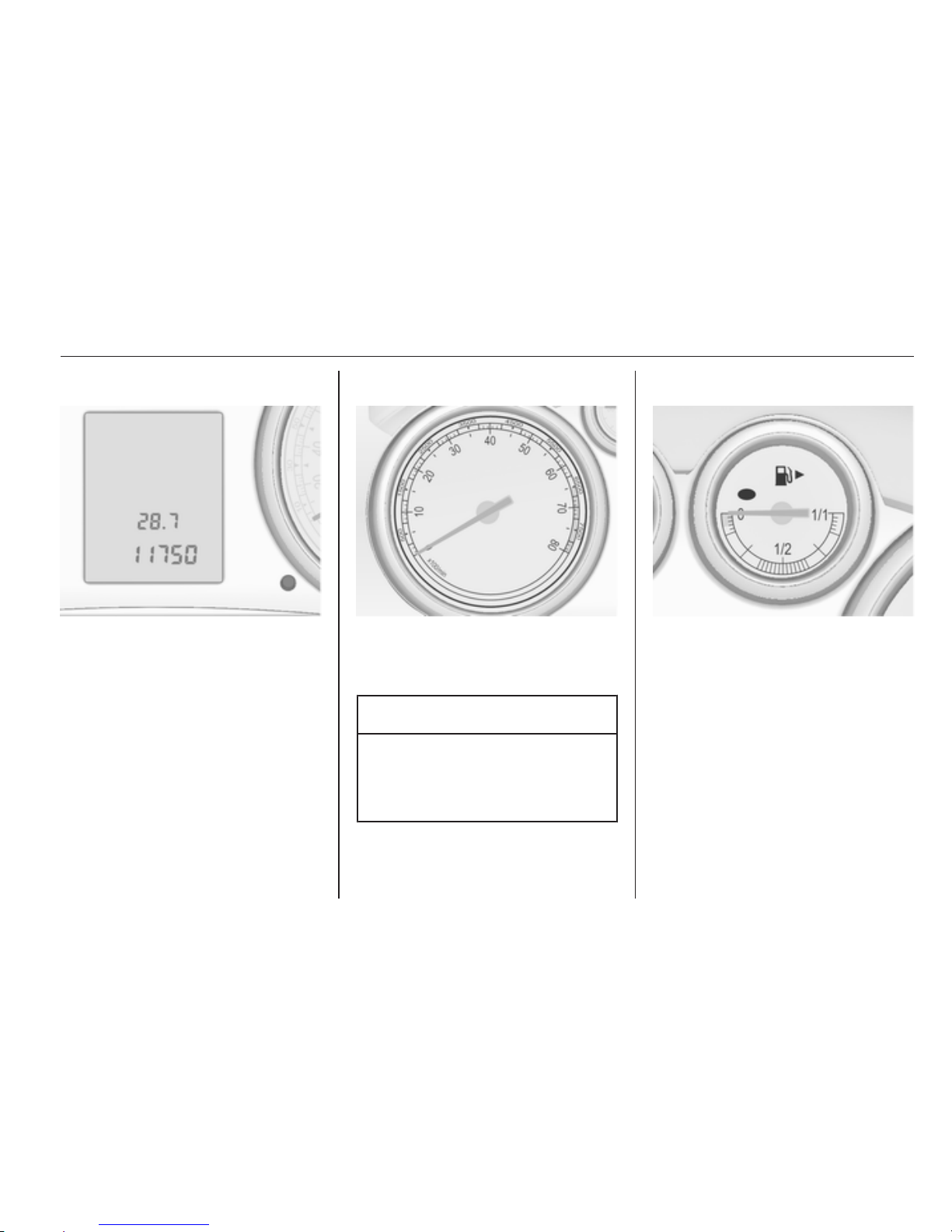

Instruments and controls 89

Odometer

The bottom line displays the recorded
distance.

Trip odometer

The top line displays the recorded
distance since the last reset.

To reset, hold the reset knob
depressed for a few seconds with the
ignition on.

Tachometer

Displays the engine speed.
Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine
at risk.

Fuel gauge

Displays the fuel level in the tank.
Control indicator i illuminates if the

level in the tank is low. Refuel
immediately.

Never run the tank dry.
Because of the fuel remaining in the

tank, the top-up quantity may be less
than the specified tank capacity.

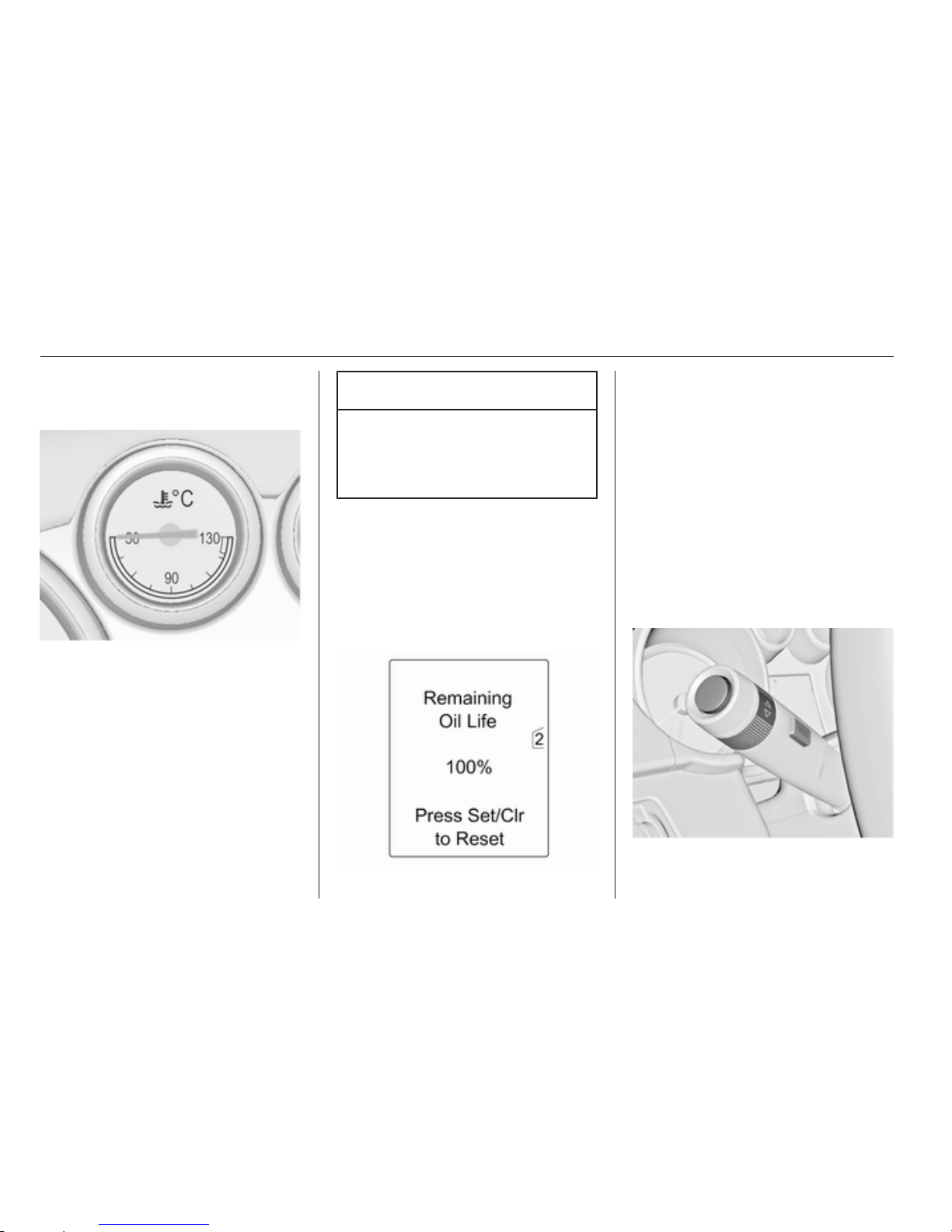

90 Instruments and controls

Engine coolant
temperature gauge

Displays the coolant temperature.
left area = engine operating

temperature not yet

reached
central
area

= normal operating

temperature
right area = temperature too high

Caution

If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.

Service display

The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.

In the Uplevel-Display the remaining
oil life duration is displayed in the
Vehicle Information Menu.

In the Midlevel-Display the remaining
engine oil life duration is displayed by
the control indicator I, thereby the
ignition must be switched on, with the
engine not running.

The menu and function can be
selected via the buttons on the turn
signal lever.

To display the remaining engine oil
life duration:

Press the MENU button to select the
Vehicle Information Menu.

Instruments and controls 91

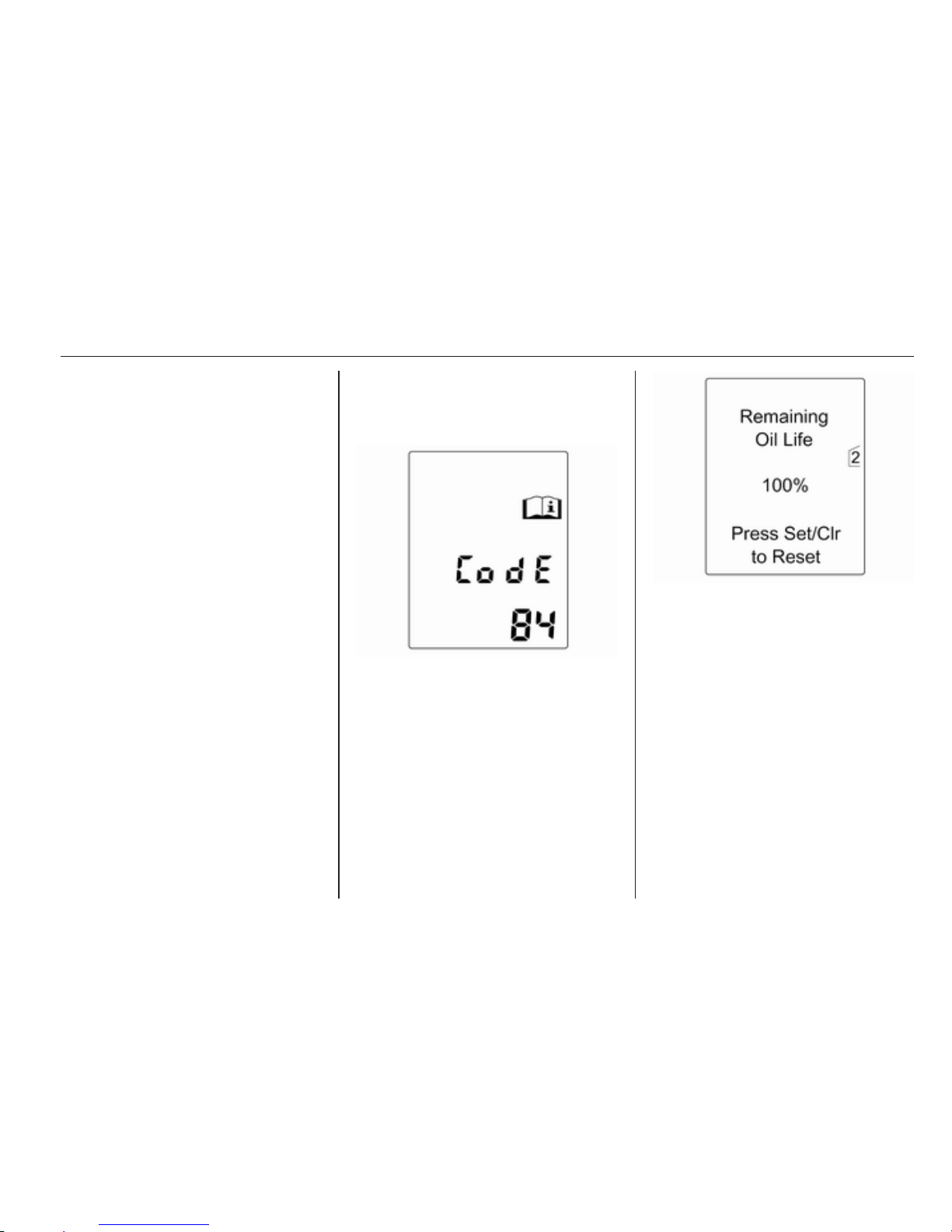

Turn the adjuster wheel to select
Remaining Oil Life.

The system must be reset every time
the engine oil is changed to allow
proper functionality. Seek the
assistance of a workshop.

Press the SET/CLR button to reset
while applying the brake pedal.
Thereby the ignition must be switched
on, with the engine not running.

When the system has calculated that
engine oil life has been diminished,
Change Engine Oil Soon or a warning
code appears in the Driver
Information Center. Have engine oil
and filter changed by a workshop
within one week or 500 km
(whichever occurs first).

Driver Information Center 3 99.
Service information 3 200.

Control indicators

The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control

indicators may vary. When the
ignition is switched on, most control
indicators will illuminate briefly as
a functionality test.

The control indicator colours mean:
red = danger, important

reminder
yellow = warning, information, fault
green = confirmation of activation
blue = confirmation of activation
white = confirmation of activation

92 Instruments and controls

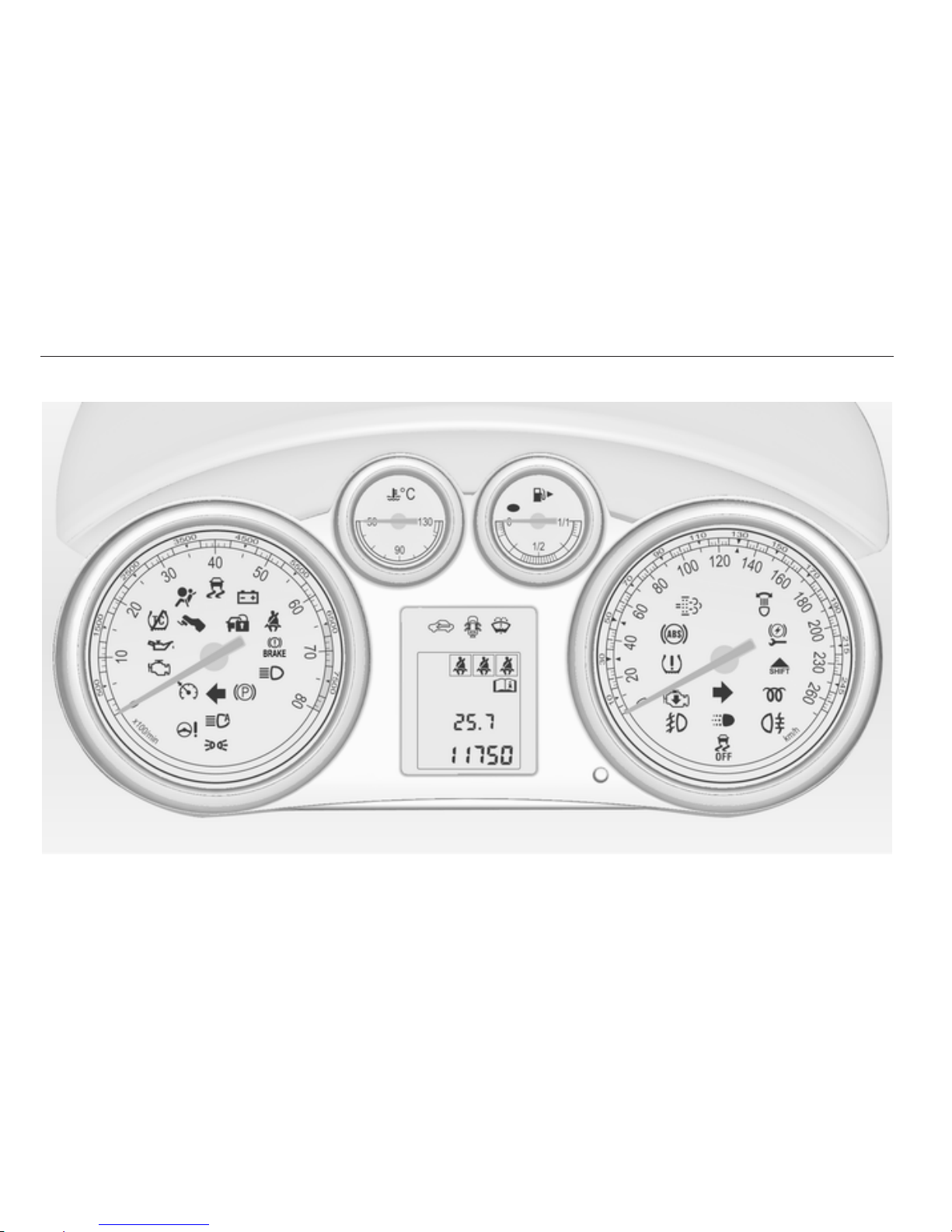

Control indicators in the instrument cluster

Instruments and controls 93

Control indicators in the centre
console

Turn signal

O illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn signal or the hazard warning
flashers are activated.

Rapid flashing: failure of a turn signal
light or associated fuse, failure of turn
signal light on trailer.

Bulb replacement 3 165, Fuses
3 174.

Turn signals 3 122.

Seat belt reminder

Seat belt reminder on front
seats

X for driver's seat illuminates or
flashes red.

k for front passenger seat illuminates
or flashes red, when seat is occupied.

Illuminates
After the ignition has been switched

on until the seat belt has been
fastened.

Flashes
After having started the engine for

a maximum of 100 seconds until the
seat belt has been fastened.

Seat belt status on rear seats

X flashes or illuminates.

Illuminates
After the ignition has been switched

on when the seat belt has been
fastened.

Flashes
After starting off when the seat belt is

unfastened.
Fastening the seat belt 3 41.

Airbag and belt tensioners

v illuminates red.
When the ignition is switched on, the

control indicator illuminates for
approx. 4 seconds. If it does not
illuminate, does not go out after
4 seconds or illuminates whilst
driving, there is a fault in the airbag
system. Seek the assistance of
a workshop. The airbags and belt
pretensioners may fail to trigger in the
event of an accident.

Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.

94 Instruments and controls

9 Warning

Have the cause of the fault
remedied immediately by
a workshop.

Belt pretensioners, airbag system
3 40, 3 43.

Airbag deactivation

V illuminates yellow.
The front passenger airbag is

activated.
* illuminates yellow.
The front passenger airbag is

deactivated 3 46.

9 Danger

Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.

Risk of fatal injury for an adult
person with deactivated front
passenger airbag.

Charging system

p illuminates red.
Illuminates when the ignition is

switched on and goes out shortly after
the engine starts.

Illuminates when the engine is
running

Stop, switch off engine. Battery is not
charging. Engine cooling may be
interrupted. The brake servo unit may
cease to be effective. Seek the
assistance of a workshop.

Malfunction indicator light

Z illuminates or flashes yellow.
Illuminates when the ignition is

switched on and goes out shortly after
the engine starts.

Illuminates when the engine is
running

Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of
a workshop immediately.

Flashes when the engine is
running

Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.

Service vehicle soon

g illuminates yellow.
Additionally a warning message or

a warning code is displayed.
The vehicle needs a service.
Seek the assistance of a workshop.
Vehicle messages 3 103.

Brake and clutch system

Brake and clutch fluid level

& illuminates red.
The brake and clutch fluid level is too

low 3 163.

Instruments and controls 95

9 Warning

Stop. Do not continue your
journey. Consult a workshop.

Operate pedal

- illuminates or flashes yellow.

Illuminates
Brake pedal needs to be operated to

release the electrical parking brake
3 143.

Flashes
Clutch pedal needs to be operated to

start the engine 3 135.

Electrical parking brake

m illuminates or flashes red.

Illuminates

Electrical parking brake is applied
3 143.

Flashes

Electrical parking brake is not fully
applied or released. Switch on
ignition, press foot brake pedal and
attempt to reset the system by first
releasing and then applying the
electrical parking brake. If m remains
flashing, do not drive and seek the
assistance of a workshop.

Electrical parking brake
fault

j illuminates or flashes yellow.

Illuminates

Electrical parking brake is operating
with degraded performance 3 143.

Flashes

Electrical parking brake is in service
mode. Stop vehicle, apply and
release the electrical parking brake to
reset.

9 Warning

Have the cause of the fault
remedied immediately by
a workshop.

Antilock brake system
(ABS)

u illuminates yellow.
Illuminates for a few seconds after the

ignition is switched on. The system is
ready for operation when the control
indicator goes out.

If the control indicator does not go out
after a few seconds, or if it illuminates
while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.

Antilock brake system 3 142.

Upshift

[ illuminates green.
Upshifting is recommended for fuel

saving.

96 Instruments and controls

Power steering

c illuminates yellow.

Illuminates with power steering
reduced

Power steering is reduced due to
overheating of the system. Control
indicator goes out when the system
has cooled down.

Illuminates with power steering
disabled

Failure in the power steering system.
Consult a workshop.

Lane departure warning

) illuminates green or yellow or
flashes yellow.

Illuminates green

System is switched on and ready to
operate.

Illuminates yellow

No lane marking is detected.

Flashes yellow

System recognizes an unintended
lane change.

Ultrasonic parking assist

r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or

covered by ice or snow
or
Interference due to external sources

of ultrasound. Once the source of
interference is removed, the system
will operate normally.

Have the cause of the fault in the
system remedied by a workshop.

Ultrasonic parking assist 3 149.

Electronic Stability Control
off

n illuminates yellow.
The system is deactivated.

Electronic Stability Control
and Traction Control
system

b illuminates or flashes yellow.

Illuminates

A fault in the system is present.
Continued driving is possible. Driving
stability, however, may deteriorate
depending on road surface
conditions.

Have the cause of the fault remedied
by a workshop.

Flashes

The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.

Electronic stability control 3 145,
Traction control system 3 145.

Traction Control system off

k illuminates yellow.
The system is deactivated.

Instruments and controls 97

Preheating

! illuminates yellow.
Preheating is activated. Only

activates when outside temperature
is low.

Diesel particle filter

% illuminates or flashes yellow.
The diesel particle filter requires

cleaning.
Continue driving until % goes off. If

possible do not allow engine speed to
drop below 2000 rpm.

Illuminates

The diesel particle filter is full. Start
cleaning process as soon as
possible.

Flashes

The maximum filling level of the filter
is reached. Start cleaning process
immediately to avoid damage to the
engine.

Diesel particle filter 3 137.

Tyre pressure monitoring
system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss. Stop immediately
and check tyre pressure.

Flashes

Fault in system or tyre without
pressure sensor mounted (e.g. spare
wheel). After 60-90 seconds the
control indicator illuminates
continuously. Consult a workshop.

Engine oil pressure

I illuminates red.
Illuminates when the ignition is

switched on and goes out shortly after
the engine starts.

Illuminates when the engine is
running

Caution

Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.

1. Depress clutch.

2. Select neutral gear, set selector
lever to N.

3. Move out of the flow of traffic as
quickly as possible without
impeding other vehicles.

4. Switch off ignition.

98 Instruments and controls

9 Warning

When the engine is off,
considerably more force is needed
to brake and steer.

Do not remove key until vehicle is
stationary, otherwise the steering
wheel lock could engage
unexpectedly.

Check oil level before seeking the
assistance of a workshop 3 161.

Low fuel

i illuminates yellow.
Level in fuel tank is too low.
Catalytic converter 3 138.
Bleeding the diesel fuel system

3 164.

Immobiliser

d flashes yellow.
Fault in the immobiliser system. The

engine cannot be started.

Reduced engine power

# illuminates yellow.
The engine power is limited. Consult

a workshop.

Exterior light

8 illuminates green.
The exterior lights are on 3 117.
l illuminates green.
The automatic light control is

switched on 3 118.

High beam

C illuminates blue.
Illuminated when high beam is on and

during headlight flash 3 118.

Adaptive forward lighting

f illuminates or flashes yellow.

Illuminates

Fault in system.
Seek the assistance of a workshop.

Flashes

System switched to symmetrical low
beam.

Control indicator f flashes for approx.
4 seconds after the ignition is
switched on as a reminder that the
system has been activated 3 119.

Automatic light control 3 118.

Daytime running light

@ illuminates green.
The daytime running light is on.

Fog light

> illuminates green.
The front fog lights are on 3 122.

Rear fog light

r illuminates yellow.
The rear fog light is on 3 122.

Low washer fluid

G illuminates yellow.
The washer fluid level is low.

Instruments and controls 99

Washer fluid 3 163.

Cruise control

m illuminates white or green.

Illuminates white

The system is on.

Illuminates green

A certain speed is stored.
Cruise control 3 148.

Door open

h illuminates red.
A door or the tailgate is open.

Information displays

Driver Information Center

The Driver Information Center (DIC)
is located in the instrument cluster
between speedometer and
tachometer. It is available as
Midlevel-Display or Uplevel-Display.

The following main menus,
depending on the vehicle
configuration, can be selected:

■ Vehicle Information Menu

■ Trip/Fuel Information Menu

Some of the displayed functions differ
between vehicle driving and standstill
and some functions are only active
when the vehicle is driving.

Vehicle personalisation 3 112.
Memorised settings 3 21.

100 Instruments and controls

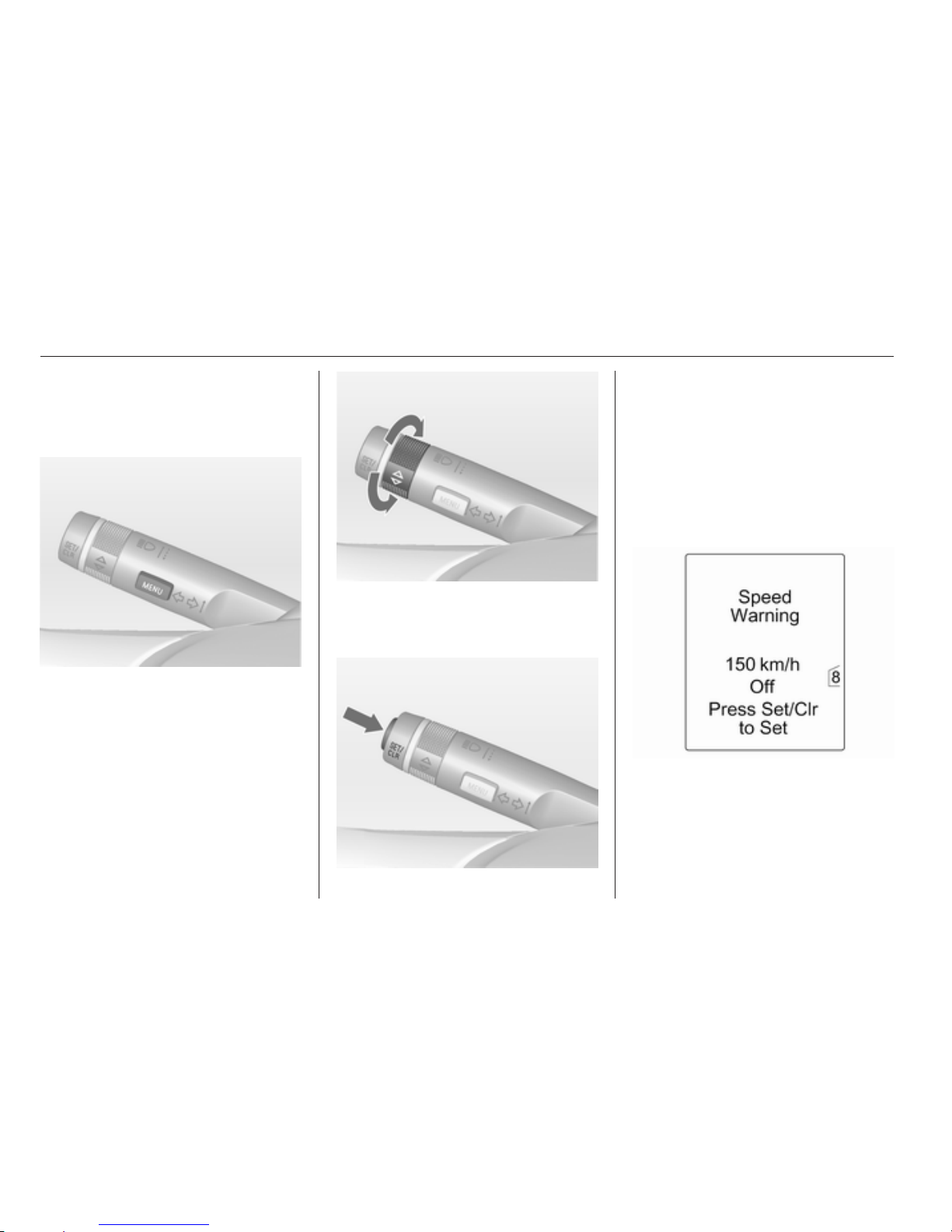

Selecting menus and functions

The menus and functions can be
selected via the buttons on the turn
signal lever.

Press the MENU button to switch
between the menus or to return from
a submenu to the next higher menu
level.

Turn the adjuster wheel to highlight
a menu option or to set a numeric
value.

Press the SET/CLR button to select
a function or to confirm a message.

Vehicle Information Menu

Press the MENU button to select the
Vehicle Information Menu.

Turn the adjuster wheel to select one
of the submenus. Press the SET/
CLR button to confirm.

Follow the instructions given in the
submenus.

Possible submenus:

■ Unit: Displayed units can be
changed

■ Tire Pressure: 3 182
